2BHVM-VS040Bluetooth speaker

尺寸：60*90mm 操作说明 VS040 2 4 1 3 A:按键顺序 1.开关键;2.暂停键;3.上一曲/音量+;4.下一曲/音量- 1.长按开关机，短按模式切换《BT-TF-FM》，双击切换灯光 2.短按播放暂停，来电模式下短按接听，长按拒接，通话 中短按挂断，双击回拨。蓝牙模式下长按进入和退出TWS， FM模式下长按自动搜台，短按静音。 3.短按音量减，长按上一曲 B:技术规范 C:特点 C: Features 1.Wireless connection 2.Supports BT, TF, FM, TWS, LED colorful light & call function 3.Bluetooth frequency: 2.402GHz ~ 2.480GHz 4.TF card decoding: MP3 format 5.IPX7 Grade Waterproof 3.Short press Volume Down; long press Previous Track 4.Short press Volume Up; long press Next Track 5.Red LED stays lit during charging and turns off once fully charged 6.3.5: Low-battery alert triggers at 3.3 V; device shuts down below 3.3 V and fails to power on. B: Technical Specification Model:VS040 BluetoothVersion:6.0 TransmissionDistance:10m BatteryCapacity:1200mAh PlaybackTime:3-4hours StandbyTime:20-30days ChargingTime:3-4hours This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help NOTE 2: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. Operation description VS040 2 4 1 3 A:Button Layout & Functions 1: Power 2: Play/Pause 3: Previous Track / Volume+ 4: Next Track / Volume- 1.Long press for power on/off; short press to switch modes (BT-TF-FM); double-tap to toggle lighting. 2.Short press to play/pause. Short press to answer incoming calls and long press to reject; short press to end ongoing calls, double tap to redial. Long press to activate or exit TWS under Bluetooth mode; long press for automatic channel search and short press to mute under FM mode. 4.短按音量加，长按下一曲 5.充电红灯常亮，充满红灯灭 6.3.5报低电3.3关机。低于3.3机器不能开机 型号:VS040 蓝牙版本:6.0 传输距离:10米 电池容量:1200毫安 播放时间:3-4小时 待机时间:20-30天 时充电时间:3-4小时 1.无线连接 2.支持BT-TF-FM-TWS-炫彩灯-通话 3.蓝牙频率:2.402GHz至2.480GHz 4.TF解码:MP3格式 5.IP防水7级 本设备符合美国联邦通信委员会（FCC）规则第 15 部分的规 定。设备运行需满足以下两个条件： (1) 本设备不得产生有害干扰； (2) 本设备必须接受接收到的任何干扰， 包括可能导致设备意外运行的干扰。 注 1： 本设备已经过测试，符合 FCC 规则第 15 部分对 B 类数字设备的限制要求。这些限制旨在为住宅安装环境提供 合理的保护，防止有害干扰。本设备会产生、使用并可能辐 射射频能量，如果未按照说明进行安装和使用，可能会对无 线电通信造成有害干扰。但我们无法保证在特定安装环境中 不会发生干扰。如果本设备确实对无线电或电视接收造成了 有害干扰（可通过关闭再打开设备来确认），建议用户尝试 通过以下一种或多种方式消除干扰： -调整接收天线的方向或位置。 -增大设备与接收器之间的距离。 -将设备连接到与接收器不同的电路插座上。 -咨询经销商或有经验的无线电 / 电视技术人员寻求帮助。 注 2： 未经合规责任方明确批准，对本设备进行任何更改 或修改，可能会导致用户失去操作本设备的权限。 本设备已通过评估，符合通用射频暴露要求。设备可在无限 制的便携式暴露条件下使用。 FCC 警告 FCC Warning

Rev 6/05/2026 Dongguan VJBY Electronic Co.,Ltd Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 06-29-2026 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: 2BHVM-VS040 [Dongguan VJBY Electronic Co.,Ltd] certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. [Dongguan VJBY Electronic Co.,Ltd] certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Device is inherently compliant based on hardware limitations or software controls. or A Software Bill of Materials (SBOM) is provided to the TCB for review, and The end-user or third parties cannot install additional software on this device. Sincerely, (Applicant signature) (Applicant printed name) Angela Wang Rev 6/05/2026 Dongguan VJBY Electronic Co.,Ltd Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 06-29-2026 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: 2BHVM-VS040 [Dongguan VJBY Electronic Co.,Ltd] certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Angela Wang

Dongguan VJBY Electronic Co.,Ltd U.S. Agent Letter of Attestation To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date: June 29, 2026 Ref: Attestation Statement – Part 2.911(d)(7) filing FCC ID: 2BHVM-VS040 Dongguan VJBY Electronic Co.,Ltd (“the applicant”) certifies that, as of the date of the filing of the application, CLF Import and Export Limited (“the agent”) is our designated U.S. agent for service of process for the above reference FCC ID. The applicant accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges it is our responsibility to inform the FCC whenever the agent information changes. CLF Import and Export Limited ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: CLF Import and Export Limited FRN: 0033489683 Address: 1312 17th Street #692, Denver, CO 80202, United States Signature: Contact Person: David Chen Tel: +1 949 254 2565 Email: [email protected] Applicant Company Name: Dongguan VJBY Electronic Co.,Ltd FRN: 0035728658 Address: No.36, 3rd Road, Beian, Huangjiang Town, Dongguan City, Guangdong Province, China Signature: Contact Person: Angela Wang Tel: 13423459956 Email: [email protected]

Dongguan VJBY Electronic Co.,Ltd Date: June 29, 2026 Product Model Number: VS040 FCC ID: 2BHVM-VS040 To whom it may concern, Re: Product Certification Representative Authorization Letter We authorize QAI Laboratories Ltd. 3980 North Fraser Way, Burnaby B.C. Canada V5J 5K5 to act on our behalf on all matters concerning the above named equipment. This shall include the following:  Testing  Approval applications and procedures We declare that QAI Laboratories Ltd. is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by QAI Laboratories Ltd. on our behalf shall have the same effect as acts of our own. By: Angela Wang Contact Listed on FCC Wesbite Title: Manager Email: [email protected] Telephone: 13423459956 On behalf of: Dongguan VJBY Electronic Co.,Ltd

Dongguan VJBY Electronic Co.,Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: June 29, 2026 Subject; Request for Confidentiality FCC ID: 2BHVM-VS040 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software Security Requirements for UNII devices It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Angela Wang Title: Manager

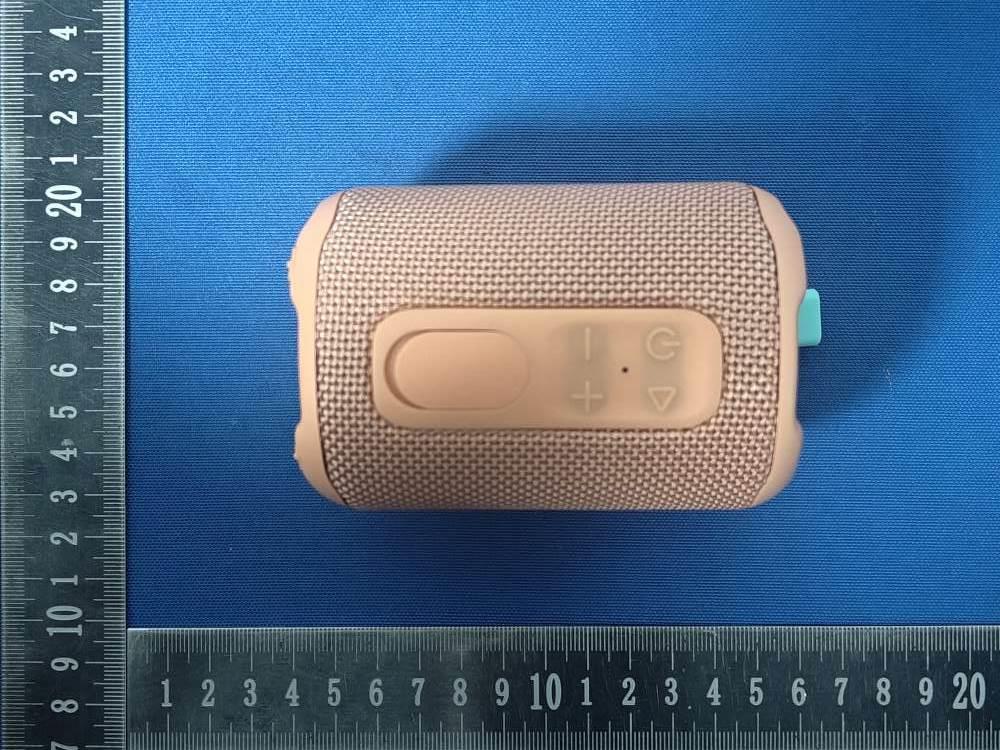

Report No: SSP26060295-1E FCC ID: 2BHVM-VS040 Annex of Test Report Annex A. EUT External Photos Model: VS040 EUT View 1 EUT View 2 Report No: SSP26060295-1E FCC ID: 2BHVM-VS040 Annex of Test Report EUT View 3 EUT View 4 Report No: SSP26060295-1E FCC ID: 2BHVM-VS040 Annex of Test Report EUT View 5 EUT View 6 Report No: SSP26060295-1E FCC ID: 2BHVM-VS040 Annex of Test Report EUT View 7

Report No: SSP26060295-1E FCC ID: 2BHVM-VS040 Annex of Test Report Annex D. Label and Inf ormation FCC Label Sample FCC Labe Size: 20mm *6mm FCC Label Specifications Text is Black in color and is justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Where the EUT is constructed in two or more sections connected by wires and marketed together, the above statement is required to be affixed only to the main control unit. When the EUT is so small or for such use that it is not practicable to place the statement on it, the above information shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. FCC Label Location Label Location

Report No: SSP26060295-1E FCC ID: 2BHVM-VS040 Annex of Test Report Annex B. EUT Internal Photos Model: VS040 EUT Internal View 1 EUT Internal View 2 PCB ANT Report No: SSP26060295-1E FCC ID: 2BHVM-VS040 Annex of Test Report EUT Internal View 3 EUT Internal View 4 Report No: SSP26060295-1E FCC ID: 2BHVM-VS040 Annex of Test Report EUT Internal View5 EUT Internal View 6 Report No: SSP26060295-1E FCC ID: 2BHVM-VS040 Annex of Test Report EUT Internal View 7 EUT Internal View 8

FCC ID: 2BHVM-VS040 RF Exposure Evaluation According to KDB 447498 D01 General RF Exposure Guidance v06 and part 2.1093，Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Here, The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. For BR+EDR Max Conducted Power(dBm) Tune-up Power(dBm) Max Tune-up Power(dBm) Max Power(mW) Frequency(MHz) Min. distance(mm) Calc. thresholds limit 0.53 0(±1) 1 1.26 2480 5 0.39685 3.0 So a SAR test is not required

Report No: SSP26060295-1E FCC Test Report Page 1 of 51 FCC TEST REPORT FCC ID: 2BHVM-VS040 Report No. : SSP26060295-1E Applicant : Dongguan VJBY Electronic Co.,Ltd Product Name : Bluetooth speaker Model Name : VS040 Test Standard : FCC Part 15.247 Date of Issue : 2026-06-23 Shenzhen CCUT Quality Technology Co., Ltd. 1F, Building 35, Changxing Technology Industrial Park, Yutang Street, Guangming District, Shenzhen, Guangdong, China; (Tel.:+86-755-23406590 website: www.ccuttest.com) This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd. Report No: SSP26060295-1E FCC Test Report Page 2 of 51 Test Report Basic Information Applicant..................................: Dongguan VJBY Electronic Co.,Ltd Address of Applicant...............: No.36, 3rd Road, Beian, Huangjiang Town, Dongguan City, Guangdong Province, China Manufacturer..........................: Dongguan VJBY Electronic Co.,Ltd Address of Manufacturer........: No.36, 3rd Road, Beian, Huangjiang Town, Dongguan City, Guangdong Province, China Product Name.........................: Bluetooth speaker Brand Name.............................: - Main Model..............................: VS040 Series Models..........................: - Test Standard..........................: FCC Part 15 Subpart C ANSI C63.4-2014 ANSI C63.10-2020 + Cor.1-2023 Date of Test .............................: 2026-06-11 to 2026-06-18 Test Result...............................: PASS Tested By ................................: (Walker Wu) Reviewed By............................: (Lorzix Luo) Authorized Signatory............: (Lahm Peng) Note : This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd.. All test data presented in this test report is only applicable to presented test sample. Report No: SSP26060295-1E FCC Test Report Page 3 of 51 CONTENTS 1. General Information ....................................................................................................................................................5 1.1 Product Information .............................................................................................................................................5 1.2 Test Setup Information..........................................................................................................................................6 1.3 Compliance Standards ...........................................................................................................................................7 1.4 Test Facilities ........................................................................................................................................................7 1.5 List of Measurement Instruments ..........................................................................................................................8 1.6 Measurement Uncertainty .....................................................................................................................................9 2. Summary of Test Results ........................................................................................................................................... 10 3. Antenna Requirement ............................................................................................................................................... 11 3.1 Standard and Limit.............................................................................................................................................. 11 3.2 Test Result .......................................................................................................................................................... 11 4. Conducted Emissions ................................................................................................................................................ 12 4.1 Standard and Limit.............................................................................................................................................. 12 4.2 Test Procedure.................................................................................................................................................... 12 4.3 Test Data and Results .......................................................................................................................................... 13 5. Radiated Emissions ................................................................................................................................................... 16 5.1 Standard and Limit.............................................................................................................................................. 16 5.2 Test Procedure.................................................................................................................................................... 16 5.3 Test Data and Results .......................................................................................................................................... 18 6. Band-edge Emissions(Radiated) ............................................................................................................................... 22 6.1 Standard and Limit.............................................................................................................................................. 22 6.2 Test Procedure.................................................................................................................................................... 22 6.3 Test Data and Results .......................................................................................................................................... 22 7. Frequency Hopping System ..............................................…

Text truncated - open the document above for the full version.

Inverted F Antenna Specification Summary ITEMANT SPEC Model Name 2.4G ANT HorizontalVertical 2400MHz 2450MHz 2500MHz2400MHz 2450MHz 2500MHz Center Frequency -1.73-0.84-0.68-6.15-3.70-2.32 MAX. Gain -0.68dBi PolarizationHorizontal and Vertical Onboard serpentine line F antenna Omni-directional Impedance50 Ohm Antenna Length 8 .3mm *2.5mm Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) Address: Shenzhen Baoan District Songgang Street Jiangbian Community Industrial Sixth Road No. 4 Chongzheng Electronics Co., Ltd. Plant 4 201 Phone:85275401 Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain (dB) Frequency (MHz) MaxMinAvg 2400-1.73178-30.0815-8.48713 2450-0.845801-38.5605-7.88012 2500-0.685586-24.0318-6.79139 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain (dB) Frequency (MHz) MaxMinAvg 2400-6.1530-24.1420-13.0295 2450-3.7054-26.5836-10.6700 2500-2.32122-30.4301-9.70536 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

Report No: SSP26060295-1E FCC ID: 2BHVM-VS040 Annex of Test Report Annex C. Test Photos Conducted Emission Test View 1 Radiated Emission Test View Below 1GHz Report No: SSP26060295-1E FCC ID: 2BHVM-VS040 Annex of Test Report Radiated Emission Test View Above 1GHz
