2BHXF-TM001Wireless Speaker

Bone Conduction Speaker 1.
Short-press
the
Power
key
to
switch
from
Bluetooth
mode
to
FM
mode 2.Long-press
the
Function
key
to
search
FM
channels
automatically. 3.
After
searching
finished,
triple
click
the
Function
key
to
switch
radio
station. 4.FM
Volume
control:
single
click
go
down,
double
click
go
up,
triple
click-switch
to
next
stored
station. Operation
instruction:
(*Suggost
to
use
FM
functlon
ourdoors,
plug
in
USB
cable
as
well.) Double
Speaker
Stereo
Operation(TWS): 1.Long-press
the
power
key
until
you
hear
the
voice
indicate
"Power
on." 2.
Turn
on
your
phone's
Bluetooth,
search
for
"HumBird
Speakor"
and
palr. 3.
Once
connected,
place
HumBird
Speaker
on
surface
of
any
hollow
object
to
play. Single
Speaker
Operation: Turn
on
both
speakers
in
same
time,3-5
seconds,
the
speakers
can
paired
each
other
automatically. FM
Function: Charging: The
charging
cable
can
be
used
with
regular
USB
5V
charger,
Car
USB
charger
... but
it
is
not
compatible
with
fast
charger,
especially
with
9V
12V
and
other
chargers
whose
output
voltage
is
higher
than
5
Voltage.

LED
indicator: When
charging,
the
red
LED
will
be
lighted,
Once
charged,
the
red
LED
will
be
off. When
Bluetooth
mode
turned
on,
and
the
LED
blue
light
will
blink.
Once
paired/connected, the
blue
light
will
be
always
on. Tips Bofore
starting peal
off
the
protect
film
of
the
stick
pad which
on
the
bottom
of
speaker.
then
place
the
speaker
onto
the
surface
of
any
hollow
subjects. Using
nall
/
pin
lo
assist lanyard
through
the
hole *Any
querles,please
contact
us:[email protected] User

Manual 1.After
several
trial,
sticky
pad
will
be
not
sticky
enough,
you
can
clean
the
dust with
wet




cloth,
then
it
can
back
to
well
sticky.
Double
side
tape
will
be
useful
also. 2.
lf
you
play
music
at
maximum
volume,
the
speaker
itself
will
get
hot
, which
is
normal.

When
the
volume
is
lowered
little,
the
speaker
will
return
to
normal
temperature. Note: FCC Warning: This
device
complies
with
part
15
of
the
FCC
Rules.
Operation
is
subject
to
the
following
two
conditions:
(1)This
device
may
not
cause
harmful
interference,
and(2)this
device
must
accept
any
interference
received,
including
interference
that
may
cause
undesired
operation.
Any Changes
or
modifications
not
expressly
approved
by
the
party
responsible
for
compliance
could
void
the
user's
authority
to
operate
the
equipment.
This
equipment
has
been
tested
and
found
to
comply
with
the
limits
for
a
Class
B
digital
device,
pursuant
to
part
15
of
the
FCC
Rules.
These
limits
are
designed
to
provide
reasonable
protection
against
harmful
interference
in
a
residential
installation.
This
equipment
generates
uses
and
can
radiate
radio
frequency
energy
and,
if
not
installed
and
used
in
accordance
with
the
instructions,
may
cause
harmful
interference
to
radio
communications.
However,
there
is
no
guarantee
that
interference
will
not
occur
in
a
particular
installation.
lf
this
equipment
does
cause
harmful
interference
to
radio
or
television
reception,
which
can
be
determined
by
turning
the
equipment
off
and
on,
the
user
is
encouraged
to
try
to
correct
the
interference
by
one
or
more
of
the
following
measures: -Reorient
or
relocate
the
receiving
antenna.

-Increase
the
separation
between
the
equipment
and
receiver. -Connect
the
equipment
into
an
outlet
on
a
circuit
different

from
that
to
which
the
receiver

is
connected. -Consult
the
dealer
or
an
experienced
radio / TV technician
for help. 5.0 1. Lanyard whole 2.Function Key 3.Mic 4.LED Indicator 5.Type c port 6.Power/Mode(Bluetooth/FM) 7.Bone Conduction Speaker Short press:VOL-/ Short press:About 2 seconds: Disconnect Bluetooth Indicator light: The blue light remains on when turned on (connected), Flashing red and blue alternately (unpaired state) The shutdown light is off; The charging status red light flashes (if the device is turned on and in playback mode, the red light will also light up separately) The red light will turn off when fully charged (if in the startup playback state, the blue light will resume working). Charging port(TypeC):5V1~2A Hanging rope hole 短按:音量加 / 长按:约2秒:开、关机 短按:音量减 / 长按:约2秒:断开蓝牙 指示灯:开机蓝灯长亮(已连接)， 红蓝交替闪(未配对状态) 关机灯灭; 充电状态红灯闪(如开机处于播放状态也是单独红灯亮) 充满红灯灭(如处于开机播放状态蓝灯恢复工作状态)。 充电口(TypeC):5V1~2A 挂绳孔 Short press:VOL+ Short press:About 2 seconds: ON/OFF This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. Radiation Exposure Statement The device has been evaluated to meet general RF exposure requirement in portable exposure condition without restriction.

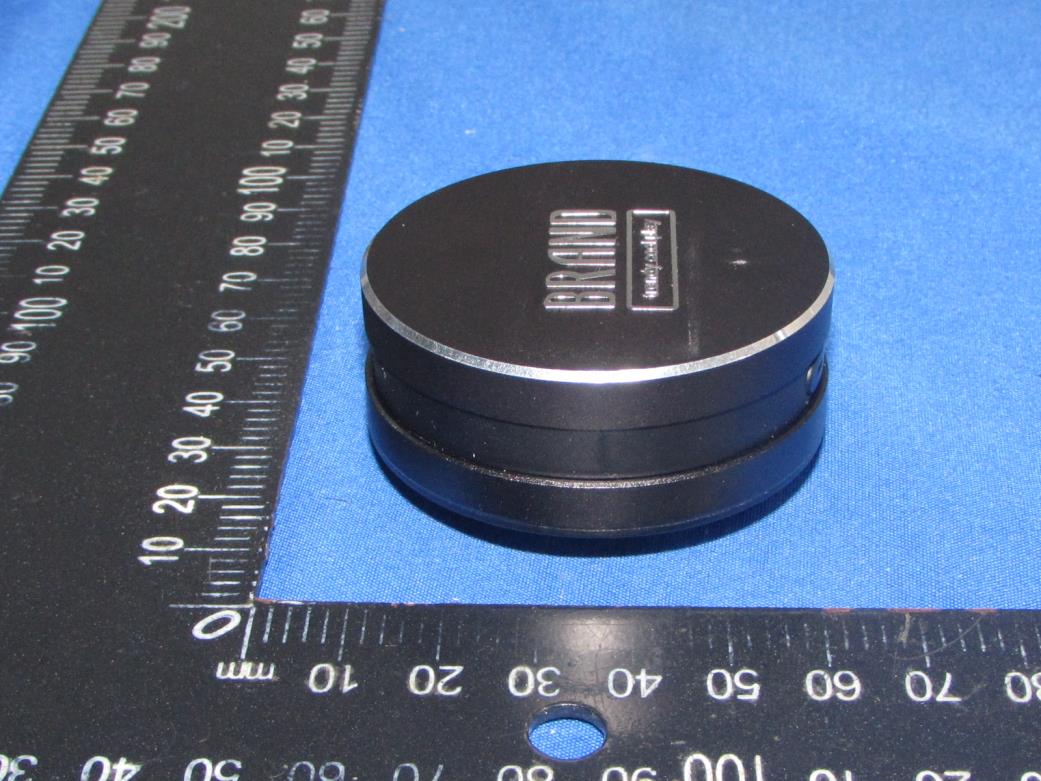

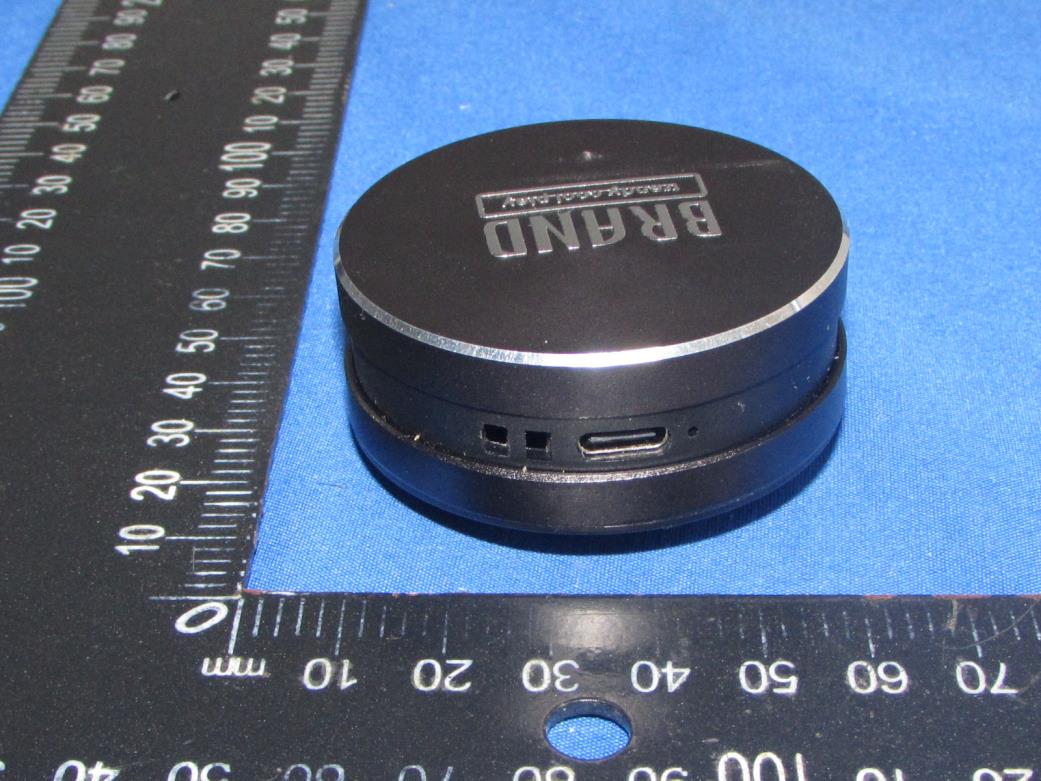

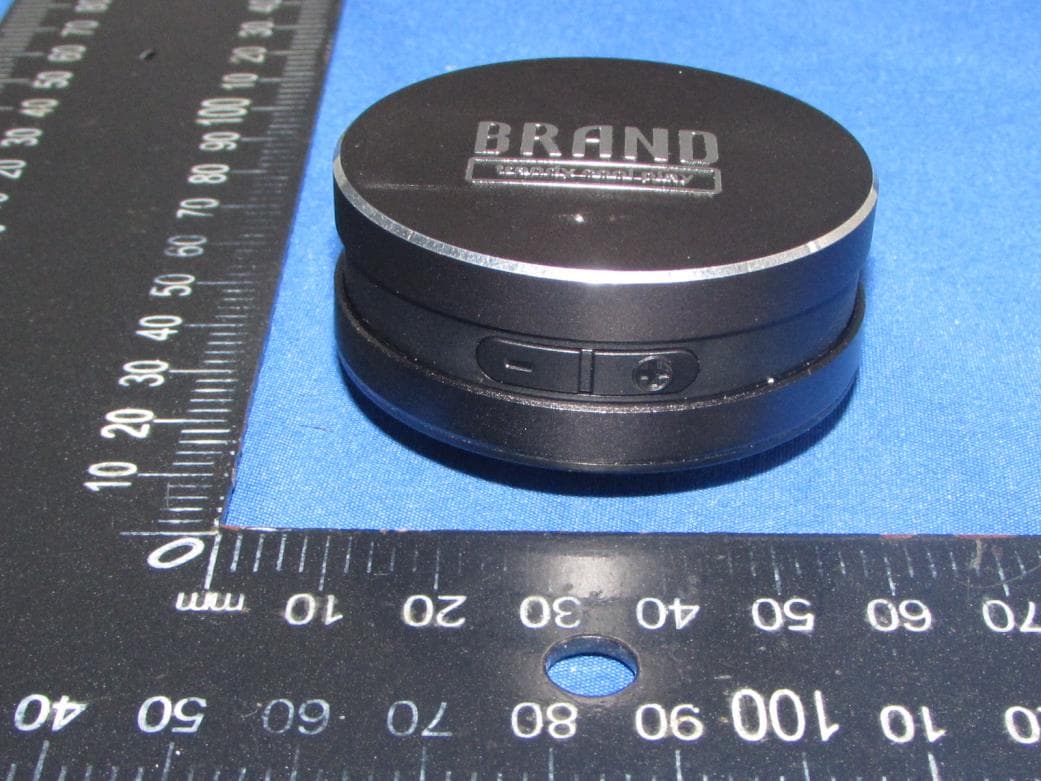

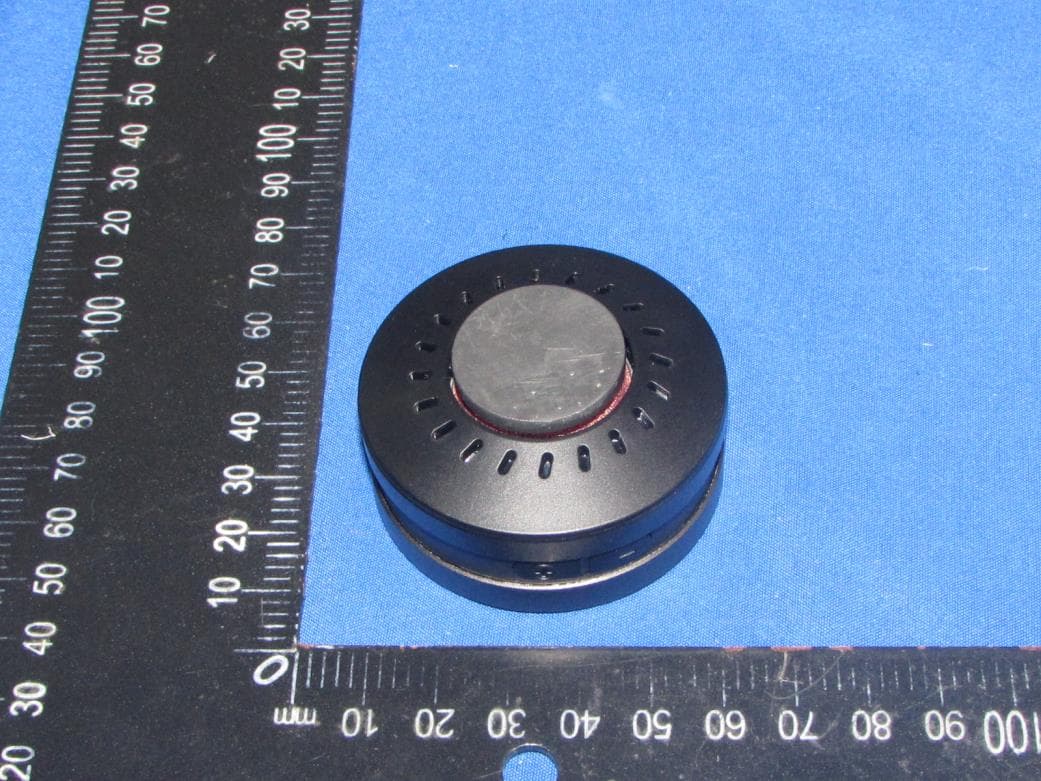

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHXF-TM001 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 4 EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHXF-TM001 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 4 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHXF-TM001 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 4 Fig.5 Fig.6 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHXF-TM001 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 4 Fig.7

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHXF-TM001 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 3 INTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHXF-TM001 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 3 Fig.3 Fig.4 Bluetooth Antenna Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHXF-TM001 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 3 Fig.5 Fig.6

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHXF-TM001 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 3 RADIO FREQUENCY EXPOSURE Limit According to section B.4 of 447498 D04 Interim General RF Exposure Guidance v01 SAR-based thresholds are derived based on frequency, power, and separation distance of the RF source. The formula defines the thresholds in general for either available maximum time-averaged power or maximum time-averaged ERP, whichever is greater. If the ERP of a device is not easily determined, such as for a portable device with a small form factor, the applicant may use the available maximum time-averaged power exclusively if the device antenna or radiating structure does not exceed an electrical length of λ/4. As for devices with antennas of length greater than λ/4 where the gain is not well defined, but always less than that of a half-wave dipole (length λ/2), the available maximum time-averaged power generated by the device may be used in place of the maximum time-averaged ERP, where that value is not known. The separation distance is the smallest distance from any part of the antenna or radiating structure for all persons, during operation at the applicable ERP. In the case of mobile or portable devices, the separation distance is from the outer housing of the device where it is closest to the antenna. The SAR-based exemption formula of § 1.1307(b)(3)(i)(B), repeated here as Formula (B.2), applies for single fixed, mobile, and portable RF sources with available maximum time-averaged power or effective radiated power (ERP), whichever is greater, of less than or equal to the threshold Pth (mW). This method shall only be used at separation distances from 0.5 cm to 40 cm and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by Formula (B.2). Where and f is in GHz, d is the separation distance (cm), and ERP 20cm is per Formula (B.1). Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHXF-TM001 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 3 The example values shown in Table B.2 are for illustration only. Frequency (MHz) Distance (mm) 5 10 15 20 25 30 35 40 45 50 300 39 65 88 110 129 148 166 184 201 217 450 22 44 67 89 112 135 158 180 203 226 835 9 25 44 66 90 116 145 175 207 240 1900 3 12 26 44 66 92 122 157 195 236 2450 3 10 22 38 59 83 111 143 179 219 3600 2 8 18 32 49 71 96 125 158 195 5800 1 6 14 25 40 58 80 106 136 169 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHXF-TM001 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 3 Conducted Power Results Test Mode Antenna Frequency[MHz] Result[dBm] DH5 Ant1 2402 -0.75 DH5 Ant1 2441 -1.10 DH5 Ant1 2480 -1.77 2DH5 Ant1 2402 -0.07 2DH5 Ant1 2441 -0.44 2DH5 Ant1 2480 -1.13 Manufacturing tolerance GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -1.0 -1.5 -2.5 Tolerance ±(dB) 1 1 1 π/4-DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -0.5 -1 -1.5 Tolerance ±(dB) 1 1 1 Results Test Mode Max Conducted Tune Up Power(dBm) Max of ERP and Conducted Power including Tune Up (dBm) Max of ERP and Conducted Power including Tune Up (mW) Exemption Limit(mW) GFSK 0 0.6 1.14 3 π/4-DQPSK 0.5 1.1 1.27 3 Max of ERP and Conducted Power including Tune Up (dBm) = Max Conducted Tune Up Power(dBm) and Max Conducted Tune Up Power(dBm) + Antenna Gain(dBi)-2.15), whichever is greater. The antenna gain of the EUT for BT is 2.7dBi (Max). the Maximum Eirp is used for Routine Evaluation Exemption according to B.4 of 447498 D04 Interim General RF Exposure Guidance v01. So, the SAR evaluation is not required.

CUSTOMER: SPECIFICATION FOR APPROVED PRODUCTS: PCB Antenna PART NO: Spec.: Data: 2024.08.13 SUPPLIER PREPARED BY CHECKED BY APPROVED BY CUSTOMER ACCEPTED BY CHECKED BY APPROVED BY REMARK:Please send us one(or copy)of this approval with stamp after accepting,other copies filed by the customer. Tel: 18820170917 Fax: 0755-26976277 ShenZhen City Flink Wi Technology CO.,LTD. ADDRESS： 606 Huachuangda Business Building, Yu'an 1st Road, Bao'an 45 District, Shenzhen !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! ! F-S008-F5 - 1 - ! Antenna plate PCB Antenna Model name Antenna gain 1.36dBi Manufacturers Guangzhou CHS Electronic Technology Co.,Ltd Frequency range 2.4GHZ-2.5GHZ Trademark CHS 1 .antenna dimension（mm） c, antenna direction !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! ! F-S008-F5 - 2 - ! 2，antenna specification Bluetooth mechanical specifiction 2400-2500MHZ Electrical specifications Frequency range （ MHz ） 2400- 2500 Gain （ dBi ） 1.36 dBi Impedance ( Ω ) 50 VSWR ≤ 2.0 （ Center frequency ） Mechanical specifications Operation Temperature ( °C ) - 40 ̊ C ~ +85 ̊C Humidity (%) 5~95 !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! ! F-S008-F5 - 3 - ! 3.Gain 4.INSERTION LOSS/RETURN LOSS/VSWR !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! ! F-S008-F5 - 4 - ! 5.3D Pattern 2400MHZ 2440MHZ !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! ! F-S008-F5 - 5 - ! 2480MHZ

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHXF-TM001 Report No.: TZ240706192-BT Page 1 of 35 Appendix Test Data for BT(BDR/EDR) (Conducted Measurement) Product Name: Wireless Speaker Trade Mark: N/A Test Model: TM001 FCC ID: 2BHXF-TM001 Environmental Conditions Temperature: 23.8°C Relative Humidity: 58% ATM Pressure: 100.0 kPa Test Engineer: Allen Lai Supervised by: Hugo Chen NOTE N/A Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Frequency[MHz] 20db EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 1.032 2401.337 2402.369 --- --- DH5 Ant1 2441 1.035 2440.331 2441.366 --- --- DH5 Ant1 2480 1.044 2479.322 2480.366 --- --- 2DH5 Ant1 2402 1.347 2401.181 2402.528 --- --- 2DH5 Ant1 2441 1.332 2440.187 2441.519 --- --- 2DH5 Ant1 2480 1.332 2479.181 2480.513 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHXF-TM001 Report No.: TZ240706192-BT Page 2 of 35 Test Graphs DH5-Ant1-2402 DH5-Ant1-2441 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHXF-TM001 Report No.: TZ240706192-BT Page 3 of 35 DH5-Ant1-2480 2DH5-Ant1-2402 2DH5-Ant1-2441 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHXF-TM001 Report No.: TZ240706192-BT Page 4 of 35 2DH5-Ant1-2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHXF-TM001 Report No.: TZ240706192-BT Page 5 of 35 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.94731 2401.3730 2402.3203 --- --- DH5 Ant1 2441 0.95820 2440.3669 2441.3251 --- --- DH5 Ant1 2480 0.95068 2479.3668 2480.3174 --- --- 2DH5 Ant1 2402 1.2105 2401.2570 2402.4675 --- --- 2DH5 Ant1 2441 1.2332 2440.2402 2441.4734 --- --- 2DH5 Ant1 2480 1.2210 2479.2474 2480.4684 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHXF-TM001 Report No.: TZ240706192-BT Page 6 of 35 Test Graphs DH5-Ant1-2402 DH5-Ant1-2441 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHXF-TM001 Report No.: TZ240706192-BT Page 7 of 35 DH5-Ant1-2480 2DH5-Ant1-2402 2DH5-Ant1-2441 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHXF-TM001 Report No.: TZ240706192-BT Page 8 of 35 2DH5-Ant1-2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHXF-TM001 Report No.: TZ240706192-BT Page 9 of 35 Appendix C: Maximum peak conducted output power Test Result Test Mode Antenna Frequency[MHz] Conducted Peak Power[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 -0.75 ≤20.97 PASS DH5 Ant1 2441 -1.10 ≤20.97 PASS DH5 Ant1 2480 -1.77 ≤20.97 PASS 2DH5 Ant1 2402 -0.07 ≤20.97 PASS 2DH5 Ant1 2441 -0.44 ≤20.97 PASS 2DH5 Ant1 2480 -1.13 ≤20.97 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHXF-TM001 Report No.: TZ240706192-BT Page 10 of 35 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2441-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHXF-TM001 Report No.: TZ240706192-BT Page 11 of 35 DH5-Ant1-2480-PASS 2DH5-Ant1-2402-PASS 2DH5-Ant1-2441-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHXF-TM001 Report No.: TZ240706192-BT Page 12 of 35 2DH5-Ant1-2480-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHXF-TM001 Report No.: TZ240706192-BT Page 13 of 35 Appendix D: Carrier frequency separation Test Result TestMode Antenna Frequency[MHz] Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 0.732 ≥0.696 PASS 2DH5 Ant1 Hop 1.124 ≥0.898 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHXF-TM001 Report No.: TZ240706192-BT Page 14 of 35 Test Graphs DH5-Ant1-Hop-PASS 2DH5-Ant1-Hop-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHXF-TM001 Report No.: TZ240706192-BT Page 15 of 35 Appendix E: Time of occupancy Test Result TestMode Antenna Frequency[MHz] BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH5 Ant1 Hop 2.879 120 0.345 ≤0.4 PASS 2DH5 Ant1 Hop 2.884 120 0.346 ≤0.4 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHXF-TM001 Report No.: TZ240706192-BT Page 16 of 35 Test Graphs DH5-Ant1-Hop-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHXF-TM001 Report No.: TZ240706192-BT Page 17 of 35 2DH5-Ant1-Hop-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHXF-TM001 Report No.: TZ240706192-BT Page 18 of 35 Appendix F: Number of hopping channels Test Result TestMode Antenna Frequency[MHz] Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHXF-TM001 Report No.: TZ240706192-BT Page 19 of 35 Test Graphs DH5-Ant1-Hop-PASS 2DH5-Ant1-Hop-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHXF-TM001 Report No.: TZ240706192-BT Page 20 of 35 Appendix G: Band edge measurements Test Result TestMode Antenna ChName Frequency[MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 -1.26 -46.07 ≤-21.26 PASS DH5 Ant1 High 2480 -2.27 -47.55 ≤-22.27 PASS DH5 Ant1 Low Hop_2402 -1.71 -47.38 ≤-21.71 PASS DH5 Ant1 High Hop_2480 -2.42 -46.9 ≤-22.42 PASS 2DH5 Ant1 Low 2402 -1.29 -47.92 ≤-21.29 PASS 2DH5 Ant1 High 2480 -2.35 -48.87 ≤-22.35 PASS 2DH5 Ant1 Low Hop_2402 -5.40 -48.38 ≤-25.4 PASS 2DH5 Ant1 High Hop_2480 -5.64 -48.52 ≤-25.64 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHXF-TM001 Report No.: TZ240706192-BT Page 21 of 35 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2480-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHXF-TM001 Report No.: TZ240706192-BT Page 22 of 35 DH5-Ant1-Hop_2402-PASS DH5-Ant1-Hop_2480-PASS 2DH5-Ant1-2402-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHXF-TM001 Report No.: TZ240706192-BT Page 23 of 35 2DH5-Ant1-2480-PASS 2DH5-Ant1-Hop_2402-PASS 2DH5-Ant1-Hop_2480-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BHXF-TM001 Report No.: TZ240706192-BT Page 24 of 35 Appendix H: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 0~Reference -1.79 -1.79 --- PASS DH5 Ant1 2402 30~1000 -1.79 -48.66 ≤-21.79 PASS DH5 Ant1 2402 1000~26500 -1.79 -40.59 ≤-21.79 PASS DH5 Ant1 2441 0~Reference -2.28 -2.28 --- PASS DH5 Ant1 2441 30~1000 -2.28 -47.11 ≤-22.28 PASS DH5 Ant1 2441 1000~26500 -2.28 -37.9 ≤-22.28 PASS DH5 Ant1 2480 0~Reference -2.68 -2.68 --- PASS DH5 Ant1 2480 30~1000 -2.68 -48.63 ≤-22.68 PASS…
