2BK22-S1Wi-Fi camera

FCCWarning Thisdevicecomplieswithpart15oftheFCCrules.Operationissubjecttothefollowingtwo conditions:(1)thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustaccept anyinterferencereceived,includinginterferencethatmaycauseundesiredoperation. Changesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecould voidtheuser'sauthoritytooperatetheequipment. NOTE:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigital device,pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonable protectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates usesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththe instructions,maycauseharmfulinterferencetoradiocommunications.However,thereisno guaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoes causeharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturning theequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneor moreofthefollowingmeasures: -Reorientorrelocatethereceivingantenna. •Increasetheseparationbetweentheequipmentandreceiver. •Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris connected. •Consultthedealeroranexperiencedradio/TVtechnicianforhelp. RadiationExposureStatement ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforanuncontrolled environment.Thisequipmentshouldbeinstalledandoperatedwithminimumdistance20cm betweentheradiatorandyourbody. SHENZHENMOREJOYINNOVATIONTECHNOLOGYCO.,LTD 1907A6K,InternationalCultureBuilding,No.3039,ShennanMiddleRoad,FunanCommunity, FutianStreet,FutianDistrict,Shenzhen

Covered Equipment Attestation Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(i)-(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name 22BK22-S1 S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, MW1, MW2, MW3, MW4, MW5, MW6, MW7, MW8, MW9, MW10 We, Applicant Company Name: Dongguan San Tou Niu Intelligent Technology Co., Ltd. Address: Room 601, Building 3, No.53, Tanghuancun Road, Fenggang Town, Dongguan City, Guangdong Province, China Phone: +86-13923869967 certify that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. This includes the cybersecurity and anti-virus software produced or provided by Kaspersky Lab, Inc.. We certify that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. If you have any questions, please feel free to contact us at the address shown below. Sincerely, 2024-09-12 Signature Date Name / Title: Zhitao Wang / Manager Company: Dongguan San Tou Niu Intelligent Technology Co., Ltd. Address: Room 601, Building 3, No.53, Tanghuancun Road, Fenggang Town, Dongguan City, Guangdong Province, China Phone: +86-13923869967 Fax: N/A E-Mail: [email protected]

Confidentiality Request Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request confidentiality for the documentation of the following products: FCC ID Model name 22BK22-S1 S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, MW1, MW2, MW3, MW4, MW5, MW6, MW7, MW8, MW9, MW10 For the products listed above, we request permanent confidentiality for all applicable exhibits as there are: • the Operational Description • the Block Diagram • the Schematics • the Part List • the Tune up Information The above listed exhibits contain trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact us at the address shown below. Sincerely, 2024-09-12 Signature Date Name / Title: Zhitao Wang / Manager Company: Dongguan San Tou Niu Intelligent Technology Co., Ltd. Address: Room 601, Building 3, No.53, Tanghuancun Road, Fenggang Town, Dongguan City, Guangdong Province, China Phone: +86-13923869967 Fax: N/A E-Mail: [email protected]

Page 1 of 1 Rev.2.0 Dongguan San Tou Niu Intelligent Technology Co., Ltd. WIFI Channel 12 and 13 Declaration Letter We declare the equipment identified below with regards to Channel 12 and 13 capabilities for FCC ID: 2BK22-S1 Declaration Product hardware does not have the capability to operate on Channel 12 and 13. Product hardware has the capability to operate on Channel 12 and 13. However, these two channels will be disabled via software and will not be accessible to user. Product hardware has the capability to operate on Channel 12 and 13. However, all the operated channels can’t be changed in the RF parameter via software. All channels have complied with all of the requirements sets out in FCC Part 15.247. Product hardware has the capability to operate on WiFi Channel 12 and 13, and meets the requirements of KDB 594280 D01 v02r01. Please note: 1.) By default, this device operates in a mode that is compliant with the U.S. requirements. 2.) This device will also use supplemental information such as geo- location data to determine that it is operating outside the U.S., if necessary, to change its power. Such supplemental data will be derived from the following: Global Navigation Satellite System (GNSS)7 sensors in the device Mobile Country Code (MCC),8 or MCC with a Mobile Network code (MNC), received from a CMRS9 carrier and received directly by a receiver on the device Country information derived from multiple adjacent access points (for example using IEEE Std 802.11d provisions) may be permitted on case-by-case basis Other suitable geo-location data based on IP addresses or other reliable source. Name / Title: Zhitao Wang / Manager Signature: Phone: +86-13923869967 Email: [email protected] Date: 2024-09-12

Dongguan San Tou Niu Intelligent Technology Co., Ltd. Room 601, Building 3, No.53, Tanghuancun Road, Fenggang Town, Dongguan City, Guangdong Province, China Date: September 12, 2024 FCC ID: 2BK22-S1 Model Number: S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, MW1, MW2, MW3, MW4, MW5, MW6, MW7, MW8, MW9, MW10 To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We, Dongguan San Tou Niu Intelligent Technology Co., Ltd. hereby declare that our product (Wi-Fi camera) Model Number: S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, MW1, MW2, MW3, MW4, MW5, MW6, MW7, MW8, MW9, MW10 board, Schematic, Hardware version, Software version, structure and internal photos are same, named and appearance differently due to marketing purposes. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name / Title: Zhitao Wang / Manager Company: Dongguan San Tou Niu Intelligent Technology Co., Ltd. Address: Room 601, Building 3, No.53, Tanghuancun Road, Fenggang Town, Dongguan City, Guangdong Province, China Phone: +86-13923869967 Fax Number: N/A E-Mail: [email protected]

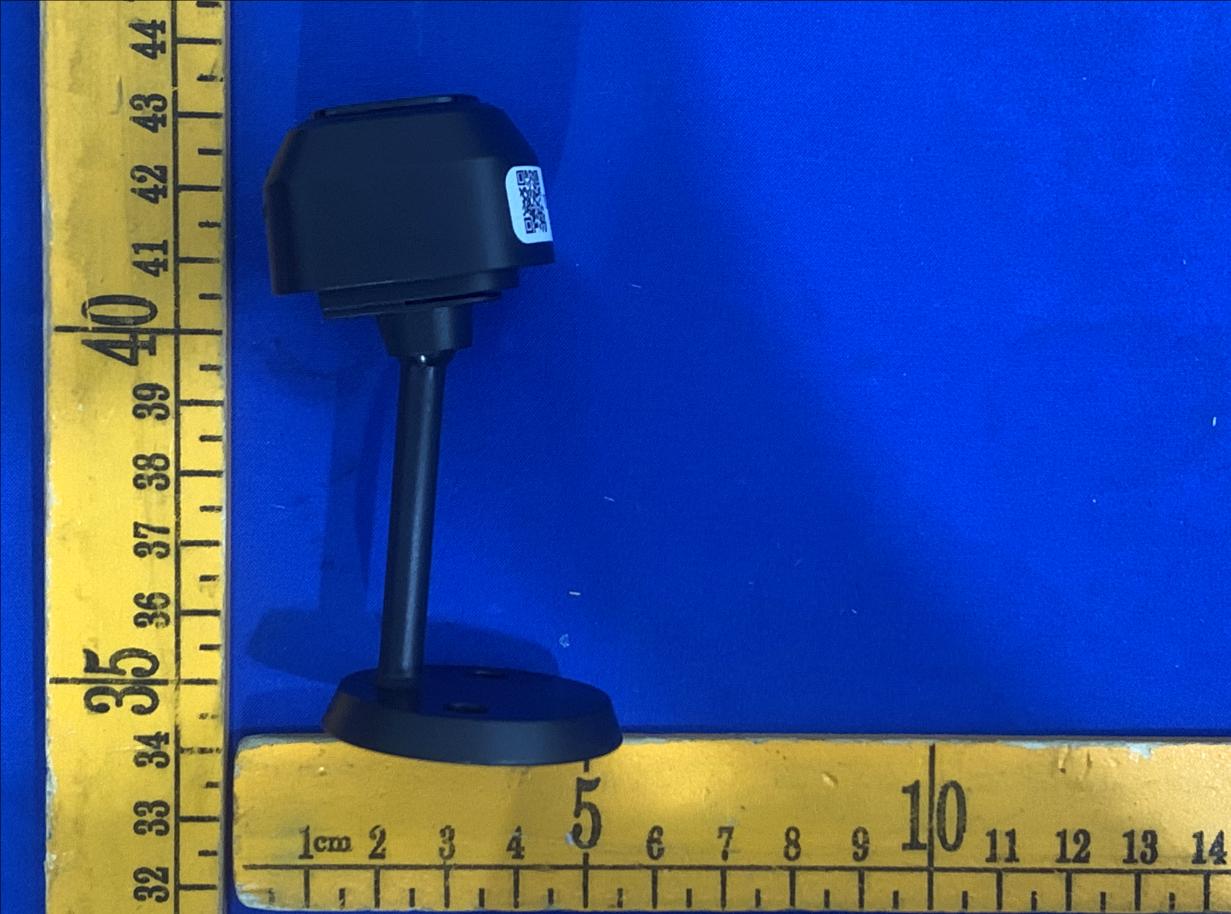

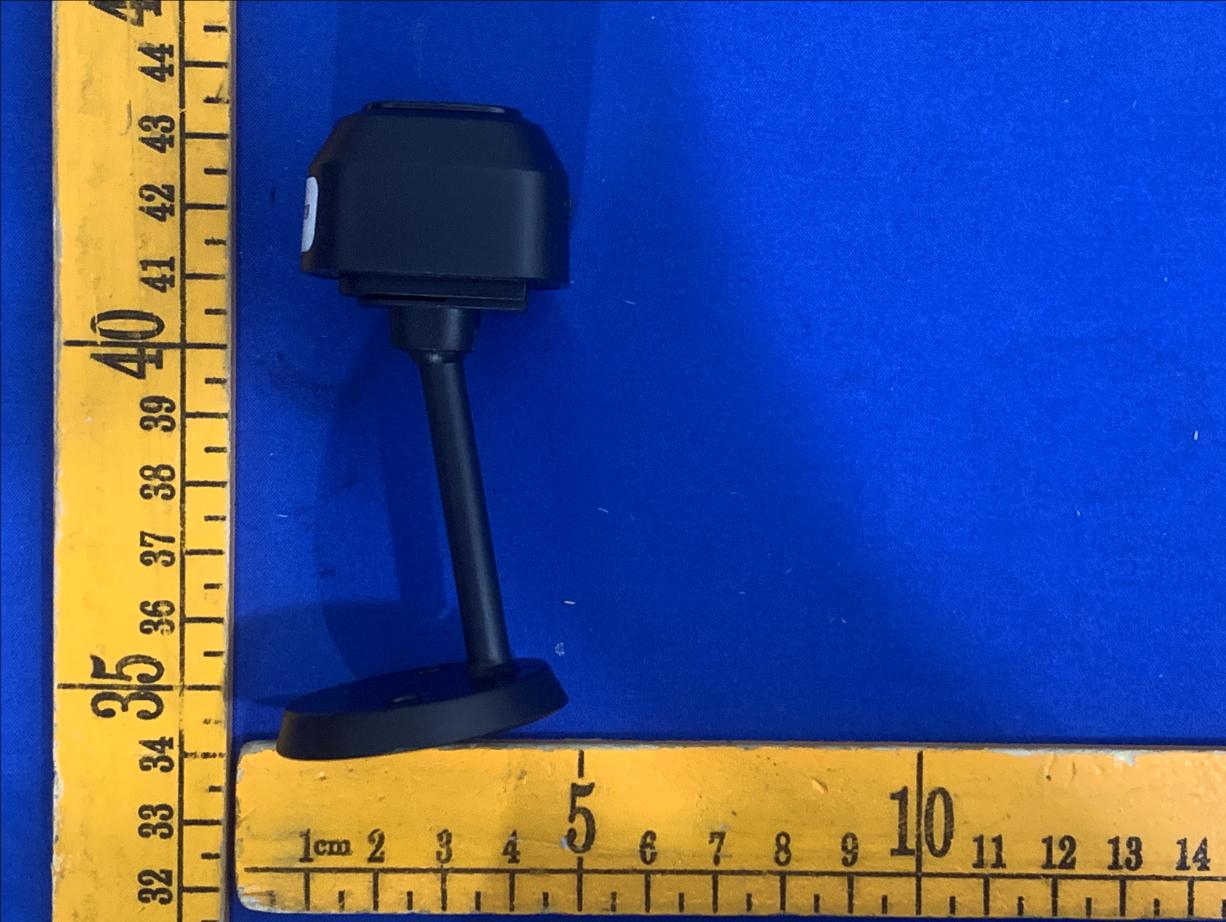

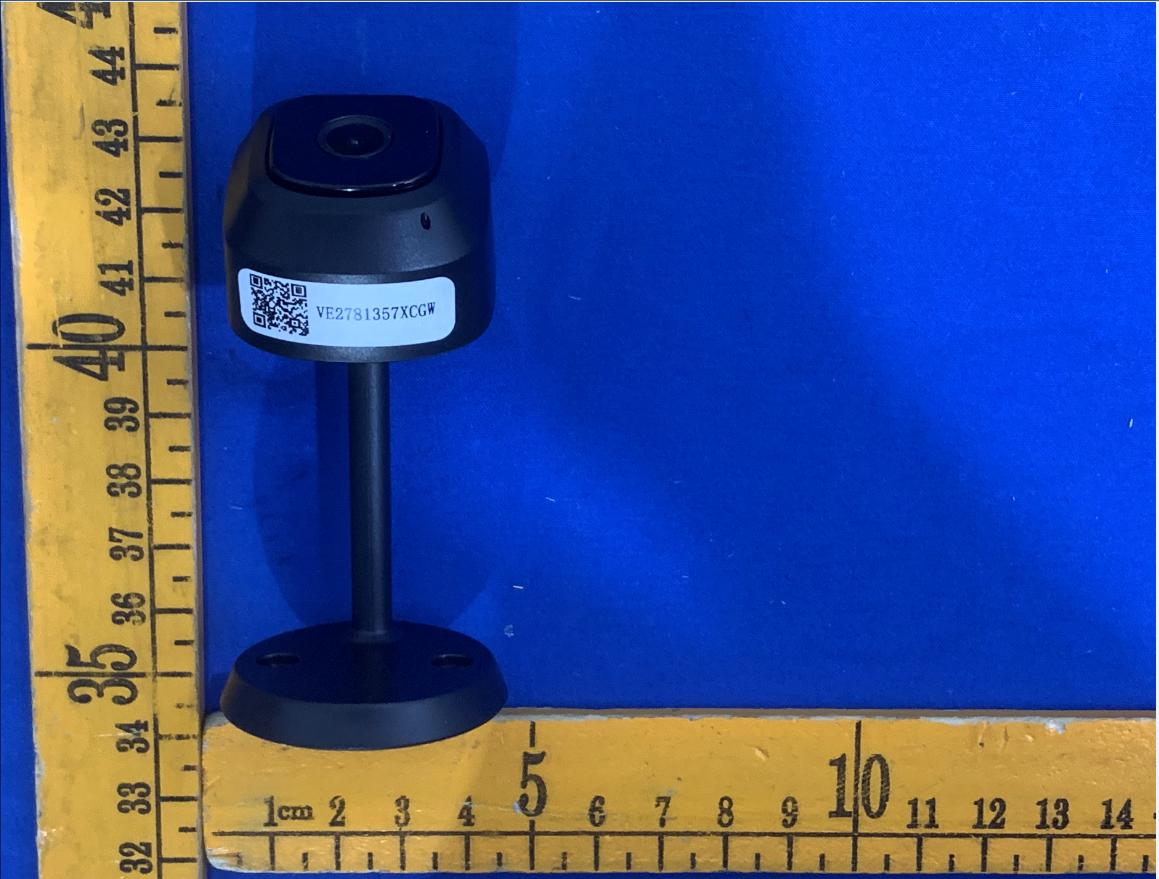

FCCID:2BK22-S1 Fig.1 Fig.2 FCCID:2BK22-S1 Fig.3 Fig.4 FCCID:2BK22-S1 Fig.5 Fig.6

_____________________________________________________________________________________________________ LABELANDLOCATION LABELANDLOCATION productname：Wi-Ficamera Model：S1 TradeMark：/ Input:DC5VorDC3.7V150mAhBattery FCCID:2BK22-S1 LabelLocation

FCCID:2BK22-S1 Fig.1 Fig.2 WLAN Antenna1 FCCID:2BK22-S1 Fig.3 Fig.4 FCCID:2BK22-S1 Fig.5 Fig.6 FCCID:2BK22-S1 Fig.7 Fig.8 FCCID:2BK22-S1 Fig.9

ShenzhenCTATestingTechnologyCo.,Ltd. Room106,Building1,YibaolaiIndustrialPark,QiaotouCommunity,Fuhai Street,Bao’anDistrict,Shenzhen,China RFExposureevaluation ReportReferenceNo.....................: FCCID................................................: CTA24081600702 2BK22-S1 Compiledby (position+printedname+signature):FileadministratorsJinghuaXiao Supervisedby (position+printedname+signature):TestEngineerLushanKong Approvedby (position+printedname+signature)..: ManagerEricWang Dateofissue ......................................... :Aug.28,2024 RepresentativeLaboratoryName .............................................................: ShenzhenCTATestingTechnologyCo.,Ltd. Address...............................................: Room106,Building1,YibaolaiIndustrialPark,QiaotouCommunity, FuhaiStreet,Bao‘anDistrict,Shenzhen,China Applicant’sname ............................... :DongguanSanTouNiuIntelligentTechnologyCo.,Ltd. Address.................................................:Room601,Building3,No.53,TanghuancunRoad,FenggangTown, DongguanCity,GuangdongProvince,China Testspecification...........................: Standard.............................................: 47CFR§1.1310Basisandpurpose 47CFR§2.1091Radiofrequencyradiationexposureevaluation: mobiledevices TRFOriginator...................................:ShenzhenCTATestingTechnologyCo.,Ltd. MasterTRF........................................:Dated2014-12 ShenzhenCTATestingTechnologyCo.,Ltd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenCTATestingTechnologyCo.,Ltd.isacknowledgedascopyrightownerandsourceofthe material.ShenzhenCTATestingTechnologyCo.,Ltd.takesnoresponsibilityforandwillnotassume liabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoitsplacement andcontext. Testitemdescription.....................: Wi-Ficamera TradeMark.........................................: N/A Manufacturer......................................: DongguanSanTouNiuIntelligentTechnologyCo.,Ltd. Model/Typereference......................: S1 ListedModels...................................: S2,S3,S4,S5,S6,S7,S8,S9,S10,MW1,MW2,MW3,MW4,MW5, MW6,MW7,MW8,MW9,MW10 HardwareVersion...........................: N/A SoftwareVersion...............................: N/A Rating..................................................: DC5VbyAdapterorDC3.7VBattery Result..................................................: PASS ReportNo.:CTA24081600702Page2of11 TESTREPORT TestReportNo.: CTA24081600702 Aug.28,2024 ______________________________________________________________________________________________ Dateofissue EquipmentunderTest: Wi-Ficamera Model/Type: S1 Listedmodel: S2,S3,S4,S5,S6,S7,S8,S9,S10,MW1,MW2,MW3,MW4,MW5, MW6,MW7,MW8,MW9,MW10 Applicant : DongguanSanTouNiuIntelligentTechnologyCo.,Ltd. Address : Room601,Building3,No.53,TanghuancunRoad,FenggangTown, DongguanCity,GuangdongProvince,China Manufacturer : DongguanSanTouNiuIntelligentTechnologyCo.,Ltd. Address : Room601,Building3,No.53,TanghuancunRoad,FenggangTown, DongguanCity,GuangdongProvince,China TestResult:PASS Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetest laboratory. ReportNo.:CTA24081600702Page3of11 Contents 1.SUMMARY....................................................................................................................................................4 1.1EUTCONFIGURATION....................................................................................................................................4 1.2PRODUCTDESCRIPTION................................................................................................................................4 2.TESTENVIRONMENT..................................................................................................................................5 2.1ADDRESSOFTHETESTLABORATORY.............................................................................................................5 2.2TESTFACILITY..............................................................................................................................................5 2.3ENVIRONMENTALCONDITIONS........................................................................................................................5 2.4STATEMENTOFTHEMEASUREMENTUNCERTAINTY.........................................................................................5 3.METHODOFMEASUREMENT....................................................................................................................6 3.1APPLICABLESTANDARD.................................................................................................................................6 3.2REQUIREMENT..............................................................................................................................................6 3.3LIMIT.............................................................................................................................................................6 3.4MPECALCULATIONMETHOD........................................................................................................................7 3.5ANTENNAINFORMATION................................................................................................................................7 4.CONDUCTEDPOWERRESULTS...............................................................................................................8 5.MANUFACTURINGTOLERANCE...............................................................................................................9 6.MEASUREMENTRESULTS......................................................................................................................10 6.1STANDALONEMPEEVALUATION.................................................................................................................10 7.CONCLUSION................…

Text truncated - open the document above for the full version.

承 認 書 SPECIFICATION FOR APPROVAL 客戶名稱 CUSTOMER ： 客戶料號 CUSTOMER’S P/N ： 料號 PART NUMBER ： WAN097030JD251SN03 規格 DESCRIPTION ： Chip Antenna 7030 M-Ant 2.45G +5G Type 03 版本 VERSION ： V1.0 日期 ISSUE DATE ： 2024/05/06 客 戶 承 認 CUSTOMER APPROVED 工 程 部 R&D CENTER 承 認 APPROVAL 確 認 CHECKED 製 作 DRAWN Ray Snow Jerry 萬誠科技股份有限公司 OneWave Electronic Co., Ltd. 112台北市北投區立功街151號1樓 1F, No. 151, Li Gong Street, Beitou District, Taipei City 112, Taiwan 電話: (02) 2898-2220 TEL: +886 2 2898-2220 傳真: (02) 2898-5055 FAX: +886 2 2898-5055 2/12 ONEWAVE TECHNOLOGY CO., LTD. 7030 Chip antenna For WLAN Dual-Band Applications Dimension (mm) L 7.00 ± 0.20 W 3.00 ± 0.20 T 1.15 ± 0.20 P/N: WAN097030JD251SN03 3/12 ONEWAVE TECHNOLOGY CO., LTD. Part Number Information WAN 09 7030 J D25 1S N 03 A G B C D H E F A Product Series Antenna B Dimension L x W 7.0X3.0mm (+-0.2mm) C Material High K material D Working Frequency 2.4 ~ 2.5GHz E Feeding mode Monopole & Single Feeding F Antenna type Type = 03 G、H Internal Code 1.Electrical Specification Remark : Bandwidth & Peak Gain was measured under evaluation board of next page Specification Part Number WAN097030JD251SN03 Central Frequency 2450 / 5500 MHz Bandwidth 100 / 800 (Min.) MHz Return Loss -10 (Max)dB Peak Gain 2.95 dBi Impedance 50 Ohm Operating Temperature -40～+110°C Maximum Power 4 W Resistance to Soldering Heats 10 ( @ 260°C) sec. Polarization Linear Azimuth Beamwidth Omni-directional Termination Cu / Sn (Leadless) 4/12 ONEWAVE TECHNOLOGY CO., LTD. 2.Recommended PCB Pattern Evaluation Board Dimension Unit : mm Suggested Matching Circuit 重要資訊 : 匹配元件建議使用精準度高的電感±0.1~0.3nH、電容±0.1pF 5/12 ONEWAVE TECHNOLOGY CO., LTD. ◆Layout Dimensions in Clearance area( Size=27.0*7.0mm) 50 ohm transmission Line FootPrint (Unit : mm) Matching circuit 6/12 ONEWAVE TECHNOLOGY CO., LTD. 3.Measurement Results Return Loss 7/12 ONEWAVE TECHNOLOGY CO., LTD. Radiation Pattern Efficiency Peak Gain Directivity 2400MHz 70.69 % 2.83 dBi 4.33 dBi 2450MHz 72.86 % 2.95 dBi 4.32 dBi 2500MHz 71.46 % 2.89 dBi 4.34 dBi X Z Y 8/12 ONEWAVE TECHNOLOGY CO., LTD. Chamber Coordinate System 9/12 ONEWAVE TECHNOLOGY CO., LTD. 4.Reliability and Test Condictions ITEM REQUIREMENTS TEST CONDITION Solderability 1. Wetting shall exceed 90% coverage 2. No visible mechanical damage Pre-heating temperature:150°C/60sec. Solder temperature:230±5°C Duration:4±1sec. Solder:Sn-Ag3.0-Cu0.5 Flux for lead free: rosin Solder heat Resistance 1. No visible mechanical damage 2. Central Freq. change :within ± 6% 10 ± 0.5 sec. 60 sec . . T E M P ( °C ) 150 °C 2 6 0 °C Pre-heating temperature:150°C/60sec. Solder temperature:260±5°C Duration:10±0.5sec. Solder:Sn-Ag3.0-Cu0.5 Flux for lead free: rosin Component Adhesion (Push test) 1. No visible mechanical damageThe device should be reflow soldered(230±5°C for 10sec.) to a tinned copper substrate A dynometer force gauge should be applied the side of the component. The device must with-ST-F 0.5 Kg without failure of the termination attached to component. Component Adhesion (Pull test) 1. No visible mechanical damage Insert 10cm wire into the remaining open eye bend ,the ends of even wire lengths upward and wind together. Terminal shall not be remarkably damaged. Thermal shock 1. No visible mechanical damage 2. Central Freq. change :within ±6% Phase Temperature(°C) Time(min) 1 +110±5°C 30±3 2 Room Temperature Within 3sec 3 -40±2°C 30±3 4 Room Temperature Within 3sec +110°C=>30±3min -40°C=>30±3min Test cycle:10 cycles The chip shall be stabilized at normal condition for 2~3 hours before measuring. Resistance to High Temperature 1. No visible mechanical damage 2. Central Freq. change :within ±6% 3.No disconnection or short circuit. Temperature: +110±5°C Duration: 1000±12hrs The chip shall be stabilized at normal condition for 2~3 hours before measuring. Resistance to Low Temperature 1. No visible mechanical damage 2. Central Freq. change :within ±6% 3.No disconnection or short circuit. Temperature:-40±5°C Duration: 1000±12hrs The chip shall be stabilized at normal condition for 2~3 hours before measuring. Humidity 1. No visible mechanical damage 2. Central Freq. change :within ±6% 3.No disconnection or short circuit. Temperature: 40±2°C Humidity: 90% to 95% RH Duration: 1000±12hrs The chip shall be stabilized at normal condition for 2~3 hours before measuring. 4±1 sec. 60sec TEMP (°C) 150°C 230°C 10/12 ONEWAVE TECHNOLOGY CO., LTD. 5.Soldering and Mounting Mildly activated rosin fluxes are preferred. The minimum amount of solder can lead to damage from the stresses caused by the difference in coefficients of expansion between solder, chip and substrate. The terminations are suitable for all wave and re-flow soldering systems. If hand soldering cannot be avoided, the preferred technique is the utilization of hot air soldering tools. Recommended temperature profiles for re-flow soldering in Figure 1. Products attachment with a soldering iron is discouraged due to the inherent process control limitations. In the event that a soldering iron must be employed the following precautions are recommended. ‧Preheat circuit and products to 150°C ‧Never contact the ceramic with the iron tip ‧Use a 20 watt soldering iron with tip diameter of 1.0mm ‧280°C tip temperature (max) ‧1.0mm tip diameter (max) ‧Limit soldering time to 3 sec. SOLDERING COOLING NATURAL PRE-HEATING TEMPERATURE(°C) 60~120 s 10s max. 30~60s 250~260 230 180 150 TIME(sec.) Reflow Soldering SOLDERING COOLING NATURAL PRE-HEATING TEMPERATURE(°C) within 3s Gradual cooling 150 TIME(sec.) Iron Soldering Over 60s 350 300 11/12 ONEWAVE TECHNOLOGY CO., LTD. 6.Packaging Information ◆Tape Specification: Reel Specification: (7’’, Φ180 mm) Tape Width(mm) A(mm) B(mm) C(mm) D(mm) Chip/Reel(pcs) 16 16±1.0 60±2 13.5±0.5 178±2 3000 12/12 ONEWAVE TECHNOLOGY CO., LTD. 7.Storage and Transportation Information Storage Conditions To maintain the solderability of terminal electrodes: 1. Temperature and humidity conditions: -10~ 40°C and 30~70% RH. 2. Recommended products should…

Text truncated - open the document above for the full version.

FCC ID:2BK22-S1 1 Case No. :CTA24081600701 AmbientCondition: 23°C, 51%RH, Test Date:2024.8.26Test Engineer:LushanKong AppendixA.1 : DTS Bandwidth Test Result TestModeAntennaFrequency[MHz ] DTS BW [MHz] FL[MHz]FH[MHz]Limit[MHz]Verdict 11BAnt1 24129.6002407.4002417.0000.5PASS 243710.0402432.0002442.0400.5PASS 24629.5602457.4802467.0400.5PASS 11GAnt1 241215.0402404.4802419.5200.5PASS 243715.6802429.1202444.8000.5PASS 246215.7202454.1602469.8800.5PASS 11N20SISOAnt1 241215.3202405.1602420.4800.5PASS 243714.5602430.0402444.6000.5PASS 246216.4402453.4402469.8800.5PASS 11N40SISOAnt1 242235.1202404.4802439.6000.5PASS 243734.9602419.5602454.5200.5PASS 245234.4002434.4802468.8800.5PASS 11AX20SISOAnt1 241216.8002404.4402421.2400.5PASS 243715.4802429.0002444.4800.5PASS 246215.0802454.4802469.5600.5PASS 11AX40SISOAnt1 242235.1202404.4802439.6000.5PASS 243736.3202419.4802455.8000.5PASS 245236.4002434.4002470.8000.5PASS FCC ID:2BK22-S1 2 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 FCC ID:2BK22-S1 3 11G_Ant1_2412 11G_Ant1_2437 FCC ID:2BK22-S1 4 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 FCC ID:2BK22-S1 5 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 FCC ID:2BK22-S1 6 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 11AX20SISO_Ant1_2412 FCC ID:2BK22-S1 7 11AX20SISO_Ant1_2437 11AX20SISO_Ant1_2462 FCC ID:2BK22-S1 8 11AX40SISO_Ant1_2422 11AX40SISO_Ant1_2437 11AX40SISO_Ant1_2452 FCC ID:2BK22-S1 9 FCC ID:2BK22-S1 10 AppendixA.2 : OccupiedChannelBandwidth Test Result TestModeAntenna Channel Frequency[MHz ] OCB [MHz] FL[MHz]FH[MHz]Limit[MHz]Verdict 11BAnt1 241214.4352404.92702419.3620------ 243714.4132429.82722444.2402------ 246214.3692454.85452469.2235------ 11GAnt1 241217.6482403.34222420.9902------ 243717.5102428.27702445.7870------ 246217.4632453.25032470.7133------ 11N20SISOAnt1 241218.6172402.87032421.4873------ 243718.5182427.78252446.3005------ 246218.6832452.66432471.3473------ 11N40SISOAnt1 242237.1432403.70842440.8514------ 243737.0922418.55962455.6516------ 245237.2862433.37632470.6623------ 11AX20SISOAnt1 241219.3872402.51192421.8989------ 243719.2582427.43252446.6905------ 246219.2342452.44622471.6802------ 11AX40SISOAnt1 242238.2362403.02502441.2610------ 243738.2552417.91412456.1691------ 245238.2552432.94002471.1950------ FCC ID:2BK22-S1 11 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 FCC ID:2BK22-S1 12 11G_Ant1_2412 11G_Ant1_2437 FCC ID:2BK22-S1 13 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 FCC ID:2BK22-S1 14 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 FCC ID:2BK22-S1 15 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 11AX20SISO_Ant1_2412 FCC ID:2BK22-S1 16 11AX20SISO_Ant1_2437 11AX20SISO_Ant1_2462 FCC ID:2BK22-S1 17 11AX40SISO_Ant1_2422 11AX40SISO_Ant1_2437 11AX40SISO_Ant1_2452 FCC ID:2BK22-S1 18 FCC ID:2BK22-S1 19 AppendixA.3 : Maximumconductedoutputpower Test Mode Antenna Frequenc y[MHz ] Set Power Peak power [dBm] Limit [dBm] Verdict 11BAnt1 2412---21.08≤30.00PASS 2437---22.15≤30.00PASS 2462---22.45≤30.00PASS 11GAnt1 2412---24.66≤30.00PASS 2437---25.73≤30.00PASS 2462---25.94≤30.00PASS 11N20SI SO Ant1 2412---24.50≤30.00PASS 2437---25.61≤30.00PASS 2462---25.75≤30.00PASS 11N40SI SO Ant1 2422---24.87≤30.00PASS 2437---25.45≤30.00PASS 2452---25.56≤30.00PASS 11AX20S ISO Ant1 2412---19.65≤30.00PASS 2437---20.64≤30.00PASS 2462---20.66≤30.00PASS 11AX40S ISO Ant1 2422---20.03≤30.00PASS 2437---20.45≤30.00PASS 2452---20.42≤30.00PASS FCC ID:2BK22-S1 20 AppendixA.4 : Maximumpowerspectraldensity Test Result TestModeAntennaFrequency[MHz ]Result[dBm/3-100kHz]Limit[dBm/3kHz]Verdict 11BAnt1 2412-5.24≤8.00PASS 2437-4.26≤8.00PASS 2462-3.47≤8.00PASS 11GAnt1 2412-7.44≤8.00PASS 2437-6.03≤8.00PASS 2462-6.38≤8.00PASS 11N20SISOAnt1 2412-7.41≤8.00PASS 2437-7.29≤8.00PASS 2462-5.53≤8.00PASS 11N40SISOAnt1 2422-10.03≤8.00PASS 2437-9.84≤8.00PASS 2452-9.28≤8.00PASS 11AX20SISOAnt1 2412-15.63≤8.00PASS 2437-12.33≤8.00PASS 2462-12.83≤8.00PASS 11AX40SISOAnt1 2422-16.90≤8.00PASS 2437-17.18≤8.00PASS 2452-17.01≤8.00PASS Note： 1. The Duty Cycle Factorand RBW Factoris compensatedin the graph. FCC ID:2BK22-S1 21 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 FCC ID:2BK22-S1 22 11G_Ant1_2412 11G_Ant1_2437 FCC ID:2BK22-S1 23 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 FCC ID:2BK22-S1 24 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 FCC ID:2BK22-S1 25 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 11AX20SISO_Ant1_2412 FCC ID:2BK22-S1 26 11AX20SISO_Ant1_2437 11AX20SISO_Ant1_2462 FCC ID:2BK22-S1 27 11AX40SISO_Ant1_2422 11AX40SISO_Ant1_2437 11AX40SISO_Ant1_2452 FCC ID:2BK22-S1 28 FCC ID:2BK22-S1 29 AppendixA.5 : Band edge measurements Test Result TestMode Antenn a Ch Nam e Frequency[MH z] RefLevel[dB m] Result[dB m] Limit[dB m] Verdic t 11BAnt1 Low24129.20-34.3≤-10.8PASS High246210.77-46.01≤-9.23PASS 11GAnt1 Low24127.00-21.88≤-13PASS High24627.71-28.49≤-12.3PASS 11N20SISOAnt1 Low24125.86-21.59≤-14.14PASS High24627.65-28.51≤-12.35PASS 11N40SISOAnt1 Low24224.49-25.52≤-15.51PASS High24524.94-28.55≤-15.06PASS 11AX20SIS O Ant1 Low24122.43-29.54≤-17.57PASS High24623.38-44.85≤-16.62PASS 11AX40SIS O Ant1 Low2422-0.31-32.71≤-20.31PASS High24520.07-38.76≤-19.93PASS FCC ID:2BK22-S1 30 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 FCC ID:2BK22-S1 31 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 FCC ID:2BK22-S1 32 11N20SISO_Ant1_High_2462 11N40SISO_Ant1_Low_2422 11N40SISO_Ant1_High_2452 FCC ID:2BK22-S1 33 11AX20SISO_Ant1_Low_2412 11AX20SISO_Ant1_High_2462 FCC ID:2BK22-S1 34 11AX40SISO_Ant1_Low_2422 11AX40SISO_Ant1_High_2452 FCC ID:2BK22-S1 35 AppendixA.6 : ConductedSpuriousEmission Test Result TestModeAntennaFrequency[MHz ] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11BAnt1 2412 Reference9.049.04---PASS 30~10009.04-60.25≤-10.96PASS 1000~265009.04-42.93≤-10.96PASS 2437 Reference8.878.87---PASS 30~10008.87-60.84≤-11.13PASS 1000~265008.87-48.08≤-11.13PASS 2462 Reference11.0211.02---PASS 30~100011.02-59.78≤-8.98PASS 1000~2650011.02-47.17≤-8.98PASS 11GAnt1 2412 Reference5.455.45---PASS 30~10005.45-60.12…

Text truncated - open the document above for the full version.

ShenzhenCTATestingTechnologyCo.,Ltd. Room106,Building1,YibaolaiIndustrialPark,QiaotouCommunity,Fuhai Street,Bao’anDistrict,Shenzhen,China FCCPART15SUBPARTCTESTREPORT FCCPART15.247 ReportReferenceNo........................: FCCID.................................................: CTA24081600701 2BK22-S1 Compiledby (position+printedname+signature)..:FileadministratorsJinghuaXiao Supervisedby (position+printedname+signature)..:TestEngineerLushanKong Approvedby (position+printedname+signature)..: ManagerEricWang Dateofissue.........................................:Aug.28,2024 RepresentativeLaboratoryName . : ShenzhenCTATestingTechnologyCo.,Ltd. Address.................................................: Room106,Building1,YibaolaiIndustrialPark,QiaotouCommunity, FuhaiStreet,Bao‘anDistrict,Shenzhen,China Applicant’sname...............................:DongguanSanTouNiuIntelligentTechnologyCo.,Ltd. Address ................................................. : Room601,Building3,No.53,TanghuancunRoad,FenggangTown, DongguanCity,GuangdongProvince,China Testspecification..............................: Standard................................................: FCCPart15.247:Operationwithinthebands902-928MHz,2400- 2483.5MHzand5725-5850MHz TRFOriginator......................................:ShenzhenCTATestingTechnologyCo.,Ltd. MasterTRF...........................................:Dated2014-12 ShenzhenCTATestingTechnologyCo.,Ltd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongastheShenzhen CTATestingTechnologyCo.,Ltd.isacknowledgedascopyrightownerandsourceofthematerial.Shenzhen CTATestingTechnologyCo.,Ltd.takesnoresponsibilityforandwillnotassumeliabilityfordamagesresulting fromthereader'sinterpretationofthereproducedmaterialduetoitsplacementandcontext. Testitemdescription ........................ :Wi-Ficamera TradeMark............................................: N/A Manufacturer.........................................:DongguanSanTouNiuIntelligentTechnologyCo.,Ltd. Model/Typereference.........................: S1 ListedModels......................................:S2,S3,S4,S5,S6,S7,S8,S9,S10,MW1,MW2,MW3,MW4,MW5, MW6,MW7,MW8,MW9,MW10 OperationFrequency..........................:From2412MHzto2462MHz HardwareVersion...............................:N/A SoftwareVersion..................................:N/A Rating.....................................................:DC5VbyAdapterorDC3.7VBattery Result ..................................................... :PASS ReportNo.:CTA24081600701Page 2 of 26 TESTREPORT TestReportNo.: CTA24081600701 Aug.28,2024 ____________________________________________________________________________________ Dateofissue EquipmentunderTest:Wi-Ficamera Model/Type:S1 Listedmodel:S2,S3,S4,S5,S6,S7,S8,S9,S10,MW1,MW2,MW3,MW4,MW5, MW6,MW7,MW8,MW9,MW10 Applicant : DongguanSanTouNiuIntelligentTechnologyCo.,Ltd. Address: Room601,Building3,No.53,TanghuancunRoad,FenggangTown, DongguanCity,GuangdongProvince,China Manufacturer :DongguanSanTouNiuIntelligentTechnologyCo.,Ltd. Address: Room601,Building3,No.53,TanghuancunRoad,FenggangTown, DongguanCity,GuangdongProvince,China TestResult:PASS Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetest laboratory. ReportNo.:CTA24081600701Page 3 of 26 Contents 1.TESTSTANDARDS.........................................................................................................................................4 2.SUMMARY.......................................................................................................................................................5 2.1.GeneralRemarks...................................................................................................................................5 2.2.ProductDescription................................................................................................................................5 2.3.EquipmentUnderTest............................................................................................…
