2BK35-LBY2Bluetooth Audio Receiver

USER MANUAL - LBY2 1. Product Description: LOKUKA USB to 3.5mm Bluetooth car audio adapter is incredibly easy to use. Simply connect it to the Aux port of your car stereo, speaker, amplifier, headphone, or any other audio device, connect the USB plug to a USB jack to power the Bluetooth. The green light flashes quickly when it's USB-powered and turns into a slow flash when the Bluetooth "YP04" connects successfully. And it's ready to use. It supports music, hands-free calls, voice navigation, etc. 2. User Guide: Step 1: Connect 3.5mm to the car "AUX" port or other aux devices, and connect USB to power the Bluetooth. (USB port can't transfer audio). Step 2: Active Phone/Pad/Laptop Bluetooth and connect our product “YP04”. Step 3: Play music on your devices. 3. NOTICE: The USB port is only for active Bluetooth, and the microphone is built into the USB port. If you use it on an iPhone, the "Device Type" in your iPhone needs to be set as a "Speaker". 4. Product Specifications: Bluetooth Device Name Bluetooth Audio Receiver Bluetooth Chip Model AC6966B Bluetooth Version Protocol V5.3 a2dp\avctp\avdtp\avrcp\hfp\spp\smp\att\gap\gatt\rfcomm\sdp\l2cap Bluetooth Transmission Distance No barrier>10 Meters Power Supply Interface USBA male port Audio Output Interface 3.5mm male port Call Function YES (USBA port has a built-in silicon microphone) Operating Voltage 3.6-5.5V Working Current 20mA Max Led Status After the USB is powered, the green light flashes quickly. After the Bluetooth connection is successful, the green light flashes slowly. Snr >=90 dB Tdh+n -75 dB Channel Separation -80 dB Frequency Response 20Hz-20KHz Product Length 0.5M - 1.5M SAFETY INFORMATION 1. Use for original or certified devices or accessories only. 2. Avoid improper bending, twisting, or abuse of the cable. 3. Avoid extreme temperatures, sun exposure, wet environment, or any hazardous surroundings. 4. Cables should be placed well to avoid tripping or other potential safety hazards. FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 0cm between the radiator and your body.

Changsha Aosuo Dianzishangwu Youxiangongsi 2709,Shimaoxierdun jiudian, Bocuiwan Xiaoxiang Beilu Sanduan 1100,Yinpenling Jiedao,Yueluqu Changsha,Hunan,China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-9-18 To whom it may concern: We, Changsha Aosuo Dianzishangwu Youxiangongsi, hereby certify that the equipment for which authorization is sought (FCC ID: 2BK35-LBY2) is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist) as an entity producing “covered” equipment. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Sincerely, Signature Xiong Liu Manager Changsha Aosuo Dianzishangwu Youxiangongsi 62_[model] CoveredEqu_2.911(d)(5)(i) and (ii) - U, V03

Changsha Aosuo Dianzishangwu Youxiangongsi Room 2709, 27th Floor, Hilton Bocuiwan Shimao Hotel, No. 1100, Section 3, Xiaoxiang North Road, Yinpenling Street, Yuelu District, Changsha City, Hunan Province 410013, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024/09/14 U.S. Agent Designation Changsha Aosuo Dianzishangwu Youxiangongsi acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BK35-LBY2): Name and company of U.S. agent: GSS SERVICE INC Physical U.S. address of agent: 6547 N Academy Blvd #2266 Colorado Springs COLORADO 80918 United States FRN of U.S. agent: 0033402082 Email address of U.S. agent: [email protected] GSS SERVICE INC acknowledges their obligation to accept service of process on behalf of Changsha Aosuo Dianzishangwu Youxiangongsi Changsha Aosuo Dianzishangwu Youxiangongsi with the FRN [0035939743] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Xiong Liu Manager Changsha Aosuo Dianzishangwu Youxiangongsi Signature Michoux Logan PM GSS SERVICE INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

Changsha Aosuo Dianzishangwu Youxiangongsi Add: 2709,Shimaoxierdun jiudian, Bocuiwan Xiaoxiang Beilu Sanduan 1100,Yinpenling Jiedao,Yueluqu Changsha,Hunan,China Date: 2024-9-18 FCC ID: 2BK35-LBY2 Dear Sir/Madam, We, Changsha Aosuo Dianzishangwu Youxiangongsi Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: Bluetooth Audio Receiver Model no.: LBY2, LBY3 Sincerely, Name/Title： Xiong Liu/Manager Company: Changsha Aosuo Dianzishangwu Youxiangongsi Address: 2709,Shimaoxierdun jiudian, Bocuiwan Xiaoxiang Beilu Sanduan 1100,Yinpenling Jiedao,Yueluqu Changsha,Hunan,China Phone: 18165740680 Fax: N/A E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2024-9-18> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2BK35-LBY2 LBY2 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Xiong Liu/Manager Company: Changsha Aosuo Dianzishangwu Youxiangongsi Address: 2709,Shimaoxierdun jiudian, Bocuiwan Xiaoxiang Beilu Sanduan 1100,Yinpenling Jiedao,Yueluqu Changsha,Hunan,China Phone: 18165740680 Fax: N/A E-Mail: [email protected]

Changsha Aosuo Dianzishangwu Youxiangongsi 2709,Shimaoxierdun jiudian, Bocuiwan Xiaoxiang Beilu Sanduan 1100,Yinpenling Jiedao,Yueluqu Changsha,Hunan,China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-9-18 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2BK35-LBY2 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Xiong Liu/Manager Company: Changsha Aosuo Dianzishangwu Youxiangongsi Address: 2709,Shimaoxierdun jiudian, Bocuiwan Xiaoxiang Beilu Sanduan 1100,Yinpenling Jiedao,Yueluqu Changsha,Hunan,China Phone: 18165740680 Fax: N/A E-Mail: [email protected]

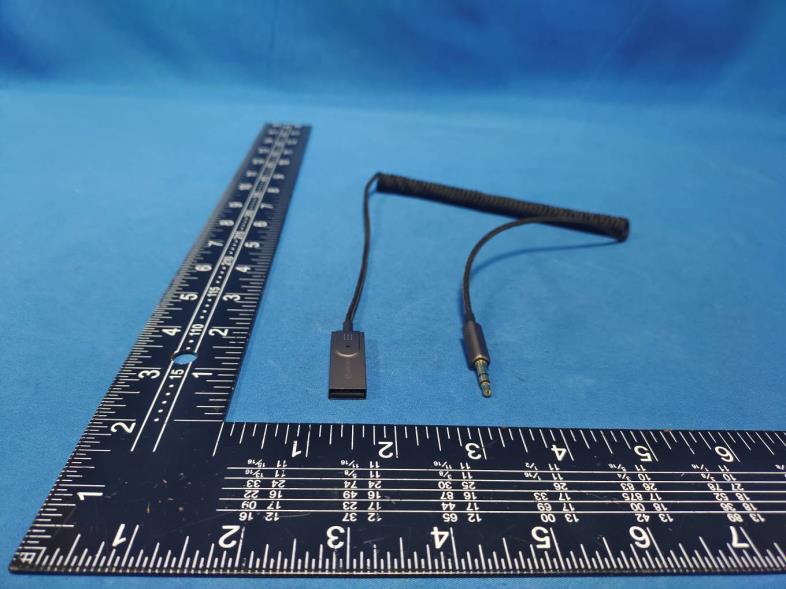

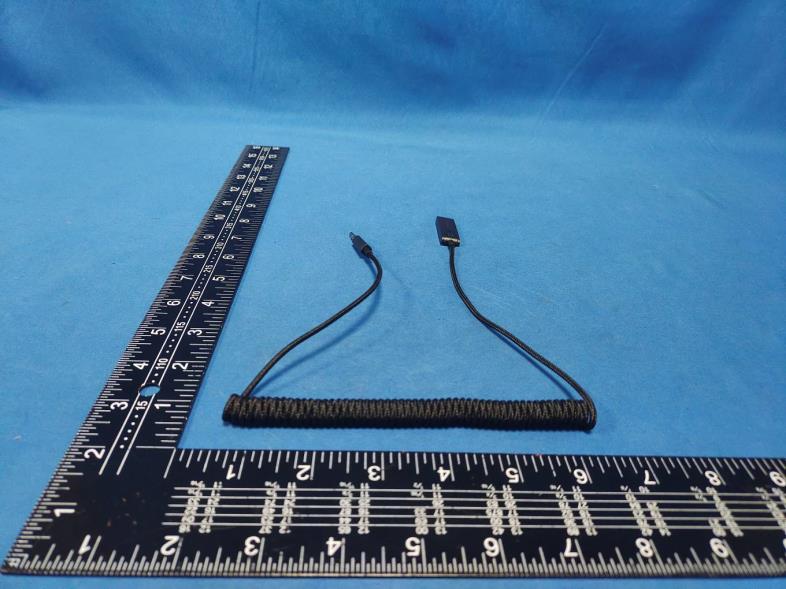

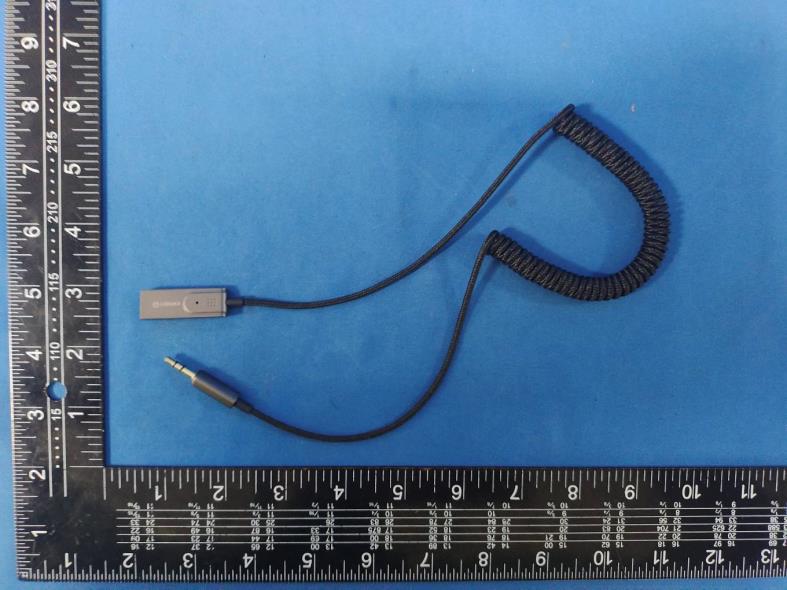

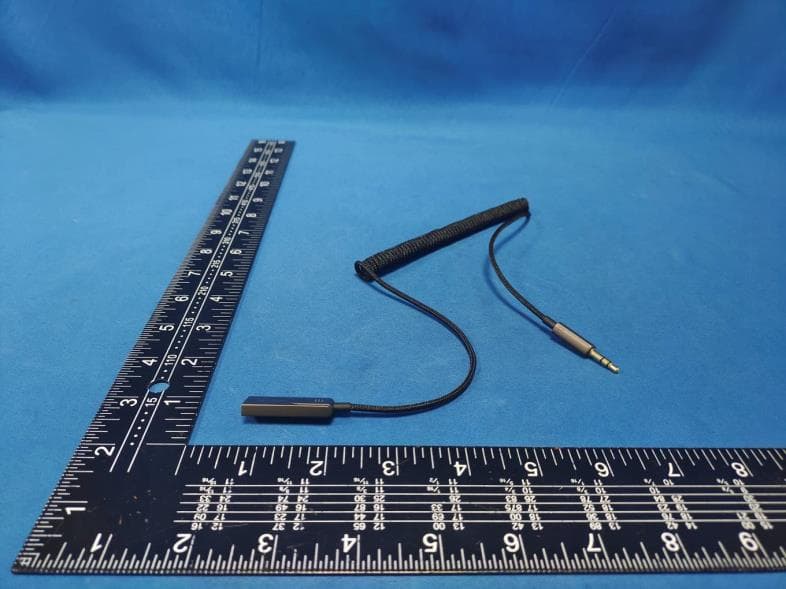

FCC ID: 2BK35-LBY2 External Photos of the EUT FCC ID: 2BK35-LBY2

Label and Location Size: L: 1.0cm*W: 0.2cm Label and Location FCC ID : 2BK35-LBY2

FCC ID: 2BK35-LBY2 Internal Photos of the EUT FCC ID: 2BK35-LBY2 ANT

RF Exposure evaluation FCC ID: 2BK35-LBY2 1.1. Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.2. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 1.3. Manufacturing tolerance GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -2.0 -2.0 -2.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -2.0 0.0 -2.0 Tolerance ±(dB) 1.0 1.0 1.0 Page 2 of 2 2. E v a l u a t i o n R e s u l t Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW BT 2.450 5 1.0 1.2589 0.3941<3.0 Yes 3. C o n c l u s i o n The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06 .....................End of Report.........................

1. Antenna Description: Antenna type PCB antenna Model LBY2 Frequency range 2400-2500MHz Manufacturer Shenzhen Boyi Electronics Co., Ltd. ANT Peak Gain 0.58 dBi 2. Antenna Photo: Length: 12.61mm Width: 3.50mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID............................................. : CTA24090901001 2BK35-LBY2 Compiled by ( position+printed name+signature) . : File administrators Jinghua Xiao Supervised by ( position+printed name+signature) . : Project Engineer Xudong Zhang Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Sep. 11, 2024 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : Changsha Aosuo Dianzishangwu Youxiangongsi Address ............................................ : 2709,Shimaoxierdun jiudian, Bocuiwan Xiaoxiang Beilu Sanduan 1100, Yinpenling Jiedao,Yueluqu Changsha,Hunan, China Test specification ........................... : Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Bluetooth Audio Receiver Trade Mark ....................................... : Manufacturer .................................... : Shenzhen Boyi Electronics Co., Ltd. Model/Type reference ...................... : LBY2 Listed Models .................................. : LBY3 Modulation ....................................... : GFSK, Π/4DQPSK Frequency ......................................... From 2402MHz to 2480MHz Rating ............................................... : DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA24090901001 Page 2 of 43 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Bluetooth Audio Receiver Model /Type : LBY2 Listed Models : LBY3 Applicant : Changsha Aosuo Dianzishangwu Youxiangongsi Address : 2709,Shimaoxierdun jiudian, Bocuiwan Xiaoxiang Beilu Sanduan 1100, Yinpenling Jiedao,Yueluqu Changsha,Hunan, China Manufacturer : Shenzhen Boyi Electronics Co., Ltd. Address : 5F, #Building 5, Longbi Industrial Zone, NO.27 Dafa Road, BantianStreet, Longgang District Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA24090901001 Page 3 of 43 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 11 4.1 AC Power Conducted Emission 11 4.2 Radiated Emission 14 4.3 Maximum Peak Output Power 20 4.4 20dB Bandwidth 21 4.5 Frequency Separation 24 4.6 Number of hopping frequency 26 4.7 Time of Occupancy (Dwell Time) 28 4.8 Out-of-band Emissions 31 4.9 Antenna Requirement 38 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 39 6 P H O T O S O F T H E E U T ........................................................... 40 Report No.: CTA24090901001 Page 4 of 43 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices Report No.: CTA24090901001 Page 5 of 43 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 2 S U M M A R Y 2.1 General Remark…

Text truncated - open the document above for the full version.

FCC ID: 2BK35-LBY2 Test Setup Photos of the EUT
