2BK3X-BQ001Helmet wireless headset

The Bombing Bluetooth headphones are compatible with any snow helmet that has “Audio Ready” earmuffs. Simply place the headphones into the helmet's audio earpiece cover. 1. Bluetooth Name: BQ-001 2. Bluetooth Version: V5.3 3. Supported Protocols: SBC, AAC 4. Transmit Power: class 2 5. Reception Sensitivity: -80dBm 6. Working Frequency: 2.402GHz-2.480GHz 7. Transmission Distance: 10m 1.Play music: Click the R headphone button or play directly from your phone. 2. Pause music: During playback, press the R earphone button to pause. 3. Previous song: Double-click the R headphone button for the previous song. 4. Next song: Triple-click the R headset button for the next song. 5.Answer call: When receiving the call, click on the R earphone button. 6. Reject call: When receiving a call, press and hold the R headphone button for 2 seconds. 7. End call: During the call, click the R earphone button. 8. Sound volume: Volume up and down need to be operated on the cell phone, no operation on the headset. 9. Voice Assistant (Requires phone to support and activate): four clicks on the R headset button; and you will hear a “Ding” prompt to activate 1. Weight: About 60g 2. Button: One each on the left and right headphones 3. Battery Specification: Rechargeable lithium polymer battery 3.7V 4.Low Power Warning: 3.4V 5. Continuous Talk Time: 10 hours 6. Continuous Music Playback Time: About 10-11H (at 100% volume) 7. Charging Port: Tpye-C charging 8. Charging time: About 2 hours 9. Frequency Response: 20Hz~20KHz 10. Operating Temperature: -20°C~60°C When the headphones are connected to a charging cable for charging, the red light flashes. And when the earphones are fully charged, the blue light remains on. 11. Storage Temperature: -20°C~80°C PRODUCT INTRODUCTIONINSTALLACHARGINGTIONBLUETOOTH PARAMETERSBUTTON FUNCTIONBATTERY INDICATORPAIRING BASIC P CHARGING INSTRUCTIONS PAIRING NOTES ARAMETERS Type-C Charging cable Speaker Type-C Charging port MIC LED Indicator Button BQ-001 Bombing wireless Helmet headscarf Headphones can be inserted into the headband, Bluetooth headphones Connect one to one charging cable to charge. The red light on the earphones will flash to indicate charging, and the blue light will stay on when fully charged. 1. In the off state, press and hold the R headphone button for 2 seconds, the blue indicator lights will flash 2. On your device, turn on Bluetooth, search for and add a new device. Select BQ-001 to connect. 3. After the headphones are successfully connected, your will hear " Connected “, and the blue indicator light on the right headphones will flash once every 5 seconds 4. Disconnect: If you actively disconnect the headphones, a "Disconnect" audio prompt will appear, 1. If it is turned on and not connected to any device, the headphones will automatically turn off after 5 minutes. 2. If the headphones cannot be found during the search process, please ensure that the device's Bluetooth is turned on. Turn off the Bluetooth headphones and then turn them back on. After the left earphone and the right one are paired each other, please search for the Bluetooth device once more. 3. If the connection is lost due to the device being too far from the phone and returning to the signal range within 2 minutes, the device will automatically reconnect. If it does not reconnect within 2 minutes, it will enter pairing mode, and if it does not successfully pair within 5 minutes, it will shut down. INSTRUCTIONS FOR USE 1. On iOS and Android devices, you can see the real-time battery level of the headphones. 2. When the battery level is low, the earphones will play an audio prompt of "Low Battery" and the red light will flash. 1. Power on manually: In the off state, press and hold the R earphone button at the same time for 2 seconds, the red and blue indicator lights will flash alternately, and you will hear an audio prompt of "power on". 2. Power off manually: In the power on state, press and hold the R earphone button for 5 seconds, the blue indicator light will light up, and you will hear an audio prompt of "power off". 3. If powered on and Bluetooth is not connected, the headphones will automatically turn off after 5 minutes. Equipped with a specialized helmet hair band. Headphones can be inserted into the headband,

Huizhou Yingbangni Technology Co., Ltd 1st and 3nd floors,Huiquan Road, Chenjiang Street,Zhongkai High tech Zone,Huizhou China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-9-26 To whom it may concern: We, Huizhou Yingbangni Technology Co., Ltd, hereby certify that the equipment for which authorization is sought (FCC ID: 2BK3X-BQ001) is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist) as an entity producing “covered” equipment. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Sincerely, Signature Jenny li Manager Huizhou Yingbangni Technology Co., Ltd 62_[model] CoveredEqu_2.911(d)(5)(i) and (ii) - U, V03

Huizhou Yingbangni Technology Co., Ltd 1st and 3nd floors, Huiquan Road, Chenjiang Street, Zhongkai High Tech Zone, Huizhou, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024/09/23 U.S. Agent Designation Huizhou Yingbangni Technology Co., Ltd acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BK3X-BQ001): Name and company of U.S. agent: GSS SERVICE INC Physical U.S. address of agent: 6547 N Academy Blvd #2266 Colorado Springs COLORADO 80918 United States FRN of U.S. agent: 0033402082 Email address of U.S. agent: [email protected] GSS SERVICE INC acknowledges their obligation to accept service of process on behalf of Huizhou Yingbangni Technology Co., Ltd Huizhou Yingbangni Technology Co., Ltd with the FRN [0035939883] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Jenny li Manager Huizhou Yingbangni Technology Co., Ltd Signature Michoux Logan PM GSS SERVICE INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2024-9-26> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2BK3X-BQ001 BQ-001 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Jenny li/Manager Company: Huizhou Yingbangni Technology Co., Ltd Address: 1st and 3nd floors,Huiquan Road, Chenjiang Street,Zhongkai High tech Zone,Huizhou China Phone: 13714549721 Fax: N/A E-Mail: [email protected]

Huizhou Yingbangni Technology Co., Ltd 1st and 3nd floors,Huiquan Road, Chenjiang Street,Zhongkai High tech Zone,Huizhou China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-9-26 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2BK3X-BQ001 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Jenny li/Manager Company: Huizhou Yingbangni Technology Co., Ltd Address: 1st and 3nd floors,Huiquan Road, Chenjiang Street,Zhongkai High tech Zone,Huizhou China Phone: 13714549721 Fax: N/A E-Mail: [email protected]

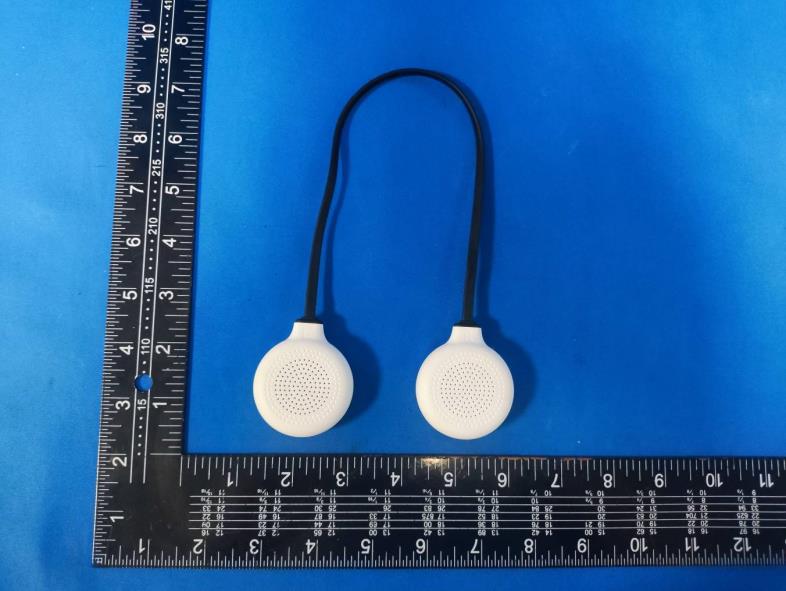

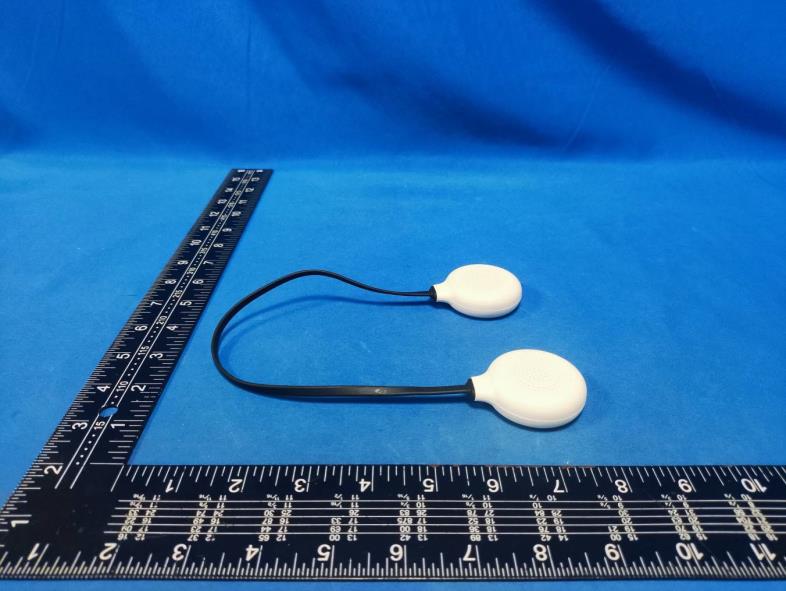

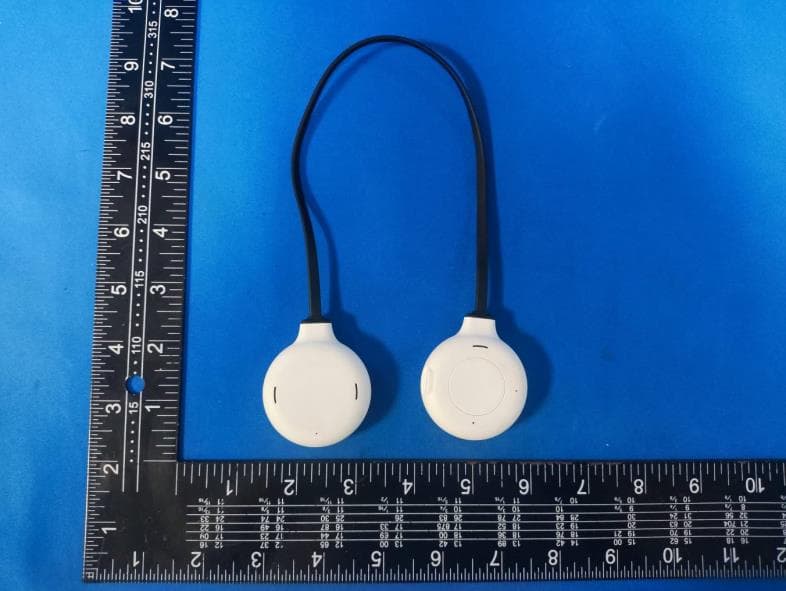

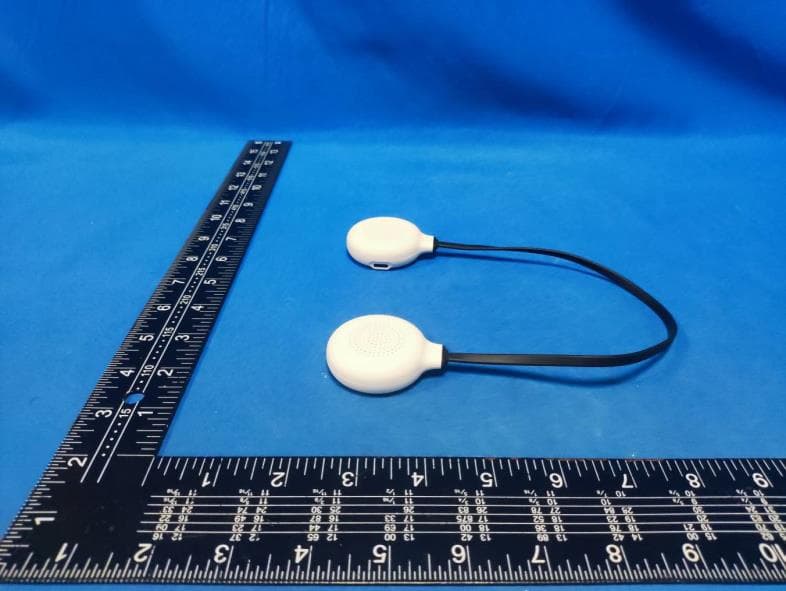

FCC ID: 2BK3X-BQ001 External Photos of the EUT FCC ID: 2BK3X-BQ001 FCC ID: 2BK3X-BQ001

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location FCC ID : 2BK3X-BQ001

FCC ID: 2BK3X-BQ001 Internal Photos of the EUT FCC ID: 2BK3X-BQ001 FCC ID: 2BK3X-BQ001 ANT FCC ID: 2BK3X-BQ001

RF Exposure evaluation FCC ID: 2BK3X-BQ001 1.1. Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.2. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 1.3. Manufacturing tolerance GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -3.0 -1.0 -3.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -2.0 -1.0 -2.0 Tolerance ±(dB) 1.0 1.0 1.0 BLE (Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) -1.0 0.0 -1.0 Tolerance ±(Db) 1.0 1.0 1.0 Page 2 of 2 2. E v a l u a t i o n R e s u l t Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm Mw BT 2.450 5 0.0 1.0000 0.3130<3.0 Yes BLE 2.450 5 1.0 1.2589 0.3941<3.0 Yes 3. C o n c l u s i o n The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06 .....................End of Report.........................

深圳市朋伴兴业科技有限公司 UNLESSOTHERSPECIFIEDTOLERANCESON： X＝±X.X＝±X.XX＝ ANGLES＝ ± HOLEDIA＝ ± 深圳市朋伴兴业科技有限公司 SCALE：N/AUNIT：mm THESEDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFPBXY TECHNOLOGYLimitedANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY:SeraCHECKEDBY:XD DESIGNEDBY:SeraAPPROVEDBY:XD TITLE：CHIP2450-1608Specification DOCUMENT NO. 1608 SPECREV. P1 1 产品规格承认书 SPECIFICATIONS 客户: CUSTOMER: 产品名称: DESCRIPTION:双极天线 客户型号: CUSTOMERPARTNO: 产品型号: OURMODELNO:PBX1608MC01 日期: DATE: 确认签字,盖章后请返回承认书一份 PLEASERETURNTOUSONECOPYOF“SPECIFICATIONFORAPPROVAL” WITHYOURAPPROVEDSIGNATURES 核准审核刘飞制作刘小美 客户承认签印 日期 深圳市朋伴兴业科技有限公司 UNLESSOTHERSPECIFIEDTOLERANCESON： X＝±X.X＝±X.XX＝ ANGLES＝ ± HOLEDIA＝ ± 深圳市朋伴兴业科技有限公司 SCALE：N/AUNIT：mm THESEDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFPBXY TECHNOLOGYLimitedANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY:SeraCHECKEDBY:XD DESIGNEDBY:SeraAPPROVEDBY:XD TITLE：CHIP2450-1608Specification DOCUMENT NO. 1608 SPECREV. P1 2 PBX1608MC01Specification 1. Features : ●Stableandreliableinperformances ●Lowprofile，compactsize ●RoHScompliance ●SMTprocessescompatible 2. APPLICATIONS : ●ISM2.4GHzapplications ●ZigBee/BLEapplications ●Bluetoothearphonesystems ●Hand-helddeviceswhenWiFi/Bluetoothfunctionsareneeded，e.g.，Smartphones ●IEEE802.11b/g/n ●WirelessPCMCIAcardsorUSBdongles 3.PartNumberInformation 深圳市朋伴兴业科技有限公司 UNLESSOTHERSPECIFIEDTOLERANCESON： X＝±X.X＝±X.XX＝ ANGLES＝ ± HOLEDIA＝ ± 深圳市朋伴兴业科技有限公司 SCALE：N/AUNIT：mm THESEDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFPBXY TECHNOLOGYLimitedANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY:SeraCHECKEDBY:XD DESIGNEDBY:SeraAPPROVEDBY:XD TITLE：CHIP2450-1608Specification DOCUMENT NO. 1608 SPECREV. P1 3 4.Productdimensions: 1608双极天线 5.ElectricalSpecification: 深圳市朋伴兴业科技有限公司 UNLESSOTHERSPECIFIEDTOLERANCESON： X＝±X.X＝±X.XX＝ ANGLES＝ ± HOLEDIA＝ ± 深圳市朋伴兴业科技有限公司 SCALE：N/AUNIT：mm THESEDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFPBXY TECHNOLOGYLimitedANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY:SeraCHECKEDBY:XD DESIGNEDBY:SeraAPPROVEDBY:XD TITLE：CHIP2450-1608Specification DOCUMENT NO. 1608 SPECREV. P1 4 6.1608双极天线推荐PCB 2 nd EvaluationBoardDimension 深圳市朋伴兴业科技有限公司 UNLESSOTHERSPECIFIEDTOLERANCESON： X＝±X.X＝±X.XX＝ ANGLES＝ ± HOLEDIA＝ ± 深圳市朋伴兴业科技有限公司 SCALE：N/AUNIT：mm THESEDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFPBXY TECHNOLOGYLimitedANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY:SeraCHECKEDBY:XD DESIGNEDBY:SeraAPPROVEDBY:XD TITLE：CHIP2450-1608Specification DOCUMENT NO. 1608 SPECREV. P1 5 深圳市朋伴兴业科技有限公司 UNLESSOTHERSPECIFIEDTOLERANCESON： X＝±X.X＝±X.XX＝ ANGLES＝ ± HOLEDIA＝ ± 深圳市朋伴兴业科技有限公司 SCALE：N/AUNIT：mm THESEDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFPBXY TECHNOLOGYLimitedANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY:SeraCHECKEDBY:XD DESIGNEDBY:SeraAPPROVEDBY:XD TITLE：CHIP2450-1608Specification DOCUMENT NO. 1608 SPECREV. P1 6 7.MeasurementResults ReturnLoss 7.2RadiationPattern 深圳市朋伴兴业科技有限公司 UNLESSOTHERSPECIFIEDTOLERANCESON： X＝±X.X＝±X.XX＝ ANGLES＝ ± HOLEDIA＝ ± 深圳市朋伴兴业科技有限公司 SCALE：N/AUNIT：mm THESEDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFPBXY TECHNOLOGYLimitedANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY:SeraCHECKEDBY:XD DESIGNEDBY:SeraAPPROVEDBY:XD TITLE：CHIP2450-1608Specification DOCUMENT NO. 1608 SPECREV. P1 7 8.RaliabilityandTestCondictions 9.SolderingandMounting 深圳市朋伴兴业科技有限公司 UNLESSOTHERSPECIFIEDTOLERANCESON： X＝±X.X＝±X.XX＝ ANGLES＝ ± HOLEDIA＝ ± 深圳市朋伴兴业科技有限公司 SCALE：N/AUNIT：mm THESEDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFPBXY TECHNOLOGYLimitedANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY:SeraCHECKEDBY:XD DESIGNEDBY:SeraAPPROVEDBY:XD TITLE：CHIP2450-1608Specification DOCUMENT NO. 1608 SPECREV. P1 8 10.天线应用注意事项 11.StorageandTransportationInformation 深圳市朋伴兴业科技有限公司 UNLESSOTHERSPECIFIEDTOLERANCESON： X＝±X.X＝±X.XX＝ ANGLES＝ ± HOLEDIA＝ ± 深圳市朋伴兴业科技有限公司 SCALE：N/AUNIT：mm THESEDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFPBXY TECHNOLOGYLimitedANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY:SeraCHECKEDBY:XD DESIGNEDBY:SeraAPPROVEDBY:XD TITLE：CHIP2450-1608Specification DOCUMENT NO. 1608 SPECREV. P1 9 12.Packing (1)Quantity/Reel：5000pcs/Reel (2)Plastictape：

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID. ............................................ : CTA24091200501 2BK3X-BQ001 Compiled by ( position+printed name+signature) .. : File administrators Jinghua Xiao Supervised by ( position+printed name+signature) .. : Project Engineer Xudong Zhang Approved by ( position+printed name+signature) .. : RF Manager Eric Wang Date of issue ..................................... : Sep. 14, 2024 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : Huizhou Yingbangni Technology Co., Ltd Address ............................................ : 1st and 3nd floors, Huiquan Road, Chenjiang Street, Zhongkai High Tech Zone, Huizhou, China Test specification ...........................: Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description...................: Helmet wireless headset Trade Mark ....................................... : N/A Manufacturer .................................... : Huizhou Yingbangni Technology Co., Ltd Model/Type reference....................... : BQ-001 Listed Models .................................. : N/A Modulation ....................................... : GFSK Frequency .......................................... From 2402MHz to 2480MHz Ratings ............................................. : DC 3.7V From battery and DC 5.0V From external circuit Result................................................ : PASS Report No.: CTA24091200501 Page 2 of 37 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Helmet wireless headset Model /Type : BQ-001 Listed Models : N/A Applicant : Huizhou Yingbangni Technology Co., Ltd Address : 1st and 3nd floors, Huiquan Road, Chenjiang Street, Zhongkai High Tech Zone, Huizhou, China Manufacturer : Huizhou Yingbangni Technology Co., Ltd Address : 1st and 3nd floors, Huiquan Road, Chenjiang Street, Zhongkai High Tech Zone, Huizhou, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA24091200501 Page 3 of 37 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description* 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 11 4.1 AC Power Conducted Emission 11 4.2 Radiated Emissions and Band Edge 14 4.3 Maximum Peak Output Power 21 4.4 Power Spectral Density 22 4.5 6dB Bandwidth 24 4.6 Out-of-band Emissions 26 4.7 Antenna Requirement 30 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 31 6 P H O T O S O F T H E E U T ........................................................... 32 Report No.: CTA24091200501 Page 4 of 37 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 V05r02: Guidance for Performing Compliance Measurements on Digital Transmission Systems (DTS) Operating Under §15.247 Report No.: CTA24091200501 Page 5 of 37 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 2…

Text truncated - open the document above for the full version.

FCC ID: 2BK3X-BQ001 Test Setup Photos of the EUT
