2BK6G-G1000Mechanical Keyboard (Three-Mode)

1 Gaming Keyboard BK FN +SHIFT+ESC ~ FN + ESC · FN+APlay / Pause FN+S Previous track FN+D Next track FN+F Mute FN+G Volume- FN+H Volume+ E S RY BLE BT, 2.4GHz FCC Caution. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. * RF warning for Portable device: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

- loudiweituomaoyiyouxiangongsi - Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 9/20/2024 U.S. Agent Designation loudiweituomaoyiyouxiangongsi acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BK6G-G1000): Name and company of U.S. agent: UUX GROUP INC Physical U.S. address of agent: 36 South 18th Avenue, Suite A Brighton, CO USA 80601 FRN of U.S. agent: 0033701590 Email address of U.S. agent: [email protected] UUX GROUP INC acknowledges their obligation to accept service of process on behalf of loudiweituomaoyiyouxiangongsi. loudiweituomaoyiyouxiangongsi with the FRN 0035930049 accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Cai Siyu Manager loudiweituomaoyiyouxiangongsi Signature Jack Fu Manager UUX GROUP INC 48_[model] US_Agent_2.911(d)(7) - U, V05

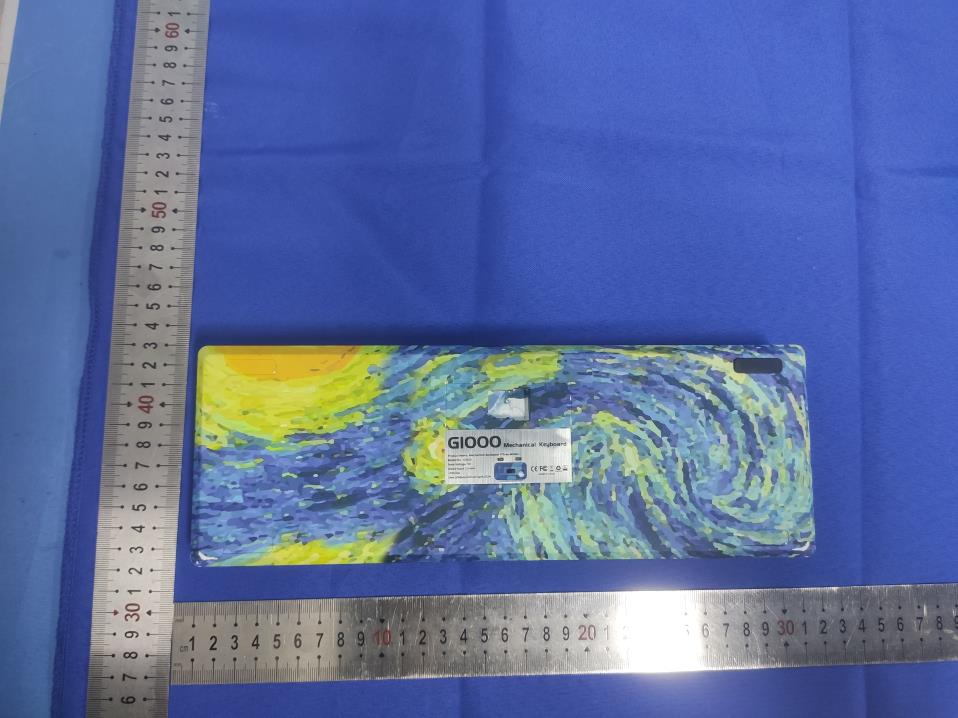

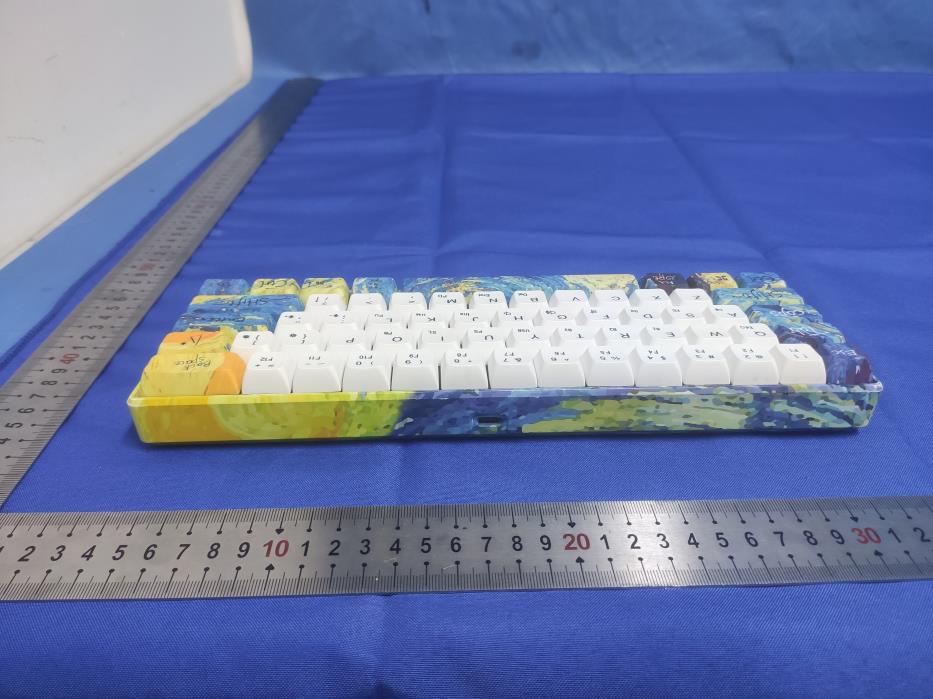

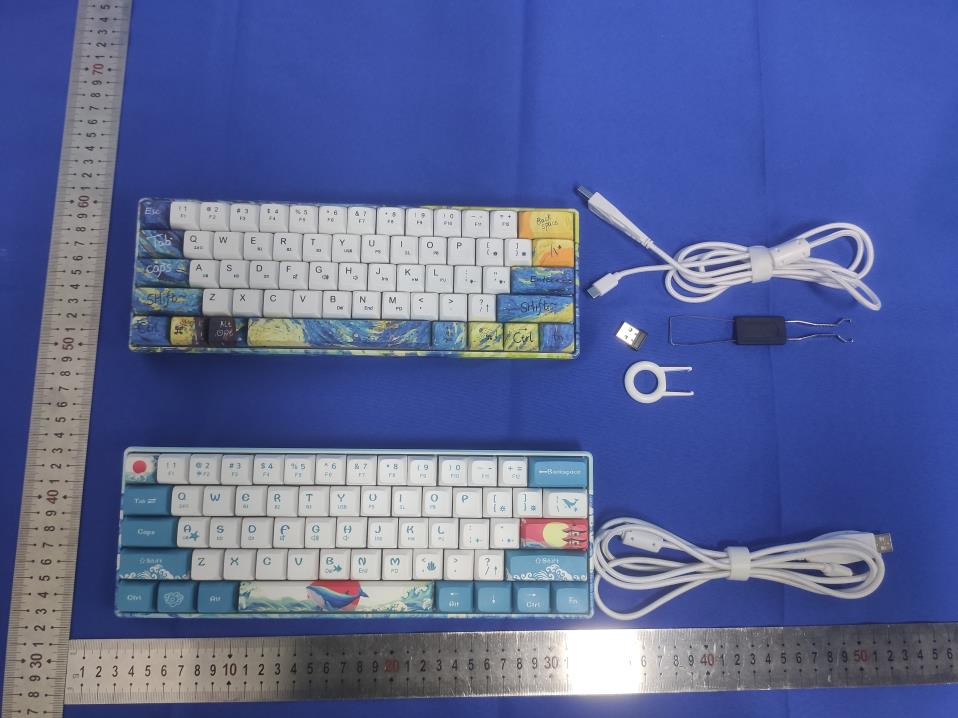

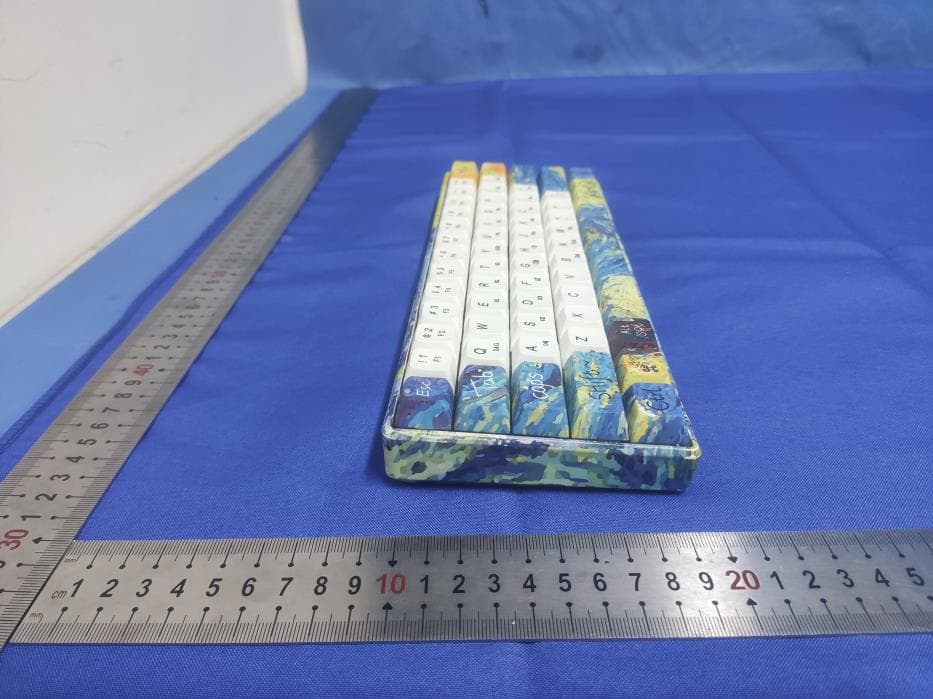

Page 1 of 4 FCC ID: 2BK6G-G1000 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. EUT Constructional Details External EUT Photo Photo 1 Photo 2 Page 2 of 4 FCC ID: 2BK6G-G1000 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 3 Photo 4 Page 3 of 4 FCC ID: 2BK6G-G1000 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 5 Photo 6 Page 4 of 4 FCC ID: 2BK6G-G1000 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 7 ---The End---

Label Size: L60mm * W25mm 1. The label is silk-screen on the sample L W

Page 1 of 6 FCC ID: 2BK6G-G1000 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. EUT Constructional Details Internal EUT Photo Photo 1 Photo 2 Page 2 of 6 FCC ID: 2BK6G-G1000 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 3 Photo 4 Page 3 of 6 FCC ID: 2BK6G-G1000 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 5 Photo 6 Page 4 of 6 FCC ID: 2BK6G-G1000 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 7 Photo 8 Antenna Page 5 of 6 FCC ID: 2BK6G-G1000 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 9 Photo 10 Page 6 of 6 FCC ID: 2BK6G-G1000 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 11 ------End------

RF Exposure evaluation FCC ID: 2BK6G-G1000 Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.1. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. Manufacturing Tolerance 2.4G SRD_Conducted Mode Frequency(MHz) Target (dBm) GFSK 2403 2441 2480 -5 -5 -5 Tolerance ± (dB) 1 BLE_Conducted Mode Frequency(MHz) Target (dBm) 1M PHY 2402 2440 2480 -3 -5 -5 Tolerance ± (dB) 1 2. E v a l u a t i o n R e s u l t Standalone Band/Mode f (GHz) Antenna Distance RF output power including tune up SAR Test Exclusion Threshold SAR Test Exclusion Estimated (mm) dBm mW SAR 2.4G SRD 2.48 5 -4 0.40 0.125 <3.0 Yes / BLE 2.402 5 -2 0.63 0.196 <3.0 Yes / Remark: When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. 3. C o n c l u s i o n The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06, No SAR is required. .....................End.........................

Page 1 of 24 Report No.: AiTSZ-240816002FW1 Note: This device has been tested and found to comply with the standard(s) listed, this test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited. If there is a need to alter or revise this document, the right belongs to Guangdong Asia Hongke Test Technology Limited, and it should give a prior written notice of the revision document. This test report must not be used by the client to claim product endorsement. Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. TEST REPORT Product Name : Mechanical Keyboard (Three-Mode) Brand Name : N/A Model : G1000 Series Model : N/A FCC ID : 2BK6G-G1000 Applicant : loudiweituomaoyiyouxiangongsi Address : 11th Floor, Jitai Lingyu, Leping Avenue, LouxingDistrict, Loudi City, Hunan Province,China Manufacturer : ShenZhen Kuibu Electronic co.,ltd. Address : Building 41, Capital of Tech Leaders, 1387 Zhangdong RoadZhangjiang High-Tech Park, Pudong New District, Shanghai, China Standard(s) : FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of Receipt : Aug.16, 2024 Date of Test : Aug.16, 2024 ~ Sept.02, 2024 Issued Date : Sept.02, 2024 Issued By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Reviewed by: Approved by: Leon.yi Sean She Page 2 of 24 Report No.: AiTSZ-240816002FW1 Report Revise Record Report Version Issued Date Notes M1 Sept.02, 2024 Initial Release Page 3 of 24 Report No.: AiTSZ-240816002FW1 Contents 1 TEST SUMMARY .................................................................................................................................................... 4 1.1 TEST STANDARDS ......................................................................................................................................................... 4 1.2 TEST SUMMARY ........................................................................................................................................................... 4 1.3 TEST FACILITY .............................................................................................................................................................. 5 1.4 MEASUREMENT UNCERTAINTY ........................................................................................................................................ 5 2 GENGENERAL INFORMATION ................................................................................................................................ 6 2.1 ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 6 2.2 GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 6 2.3 DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 7 2.4 SPECIAL ACCESSORIES ................................................................................................................................................... 8 2.5 EQUIPMENT LIST FOR THE TEST ....................................................................................................................................... 8 3 TEST CONDITIONS AND RESULTS ........................................................................................................................... 9 3.1 CONDUCTED EMISSIONS TEST ......................................................................................................................................... 9 3.2 RADIATED EMISSIONS AND BAND EDGE .......................................................................................................................... 12 3.3 MAXIMUM PEAK CONDUCTED OUTPUT POWER ............................................................................................................... 19 3.4 POWER SPECTRAL DENSITY .......................................................................................................................................... 20 3.5 6DB BANDWIDTH ....................................................................................................................................................... 21 3.6 OUT-OF-BAND EMISSIONS ........................................................................................................................................... 22 3.7 ANTENNA REQUIREMENT ............................................................................................................................................. 23 4 TEST SETUP PHOTOGRAPHS OF EUT .................................................................................................................... 24 5 EXTERNAL PHOTOGRAPHS OF EUT ...................................................................................................................... 24 6 INTERNAL PHOTOGRAPHS OF EUT ...................................................................................................................... 24 Page 4 of 24 Report No.: AiTSZ-240816002FW1 1 TEST SUMMARY 1.1 Test Standards The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz ANSI C63.10: 2013: American National Standard for Testing Unlicensed Wireless Devices…

Text truncated - open the document above for the full version.

Antenna Specification Specifications Summary ITEMSPEC. Model NameIBM 2.4 GHz Center Frequency 2402 MHz 2441 MHz 2480 MHz 2.34 dBi 2.07dBi 1.45 dBi MAX. GAIN2.34 dBi PolarizationHorizontal Azimuth Beam Pattern Omni-directional Impedance50Ω Antenna Length3.45cm Antenna Photo & Length (mm) Test Address 16 Tzu Chiang Road, Hsinchu Industrial District Hsinchu Hsien 303, Taiwan Test Date2009-04-14 Test Instrument vector network analyzer - R&S ZVB20 1. Main antenna : 2402 MHz 1.1 Horizontal Frequency(MHZ):2402Antenna Polarity:Horizontal Maximum Gain(dBi): 2.34 Average Gain(dBi):-2.48 Minimum Gain(dBi):-55.18 1.2 Vertical Frequency(MHZ):2402Antenna Polarity:Vertical Maximum Gain(dBi): -4.51 AverageGain(dBi) :-8.98 Minimum Gain(dBi):-62.3 2. Main antenna : 2441 MHz 2.1 Horizontal Frequency(MHZ):2441Antenna Polarity:Horizontal Maximum Gain(dBi): 2.07 Average Gain(dBi) : -2.54 Minimum Gain(dBi): -66.98 2.2 Vertical Frequency(MHZ):2441Antenna Polarity:Vertical Maximum Gain(dBi): -4.29 AverageGain(dBi) :-8.81 Minimum Gain(dBi):-51.4 2. Main antenna : 2480 MHz 2.1 Horizontal Frequency(MHZ): 2480AntennaPolarity:Horizontal Maximum Gain(dBi):1.45 AverageG ain(dBi) : -3.34 Minimum Gain(dBi): -53.4 2.2 Vertical Frequency(MHZ):2480Antenna Polarity:Vertical Maximum Gain(dBi): -4.95 AverageGain(dBi) :-9.06 Minimum Gain(dBi):-60.00

Page 1 of 21 Report No.: AiTSZ-240816002FW1 1. Duty Cycle 1.1 Test Result 1.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) Max. DC Variation (%) 1M SISO 2402 2.147 2.500 85.88 0.66 0.03 2440 2.145 2.499 85.83 0.66 0.03 2480 2.146 2.499 85.87 0.66 0.03 Page 2 of 21 Report No.: AiTSZ-240816002FW1 1.2 Test Graph 1.2.1 Ant1 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 3 of 21 Report No.: AiTSZ-240816002FW1 1M_HCH_2480MHz_Ant1_NTNV Page 4 of 21 Report No.: AiTSZ-240816002FW1 2. Bandwidth 2.1 Test Result 2.1.1 OBW Mode TX Type Frequency (MHz) ANT 99% Occupied Bandwidth (MHz) Verdict Result Limit 1M SISO 2402 1 1.034 / Pass 2440 1 1.029 / Pass 2480 1 1.031 / Pass 2.1.2 6dB BW Mode TX Type Frequency (MHz) ANT 6dB Bandwidth (MHz) Verdict Result Limit 1M SISO 2402 1 0.668 >=0.5 Pass 2440 1 0.668 >=0.5 Pass 2480 1 0.685 >=0.5 Pass Page 5 of 21 Report No.: AiTSZ-240816002FW1 2.2 Test Graph 2.2.1 OBW 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 6 of 21 Report No.: AiTSZ-240816002FW1 1M_HCH_2480MHz_Ant1_NTNV Page 7 of 21 Report No.: AiTSZ-240816002FW1 2.2.2 6dB BW 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 8 of 21 Report No.: AiTSZ-240816002FW1 1M_HCH_2480MHz_Ant1_NTNV Page 9 of 21 Report No.: AiTSZ-240816002FW1 3. Maximum Conducted Output Power 3.1 Test Result 3.1.1 Power Mode TX Type Frequency (MHz) Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit 1M SISO 2402 -3.68 <=30 Pass 2440 -5.12 <=30 Pass 2480 -5.96 <=30 Pass Note1: Antenna Gain: Ant1: 2.24dBi; Page 10 of 21 Report No.: AiTSZ-240816002FW1 3.2 Test Graph 3.2.1 Power 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 11 of 21 Report No.: AiTSZ-240816002FW1 1M_HCH_2480MHz_Ant1_NTNV Page 12 of 21 Report No.: AiTSZ-240816002FW1 4. Maximum Power Spectral Density 4.1 Test Result 4.1.1 PSD Mode TX Type Frequency (MHz) Maximum PSD (dBm/3kHz) Verdict ANT1 Limit 1M SISO 2402 -20.71 <=8 Pass 2440 -21.11 <=8 Pass 2480 -21.84 <=8 Pass Note1: Antenna Gain: Ant1: 2.24dBi; Page 13 of 21 Report No.: AiTSZ-240816002FW1 4.2 Test Graph 4.2.1 PSD 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 14 of 21 Report No.: AiTSZ-240816002FW1 1M_HCH_2480MHz_Ant1_NTNV Page 15 of 21 Report No.: AiTSZ-240816002FW1 5. Unwanted Emissions In Non-restricted Frequency Bands 5.1 Test Result 5.1.1 Ref Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) 1M SISO 2402 1 -4.46 2440 1 -5.15 2480 1 -6.02 Note1: Refer to FCC Part 15.247 (d) and ANSI C63.10-2013, the channel contains the maximum PSD level was used to establish the reference level. 5.1.2 CSE Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) Limit (dBm) Verdict 1M SISO 2402 1 -4.46 -24.46 Pass 2440 1 -5.15 -25.15 Pass 2480 1 -6.02 -26.02 Pass Note1: Refer to FCC Part 15.247 (d) and ANSI C63.10-2013, the channel contains the maximum PSD level was used to establish the reference level. Page 16 of 21 Report No.: AiTSZ-240816002FW1 5.2 Test Graph 5.2.1 Ref 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 17 of 21 Report No.: AiTSZ-240816002FW1 1M_HCH_2480MHz_Ant1_NTNV Page 18 of 21 Report No.: AiTSZ-240816002FW1 5.2.2 CSE 1M_LCH_2402MHz_Ant1_NTNV 1M_LCH_2402MHz_Ant1_NTNV Page 19 of 21 Report No.: AiTSZ-240816002FW1 1M_MCH_2440MHz_Ant1_NTNV 1M_HCH_2480MHz_Ant1_NTNV Page 20 of 21 Report No.: AiTSZ-240816002FW1 1M_HCH_2480MHz_Ant1_NTNV Page 21 of 21 Report No.: AiTSZ-240816002FW1 6. Form731 6.1 Test Result 6.1.1 Form731 Lower Freq (MHz) High Freq (MHz) MAX Power (W) MAX Power (dBm) 2402 2480 0.0004 -3.68

Page 1 of 2 FCC ID: 2BK6G-G1000 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Test Setup Photo DTS Radiated Emission Page 2 of 2 FCC ID: 2BK6G-G1000 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Conducted Emission ------End------
