2BK6M-BLKCONVERSA WIRELESS SPEAKER

CONVERSA PORTABLE WIRELESS SPEAKER USER GUIDE ① (M) Short press to switch between modes: FM, TF card, USB, Aux, Bluetooth ② (-) Short press to play previous song Long press to decrease volume ③ Power BuƩon: Long press 2 seconds to turn On/Off ④ (+) Short press to play next song Long press to increase volume ⑤ ( ) Short press to play/pause music In FM mode: short press to search, short press again to stop searching. To answer call: short press to answer; long press to hang up. ⑥ (M) Long press the buƩon (of any speaker) for 2 seconds for mutual connecƟon between two speakers. ⑥ DC 5V Charging port ⑦ AUX input: 3.5mm aux input ⑧ USB Slot ⑨ TF Card Slot BT ConnecƟvity Name: CONVERSA Lithium BaƩery Safety We want to ensure your safety and provide you with essen Ɵal informaƟon regarding products that contain lithium-ion baƩeries. These baƩeries are commonly found in various electronic devices, such as laptops, smartphones, and rechargeable tools. While lithium ba Ʃeries offer high energy density and long-lasƟng performance, they also come with some safety considera Ɵons. 1. Avoid Extreme Temperatures: Lithium-ion baƩeries are sensiƟve to extreme temperatures. Do not expose them to direct sunlight, excessive heat, or extreme cold, as it can damage the baƩery or, in rare cases, lead to thermal runaway. 2. Use the Correct Charger: Always use the charger provided with the product or one specifically designed for lithium-ion baƩeries. Using an incorrect charger can result in overheaƟng and damage to the baƩery. 3. Do Not Overcharge: Avoid overcharging your device. Most modern devices have built-in protecƟon to prevent overcharging, but it's essenƟal to unplug your device once it's fully charged. 4. Store Safely: If you're not using a device for an extended period, store it in a cool, dry place with a charge level of approximately 50%. This can help prolong the life of the baƩery. 5. Handle with Care: Avoid dropping or puncturing lithium-ion baƩeries, as it can lead to leaks, fires, or other hazardous situaƟons. If a baƩery appears damaged, disconƟnue use immediately. 6. Recycle Responsibly: When disposing of lithium-ion baƩeries, please do so in accordance with local regulaƟons and recycling programs. Do not throw them in the trash. 7. Monitor for Swelling: If you noƟce a lithium-ion baƩery swelling or changing shape, stop using the device and seek professional assistance. Swelling can be a sign of a damaged or faulty baƩery. 8. Use Original Accessories: Whenever possible, use original accessories and replacement parts recommended by the manufacturer to ensure compaƟbility and safety AddiƟonal Safety Guidelines: • Don’t recharge when you are away or sleeping. • Charge in a cool, dry place away from flammables or other baƩery-powered devices. • Let the device cool before charging. • Keep away from heat sources. • Don’t charge to 100 percent and don’t run it down to zero. • Replace any baƩeries damaged from impact. • Follow the manufacturer’s instrucƟons for charging and storage. • Plug directly into a wall electrical outlet for charging. Never use aŌermarket (or generic) baƩeries or chargers. Safety is our top priority, and we want you to enjoy your products while taking necessary precauƟons. Please take these guidelines seriously to prevent any potenƟal risks associated with lithium-ion baƩeries. By using our products, you agree to the following:  5D GLOBAL DISTRIBUTIONS and its affiliates/DBA’s shall not be liable for any direct or indirect damages, injuries, or losses resulƟng from the use or misuse of products containing lithium-ion baƩeries.  Customers assume all risks associated with the use of these products and agree to hold 5D GLOBAL DISTRIBUTIONS and its affiliates/DBA’s, its officers, directors, employees, and suppliers harmless from any claims or acƟons arising out of such use. FCC Caution. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. *RF warning : This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 0cm between the radiator & your body. The FCC certification of this device refers to RF exposure testing performed in typical operating conditions, where a person is no closer than 0 centimeters from the device surface at all times, except for non-repetitive patterns with transient time intervals in the order of a second. Only in the stated conditions, the device is shown to fully comply with the FCC RF Exposure requirements of KDB 447498.

{5D GLOBAL DISTRIBUTIONS} {4405 Westgrove Dr, Addison Texas 75001 USA} Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 {2024-09-19} U.S. Agent Designation 5D GLOBAL DISTRIBUTIONS acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BK6M- BLK): Name and company of U.S. agent: 5D GLOBAL DISTRIBUTIONS Physical U.S. address of agent: 4405 Westgrove Dr, Addison Texas 75001 USA FRN of U.S. agent: 0035964576 Email address of U.S. agent: [email protected] 5D GLOBAL DISTRIBUTIONS acknowledges their obligation to accept service of process on behalf of 5D GLOBAL DISTRIBUTIONS. 5D GLOBAL DISTRIBUTIONS with the FRN [0035964576] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Tomer Damti Manager 5D GLOBAL DISTRIBUTIONS Signature Tomer Damti Manager 5D GLOBAL DISTRIBUTIONS 48_[model] US_Agent_2.911(d)(7) - U, V05

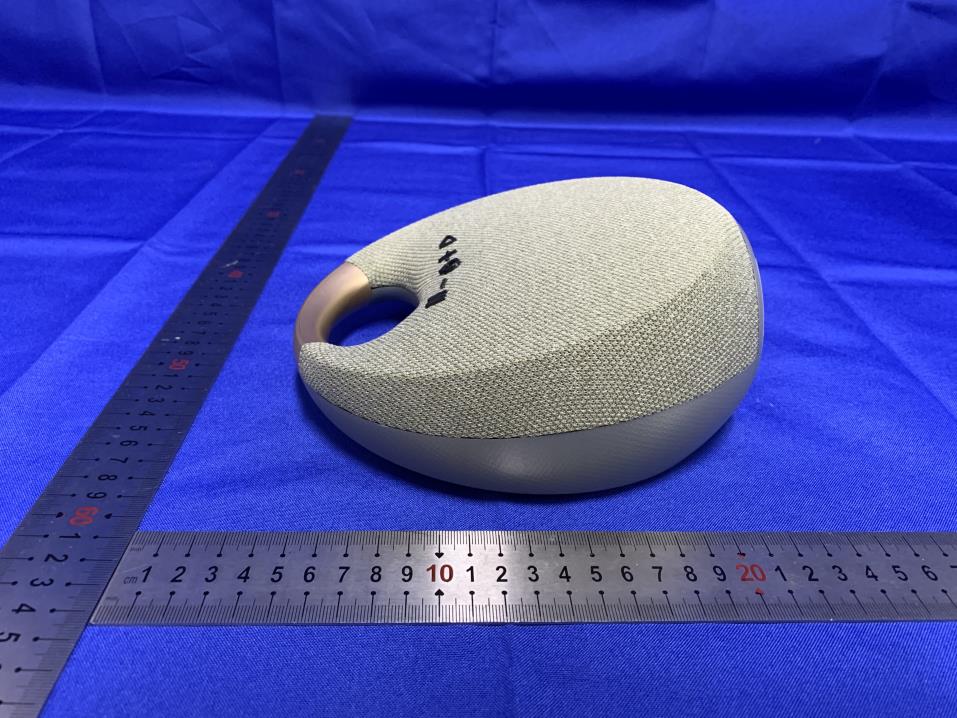

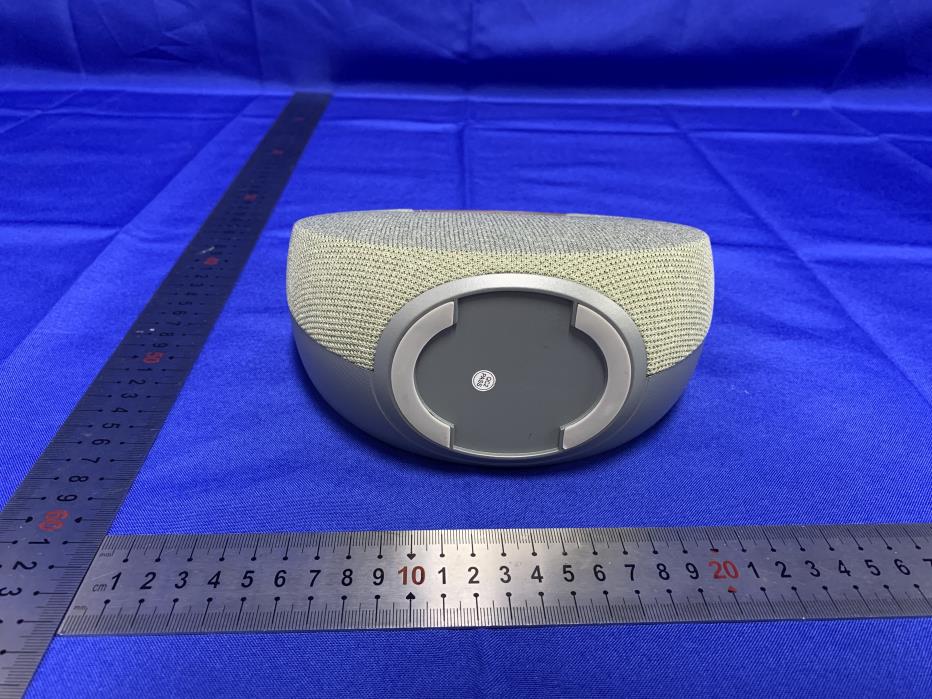

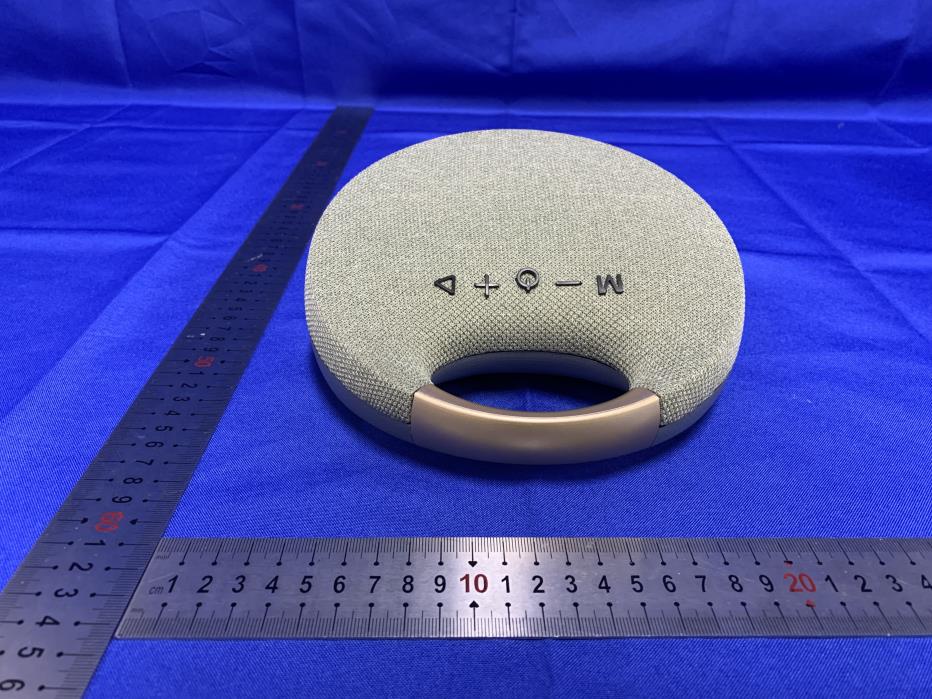

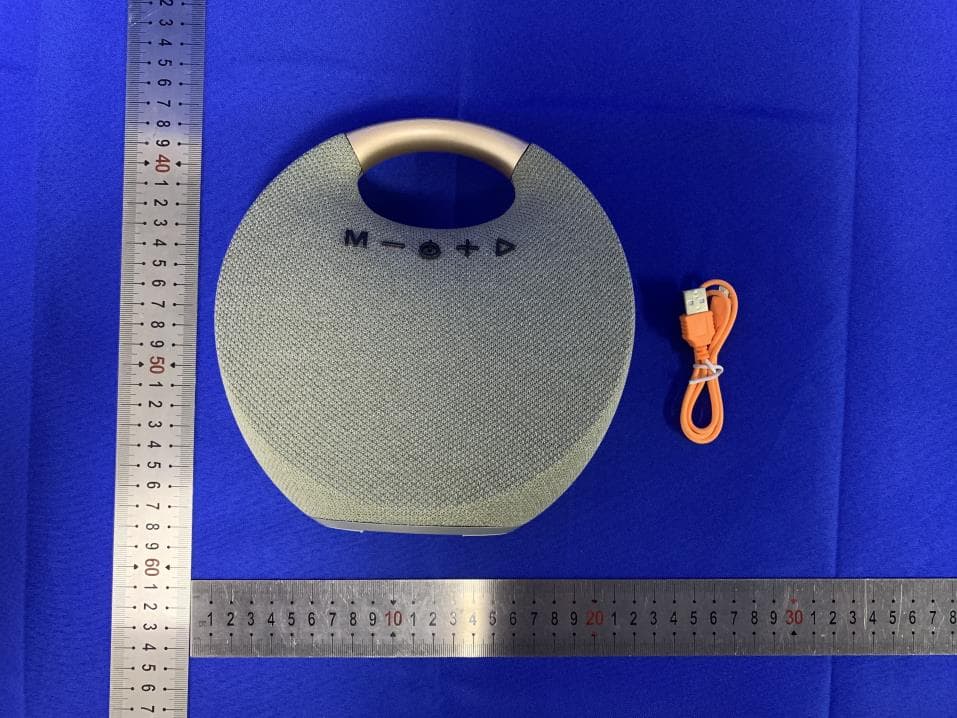

Page 1 of 4 FCC ID: 2BK6M-BLK Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. EUT Constructional Details External EUT Photo Photo 1 Photo 2 Page 2 of 4 FCC ID: 2BK6M-BLK Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 3 Photo 4 Page 3 of 4 FCC ID: 2BK6M-BLK Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 5 Photo 6 Page 4 of 4 FCC ID: 2BK6M-BLK Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 7 Photo 8 ---The End---

Label Size: L50mm * W10mm 1. The label is silk-screen on the sample CONVERSA WIRELESS SPEAKER Model Name: RG-OUTSPK-BLK FCC ID: 2BK6M-BLK L W

Page 1 of 6 FCC ID: 2BK6M-BLK Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. EUT Constructional Details Internal EUT Photo Photo 1 Photo 2 Page 2 of 6 FCC ID: 2BK6M-BLK Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 3 Photo 4 Page 3 of 6 FCC ID: 2BK6M-BLK Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 5 Photo 6 Page 4 of 6 FCC ID: 2BK6M-BLK Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 7 Photo 8 Antenna Page 5 of 6 FCC ID: 2BK6M-BLK Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 9 Photo 10 Page 6 of 6 FCC ID: 2BK6M-BLK Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 11 Photo 12 ------End------

RF Exposure evaluation FCC ID: 2BK6M-BLK Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.1. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. Manufacturing Tolerance BR_EDR (Conducted) Frequency BR_EDR_GFSK (MHz) 2402 2441 2480 Target (dBm) 1 0 0 Tolerance ± (dB) 1 1 1 Frequency BR_EDR_π/4-DQPSK (MHz) 2402 2441 2480 Target (dBm) 1 0 0 Tolerance ± (dB) 1 1 1 Frequency BR_EDR_8DQPSK (MHz) 2402 2441 2480 Target (dBm) 1 0 1 Tolerance ± (dB) 1 1 1 2. E v a l u a t i o n R e s u l t Standalone Band/Mode f (GHz) Antenna Distance RF output power including tune up SAR Test Exclusion Threshold SAR Test Exclusion Estimated (mm) dBm mW SAR BT(BR+EDR) 2.48 5 2 1.58 0.499 <3.0 Yes / Remark: When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. 3. C o n c l u s i o n The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06, No SAR is required. .....................End.........................

Page 1 of 29 Report No.: AiTSZ-240826004FW1 Note: This device has been tested and found to comply with the standard(s) listed, this test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited. If there is a need to alter or revise this document, the right belongs to Guangdong Asia Hongke Test Technology Limited, and it should give a prior written notice of the revision document. This test report must not be used by the client to claim product endorsement. Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. TEST REPORT Product Name : CONVERSA WIRELESS SPEAKER Brand Name : N/A Model : RG-OUTSPK-BLK Series Model : RG-OUTSPK-BLU,RG-OUTSPK-GRY,RG-OUTSPK-RED FCC ID : 2BK6M-BLK Applicant : 5D GLOBAL DISTRIBUTIONS Address : 4405 Westgrove Dr, Addison Texas 75001 USA Manufacturer : 5D GLOBAL DISTRIBUTIONS Address : 4405 Westgrove Dr, Addison Texas 75001 USA Standard(s) : FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of Receipt : Aug.26, 2024 Date of Test : Aug.26, 2024~ Sept.06, 2024 Issued Date : Sept.06, 2024 Issued By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Reviewed by: Approved by: Leon.yi Sean She Page 2 of 29 Report No.: AiTSZ-240826004FW1 Report Revise Record Report Version Issued Date Notes M1 Sept.06, 2024 Initial Release Page 3 of 29 Report No.: AiTSZ-240826004FW1 Contents 1 TEST SUMMARY ....................................................................................................................................................... 4 1.1 TEST STANDARDS ......................................................................................................................................................... 4 1.2 TEST SUMMARY ........................................................................................................................................................... 4 1.3 TEST FACILITY .............................................................................................................................................................. 5 1.4 MEASUREMENT UNCERTAINTY ........................................................................................................................................ 5 2 GENGENERAL INFORMATION ................................................................................................................................... 6 2.1 ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 6 2.2 GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 6 2.3 DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 7 2.4 SPECIAL ACCESSORIES ................................................................................................................................................... 8 2.5 EQUIPMENT LIST FOR THE TEST ....................................................................................................................................... 8 3 TEST CONDITIONS AND RESULTS ............................................................................................................................ 10 3.1 CONDUCTED EMISSIONS TEST ....................................................................................................................................... 10 3.2 RADIATED EMISSIONS AND BAND EDGE .......................................................................................................................... 13 3.3 MAXIMUM PEAK OUTPUT POWER................................................................................................................................. 20 3.4 20DB BANDWIDTH ..................................................................................................................................................... 21 3.5 OCCUPIED BANDWIDTH ............................................................................................................................................... 22 3.6 FREQUENCY SEPARATION ............................................................................................................................................. 23 3.7 NUMBER OF HOPPING FREQUENCY ................................................................................................................................. 24 3.8 TIME OF OCCUPANCY (DWELL TIME) .............................................................................................................................. 25 3.9 OUT-OF-BAND EMISSIONS ........................................................................................................................................... 26 3.10 PSEUDORANDOM FREQUENCY HOPPING SEQUENCE .......................................................................................................... 27 3.11 ANTENNA REQUIREMENT ............................................................................................................................................. 28 4 TEST SETUP PHOTOGRAPHS OF EUT ....................................................................................................................... 29 5 EXTERNAL PHOTOGRAPHS OF EUT ........................................................................................................…

Text truncated - open the document above for the full version.

Product specification Quick Reference Date Antenna module on the system board Frequenc Range 2400 ~ 2500MHz Ant. Port Input Pwr. (dBm) 0 (Typ. BT class 2 output power) Tot. Rad. Pwr. (dBm) -1.2 (Input pwr – loss pwr) Peak EIRP(dBm) 1.2 Directivity (dBi) 1 (all direction antenna) Efficiency (dB) 6 0.2 % Max Peak Gain (dBi) 1.9 (Peak Gain XZ-plane) Maximum Power (dBm) 1.7 (XY-plane) Minimum Power (dBm) -4(XY-plane) Avg. Power (dBm) -0.5(XY-plane) Input Impendence(ohm) 50 Polarization Type V ertical & Horizontal V . S .W . R < 1.4 All the technical data and information contained herein are subject to change without prior notice Antenna Layout & module on the system board Antenna Gain Gain Table Unit in dBi @2.44GHz XY-plane XZ-plane YZ-plane Efficiency Peak Avg. Peak Avg. Peak Avg. Module Board 1.2 -0.51.9 -3.61.1 -3.06 0.2 % Retum Loss The Environment of Antenna Radiation Pattem 3D radiation pattern diagram XY-plane XZ-plane YZ-plane

Page 1 of 54 Report No.: AiTSZ-240826004FW1 1. Bandwidth 1.1 Test Result 1.1.1 OBW Mode TX Type Frequency (MHz) Packet Type ANT 99% Occupied Bandwidth (MHz) Verdict Result Limit GFSK SISO 2402 DH5 1 0.749 / Pass 2441 DH5 1 0.747 / Pass 2480 DH5 1 0.743 / Pass Pi/4DQPSK SISO 2402 2DH5 1 1.180 / Pass 2441 2DH5 1 1.175 / Pass 2480 2DH5 1 1.174 / Pass 8DPSK SISO 2402 3DH5 1 1.185 / Pass 2441 3DH5 1 1.186 / Pass 2480 3DH5 1 1.182 / Pass 1.1.2 20dB BW Mode TX Type Frequency (MHz) Packet Type ANT 20dB Bandwidth (MHz) Verdict Result Limit GFSK SISO 2402 DH5 1 0.849 / Pass 2441 DH5 1 0.845 / Pass 2480 DH5 1 0.849 / Pass Pi/4DQPSK SISO 2402 2DH5 1 1.329 / Pass 2441 2DH5 1 1.330 / Pass 2480 2DH5 1 1.325 / Pass 8DPSK SISO 2402 3DH5 1 1.315 / Pass 2441 3DH5 1 1.316 / Pass 2480 3DH5 1 1.314 / Pass Page 2 of 54 Report No.: AiTSZ-240826004FW1 1.2 Test Graph 1.2.1 OBW GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV Page 3 of 54 Report No.: AiTSZ-240826004FW1 GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV Page 4 of 54 Report No.: AiTSZ-240826004FW1 Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV Page 5 of 54 Report No.: AiTSZ-240826004FW1 8DPSK_3DH5_LCH_2402MHz_Ant1_NTNV 8DPSK_3DH5_MCH_2441MHz_Ant1_NTNV Page 6 of 54 Report No.: AiTSZ-240826004FW1 8DPSK_3DH5_HCH_2480MHz_Ant1_NTNV Page 7 of 54 Report No.: AiTSZ-240826004FW1 1.2.2 20dB BW GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV Page 8 of 54 Report No.: AiTSZ-240826004FW1 GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV Page 9 of 54 Report No.: AiTSZ-240826004FW1 Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV Page 10 of 54 Report No.: AiTSZ-240826004FW1 8DPSK_3DH5_LCH_2402MHz_Ant1_NTNV 8DPSK_3DH5_MCH_2441MHz_Ant1_NTNV Page 11 of 54 Report No.: AiTSZ-240826004FW1 8DPSK_3DH5_HCH_2480MHz_Ant1_NTNV Page 12 of 54 Report No.: AiTSZ-240826004FW1 2. Maximum Conducted Output Power 2.1 Test Result 2.1.1 Power Mode TX Type Frequency (MHz) Packet Type Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit GFSK SISO 2402 DH5 1.28 <=30 Pass 2441 DH5 0.75 <=30 Pass 2480 DH5 0.86 <=30 Pass Pi/4DQPSK SISO 2402 2DH5 1.10 <=20.97 Pass 2441 2DH5 0.73 <=20.97 Pass 2480 2DH5 0.66 <=20.97 Pass 8DPSK SISO 2402 3DH5 1.17 <=20.97 Pass 2441 3DH5 0.94 <=20.97 Pass 2480 3DH5 1.02 <=20.97 Pass Note1: Antenna Gain: Ant1: 1.90dBi; Page 13 of 54 Report No.: AiTSZ-240826004FW1 2.2 Test Graph 2.2.1 Power GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV Page 14 of 54 Report No.: AiTSZ-240826004FW1 GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV Page 15 of 54 Report No.: AiTSZ-240826004FW1 Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV Page 16 of 54 Report No.: AiTSZ-240826004FW1 8DPSK_3DH5_LCH_2402MHz_Ant1_NTNV 8DPSK_3DH5_MCH_2441MHz_Ant1_NTNV Page 17 of 54 Report No.: AiTSZ-240826004FW1 8DPSK_3DH5_HCH_2480MHz_Ant1_NTNV Page 18 of 54 Report No.: AiTSZ-240826004FW1 3. Carrier Frequency Separation 3.1 Test Result 3.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) Packet Type Channel Separation (MHz) 20dB Bandwidth (MHz) Limit (MHz) Verdict GFSK SISO HOPP DH5 1.004 0.849 >=0.849 Pass Pi/4DQPSK SISO HOPP 2DH5 1.020 1.330 >=0.887 Pass 8DPSK SISO HOPP 3DH5 1.001 1.316 >=0.877 Pass Page 19 of 54 Report No.: AiTSZ-240826004FW1 3.2 Test Graph 3.2.1 Ant1 GFSK_DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV Page 20 of 54 Report No.: AiTSZ-240826004FW1 8DPSK_3DH5_HOPP_Ant1_NTNV Page 21 of 54 Report No.: AiTSZ-240826004FW1 4. Number of Hopping Frequencies 4.1 Test Result 4.1.1 HoppNum Mode TX Type Frequency (MHz) Packet Type Num of Hopping Frequencies Verdict ANT1 Limit GFSK SISO HOPP DH5 79 >=15 Pass Pi/4DQPSK SISO HOPP 2DH5 79 >=15 Pass 8DPSK SISO HOPP 3DH5 79 >=15 Pass Page 22 of 54 Report No.: AiTSZ-240826004FW1 4.2 Test Graph 4.2.1 HoppNum GFSK_DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV Page 23 of 54 Report No.: AiTSZ-240826004FW1 8DPSK_3DH5_HOPP_Ant1_NTNV Page 24 of 54 Report No.: AiTSZ-240826004FW1 5. Time of Occupancy (Dwell Time) 5.1 Test Result 5.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) Packet Type Duration of Single Pulse (ms) Observation Period (s) Num of Pulse in Observation Period Dwell Time (ms) Limit (ms) Verdict GFSK SISO HOPP DH1 0.378 31.600 320 120.960 <=400 Pass DH3 1.636 31.600 159 260.124 <=400 Pass DH5 2.884 31.600 112 323.008 <=400 Pass Pi/4DQPSK SISO HOPP 2DH1 0.388 31.600 320 124.160 <=400 Pass 2DH3 1.640 31.600 159 260.760 <=400 Pass 2DH5 2.888 31.600 107 309.016 <=400 Pass 8DPSK SISO HOPP 3DH1 0.386 31.600 320 123.520 <=400 Pass 3DH3 1.638 31.600 160 262.080 <=400 Pass 3DH5 2.902 31.600 123 356.946 <=400 Pass Page 25 of 54 Report No.: AiTSZ-240826004FW1 5.2 Test Graph 5.2.1 Ant1 GFSK_DH1_HOPP_Ant1_NTNV GFSK_DH1_HOPP_Ant1_NTNV Page 26 of 54 Report No.: AiTSZ-240826004FW1 GFSK_DH3_HOPP_Ant1_NTNV GFSK_DH3_HOPP_Ant1_NTNV Page 27 of 54 Report No.: AiTSZ-240826004FW1 GFSK_DH5_HOPP_Ant1_NTNV GFSK_DH5_HOPP_Ant1_NTNV Page 28 of 54 Report No.: AiTSZ-240826004FW1 Pi/4DQPSK_2DH1_HOPP_Ant1_NTNV Pi/4DQPSK_2DH1_HOPP_Ant1_NTNV Page 29 of 54 Report No.: AiTSZ-240826004FW1 Pi/4DQPSK_2DH3_HOPP_Ant1_NTNV Pi/4DQPSK_2DH3_HOPP_Ant1_NTNV Page 30 of 54 Report No.: AiTSZ-240826004FW1 Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV Page 31 of 54 Report No.: AiTSZ-240826004FW1 8DPSK_3DH1_HOPP_Ant1_NTNV 8DPSK_3DH1_HOPP_Ant1_NTNV Page 32 of 54 Report No.: AiTSZ-240826004FW1 8DPSK_3DH3_HOPP_Ant1_NTNV 8DPSK_3DH3_HOPP_Ant1_NTNV Page 33 of 54 Report No.: AiTSZ-240826004FW1 8DPSK_3DH5_HOPP_Ant1_NTNV 8DPSK_3DH5_HOPP_Ant1_NTNV Page 34 of 54 Report No.: AiTSZ-240826004FW1 6. Unwanted Emissions In Non-restricted Frequency Bands 6.1 Test Result 6.1.1 Ref Mode TX Type Frequency (MHz) Packet Type ANT Level of Reference (dBm) GFSK SISO 2402 DH5 1 0.86 2441 DH5 1 0.31 2480 DH5 1 0.53 HOPP DH5 1 1.47 1.47 Pi/4DQPSK SISO 2402 2DH5 1 -1.86 2441 2DH5 1 -2.44 2480 2DH5 1 -2.41 HOPP 2DH5 1 -0.89 -0.89 8DPSK SISO 2402 3DH5…

Text truncated - open the document above for the full version.

Page 1 of 2 FCC ID: 2BK6M-BLK Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Test Setup Photo DSS Radiated Emission Page 2 of 2 FCC ID: 2BK6M-BLK Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Conducted Emission ------End------
