2BK8W-G2Bluetooth Remote Shutter

自拍/视频/阅读遥控器说明书 适用于苹果/安卓系统 适用系统：自拍遥控器/视频/阅读遥控器支持iOS 15.0/Android 9.0以上 蓝牙版本：蓝牙5.0/5.1/5.2/5.3 发射频率：2.4-2.4835GHz 工作电压：3.7-4.2V 工作温度：0-45°C 通讯距离：10m 电 池：CR2032 重 量：约10克 视频/阅读遥控器支持短视频（抖音、快手、 微视等）及个别阅读手机APP的翻页功能， 支持调节手机音量加减，真正释放双手！ 还是一个自拍遥控器，在观看短视频时， 拍个美美的自拍照！ 可拆电池盖 产品简介 使用说明 规格参数 产品外观 1.开关机/拍照键 2.上翻键 3.右翻键 4.左翻键 5.下翻键 6.播放/暂停/点赞键 7.指示灯 操作如下(手机型号：iPhone 13，iOS15.4)： 长按开机键2秒，蓝色指示灯闪烁时，在手机蓝牙中搜索，蓝牙设备名称：BLE-M3，与手机蓝牙配对成功后，进入短视频 APP，以抖音APP为例：进入抖音，单击⑥键，暂停或播放短视频，双击⑥键，给短视频点赞；按下②③④⑤键可实现短视 频上下左右（以实际为准）的翻动；进入视频界面，单击①键，可录视频；在手机相机界面下，单击①键，可实现自拍功能 。 iOS15.0以上版本需设置方可使用，设置如下：设置→辅助功能→触控→辅助触控 1.长按⑥键时，提示灯闪烁后，按②③④⑤键中任意按键，实现鼠标圆点的移动； 2.如用户觉的遥控器灵敏度差或强，可调整执行触控手势下面的【跟踪灵敏度】， 调致满意灵敏度即可，【执行触控手势】必须打开，如右图。 Android版本手机蓝牙配对即可使用，如鼠标或圆点不在拍照上，可参考设置1。 提示：如因iOS系统升级造成本产品不能使用，属不可抗力。 →打开，出现圆点即可。如圆点不在拍照上，可调整鼠标圆点，设置如下： Selfie/Video/Reading Remote User Manual Supports iOS and Android systems Selfie/Video/Reading remote Operation System: The selfie remote supports iOS 15.0 and Android 9.0 or above The Video and Reading remote supports iOS 15.0 and Android 9.0 or above and it can't support Version 14.1 and below. Bluetooth version ：Bluetooth 5.0 or above Frequency range：2.4-2.4835GHz Operating voltage：2.7-3.3V Operating environment：0-45°C Communication distance ：10m Battery：CR2032/180-200MHA Weight：about 15g The Video and Reading remote can support short video (TikTok, Kuaishou,micro-view, etc.) and the page-turning function of individual mobile APP. It can also support to adjust the volume of mobile phone, to release your hands. It's also a selfie remote control for taking beautiful selfies while watching short videos! Battery Cap Introduction Instructions Product Appearance 1.Camera 2.Up 3.Right 4.Left 5.Down 6.Play/Pause/Praise 7.LED The operation is as follows: you should dial the power button to turn on, when the blue indicator light is flashing, you can search in the mobile phone Bluetooth, the Bluetooth device name: BLE-M3. After successfully pairing with the mobile phone’s Bluetooth You can enter the short video APP, take the Douyin short video APP as an example: after opening the TikTok, click the ⑥ button to pause or play the short video, double-click the ⑥ button to like the short video; press ②③④⑤ key can realize the flip of the short video up, down, left and right (subject to the actual situation); iOS15.0 or above requires the following settings to be used. The settings are as follows: Settings→Accessibility→Touch→ AssistiveTouch→On, and the mouse dot appears. If the mouse dot is not in the middle of the screen, you can adjust the mouse dot. The settings are as follows: if the user feels the remote control sensitivity is poor or strong, you can adjust the touch gestures. The following【TRACKING SENSITIVITY】 can be adjusted to your satisfaction. The Android version of the mobile phone can be used with Bluetooth pairing, no additional settings are required. Product Specification 160*60mm 22g铜版纸 正面 反面 说明书版本：202201 Manual edition:202201 此版本内容仅适用锂电池软开机国际版适用，需确认内容是否与产品版本一致，如造成说明书与产品不符，概不承担风险责任。 另如有译文仅供参考，译文错误自行纠正。 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction

(Dongguan Lilang Electronic Commerce Co., Ltd.) (September 20, 2024) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2BK8W-G2) [Dongguan Lilang Electronic Commerce Co., Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) Li Jing (Dongguan Lilang Electronic Commerce Co., Ltd.) (September 20, 2024) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID: 2BK8W-G2) [Dongguan Lilang Electronic Commerce Co., Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Li Jing

Dongguan Lilang Electronic Commerce Co., Ltd. Model Difference Data：September 20, 2024 Product description: Bluetooth Remote Shutter Model name: G2, SYD, AI-SJZJ02, DBSJZJ-YK, S-2-H, AI-SJ, AI-PH, AI-PH-Y, AI-SJZJ, AI- SJ-01, AI-SJ-02, AI-SJ-03, AI-PH-01, AI-PH-02 Trade Name: AIHOME FCC ID: 2BK8W-G2 All the model are the same circuit and RF module, only the color and appearance are different. Regards Sincerely Client’s signature : Client’s name / title : Li Jing（Manager） Contact information / address：01, Rm 803, Bldg 6, Tianan Digital City, Dongshen Road, Fenggang Town, Dongguan, Guangdong, China

Dongguan Lilang Electronic Commerce Co., Ltd. (September 20, 2024) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (Bluetooth Remote Shutter / G2, SYD, AI- SJZJ02, DBSJZJ-YK, S-2-H, AI-SJ, AI-PH, AI-PH-Y, AI-SJZJ, AI-SJ-01, AI-SJ-02, AI-SJ-03, AI- PH-01, AI-PH-02 / FCC ID: 2BK8W-G2) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☒ Internal Photos ☐ NOTE 1 ☒ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No required to be submitted with this application be permanently withheld from public review. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Signature: Name: Li Jing Title: Manager

Dongguan Lilang Electronic Commerce Co., Ltd. (September 20, 2024) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (Shenzhen MinFan Electronic Commerce Co., LTD) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Signature: Name: Li Jing Title: Manager

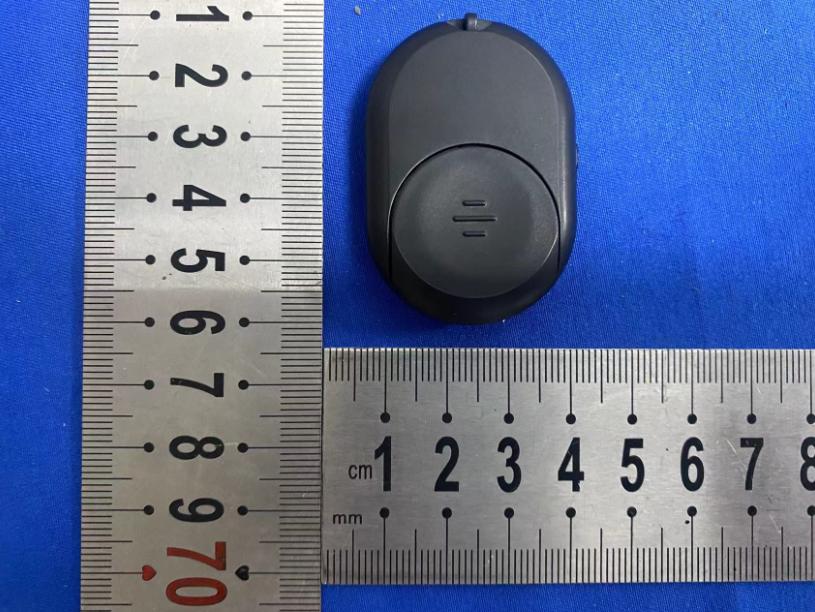

Model: G2 External Photos

FCC ID LABEL: Label Location: FCC ID: 2BK8W-G2 Model No.: G2

FCC ID: 2BK8W-G2 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BLE: Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n SAR Exclusion threshold SAR test exclusion 2.402 0.867 1.221±12.001.58<50.491273.00YES 2.44 1.082 1.281±12.001.58<50.495143.00YES 2.480 0.723 1.181±12.001.58<50.499183.00YES GFSK Conclusion: For the max result : 0.49918≤ FCC Limit 3.0 for 1g SAR.

Summary Inverted F Antenna Specification ITEM ANT SPEC Model Name 2.4G ANT Center Frequency Horizontal Vertical 2400MHz 2400MHz 2500MHz 2400MHz 2400MHz 2500MHz -1.26 -0.76 -0.58 -5.25 -2.46 -1.86 MAX. Gain -0.58dB Polarization Horizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance 50 Ohm Antenna Length 38.20mm Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Frequency (MHz) Gain(dB) Max Min Avg 2400 -1.26174 -30.0801 -7.18716 2450 -0.765802 -36.5604 -7.48023 2500 -0.585582 -22.0315 -6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Frequency (MHz) Gain(dB) Max Min Avg 2400 -5.2537 -22.1424 -12.4294 2450 -2.4652 -24.5837 -10.4702 2500 -1.86120 -29.5214 -9.20432 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

TEST REPORT Compiled by: Reviewed by: Approved by: Zhou Kui Arron Liu Bin Mei / Director Note: If there is any objection to the inspection results in this report, please submit a written report to the company within 15 days from the date of receiving the report. The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen CTB Testing Technology Co., Ltd. this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. “*” indicates the testing items were fulfilled by subcontracted lab. “#” indicates the items are not in CNAS accreditation scope. Product Name: Bluetooth Remote Shutter FCC ID: 2BK8W-G2 Trademark: AIHOME Model Number: G2, SYD, AI-SJZJ02, DBSJZJ-YK, S-2-H, AI-SJ, AI-PH, AI-PH-Y, AI-SJZJ, AI-SJ-01, AI-SJ-02, AI-SJ-03, AI-PH-01, AI-PH-02 Prepared For: Dongguan Lilang Electronic Commerce Co., Ltd. Address: 01, Rm 803, Bldg 6, Tianan Digital City, Dongshen Road, Fenggang Town, Dongguan, Guangdong, China Manufacturer: Dongguan Lilang Electronic Commerce Co., Ltd. Address: 01, Rm 803, Bldg 6, Tianan Digital City, Dongshen Road, Fenggang Town, Dongguan, Guangdong, China Prepared By: Shenzhen CTB Testing Technology Co., Ltd. Address: 1&2/F., Building A, No.26, Xinhe Road, Xinqiao, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: Sep. 9, 2024 Sample tested Date: Sep. 9, 2024 to Sep. 13, 2024 Issue Date: Sep. 13, 2024 Report No.: CTB240913029RFX Test Standards FCC CFR Title 47 Part 15 Subpart C Section 15.247 ANSI C63.10:2013 Test Results PASS Remark: This is Bluetooth radio test report. Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB240913029RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 32 TABLE OF CONTENT Test Report Declaration Page 1. VERSION ........................................................................................................................................ 3 2. TEST SUMMARY ........................................................................................................................... 4 3. MEASUREMENT UNCERTAINTY ................................................................................................. 5 4. PRODUCT INFORMATION AND TEST SETUP ............................................................................ 6 4.1 Product Information .......................................................................................................................... 6 4.2 Test Setup Configuration .................................................................................................................. 6 4.3 Support Equipment........................................................................................................................... 6 4.4 Channel List ..................................................................................................................................... 7 4.5 Test Mode ........................................................................................................................................ 7 4.6 Test Environment ............................................................................................................................. 7 5. TEST FACILITY AND TEST INSTRUMENT USED ....................................................................... 8 5.1 Test Facility ...................................................................................................................................... 8 5.2 Test Instrument Used ....................................................................................................................... 8 6. AC POWER LINE CONDUCTED EMISSION ................................................................................ 10 6.1 Block Diagram Of Test Setup ......................................................................................................... 10 6.2 Limit ................................................................................................................................................ 10 6.3 Test procedure ............................................................................................................................... 10 6.4 Test Result ..................................................................................................................................... 12 7. RADIATED SPURIOUS EMISSION ............................................................................................. 13 7.1 Block Diagram Of Test Setup ......................................................................................................... 13 7.2 Limit ................................................................................................................................................ 13 7.3 Test procedure ............................................................................................................................... 14 7.4 Test Result ..................................................................................................................................... 15 8. BAND EDGE AND RF COUNDUCTED SPURIOUS EMISSIONS ............................................... 22 8.1 Block Di agram Of Test Setup ......................................................................................................... 22 8.2 Limit ................................................................................................................................................ 22 8.3 Test procedure ............................................................................................................................... 22 8.4 Test Result ..................................................................................................................................... 23 9. COUDUCTED OUTPUT POWER .....................................................…

Text truncated - open the document above for the full version.

Model: G2 Radiated Emission Below 1G Above 1G
