2BK93-P65Holographic fan screen

Holoscope User manual * Please read this manual carefully before using the equipment * Holoscope Warn: 1. Do not bend or twist the power cable too much; otherwise, the power cable may be damaged and a fire may occur 2. Do not allow the machine to come into contact with rain or other liquids 3. Do not use or store the machine in high temperature, high pressure and strong magnetic field, dusty and humid environment Attention: 1. Install the host securely to avoid falling, the power cable may be damaged and a fire may occur 2. Please install the product in a place that cannot be touched by human hands, or buy a protective cover to avoid injury 3. Stable installation: Ensure that the 3D fan will not loosen and fall off during use. After the installation,You can shake the 3D fan vigorously to check whether there is a rocking phenomenon Common faults and maintenance: 1. The device cannot be turned on after being plugged in, and no screen is displayed. Check whether the power supply is normal. After the power supply is powered on, observe whether the power indicator is on. 2. After the device is started, the screen is abnormal or the whole light bar is not on. Check whether the screws are not tightened and whether there are foreign objects in the connector. 3. A black circle appears after the device has been running for a period of time. Because there will be dust and stain on the surface of the lamp bead when the equipment is running, clean the surface of the lamp bead with a soft dry cloth, and usually clean the dust on the lamp board regularly to achieve the most ideal display effect. 4. The following situations do not belong to the scope of free warranty: unauthorized disassembly, maintenance, equipment water, oxidation and other artificial damage Two blade advertising machine Product specifications and parameters Product model PD42- Ordinary brightness PD42- Highlight PD45- HD P50 P56 P62 P65 PZ65 Number of lamp beads (pieces) 244 244 352 576 678 722 768 768 Display diameter (CM) 420*420 420*420 450*450 487*487 560*560 615*615 650*650 650*650 Resolution 1024*640 1024*800 2000*704 2000*1152 2000*1356 2000*1444 2000*1536 2000*1536 Input voltage (V) 12V2A 12V2A 12V2A 24V2A 24V2A 24V3A 24V3A 24V3A Rated power (W) 18W 20W 24W 48W 48w 72W 72w 72w Angle brightness control √ √ √ √ √ √ √ √ Splicing without horns × × × × × × × √ Multiple screens are spliced × × √ √ √ √ √ √ High frame rate camera √ √ √ √ √ √ √ √ Multi-function remote control √ √ √ √ √ √ √ √ Bluetooth audio × × √ √ √ √ √ √ Package size (MM) 264*143*58 264*143*58 264*143*58 284*185*74 370*195*80 370*195*80 370*195*80 370*195*80 Installation demonstration: 1. Insert the two blades into the host port, align the six screws with the screw holes, and fix the indicator securely. Otherwise, the indicator strip may fall off. 2. For wall mounting, insert the screws through the wall-mounting holes, align them with the expansion screw tube, and drive them into the appropriate positions. 四叶机器展示 Installation instructions: 1. Insert the fan blades into the unit in pairs(A to A, B to B), then tighten 12 screws into the screw holes to secure them. Make sure they are tight or else the light strip may fall off. Installation is complete! 2. When installing the wall mount, just screw in the screws through the mounting block and into the right spot. 3."Align the U-shaped hanger at the bottom of the host, then push it down and screw the top of the U-shaped hanger on the machine hanger with a small screw to complete installation." Remote control introduction Scan and download the APP Android IOS 1. Search for Holoscope in the APP store for software download or contact the distributor for download. After downloading, open the app permission and use it. Mobile APP transmits video 1.After the device is turned on, a WiFi signal will be established. Open the WiFi screen on your phone's Settings and search for WiFi names beginning with 3D-P, for example: 3D-PXXXXXXXX; The default password of the WiFi hotspot is 12345678 ① ② ③ ④ ⑤ When a message is displayed indicating that the WLAN cannot be connected to the network, you must select“Stay connected”And the first time to open the APP prompt must select“Continue trying to use wireless LAN" Follow "Figure 1 (Android)" or "Figure 2 (IOS)" Figure 1 (Android) Figure 2 (IOS) 1 Click Transfer →2 Video →3 Select Upload video →4 Confirm content →5 Upload process →6 Upload 100% ①Click“Trasfer” ②Click“Video” ③Select the video you want to upload ④Click“OK” ⑤ Uploading ⑥Transmission complete The video transfer has been successful, and if you just need to replace the video or add more content, you have done so successfully without having to go through the next steps Connect the Bluetooth speaker 1. Click on the APP to set "Bluetooth Settings "(the passwordless Bluetooth speaker must be used, and the transmitted video must have specific sound) Bluetooth Settings Turn on Bluetooth → Wait for automatic search for Bluetooth speaker → Connected (video must have specific sound) ①Click“Bluetooth” ①Bluetooth On ③Wait for the Bluetooth speaker ④ Connectedto be automatically searched Text LOGO making Design → Select Template → Save → Click Transfer → Select Local → Select Video → Transfer ① Click design ②Save ③Back to page transfer ④Select Local ⑤Select video ⑥In transmission Instructions for using the PC Download link：http://bg.holoscope.tech/sh/apk/app/getLastAPK/0 After the device is powered on, the WiFi signal will be established. Open the WiFi interface of the computer and search for the name of WiFi beginning with 3D-P, for example, 3D-PXXXXXXXX. The default password of WiFi is 12345678. Enter password Click join Download Software Connection → Connect to WIFI ①Download software ②Connect to WIFI The PC transmits the video Open software → Select machine model → Open ③Select machine model → Click Transfer ④ Select the video you want to upload ⑤ Start transmissio ⑥ Wait for transmission FCC Warnning: This equipment has been tested and fo…

Text truncated - open the document above for the full version.

Guangdong Havisk Electronic Commerce Co., LTD Room 203, No. 53, Liugui Road, Houjie Town Dongguan City, Guangdong Province China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-9-25 To whom it may concern: We, Guangdong Havisk Electronic Commerce Co., LTD, hereby certify that the equipment for which authorization is sought (FCC ID: 2BK93-P65) is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist) as an entity producing “covered” equipment. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Sincerely, Signature WEI GAO Manager Guangdong Havisk Electronic Commerce Co., LTD 62_[model] CoveredEqu_2.911(d)(5)(i) and (ii) - U, V03

Guangdong Havisk Electronic Commerce Co., LTD Room 203, No. 53, Liugui Road, Houjie Town, Dongguan City, Guangdong Province, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024/09/23 U.S. Agent Designation Guangdong Havisk Electronic Commerce Co., LTD acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BK93-P65): Name and company of U.S. agent: REP America LLC Physical U.S. address of agent: REP America LLC,1942 Broadway St. STE 314C Boulder, CO 80302 United States FRN of U.S. agent: 0034192500 Email address of U.S. agent: [email protected] REP America LLC acknowledges their obligation to accept service of process on behalf of Guangdong Havisk Electronic Commerce Co., LTD Guangdong Havisk Electronic Commerce Co., LTD with the FRN [0035983006] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature WEIGAO Manager Guangdong Havisk Electronic Commerce Co., LTD Signature Ben XU Manager REP America LLC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

Guangdong Havisk Electronic Commerce Co., LTD Add: Room 203, No. 53, Liugui Road, Houjie Town Dongguan City, Guangdong Province China Date: 2024-9-25 FCC ID: 2BK93-P65 Dear Sir/Madam, We, Guangdong Havisk Electronic Commerce Co., LTD Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: Holographic fan screen Model no.: P65, P11, PD13, PD14, PD20, PD30, PD42, PD45, P42, P45, P50, PZ50, P52, P56, PZ56, P62, PZ65, P70, PZ70, P80, PZ80, P85, PZ85, P100, PZ100, F52, F56, F60, F65, F80, F100, B0C6K7YR64, B0CX4VCSDK, B0C6K7R1T5, B0C4YDGFNB, B0C6KBTPNW, B0CBV2VJ9Q, B0C4YBRVJ9, B0CWY7ZWSR, B0C2TTB8TZ, B0C4YCQNKB, B0C4YC5LJX Sincerely, Name/Title： WEI GAO/Manager Company: Guangdong Havisk Electronic Commerce Co., LTD Address: Room 203, No. 53, Liugui Road, Houjie Town Dongguan City, Guangdong Province China Phone: 8613302458729 Fax: N/A E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2024-9-25> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2BK93-P65 P65 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： WEI GAO/Manager Company: Guangdong Havisk Electronic Commerce Co., LTD Address: Room 203, No. 53, Liugui Road, Houjie Town Dongguan City, Guangdong Province China Phone: 8613302458729 Fax: N/A E-Mail: [email protected]

Guangdong Havisk Electronic Commerce Co., LTD Room 203, No. 53, Liugui Road, Houjie Town Dongguan City, Guangdong Province China Date: 2024-9-25 FCC ID: 2BK93-P65 Model Number: P65 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, Guangdong Havisk Electronic Commerce Co., LTD, declare that this EUT (FCC ID: 2BK93-P65) doesn’t have Ad Hoc mode function on “non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, Name/Title： WEI GAO/Manager Company: Guangdong Havisk Electronic Commerce Co., LTD Address: Room 203, No. 53, Liugui Road, Houjie Town Dongguan City, Guangdong Province China Phone: 8613302458729 Fax: N/A E-Mail: [email protected]

Guangdong Havisk Electronic Commerce Co., LTD Room 203, No. 53, Liugui Road, Houjie Town Dongguan City, Guangdong Province China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-9-25 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2BK93-P65 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： WEI GAO/Manager Company: Guangdong Havisk Electronic Commerce Co., LTD Address: Room 203, No. 53, Liugui Road, Houjie Town Dongguan City, Guangdong Province China Phone: 8613302458729 Fax: N/A E-Mail: [email protected]

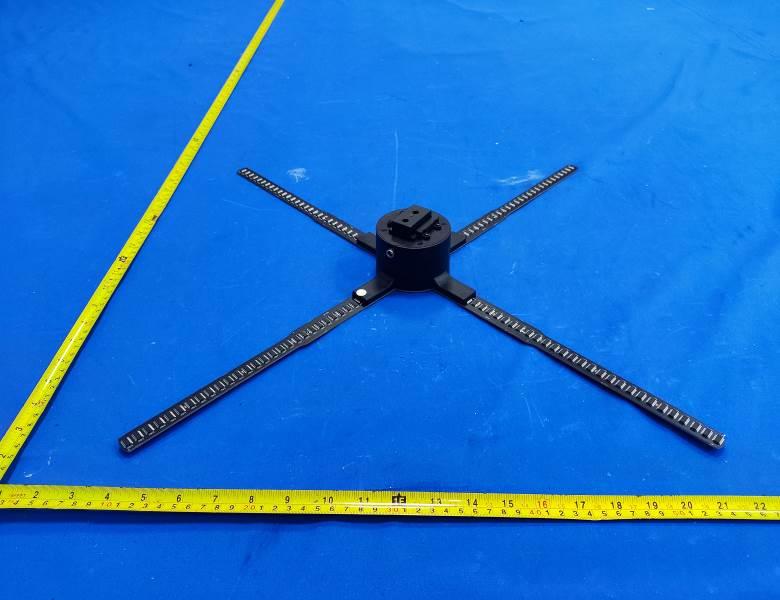

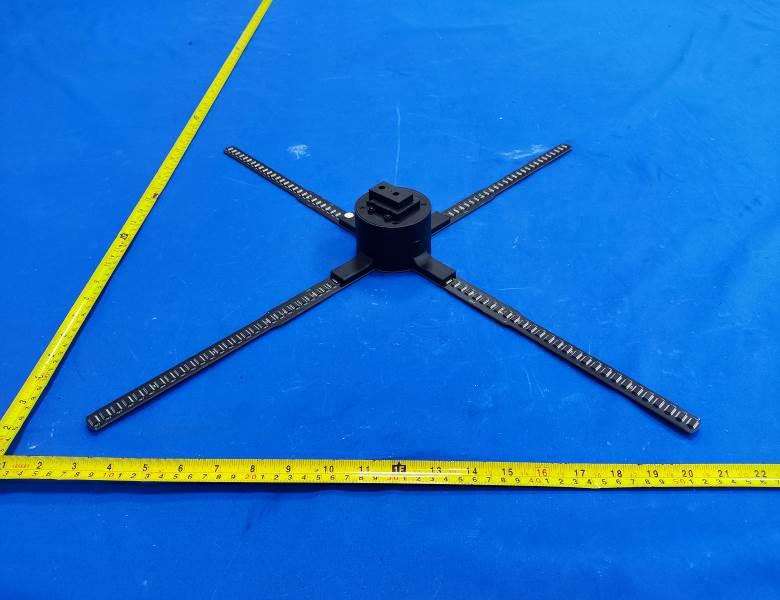

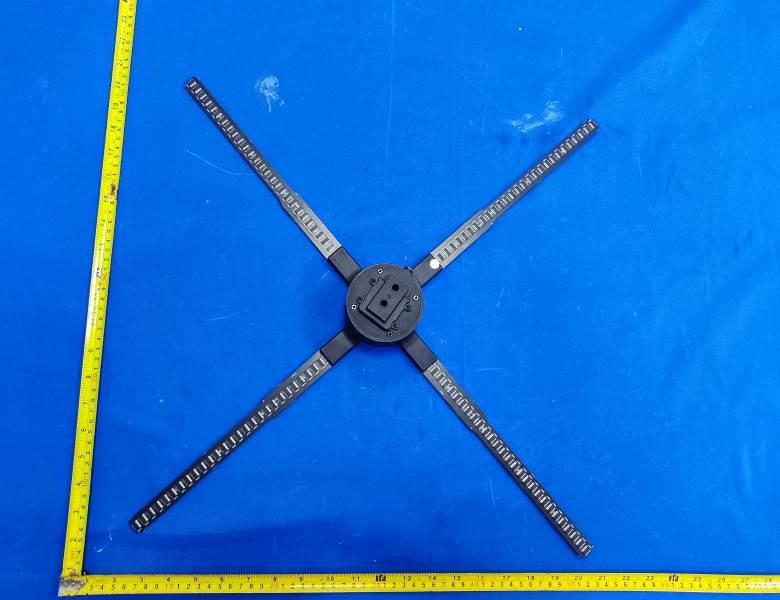

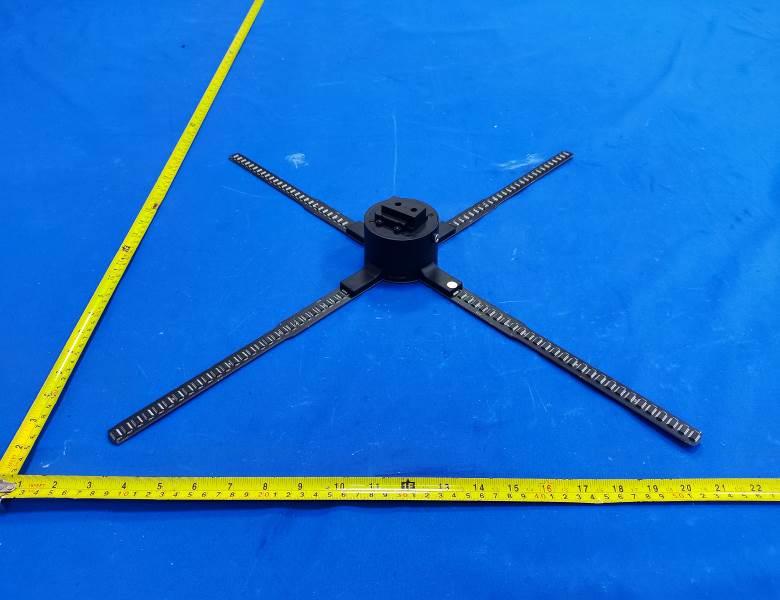

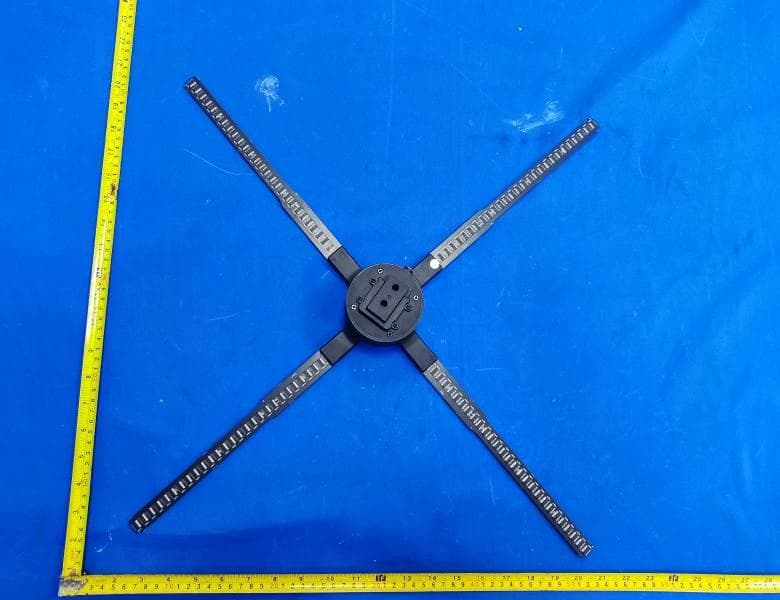

FCC ID: 2BK93-P65 External Photos of the EUT FCC ID: 2BK93-P65 FCC ID: 2BK93-P65

Label and Location Size: L: 3.0cm*W: 2.0cm Label and Location FCC ID : 2BK93-P65

FCC ID: 2BK93-P65 Internal Photos of the EUT FCC ID: 2BK93-P65 FCC ID: 2BK93-P65 FCC ID: 2BK93-P65 WIFI ANT BT ANT FCC ID: 2BK93-P65

RF Exposure evaluation FCC ID: 2BK93-P65 Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Antenna Information P65 can only use antennas certificated as follows provided by manufacturer; Antenna No. Model No. of antenna: Type of antenna: Gain of the antenna (Max.) Frequency range: BT / PCB Antenna 1.12dBi for 2400-2500MHz; 2.4GWIFI / PCB Antenna 0.98dBi for 2400-2500MHz 5. Manufacturing Tolerance BLE GFSK(Peak) Channel Channel 00 Channel 19 Channel 39 Target (dBm) 0.0 1.0 0.0 Tolerance ±(dB) 1.0 1.0 1.0 WIFI(Peak) Frequency (MHz) 11b 2412 2437 2462 Target (dBm) 14.0 13.0 14.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11g 2412 2437 2462 Target (dBm) 13.0 13.0 13.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11n(HT20) 2412 2437 2462 Target (dBm) 13.0 13.0 13.0 Tolerance ± (dB) 1.0 1.0 1.0 6. Standalone MPE Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is refer to section, the RF power density can be obtained. Modulation Type Output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW BLE 2.0 1.5849 1.12 1.2942 0.0004 1.0000 2.4GWIFI 15.0 31.6228 0.98 1.2531 0.0079 1.0000 Remark: 1. Output power (Peak) including turn-up tolerance; 2. MPE evaluate distance is 20cm from user manual provide by manufacturer. 7. simultaneous MPE Result 2.4GWIFI ANT1 MPE (Ratio) BLE MPE (Ratio) simultaneous MPE (Ratio) MPE Limits (Ratio) 0.0004 0.0079 0.0083 1.0000 8. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. ----------------THE END OF REPORT---------------

1. Antenna Description: Antenna type PCB Antenna Model P65 Frequency range 2400-2500MHz Manufacturer Dongguan Weigao Information Technology Co., LTD ANT Peak Gain 1.12 dBi 2. Antenna Photo: Length :8.41mm Width:6.77mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

1. Antenna Description: Antenna type PCB Antenna Model P65 Frequency range 2400-2500MHz Manufacturer Dongguan Weigao Information Technology Co., LTD ANT Peak Gain 0.98 dBi 2. Antenna Photo: Length :8.38mm Width:7.37mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID. ............................................ : CTA24091000101 2BK93-P65 Compiled by ( position+printed name+signature) .. : File administrators Jinghua Xiao Supervised by ( position+printed name+signature) .. : Project Engineer Xudong Zhang Approved by ( position+printed name+signature) .. : RF Manager Eric Wang Date of issue ..................................... : Sep. 18, 2024 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : Guangdong Havisk Electronic Commerce Co., LTD Address ............................................ : Room 203, No. 53, Liugui Road, Houjie Town, Dongguan City, Guangdong Province, China Test specification ...........................: Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description...................: Holographic fan screen Trade Mark ....................................... : HAVisikr Manufacturer .................................... : Dongguan Weigao Information Technology Co., LTD Model/Type reference....................... : P65 Listed Models .................................. : Refer to page 2 Modulation ....................................... : GFSK Frequency .......................................... From 2402MHz to 2480MHz Ratings ............................................. : DC 24.0V From external circuit Result................................................ : PASS Report No.: CTA24091000101 Page 2 of 39 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Holographic fan screen Model /Type : P65 Listed Models : P11, PD13, PD14, PD20, PD30, PD42, PD45, P42, P45, P50, PZ50, P52, P56, PZ56, P62, PZ65, P70, PZ70, P80, PZ80, P85, PZ85, P100, PZ100, F52, F56, F60, F65, F80, F100, B0C6K7YR64, B0CX4VCSDK, B0C6K7R1T5, B0C4YDGFNB, B0C6KBTPNW, B0CBV2VJ9Q, B0C4YBRVJ9, B0CWY7ZWSR, B0C2TTB8TZ, B0C4YCQNKB, B0C4YC5LJX Applicant : Guangdong Havisk Electronic Commerce Co., LTD Address : Room 203, No. 53, Liugui Road, Houjie Town, Dongguan City, Guangdong Province, China Manufacturer : Dongguan Weigao Information Technology Co., LTD Address : Room 202, No.57, Liugui Road, Houiie Town, Dongguan City, Guangdong Province, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA24091000101 Page 3 of 39 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description* 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 11 4.1 AC Power Conducted Emission 11 4.2 Radiated Emissions and Band Edge 14 4.3 Maximum Peak Output Power 21 4.4 Power Spectral Density 22 4.5 6dB Bandwidth 24 4.6 Out-of-band Emissions 26 4.7 Antenna Requirement 30 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 31 6 P H O T O S O F T H E E U T ........................................................... 32 Report No.: CTA24091000101 Page 4 of 39 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 V05r02: Guidance for Performing Compliance Measurements on Digital Transmission Systems (DTS) Operati…

Text truncated - open the document above for the full version.

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID............................................. : CTA24091000102 2BK93-P65 Compiled by ( position+printed name+signature) . : File administrators Jinghua Xiao Supervised by ( position+printed name+signature) . : Project Engineer Xudong Zhang Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Sep. 18, 2024 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Guangdong Havisk Electronic Commerce Co., LTD Address ............................................ : Room 203, No. 53, Liugui Road, Houjie Town, Dongguan City, Guangdong Province, China Test specification ........................... : Standard ........................................... : FCC Part 15.247 TRF Originator .................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Holographic fan screen Trade Mark ....................................... : HAVisikr Manufacturer .................................... : Dongguan Weigao Information Technology Co., LTD Model/Type reference ...................... : P65 Listed Models .................................. : Refer to page 2 Modulation Type ............................... : CCK/DSSS/OFDM Operation Frequency ........................ : From 2412 - 2462MHz Rating ............................................... : DC 24.0V From external circuit Result ............................................... : PASS Report No.: CTA24091000102 Page 2 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Holographic fan screen Model /Type : P65 Listed Models : P11, PD13, PD14, PD20, PD30, PD42, PD45, P42, P45, P50, PZ50, P52, P56, PZ56, P62, PZ65, P70, PZ70, P80, PZ80, P85, PZ85, P100, PZ100, F52, F56, F60, F65, F80, F100, B0C6K7YR64, B0CX4VCSDK, B0C6K7R1T5, B0C4YDGFNB, B0C6KBTPNW, B0CBV2VJ9Q, B0C4YBRVJ9, B0CWY7ZWSR, B0C2TTB8TZ, B0C4YCQNKB, B0C4YC5LJX Applicant : Guangdong Havisk Electronic Commerce Co., LTD Address : Room 203, No. 53, Liugui Road, Houjie Town, Dongguan City, Guangdong Province, China Manufacturer : Dongguan Weigao Information Technology Co., LTD Address : Room 202, No.57, Liugui Road, Houiie Town, Dongguan City, Guangdong Province, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA24091000102 Page 3 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Test Description 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 11 4.1 AC Power Conducted Emission 11 4.2 Radiated Emission 14 4.3 Maximum Peak Conducted Output Power 20 4.4 Power Spectral Density 21 4.5 6dB Bandwidth 24 4.6 Out-of-band Emissions 27 4.7 Antenna Requirement 34 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 35 6 P H O T O S O F T H E E U T ........................................................... 36 Report No.: CTA24091000102 Page 4 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Ind…

Text truncated - open the document above for the full version.
