2BKA7-HMI051Industrial Tablet

UserManual TabletPC NOTICE ●Keepthedeviceandallaccessoriesoutofthereachof smallchildren. ● Donotuseorstorethedeviceindusty,hot,cold,electric, chemical,moist,ormagneticareas. ●Donotdrop,shakeorknockthedevice.Roughhandling canbreakthedevice. ●Donotleavethedeviceintoareasthatmaybecomehotter withoutattention,liketablesinsunshine,acarwithall windowsclosed,oronbed&charging,becausethedevice cangettoveryhightemperatureandmaycauseaccident. ● Neverplaythedevicewhiledriving!Keepyoureyes focusingontheroad. ●Pleaseturnoffthedeviceinaircraftandfollowany restrictions.Wirelessdevicescancauseinterferencein aircraft. ●Pleasedonotdisassemblethedeviceorchangethecase personally,asitwillvoidyourwarranty. ●Pleaseuseproperpoweradapteralongwithpacking,or suggestedbyqualifiedsellers. ●Duetodifferentmarketingperiod,productupdate, regionaldisparities,Systemupdateorsuchreasons,we may,withoutnotificationstoyou,changeormodifysome functionswhichcouldbedifferentfromthecontentinthis page,pleaserefertorealproductreceived. MainFunctionsOverview ●WirelessconnectionsviaWi-Fi. ●System:Android TM 4.4 ●Built-inmultiplelanguages. ●Differentapplicationssupported(.apkfiles). ●Variousmusicfilesupported. ●1080Pvideossupported. ●Picturesbrowsingwithzoomingandslide-show. ●Built-inelectroniccalculator. ●Built-inelectroniccalendar ●High-speedUSBconnectionwithPC. ●ExternalmouseandkeyboardsupportedviaOTG. BasicOperation PowerOn Connecttopowersupplyitwillautomaticallyturnon. PowerOff Disconnecttopowersupplyittopoweroff. HomeScreen ●NotificationBar :Atthetopofscreen. Itdisplaystime,Wi-Fisignals,andnotificationiconsor previews,etc. ●NotificationPanel:SlidedownfromNotificationBar. Itdisplaysswitchersoffunctionsandnotifications.Tapthe switcherstoturnON/OFFfunctions.Tapthenotificationsto openit,orslideitleftwardsquicklytoclearthenotification. Youcanalsoslidethenotificationleftwardsorrightwards slowly,andclicktodelaythenotification,orclick tosetnotificationtype. ●NavigationButton:Atthebottomofscreen. BackButton Tapittogotothepreviouspage. Home TapittogotoHomeScreen. RecentTask Tapittoviewrecenttasks.Tapthetask frametoopenit,orlongpressitto removefromlist. ●GoogleSearchWidget :TaptheWidgettoinput keywordsortaptheiconforvoicesearch(need network). ●EnterAppMenu :AtHomeScreen,slideuptoenterApp menu,inwhichyoucanviewallAppslistandsearchApps. ●AddHomeScreenApps :YoucanaddAppicontoHome ScreenfromAppmenubylongpressingAppiconandmove toHomeScreenbeforeloosenyourfinger.ClickAppiconto openit.LongpressAppicontoseemostusedfunctionsand chooseonetoopen. ●RemoveHomeScreenApps:LongpressAppiconand movetotopofscreentoremoveit. ●HomeScreenSettings :LongpressblankareaofHome Screen,youcansetWALLPAPERS,WIDGETSandSETTINGS frompop-upoptions. TapSETTINGSandmakegeneralHomeScreensettings. ●SetWallpaper :LongpressblankareaofHomeScreen, chooseWALLPAPERS,andchooseawaytoopenwallpapers. Afterchooseapicture,tapSetwallpaper,setwallpaperas Homescreen,orLockscreen,orHomescreenandlock screen. ●AddWidgetstoHomeScreen:Longpressblankarea ofHomeScreen,chooseWIDGETS,andpressawidgetand movetoHomeScreenbeforeloosenyourfinger. ●HomeScreenPages :LongpressawidgetorAppiconon HomeScreen,andmovetoleftorrightedgeofscreen,the widgetorAppiconwillbemovedtoanotherpage(ifno existedpage,itwillcreateanewpage).AtHomeScreen, slideleftwardorrightwardtoswitchbetweenpages. AppMenu AtHomeScreen,slideuptoenterAppMenu,inwhichyou canviewallAppslistandsearchApps. AtAppMenu,SlideupanddowntoviewallApps. ClickanAppicontoopenit. ClickSearchappstosearchApps. EnterkeywordsofAppnametosearchforApps.Atsearch result,clickAppicontoopenit. Wi-Fi ●ConnecttoWi-Fi WithWi-Finetwork,youcanconnecttotheinternetorother networkdevicesanywhereanaccesspointorwireless hotspotisavailable. ●ActivatetheWi-Fi (1)AtAppMenu,tapSettings, (2)TapNetwork&Internet,tapWi-Fiswitchertoturnonit. YoucanalsoturnonWi-FifromNotificationPanel. (3)OnceyouenterWi-Fi,thedeviceautomaticallysearches foravailableWi-Ficonnection. (4)TapthenametoselectaWi-Fi. (5)Enterapasswordforthenetwork(ifnecessary)and selectCONNECT. AfterWi-Fiisconnected,itdisplaysiconatnotificationbar. ●RemoveconnectedWi-Fi LongpressaconnectedWi-Finame,chooseForgetnetwork. USBConnections YouconnectthedevicetoacomputerviaUSBcableto chargethedeviceortransferfiles,etc. AfterUSBconnected,slidedownfromNotificationBar. ItdisplaysAndroidSystem.ChargingthisdeviceviaUSB, andyoucantapformoreoptions. ●Chargethisdevice:itcanjustchargingthedevice. ●Transferfiles:Youcantransferallkindsoffilesfrom availablespaces. ●Transferphotos(PTP):Youcanonlytransferphotos from/tosystemdefaultfolderDICMandPictures. ●UsedeviceasMIDI:UseAndroiddevicesasaperipheral controllerforanotherAndroiddevice.Formoreinformation pleasevisitandroid.com. Apps InstallNewAppsfromGooglePlay GooglePlayallowsyoutoeasilydownloadan abundanceofAppsdirectlytoyourdevice.Beforeusingthe GooglePlay,youmusthaveaGoogleAccount. ●FromtheAppMenu,tapGooglePlay. ●SignintoyourGoogleAccount. ●SearchforanddownloadAppsasdesired. ●Followtheon-screeninstructions. Note:AllAppsofferedbyGooglePlayaredevelopedbythird party.Togettheinformationaboutthedevelopers,youcan readthedescriptionsofeachApp.Theoriginalmanufacturer ofthisTabletPCisnotliableforperformanceissuescaused bythird-partyApps. InstallunknownApps BesidesinstallingAppsfromGooglePlay,youcanalso downloadAppfrombrowser,ortransferApppackagesfrom PCorotherways. ●TapSetting–Apps&notifications–App. ●TapAdvanced. ●TapSpecialappaccess. ●TapInstallunknownapps,andallowdifferentwaysof installappsaccordingtoneeds InstallNewAppsfromdevicestorage IfyouhavetransferApps’packagefilesintothedevice,you cantapESFileExplorertofindAPKfileslocations. TaptheAPKnametoinstallit. Applicationsmanagement. ●TapSetting–Apps&notifications–App. ●TapAppandchooseForcestop,orsetAppnotifications, Permissions,Storage,Datausage,Openbydefault,Display overotherapps,andModifysystemsettingsbytapping selections. Tips:IfsomeAppcannotruncorrectly,youcancheck Permissionssettingsifyouhaveforbidnecessary permissionsoftheApp. UninstallApps ●TapSetting–Apps&n…

Text truncated - open the document above for the full version.

ShenzhenNovtieTechnologyCo.,LTD. 2.911(d)(5)(i)EquipmentTypeAttestationv1.2 Section2.911(d)(5)(i)Certification–EquipmentType Companyname:ShenzhenNovtieTechnologyCo.,LTD. Address:Building8,RundongshengIndustrialArea,LongtengCommunity,XixiangStreet,Bao'an District,Shenzhen518000China ProductName:IndustrialTablet FCCID:2BKA7-HMI051 Model(s):HMI051,SS5TAB,HMI055,OctopusA83F1 2.911(d)(5)(i)EquipmentType We,[ShenzhenNovtieTechnologyCo.,LTD.](“theapplicant”)certifythattheequipmentforwhich authorizationissoughtthroughcertificationisnot:  Prohibitedfromreceivinganequipmentauthorizationpursuantto§2.903;oftheFCCrules.  Identifiedasanequipmenttypeinthe“CoveredList” NOTE1 Yourssincerely, Name:SeanChuengDate:2024.8.19 TitleandCompanyname:Manager/ShenzhenNovtieTechnologyCo.,LTD. NOTE1 “CoveredList”;istheListofEquipmentandServicesCoveredBySection2ofTheSecureNetworksAct,availableat https://www.fcc.gov/supplychain/coveredlist References; 1)986446D01CoveredEquipmentv01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2)FederalRegisterdocument2022-28263publishedon02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

ShenzhenNovtieTechnologyCo.,LTD. 2.911(d)(5)(ii)ApplicantAttestationv1.3 Section2.911(d)(5)(ii)Certification–Applicant(CoveredList) Companyname:ShenzhenNovtieTechnologyCo.,LTD. Address:Building8,RundongshengIndustrialArea,LongtengCommunity,XixiangStreet,Bao'an District,Shenzhen518000China ProductName:IndustrialTablet FCCID:2BKA7-HMI051 Model(s):HMI051,SS5TAB,HMI055,OctopusA83F1 2.911(d)(5)(ii)Applicantfiling We,[ShenzhenNovtieTechnologyCo.,LTD.](“theapplicant”)certifythat,asofthedateofthefiling oftheapplication,theapplicantisnotidentified NOTE1 onthe“CoveredList” NOTE2 ,established pursuantto§1.50002ofthischapter,asanentityproducingcoveredcommunicationsequipment. Yourssincerely, Name:SeanChuengDate:2024.8.19 TitleandCompanyname:Manager/ShenzhenNovtieTechnologyCo.,LTD. NOTE1 Deleteoptionnotapplicabletothisapplication. NOTE2 “CoveredList”;istheListofEquipmentandServicesCoveredBySection2ofTheSecureNetworksAct,availableat https://www.fcc.gov/supplychain/coveredlist References; 1)986446D01CoveredEquipmentv01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2)FederalRegisterdocument2022-28263publishedon02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Shenzhen Novtie Technology Co.,LTD. 2.911 (d)(7)USA Agent v1.5 Section 2.911(d)(7) USA Agent for Service of Process Company name:Shenzhen Novtie Technology Co.,LTD. Address:Building 8, Rundongsheng Industrial Area, Longteng Community, Xixiang Street, Bao'an District, Shenzhen 518000 China Product Name:Industrial Tablet FCCID:2BKA7-HMI051 Model(s):HMI051, SS5TAB, HMI055, OctopusA83F1 2.911(d)(7) USA Designated Agent for Service of Process We, [Shenzhen Novtie Technology Co.,LTD.] (“the applicant”) designate [Stone Trading Limited] NOTE1 for the purpose of accepting service of process on behalf of the applicant. Applicant consent: We acknowledge our consent to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address of the designated agent and acknowledge our acceptance of our obligation to maintain an agent for service of process in the United States for no less than one year after either we the grantee have permanently terminated all marketing and importation of the applicable equipment within the U.S., or at the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. Agent obligation: We acknowledge our obligation to accept service of process in the United States for matters related to the applicable equipment at our physical U.S. address and email address for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or at the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. USA Agent Company name: Stone Trading Limited USA Address: 6547 N Academy Blvd #2266, Colorado Springs, CO 80918, United States FRN Number: 0033401936 Contact Name: Dongmei Fang Telephone No: +12134573118 Email: [email protected] Applicant Company name:Shenzhen Novtie Technology Co.,LTD. Address:Building 8, Rundongsheng Industrial Area, Longteng Community, Xixiang Street, Bao'an District, Shenzhen 518000 China Grantee FRN Number:0035814409 FCC Grantee Code:2BKA7 Contact Name:Sean Chueng Telephone No:0086-13534080732 Email:[email protected] Signature: Shenzhen Novtie Technology Co.,LTD. 2.911 (d)(7)USA Agent v1.5 Title: Manager Signature: Title:Manager Date: 2024.8.19 Date:2024.8.19 NOTE 1: An applicant located in the United States may designate itself as the agent for service of process. Reference; Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-nation al-security-threats-to-the-communications-supply-chain-through-the

ShenzhenNovtieTechnologyCo.,LTD. AgentAuthorization Company:ShenzhenNovtieTechnologyCo.,LTD. Address:Building8,RundongshengIndustrialArea,LongtengCommunity,Xixiang Street,Bao'anDistrict,Shenzhen518000China ProductName:IndustrialTablet ModelNumber(s):HMI051,SS5TAB,HMI055,OctopusA83F1 ProductDescription:IndustrialTablet WeauthorizeMiCOMLabsInc.,575BoulderCourt,Pleasanton,California94566,USA, toactonourbehalfonallmattersconcerningthecertificationofabovenamed equipment. WedeclarethatMiCOMLabsInc.isallowedtoforwardallinformationrelatedtothe approvalandcertificationofequipmenttotheregulatoryagenciesasrequiredandto discussanyissuesconcerningtheapprovalapplication.Anyandallactscarriedoutby MiCOMLabsonourbehalfshallhavethesameeffectasactsofourown. Signature:Date:2024.8.19 Name:SeanChueng Title:Manager Company:ShenzhenNovtieTechnologyCo.,LTD.

ShenzhenNovtieTechnologyCo.,LTD. · ModelDifference Productdescription:IndustrialTablet Modelname:HMI051 SS5TAB,HMI055,OctopusA83F1 TradeName:SUNSTONE AllthemodelarethesamecircuitandRFmodule,exceptformodelname. Regards Sincerely Client’ssignature: Client’sname/title:SeanChueng/Manager Contactinformation/address:Building8,RundongshengIndustrialArea,Longteng Community,XixiangStreet,Bao'anDistrict,Shenzhen,518000,China.

ShenzhenNovtieTechnologyCo.,LTD. OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:2024.8.19 Subject;RequestforConfidentiality FCCID:2BKA7-HMI051 ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthesedocuments mightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantageinthemarket. SchematicDiagram BlockDiagram PartsList OperationalDescription Tune-upProcedure Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); ExternalPhotos TestSetupPhotos InternalPhotos UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:SeanChueng Title:Manager

EUTPHOTO(ExternalPhotos) Productname:IndustrialTablet Model:HMI051 EUTPhoto1 EUTPhoto2 EUTPhoto3 EUTPhoto4 EUTPhoto5 EUTPhoto6

Labelandlabellocation 3.0cm IndustrialTablet FCCID:2BKA7-HMI051 1.0cm

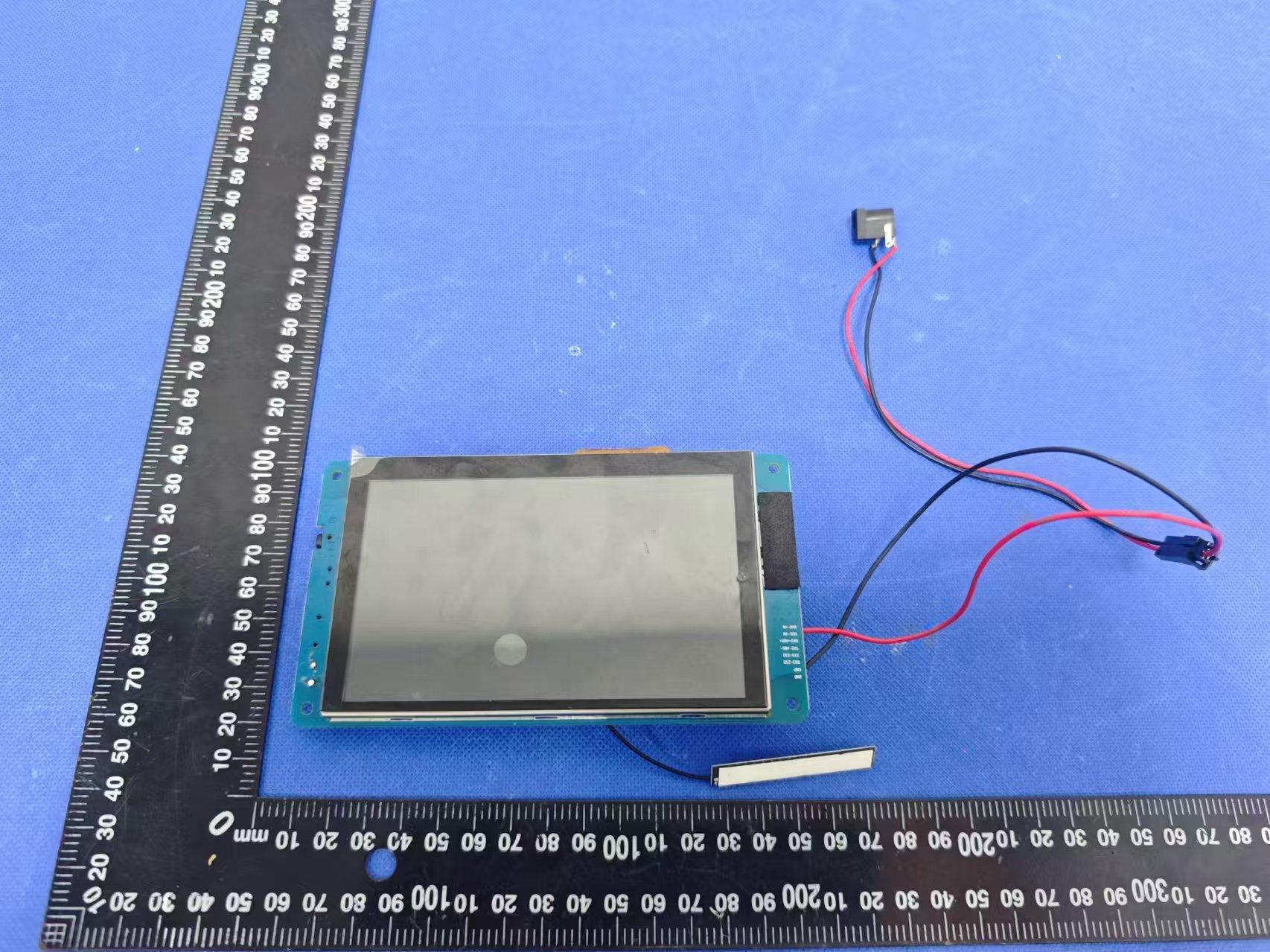

EUTPHOTO(InternalPhotos) Productname:IndustrialTablet Model:HMI051 EUTPhoto1 EUTPhoto2 EUTPhoto3 EUTPhoto4 EUTPhoto5 EUTPhoto6 ANT EUTPhoto7

FCCID:2BKA7-HMI051 RFExposureEvaluation AccordingtoKDB447498D01GeneralRFExposureGuidancev06andpart2.1093， UnlessspecificallyrequiredbythepublishedRFexposureKDBprocedures,standalone 1-gheadorbodyand10-gextremitySARevaluationforgeneralpopulationexposure conditions,bymeasurementornumericalsimulation,isnotrequiredwhenthe correspondingSARTestExclusionThresholdcondition(s),listedbelow,is(are)satisfied. For100MHzto6GHzandtestseparationdistances≤50mm,the1-gand10-gSARtest exclusionthresholdsaredeterminedbythefollowing: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance, mm)]·[√f (GHz) ]≤3.0for1-gSAR,and≤7.5for10-gextremitySAR,where f (GHz) istheRFchanneltransmitfrequencyinGHz PoweranddistanceareroundedtothenearestmWandmmbeforecalculation Theresultisroundedtoonedecimalplaceforcomparison Here, 2.4GWiFi ModeMax Power(dBm) Max Power(mW) Frequency(MHz)Min. distance(mm) Calc. thresholds limit 802.11b6.0123.99246251.253.0 802.11g9.5909.10243752.843.0 802.11n209.1678.25241252.563.0 802.11n409.7169.37243752.923.0 SoaSARtestisnotrequired
