2BKCFBF-301Transmitter

1 Transmitter BF-301 LC CONFIRMLIMIT CHANNEL + DOWN STOP UP DISPLAY CHANNEL - PRODUCT FUNCTIONS: •15 total channels - 1 group - 14 individual. •Press or to select a channel from 1-14 to operate or pair a motor. Channel ALL controls all programmed channels. INCLUDES Wall Bracket Remote Screws 2x Anchors 2x FRONTBACK FCC certified REMOTE PARAMETERS Product: Transmitter Battery: CR2430 Frequency: 433.92MHz 2 FCC certified FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SHENZHEN BOFU MECHANIC & ELECTRONIC CO.,L TD Section 2.911 (d)(7) USA Agent for Service of Process Company name: SHENZHEN BOFU MECHANIC & ELECTRONIC CO.,LTD Address: Building D. the 1st area of HeJing industrial park, high-tech park, HePing community, Fuhai street, Bao'an district, Shenzhen, China Product Name: Transmitter FCC ID: 2BKCFBF-301 Model(s): BF-301 2.911 (d)(7) USA Designated Agent for Service o f Process We, [SHENZHEN BOFU MECHANIC & ELECTRONIC CO.,LTD] ("the applicant") designate [SUPPL YEO DRAPERY AND SHADE HARDWARE] Nore1 fo r the purpose of accepting service of process on behalf of the applicant. A pplicant consent:We acknowledgeour consent to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. ad dress and email address of the designated agent and acknowledgeour a cceptance of our obligation to maintain an agent for service of process in the United States for no less than one year after either we the grantee have permanently terminated all marketing and importation of the applicable equipment within the U .S., or at th e conclusion of any Commission-related administrative or judicial proceeding involving the equipment, wh ichever is later. Agent obligation:We acknowledgeourobligation to accept service of process in the United States for matters related to the applicable equipment at our physical U.S. address and email addressfor no less than one year after either the grantee has per manently terminated all ma rketing and importation of the applicable equipment within the U.S., or at the conclusion of any Commission-related administrative or judic ial proceeding involving the equipment, whichever is later. USA Agent Company name: SUPPL YED DRAPERY AND SHADE HARDWARE USA Address: 5500 Peck Rd Arcadia, CA 91006 USA FRN Number: 0035818723 Contact Name: Sam Choi Telephone No: +1(626) 7801112 Email: [email protected] Applicant Company name: SHENZHEN BOFU MECHANIC & ELECTRONIC CO.,LTD Address: Building D, the 1st area of HeJing industrial park, high-tech park, HePing community, Fuhai street, Bao'an district, ShenZhen, China Grantee FRN Number: 0035819663 FCC Grantee Code: 2BKCF Contact Name: ZHENYU PENG Telephone No: 86-0755-23003176 Email: [email protected] 2.911 (dl(7)USA Agent vl.5 SHENZHEN BOFU MECHANIC & ELECTRONIC CO.,LTD S ignatur e: 沪干门 Title:N/A Date :2024-08-14 Signature: Title: Sales manager Date: 2024-08-14 三 乏A区生叶 氐/..:2-c) (气 NOTE 1: An applicant located in the United States may designate itself as the agent for service of process. Reference; Federal Register document 2022-28263 published on 02/06/23 htt s://www.federalre ister. ov/documents/2023/02/06/2022-28263/ rotectin -a ainst-nation al-securi -threats-to-the-communicatlons-su -chain-throu h-th 2.911 (dl(7)USA Agent vl.5

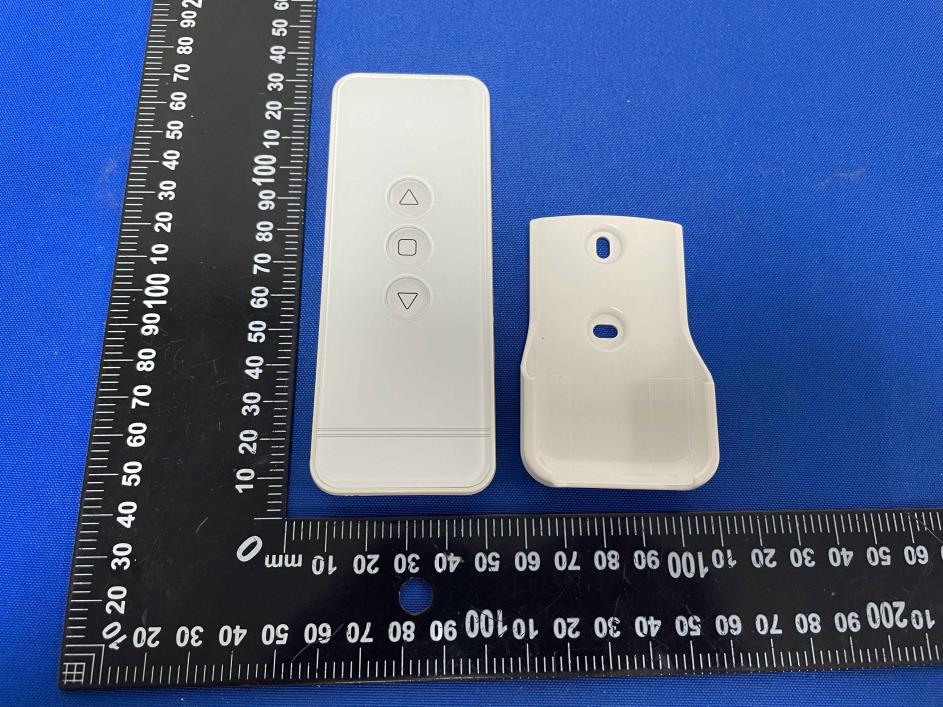

Page 1 of 4 Appendix C: Photographs of EUT Product: Transmitter Model: BF-301 External Photos Page 2 of 4 Page 3 of 4 Page 4 of 4

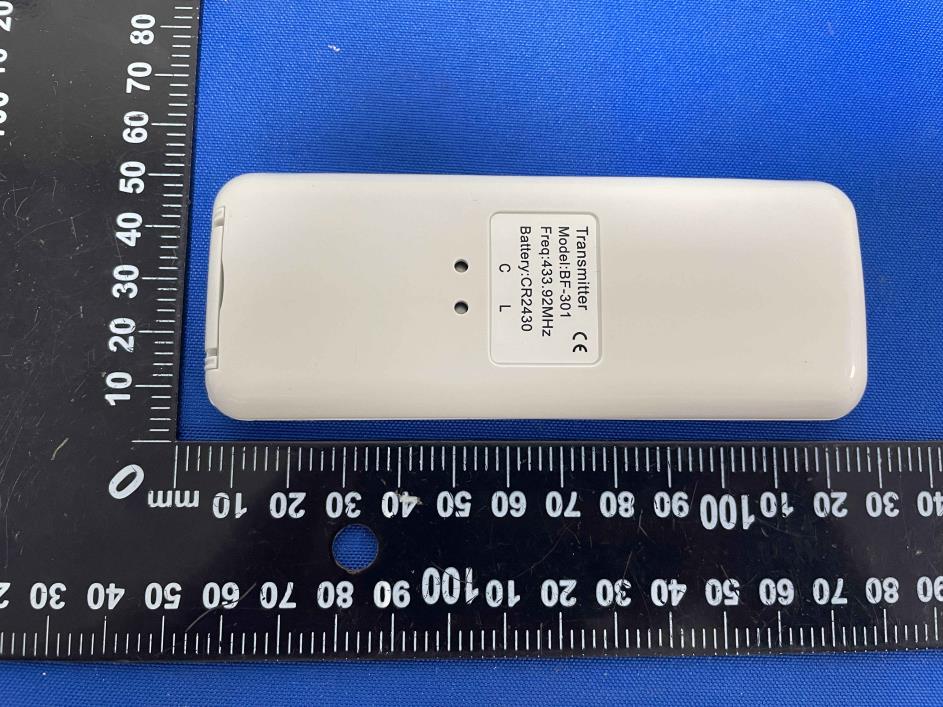

LabelArtworkandLocation Model:BF-301 Label: Size:L*W=26*20mm Location

Page 1 of 4 Appendix C: Photographs of EUT Product: Transmitter Model: BF-301 Internal Photos Page 2 of 4 Antenna Page 3 of 4 Page 4 of 4

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID. ............................ : 2BKCFBF-301 Test Report No. ............... : TCT240717E006 Date of issue ................... : Jul, 25, 2024 Testing laboratory .......... : SHENZHEN TONGCE TESTING LAB Testing location/ address: 2101 & 2201, Zhenchang Factory, Renshan Industrial Zone, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, 518103, People's Republic of China Applicant's name ............ : SHENZHEN BOFU MECHANIC & ELECTRONIC CO., LTD Address ........................... : Building D, the 1st area of HeJing industrial park, high-tech park, HePing community, Fuhai street, Bao'an district, ShenZhen, China Manufacturer's name ... : SHENZHEN BOFU MECHANIC & ELECTRONIC CO., LTD Address ........................... : Building D, the 1st area of HeJing industrial park, high-tech park, HePing community, Fuhai street, Bao'an district, ShenZhen, China Standard(s) ..................... : KDB 447498 D01 General RF Exposure Guidance v06 Product Name ................. : Transmitter Trade Mark ...................... : N/A Model/Type reference..... : BF-301 Rating(s).......................... : Battery DC 3V Date of receipt of test item ......................................... : Jul, 17, 2024 Date (s) of performance of test ................................... : Jul, 17, 2024 ~ Jul, 25, 2024 Tested by (+signature) ... : Ronaldo LUO Check by (+signature) .... : Beryl ZHAO Approved by (+signature): Tomsin General disclaimer: This report shall not be reproduced except in full, without the written approval of SHENZHEN TONGCE TESTING LAB. This document may be altered or revised by SHENZHEN TONGCE TESTING LAB personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT240717E006 Page 2 of 6 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Table of Contents 1. General Product Information .................................................................. 3 1.1. EUT description ..................................................................................................... 3 1.2. Model(s) list ............................................................................................................ 3 2. General Information ................................................................................. 4 2.1. Test environment and mode ................................................................................. 4 2.2. Description of Support Units ................................................................................ 4 3. Facilities and Accreditations .................................................................. 5 3.1. Facilities ................................................................................................................. 5 3.2. Location ................................................................................................................. 5 4. Test Results and Measurement Data ..................................................... 6 4.1. Requirements ......................................................................................................... 6 4.2. Test Result ............................................................................................................. 6 Report No.: TCT240717E006 Page 3 of 6 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. General Product Information 1.1. EUT description Product Name ....................... : Transmitter Model/Type reference........... : BF-301 Sample Number....................: TCT240717E005-0101 Operation Frequency ........... : 433.92MHz Modulation Type ................... : FSK Antenna Type ........................ : PCB Antenna Antenna Gain ........................ : 0dBi Rating(s)................................ : Battery DC 3V Note: The antenna gain listed in this report is provided by applicant, and the test laboratory is not responsible for this parameter. 1.2. Model(s) list None. Report No.: TCT240717E006 Page 4 of 6 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 2. General Information 2.1. Test environment and mode Item Normal condition Temperature +25ºC Voltage DC 3V Humidity 56% Atmospheric Pressure: 1008 mbar Test Mode: Engineering mode: Keep the EUT in continuous transmitting by select channel 2.2. Description of Support Units The EUT has been tested as an independent unit together with other necessary accessories or support units. The following support units or accessories were used to form a representative test configuration during the tests. Equipment Model No. Serial No. FCC ID Trade Name / / / / / Note: 1. All the equipment/cables were placed in the worst-case configuration to maximize the emission during the test. 2. Grounding was established in accordance with the manufacturer’s requirements and conditions for the intended use. 3. For conducted measurements (Output Power, 20dB Occupied Bandwidth, Carrier Frequencies Separation, Hopping Channel Number, Dwell Time, Spurious Emissions), the antenna of EUT is connected to the test equipment via temporary antenna connector, the antenna connector is soldered on the antenna port of EUT, and the temporary antenna connector is listed in the Test Instruments. Report No.: TCT240717E006 Page 5 of 6 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 3. Facilities and Accreditations 3.1. Facilities The test facility is recognized, certified, or accredited by the following organizations: ● FCC - Registration No.: 645098 SHENZHEN TONGCE TESTING LAB Designation Number: CN1205 The testing lab has been registered and fully described in a report with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in our files. ● IC - Registration No.:…

Text truncated - open the document above for the full version.

Antenna Type: PCB Antenna Antenna Gain: 0dBi Antenna Photo & Size: 26±0.5mm 36±0.5mm 10±0.5mm

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID. ............................ : 2BKCFBF-301 Test Report No. ............... : TCT240717E005 Date of issue ................... : Jul, 25, 2024 Testing laboratory .......... : SHENZHEN TONGCE TESTING LAB Testing location/ address: 2101 & 2201, Zhenchang Factory, Renshan Industrial Zone, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, 518103, People's Republic of China Applicant's name ............ : SHENZHEN BOFU MECHANIC & ELECTRONIC CO., LTD Address ........................... : Building D, the 1st area of HeJing industrial park, high-tech park, HePing community, Fuhai street, Bao'an district, ShenZhen, China Manufacturer's name ... : SHENZHEN BOFU MECHANIC & ELECTRONIC CO., LTD Address ........................... : Building D, the 1st area of HeJing industrial park, high-tech park, HePing community, Fuhai street, Bao'an district, ShenZhen, China Standard(s) ..................... : FCC CFR Title 47 Part 15 Subpart C Section 15.231 Product Name ................. : Transmitter Trade Mark ...................... : N/A Model/Type reference..... : BF-301 Rating(s).......................... : Battery DC 3V Date of receipt of test item ......................................... : Jul, 17, 2024 Date (s) of performance of test ................................... : Jul, 17, 2024 ~ Jul, 25, 2024 Tested by (+signature) ... : Ronaldo LUO Check by (+signature) .... : Beryl ZHAO Approved by (+signature): Tomsin General disclaimer: This report shall not be reproduced except in full, without the written approval of SHENZHEN TONGCE TESTING LAB. This document may be altered or revised by SHENZHEN TONGCE TESTING LAB personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT240717E005 Page 2 of 32 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Table of Contents 1. General Product Information .................................................................. 3 1.1. EUT description ..................................................................................................... 3 1.2. Model(s) list ............................................................................................................ 3 2. Test Result Summary .............................................................................. 4 3. General Information ................................................................................. 5 3.1. Test Environment and Mode ................................................................................. 5 3.2. Description of Support Units ................................................................................ 6 4. Facilities and Accreditations .................................................................. 7 4.1. Facilities ................................................................................................................. 7 4.2. Location ................................................................................................................. 7 4.3. Measurement Uncertainty ..................................................................................... 7 5. Test Results and Measurement Data ..................................................... 8 5.1. Antenna Requirement ........................................................................................... 8 5.2. Conducted Emission ............................................................................................. 9 5.3. Radiated Emission Measurement ...................................................................... 10 5.4. Manually Activated Transmitter ......................................................................... 20 5.5. Occupied Bandwidth ........................................................................................... 22 Appendix A: Photographs of Test Setup Appendix B: Photographs of EUT Report No.: TCT240717E005 Page 3 of 32 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. General Product Information 1.1. EUT description Product Name ....................... : Transmitter Model/Type reference........... : BF-301 Sample Number....................: TCT240717E005-0101 Operation Frequency ........... : 433.92MHz Modulation Technology ....... : FSK Antenna Type ........................ : PCB Antenna Antenna Gain ........................ : 0dBi Rating(s)................................ : Battery DC 3V Note: The antenna gain listed in this report is provided by applicant, and the test laboratory is not responsible for this parameter. 1.2. Model(s) list None. Report No.: TCT240717E005 Page 4 of 32 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 2. Test Result Summary Requirement CFR 47 Section Result Antenna Requirement §15.203 PASS Conduction Emission, 0.15MHz to 30MHz §15.207 N/A Manually Activated Transmitter §15.231(a) PASS Radiation Emission §15.231(b), §15.205, §15.209, §15.35 PASS Occupied Bandwidth §15.231(c) PASS Note: 1. PASS: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. Report No.: TCT240717E005 Page 5 of 32 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 3. General Information 3.1. Test Environment and Mode Operating Environment: Condition Radiated Emission Temperature: 25.1 C Humidity: 54 % RH Test Mode: Operation mode: Keep the EUT in continuous transmitting with modulation The sample was placed (0.8m below 1GHz, 1.5m above 1GHz) above the ground plane of 3m chamber. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, inve…

Text truncated - open the document above for the full version.

Page 1 of 1 Appendix B: Photographs of Test Setup Product: Transmitter Model: BF-301 Radiated Emission
