2BKCG-MBS820WIRELESS GAME CONTROLLER

SHENZHENGAMTECTECHNOLOGYDEVELOPMENTCO.,LTD 2.911(d)(5)(i)EquipmentTypeAttestationv1.2 Section2.911(d)(5)(i)Certification–EquipmentType Companyname:SHENZHENGAMTECTECHNOLOGYDEVELOPMENTCO.,LTD Address:3F,BuildingB,YufengIndustrialZone,Yangguang6thRoad,Xili,NanshanDistrict, ShenzhenCity,China. ProductName:WIRELESSGAMECONTROLLER FCCID:2BKCG-MBS820 Model(s):MB-S820,MB-S818,MB-S818Pro,MB-S819,MB-S820Pro,MB-S820(769),MB-S821, MB-S821Pro,MB-S830,MB-S830Pro,MB-S830Plus,MB-S850,MB-S850Pro,MB-S860,MB-P06, MB-P912,MB-P913,MB-838,MB-660,MB-8183,T3,T6,T7,T13,T22,T23,T28,X3,X7,X5PLUS, X6Pro,C8S,CM617,CM619,JK02,JK03,S03,D3,D5,D6,D6DP,D7,D8,D8Pro,D9,D10,D10S, D11,D12,D13,D15,D16,Z01,Z02,Z03,Z04,Z05,Z06,Z07,Z08,G2,G3,G5,G6,G8 2.911(d)(5)(i)EquipmentType We,[SHENZHENGAMTECTECHNOLOGYDEVELOPMENTCO.,LTD](“theapplicant”)certifythat theequipmentforwhichauthorizationissoughtthroughcertificationisnot:  Prohibitedfromreceivinganequipmentauthorizationpursuantto§2.903;oftheFCCrules.  Identifiedasanequipmenttypeinthe“CoveredList” NOTE1 Yourssincerely, Name:JackychanDate:2024.8.20 TitleandCompanyname:Manager/SHENZHENGAMTECTECHNOLOGYDEVELOPMENTCO., LTD NOTE1 “CoveredList”;istheListofEquipmentandServicesCoveredBySection2ofTheSecureNetworksAct,availableat https://www.fcc.gov/supplychain/coveredlist References; 1)986446D01CoveredEquipmentv01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2)FederalRegisterdocument2022-28263publishedon02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

SHENZHENGAMTECTECHNOLOGYDEVELOPMENTCO.,LTD 2.911(d)(5)(ii)ApplicantAttestationv1.3 Section2.911(d)(5)(ii)Certification–Applicant(CoveredList) Companyname:SHENZHENGAMTECTECHNOLOGYDEVELOPMENTCO.,LTD Address:3F,BuildingB,YufengIndustrialZone,Yangguang6thRoad,Xili,NanshanDistrict, ShenzhenCity,China. ProductName:WIRELESSGAMECONTROLLER FCCID:2BKCG-MBS820 Model(s):MB-S820,MB-S818,MB-S818Pro,MB-S819,MB-S820Pro,MB-S820(769),MB-S821, MB-S821Pro,MB-S830,MB-S830Pro,MB-S830Plus,MB-S850,MB-S850Pro,MB-S860,MB-P06, MB-P912,MB-P913,MB-838,MB-660,MB-8183,T3,T6,T7,T13,T22,T23,T28,X3,X7,X5PLUS, X6Pro,C8S,CM617,CM619,JK02,JK03,S03,D3,D5,D6,D6DP,D7,D8,D8Pro,D9,D10,D10S, D11,D12,D13,D15,D16,Z01,Z02,Z03,Z04,Z05,Z06,Z07,Z08,G2,G3,G5,G6,G8 2.911(d)(5)(ii)Applicantfiling We,[SHENZHENGAMTECTECHNOLOGYDEVELOPMENTCO.,LTD](“theapplicant”)certifythat, asofthedateofthefilingoftheapplication,theapplicantisnotidentified NOTE1 onthe“CoveredList” NOTE2 ,establishedpursuantto§1.50002ofthischapter,asanentityproducingcovered communicationsequipment. Yourssincerely, Name:JackychanDate:2024.8.20 TitleandCompanyname:Manager/SHENZHENGAMTECTECHNOLOGYDEVELOPMENTCO., LTD NOTE1 Deleteoptionnotapplicabletothisapplication. NOTE2 “CoveredList”;istheListofEquipmentandServicesCoveredBySection2ofTheSecureNetworksAct,availableat https://www.fcc.gov/supplychain/coveredlist References; 1)986446D01CoveredEquipmentv01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2)FederalRegisterdocument2022-28263publishedon02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

SHENZHENGAMTECTECHNOLOGYDEVELOPMENTCO.,LTD AgentAuthorization Company:SHENZHENGAMTECTECHNOLOGYDEVELOPMENTCO.,LTD Address:3F,BuildingB,YufengIndustrialZone,Yangguang6thRoad,Xili,Nanshan District,ShenzhenCity,China. ProductName:WIRELESSGAMECONTROLLER ModelNumber(s):MB-S820,MB-S818,MB-S818Pro,MB-S819,MB-S820Pro,MB- S820(769),MB-S821,MB-S821Pro,MB-S830,MB-S830Pro,MB-S830Plus,MB-S850, MB-S850Pro,MB-S860,MB-P06,MB-P912,MB-P913,MB-838,MB-660,MB-8183,T3, T6,T7,T13,T22,T23,T28,X3,X7,X5PLUS,X6Pro,C8S,CM617,CM619,JK02,JK03, S03,D3,D5,D6,D6DP,D7,D8,D8Pro,D9,D10,D10S,D11,D12,D13,D15,D16,Z01, Z02,Z03,Z04,Z05,Z06,Z07,Z08,G2,G3,G5,G6,G8 ProductDescription:WIRELESSGAMECONTROLLER WeauthorizeMiCOMLabsInc.,575BoulderCourt,Pleasanton,California94566,USA, toactonourbehalfonallmattersconcerningthecertificationofabovenamed equipment. WedeclarethatMiCOMLabsInc.isallowedtoforwardallinformationrelatedtothe approvalandcertificationofequipmenttotheregulatoryagenciesasrequiredandto discussanyissuesconcerningtheapprovalapplication.Anyandallactscarriedoutby MiCOMLabsonourbehalfshallhavethesameeffectasactsofourown. Signature:Date:2024.8.20 Name:Jackychan Title:Manager Company:SHENZHENGAMTECTECHNOLOGYDEVELOPMENTCO.,LTD

SHENZHEN GAMTEC TECHNOLOGY DEVELOPMENT CO., LTD Model Difference Product description: WIRELESS GAME CONTROLLER Model name: MB-S820, MB-S818, MB-S818Pro, MB-S819, MB-S820Pro, MB-S820(769), MB-S821, MB-S821Pro, MB-S830, MB-S830Pro, MB-S830Plus, MB-S850, MB-S850Pro, MB-S860, MB-P06, MB-P912, MB-P913, MB-838, MB-660, MB-8183, T3, T6, T7, T13, T22, T23, T28, X3, X7, X5PLUS, X6Pro, C8S, CM617, CM619, JK02, JK03, S03, D3, D5, D6, D6DP, D7, D8, D8Pro, D9, D10, D10S, D11, D12, D13, D15, D16, Z01, Z02, Z03, Z04, Z05, Z06, Z07, Z08, G2, G3, G5, G6, G8 Trade Name: mingpin FCC ID:2BKCG-MBS820 Only the model name is different. Regards Sincerely Client’s signature: Client’s name / title: Jacky chan / Manager Contact information / address: 3F, Building B, Yufeng Industrial Zone, Yangguang 6th Road, Xili, Nanshan District, Shenzhen City, China.

SHENZHENGAMTECTECHNOLOGYDEVELOPMENTCO.,LTD OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:2024.8.20 Subject;RequestforConfidentiality FCCID:2BKCG-MBS820 ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthesedocuments mightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantageinthemarket. SchematicDiagram BlockDiagram PartsList OperationalDescription Tune-upProcedure Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); ExternalPhotos TestSetupPhotos InternalPhotos UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:Jackychan Title:Manager

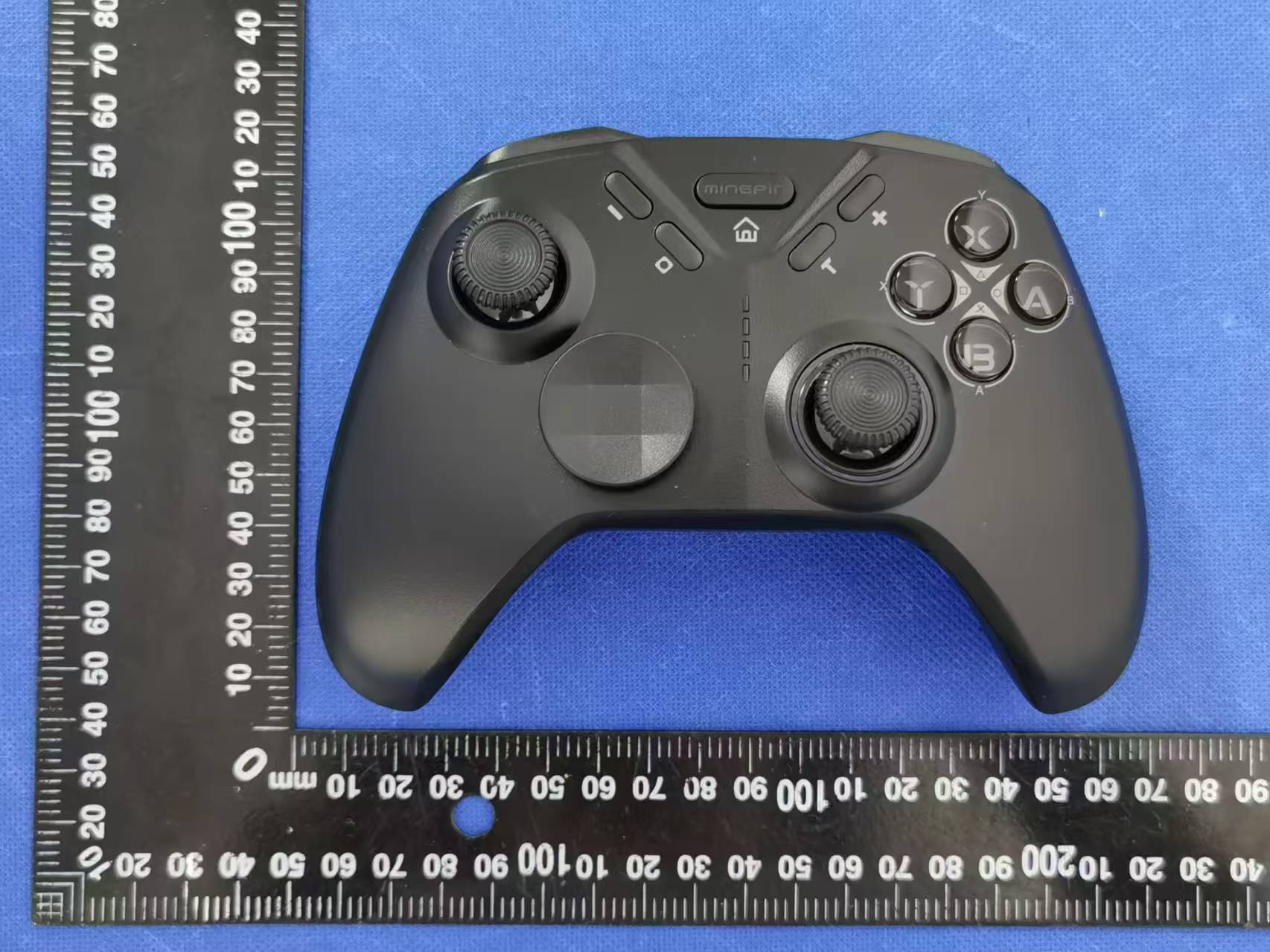

EUT PHOTO(External Photos)

Label & label location 20mm*10mm FCC ID:2BKCG-MBS820 Label location

EUT PHOTO(Internal Photos) ※※※※※ END OF REPORT ※※※※※ ANT

RF EXPOSURE EVALUATION METHOD FCC ID:2BKCG-MBS820 Applicable standard： In accordance with FCC 47 CFR part 2 (2.1093) this device has been defined as a portable device which is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable devices must be evaluated using the specified in FCC 47 CFR part 2 (2.1093) and ANSI/IEEEC95.1-1992. and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528-2003. Per FCC KDB 447498 D01 v06, the 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances s 50 mm are determined by: SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BLE Mode Max Power(dBm) Max Power(mW) Frequency(MHz) Min. distance(mm) Calc. thresholds limit GFSK 2.488 1.77 2480 5 0.56 3.0 Conclusion: 1. [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] < 3.0. 2. SAR Test Exclusion Thresholds is 3.0 for separation distance 5mm. Therefore, SAR test is not required.

ShanWan 天线报告 1.测试原理 ShanWan 2. 测试设备 名称 型号 设备编号 厂商 校准日期 下次 校准日期 OTA 测试系统 RayZone- 5000 RFI-LAB-RF-D00 GTS 2021.3.22 2023.3.21 网络分析仪 E5071C RFI-LAB-RF-C02 KEYSIGHT 2022.5.13 2023.5.12 网络分析仪 E5071C RFI-LAB-RF-D01 KEYSIGHT 2022.5.13 2023.5.12 3. 测试环境 环境温度 23.6°C 相对湿度 58%RH 大气压强 100.14kPa ShanWan 4. 样品实物 5. 样品实测摆放图 主视图 ShanWan 6.测试结果 6.1 检测依据 对象名称 参数名称 方法名称 依据标准号 移动通信天线 辐射方向图 移动通信天线通用技术规范 GB/T 9410-2008 天线增益 电压驻波比 方向图圆度 天线 增益与方向性 IEEE 天线测试标准流程 ANSI/IEEE Std 149-1979 辐射效率 阻抗 6.2 测试不确定度 不确定度的计算以 ISO 发布的“Guide to the Expression of Uncertainty in Measurement” (GUM)为依据，使用 K=2 的包含因子及 95%置信水平来表示扩展不确定度。 项目 不确定度 驻波比 ±0.3 增益、效率 ±0.72dB ShanWan 7. 测试数据 7.1 网络分析仪测试 7.2 驻波比 频率/MHz 2402 2440 2480 电压驻波比 2.7457 2.6723 2.3064 7.3 增益和效率 频率/MHz 2402 2410 2420 2430 2440 2450 2460 2470 2480 最大增益/dBi -1.97 -1.95 -1.63 -1.49 -1.27 -1.06 -0.89 -0.71 -0.95 效率/% 17.88 18.34 19.20 19.89 20.58 20.86 21.78 22.18 21.03 7.4 方向图圆度 频率/MHz 2402 2410 2420 2430 2440 2450 2460 2470 2480 H Theta=90/dB 20.55 20.57 20.15 19.12 18.93 20.11 20.49 19.26 16.51 ShanWan 7.5 方向图 (1) X-Z 面(单位：dBi)： (2) Y-Z 面(单位：dBi)： ShanWan (3) X-Y 面(单位：dBi)： (4) 2470MHz 的 3D 方向图(单位：dBi)： -------------------------------------------------结束------------------------------------------------ （以下内容空白）

Project No.: ZKT-2408079493E Page 1 of 40 FCC TEST REPORT FCC ID:2BKCG-MBS820 Report Number. .............................. : ZKT-2408079493E Date of Test ................................................. : Aug. 07, 2024 to Aug. 14, 2024 Date of issue .................................... : Aug. 20, 2024 Total number of pages ...................... 40 Test Result ..................................... : PASS Testing Laboratory. ........................ : Shenzhen ZKT Technology Co., Ltd. Address .......................................... : 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Applicant's name ......................... : SHENZHEN GAMTEC TECHNOLOGY DEVELOPMENT CO., LTD Address .......................................... : 3F, Building B, Yufeng Industrial Zone, Yangguang 6th Road, Xili, Nanshan District, Shenzhen City, China. Manufacturer's name ................... : SHENZHEN GAMTEC TECHNOLOGY DEVELOPMENT CO., LTD Address .......................................... : 3F, Building B, Yufeng Industrial Zone, Yangguang 6th Road, Xili, Nanshan District, Shenzhen City, China. Test specification: Standard ........................................... : FCC CFR Title 47 Part 15 Subpart C Section 15.247 ANSI C63.10:2013 Test procedure ................................. : / Non-standard test method ............. : N/A Test Report Form No. .................... : / Test Report Form(s) Originator .... : ZKT Testing Master TRF .................................... : Dated: 2020-01-06 This device described above has been tested by ZKT, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of ZKT, this document may be altered or revised by ZKT, personal only, and shall be noted in the revision of the document. Product name ................................. : WIRELESS GAME CONTROLLER Trademark ...................................... : mingpin Model/Type reference......................: MB-S820 (Refer to Section 3.1 for serial model.) Ratings ............................................. : Input: 5V 500mA Battery: 3.7V 3.7Wh 1000mAh Project No.: ZKT-2408079493E Page 2 of 40 Testing procedure and testing location: Testing Laboratory ................................... : Shenzhen ZKT Technology Co., Ltd. Address ...................................................... : 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Jim Liu Tested by (name + signature) .................... : Jeff Fu Reviewer (name + signature) ..................... : Lake Xie Approved (name + signature) .................... : Project No.: ZKT-2408079493E Page 3 of 40 Table of Contents Page 1.VERSION ............................................................................................................... 5 2. SUMMARY OF TEST RESULTS ........................................................................... 6 2.1 TEST FACILITY ............................................................................................................. 7 2.2 MEASUREMENT UNCERTAINTY.................................................................................. 7 3. GENERAL INFORMATION ................................................................................... 8 3.1 GENERAL DESCRIPTION OF EUT ............................................................................... 8 3.2 DESCRIPTION OF TEST MODES ................................................................................. 9 3.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED ............ 10 3.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) ..................................... 10 3.5 EQUIPMENTS LIST FOR ALL TEST ITEMS ................................................................11 4. EMC EMISSION TEST ........................................................................................ 13 4.1 CONDUCTED EMISSION MEASUREMENT ................................................................ 13 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS .................................................... 13 4.1.2 TEST PROCEDURE ................................................................................................ 13 4.1.3 DEVIATION FROM TEST STANDARD .................................................................... 13 4.1.4 TEST SETUP ........................................................................................................... 14 4.1.5 EUT OPERATING CONDITIONS ............................................................................. 14 4.2.1 RADIATED EMISSION LIMITS ................................................................................ 17 4.2.2 TEST PROCEDURE ................................................................................................ 18 4.2.3 DEVIATION FROM TEST STANDARD .................................................................... 18 4.2.4 TEST SETUP ........................................................................................................... 18 4.2.5 EUT OPERATING CONDITIONS ............................................................................. 19 BETWEEN 30MHZ – 1GHZ..................................................................................... 20 1GHZ~25GHZ ......................................................................................................... 22 5.RADIATED BAND EMISSION MEASUREMENT ................................................. 24 5.1 TEST REQUIREMENT: .............................................................................................. 24 5.2 TEST PROCEDURE ................................................................................................... 24 5.3 DEVIATION FROM TEST STANDARD ..................................…

Text truncated - open the document above for the full version.

EUT TEST PHOTO
