2BKCI-AXRCTR01ARCADE2TV-XR CONTROLLER

ARCADE2TV-XR USER MANUAL TM ARCADE2TV™ -XR USER MANUAL 1. INTRODUCTION 2.SAFETY INFORMATION 3.PACKAGE CONTENTS 4.FEATURES OVERVIEW 5.PRODUCT OVERVIEW 6.ASSEMBLY INSTRUCTIONS 7. SETTING UP YOUR ARCADE2TV-XR 8.CONNECTING TO A PC/MAC 9.CONNECTING TO A GAME CONSOLE 10. OPERATION INSTRUCTIONS USING WITH PC/MAC USING WITH EMULATORS USING WITH GAME CONSOLES 11. USING THE TOUCH PANEL MODE AND TURBO FEATURES 12. KEY MAPPING CUSTOMIZATION AND FIRMWARE UPGRADES 13. VR AND XR MODE INSTRUCTIONS 14. DEFAULT KEY MAPPING KEYBOARD MODE DINPUT MODE XINPUT MODE 15. SWAPPING THE BALL KNOB AND CHANGING THE RESTRICTOR GATE 16. USING MAGNETIC HOOKS AND STORAGE SPACES 17. TROUBLESHOOTING 18. MAINTENANCE AND CLEANING CLEANING THE TRACKBALL GENERAL MAINTENANCE TIPS 19. WARRANTY INFORMATION 1 2 4 5 7 11 15 20 21 24 24 26 28 34 34 36 38 41 41 41 41 42 45 46 49 49 50 54 01 CHANGING RGB LIGHTING EFFECTS35 20. FCC COMPLIANCE STATEMENT55 1. Introduction2. Safety Information Welcome to the world of unparalleled gaming with the X-Arcade™ ARCADE2TV™-XR! We are thrilled to present you with the ultimate arcade gaming experience that bridges the gap between retro nostalgia and cutting-edge technology. Whether you're a seasoned arcade enthusiast or a new gamer looking to explore the charm of arcade the classics, ARCADE2TV™-XR is designed to deliver an immersive and customizable gaming adventure. The ARCADE2TV™-XR is more than just a gaming console; it's a gateway to a vibrant gaming universe. With its commercial-grade components, adjustable design, and compatibility with multiple control modes and gaming platforms, this arcade system is built to meet the demands of all gamers. The integration of high-quality trackballs, pinball buttons, and RGB lighting effects ensures that every gaming session is an exciting and visually stunning experience. We understand that every gamer is unique, which is why the ARCADE2TV™-XR comes with a host of customizable features. From adjustable height settings to interchangeable joystick knobs and restrictor gates, you can tailor your arcade setup to match your personal preferences. Plus, with exclusive VR games like Arcade Ranger and Quantaar VR included, you can step into a world of virtual reality and mixed reality gaming like never before. This user manual will guide you through every step of setting up and maximizing your ARCADE2TV™-XR . Whether you'r e connecting to a PC , Mac™ , or a variet y of gaming consoles, you'll find detailed instructions to help you get started quickly and easily. Additionally, our advanced touch panel and key mapping customization tools allow you to fine-tune your controls and lighting effects, ensuring your gaming experience is always at its best. Thank you for choosing the X-Arcade™ ARCADE2TV™-XR . We 're confident that this innovative arcade system will provide endless hours of fun and excitement for you, your family, and your friends. Get ready to relive the glory days of arcade gaming while exploring new frontiers in virtual reality. Let the games begin! Your safety and the safety of others are very important to us. To ensure safe and reliable operation of your X-Arcade™, ARCADE2TV™-XR, please read and follow all safety instructions carefully. General Safety Guidelines Read All Instructions: Before using your ARCADE2TV™-XR, read all instructions in this manual thoroughly. Keep Away from Water: Do not use the ARCADE2TV™-XR near water or moisture. Avoid placing it in areas where it may come into contact with liquids, such as near sinks, bathtubs, or swimming pools. Proper Ventilation: Ensure that the ARCADE2TV™-XR has adequate ventilation. Do not block any ventilation openings. Place the unit on a stable, flat surface to prevent overheat- ing. Avoid Heat Sources: Keep the ARCADE2TV™-XR away from heat sources such as radiators, stoves, or other appliances that produce heat. Use Correct Power Source: Connect the ARCADE2TV™-XR to a properly grounded outlet. Use only the power adapter provided with the unit. Do not use extension cords or power strips that may exceed the rated capacity (Maximum 5V). Cleaning: Unplug the ARCADE2TV™-XR before cleaning. Use a dry cloth to clean the exterior. Do not use liquid cleaners or aerosol sprays. Handling and Moving: When moving the ARCADE2TV™-XR, use the wheels provided and be cautious of your surroundings to avoid damage. Children’s Safety: Supervise children when they are using the ARCADE2TV™-XR. Ensure that they understand the safe operation of the unit and do not allow them to play with cables or connections. 12 3. Package Contents Electrical Safety Power Cord Protection: Route power cords in a manner that protects them from being walked on, pinched, or damaged. Pay particular attention to cords at plugs, convenience receptacles, and points where they exit from the unit. Lightning Storms: During a lightning storm, or when the ARCADE2TV™-XR will not be used for an extended period, unplug the unit from the power outlet to prevent damage from power surges. Damage Requiring Service: If the ARCADE2TV™-XR has been damaged (e.g., the cord power cord or plug is damaged, liquid has been spilled on it, objects have fallen into it, it has been exposed to rain or moisture, it does not operate normally, or it has been dropped), unplug the unit and contact customer support for service. Usage Precautions Do Not Modify: Do not attempt to modify or repair the ARCADE2TV™-XR yourself. Unauthorized modifications can damage the unit and void your warranty. Accessories and Attachments: Use only the accessories and attachments provided with the ARCADE2TV™-XR or recommended by X-Arcade™. Improper accessories may cause damage or pose a safety risk. Follow Instructions: Always follow the instructions provided in this manual for assem- bly, setup, and use of the ARCADE2TV™-XR.. Failure to do so may result in injury or damage to the unit. By following these safety guidelines, you can ensure that your X-Arcade™ ARCADE2TV™-XR provides a safe and enjoyabl…

Text truncated - open the document above for the full version.

Techstalgix LLC Address: 30 N Gould St Ste N, Sheridan, WY 82801 United States Tel: 307 533 6287 E- mail: [email protected] Attestation Letter Date: 2024-08-30 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir or Madam: O ur product ARCADE2TV-XR CONTROLLER, model: AXRCTR01, FCC ID:2BKCI-AXRCTR01, for marketing purpose, this product only supports BLE 1M. The other functions, bands and modes was disabled to use by manufacturer in the software, the end user has no capability to activate it. S incerely, Signature: P rinted name: Matt Chen Title: Manager

U.S. AGENT LETTER OF ATTESTATION Dat e: 2024-08-30 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(7) Filing FCC ID:2BKCI-AXRCTR01 Techstalgix LLC (“the Applicant”) certifies that, as of the date of the filing of the application, Techstalgix LLC is our designated U.S. agent for service of process for the above referenced FCC ID. Techstalgix LLC (“the Applicant”) accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Techstalgix LLC accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Company Name: Techstalgix LLC Address: 30 N Gould St Ste N, Sheridan, WY 82801 United States FRN: 0035819705 Tel.: 307 533 6287 Email: [email protected] Signed by (printed name): Matt Chen Signature: Applicant: Techstalgix LLC Address: 30 N Gould St Ste N, Sheridan, WY 82801 United States FRN: 0035819705 Tel: 307 533 6287 Email: [email protected] Signed by (printed name): Matt Chen Signature:

QA-FR-170-B Techstalgix LLC Address: 30 N Gould St Ste N, Sheridan, WY 82801 United States Tel: 307 533 6287 E-mail: [email protected] FCC Authorization Date: 2024-08-30 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We , Techstalgix LLC Hereby authorizes Bay Area Compliance Laboratories Corp.(Dongguan) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corp.(Dongguan) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely, Signature: Printed Name: Matt Chen Title: Manager

QA-F R-171-A Techstalgix LLC Address: 30 N Gould St Ste N, Sheridan, WY 82801 United States Tel: 307 533 6287 E-mail: [email protected] FCC Confidential Authorization Date: 202 4-08-30 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID:2BKCI-AXRCTR01 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Techstalgix LLC hereby requests long-term confidential treatment of information accompanying this application as outlined below: Block Diagra m Sch emati cs O peration Descriptio n Th e above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Printed Name: Matt Chen Title: Manager

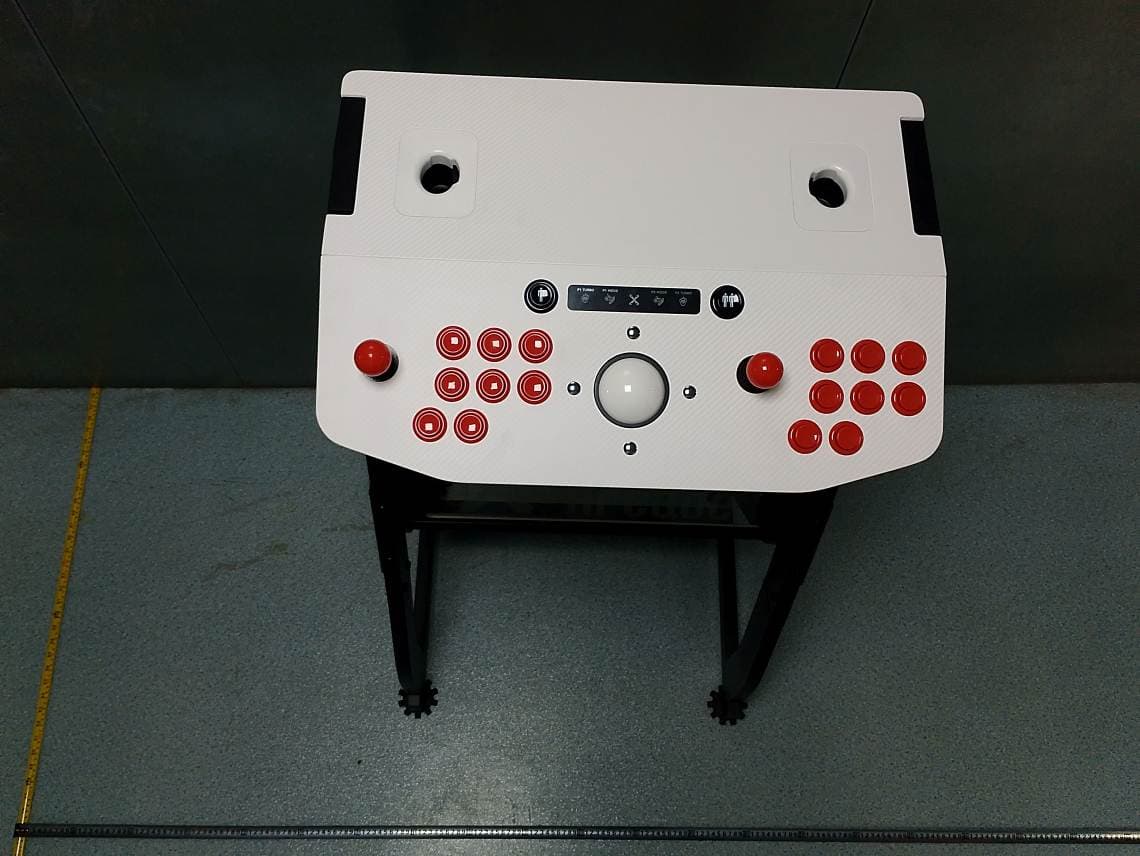

Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2402W89480E-RF-EXP Page 1 / 4 EUT EXTERNAL PHOTOS Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2402W89480E-RF-EXP Page 2 / 4 Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2402W89480E-RF-EXP Page 3 / 4 Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2402W89480E-RF-EXP Page 4 / 4

MODEL: AXRCTR01 FCC ID: 2BKCI-AXRCTR01 Made in China TM

Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2402W89480E-RF-INP Page 1 / 10 EUT INTERNAL PHOTOS Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2402W89480E-RF-INP Page 2 / 10 Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2402W89480E-RF-INP Page 3 / 10 Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2402W89480E-RF-INP Page 4 / 10 Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2402W89480E-RF-INP Page 5 / 10 Antenna Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2402W89480E-RF-INP Page 6 / 10 Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2402W89480E-RF-INP Page 7 / 10 Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2402W89480E-RF-INP Page 8 / 10 Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2402W89480E-RF-INP Page 9 / 10 Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2402W89480E-RF-INP Page 10 / 10

Bay Area Compliance Laboratories Corp. (Dongguan) Report No.:2402W89480E-RF-00 Report Template Version: FCC-BLE-V1.2 Page 44 of 44 EXHIBIT C - RF EXPOSURE EVALUATION SAR EVALUATION Applicable Standard According to§15.247(i) and §1.1310, systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB447498 D01 General RF Exposure Guidance v06: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. Measurement Result The max conducted power including tune-up tolerance is 0dBm (1.0mW). [(max. power of channel, mW)/(min. test separation distance, mm)][√f(GHz)] =1.0/5*(√2.480) = 0.3< 3.0 Note: the max conducted power including tune-up tolerance was declared by manufacturer. Result: Compliant. The stand-alone SAR evaluation is not necessary. ***** END OF REPORT *****

2.4 GHz FPC Dipole Antenna FEATURES  2.44 dBi Peak Gain Welding RG 1.13 cable, Ipex connector, 3M sticker for easy installation. For smart device wireless, Zigbee, Bluetooth terminal wireless receiving antenna transmitter antenna Mounting to: non-conductive surface Installation type: adhesive PRODUCTS Part No.WeightDimensions (L x WxH)Cables DimensionsConnectorColor 0.43gFPC:37.0*10.0*0.2mm Φ1.13*60 mm IPX1Black SPECIFICATIONS PARAMETER SPECIFICATION Frequency Bands, MHz2400-2500 VSWR (Max)3.0:1 Peak Gain, dBi 2.44 Nominal Impedance50 Ω Max Power (ambient temp of 25°C)10 Watts Azimuth Beam Width (deg)Omnidirectional PolarizationLinear, Omnidirectional ColorBlack Storage Temperature Range (°C)-40° C to +85° C Operational Temperature Range (°C)-30° C to +80° C Dongguan Subo electronics Co., LTD ADD/ 4th floor, no.6,qilin east road,daning,humen,dongguan,Guangdong 523930(China) Tel:0769-33691210 Fax:0769-82381572 NB3710IP-LX60 ELECTRICALDATA ReturnLoss Efficiency（%） Dongguan Subo electronics Co., LTD ADD/ 4th floor, no.6,qilin east road,daning,humen,dongguan,Guangdong 523930(China) Tel:0769-33691210 Fax:0769-82381572 PeakGain（dBi） RADIATIONPATTERNS 2DRadiationPatternat2400MHz 2DRadiationPatternat2450MHz Dongguan Subo electronics Co., LTD ADD/ 4th floor, no.6,qilin east road,daning,humen,dongguan,Guangdong 523930(China) Tel:0769-33691210 Fax:0769-82381572 2DRadiationPatternat2500MHz Dongguan Subo electronics Co., LTD ADD/ 4th floor, no.6,qilin east road,daning,humen,dongguan,Guangdong 523930(China) Tel:0769-33691210 Fax:0769-82381572

TEST REPORT Applicant: Techstalgix LLC Address: 30 N Gould St Ste N, Sheridan, WY 82801 United States P r o d u c t N a m e : ARCADE2TV-XR CONTROLLER F C C I D : 2BKCI-AXRCTR01 Standard(s): 47 CFR Part 15, Subpart C(15.247) ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 Report Number: 2402W89480E-RF-00 Report Date: 2024/9/6 The above device has been tested and found compliant with the requirement of the relative standards by Bay Area Compliance Laboratories Corp. (Dongguan). Reviewed By: Gavin Xu Approved By: Ivan Cao Title: RF Supervisor Title: EMC Manager Bay Area Compliance Laboratories Corp. (Dongguan) No.12, Pulong East 1 st Road, Tangxia Town, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn Note: The information marked ▲ is provided by the applicant, the laboratory is not responsible for its authenticity and this information can affect the validity of the result in the test report. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested.This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with ★.This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S. Government. Bay Area Compliance Laboratories Corp. (Dongguan) Report No.:2402W89480E-RF-00 Report Template Version: FCC-BLE-V1.2 Page 2 of 44 CONTENTS DOCUMENT REVISION HISTORY ································································ 4 1. GENERAL INFORMATION ······································································· 5 1.1 GENERAL DESCRIPTION OF EQUIPMENT UNDER TEST ················································ 5 1.2 ACCESSORY INFORMATION ················································································· 5 1.3 ANTENNA INFORMATION DETAIL▲ ······································································ 5 1.4 EQUIPMENT MODIFICATIONS ·············································································· 5 2. SUMMARY OF TEST RESULTS ································································· 6 3. DESCRIPTION OF TEST CONFIGURATION ················································ 7 3.1 OPERATION FREQUENCY DETAIL ········································································· 7 3.2 EUT OPERATION CONDITION ·············································································· 7 3.3 SUPPORT EQUIPMENT LIST AND DETAILS ······························································· 7 3.4 SUPPORT CABLE LIST AND DETAILS ······································································ 7 3.5 BLOCK DIAGRAM OF TEST SETUP ········································································· 8 3.6 TEST FACILITY ······························································································ 10 3.7 MEASUREMENT UNCERTAINTY ·········································································· 10 4. REQUIREMENTS AND TEST PROCEDURES ············································· 11 4.1 AC LINE CONDUCTED EMISSIONS ······································································· 11 4.1.1 Applicable Standard ······························································································ 11 4.1.2 EUT Setup·········································································································· 12 4.1.3 EMI Test Receiver Setup ························································································· 12 4.1.4 Test Procedure ····································································································· 13 4.1.5 Corrected Result& Margin Calculation ········································································ 13 4.1.6 Test Result ········································································································· 13 4.2 RADIATION SPURIOUS EMISSIONS ······································································· 14 4.2.1 Applicable Standard ······························································································ 14 4.2.2 EUT Setup·········································································································· 14 4.2.3EMI Test Receiver & Spectrum Analyzer Setup ······························································· 16 4.2.4 Test Procedure ····································································································· 16 4.2.5 Corrected Result & Margin Calculation ········································································ 16 4.2.6 Test Result ········································································································· 16 4.3 MINIMUM 6 DB BANDWIDTH ············································································· 17 4.3.1 Applicable Standard ······························································································ 17 4.3.2 EUT Setup·········································································································· 17 4.3.3 Test Procedure ····································································································· 17 4.3.4 Test Result ········································································································· 17 4.4 MAXIMUM CONDUCTED OUTPUT POWER ····························································· 18 4.4.1 Applicable Standard ······························································································ 18 4.4.2 EUT Setup·········································································································· 18 4.4.3 Test …

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2402W89480E-RF-00-TSP TEST SETUP PHOTOGRAPHS Conducted Emissions Front View Conducted Emissions Side View Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2402W89480E-RF-00-TSP Radiated Emission 9k-30MHz Parallel View Radiated Emission 9k-30MHz Perpendicular View Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2402W89480E-RF-00-TSP Radiated Emission 9k-30MHz Ground-parallel View Radiated Emission 30M-1GHz View Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2402W89480E-RF-00-TSP Radiated Emission 1-18GHz View Radiated Emission 18-25GHz View
