2BKCS-SA-RR-CKRevolution Robotics Challenge Kit

Revolution Robotics Challenge Kit User Manual (SA-RR-CK 2.0) Rev. 2024/08 Table of contents Table of contents1 Chapter 1: Introduction2 About Revolution Robotics2 Purpose of the Manual2 Chapter 2: Safety Information3 General Safety Precautions3 Chapter 3: Product Overview4 Components and Features4 Chapter 4: Setup and Installation5 Unboxing5 Central Control Unit (Robot Brain)6 Software Installation7 App & Kit Usage8 Chapter 5: Contact information14 Customer Support14 Chapter 1: Introduction About Revolution Robotics Revolution Robotics is an innovative robotics kit, incorporating challenges, and competitions aimed at developing essential 21st-century skills. Our mission is to inspire children globally to pursue STEM education and careers. This manual provides comprehensive instructions for setting up, operating, and maintaining your robotics kit. Revolution Robotics is a STEAM Academy brand. PurposeoftheManual This manual is intended to provide comprehensive instructions for safely setting up, operating, and maintaining your Revolution Robotics platform. -2- Revolution Robotics Challenge Kit User Manual (SA-RR-CK 2.0) Rev. 2024/08 Chapter 2: Safety Information General Safety Precautions ●Intended Use: The Revolution Robotics Challenge Kit is designed for children aged 7 and above. Adult supervision by a school teacher or parent is required at all times. ●Read Before Use: Carefully read all instructions before using the kit. ●Water and Moisture: Keep the robotics kit away from water and moisture to avoid damage and electrical hazards. ●Handling: Avoid dropping the components or subjecting them to physical shock. ●Power Supply: The Central Control Unit (Robot Brain) can be charged via USB. The battery pack requires 6 AA batteries. Use only the specified battery type and ensure they are inserted correctly. ●Connections: Make sure all components are securely connected before powering on the robot. ●Application Use: The robot is controlled through an application available on iOS and Android devices. Ensure the app is installed and used according to the instructions provided. ●Battery Safety: Follow proper battery usage and disposal guidelines. Do not attempt to open or modify the batteries. -3- Revolution Robotics Challenge Kit User Manual (SA-RR-CK 2.0) Rev. 2024/08 Chapter 3: Product Overview Components and Features The Revolution Robotics Challenge Kit includes the following components: ●Central Control Unit (Robot Brain) ○The main processing unit that controls the robot’s functions. ○Chargeable via USB. ○Contains 12 programmable LEDs. ●Motors ○Provide movement to the robot. ○Connect to the Central Control Unit. ●Sensors ○Ultrasonic Sensor: Measures distance. ○Button Sensor: Detects physical interactions. ○Color Sensor: Detects colors. ○Gyroscope: Built into the Robot Brain for orientation and movement detection. ●Wheels and Chassis ○The chassis is made of several plastic components, including straight, angled, and curved beams, pins, gears, wedges, and axles. ○Wheels attach to the motors to enable movement. ●Connecting Cables ○Used to connect motors and sensors to the Central Control Unit. ●Battery Pack ○Requires 6 AA batteries. ○Powers the motors. -4- Revolution Robotics Challenge Kit User Manual (SA-RR-CK 2.0) Rev. 2024/08 Chapter 4: Setup and Installation Unboxing 1. Carefully unpack all items from the package. Remove plastic bags (if any) and put the parts into their trays based on the layout provided. -5- Revolution Robotics Challenge Kit User Manual (SA-RR-CK 2.0) Rev. 2024/08 2. Check all components against the included checklist to ensure everything is present. 3. Inspect components for any visible damage. Central Control Unit (Robot Brain) 1. Turn ON the Robot Brain with the side switch. The yellow circle indicates the booting process 2. When the circle is complete it’ll turn to green and the robot is ready to use -6- Revolution Robotics Challenge Kit User Manual (SA-RR-CK 2.0) Rev. 2024/08 Booting sequenceReady to use Software Installation 1.Download: Download theRevolution Robotics applicationfrom the App Store (iOS) or Google Play Store (Android). 2.Install: Follow the on-screen instructions to install the app on your mobile or tablet device. 3.Grant permissions: Open the app and grant necessary permissions, such as bluetooth, camera and storage access. -7- Revolution Robotics Challenge Kit User Manual (SA-RR-CK 2.0) Rev. 2024/08 App&KitUsage 1.Open the application:Open the application by tapping its icon. 2.Select your language: When asked, select your language via the dropdown provided. 3.LoginorRegister: Log in (Login with Code Name”), or register a new account (“I do not have a Code Name”). Complete the onboarding process as prompted by the app when registering a new account. -8- Revolution Robotics Challenge Kit User Manual (SA-RR-CK 2.0) Rev. 2024/08 4.Create a Robot using the Application: ○Go to the main screen and select Robots ○Select“Building instructions”, and pick one of the robots available. -9- Revolution Robotics Challenge Kit User Manual (SA-RR-CK 2.0) Rev. 2024/08 ○Follow the build steps, attach kit elements, and assemble the robot ○Use the configuration screen to match the app configuration with reality -10- Revolution Robotics Challenge Kit User Manual (SA-RR-CK 2.0) Rev. 2024/08 ○Ensure the Central Control Unit (Robot Brain) is powered on and LEDs are blinking green. ○From the app, connect to the robot using the chain icon. Select the brain ID when prompted(note: the ID is different for every brain) -11- Revolution Robotics Challenge Kit User Manual (SA-RR-CK 2.0) Rev. 2024/08 ○Wait for confirmation about the connection established. The chain icon on top right will also be coloured differently. 5.Program the robot:Go to the “Code” screen and add / edit / test new programs using the interface provided. -12- Revolution Robotics Challenge Kit User Manual (SA-RR-CK 2.0) Rev. 2024/08 6.Attach / remove programs & sensor values to the joystick:Attach programs to t…

Text truncated - open the document above for the full version.

STEAM Academy PRO PBC 16192 Coastal Highway Lewes Delaware United States Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-9-6 To whom it may concern: We, STEAM Academy PRO PBC, hereby certify that the equipment for which authorization is sought (FCC ID: 2BKCS-SA-RR-CK) is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist) as an entity producing “covered” equipment. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Sincerely, Signature Laszlo Bekessy Manager STEAM Academy PRO PBC 62_[model] CoveredEqu_2.911(d)(5)(i) and (ii) - U, V03

STEAM Academy PRO PBC 16192 Coastal Highway Lewes Delaware United States Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-9-6 U.S. Agent Designation STEAM Academy PRO PBC acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BKCS-SA-RR-CK): Name and company of U.S. agent: STEAM Academy PRO PBC Physical U.S. address of agent: 16192 Coastal Highway Lewes Delaware United States FRN of U.S. agent: 0035822949 Email address of U.S. agent: [email protected] STEAM Academy PRO PBC acknowledges their obligation to accept service of process on behalf of STEAM Academy PRO PBC. STEAM Academy PRO PBC with the FRN [0035822949] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Laszlo Bekessy Manager STEAM Academy PRO PBC Signature Laszlo Bekessy Manager STEAM Academy PRO PBC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2024-9-6> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2BKCS-SA-RR-CK SA-RR-CK 2.0 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Laszlo Bekessy/Manager Company: STEAM Academy PRO PBC Address: 16192 Coastal Highway Lewes Delaware United States Phone: (773) 207-3337 Fax: (302) 645-1280 E-Mail: [email protected]

STEAM Academy PRO PBC 16192 Coastal Highway Lewes Delaware United States Date: 2024-9-6 FCC ID: 2BKCS-SA-RR-CK Model Number: SA-RR-CK 2.0 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, STEAM Academy PRO PBC, declare that this EUT (FCC ID: 2BKCS-SA-RR-CK) doesn’t have Ad Hoc mode function on “non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, Name/Title： Laszlo Bekessy/Manager Company: STEAM Academy PRO PBC Address: 16192 Coastal Highway Lewes Delaware United States Phone: (773) 207-3337 Fax: (302) 645-1280 E-Mail: [email protected]

STEAM Academy PRO PBC 16192 Coastal Highway Lewes Delaware United States Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-9-6 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2BKCS-SA-RR-CK including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Laszlo Bekessy/Manager Company: STEAM Academy PRO PBC Address: 16192 Coastal Highway Lewes Delaware United States Phone: (773) 207-3337 Fax: (302) 645-1280 E-Mail: [email protected]

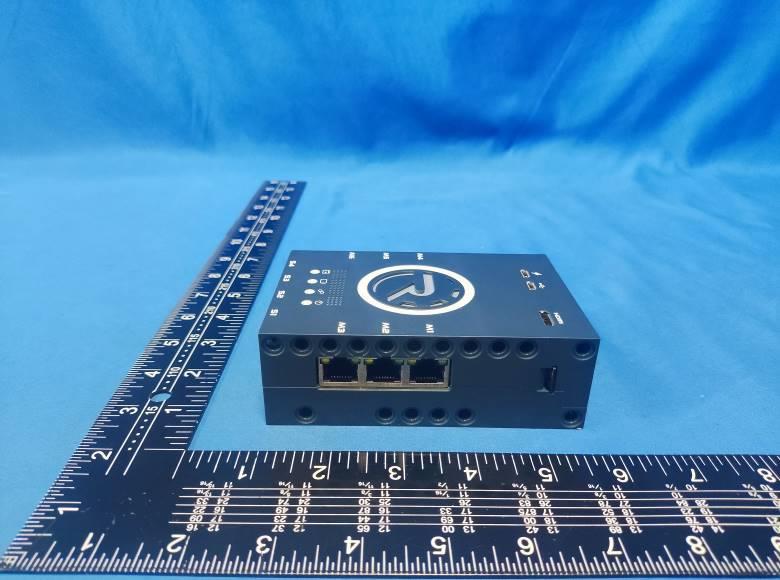

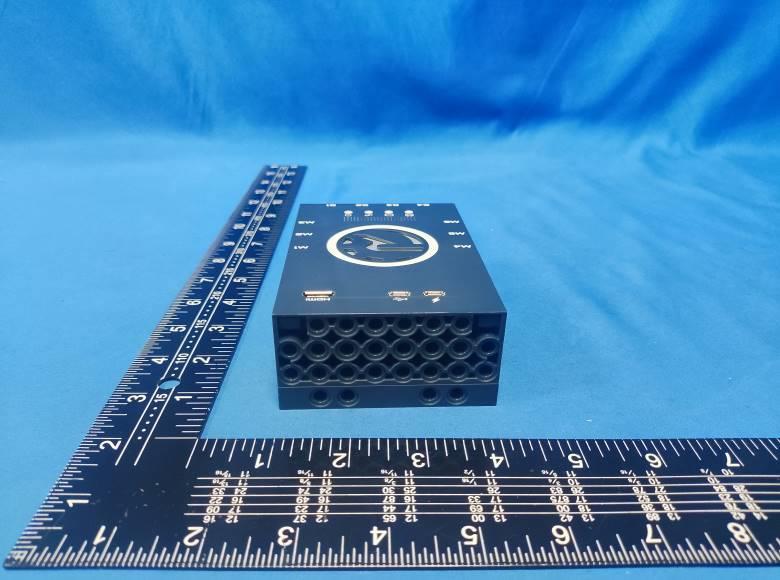

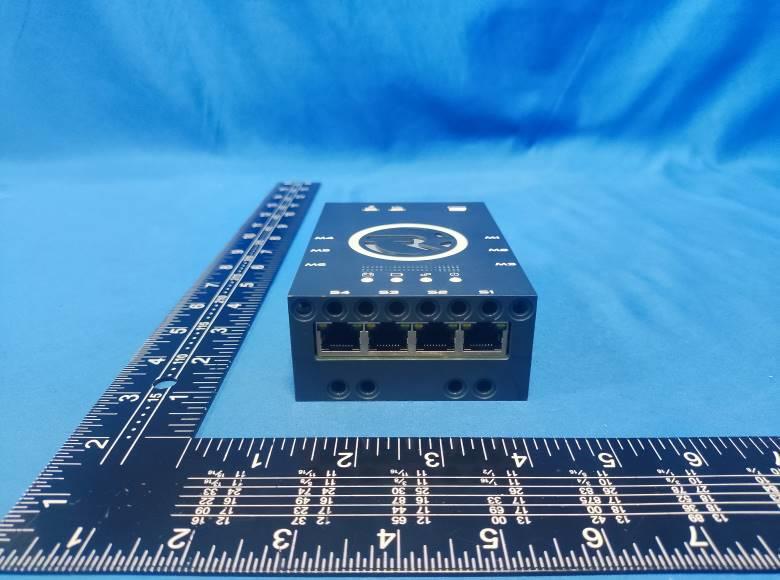

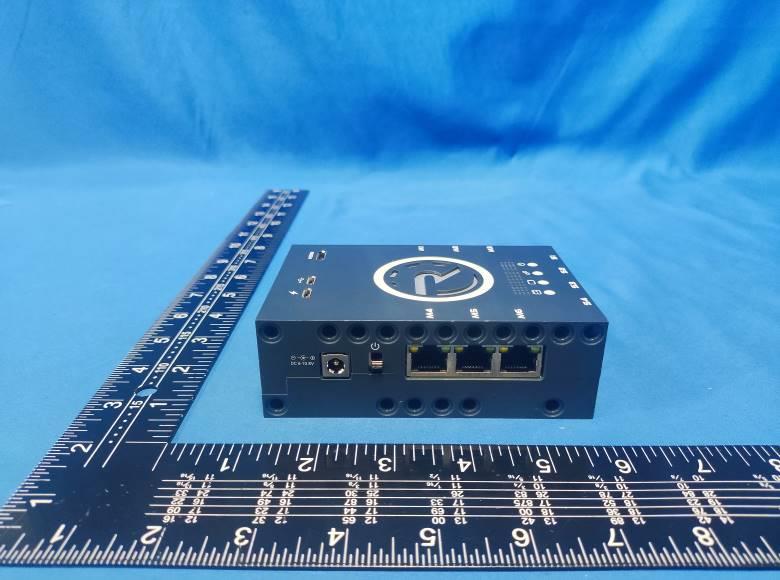

FCC ID: 2BKCS-SA-RR-CK External Photos of the EUT FCC ID: 2BKCS-SA-RR-CK FCC ID: 2BKCS-SA-RR-CK

Label and Location Size: L: 3.0cm*W: 2.0cm Label and Location FCC ID : 2BKCS-SA-RR-CK

FCC ID: 2BKCS-SA-RR-CK Internal Photos of the EUT FCC ID: 2BKCS-SA-RR-CK FCC ID: 2BKCS-SA-RR-CK FCC ID: 2BKCS-SA-RR-CK ANT FCC ID: 2BKCS-SA-RR-CK FCC ID: 2BKCS-SA-RR-CK

RF Exposure evaluation FCC ID: 2BKCS-SA-RR-CK Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Antenna Information SA-RR-CK 2.0 can only use antennas certificated as follows provided by manufacturer; Antenna No. Model No. of antenna: Type of antenna: Gain of the antenna (Max.) Frequency range: BLE / Internal antenna 0.55dBi for 2400-2500MHz; 2.4GWIFI / Internal antenna 0.55dBi for 2400-2500MHz 5. Manufacturing Tolerance BLE GFSK(Peak) Channel Channel 00 Channel 19 Channel 39 Target (dBm) -1.0 0.0 0.0 Tolerance ±(dB) 1.0 1.0 1.0 WIFI(Peak) Frequency (MHz) 11b 2412 2437 2462 Target (dBm) 14.0 15.0 13.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11g 2412 2437 2462 Target (dBm) 13.0 16.0 14.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11n(HT20) 2412 2437 2462 Target (dBm) 12.0 15.0 12.0 Tolerance ± (dB) 1.0 1.0 1.0 6. Standalone MPE Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is 0.55dBi, the RF power density can be obtained. Modulation Type Output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW BLE 1.0 1.2589 0.55 1.1350 0.0003 1.0000 2.4GWIFI 17.0 50.1187 0.55 1.1350 0.0113 1.0000 Remark: 1. Output power (Peak) including turn-up tolerance; 2. MPE evaluate distance is 20cm from user manual provide by manufacturer. 7. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. ----------------THE END OF REPORT---------------

1. Antenna Description: Antenna type Internal antenna Model SA-RR-CK 2.0 Frequency range 2400-2500MHz Manufacturer Shenzhen Sunbloom Technology Company Limited ANT Peak Gain 0.55 dBi 2. Antenna Photo: Length: 7.60mm Width: 3.59mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID. ........................................... : CTA24081301801 2BKCS-SA-RR-CK Compiled by ( position+printed name+signature) .. : File administrators Jinghua Xiao Supervised by ( position+printed name+signature) .. : Project Engineer Xudong Zhang Approved by ( position+printed name+signature) .. : RF Manager Eric Wang Date of issue ..................................... : Aug. 28, 2024 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : STEAM Academy PRO PBC Address ............................................ : 16192 Coastal Highway, Lewes, DE 19958 Test specification ...........................: Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description ................... : Revolution Robotics Challenge Kit Trade Mark ....................................... : Revolution Robotics 88129312 Manufacturer .................................... : Shenzhen Sunbloom Technology Company Limited Model/Type reference....................... : SA-RR-CK 2.0 Listed Models .................................. : N/A Modulation ....................................... : GFSK Frequency .......................................... From 2402MHz to 2480MHz Ratings ............................................. : DC 3.7V From battery 1 DC 7.2V From battery 2 DC 5.0V From external circuit Result................................................ : PASS Report No.: CTA24081301801 Page 2 of 40 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Revolution Robotics Challenge Kit Model /Type : SA-RR-CK 2.0 Listed Models : N/A Applicant : STEAM Academy PRO PBC Address : 16192 Coastal Highway, Lewes, DE 19958 Manufacturer : Shenzhen Sunbloom Technology Company Limited Address : Room 801A, 8F, A7 Building, Tianrui Industrial Park, No. 35 Fuyuanyi Rd, Baoan district, Shenzhen City, Guangdong, China 518103 Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA24081301801 Page 3 of 40 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S .................................................................. 4 2 S U M M A R Y ............................................................................. 5 2.1 General Remarks 5 2.2 Product Description* 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T ............................................................... 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ............................................ 11 4.1 AC Power Conducted Emission 11 4.2 Radiated Emissions and Band Edge 14 4.3 Maximum Peak Output Power 21 4.4 Power Spectral Density 22 4.5 6dB Bandwidth 24 4.6 Out-of-band Emissions 26 4.7 Antenna Requirement 30 5 T E S T S E T U P P H O T O S O F T H E E U T .......................................... 31 6 P H O T O S O F T H E E U T ............................................................. 32 Report No.: CTA24081301801 Page 4 of 40 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A RDS The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 V05r02: Guidance for Performing Compliance Measurements on Digital Transmission Systems (DTS) Operating Under §15.247 Report No.: CTA24081301801 Page 5 of 40 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 2 S U …
