1 1 3 4 5 2 5 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RF Exposure Information The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

DongyangXiaoqiIndustryandTradeCo.,Ltd. 3rdfloor77MaxiangRoad,Lantiancommunity,BaiyunStreet,DongyangCity,jinhua City,ZhejiangProvince,China FederalCommunicationsCommission AuthorizationandEvaluationDivision EquipmentAuthorizationBranch 7435OaklandMillsRoad Columbia,MD21046 2024-08-19 Towhomitmayconcern: We,DongyangXiaoqiIndustryandTradeCo.,Ltd.,herebycertifythattheequipmentfor whichauthorizationissought(FCCID:2BKDH-QJB-55)isnot"covered"equipmentprohibited fromreceivinganequipmentauthorizationpursuantto§2.903oftheFCCrules. Wealsocertifythat,asofthedateofthefilingoftheapplication,wearenotidentifiedontheCovered List(https://www.fcc.gov/supplychain/coveredlist)asanentityproducing"covered"equipment. Bysigningthisform,weconfirmtheaboveandthatweareawareoftheapplicationrequirementslisted under§2.911(b)and(d)(5)and(6). TheinformationprovidedinthisletterisbasedonthereferencedrulepartsofTitle47oftheCFRas wellasKDB986446D01. Sincerely, Signature AmbertGao DongyangXiaoqiIndustryandTradeCo.,Ltd.

DongyangXiaoqiIndustryandTradeCo.,Ltd. 3rdfloor77MaxiangRoad,Lantiancommunity,BaiyunStreet,DongyangCity,jinhua City,ZhejiangProvince,China FederalCommunicationsCommission AuthorizationandEvaluationDivision EquipmentAuthorizationBranch 7435OaklandMillsRoad Columbia,MD21046 2024/08/19 U.S.AgentDesignation DongyangXiaoqiIndustryandTradeCo.,Ltd.acknowledgestheirconsentforthefollowingcontactlocatedin theUnitedStatestoactastheiragentforserviceofprocessfortheequipmentforwhichauthorizationissought (FCCID:2BKDH-QJB-55): NameandcompanyofU.S.agent:MoloImportExportLLC PhysicalU.S.addressofagent:2334CrystalMileCT,TomsRiver,NJ,08755,USA FRNofU.S.agent: 0033490996 EmailaddressofU.S.agent:[email protected] MoloImportExportLLCacknowledgestheirobligationtoacceptserviceofprocessonbehalfofDongyang XiaoqiIndustryandTradeCo.,Ltd. DongyangXiaoqiIndustryandTradeCo.,Ltd.withtheFRN[0035823731]acceptsitsobligationtomaintainan agentforserviceofprocessintheUnitedStatesfornolessthanoneyearaftereitherthegranteehas permanentlyterminatedallmarketingandimportationoftheapplicableequipmentwithintheU.S.,orthe conclusionofanyCommission-relatedadministrativeorjudicialproceedinginvolvingtheequipment,whicheveris later. Bysigningthisform,weconfirmtheaboveandthatweareawareoftheapplicationrequirementslistedunder§ 2.911(d)(7). TheinformationprovidedinthisletterisbasedonthereferencedrulepartsofTitle47oftheCFRaswellasKDB 986446D01. Anexpirationdateforthisletterdoesnotexist.IncasetheU.S.agentchanges,thegranteeisobligatedtonotify theFCCwithin30daysviathegrantingTCB. Sincerely, Signature AmbertGao Manager DongyangXiaoqiIndustryandTradeCo.,Ltd. Signature SamuelWeiss Manager MoloImportExportLLC 4 8 _ [ m o d e l ] U S _ A g e n t _ 2 . 9 1 1 ( d ) ( 7 ) - U , V 0 5

DongyangXiaoqiIndustryandTradeCo.,Ltd. Add:3rdfloor77MaxiangRoad,Lantiancommunity,BaiyunStreet,Dongyang City,jinhuaCity,ZhejiangProvince,China Date:2024-08-19 FCCID:2BKDH-QJB-55 DearSir/Madam, We,DongyangXiaoqiIndustryandTradeCo.,Ltd.Herebydeclaresthefollowing statementforFederalCommunicationsCommission,PCBboard,circuit,structureand internalofthesemodel(s)arethesame,Onlymodelnumberisdifferentforthesemodel: Productname:BoxingTarget Modelno:QJB-55,QJB-99,QJB-88,QJB-77,QJB-66,QJB-33,QJB-22,QJB-20,QJB-30,QJB- 50,QJB-60,QJB-70,QJB-80,QJB-90,QJB-11,QJB-10 Sincerely, Name/Title: Company Address: Phone: Fax: E-Mail: AmbertGao/Manager DongyangXiaoqiIndustryandTradeCo.,Ltd. 3rdfloor77MaxiangRoad,Lantiancommunity,BaiyunStreet,DongyangCity, jinhuaCity,ZhejiangProvince,China 18589044591 N/A [email protected]

CONFIDENTIALITYREQUEST forCertificationServiceinUSA FederalCommunicationCommission EquipmentAuthorizationDivision,ApplicationProcessingBranch 7435OaklandMillsRoad Columbia,MD21046 Date:<2024-08-19> PursuanttoParagraphs$0.457and0.459oftheCommission'sRules(47C.F.R.)and Section§552(b)(4)oftheFreedomofInformationAct,werequestsconfidentialityfor thefollowingproducts: FCCID Modelname 2BKDH-QJB-55QJB-55 Fortheproductstatedabove,werequestthatthefollowinginformationbeheld confidential; Thelong-termconfidentialityexhibitscontainourtradesecretsandproprietary informationthatcouldbeofbenefittoourcompetitors. Theshort-termconfidentialityonthebasisofensuringthatbusinesssensitive informationremainsconfidentialuntiltheactualmarketingofournewdevice. Ifyouhaveanyquestions,pleasefeelfreetocontactmeattheaddressshownbelow. Sincerely Name/Title: AmbertGao/Manager Company:DongyangXiaoqiIndustryandTradeCo.,Ltd. Address:3rdfloor77MaxiangRoad,Lantiancommunity,BaiyunStreet, DongyangCity,jinhuaCity,ZhejiangProvince,China Phone:18589044591 Fax: N/A E-Mail:[email protected]

DongyangXiaoqiIndustryandTradeCo.,Ltd. 3rdfloor77MaxiangRoad,Lantiancommunity,BaiyunStreet,DongyangCity,jinhua City,ZhejiangProvince,China FederalCommunicationsCommission AuthorizationandEvaluationDivision EquipmentAuthorizationBranch 7435OaklandMillsRoad Columbia,MD21046 2024-08-19 Towhomitmayconcen: We,theundersigned,herebyauthorizeEurofinsProductServiceGmbHtoactonourbehalfinallmatters relatingtoapplicationsforequipmentauthorizationFCCID:2BKDH-QJB-55includingthesigningof all documentsrelatedtothesematters. AnyandallactscarriedoutbyEurofinsProductServiceGmbHonourbehalfshallhavethesameeffect asactsofourown. Bysigningthisapplicationform,weagreetoEurofins'currentvalidGeneralTermsandConditions (AGB),TestingandCertificationRegulations(PZO)whichcanbeviewedonfollowingwebsite www.eurofins.de/eeorretrievedonrequest. Wealsoherebycertifythatnopartytothisapplicationissubjecttoadenialofbenefits,includingFCC benefits,pursuanttoSection5301oftheAnti-DrugAbuseActof1988,21U.S.C.862. Sincerely Name/Title Company: Address: Phone: Fax: E-Mail: AmbertGao/Manager DongyangXiaoqiIndustryandTradeCo.,Ltd. 3rdfloor77MaxiangRoad,Lantiancommunity,BaiyunStreet,DongyangCity, jinhuaCity,ZhejiangProvince,China 18589044591 NA [email protected]

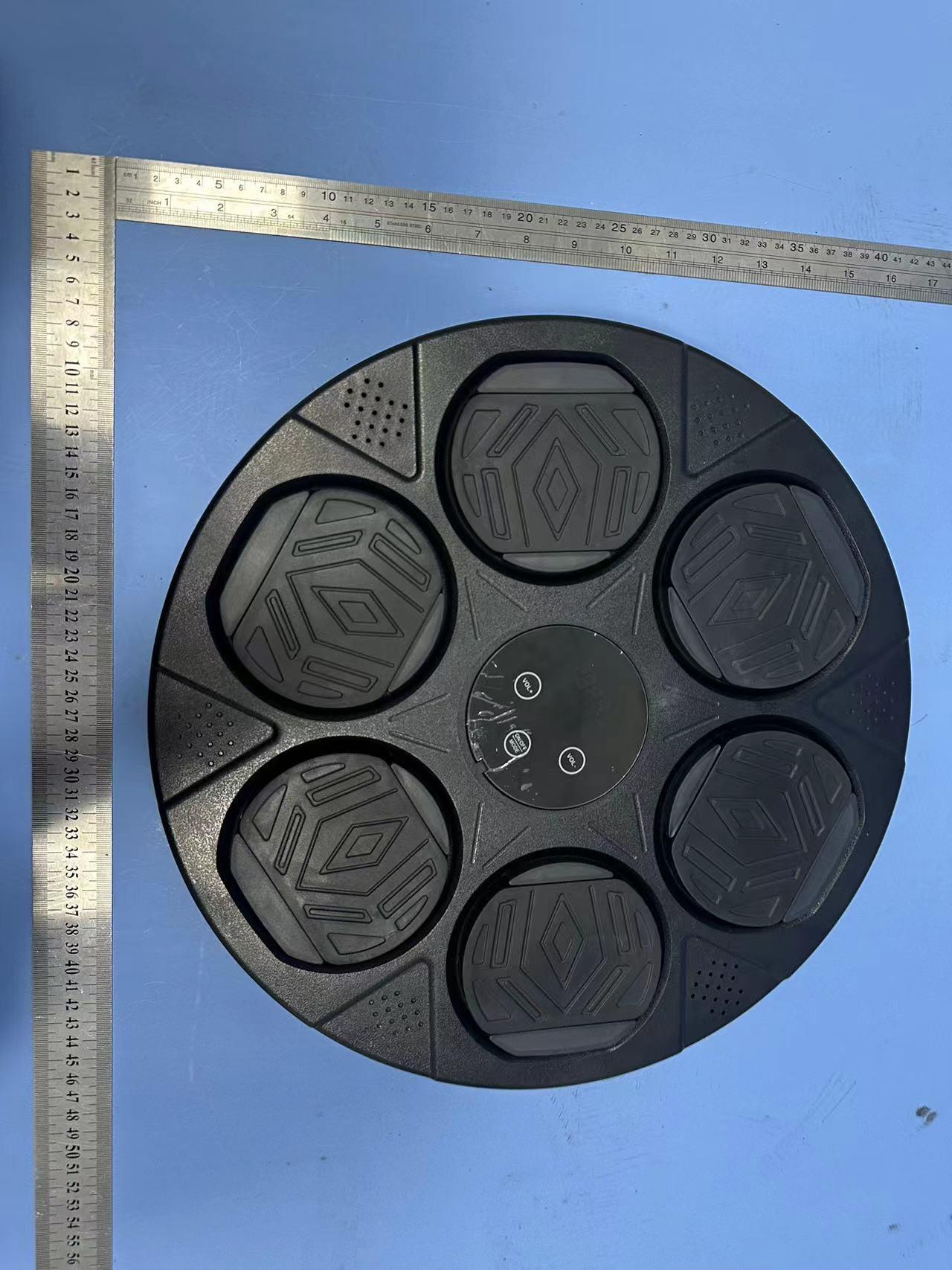

Page: 1 of 3 PHOTOGRAPHSOFEUT FCCID:2BKDH-QJB-55 Page: 2 of 3 Page: 3 of 3

BoxingTarget FCCID ： 2BKDH-QJB-55

Page: 1 of 3 PHOTOGRAPHSOFEUT FCCID:2BKDH-QJB-55 Page: 2 of 3 Page: 3 of 3

DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] RFExposureEvaluationReport ApplicationNo.: DNT2408140155R0976-01118 Applicant: DongyangXiaoqiIndustryandTradeCo.,Ltd. AddressofApplicant: 3rdfloor77MaxiangRoad,Lantiancommunity,BaiyunStreet,Dongyang City,jinhuaCity,ZhejiangProvince,China EUTDescription: BoxingTarget ModelNo.: QJB-55,QJB-99,QJB-88,QJB-77,QJB-66,QJB-33,QJB-22,QJB-20, QJB-30,QJB-50,QJB-60,QJB-70,QJB-80,QJB-90,QJB-11,QJB-10 FCCID: 2BKDH-QJB-55 Powersupply DC3.7VFromBattery ChargingVoltage: DC5V Standards: 47CFRPart2.1093 FCCKDB447498D04v01 TradeMark: / DateofReceipt: 2024/8/13 DateofTest: 2024/8/14to2024/8/16 DateofIssue: 2024/8/17 TestResult:PASS PreparedBy:(TestingEngineer) ReviewedBy:(ProjectEngineer) ApprovedBy:(Manager) Note:Ifthereisanyobjectiontotheresultsinthisreport,pleasesubmitawritteninquirytothecompanywithin15daysfromthedateof receivingthereport.Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,andisissuedbythecompanyinaccordance withtherequirementsofthe"ConditionsofIssuanceofTestReports"printedintheattachedpage.Unlessotherwisestated,theresults presentedinthisreportonlyapplytothesamplestestedthistime.Partialreproductionofthisreportisnotallowedunlessapprovedbythe companyinwriting. ReportNo.:DNT2408140155R0976-01118Date：August17,2024Page： 2 / 7 DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] ReportReviseRecord ReportVersionReviseTimeIssuedDateValidVersionNotes V2.0/Aug.17,2024ValidOriginalReport ReportNo.:DNT2408140155R0976-01118Date：August17,2024Page： 3 / 7 DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] Contents RFEXPOSUREEVALUATIONREPORT.............................................................................................................................................1 1GENERALINFORMATION..................................................................................................................................................................4 1.1TESTLOCATION.................................................................................................................................................................................4 1.2GENERALDESCRIPTIONOFEUT.....................................................................................................................................................4 2RFEXPOSUREEVALUATION............................................................................................................................................................5 2.1RFEXPOSURECOMPLIANCEREQUIREMENT..................................................................................................................................5 ReportNo.:DNT2408140155R0976-01118Date：August17,2024Page： 4 / 7 DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] 1GeneralInformation 1.1TestLocation Company:DongguanDNTestingCo.,Ltd Address: No.1,WestFourthStreet,SouthXinfaRoad,WushaLiwu,Chang＇anTown, DongguanCity,GuangdongP.R.China Testengineer:WayneLin 1.2GeneralDescriptionofEUT Manufacturer: DongyangXiaoqiIndustryandTradeCo.,Ltd. AddressofManufacturer: 3rdfloor77MaxiangRoad,Lantiancommunity,BaiyunStreet,DongyangCity, jinhuaCity,ZhejiangProvince,China EUTDescription: BoxingTarget TestModelNo.:QJB-55 AdditionalModel(s): QJB-99,QJB-88,QJB-77,QJB-66,QJB-33,QJB-22,QJB-20,QJB-30,QJB-50, QJB-60,QJB-70,QJB-80,QJB-90,QJB-11,QJB-10 ChipType: AC6969D Serialnumber: PR2408140155R0976 PowerSupply: DC3.7VFromBattery ChargingVoltage: DC5V TradeMark:/ HardwareVersion:V1.0 SoftwareVersion:V1.0 SampleType: PortableDevice,Module,MobileDevice AntennaType:External,Integrated AntennaGain: Providedbyapplicant 1.9dBi Remark: *Sincetheabovedataand/orinformationisprovidedbytheapplicantrelevantresultsorconclusionsofthisreportare onlymadeforthesedataand/orinformation,DNTisnotresponsiblefortheauthenticity,integrityandresultsofthe dataandinformationand/orthevalidityoftheconclusion. ReportNo.:DNT2408140155R0976-01118Date：August17,2024Page： 5 / 7 DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] 2RFExposureEvaluation 2.1RFExposureComplianceRequirement 2.1.1Limits HumanexposuretoRFemissionsfromportabledevices(47CFR§2.1093),asdefinedbytheFCC,mustbe evaluatedwithrespecttotheFCC-adoptedlimitsforSAR.Evaluationofmobiledevices,asdefinedbytheFCC,may alsobeperformedwithrespecttoSARlimits,butinsuchcasesitisusuallysimplerandmorecost-effectiveto evaluatecompliancewithrespecttofieldstrengthorpowerdensitylimits.Forcertaindevicesthataredesignedtobe usedinbothmobileandportableconfigurationssimilartothosedescribedin47CFR§2.1091(d)(4),suchascertain desktopphonesandwirelessmodemmodules,complianceformobileconfigurationsisalsosatisfiedwhenthesame deviceisevaluatedforSARcomplianceinportableconfigurations. Referto47CFR§2.1093: Aportabledeviceisdefinedasatransmittingdevicedesignedtobeusedinotherthanfixedlocationsandto generallybeusedinsuchawaythattheRFsource'sradiatingstructure(s)is/arewithin20centimetersofthebody oftheuser. Evaluationofcompliancewiththeexposurelimitsin§1.1310ofthischapter,andpreparationofanEAifthelimits areexceeded,isnecessaryforportabledeviceshavingsingleRFsourceswithmorethananavailablemaximum time-averagedpowerof1mW,morethantheERPlistedinTable1to§1.1307(b)(3)(i)(C),ormorethanthePthin thefollowingformula,whicheverisgreater.Thefollowingfor…

Text truncated - open the document above for the full version.

Product specification Quick Reference Date Antenna module on the system board Frequenc Range 2400 ~ 2500MHz Ant. Port Input Pwr. (dBm) 0 (Typ. BT class 2 output power) Tot. Rad. Pwr. (dBm) -1.2 (Input pwr – loss pwr) Peak EIRP(dBm) 1.9 Directivity (dBi) 1 (all direction antenna) Efficiency (dB) 6 0.2 % Gain (dBi) 1.2 (Avg Gain XY-plane) Maximum Power (dBm) 1.7 (XY-plane) Minimum Power (dBm) -4(XY-plane) Avg. Power (dBm) -0.5(XY-plane) Input Impendence(ohm) 50 Polarization Type V ertical & Horizontal V . S .W . R < 1.4 All the technical data and information contained herein are subject to change without prior notice Antenna Layout & module on the system board Antenna Gain Gain Table Unit in dBi @2.44GHz XY-plane XZ-plane YZ-plane Efficiency Peak Avg. Peak Avg. Peak Avg. Module Board 1.2 -0.5 1.9 -3.6 1.1 -3.0 6 0.2 % Retum Loss The Environment of Antenna Radiation Pattem 3D radiation pattern diagram XY-plane XZ-plane YZ-plane

DongguanDN TestingCo., Ltd. Add:No. 1, WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'an Town,DongguanCity, GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] FCC Test Report ApplicationNo.: DNT2408140155R0976-01119 Applicant: DongyangXiaoqiIndustryand TradeCo., Ltd. Addressof Applicant: 3rd floor 77 MaxiangRoad,Lantiancommunity,BaiyunStreet,Dongyang City, jinhuaCity, ZhejiangProvince,China EUT Description: BoxingTarget ModelNo.: QJB-55, QJB-99, QJB-88, QJB-77, QJB-66, QJB-33, QJB-22, QJB-20, QJB-30, QJB-50, QJB-60, QJB-70, QJB-80, QJB-90, QJB-11, QJB-10 FCC ID: 2BKDH-QJB-55 PowerSupply: DC 3.7VFromBattery ChargingVoltage: DC 5V TradeMark: / Standards: 47 CFRFCCPart 2, SubpartJ 47 CFRPart 15, SubpartC ANSIC63.10:2020 Dateof Receipt: 202 4/8/13 Dateof Test: 202 4/8/14 to 202 4/8/16 Dateof Issue: 2024/8/17 Test Result:PASS PreparedBy:(TestingEngineer) ReviewedBy:(ProjectEngineer) ApprovedBy:(Manager) Note:If thereis any objectionto the resultsin this report,pleasesubmita writteninquiryto the companywithin15 daysfrom the date of receivingthe report.The test reportis effectiveonly with both signatureand specializedstamp,and is issuedby the companyin accordance with the requirementsof the "Conditionsof Issuanceof Test Reports"printedin the attachedpage.Unlessotherwisestated,the results presentedin this reportonly applyto the samplestestedthis time.Partialreproductionof this reportis not allowedunlessapprovedby the companyin writing. ReportNo.: DNT2408140155R0976-01119Date：August17, 2024Page： 2 / 65 DongguanDN TestingCo., Ltd. Add:No. 1, WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'an Town,DongguanCity, GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] ReportReviseRecord ReportVersionReviseTimeIssuedDateValidVersionNotes V1.0/ Aug .17 , 202 4 ValidOriginalReport ReportNo.: DNT2408140155R0976-01119Date：August17, 2024Page： 3 / 65 DongguanDN TestingCo., Ltd. Add:No. 1, WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'an Town,DongguanCity, GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] 1 TestSummary Test ItemTest RequirementTest MethodTest ResultResult AntennaRequirement 15.203/247(b) --Clause3.1PASS 20dBEmissionBandwidth 15.247(a)(1) ANSIC63.10:2020Clause3.2PASS ConductedPeakOutput Power 15.247(b)(1) ANSIC63.10:2020Clause3.3PASS CarrierFrequencies Separation 15.247(a)(1) ANSIC63.10:2020Clause3.4PASS DwellTime 15.247(a)(1) ANSIC63.10:2020Clause3.5PASS HoppingChannelNumber 15.247(a)(1) ANSIC63.10:2020Clause3.6PASS Band-edgefor RF ConductedEmissions 15.247(d) ANSIC63.10:2020Clause3.7PASS RF ConductedSpurious Emissions 15.247(d) ANSIC63.10:2020Clause3.8PASS RadiatedSpurious emissions 15.247(d); 15.205/15.209 ANSIC63.10:2020Clause3.9PASS Restrictedbandsaround fundamentalfrequency(Radiated Emission) 15.247(d); 15.205/15.209 ANSIC63.10:2020Clause3.10PASS AC PowerLine Conducted Emission 15.207 ANSIC63.10:2020Clause3.1 1N/A Note: 1. “N/A ” denotestest is not applicablein this test report . ReportNo.: DNT2408140155R0976-01119Date：August17, 2024Page： 4 / 65 DongguanDN TestingCo., Ltd. Add:No. 1, WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'an Town,DongguanCity, GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] Contents 1 Test Summary.............................................................................................................................................................3 2 GeneralInformation.....................................................................................................................................................5 2.1Test Location................................................................................................................................................5 2.2GeneralDescriptionof EUT .........................................................................................................................6 2.3ChannelList .................................................................................................................................................7 2.4Test Environmentand Mode........................................................................................................................8 2.5PowerSettingof Test Software....................................................................................................................9 2.6Descriptionof SupportUnits........................................................................................................................9 2.7Test Facility..................................................................................................................................................9 2.8MeasurementUncertainty(95%confidencelevels,k= 2) ..........................................................................10 2.9EquipmentList ............................................................................................................................................11 2.10Assistantequipmentusedfor test ..............................................................................................................12 3 Test resultsand MeasurementData .........................................................................................................................13 3.1AntennaRequirement................................................................................................................................13 3.220dBEmissionBandwidth.........................................................................................................................14 3.3ConductedOutputPower...........................................................................................................................15 3.4CarrierFrequenciesSeparationy...............................................................................................................16 3.5DwellTim e............…

Text truncated - open the document above for the full version.

ReportNo.: DNT2408140155R0976-01119Date：August17, 2024Page： 46 / 65 DongguanDN TestingCo., Ltd. Add:No. 1, WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'an Town,DongguanCity, GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] TestGraphs DH1_Ant1_Hop DH3_Ant1_Hop DH5_Ant1_Hop ReportNo.: DNT2408140155R0976-01119Date：August17, 2024Page： 47 / 65 DongguanDN TestingCo., Ltd. Add:No. 1, WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'an Town,DongguanCity, GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] 2DH1_Ant1_Hop 2DH3_Ant1_Hop 2DH5_Ant1_Hop ReportNo.: DNT2408140155R0976-01119Date：August17, 2024Page： 48 / 65 DongguanDN TestingCo., Ltd. Add:No. 1, WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'an Town,DongguanCity, GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] 3DH1_Ant1_Hop 3DH3_Ant1_Hop 3DH5_Ant1_Hop ReportNo.: DNT2408140155R0976-01119Date：August17, 2024Page： 49 / 65 DongguanDN TestingCo., Ltd. Add:No. 1, WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'an Town,DongguanCity, GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] AppendixF: Numberof hoppingchannels TestResult TestModeAntennaFreq(MHz)Result[Num]Limit[Num]Verdict DH5Ant1Hop79≥15PASS 2DH5Ant1Hop79≥15PASS 3DH5Ant1Hop79≥15PASS ReportNo.: DNT2408140155R0976-01119Date：August17, 2024Page： 50 / 65 DongguanDN TestingCo., Ltd. Add:No. 1, WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'an Town,DongguanCity, GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] TestGraphs DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop ReportNo.: DNT2408140155R0976-01119Date：August17, 2024Page： 51 / 65 DongguanDN TestingCo., Ltd. Add:No. 1, WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'an Town,DongguanCity, GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] AppendixF: Bandedgemeasurements TestResult Test ModeAntennaCh NameFreq(MHz) Ref Level [dBm] Result [dBm] Limit [dBm] Verdict DH5Ant1 Low2402-8.92-51.78≤-28.92PASS High2480-7.88-38.19≤-27.88PASS LowHop_2402-9.23-52.23≤-29.23PASS HighHop_2480-8.67-40.42≤-28.67PASS 2DH5Ant1 Low2402-8.98-51.78≤-28.98PASS High2480-8.71-32.31≤-28.71PASS LowHop_2402-15.10-52.26≤-35.1PASS HighHop_2480-11.34-35.77≤-31.34PASS 3DH5Ant1 Low2402-8.20-51.54≤-28.2PASS High2480-8.34-29.62≤-28.34PASS LowHop_2402-11.06-52.13≤-31.06PASS HighHop_2480-10.01-40.99≤-30.01PASS . ReportNo.: DNT2408140155R0976-01119Date：August17, 2024Page： 52 / 65 DongguanDN TestingCo., Ltd. Add:No. 1, WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'an Town,DongguanCity, GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] TestGraphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 ReportNo.: DNT2408140155R0976-01119Date：August17, 2024Page： 53 / 65 DongguanDN TestingCo., Ltd. Add:No. 1, WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'an Town,DongguanCity, GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] DH5_Ant1_High_Hop_2480 2DH5_Ant1_Low_2402 2DH5_Ant1_High_2480 ReportNo.: DNT2408140155R0976-01119Date：August17, 2024Page： 54 / 65 DongguanDN TestingCo., Ltd. Add:No. 1, WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'an Town,DongguanCity, GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] 2DH5_Ant1_Low_Hop_2402 2DH5_Ant1_High_Hop_2480 3DH5_Ant1_Low_2402 ReportNo.: DNT2408140155R0976-01119Date：August17, 2024Page： 55 / 65 DongguanDN TestingCo., Ltd. Add:No. 1, WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'an Town,DongguanCity, GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] 3DH5_Ant1_High_2480 3DH5_Ant1_Low_Hop_2402 3DH5_Ant1_High_Hop_2480 ReportNo.: DNT2408140155R0976-01119Date：August17, 2024Page： 56 / 65 DongguanDN TestingCo., Ltd. Add:No. 1, WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'an Town,DongguanCity, GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] AppendixF: ConductedSpuriousEmission TestResult Test ModeAntennaFreq(MHz) FreqRange [MHz] Ref Level [dBm] Result [dBm] Limit [dBm] Verdict DH5Ant1 2402 Reference-6.94-6.94---PASS 30~1000-6.94-56.98≤-26.94PASS 1000~26500-6.94-45.48≤-26.94PASS 2441 Reference-6.84-6.84---PASS 30~1000-6.84-56.85≤-26.84PASS 1000~26500-6.84-42.67≤-26.84PASS 2480 Reference-6.92-6.92---PASS 30~1000-6.92-57.61≤-26.92PASS 1000~26500-6.92-42.26≤-26.92PASS 2DH5Ant1 2402 Reference-6.31-6.31---PASS 30~1000-6.31-57.8≤-26.31PASS 1000~26500-6.31-44.3≤-26.31PASS 2441 Reference-6.77-6.77---PASS 30~1000-6.77-57.55≤-26.77PASS 1000~26500-6.77-43.99≤-26.77PASS 2480 Reference-6.86-6.86---PASS 30~1000-6.86-57.37≤-26.86PASS 1000~26500-6.86-45.7≤-26.86PASS 3DH5Ant1 2402 Reference-6.48-6.48---PASS 30~1000-6.48-57.19≤-26.48PASS 1000~26500-6.48-43.29≤-26.48PASS 2441 Reference-6.84-6.84---PASS 30~1000-6.84-56.29≤-26.84PASS 1000~26500-6.84-47.37≤-26.84PASS 2480 Reference-7.05-7.05---PASS 30~1000-7.05-58.19≤-27.05PASS 1000~26500-7.05-44.65≤-27.05PASS ReportNo.: DNT2408140155R0976-01119Date：August17, 2024Page： 57 / 65 DongguanDN TestingCo., Ltd. Add:No. 1, WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'an Town,DongguanCity, GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] TestGraphs DH5_Ant1_2402_0~Reference DH5_Ant1_2402_30~1000 DH5_Ant1_2402_1000~26500 ReportNo.: DNT2408140155R0976-01119Date：August17, 2024Page： 58 / 65 DongguanDN TestingCo., Ltd. Add:No. 1, WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'an Town,DongguanCity, GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] DH5_Ant1_2441_0~Reference DH5_Ant1_2441_30~1000 DH5_Ant1_2441_1000~26500 ReportNo.: DNT2408140155R0976-01119Date：August17, 2024Page： 59 / 65 DongguanDN TestingCo., Ltd. Add:No. 1,…

Text truncated - open the document above for the full version.

Page: 1 of 2 TestSetupOfEUT FCCID:2BKDH-QJB-55 RadiatedEmissionTestView|(Below1G) Page: 2 of 2 RadiatedEmissionTestView|(Above1G)
