U8K-ULTRA English User Guide www.minix.com.hk 8K UHD AI Media Hub Powered by Android Processor GPU NPU Memory Internal Storage Wireless Connectivity Operating System Video Output Audio Output AI Picture Processing Peripheral Interface Rated Power Input big.LITTLE ARM Cortex A76 + Quad-Core Cortex A55 Processor (64-bit) ARM G57 MC2 Support INT8 Inference for Deep Learning (Tensor Flow, Caffe, etc.) 8GB LPDDR4X 128GB eMMC 5.1 802.11ax 2x2 MIMO Dual-Band Wi-Fi 6 (2.4GHz/5GHz), BT 5.2 Android AOSP 11, upgradeable via OTA HDMI ® 2.1 (8K@60Hz, 4K@120Hz), support HDMI-CEC/DV/ HDR10+/HDR10/HLG HDMI ® 2.1, Optical S/PDIF, 3.5mm audio jack AI Picture Quality Enhancer (AI-PQ), AI Resolution Upscaler (AI-SR) DC12V/2.5A (30W USB-C PD adapter included) RJ-45 Gigabit Ethernet, Micro SD card reader, USB 3.0 port, USB 2.0 port, 3.5mm audio jack, IR receiver MINIX U8K-ULTRA BLE AIR MOUSE (MINIX A3 PRO) PD30W Power Adapter 8K HDMI Cable USB-A to USB-A OTG Cable MINIX U8K-ULTRA is the next generation of AI media hub powered by Amlogic S928X-K processor. With the dedicated hardware video decoder, U8K-ULTRA is designed to decode multiple video formats, including but not limited to: AV1, VP9, H.265-10, AVS3 and AVS2. The 8th Generation Advanced Amlogic TruLife Image Engine supports Dolby Vision, HDR10+, HDR, HLG and HDR Vivid processing, independent HDR re-mapping of video and graphic layer, motion compensated noise reduction and motion adaptive deinterlacer. The all new, dedicated hardware NPU allows the implementation of Neural Network, which enables AI-based picture quality enhancer (AI-PQ) and AI-based resolution upscaling (AI-SR) function. AI-PQ offers real-time scene detection based on picture contents, picture time and space characteristics; whereas AI-SR offers real-time picture detail upscaling of 2X (1080 content), 3X (720 content) and 4X (480 content), providing a much better upscaling picture quality than traditional non-AI based media players. For more information visit: www.minix.com.hk Join the MINIX Forum at: www.theminixforum.com Contact our support team at: [email protected] IR Receiver - Compatible with A3 PRO remote and Logitech Harmony. Power LED - The LED glows BLUE when U8K-ULTRA is turned on, RED when suspended. Power Button - To power on the U8K-ULTRA, press the power button once, the power LED’s color will switched from red to blue. To power off the U8K-ULTRA, press and hold the power button until the display shows the power menu options, select OK to confirm your choice. The device can also be turned off using the bundled remote controller. USB 3.0 / OTG Port - The USB 3.0 port is for connecting to an external high-speed USB device, such as USB flash drive and SSD. This port also serves as an OTG port, the OTG port function can be enabled inside of the settings manual. USB 2.0 Port - The USB 2.0 port is for connecting to other USB peripherals such as USB camera, wireless keyboard and mouse set, etc. Micro-SD Card Reader - Increase the storage capacity or read files directly from a micro-SD card slot, supports up to 1TB capacity. 3.5mm Audio Jack - Connect external audio output device. USB-C Power-in Jack - Connect to the included USB-C PD power adapter. HDMI Port - Connect the U8K-ULTRA via HDMI to a TV or monitor using the included HDMI cable. Gigabit Ethernet Port - Connect an Ethernet cable for wired Internet access up to 1000Mbps. S/PDIF Out Port - Connect to an external sound processing unit, such as a sound bar or amplifier. 3.5mm Audio Jack - Connect to an external audio device, such as speakers or earphones. Power: Power ON/OFF, entering sleep mode, waking up from sleep mode Settings: Call out the settings menu of U8K-ULTRA Tasks: Call out the current running tasks and switch between them, swiping upwards shall close the selected task Menu: Call out the options menu from your current app or page Home: Return to the launcher home screen You may control the U8K-ULTRA via one of the following input methods: 1. USB Wired/Wireless Mouse 2. HDMI-CEC using TV remote 3. MINIX A3 PRO BLE Air Mouse (optional) Directional Pad: Move up, down, left and right OK: Confirm a particular action, as an 'Enter' key (when using directional pad), or as mouse left-click (when using air-mouse) Back: Return to the previous screen or cancel current action Microphone: Press and hold this button to speak Airmouse: Trigger the cursor on/off of the airmouse function Volume Down: Turn the system volume down All Apps: Open the all-apps drawer Volume Up: Turn the system volume up Rewind: Rewind current playing video or music Play/Pause: Play or pause the current playing video or music Fast Forward: Fast forward current playing video or music Step 1: Connect to an HDMI Cable Connect one end of the HDMI cable to the HDMI input of your TV or monitor, and the other end to the HDMI output of U8K-ULTRA. Step 2: Connect the Power Connect the supplied USB-C PD power adapter to the USB-C power input port. Press and hold the power button for around 1 second to turn on the device, the blue power LED should then glow. Step 3: Turn on your TV or monitor Turn on your TV or monitor and set to the corresponding input connected with the U8K-ULTRA. Step 4: Language Setup You may choose the desired system language by following these steps: Launcher Home Screen > Settings > Device Preferences > Language The default language is English (United States). Step 5: Time Zone Setup You can adjust the time zone according to your current location by following these steps: Launcher Home Screen > Settings > Device Preferences > Date & Time > Set time zone Step 6: WI-Fi Setup Follow these steps to connect to your wireless network: Launcher Home Screen > Settings > Network & Internet > Available networks Select the Wi-Fi network that you wish to connect and enter the password when prompted. Copyright© 2024 MINIX Group Company Limited. All rights reserved. No part of this guide, including the products and software described in it, may be …

Text truncated - open the document above for the full version.

Minix Group Company Limited Unit 1501, Chevalier Commercial Center, No.8 Wang Hoi Road, Kowloon Bay,Hong Kong.China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-9-30 To whom it may concern: We, Minix Group Company Limited, hereby certify that the equipment for which authorization is sought (FCC ID: 2BKGH-U8K) is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist) as an entity producing “covered” equipment. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Sincerely, Signature Ken Wong COO Minix Group Company Limited 62_[model] CoveredEqu_2.911(d)(5)(i) and (ii) - U, V03

Minix Group Company Limited Unit 1501, Chevalier Commercial Center, No.8 Wang Hoi Road, Kowloon Bay, Hong Kong. China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024/09/27 U.S. Agent Designation Minix Group Company Limited acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BKGH-U8K): Name and company of U.S. agent: GSS SERVICE INC Physical U.S. address of agent: 6547 N Academy Blvd #2266 Colorado Springs COLORADO 80918 United States FRN of U.S. agent: 0033402082 Email address of U.S. agent: [email protected] GSS SERVICE INC acknowledges their obligation to accept service of process on behalf of Minix Group Company Limited Minix Group Company Limited with the FRN [0035828524] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Ken Wong Manager Minix Group Company Limited Signature Michoux Logan PM GSS SERVICE INC 48_[ mo del] US_Agent_2.911(d)(7) - U, V0 5

Minix Group Company Limited Add: Unit 1501, Chevalier Commercial Center, No.8 Wang Hoi Road, Kowloon Bay,Hong Kong.China Date: 2024-9-30 FCC ID: 2BKGH-U8K Dear Sir/Madam, We, Minix Group Company Limited Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: Android Box Model no.: U8K-ULTRA, U8K-XXXXX (x can be 0-9, A-Z, a-z, blank for marketing purpose) Sincerely, Name/Title： Ken Wong/COO Company: Minix Group Company Limited Address: Unit 1501, Chevalier Commercial Center, No.8 Wang Hoi Road, Kowloon Bay,Hong Kong.China Phone: +852-63700750 Fax: N/A E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2024-9-30> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2BKGH-U8K U8K-ULTRA For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Ken Wong/COO Company: Minix Group Company Limited Address: Unit 1501, Chevalier Commercial Center, No.8 Wang Hoi Road, Kowloon Bay,Hong Kong.China Phone: +852-63700750 Fax: N/A E-Mail: [email protected]

Minix Group Company Limited Unit 1501, Chevalier Commercial Center, No.8 Wang Hoi Road, Kowloon Bay,Hong Kong.China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-9-30 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2BKGH-U8K including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Ken Wong/COO Company: Minix Group Company Limited Address: Unit 1501, Chevalier Commercial Center, No.8 Wang Hoi Road, Kowloon Bay,Hong Kong.China Phone: +852-63700750 Fax: N/A E-Mail: [email protected]

Minix Group Company Limited Unit 1501, Chevalier Commercial Center, No.8 Wang Hoi Road, Kowloon Bay,Hong Kong.China UNII Device Declaration Letter To whom it may concern: We have declared below featured for FCC equipment authorization, Device FCC ID: 2BKGH-U8K (1) DFS Device: Master Client with Radar detection capability N/A Client without radar detection capability, (2) Active / Passive Scanning , adhoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode capability Access point capability 5180-5240 Yes No Yes No Yes No Yes No 5190-5230 Yes No Yes No Yes No Yes No 5210-5210 Yes No Yes No Yes No Yes No 5745-5825 Yes No Yes No Yes No Yes No 5755-5795 Yes No Yes No Yes No Yes No 5775-5775 Yes No Yes No Yes No Yes No (3) Country code selection ability Yes No If yes, pls explain how it was implemented: (4) Meet 15.202 requirement Yes No pls check below : A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. (5) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes cannot be modified by end user or an installer. Apply Does not apply (If apply, pls help to provide explanation on it was implement, and how software was controlled) Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name/Title： Ken Wong/COO Company: Minix Group Company Limited Address: Unit 1501, Chevalier Commercial Center, No.8 Wang Hoi Road, Kowloon Bay,Hong Kong.China Phone: +852-63700750 Fax: N/A E-Mail: [email protected]

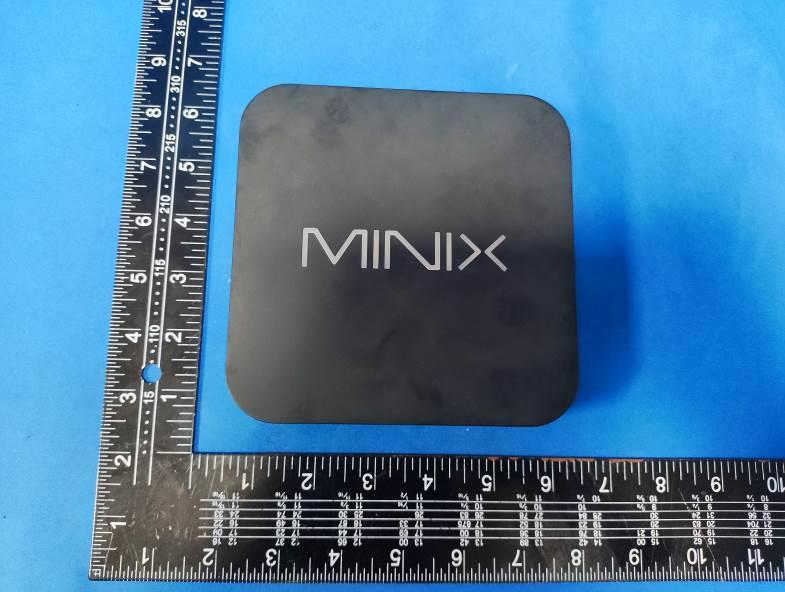

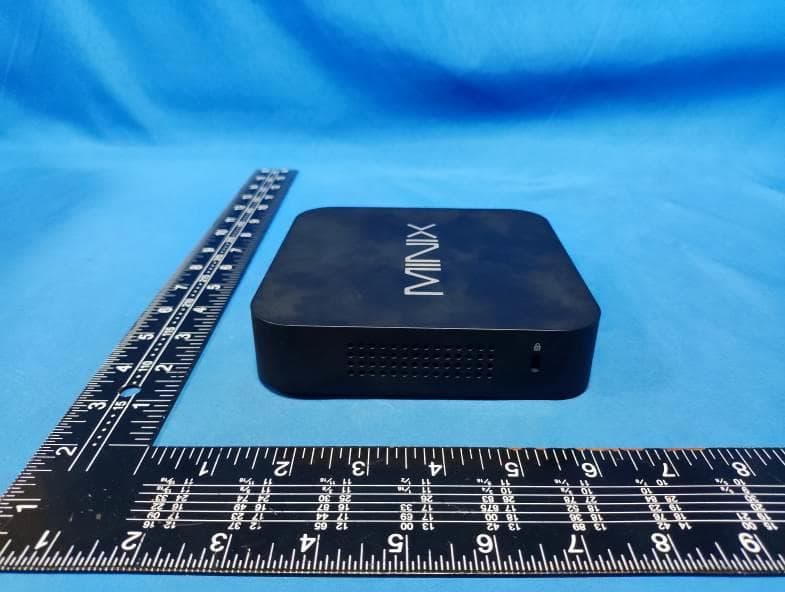

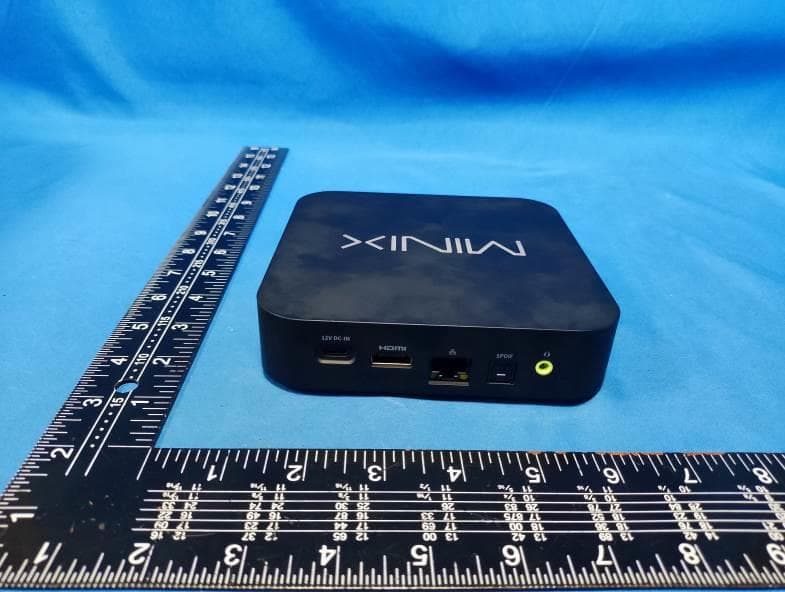

FCC ID: 2BKGH-U8K External Photos of the EUT FCC ID: 2BKGH-U8K FCC ID: 2BKGH-U8K

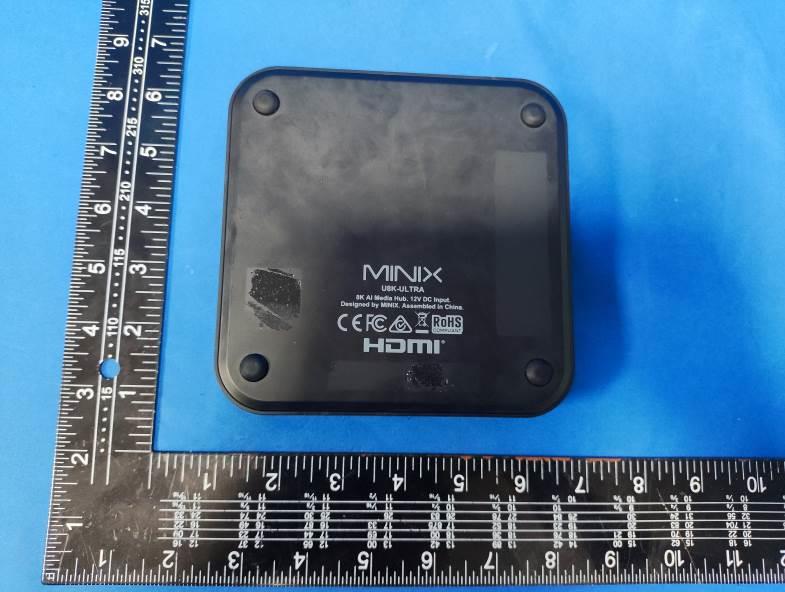

Label and Location Size: L: 4.0cm*W: 3.0cm Label and Location FCC ID : 2BKGH-U8K

FCC ID: 2BKGH-U8K Internal Photos of the EUT FCC ID: 2BKGH-U8K WIFI ANT1 FCC ID: 2BKGH-U8K WIFI ANT2 BT ANT FCC ID: 2BKGH-U8K FCC ID: 2BKGH-U8K FCC ID: 2BKGH-U8K FCC ID: 2BKGH-U8K

RF Exposure evaluation FCC ID: 2BKGH-U8K Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Antenna Information U8K-ULTRA can only use antennas certificated as follows provided by manufacturer; Antenna No. Model No. of antenna: Type of antenna: Gain of the antenna (Max.) Frequency range: BT / PIFA antenna 1.15dBi for 2400-2500MHz 2.4GWIFI / PIFA antenna 1.01dBi for 2400-2500MHz for Ant 1 0.88dBi for 2400-2500MHz for Ant 2 5GWIFI / PIFA antenna Ant1: 5180MHz-5240MHz: 1.27 dBi; 5745MHz-5825MHz: 1.20 dBi Ant2: 5180MHz-5240MHz: 0.98 dBi; 5745MHz-5825MHz: 1.08 dBi 5. Manufacturing Tolerance Mode Max. Peak Conducted Output Power (dBm) Max. tune-up Antenna Antenna BT ANT0 0.56 1.0±1 BLE ANT0 -2.4 -2.0±1 2.4GWIFI ANT1 14.96 14.0±1 2.4GWIFI ANT2 13.76 14.0±1 Mode Max. Average Conducted Output Power (dBm) Max. tune-up 5.2GWIFI ANT1 14.48 14.0±1 5.2GWIFI ANT2 14.09 14.0±1 5.8GWIFI ANT1 12.44 12.0±1 5.8GWIFI ANT2 11.92 12.0±1 6. Standalone MPE Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is refer to section 4, the RF power density can be obtained. Modulation Type Output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW BT ANT0 2.0 1.5849 1.15 1.3032 0.0004 1.0000 BLE ANT0 -1.0 0.7943 1.15 1.3032 0.0002 1.0000 2.4GWIFI ANT1 15.0 31.6228 1.10 1.2882 0.0081 1.0000 2.4GWIFI ANT2 15.0 31.6228 0.88 1.2246 0.0077 1.0000 5.2GWIFI ANT1 15.0 31.6228 1.27 1.3397 0.0084 1.0000 5.2GWIFI ANT2 15.0 31.6228 0.98 1.2531 0.0079 1.0000 5.8GWIFI ANT1 12.0 15.8489 1.20 1.3183 0.0042 1.0000 5.8GWIFI ANT2 12.0 15.8489 1.08 1.2823 0.0040 1.0000 Remark: 1. Output power (Peak) including turn-up tolerance; 2. MPE evaluate distance is 20cm from user manual provide by manufacturer. 7. simultaneous MPE Result 5.2GWIFI ANT1 MPE (Ratio) 5.2GWIFI ANT2 MPE (Ratio) BT ANT0 MPE (Ratio) simultaneous MPE (Ratio) MPE Limits (Ratio) 0.0084 0.0079 0.0004 0.0167 1.0000 8. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. ----------------THE END OF REPORT---------------

1. Antenna Description: Antenna type PIFA Antenna Model U8K-ULTRA Frequency range 2400-2500MHz, 5180-5240MHz, 5745-5825MHz Manufacturer Minix Group Company Limited ANT Peak Gain 2400-2500MHz: 1.01 dBi 5180-5240MHz: 1.27 dBi 5745-5825MHz: 1.20 dBi 2. Antenna Photo: Length :39.34mm Width:11.50mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz 5180MHz 5220MHz 5240MHz 5745MHz 5785MHz 5825MHz

1. Antenna Description: Antenna type PIFA Antenna Model U8K-ULTRA Frequency range 2400-2500MHz, 5180-5240MHz, 5745-5825MHz Manufacturer Minix Group Company Limited ANT Peak Gain 2400-2500MHz: 0.88 dBi 5180-5240MHz: 0.98 dBi 5745-5825MHz: 1.08 dBi 2. Antenna Photo: Length :32.00mm Width:12.37mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz 5180MHz 5220MHz 5240MHz 5745MHz 5785MHz 5825MHz
