2BKGX-692001Fametek Wireless Speaker

TYPE-C Input 4 4 ⁄ø≥ª ̈ªμ ...∑ƪ¥ª≠≠ Õ∞ªøμªÆ ÍÁÓÔ PDF created with pdfFactory Pro trial version www.pdffactory.com FCC Caution. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. *RF warning : This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 0cm between the radiator & your body. The FCC certification of this device refers to RF exposure testing performed in typical operating conditions, where a person is no closer than 0 centimeters from the device surface at all times, except for non-repetitive patterns with transient time intervals in the order of a second. Only in the stated conditions, the device is shown to fully comply with the FCC RF Exposure requirements of KDB 447498. PDF created with pdfFactory Pro trial version www.pdffactory.com

{ FAMETEK LLC } { PO BOX 252004 Los Angeles CA } Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 {2024-08-20} U.S. Agent Designation FAMETEK LLC acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BKGX-692001): Name and company of U.S. agent: FAMETEK LLC Physical U.S. address of agent: 777 Alameda St.Los Angeles CA 90021 United States of America FRN of U.S. agent: 0035843903 Email address of U.S. agent: [email protected] FAMETEK LLC acknowledges their obligation to accept service of process on behalf of FAMETEK LLC. FAMETEK LLC with the FRN [0035843903] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Jeremy Larsson Manager FAMETEK LLC Signature Jeremy Larsson Manager FAMETEK LLC 48_[model] US_Agent_2.911(d)(7) - U, V05

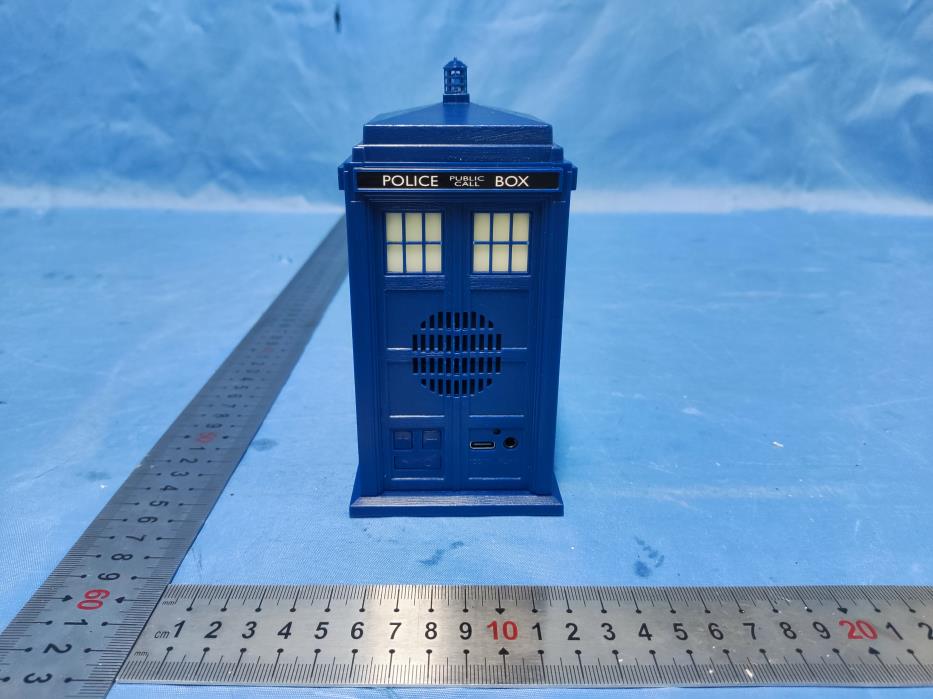

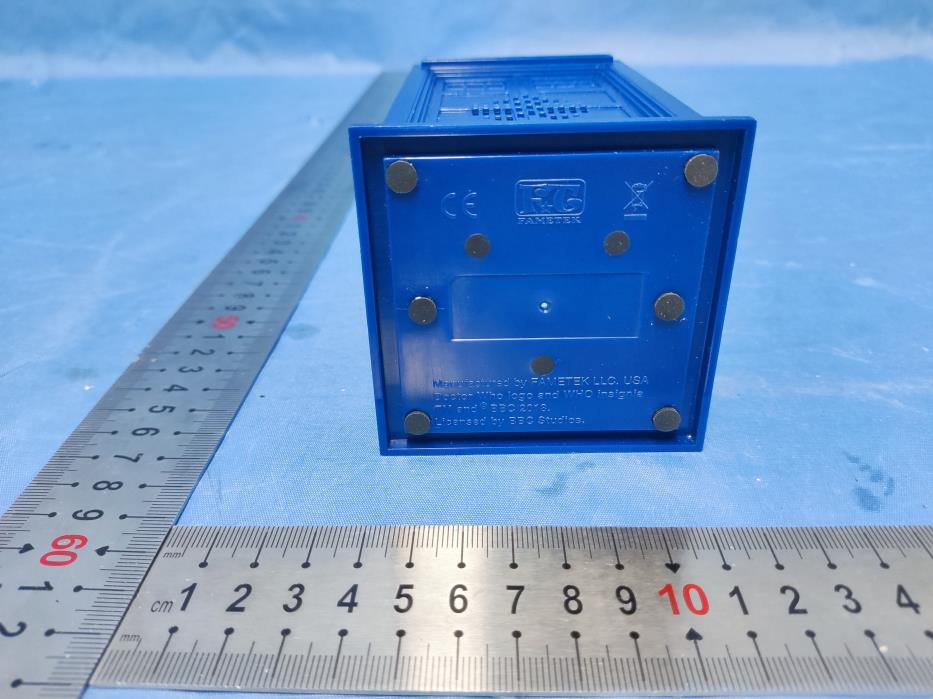

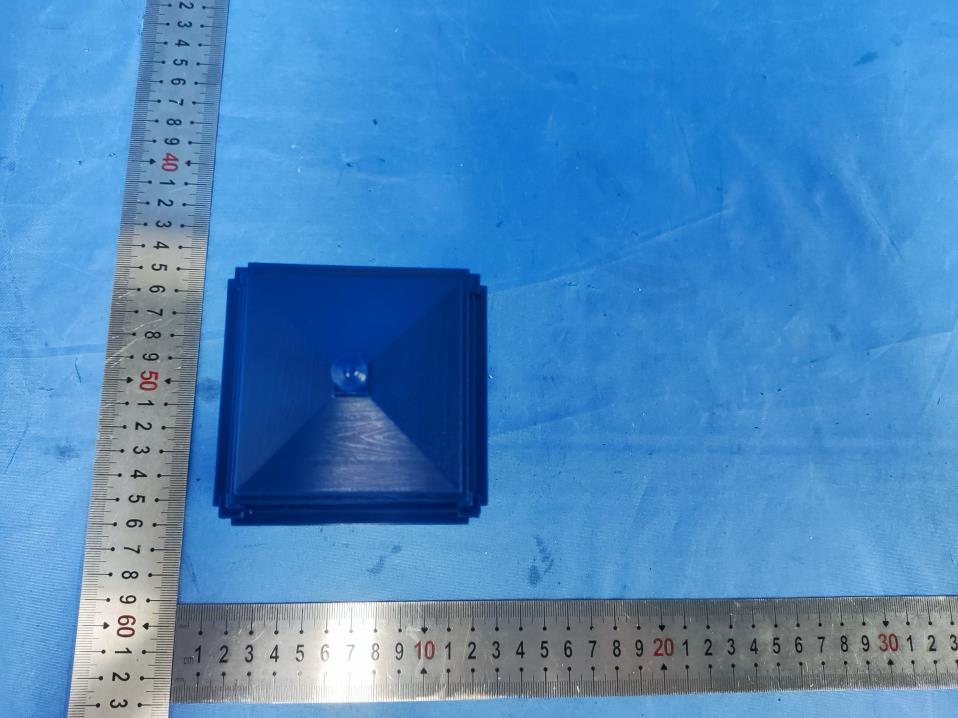

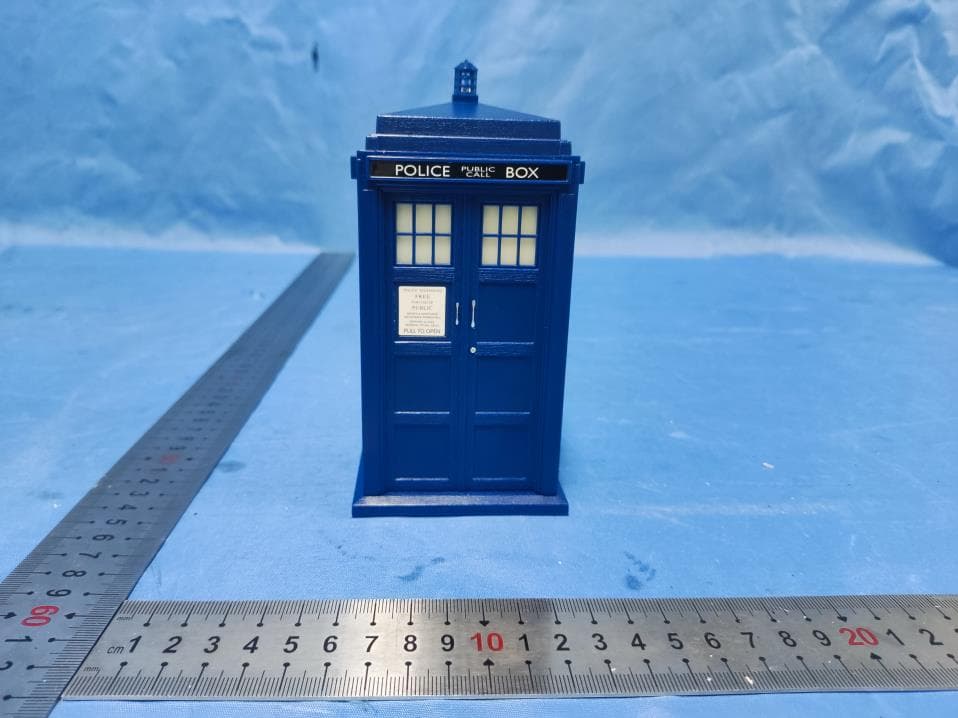

Page 1 of 4 FCC ID: 2BKGX-692001 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. EUT Constructional Details External EUT Photo Photo 1 Photo 2 Page 2 of 4 FCC ID: 2BKGX-692001 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 3 Photo 4 Page 3 of 4 FCC ID: 2BKGX-692001 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 5 Photo 6 Page 4 of 4 FCC ID: 2BKGX-692001 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 7 ---The End---

Label Size: L55mm * W20mm 1. The label is silk-screen on the sample Fametek Wireless Speaker Model Name: 692001 FCC ID: 2BKGX-692001 W L

Page 1 of 7 FCC ID: 2BKGX-692001 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. EUT Constructional Details Internal EUT Photo Photo 1 Photo 2 Page 2 of 7 FCC ID: 2BKGX-692001 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 3 Photo 4 Page 3 of 7 FCC ID: 2BKGX-692001 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 5 Photo 6 Page 4 of 7 FCC ID: 2BKGX-692001 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 7 Photo 8 Page 5 of 7 FCC ID: 2BKGX-692001 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 9 Photo 10 Antenna Page 6 of 7 FCC ID: 2BKGX-692001 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 11 Photo 12 Page 7 of 7 FCC ID: 2BKGX-692001 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 13 ------End------

RF Exposure evaluation FCC ID: 2BKGX-692001 Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.1. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. Manufacturing Tolerance BR_EDR (Conducted) Frequency BR_EDR_GFSK (MHz) 2402 2441 2480 Target (dBm) -5 -1 -1 Tolerance ± (dB) 1 1 1 Frequency BR_EDR_π/4-DQPSK (MHz) 2402 2441 2480 Target (dBm) -3 0 0 Tolerance ± (dB) 1 1 1 2. E v a l u a t i o n R e s u l t Standalone Band/Mode f (GHz) Antenna Distance (mm) RF output power including tune up SAR Test Exclusion Threshold SAR Test Exclusion Estimated SAR dBm mW BT 2.48 5 1 1.26 0.397< 3 Yes / Remark: When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. 3. C o n c l u s i o n The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06, No SAR is required. .....................End.........................

i Gain(dBi) 2500 -0.585582 -22.0315 -6.59127 Gain(dBi) 2450 -2.4652-24.5837 -10.4702

Page 1 of 15 Report No.: AITSZ-240701011FW1 Conducted Output Power Test Result Modulation Packet Type Channel Peak Output Power (dBm) Peak Output Power (mW) Max. Avg. Power (dBm) Limit (dBm) Result GFSK DH5 0 -5.076 0.311 None ≤30 PASS 39 -1.831 0.656 None PASS 78 -1.799 0.661 None PASS π/4DQPSK 2-DH5 0 -3.351 0.462 None ≤20.97 PASS 39 -0.403 0.911 None PASS 78 0.040 1.009 None PASS Test Graphs Peak Output Power GFSK_Channel 0 Peak Output Power GFSK_Channel 39 Peak Output Power GFSK_Channel 78 Peak Output Power π/4DQPSK_Channel 0 Page 2 of 15 Report No.: AITSZ-240701011FW1 Peak Output Power π/4DQPSK_Channel 39 Peak Output Power π/4DQPSK_Channel 78 20dB Bandwidth Test Result Modulation Channel Center Frequency (MHz) 20 dB Bandwidth (MHz) GFSK 0 2402 MHz 0.9400 39 2441 MHz 0.9400 78 2480 MHz 0.9400 π/4DQPSK 0 2402 MHz 1.290 39 2441 MHz 1.290 78 2480 MHz 1.290 Test Graphs GFSK_DH5_Channel 0 GFSK_DH5_Channel 39 Page 3 of 15 Report No.: AITSZ-240701011FW1 GFSK_DH5_Channel 78 π/4DQPSK_2-DH5_Channel 0 π/4DQPSK_2-DH5_Channel 39 π/4DQPSK_2-DH5_Channel 78 Page 4 of 15 Report No.: AITSZ-240701011FW1 Carrier Frequencies Separation Test Result Modulation Packet Left Center frequency (MHz) Right Center frequency (MHz) Hopping Frequency Separation (MHz) Limit (MHz) Result GFSK DH5 2439.8321 2440.8367 1.0046 0.627 PASS π/4DQPSK 2-DH5 2440.1453 2441.1679 1.0226 0.86 PASS Test Graphs GFSK π/4DQPSK Page 5 of 15 Report No.: AITSZ-240701011FW1 Conducted Out Of Band Emission Test Result Non-Hopping Modulation Packet Channel OOB Emission Frequency (MHz) OOB Emission Level (dBm) Limit (dBm) Over Limit (dB) Result GFSK DH5 0 2398.33 -58.244 -25.51 -32.734 PASS 2400.00 -60.066 -25.51 -34.556 PASS 4804.10 -49.485 -25.51 -23.975 PASS 7205.30 -50.996 -25.51 -25.486 PASS 9607.30 -50.692 -25.51 -25.182 PASS 24709.5 -43.140 -25.51 -17.630 PASS 39 4882.34 -50.657 -22.22 -28.437 PASS 7322.66 -50.520 -22.22 -28.300 PASS 9763.81 -50.143 -22.22 -27.923 PASS 24662.1 -42.676 -22.22 -20.456 PASS 78 2483.50 -60.819 -22.23 -38.590 PASS 4959.75 -50.499 -22.23 -28.269 PASS 7440.02 -48.271 -22.23 -26.041 PASS 9919.46 -49.111 -22.23 -26.881 PASS 24650.4 -42.956 -22.23 -20.726 PASS π/4DQPSK 2-DH5 0 2398.38 -58.768 -25.85 -32.918 PASS 2400.00 -60.098 -25.85 -34.248 PASS 4803.30 -48.458 -25.85 -22.608 PASS 7206.10 -50.796 -25.85 -24.946 PASS 9607.30 -50.710 -25.85 -24.860 PASS 24350.8 -43.286 -25.85 -17.436 PASS 39 4882.34 -50.196 -22.82 -27.376 PASS 7322.66 -50.301 -22.82 -27.481 PASS 9764.65 -50.597 -22.82 -27.777 PASS 24585.5 -42.306 -22.82 -19.486 PASS 78 2483.50 -59.164 -22.34 -36.824 PASS 4960.58 -51.688 -22.34 -29.348 PASS 7440.02 -49.854 -22.34 -27.514 PASS 9919.46 -50.063 -22.34 -27.723 PASS 24656.3 -43.080 -22.34 -20.740 PASS Hopping Modulation Packet Channel OOB Emission Frequency (MHz) OOB Emission Level (dBm) Limit (dBm) Over Limit (dB) Result GFSK DH5 Hopping 2397.10 -58.407 -25.43 -32.977 PASS 2400.00 -59.202 -25.43 -33.772 PASS 2483.50 -57.282 -21.8 -35.482 PASS π/4DQPSK 2-DH5 2395.42 -57.726 -25.67 -32.056 PASS 2400.00 -58.608 -25.67 -32.938 PASS 2483.50 -58.886 -22.09 -36.796 PASS Test Graphs Page 6 of 15 Report No.: AITSZ-240701011FW1 In-Band Reference Level GFSK_DH5_Channel 0 In-Band Reference Level π/4DQPSK_2-DH5_Channel 0 Out Of Band Emission GFSK_DH5_Channel 0 Out Of Band Emission π/4DQPSK_2-DH5_Channel 0 30.0 MHz - 25000.0 MHz GFSK_DH5_Channel 0 30.0 MHz - 25000.0 MHz π/4DQPSK_2-DH5_Channel 0 Page 7 of 15 Report No.: AITSZ-240701011FW1 In-Band Reference Level GFSK_DH5_Channel 39 In-Band Reference Level π/4DQPSK_2-DH5_Channel 39 Out Of Band Emission GFSK_DH5_Channel 39 Out Of Band Emission π/4DQPSK_2-DH5_Channel 39 30.0 MHz - 25000.0 MHz GFSK_DH5_Channel 39 30.0 MHz - 25000.0 MHz π/4DQPSK_2-DH5_Channel 39 In-Band Reference Level GFSK_DH5_Channel 78 In-Band Reference Level π/4DQPSK_2-DH5_Channel 78 Page 8 of 15 Report No.: AITSZ-240701011FW1 Out Of Band Emission GFSK_DH5_Channel 78 Out Of Band Emission π/4DQPSK_2-DH5_Channel 78 30.0 MHz - 25000.0 MHz GFSK_DH5_Channel 78 30.0 MHz - 25000.0 MHz π/4DQPSK_2-DH5_Channel 78 Out Of Band Emission(Left) GFSK_DH5_Channel Hopping Out Of Band Emission(Left) π/4DQPSK_2-DH5_Channel Hopping Page 9 of 15 Report No.: AITSZ-240701011FW1 Out Of Band Emission(Right) GFSK_DH5_Channel Hopping Out Of Band Emission(Right) π/4DQPSK_2-DH5_Channel Hopping Page 10 of 15 Report No.: AITSZ-240701011FW1 Duty Cycle Test Result Modulation Packets Channel On Time (ms) Period (ms) Duty Cycle (%) Duty Cycle (linear) Duty Cycle Factor (dB) GFSK DH5 0 2.896 3.748 77.27 0.7727 1.1199 39 2.896 3.748 77.27 0.7727 1.1199 78 2.894 3.748 77.21 0.7721 1.1233 π/4DQPSK 2-DH5 0 2.884 3.748 76.95 0.7695 1.1379 39 2.884 3.748 76.95 0.7695 1.1379 78 2.884 3.748 76.95 0.7695 1.1379 Test Graphs GFSK(DH5)_Channel 0 Page 11 of 15 Report No.: AITSZ-240701011FW1 GFSK(DH5)_Channel 39 GFSK(DH5)_Channel 78 Page 12 of 15 Report No.: AITSZ-240701011FW1 π/4DQPSK(2-DH5)_Channel 0 π/4DQPSK(2-DH5)_Channel 39 Page 13 of 15 Report No.: AITSZ-240701011FW1 π/4DQPSK(2-DH5)_Channel 78 Page 14 of 15 Report No.: AITSZ-240701011FW1 Dwell Time Test Result Modulation Packet Channel Pulse Width (ms) Number of Pulses in 31.6 seconds Dwell Time (ms) Limit (ms) Result GFSK DH5 CH78 (2480MHz) 2.896 108 312.81 < 400 PASS π/4DQPSK 2-DH5 2.896 104 301.22 PASS Test Graphs Pulse Width GFSK_DH5 Number of Pulses in 31.6 seconds GFSK_DH5 Pulse Width π/4DQPSK_2-DH5 Number of Pulses in 31.6 seconds π/4DQPSK_2-DH5 Page 15 of 15 Report No.: AITSZ-240701011FW1 Number Of Hopping Channel Test Result Modulation Packet Number of Hopping Channel Limit Result GFSK DH5 79 15 PASS π/4DQPSK 2-DH5 79 15 PASS Test Graphs Low End Spectrum Channel Hopping Plot GFSK High End Spectrum Channel Hopping Plot GFSK Low End Spectrum Channel Hopping Plot π/4DQPSK High End Spectrum Channel Hopping Plot π/4DQPSK

Note: This device has been tested and found to comply with the standard(s) listed, this test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited. If there is a need to alter or revise this document, the right belongs to Guangdong Asia Hongke Test Technology Limited, and it should give a prior written notice of the revision document. This test report must not be used by the client to claim product endorsement. Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. TEST REPORT Product Name : Fametek Wireless Speaker Brand Name : FAMETEK Model : 692001 Series Model : MTWOLF, DW10T FCC ID : 2BKGX-692001 Applicant : FAMETEK LLC Address : 777 Alameda St.Los Angeles CA 90021 United States of America Manufacturer : FAMETEK LLC Address : 777 Alameda St.Los Angeles CA 90021 United States of America Standard(s) : FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of Receipt : July 03, 2024 Date of Test : July 04, 2024~ July 11, 2024 Issued Date : July 11, 2024 Issued By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Reviewed by: Approved by: Leon.yi Sean She Page 2 of 29 Report No.: AITSZ-240701011FW1 Report Revise Record Report Version Issued Date Notes M1 July 11, 2024 Initial Release Page 3 of 29 Report No.: AITSZ-240701011FW1 Contents 1 TEST SUMMARY ....................................................................................................................................................... 4 1.1 TEST STANDARDS.......................................................................................................................................................... 4 1.2 TEST SUMMARY ........................................................................................................................................................... 4 1.3 TEST FACILITY .............................................................................................................................................................. 5 1.4 MEASUREMENT UNCERTAINTY ........................................................................................................................................ 5 2 GENGENERAL INFORMATION ................................................................................................................................... 6 2.1 ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 6 2.2 GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 6 2.3 DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 7 2.4 SPECIAL ACCESSORIES ................................................................................................................................................... 8 2.5 EQUIPMENT LIST FOR THE TEST ....................................................................................................................................... 8 3 TEST CONDITIONS AND RESULTS ............................................................................................................................ 10 3.1 CONDUCTED EMISSIONS TEST ....................................................................................................................................... 10 3.2 RADIATED EMISSIONS AND BAND EDGE .......................................................................................................................... 13 3.3 MAXIMUM PEAK OUTPUT POWER................................................................................................................................. 20 3.4 20DB BANDWIDTH ..................................................................................................................................................... 21 3.5 OCCUPIED BANDWIDTH ............................................................................................................................................... 22 3.6 FREQUENCY SEPARATION ............................................................................................................................................. 23 3.7 NUMBER OF HOPPING FREQUENCY ................................................................................................................................. 24 3.8 TIME OF OCCUPANCY (DWELL TIME) .............................................................................................................................. 25 3.9 OUT-OF-BAND EMISSIONS ........................................................................................................................................... 26 3.10 PSEUDORANDOM FREQUENCY HOPPING SEQUENCE .......................................................................................................... 27 3.11 ANTENNA REQUIREMENT ............................................................................................................................................. 28 4 TEST SETUP PHOTOGRAPHS OF EUT ....................................................................................................................... 29 5 EXTERNAL PHOTOGRAPHS OF EUT ......................................................................................................................... 29 6 INTERNAL PHOTOGRAPHS OF EUT ........…

Text truncated - open the document above for the full version.

Page 1 of 2 FCC ID: 2BKGX-692001 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Test Setup Photo DSS Radiated Emission Page 2 of 2 FCC ID: 2BKGX-692001 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Conducted Emission ------End------
