2BKHF-RT-WRLSSBRBSWireless meat probe

ManualfortheWirelessHub/Probes 1.1TurningOn/OfftheHub 1.1.1PuttheHubontheplacewhereisnomorethan10metersawayfromtheGrill,and plugintoastandardpoweroutlet. 1.1.1PushthePowerbuttonontheHubtoturnonit. 1.1.2PushtheWIFIbutton,theHubconnectscellphoneviaWIFI 1.1.3TheHubreceivesdatasofprobetempandbatteryenergyviaBluetooth,meanwhile sendsthesedatastoCellphoneviaWIFI. 1.1.4PlacetheprobesintheHub,theprobeswillberechargedwithredLEDlightblinking. 1.1.5PushthePowerbuttonagaintoturnofftheHub. 1.2TurningOn/OfftheProbe 1.2.1TheprobeisplacedintheHubafter3seconds,thentakeitoutofHub,theprobewill beturnedonautomatically. 1.2.2Aftertheprobeisturnedon,whenBluetoothisnotconnected,theprobebeginto measuretemperatureandbroadcast.Iftheambienttemperaturemeasuredstays lowerthan122°Ffor30minutes,theprobewillbeshutoff. 1.2.3TheprobewillnevershutdownwhenBluetoothisConnectingwithHub. 1.2.4NoOperatingfor30minutesTheProbewillshutoff. 1.2.5AslongastheprobeisinthechargingstateintheHub,theprobewillimmediately turnoffthebroadcast,disconnecttheBluetoothandshutoff. 1.3Specifications No.ItemsParametersComments 1APPSystemAndroid4.3&IOS8.0+ 2ChipDA14531 3BluetoothBLE5.1 4OTADisable 5Dimensions Φ5.5×L138mm； 6ChargetypeIntheHub 7ChargeVoltage5V 8Battery5mAhChargeable 9Chargetime30minChargecurrent:35mA 10Durationunderrunningstate ≥ 30h 11SensorNTCresistance 12TempRangeforFood-4~220°F 13TempRangeforGrill-4~600°F 14Tempaccuracy ±2°F 15Storagetemp -4~140°F 16Waterprooflevel IPX7 17Defaultemitpower2.5db 18 Openfield effectivedistance 50m10~15m(Lidclosed) FederalCommunicationsCommission(FCC)Statement. Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowing twoconditions: (1)Thisdevicemaynotcauseharmfulinterference,and (2)thisdevicemustacceptanyinterferencereceived, includinginterferencethatmaycauseundesiredoperation. Note:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassB digitaldevice,pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovide Reasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.This equipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnotinstalled andusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradio communications.However,thereisnoguaranteethatinterferencewillnotoccurina particularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioor televisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,the userisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowing measures: •Reorientorrelocatethereceivingantenna. •Increasetheseparationbetweentheequipmentandreceiver. •Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiver isconnected. •Consultthedealeroranexperiencedradio/TVtechnicianforhelp. Warning:ChangesormodificationsmadetothisdevicenotexpresslyapprovedbyJinhua Xin'anElectricCo.,Ltd.mayvoidtheFCCauthorizationtooperatethisdevice.Note:The manufacturerisnotresponsibleforanyradioorTVinterferencecausedbyunauthorized modificationstothisequipment.Suchmodificationscouldvoidtheuser’sauthorityto operatetheequipment. RFexposurestatement: ThisdevicecomplieswithFCCRFradiationexposurelimitssetforthforanuncontrolled environment.Thedeviceisinstalledandoperatedwithoutrestriction.

JinhuaXin'anElectricCo.,Ltd. FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA Date:September4,2024 FCCID:2BKHF-RT-WRLSSBRBS Ref.#1:AttestationStatementsPart2.911(d)(5)(i)Filing JinhuaXin'anElectricCo.,Ltd.certifiesthattheequipmentforwhichauthorizationissought isnot“covered”equipmentprohibitedfromreceivinganequipmentauthorizationpursuant tosection2.903oftheFCCrules. Ref.#2:AttestationStatementsPart2.911(d)(5)(ii)Filing JinhuaXin'anElectricCo.,Ltd. certifiesthat,asofthedateofthefilingoftheapplication, theapplicantisnotidentifiedontheCoveredListasanentityproducing“covered” equipment. Applicant:JinhuaXin'anElectricCo.,Ltd. Address:1088MeiHeRoad,WuChengDistrict,Jinhua,Zhejiang ContactPerson:LiuGuiping Tel.:0579-82261878 Email:[email protected] Sincerely, Signature:

81,7('67$7(6'(6,*1$7('$*(17/(77(5 'DWH 72)HGHUDO&RPPXQLFDWLRQ&RPPLVVLRQ (TXLSPHQW$XWKRUL]DWLRQ%UDQFK 2DNODQG0LOOV5RDG &ROXPELD0,' $SSOLFDQW86GHVLJQDWHGDJHQW &RPSDQ\1DPH-LQKXD;LQ DQ(OHFWULF &R/WG &RPSDQ\1DPH3LFXV$GYLVRUV86//& &RQWDFW1DPH/LX*XLSLQJ&RQWDFW1DPH,YDQ:DQJ $GGUHVV0HL+H 5RDG:X&KHQJ'LVWULFW -LQKXD=KHMLDQJ $GGUHVV)05G%URRNVKLUH7( ;$686$ &LW\3URYLQFH=LS-LQKXD&LW\3URYLQFH=LS%URRNVKLUH7(;$6 7HOHSKRQH7HOHSKRQH   (PDLOMK[D#YLSFRP(PDLOLYDQZDQJ#Q\JWHNFRP )51)51 $SSOLFDQW -LQKXD;LQ DQ(OHFWULF&R/WG 86GHVLJQDWHGDJHQW 3LFXV$GYLVRUV86//& 1DPH 3ULQWHG /LX*XLSLQJ1DPH 3ULQWHG ,YDQ:DQJ 7LWOH0DQDJHU7LWOH&(2 6LJQDWXUH $SSOLFDEOH(TXLSPHQW)&&,'%.+)57:5/66%5%6 7KLVOHWWHULVWRFRQILUPWKDWZH 3LFXV$GYLVRUV86//& KDYHDFFHSWHGWKHUHVSRQVLELOLW\WRDFWDVWKH 'HVLJQDWHG86$JHQWIRU6HUYLFHRI3URFHVVDVUHTXLUHGE\VHFWLRQ&)5 G  RQEHKDOIRIWKH $SSOLFDQWQRWHGEHORZ $771'LUHFWRURI&HUWLILFDWLRQ :H-LQKXD;LQ DQ(OHFWULF&R/WG!DQG3LFXV$GYLVRUV86//&!XQGHUVWDQGDQGDFNQRZOHGJHWKH DSSOLFDQWVFRQVHQWDQGWKHGHVLJQDWHGDJHQW¶VREOLJDWLRQWRDFFHSWVHUYLFHRISURFHVVLQWKH8QLWHG 6WDWHVIRUPDWWHUVUHODWHGWRWKHDSSOLFDEOHHTXLSPHQWDQGDWWKHSK\VLFDO86DGGUHVVDQGHPDLORIWKH GHVLJQDWHGDJHQWOLVWHGDERYH :H-LQKXD;LQ DQ(OHFWULF&R/WG!DQG3LFXV$GYLVRUV86//&!DFNQRZOHGJHWKHDSSOLFDQW¶V DFFHSWDQFHRILWVREOLJDWLRQWRPDLQWDLQDQDJHQWIRUVHUYLFHRISURFHVVLQWKH8QLWHG6WDWHVIRUQROHVV WKDQRQH\HDUDIWHUHLWKHUWKHJUDQWHHKDVSHUPDQHQWO\WHUPLQDWHGDOOPDUNHWLQJDQGLPSRUWDWLRQRIWKH DSSOLFDEOHHTXLSPHQWZLWKLQWKH86RUWKHFRQFOXVLRQRIDQ\&RPPLVVLRQUHODWHGDGPLQLVWUDWLYHRU MXGLFLDOSURFHHGLQJLQYROYLQJWKHHTXLSPHQWZKLFKHYHULVODWHU 6LJQDWXUH

JinhuaXin'anElectricCo.,Ltd. 1088MeiHeRoad,WuChengDistrict,Jinhua,Zhejiang Date：Sep.04,2024 ProductModelNumber:RT-WRLSSBRBS FCCID：2BKHF-RT-WRLSSBRBS Towhomitmayconcern, Re:ProductCertificationRepresentativeAuthorizationLetter WeauthorizeQAILaboratoriesLtd.3980NorthFraserWay,BurnabyB.C. CanadaV5J5K5toactonourbehalfonallmattersconcerningtheabove namedequipment. Thisshallincludethefollowing: Testing Approvalapplicationsandprocedures WedeclarethatJinhuaXin'anElectricCo.,Ltd.isallowedtoforwardall informationrelatedtotheapprovalprojecttotheappliedcertificationbodyand tothenotificationentitiesandtodiscussanyissuesconcerningtheapproval application.AnyandallactscarriedoutbyJinhuaXin'anElectricCo.,Ltd. onourbehalfshallhavethesameeffectasactsofourown. By: ContactListedonFCCWesbite Title:Manager Email:[email protected] Telephone:0579-82261878 Onbehalfof:JinhuaXin'anElectricCo.,Ltd.

JinhuaXin'anElectricCo.,Ltd. OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:September4,2024 Subject;RequestforConfidentiality FCCID:2BKHF-RT-WRLSSBRBS ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthese documentsmightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantage inthemarket. SchematicDiagram BlockDiagram PartsList OperationalDescription Tune-upProcedure SoftwareSecurityRequirementsforUNIIdevices Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); ExternalPhotos TestSetupPhotos InternalPhotos UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:LiuGuiping Title:Manager

深圳市易连物联网有限公司 / Shenzhen ElinkThings Co., Ltd. -1- 电话/Tell：（86）0755-81773367 邮箱/E-mail：[email protected] 地址/Address：深圳市宝安区西乡街道银田工业区侨鸿盛文化创意园写字楼 A 栋五层 502 室 Room 502, Floor 5, Building A, Qiaohong Hongsheng Cultural and Creative Park, Yintian Industrial Zone, Xixiang Street, Shenzhen District, Bao'an District, Shenzhen 邮编/Zip Code：518000 Antenna Specification The specifications of this product are subject to change without notice. Shenzhen ElinkThings Co., Ltd. reserves the right to make changes to the specifications and materials contained therein without notice, and Shenzhen ElinkThings Co., Ltd. will not be liable for damages (including consequential damages) arising from reliance on the materials referenced, including, but not limited to, typographical errors and other errors relating to this public Version ： V1.0 Update Date ： 2023/09/06 Shenzhen ElinkThings Co., Ltd. All Rights Reserved ation. 深圳市易连物联网有限公司 / Shenzhen ElinkThings Co., Ltd. -2- 电话/Tell：（86）0755-81773367 邮箱/E-mail：[email protected] 地址/Address：深圳市宝安区西乡街道银田工业区侨鸿盛文化创意园写字楼 A 栋五层 502 室 Room 502, Floor 5, Building A, Qiaohong Hongsheng Cultural and Creative Park, Yintian Industrial Zone, Xixiang Street, Shenzhen District, Bao'an District, Shenzhen 邮编/Zip Code：518000 Directory Directory‐2‐ 1 、 Antenna Size （ size unit is mm ） ‐3‐ 2 、 Antenna Specifications‐4‐ 3 、 Test Conditions‐4‐ 4 、 Test Environments‐5‐ 5 Antenna Network Analyzer Debug Frequency‐6‐ 6 、 Antenna Test Efficiency‐6‐ 7 、 2D Drawing‐7‐ 8 、 3D Drawing‐8‐ 深圳市易连物联网有限公司 / Shenzhen ElinkThings Co., Ltd. -3- 1 、 Antenna Size （ size unit is mm 电话/Tell：（86）0755-81773367 邮箱/E-mail：[email protected] 地址/Address：深圳市宝安区西乡街道银田工业区侨鸿盛文化创意园写字楼 A 栋五层 502 室 Room 502, Floor 5, Building A, Qiaohong Hongsheng Cultural and Creative Park, Yintian Industrial Zone, Xixiang Street, Shenzhen District, Bao'an District, Shenzhen 邮编/Zip Code：518000 ） ANT 深圳市易连物联网有限公司 / Shenzhen ElinkThings Co., Ltd. -4- 2 、 电话/Tell：（86）0755-81773367 邮箱/E-mail：[email protected] 地址/Address：深圳市宝安区西乡街道银田工业区侨鸿盛文化创意园写字楼 A 栋五层 502 室 Room 502, Floor 5, Building A, Qiaohong Hongsheng Cultural and Creative Park, Yintian Industrial Zone, Xixiang Street, Shenzhen District, Bao'an District, Shenzhen 邮编/Zip Code：518000 Antenna Specifications 3 、 Test Conditions serial numberparameter termexplanation 1Center operating frequency2441MHz 2Working Bandwidth2400---2480Mhz 3data transmission rate1Mbps 4Antenna Type On-Board PCB Antennas （default) 5AntennaGain-1.0dBi 6Impedance50ohm 7Modulation TypeGFSK 深圳市易连物联网有限公司 / Shenzhen ElinkThings Co., Ltd. -5- 4 、 电话/Tell：（86）0755-81773367 邮箱/E-mail：[email protected] 地址/Address：深圳市宝安区西乡街道银田工业区侨鸿盛文化创意园写字楼 A 栋五层 502 室 Room 502, Floor 5, Building A, Qiaohong Hongsheng Cultural and Creative Park, Yintian Industrial Zone, Xixiang Street, Shenzhen District, Bao'an District, Shenzhen 邮编/Zip Code：518000 Test Environments 深圳市易连物联网有限公司 / Shenzhen ElinkThings Co., Ltd. -6- 电话/Tell：（86）0755-81773367 邮箱/E-mail：[email protected] 地址/Address：深圳市宝安区西乡街道银田工业区侨鸿盛文化创意园写字楼 A 栋五层 502 室 Room 502, Floor 5, Building A, Qiaohong Hongsheng Cultural and Creative Park, Yintian Industrial Zone, Xixiang Street, Shenzhen District, Bao'an District, Shenzhen 邮编/Zip Code：518000 5 Antenna Network Analyzer Debug Frequency The antenna frequency at 2.445GHz has a return loss of -30dB and an impedance of around 50. Bandwidth 80m 6 、 Antenna Test Efficiency passive test for 2.4g Freq(MHz) Gain(dB)Efficiency(dB) Efficiency(%) 2400 -2.125670268-6.51298217822.32039018 2410 -1.839793728-6.35055515823.17098436 2420-1.64029678-6.24681065523.7311582 2430 -1.328848956-5.92515296425.5555189 2440 -1.132319256-5.79955308526.30538676 2450 -1.087960046-5.84929926526.00579133 2460 -1.316358881-6.00672172325.08001707 2470 -1.579335991-6.24506749923.74068524 2480 -1.962892418-6.45421219322.62448909 2490-2.50538583-6.75344940721.11811056 2500 -3.031894388-7.25223622418.8267943 深圳市易连物联网有限公司 / Shenzhen ElinkThings Co., Ltd. -7- 7 、 电话/Tell：（86）0755-81773367 邮箱/E-mail：[email protected] 地址/Address：深圳市宝安区西乡街道银田工业区侨鸿盛文化创意园写字楼 A 栋五层 502 室 Room 502, Floor 5, Building A, Qiaohong Hongsheng Cultural and Creative Park, Yintian Industrial Zone, Xixiang Street, Shenzhen District, Bao'an District, Shenzhen 邮编/Zip Code：518000 2D Drawing （1）XY-Plane （2）ZY-Plane （3）ZX-Plane 3 1 2 深圳市易连物联网有限公司 / Shenzhen ElinkThings Co., Ltd. -8- 8 、 电话/Tell：（86）0755-81773367 邮箱/E-mail：[email protected] 地址/Address：深圳市宝安区西乡街道银田工业区侨鸿盛文化创意园写字楼 A 栋五层 502 室 Room 502, Floor 5, Building A, Qiaohong Hongsheng Cultural and Creative Park, Yintian Industrial Zone, Xixiang Street, Shenzhen District, Bao'an District, Shenzhen 邮编/Zip Code：518000 3D Drawing

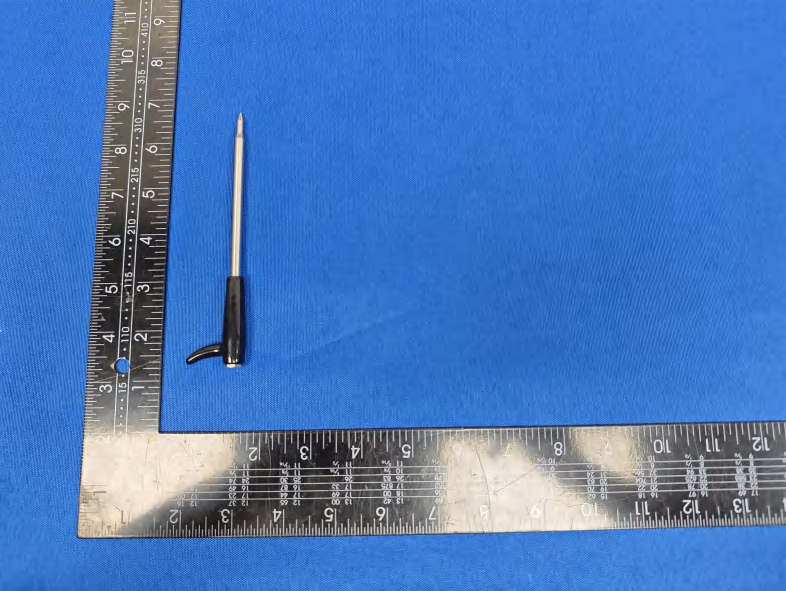

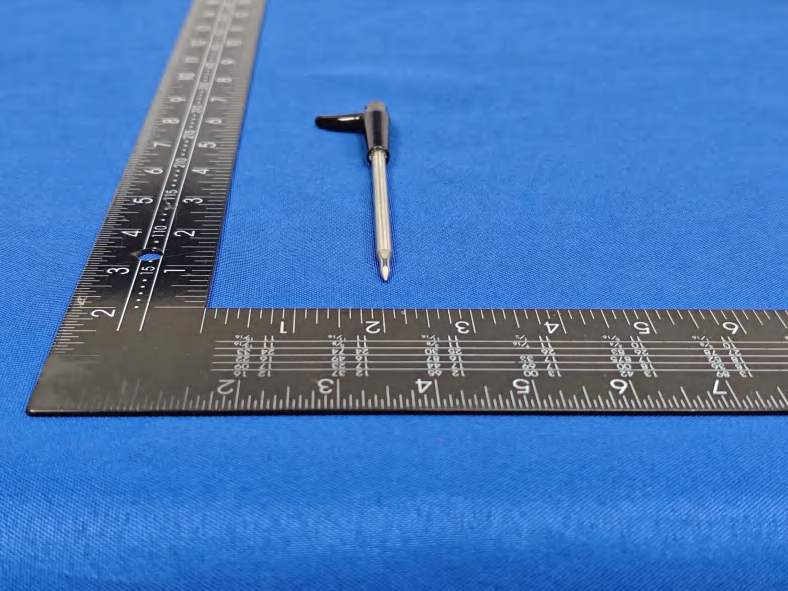

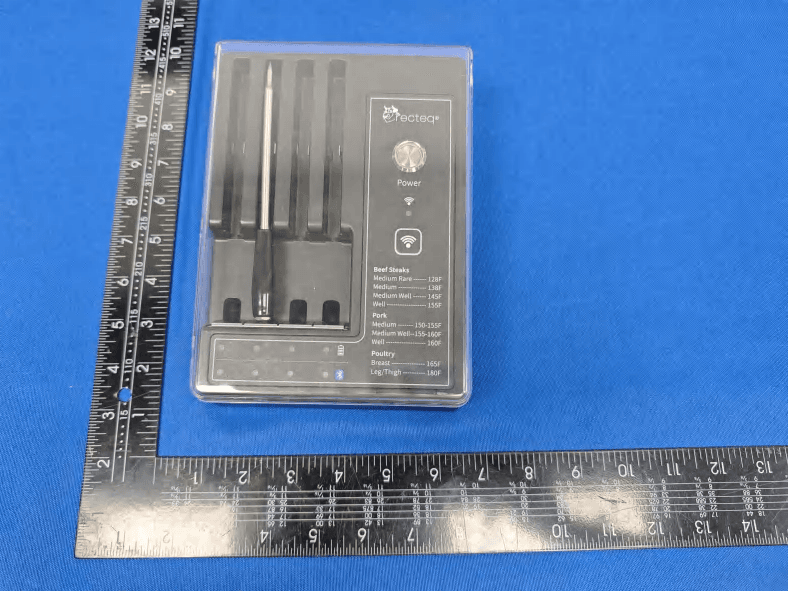

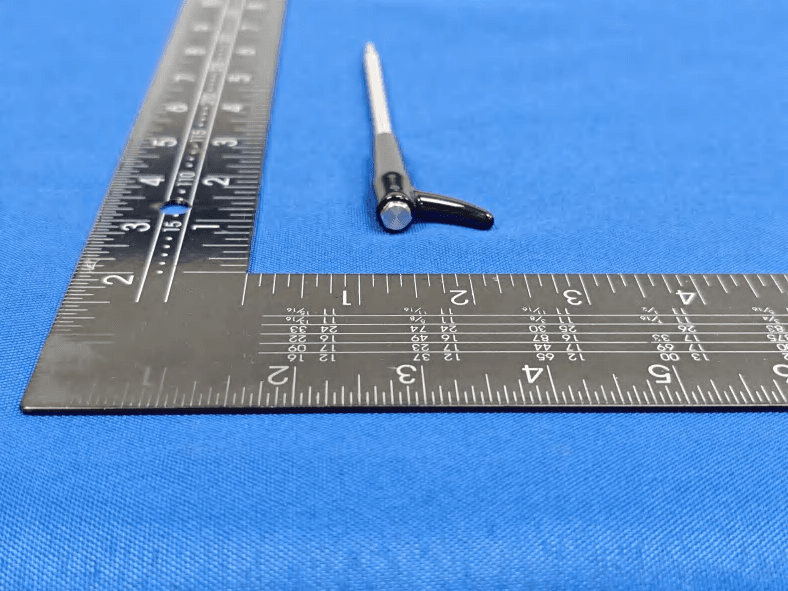

FCCID:2BKHF-RT-WRLSSBRBSPage 1 of 4 ReportNo.:CTL2405232052-WF ExternalPhotosof FCCID:2BKHF-RT-WRLSSBRBSPage 2 of 4 ReportNo.:CTL2405232052-WF FCCID:2BKHF-RT-WRLSSBRBSPage 3 of 4 ReportNo.:CTL2405232052-WF FCCID:2BKHF-RT-WRLSSBRBSPage 4 of 4 ReportNo.:CTL2405232052-WF

FCCID:2BKHF-RT-WRLSSBRBSPage 1 of 1 ReportNo.:CTL2405232052-WF FCCIDLabelInformation Labellocation: Size:20mm*10mm FCCID:2BKHF-RT-WRLSSBRBS

FCCID:2BKHF-RT-WRLSSBRBSPage 1 of 3 ReportNo.:CTL2405232052-WF InternalPhotosofEUT FCCID:2BKHF-RT-WRLSSBRBSPage 2 of 3 ReportNo.:CTL2405232052-WF FCCID:2BKHF-RT-WRLSSBRBSPage 3 of 3 ReportNo.:CTL2405232052-WF BluetoothAntenna

FCCID:2BKHF-RT-WRLSSBRBSPage 1 of 1 ReportNo.:CTL2405232052--WF RFExposureLetter Accordingto447498D01GeneralRFExposureGuidancev06The1 ‐ gand10 ‐ g SARtest exclusionthresholdsfor100MHzto6GHzattestseparationdistances ≤ 50mm aredeterminedby:[(max.powerofchannel,includingtune ‐ uptolerance,mW)/(min. testseparationdistance,mm)] · [ √ f(GHz)] ≤ 3.0for1 ‐ gSARand ≤ 7.5for10 ‐ gextremitySAR,where f(GHz)istheRFchanneltransmitfrequencyinGHz PoweranddistanceareroundedtothenearestmWandmmbeforecalculation Theresultisroundedtoonedecimalplaceforcomparison BLE pt=-0.66dBm=0.86mWat2440MHz So(0.86mW/5mm)x √ 2.440GHz=0.2684<3 ThenSARevaluationisnotrequired

ShenzhenCTLTestingTechnologyCo.,Ltd. Tel:+86-755-89486194E-mail:[email protected] TESTREPORT FCCPART15.247 ReportReferenceNo.....................:CTL2405232052-WF Compiledby: (position+printedname+signature) HappyGuo (Fileadministrators) Testedby: (position+printedname+signature) JackWang (TestEngineer) Approvedby: (position+printedname+signature) IvanXie (Manager) ProductName.................................: Wirelessmeatprobe Model/Typereference....................:RT-WRLSSBRBS ListModel(s) .................................... :N/A TradeMark ....................................... : RecTeq FCCID...............................................: 2BKHF-RT-WRLSSBRBS Applicant’sname ........................... : JinhuaXin'anElectricCo.,Ltd. Addressofapplicant ..................... : 1088MeiHeRoad,WuChengDistrict,Jinhua,Zhejiang TestFirm ........................................... : ShenzhenCTLTestingTechnologyCo.,Ltd. AddressofTestFirm ..................... : ZoneA,1stFloor,Warehouse2,BaishaLogisticsCompany,No. 3011ShaheWestRoad,NanshanDistrict,Shenzhen Testspecification ........................... : Standard............................................:FCCPart15.247:Operationwithinthebands902-928MHz, 2400-2483.5MHzand5725-5850MHz. TRFOriginator .................................. : ShenzhenCTLTestingTechnologyCo.,Ltd. MasterTRF.......................................:Dated2011-01 Dateofreceiptoftestitem..........: Jun.21,2024 DateofTestDate ............................ : Jun.24,2024-Jul.10,2024 DateofIssue....................................: Jul.12,2024 Result ................................................ : Pass ShenzhenCTLTestingTechnologyCo.,Ltd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenCTLTestingTechnologyCo.,Ltd.isacknowledgedascopyrightownerandsourceofthe material.ShenzhenCTLTestingTechnologyCo.,Ltd.takesnoresponsibilityforandwillnotassume liabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoits placementandcontext. V1.0Page2of42ReportNo.:CTL2405232052-WF TESTREPORT TestReportNo.:CTL2405232052-WF Jul.12,2024 Dateofissue EquipmentunderTest: Wirelessmeatprobe SampleNo:CTL2405232052 Model/Type: RT-WRLSSBRBS ListedModels : N/A Applicant: JinhuaXin'anElectricCo.,Ltd. Address:1088MeiHeRoad,WuChengDistrict,Jinhua,Zhejiang Manufacturer:JinhuaXin'anElectricCo.,Ltd. Address :1088MeiHeRoad,WuChengDistrict,Jinhua,Zhejiang TestresultPass* *Intheconfigurationtested,theEUTcompliedwiththestandardsspecifiedpage5. Thetestresultspresentedinthisreportrelateonlytotheobjecttested. Thisreportshallnotbereproduced,exceptinfull,withoutthewrittenapprovaloftheissuingtesting laboratory. V1.0Page3of42ReportNo.:CTL2405232052-WF **ModifiedHistory** RevisionsDescriptionIssuedDataReportNo.Remark Version1.0InitialTestReportRelease2024-07-12CTL2405232052-WFTracyQi V1.0Page4of42ReportNo.:CTL2405232052-WF TableofContentsPage 1.SUMMARY.......................................................................................................................................................................5 1.1.TESTSTANDARDS............................................................................................................................................................5 1.2.TESTDESCRIPTION...............................................................................................................................................................5 1.3.TESTFACILITY.....................................................................................................................................................................6 1.4.STATEMENTOFTHEMEASUREMENTUNCERTAINTY.....................................................................................................................6 2.GENERALINFORMATION.................................................................................................................................................8 2.1.ENVIRONMENTALCONDITIONS...............................................................................................................................................8 2.2.GENERALDESCRIPTIONOFEUT.............................................................................................................................................8 2.3.DESCRIPTIONOFTESTMODESANDTESTFREQUENCY................................................................................................................9 2.4.EQUIPMENTSUSEDDURINGTHETEST..................................................................................................................................10 2.5.RELATEDSUBMITTAL(S)/GRANT(S)....................................................................................................................................11 2.6.MODIFICATIONS................................................................................................................................................................11 3.TESTCONDITIONSANDRESULTS..................................................................................................................................12 3.1.CONDUCTEDEMISSIONSTEST..............................................................................................................................................12 3.2.RADIATEDEMISSIONSANDBANDEDGE.................................................................................................................................15 3.3.MAXIMUMCONDUCTEDOUTPUTPOWER.............................................................................................................................29 3.4.POWERSPECTRALDENSITY.................................................................................................................................................30 3.5.6DBBANDWIDTH..............................................................................................................................................................31 3.6.OUT-…

Text truncated - open the document above for the full version.

ShenzhenCTLTestingTechnologyCo.,Ltd. Floor1-A,BaishaTechnologyPark,No.3011,ShahexiRoad,NanshanDistrict,Shenzhen,China518055 Tel:+86-755-89486194E-mail:[email protected] AnnexforBLE TestReportNo.:CTL2405232052-WF TABLEOFCONTENTS 1.Bandwidth................................................................................................................................................3 1.1TestResult.....................................................................................................................................3 1.1.1OBW....................................................................................................................................3 1.1.26dBBW................................................................................................................................3 1.2TestGraph.....................................................................................................................................4 1.2.1OBW....................................................................................................................................4 1.2.26dBBW................................................................................................................................6 2.MaximumConductedOutputPower.......................................................................................................8 2.1TestResult.....................................................................................................................................8 2.1.1Power...................................................................................................................................8 2.2TestGraph.....................................................................................................................................9 2.2.1Power...................................................................................................................................9 3.MaximumPowerSpectralDensity........................................................................................................11 3.1TestResult...................................................................................................................................11 3.1.1PSD...................................................................................................................................11 3.2TestGraph...................................................................................................................................12 3.2.1PSD...................................................................................................................................12 4.UnwantedEmissionsInNon-restrictedFrequencyBands...................................................................14 4.1TestResult...................................................................................................................................14 AnnexforBLETestReportNo.:CTL2405232052-WF FCCID:2BKHF-RT-WRLSSBRBS 4.1.1Ref.....................................................................................................................................14 4.1.2CSE...................................................................................................................................14 4.2TestGraph...................................................................................................................................15 4.2.1Ref.....................................................................................................................................15 4.2.2CSE...................................................................................................................................17 AnnexforBLETestReportNo.:CTL2405232052-WF FCCID:2BKHF-RT-WRLSSBRBS Page3/19 1.Bandwidth 1.1TestResult 1.1.1OBW Mode TX Type Frequency (MHz) ANT 99%OccupiedBandwidth(MHz) Verdict ResultLimit 1MSISO 240211.120/Pass 244011.085/Pass 248011.078/Pass 1.1.26dBBW Mode TX Type Frequency (MHz) ANT 6dBBandwidth(MHz) Verdict ResultLimit 1MSISO 240210.818>=0.5Pass 244010.745>=0.5Pass 248010.752>=0.5Pass AnnexforBLETestReportNo.:CTL2405232052-WF FCCID:2BKHF-RT-WRLSSBRBS Page4/19 1.2TestGraph 1.2.1OBW 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV AnnexforBLETestReportNo.:CTL2405232052-WF FCCID:2BKHF-RT-WRLSSBRBS Page5/19 1M_HCH_2480MHz_Ant1_NTNV AnnexforBLETestReportNo.:CTL2405232052-WF FCCID:2BKHF-RT-WRLSSBRBS Page6/19 1.2.26dBBW 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV AnnexforBLETestReportNo.:CTL2405232052-WF FCCID:2BKHF-RT-WRLSSBRBS Page7/19 1M_HCH_2480MHz_Ant1_NTNV AnnexforBLETestReportNo.:CTL2405232052-WF FCCID:2BKHF-RT-WRLSSBRBS Page8/19 2.MaximumConductedOutputPower 2.1TestResult 2.1.1Power Mode TX Type Frequency (MHz) MaximumPeakConductedOutputPower(dBm) Verdict ANT1Limit 1MSISO 2402-1.31<=30Pass 2440-0.66<=30Pass 2480-1.22<=30Pass Note1:AntennaGain:Ant1:-1.00dBi; AnnexforBLETestReportNo.:CTL2405232052-WF FCCID:2BKHF-RT-WRLSSBRBS Page9/19 2.2TestGraph 2.2.1Power 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV AnnexforBLETestReportNo.:CTL2405232052-WF FCCID:2BKHF-RT-WRLSSBRBS Page10/19 1M_HCH_2480MHz_Ant1_NTNV AnnexforBLETestReportNo.:CTL2405232052-WF FCCID:2BKHF-RT-WRLSSBRBS Page11/19 3.MaximumPowerSpectralDensity 3.1TestResult 3.1.1PSD Mode TX Type Frequency (MHz) MaximumPSD(dBm/3kHz) Verdict ANT1Limit 1MSISO 2402-17.34<=8Pass 2440-17.40<=8Pass 2480-17.72<=8Pass Note1:AntennaGain:Ant1:-1.00dBi; AnnexforBLETestReportNo.:CTL2405232052-WF FCCID:2BKHF-RT-WRLSSBRBS Page12/19 3.2TestGraph 3.2.1PSD 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV AnnexforBLETestReportNo.:CTL2405232052-WF FCCID:2BKHF-RT-WRLSSBRBS Page13/19 1M_HCH_2480MHz_Ant1_NTNV AnnexforBLETestReportNo.:CTL2405232052-WF FCCID:2BKHF-RT-WRLSSBRBS Page14/19 4.UnwantedEmissionsInNon-restrictedFrequencyBands 4.1TestResult 4.1.1Ref Mode TX Type Frequency (MHz) ANT LevelofReference (dBm) 1MSISO 24021-2.22 24401-1.56 24801-2.10 Note1:RefertoFCCPart15.247(d)andANSIC63.10-2013,…

Text truncated - open the document above for the full version.

FCCID:2BKHF-RT-WRLSSBRBSPage 1 of 2 ReportNo.:CTL2405232052-WF TestSetupPhotosoftheEUT FCCID:2BKHF-RT-WRLSSBRBSPage 2 of 2 ReportNo.:CTL2405232052-WF
