2BKI3-LT-AMD01Laptop

WAKARI SOLUTIONS, S.L. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 9/4/24 U.S. Agent Designation WAKARI SOLUTIONS, S.L. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BKI3-LT- AMD01): Name and company of U.S. agent: FCC US Agent, LLC Physical U.S. address of agent: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA FRN of U.S. agent: 0033402884 Email address of U.S. agent: [email protected] FCC US Agent, LLC acknowledges their obligation to accept service of process on behalf of WAKARI SOLUTIONS, S.L.. WAKARI SOLUTIONS, S.L. with the FRN 0035852680 accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission- related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Carlos Javier Munoz Robles Administrator WAKARI SOLUTIONS, S.L. Signature Tim Payne Manager FCC US Agent, LLC 48_[model] US_Agent_2.911(d)(7) - U, V05

Covered Equipment Attestation Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(i)-(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name 2BKI3-LT-AMD01 LT-AMD 01 We, Applicant Company Name: WAKARI SOLUTIONS, S.L. Address: Buenos Aires, 3 - Las Palmas de Gran Canaria 35002, Spain Phone: +34-616462080 certify that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. This includes the cybersecurity and anti-virus software produced or provided by Kaspersky Lab, Inc.. We certify that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. If you have any questions, please feel free to contact us at the address shown below. Sincerely, 2024-09-04 Signature Date Name / Title: Carlos Javier Munoz Robles / Administrator Company: WAKARI SOLUTIONS, S.L. Address: Buenos Aires, 3 - Las Palmas de Gran Canaria 35002, Spain Phone: +34-616462080 Fax: +34-616462080 E-Mail: [email protected]

Confidentiality Request Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request confidentiality for the documentation of the following products: FCC ID Model name 2BKI3-LT-AMD01 LT-AMD 01 For the products listed above, we request permanent confidentiality for all applicable exhibits as there are: • the Operational Description • the Block Diagram • the Schematics • the Part List • the Tune up Information The above listed exhibits contain trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact us at the address shown below. Sincerely, 2024-09-04 Signature Date Name / Title: Carlos Javier Munoz Robles / Administrator Company: WAKARI SOLUTIONS, S.L. Address: Buenos Aires, 3 - Las Palmas de Gran Canaria 35002, Spain Phone: +34-616462080 Fax: +34-616462080 E-Mail: [email protected]

Page 1 of 1 Rev.2.0 WAKARI SOLUTIONS, S.L. WIFI Channel 12 and 13 Declaration Letter We declare the equipment identified below with regards to Channel 12 and 13 capabilities for FCC ID: 2BKI3-LT-AMD01 Declaration Product hardware does not have the capability to operate on Channel 12 and 13. Product hardware has the capability to operate on Channel 12 and 13. However, these two channels will be disabled via software and will not be accessible to user. Product hardware has the capability to operate on Channel 12 and 13. However, all the operated channels can’t be changed in the RF parameter via software. All channels have complied with all of the requirements sets out in FCC Part 15.247. Product hardware has the capability to operate on WiFi Channel 12 and 13, and meets the requirements of KDB 594280 D01 v02r01. Please note: 1.) By default, this device operates in a mode that is compliant with the U.S. requirements. 2.) This device will also use supplemental information such as geo- location data to determine that it is operating outside the U.S., if necessary, to change its power. Such supplemental data will be derived from the following: Global Navigation Satellite System (GNSS)7 sensors in the device Mobile Country Code (MCC),8 or MCC with a Mobile Network code (MNC), received from a CMRS9 carrier and received directly by a receiver on the device Country information derived from multiple adjacent access points (for example using IEEE Std 802.11d provisions) may be permitted on case-by-case basis Other suitable geo-location data based on IP addresses or other reliable source. Name / Title: Carlos Javier Munoz Robles / Administrator Signature: Phone: +34-616462080 Email: [email protected] Date: 2024-09-04

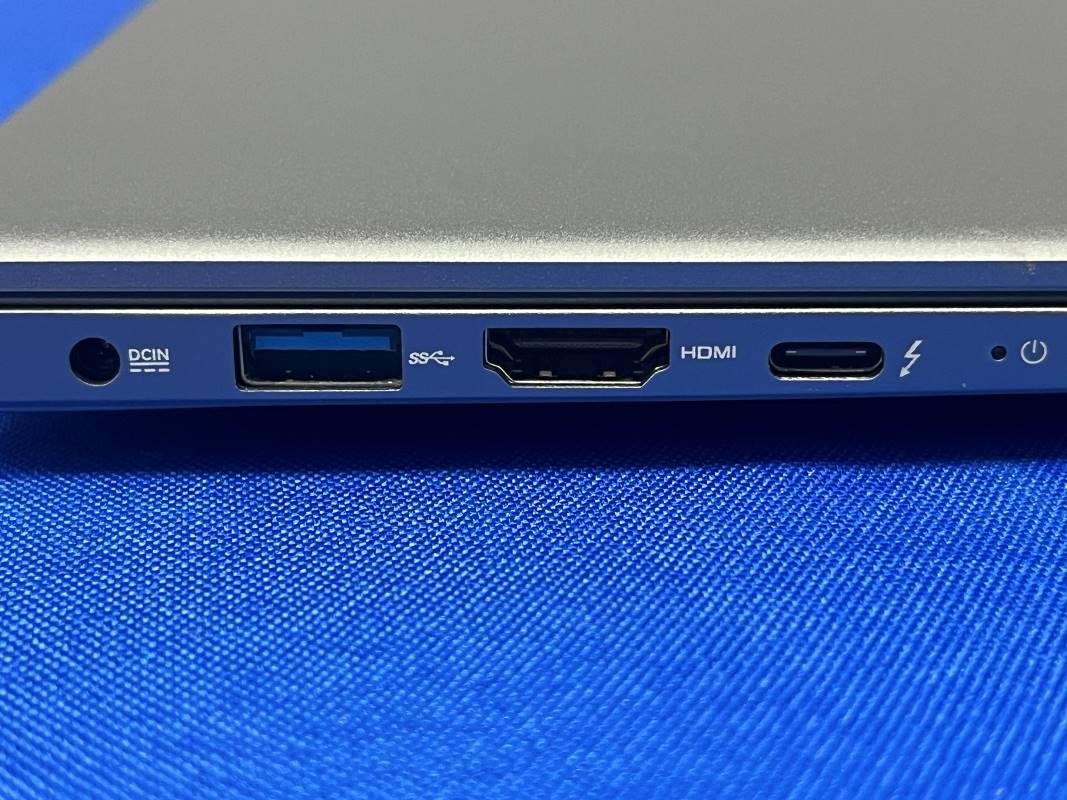

Page1of5FCCID:2BKI3-LT-AMD01 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity ExternalPhotosoftheEUT Fig.1 Fig.2 Page2of5FCCID:2BKI3-LT-AMD01 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.3 Fig.4 Page3of5FCCID:2BKI3-LT-AMD01 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.5 Fig.6 Page4of5FCCID:2BKI3-LT-AMD01 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.7 Fig.8 Page5of5FCCID:2BKI3-LT-AMD01 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.9 Fig.10

Page1of1FCCID:2BKI3-LT-AMD01 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity LABELANDLOCATION (Size:L4.0cmxW2.0cm) LabelLocation Laptop Model:LT-AMD01 FCCID:2BKI3-LT-AMD01

Page1of4FCCID:2BKI3-LT-AMD01ReportNo.:LCSA08024009EB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity AppendixA DetailedSystemCheckResults 1.SystemPerformanceCheck SystemPerformanceCheck2450MHzHead SystemPerformanceCheck5250MHzHead SystemPerformanceCheck5750MHzHead Page2of4FCCID:2BKI3-LT-AMD01ReportNo.:LCSA08024009EB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Page3of4FCCID:2BKI3-LT-AMD01ReportNo.:LCSA08024009EB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Page4of4FCCID:2BKI3-LT-AMD01ReportNo.:LCSA08024009EB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity

Page1of7FCCID:2BKI3-LT-AMD01ReportNo.:LCSA08024009EB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity AppendixB DetailedTestResults 1.WIFI WIFI2.4GHzforBody WIFI5.2GHzforBody WIFI5.8GHzforBody WIFI2.4G802.11b11CHRearside0mmAnt1 Date:2024/08/02 DUT:Laptop;Type:LT-AMD01;Serial:A240729120-1 TestLaboratory:LCS-SARLab ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity CommunicationSystem:UID0,WI-FI(2.4GHz)(0);Frequency:2462MHz;DutyCycle:1:1.008 Mediumparametersused:f=2462MHz;σ=1.832S/m;ε r =39.241;ρ=1000kg/m 3 Phantomsection:FlatSection DASYConfiguration: Probe:EX3DV4-SN3805;ConvF(7.42,7.42,7.42);Calibrated:2023/11/23; Sensor-Surface:2mm(MechanicalSurfaceDetection) Electronics:DAE3Sn373;Calibrated:2024/1/3 Phantom:ELIv5.0;Type:ELI;Serial:2010 DASY5252.8.8(1222);SEMCADX14.6.10(7331) Configuration/Body/AreaScan(10x16x1):Measurementgrid:dx=12mm,dy=12mm MaximumvalueofSAR(measured)=0.165W/kg Configuration/Body/ZoomScan(7x7x7)/Cube0:Measurementgrid:dx=5mm,dy=5mm,dz=5mm ReferenceValue=6.114V/m;PowerDrift=-0.15dB PeakSAR(extrapolated)=0.325W/kg SAR(1g)=0.466W/kg;SAR(10g)=0.225W/kg MaximumvalueofSAR(measured)=0.148W/kg 0dB=0.148W/kg=-8.30dBW/kg Date:2024/08/02 DUT:Laptop;Type:LT-AMD01;Serial:A240729120-1 TestLaboratory:LCS-SARLab WIFI2.4G802.11b1CHRearside0mmAnt2 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity CommunicationSystem:UID0,WI-FI(2.4GHz)(0);Frequency:2412MHz;DutyCycle:1:1.009 Mediumparametersused:f=2412MHz;σ=1.724S/m;ε r =39.965;ρ=1000kg/m 3 Phantomsection:FlatSection DASYConfiguration: Probe:EX3DV4-SN3805;ConvF(7.42,7.42,7.42);Calibrated:2023/11/23; Sensor-Surface:2mm(MechanicalSurfaceDetection) Electronics:DAE3Sn373;Calibrated:2024/1/3 Phantom:ELIv5.0;Type:ELI;Serial:2010 DASY5252.8.8(1222);SEMCADX14.6.10(7331) Configuration/Body/AreaScan(10x11x1):Measurementgrid:dx=12mm,dy=12mm MaximumvalueofSAR(measured)=0.211W/kg Configuration/Body/ZoomScan(7x7x7)/Cube0:Measurementgrid:dx=5mm,dy=5mm,dz=5mm ReferenceValue=7.985V/m;PowerDrift=0.04dB PeakSAR(extrapolated)=0.544W/kg SAR(1g)=0.378W/kg;SAR(10g)=0.119W/kg MaximumvalueofSAR(measured)=0.201W/kg 0dB=0.201W/kg=-6.97dBW/kg Date:2024/08/21 TestLaboratory:LCS-SARLab ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity WIFI5.2G802.11a36CHRearside0mmAnt1 DUT:Laptop;Type:LT-AMD01;Serial:A240729120-1 CommunicationSystem:UID0,WI-FI(5.2GHz)(0);Frequency:5180MHz;DutyCycle:1:1.058 Mediumparametersused:f=5180MHz;σ=4.763S/m;ε r =37.112;ρ=1000kg/m 3 Phantomsection:FlatSection DASYConfiguration: Probe:EX3DV4-SN3805;ConvF(5.38,5.38,5.38);Calibrated:2023/11/23; Sensor-Surface:2mm(MechanicalSurfaceDetection) Electronics:DAE3Sn373;Calibrated:2024/1/3 Phantom:ELIv5.0;Type:ELI;Serial:2010 DASY5252.8.8(1222);SEMCADX14.6.10(7331) Configuration/Body/AreaScan(12x13x1):Measurementgrid:dx=10mm,dy=10mm MaximumvalueofSAR(measured)=0.298W/kg Configuration/Body/ZoomScan(7x7x12)/Cube0:Measurementgrid:dx=4mm,dy=4mm,dz=2mm ReferenceValue=6.871V/m;PowerDrift=-0.12dB PeakSAR(extrapolated)=0.309W/kg SAR(1g)=0.345W/kg;SAR(10g)=0.162W/kg MaximumvalueofSAR(measured)=0.277W/kg 0dB=0.277W/kg=-5.58dBW/kg Date:2024/08/21 TestLaboratory:LCS-SARLab ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity WIFI5.2G802.11a48CHRearside0mmAnt2 DUT:Laptop;Type:LT-AMD01;Serial:A240729120-1 CommunicationSystem:UID0,WI-FI(5.2GHz)(0);Frequency:5240MHz;DutyCycle:1:1.058 Mediumparametersused:f=5240MHz;σ=4.587S/m;ε r =37.624;ρ=1000kg/m 3 Phantomsection:FlatSection DASYConfiguration: Probe:EX3DV4-SN3805;ConvF(5.38,5.38,5.38);Calibrated:2023/11/23; Sensor-Surface:2mm(MechanicalSurfaceDetection) Electronics:DAE3Sn373;Calibrated:2024/1/3 Phantom:ELIv5.0;Type:ELI;Serial:2010 DASY5252.8.8(1222);SEMCADX14.6.10(7331) Configuration/Body/AreaScan(11x13x1):Measurementgrid:dx=10mm,dy=10mm MaximumvalueofSAR(measured)=0.254W/kg Configuration/Body/ZoomScan(7x7x12)/Cube0:Measurementgrid:dx=4mm,dy=4mm,dz=2mm ReferenceValue=4.215V/m;PowerDrift=-0.11dB PeakSAR(extrapolated)=0.274W/kg SAR(1g)=0.279W/kg;SAR(10g)=0.132W/kg MaximumvalueofSAR(measured)=0.234W/kg 0dB=0.234W/kg=-6.31dBW/kg Date:2024/08/21 TestLaboratory:LCS-SARLab ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity WIFI5.8G802.11a157CHRearside0mmAnt1 DUT:Laptop;Type:LT-AMD01;Serial:A240729120-1 CommunicationSystem:UID0,WI-FI(5.8GHz)(0);Frequency:5785MHz;DutyCycle:1:1.058 Mediumparametersused:f=5785MHz;σ=5.385S/m;ε r =35.185;ρ=1000kg/m 3 Phantomsection:FlatSection DASYConfiguration: Probe:EX3DV4-SN3805;ConvF(4.88,4.88,4.88);Calibrated:2023/11/23; Sensor-Surface:2mm(MechanicalSurfaceDetection) Electronics:DAE3Sn373;Calibrated:2024/1/3 Phantom:ELIv5.0;Type:ELI;Serial:2010 DASY5252.8.8(1222);SEMCADX14.6.10(7331) Configuration/Body/AreaScan(12x13x1):Measurementgrid:dx=10mm,dy=10mm MaximumvalueofSAR(measured)=0.132W/kg Configuration/Body/ZoomScan(7…

Text truncated - open the document above for the full version.

Page1of30FCCID:2BKI3-LT-AMD01ReportNo.:LCSA08024009EB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity AppendixC Calibrationcertificate 1.Dipole D2450V2-SN808(2023-10-23) D5GHzV2-SN1046(2023-10-23) 2.DAE DAE3-SN373(2024-01-03) 3.Probe EX3DV4-SN3805(2023-11-23) Page2of30FCCID:2BKI3-LT-AMD01ReportNo.:LCSA08024009EB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Page3of30FCCID:2BKI3-LT-AMD01ReportNo.:LCSA08024009EB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Page4of30FCCID:2BKI3-LT-AMD01ReportNo.:LCSA08024009EB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Page5of30FCCID:2BKI3-LT-AMD01ReportNo.:LCSA08024009EB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Page6of30FCCID:2BKI3-LT-AMD01ReportNo.:LCSA08024009EB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Page7of30FCCID:2BKI3-LT-AMD01ReportNo.:LCSA08024009EB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Page8of30FCCID:2BKI3-LT-AMD01ReportNo.:LCSA08024009EB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Page9of30FCCID:2BKI3-LT-AMD01ReportNo.:LCSA08024009EB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Page10of30FCCID:2BKI3-LT-AMD01ReportNo.: LCSA08024009EB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Page11of30FCCID:2BKI3-LT-AMD01ReportNo.: LCSA08024009EB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Page12of30FCCID:2BKI3-LT-AMD01ReportNo.: LCSA08024009EB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Page13of30FCCID:2BKI3-LT-AMD01ReportNo.: LCSA08024009EB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Page14of30FCCID:2BKI3-LT-AMD01ReportNo.: LCSA08024009EB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Page15of30FCCID:2BKI3-LT-AMD01ReportNo.: LCSA08024009EB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Page16of30FCCID:2BKI3-LT-AMD01ReportNo.: LCSA08024009EB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Page17of30FCCID:2BKI3-LT-AMD01ReportNo.: LCSA08024009EB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Page18of30FCCID:2BKI3-LT-AMD01ReportNo.: LCSA08024009EB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Page19of30FCCID:2BKI3-LT-AMD01ReportNo.: LCSA08024009EB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|…

Text truncated - open the document above for the full version.

Page1of48FCCID:2BKI3-LT-AMD01ReportNo.:LCSA08024009EB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity SARTESTREPORT For WAKARISOLUTIONS,S.L. Laptop TestModel:LT-AMD01 Preparedfor : WAKARISOLUTIONS,S.L. Address : BuenosAires,3-LasPalmasdeGranCanaria35002-SPAIN Preparedby : ShenzhenLCSComplianceTestingLaboratoryLtd. Address : 101,201BldgA&301BldgC,JujiIndustrialPark Yabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Dateofreceiptoftestsample : August02,2024 Numberoftestedsamples Samplenumber : : 1 A240729120-1 Serialnumber : Prototype DateofTest : August02,2024~August21,2024 DateofReport : August22,2024 Page2of48FCCID:2BKI3-LT-AMD01ReportNo.:LCSA08024009EB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity SARTESTREPORT ReportReferenceNo. ................... : LCSA08024009EB DateOfIssue..................................: January19,2023 TestingLaboratoryName.............: ShenzhenLCSComplianceTestingLaboratoryLtd. Address...............................................: 101,201BldgA&301BldgC,JujiIndustrialPark Yabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China TestingLocation/Procedure...........: FullapplicationofHarmonisedstandards ■ PartialapplicationofHarmonisedstandards □ Otherstandardtestingmethod□ Applicant’sName ........................ :WAKARISOLUTIONS,S.L. Address...........................................: BuenosAires,3-LasPalmasdeGranCanaria35002-SPAIN TestSpecification: Standard..........................................: FCC47CFR§2.1093,ANSI/IEEEC95.1-2019,IEEE1528-2013 TestReportFormNo. ................... : TRF-4-E-102A/0 TRFOriginator................................:ShenzhenLCSComplianceTestingLaboratoryLtd. MasterTRF ..................................... :Dated2014-09 ShenzhenLCSComplianceTestingLaboratoryLtd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongastheShenzhen LCSComplianceTestingLaboratoryLtd.isacknowledgedascopyrightownerandsourceofthematerial. ShenzhenLCSComplianceTestingLaboratoryLtd.takesnoresponsibilityforandwillnotassumeliabilityfor damagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoitsplacementandcontext. TestItemDescription.................: Laptop TradeMark ...................................... : FLESIP Model/TypeReference..................: LT-AMD01 Ratings ............................................. : Input:19.0V3.42A ForACAdapter:Input:100-240V~,50/60Hz,2.0A Output:19.0V3.42A,64.98W DC11.4VbyRechargeableLi-ionBattery,4700mAh Result ............................................. :Positive Compiledby:Supervisedby:Approvedby: JayZhan/Fileadministrators CaryLuo/TechniqueprincipalGavinLiang/Manager Page3of48FCCID:2BKI3-LT-AMD01ReportNo.:LCSA08024009EB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity SAR--TESTREPORT TestResultPositive Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetestlaboratory. TestReportNo.:LCSA08024009EB January19,2023 Dateofissue EUT........................................: Laptop Type/Model............................: LT-AMD01 Applicant..............................: WAKARISOLUTIONS,S.L. Address..................................: BuenosAires,3-LasPalmasdeGranCanaria35002-SPAIN Telephone..............................:/ Fax.........................................:/ Manufacturer.......................: WAKARISOLUTIONS,S.L. Address..................................: BuenosAires,3-LasPalmasdeGranCanaria35002-SPAIN Telephone..............................:/ Fax.........................................:/ Factory..................................: ShenzhenAdreamerEliteCo.,Ltd. Address..................................: Room403,Building3,BaolongSpecializedandSophisticated IndustrialPark,No.16BaolongThirdRoad,BaolongCommunity, BaolongStreet,LonggangDistrict,Shenzhen,China Telephone..............................:/ Fax.........................................:/ Page4of48FCCID:2BKI3-LT-AMD01ReportNo.:LCSA08024009EB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity RevisonHistory RevisionIssueDate RevisionContent RevisedBy 000January19,2023InitialIssue--- Page5of48FCCID:2BKI3-LT-AMD01ReportNo.:LCSA08024009EB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TABLEOFCONTENTS 1.TESTSTANDARDSANDTESTDESCRIPTION......................................................................................................................6 1.1.STATEMENTOFCOMPLIANCE..................................................................................................................................................6 1.2.TESTLOCATION.......................................................................................................................................................................7 1.3.TESTFACILITY.............................................................................…

Text truncated - open the document above for the full version.

ShenzhenKaipudeepcommunicationtechnologyCo.,LTD Antennaspecification customername：HuaYi projectname：PN1512 samplename：WIFIAntenna Color/Version：black/A Samplesigningdate：2024-08-01 □ROHS Nameofsupplier:ShenzhenKaipudeepcommunicationtechnologyCo.,LTD Supplieraddress:2ndFloor,YulongOfficeBuilding,LongchengIndustrialZone,No.440 LongguanAvenue,LonghuaNewDistrict,Shenzhen Phone:0755-29351613 E-mail:[email protected] 3.1:Antennastructurediagram 4.1Antennaperformance 4.1-1Specificationstandard Antennaoperatingfrequencybandin2400m-2500m,5150m-5850mresonance. 4.1-2Antennamatchingcircuit. 4.2VSWRtest 4.2-1TestSettings Thestandingwaveratio(VSWR)testdeviceisconnectedsuccessively:E571Bnetworkanalyzer→50 ohmcoaxiallineCable→150mmlongcopperpipe→testfixture. Processingoftestfixtures:Fromtheantenna50ohmtestpointonthePCBofthemachine,ahard cableleadstheSMA-Jconnectortothecoppertubewithachoke,andthenconnectstheother devicesinturn. 4.2-2voltagestandingwaveratiotest: Thefollowingtableshows:/WIFIantennaoperatingbandedgefrequencypointsstandingwaveratio: Fre(MHZ)24002500515055005850 VSWR1.351.751.955.111.96 4.2-3Passivetestresults Figure1:WIFIantennastandingwaveratio 4.2-3Antennapassiveparameters 4.2-4Overallactivetest data:WIFIantennatestdata

Page1of23FCCID:2BKI3-LT-AMD01ReportNo.:LCSA08024009EC ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity AppendixB RFTestDataforBTLE(ConductedMeasurement) ProductName:Laptop TestModel:LT-AMD01 EnvironmentalConditions Temperature: 23.8  C RelativeHumidity:52.1% ATMPressure:100.0kPa TestEngineer:EasonZhou Supervisedby:NickPeng Page2of23FCCID:2BKI3-LT-AMD01ReportNo.:LCSA08024009EC ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity B.1-6dBBandwidth ConditionModeFrequency(MHz)Antenna-6dBBandwidth(MHz)Limit-6dBBandwidth(MHz)Verdict NVNTBLE1M2402Ant10.649>=0.5Pass NVNTBLE1M2440Ant10.661>=0.5Pass NVNTBLE1M2480Ant10.653>=0.5Pass Page3of23FCCID:2BKI3-LT-AMD01ReportNo.:LCSA08024009EC ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TestGraphs -6dBBandwidthNVNTBLE1M2402MHzAnt1 -6dBBandwidthNVNTBLE1M2440MHzAnt1 Page4of23FCCID:2BKI3-LT-AMD01Repo…

Text truncated - open the document above for the full version.
