2BKID-CAW52Wireless Charging Pad

Beijing Renhejia Technology Co., Ltd Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: August 28, 2024 FCC ID:2BKID-CAW52 Ref. #1: Attestation Statements Part 2.911(d)(5)(i) Filing Beijing Renhejia Technology Co., Ltd certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Ref. #2: Attestation Statements Part 2.911(d)(5)(ii) Filing Beijing Renhejia Technology Co., Ltd certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Applicant: Beijing Renhejia Technology Co., Ltd Address: 403, 4th Floor, Building 1, No. 19 Beiyuan East Road, Chaoyang District, Beijing, China Contact Person: Lemon feng Tel.: +86-18211307641 Email: [email protected] Sincerely, Signature:

Beijing Renhejia Technology Co., Ltd U.S. Agent Letter of Attestation To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date: August 28, 2024 Ref: Attestation Statement – Part 2.911(d)(7) filing FCC ID:2BKID-CAW52 Beijing Renhejia Technology Co., Ltd(“the applicant”) certifies that, as of the date of the filing of the application, CLF Import and Export Limited (“the agent”) is our designated U.S. agent for service of process for the above reference FCC ID. The applicant accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges it is our responsibility to inform the FCC whenever the agent information changes. CLF Import and Export Limited ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: CLF Import and Export Limited FRN: 0033489683 Address: 1312 17th Street #692, Denver, CO 80202, United States Signature: Contact Person: David Chen Tel: +1 949 254 2565 Email: [email protected] Applicant Beijing Renhejia Technology Co., Ltd FRN: 0035848696 Address: 403, 4th Floor, Building 1, No. 19 Beiyuan East Road, Chaoyang District, Beijing, China Signature: Contact Person: Lemon feng Tel: +86-18211307641 Email: [email protected]

深圳市海圣欣技术有限公司承认书 (SHENZHENSHI HAISHENGXIN SEA.TECHNO LOGO.LTD.ADMITIT) 产品型号(ZGE MODEL):TX -A11 -2450 产品料号： 规格描述 (Spec. Desc.):0.08*24*3P*43*20.5*12TS*50*0.5 发行日期(Issue Date): 2020.1.10 工程部 签 署 (EngineeringInner signatures) HW -HSX 客 户 签 署 (Customer Signatures) 拟订 (Prepared By): 郑伟 初核 (Precheck By): 审核 (Checked By): 欧奇林 审核 (Checked By): 核准 (Approved By): 叶志鹏 核准 (Approved By): 1 修订历史记录 (Revision History) 客户料号(Cust. No.) 版本(REV): 0.1 产品型号(Prod. No.TX -A11-24页码(Page): 2/7 参考资料 (Reference data) 修订原因或初始发行 (Reason or issue) 修订内容描述 (Revision description) 版本(Rev.) 0.0 初始发行 Initial issue 无 There is no 日期(Date) 2020/1/10 工程变更通知 (ECN) 核准(App.) 版本(Rev.) 日期(Date) 工程变更通知 (ECN) 核准(App.) 版本(Rev.) 日期(Date) 工程变更通知 (ECN) 核准(App.) 版本(Rev.) 日期(Date) 工程变更通知 (ECN) 核准(App.) 版本(Rev.) 日期(Date) 工程变更通知 (ECN) 核准(App.) 版本(Rev.) 日期(Date) 工程变更通知 (ECN) 核准(App.) 版本(Rev.) 日期(Date) 工程变更通知 (ECN) 核准(App.) 版本(Rev.) 日期(Date) 工程变更通知 (ECN) 核准(App.) 2 材料清单 (Material List) 客户料号(Cust. No.)版本(REV): 0.1 产品型号(Prod. No.)TX-A11-24页码(Page): 3/7 项目 (Item) 描述(Description)认证(Certification) 部件名称 (Part Name) 属性 (Generic) 规格 (Spec.) UL No.FCCRoHsHF 1-1 线圈 coil 热风自沾线;12Ts Hot air self-dipping line; 12Ts Ф0.08*24*3PV 1-2 1-3 2-1 隔磁片 Magnetic separator 软磁 Soft magnetism 50*0.5MMV 2-2 2-3 3-1 泡沫棉 Foam cotton 耐温EVA Heat-resistant EVA 19*0.5mmV 3-2 3-3 4-1 4-2 定位胶 Positioning gel 高温（黄色 ） High temperature (yellow) 8mmV 4-3 信赖性测试(Reliablity Test) 项目 No. 描述 Description 测试条件 Test condition 数量 Q’ty 测试要求 Specification R-1 VibrationTest(package) Freq:10-55-10hz,Amp:1.5mm/min(repeat). Dir:X,Y,Z 1hr each 1 CARTON Visual inspection ok Electrical Testing ok R-2 Drop test(package) ISTA 2A1 CARTON Visual inspection ok Electrical Testing ok R-3 Mechanical strength test Static Direction:X,Y,Z(Each load:4.9N(0.5kgf)of 1 minute) 10PCS Visual inspection ok Electrical Testing ok R-4 High temperature and humidity test Storage in 45±2°C;, 90-95%RH chamber for 168hrs 10PCS Visual inspection ok Electrical Testing ok R-5 High temperature storage Storage in 105±2°C;chamber for 168hrs10PCS Visual inspection ok Electrical Testing ok R-6 Low temperature storage Storage in-40±2°C;chamber for 168hrs10PCS Visual inspection ok Electrical Testing ok R-7 Thermal cycle test Temp:-40±2°C/30min<->25±2°C/15min <- >105±2°C/30min; 100cycles 10PCS Visual inspection ok Electrical Testing ok R-8 high Solder reliability test Pot Pb free temp Dipping:245±10°C;time: 5±1sec.Solder coverage area: 90% min., solder flux : Pb free type,solder alloy : 10PCS Visual inspection ok Electrical Testing ok R-9 Heat Rating Current DC AMPS Idc(A) DC Current(A)that willcause approximate ΔT of40 10PCS Visual inspection ok Electrical Testing ok R-10 Saturation current DC AMPS Isat(A) DC Current(A)that will cause L0 to drop approximate 30% 10PCS Visual inspection ok Electrical Testing ok 3 电性规格 Electrical Specification 客户料号(Cust. No.) 版本(REV): 0.1 产品型号(Prod. No.) TX-A11-24页码(Page): 4/7 直流电阻及绕线参数(DCR and Winding data) 测试仪器(Test Equipment): JK2511; 25±2°C;50±10% RH 100KHZ/1V 测试名称 Name 起始 Start 结束 Finish 直流电阻(DCR)绕线参数(Winding Data) 正常值(Nor.)最大值(Max.)最小值(Min.) ±%单位(Unit) Turns mmΦDir. DCR1257.26056mΩ12CCW 电感量(Inductance) 测试仪器(Test Equipment): JK2517B; 25±2°C;50±10% RH 测试名称 Name 从 (From) 到 (To) 电感量(Inductance)测试条件(Test condition) 正常值(Nor.) ±%单位(Unit)频率(KHz)电压(Vol.) Turns mmΦDir. L126.1 10μH1001.012CCW Q值(Q factor) 测试仪器(Test Equipment): JK2517B; 25±2°C;50±10% RH 测试名称 Name 从 (From) 到 (To) Q值(Q factor) 测试条件(Test condition) 正常值(Nor.)单位(Unit)频率(KHz)电压(Vol.) Turns mmΦDir. Q12 44.8Q 1001.012CCW 测试环境条件(Environmental Conditions) 1.作业频率范围( Operation Frequency Range): 110.1-205KHz 2.作业湿度范围(Operation Humidity Range): 0~90%(without drop) 3.存放温度范围(Storage Temperature Range):-30~+80°C 4 机构规格 Mechanical Specification 客户料号(Cust.No)版本(REV):0.1 产品型号(Prod.No.)TX -A11 -24页码(Page):5/7 尺寸规格(Outline Dimension) ABCDEFGHI 尺寸(Dim.) 46.00 3.00 46.0 50.0 1.5 19.0 公差(Tol.) ±1±1±0.5±0.5±0.5±1 绕组图(Winding Diagram) 产品圈数(Turns) 圈数 (Turns公差(Tol.) P1100.1 产品重量(Weight) 重量(Wt.) 单位(Unit)公差(Tol.) P1g0.2 备注(Notes): J 版本(REV): 0.1 页码(Page): 5/7 尺寸规格(OutlineDimension) 绕组图(WindingDiagram) 产品圈数(Turns) 产品重量(Weight) 备注(Notes): J 样品测试数据 Sample Test Data 客户料号(Cust.No)版本(REV): 0.1 产品型号(Prod.No.)TX -A11 -24页码(Page): 6/7 电性测试数据(Electrical Test Data) No.1No.2No.3No.4No.5No.6No.7No.8No.9No.10 直流电阻(DCR ) 单位: mΩ 测试仪器(Test Equipment): JK2511; 25 ±2°C;50 ±10% RH DCR57.0 电感量(Inductance) 单位: μH 测试仪器(Test Equipment): JK2517B; 25 ±2°C;50 ±10% RH LS6.18 Q值 测试仪器(Test Equipment): JK2517B; 25±2°C;50±10% RH Q49.0 机构量测数据(Mechanical Measure Data) 位置(Pos.)单位: mm A46.3 B4 C46 D49.8 E1.54 F19.2 G H I 接受 Accept V 拒受 Reject 最终判定 Decided 7 包装规格 Packing Specification 客户料号(Cust.No)版本(REV): 0.1 产品型号(Prod.No.)TX-A11-24页码(Page): 7/7 □ 吸塑盘包装规格(Tray Packing) L355*W258*H16 备注： Note: 1.一个珍珠棉装200; A pearl cotton suit □ 纸箱包装规格(Carton Packing) L580*W430*H170 备注(Notes): 8

Beijing Renhejia Technology Co., Ltd Date: August 28, 2024 Product Model Number: CAW52 FCC ID:2BKID-CAW52 To whom it may concern, Re: Product Certification Representative Authorization Letter We authorize QAI Laboratories Ltd. 3980 North Fraser Way, Burnaby B.C. Canada V5J 5K5 to act on our behalf on all matters concerning the above named equipment. This shall include the following: • Testing • Approval applications and procedures We declare that QAI Laboratories Ltd. is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by QAI Laboratories Ltd. on our behalf shall have the same effect as acts of our own. By: Lemon feng Contact Listed on FCC Wesbite Title: Manager Email: [email protected] Telephone: +86-18211307641 On behalf of: Beijing Renhejia Technology Co., Ltd

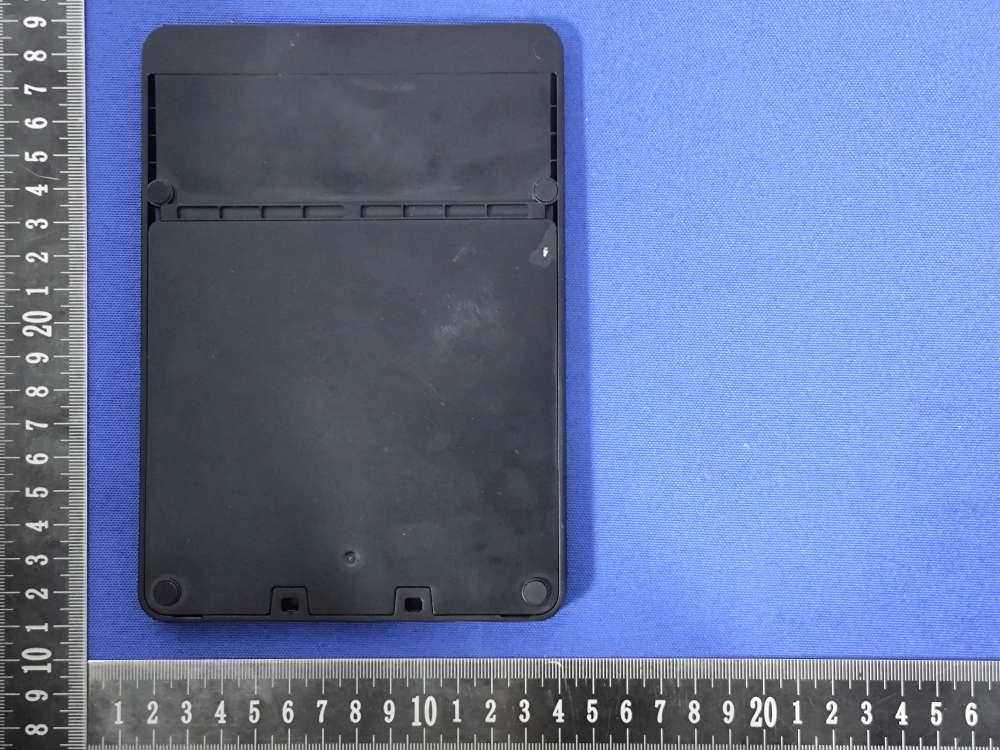

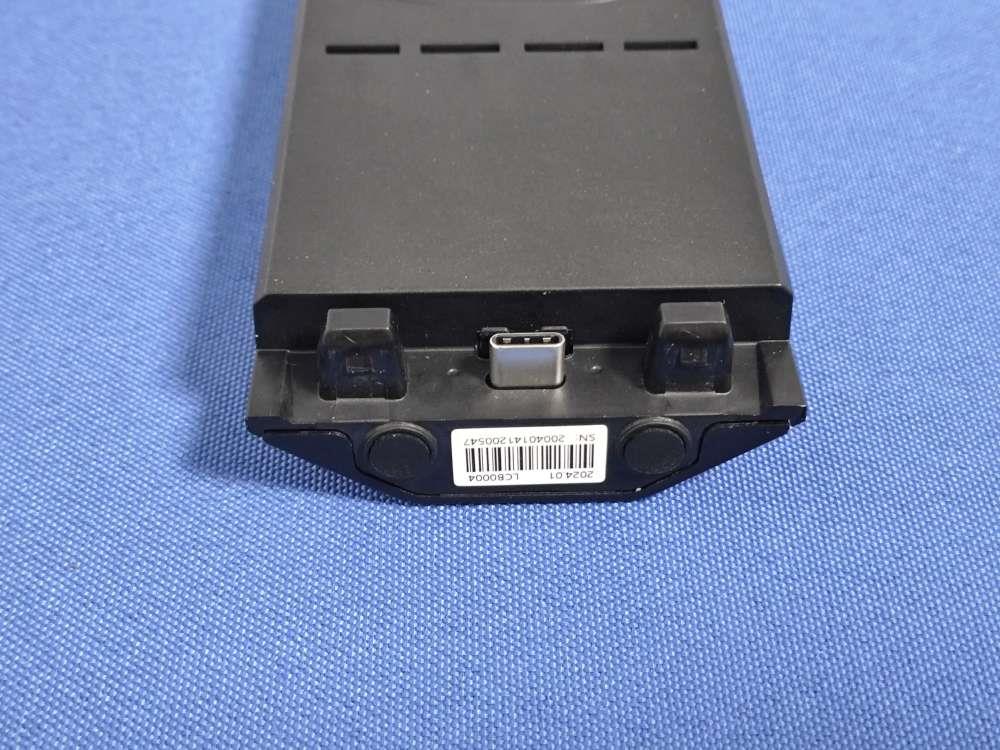

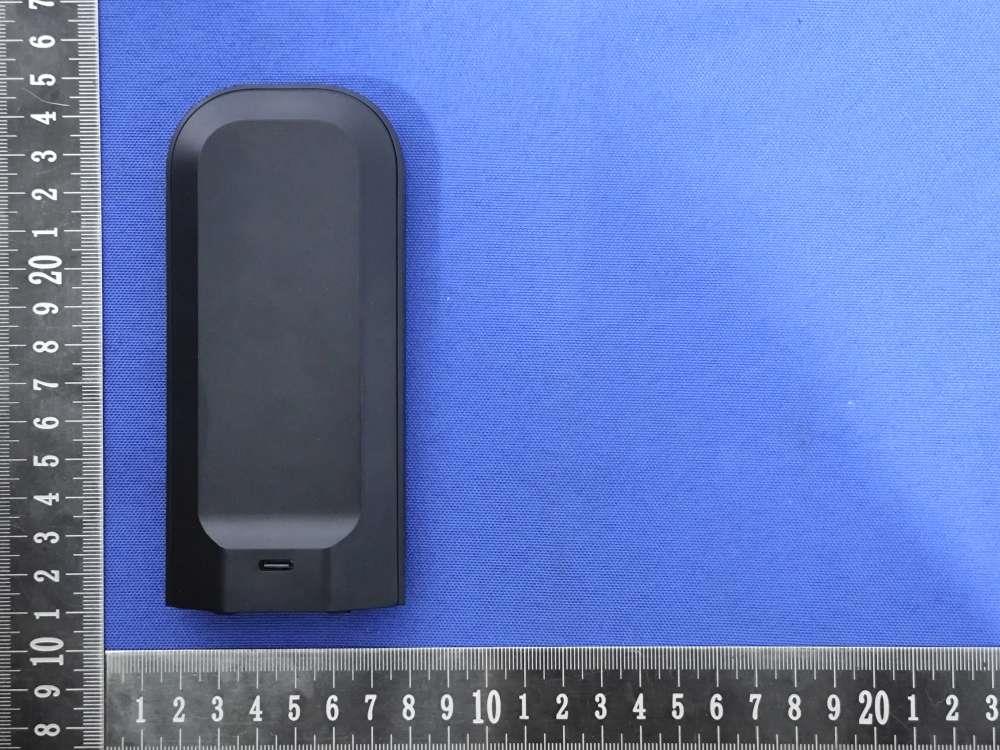

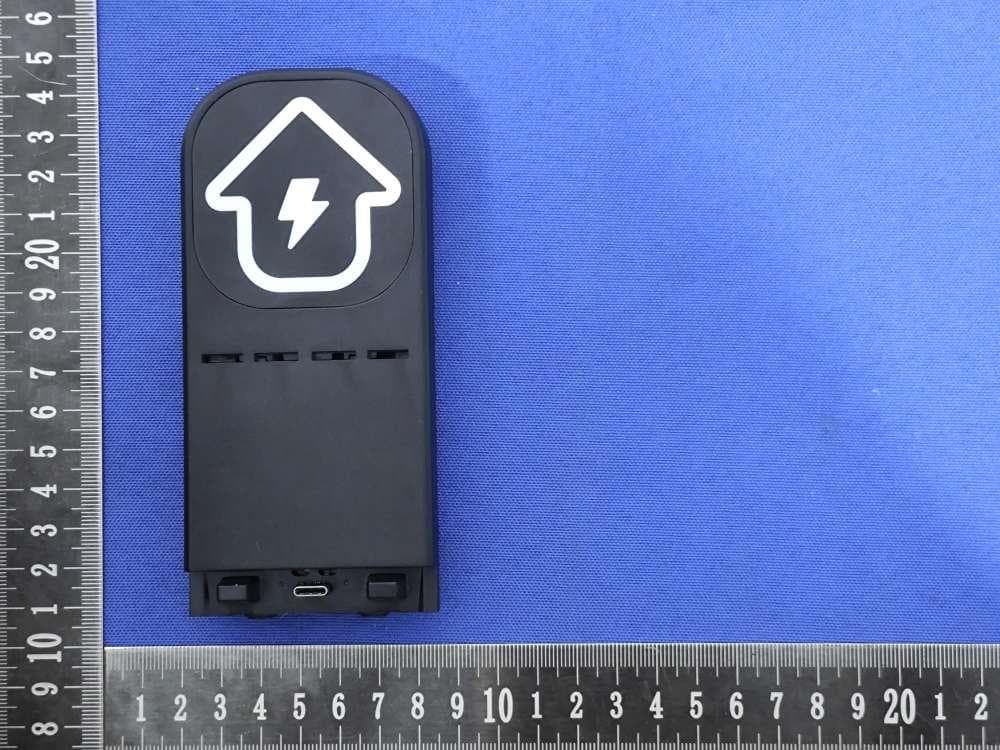

Report No: SSP24070377-1E FCC ID:2BKID-CAW52 Annex of Test Report Annex A. EUT External Photos EUT View 1 EUT View 2 Report No: SSP24070377-1E FCC ID:2BKID-CAW52 Annex of Test Report EUT View 3 EUT View 4 Report No: SSP24070377-1E FCC ID:2BKID-CAW52 Annex of Test Report EUT View 5 EUT View 6 Report No: SSP24070377-1E FCC ID:2BKID-CAW52 Annex of Test Report EUT View 7 EUT View 8 Report No: SSP24070377-1E FCC ID:2BKID-CAW52 Annex of Test Report EUT View 9 EUT View 10 Report No: SSP24070377-1E FCC ID:2BKID-CAW52 Annex of Test Report EUT View 11 EUT View 12 Report No: SSP24070377-1E FCC ID:2BKID-CAW52 Annex of Test Report EUT View 13 EUT View 14 Report No: SSP24070377-1E FCC ID:2BKID-CAW52 Annex of Test Report EUT View 15

Report No: SSP24070377-1E FCC ID:2BKID-CAW52 Annex of Test Report Annex D. Label and Information FCC Label Sample FCC Label Specifications Text is Black in color and is justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Where the EUT is constructed in two or more sections connected by wires and marketed together, the above statement is required to be affixed only to the main control unit. When the EUT is so small or for such use that it is not practicable to place the statement on it, the above information shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. FCC Label Location

FCC ID:2BKID-CAW52 RF Exposure Evaluation Product Name: Wireless Charging Pad Model No.: CAW52 Transmitting mode Keep the EUT in continuously wireless charging mode Power supply: Input: DC 9V/2A Wireless charging Output:10W (MAX) Test Modes: TM1 Wireless charging 10W Record Note: All modes have been tested and only the worst mode (Wireless Charging 10W) data is represented in the report. 1 Test Instruments list Software name Manufacturer Model Version EHP200-TS Narda EHP-200A Rel 1.95 Item Equipment No. Equipment name Manufacturer Model Serial No. Calibration date Due date 1 HB-E073 Electric and Magnetic Field Analyzer Narda EHP-200 A 180ZX1101 3 2024-05-21 2025-05-20 Note: the calibration interval of the above test instruments is 12 months and the calibrations are traceable to international system unit (SI). 2 Test Setup 3 Test Procedure 1) The RF exposure test was performed in anechoic chamber. 2) E and H-field measurements should be made with the center of the probe at a distance of 20m surrounding the device and 20 cm above the top surface of the primary/client pair. These measurements should be repeated for three different client battery levels, 1%, 50%, and 99%. 3) The highest emission level was recorded and compared with limit as soon as measurement of each points were completed. 4) The EUT was measured according to the dictates of KDB 680106 D01 v04. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) 4 Measuring Standard KDB 680106 D01 Wireless Power Transfer v04r01 5 Requirements According to the item 5 of KDB 680106 D01 Wireless Power Transfer v04r01: Inductive wireless power transfer applications that meet all of the following requirements are excluded from submitting an RF exposure evaluation. (1) The power transfer frequency is below 1MHz. Yes, the device operate in the frequency range from 110.1KHz to 205KHz. (2) The output power from each transmitting element (eg., coil) is less than or equal to 15 watts. Yes, the maximum output power of the primary coil is 10W. (3) A client device providing the maximum permitted load is placed in physical contact with the transmitter (i.e., the surfaces of the transmitter and client device enclosures need to be in physical contact) Yes, the surfaces of the transmitter and client device enclosures need to be in physical contact. (4) Only § 2.1091-Mobile exposure conditions apply (i.e., this provision does not cover § 2.1093-Portable exposure conditions). Yes, this device is a Mobile device. (5) The E-field and H-field strengths, at and beyond 20 cm surrounding the device surface, are demonstrated to be less than 50% of the applicable MPE limit, per KDB 447498, Table 1. These measurements shall be taken along the principal axes of the device, with one axis oriented along the direction of the estimated maximum field strength, and for three points per axis or until a 1/d (inverse distance from the emitter structure) field strength decay is observed. Symmetry considerations may be used for test reduction purposes. The device shall be operated in documented worst-case compliance scenarios (i.e., the ones that lead to the maximum field components), and while all the radiating structures (e.g., coils or antennas) that by design can simultaneously transmit are energized at their nominal maximum power. The EUT field strength levels are less 50% x MPE limit. (6) For systems with more than one radiating structure, the conditions specified in (5) must be met when the system is fully loaded (i.e., clients absorbing maximum power available), and with all the radiating structures operating at maximum power at the same time, as per design conditions. If the design allows one or more radiating structures to be powered at a higher level while other radiating structures are not powered, then those cases must be tested as well. For instance, a device may use three RF coils powered at 5 W, or one coil powered at 15 W: in this case, both scenarios shall be tested. This device has only one wireless charging coil. 6 Test Result Maximum permissible Exposure Battery levels Test sides Test distance(cm) E –field(V/m) H–field(A/m) <1% Top 20 2.471 0.322 <1% Left 20 4.252 0.220 <1% Right 20 6.345 0.478 <1% Front 20 3.674 0.186 <1% Back 20 1.733 0.135 Limit 614 1.63 50% Margin Limit 307 0.815 Maximum permissible Exposure Battery levels Test sides Test distance(cm) E –field(V/m) H–field(A/m) <50% Top 20 2.162 0.197 <50% Left 20 4.374 0.2352 <50% Right 20 6.155 0.271 <50% Front 20 3.856 0.176 <50% Back 20 1.384 0.175 Limit 614 1.63 50% Margin Limit 307 0.815 Maximum permissible Exposure Battery levels Test sides Test distance(cm) E –field(V/m) H–field(A/m) <99% Top 20 2.741 0.346 <99% Left 20 4.722 0.184 <99% Right 20 6.668 0.387 <99% Front 20 3.543 0.285 <99% Back 20 2.362 0.203 Limit 614 1.63 50% Margin Limit 307 0.815 7 Test Setup Photo

CCUT Testing & Certification Report No: SSP24070377-1E FCC Test Report Page 1 of 23 FCC TEST REPORT FCC ID:2BKID-CAW52 Report No. : SSP24070377-1E Applicant : Beijing Renhejia Technology Co., Ltd Product Name : Wireless Charging Pad Model Name : CAW52 Test Standard : FCC Part 15 Subpart C Date of Issue : 2024-08-14 Shenzhen CCUT Quality Technology Co., Ltd. 1F, Building 35, Changxing Technology Industrial Park, Yutang Street, Guangming District, Shenzhen, Guangdong, China; (Tel.:+86-755-23406590 website: www.ccuttest.com) This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd. CCUT Testing & Certification Report No: SSP24070377-1E FCC Test Report Page 2 of 23 Test Report Basic Information Applicant..................................: Beijing Renhejia Technology Co., Ltd Address of Applicant...............: 403, 4th Floor, Building 1, No. 19 Beiyuan East Road, Chaoyang District, Beijing, China Manufacturer..........................: Dongguan Scud Intelligent Technology Co., Ltd Address of Manufacturer........: No. 3 Sima Gongye 1st Road, Changping Town, Dongguan City, Guangdong Province Product Name.........................: Wireless Charging Pad Brand Name.............................: LeTianPai Main Model..............................: CAW52 Series Models..........................: - Test Standard..........................: FCC Part 15 Subpart C ANSI C63.4-2014 ANSI C63.10-2013 Date of Test .............................: 2024-08-08 to 2024-08-14 Test Result...............................: PASS Tested By ................................: (Coke Huang) Reviewed By............................: (Lieber Ouyang) Authorized Signatory............: (Lahm Peng) Note : This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd.. All test data presented in this test report is only applicable to presented test sample. CCUT Testing & Certification Report No: SSP24070377-1E FCC Test Report Page 3 of 23 CONTENTS 1. General Information ...................................................................................................................................................... 5 1.1 Product Information ............................................................................................................................................... 5 1.2 Test Setup Information ........................................................................................................................................... 6 1.3 Compliance Standards ............................................................................................................................................. 7 1.4 Test Facilities .......................................................................................................................................................... 7 1.5 List of Measurement Instruments ............................................................................................................................ 8 1.6 Measurement Uncertainty ....................................................................................................................................... 8 2. Summary of Test Results ............................................................................................................................................... 9 3. Antenna Requirement ................................................................................................................................................. 10 3.1 Standard and Limit................................................................................................................................................ 10 3.2 Test Result ............................................................................................................................................................ 10 4. Conducted Emissions................................................................................................................................................... 11 4.1 Standard and Limit................................................................................................................................................ 11 4.2 Test Procedure ...................................................................................................................................................... 11 4.3 Test Data and Results ............................................................................................................................................ 12 5. Radiated Emissions ..................................................................................................................................................... 15 5.1 Standard and Limit................................................................................................................................................ 15 5.2 Test Procedure ...................................................................................................................................................... 15 5.3 Test Data and Results ............................................................................................................................................ 17 6. Occupied Bandwidth ................................................................................................................................................... 22 6.1 Standard and Limit................................................................................................................................................ 22 6.2 Test Procedure ...................................................................................................................................................... 22 6.3 Test Data and Results ................................…
