2BKJZ-Y-01CD PLAYER

Y-01CDPlayer USERMANUAL Note:Pleasecarefullyreadtheusermanualbeforeusing. 01 QuickGuide DIRECTORY EN01-07 DE08-15 FR16-23 IT24-31 ES32-39 1.Presslightlyonthenotchedpositionofthedustcoverandthecoverwillpopuptoopenthe cover. 2.Thenremovethemovementdustcard. 3.ConnectthepowercordtotheType-CchargingportoftheCDplayer,inserttheUSBhead intotheUSBfemalesocketofthe5Vpoweradapter,andthenplugtheadapterintoapower outlet. 4.PuttheCD,CD-R,CD-RW,CD-MP3,CD-WMAdiscintothemovementdisctrayandflattenit, turnonthetoggleswitch,andthediscwillrotatetoplaythebeautifulandmelodioussongs. 5.MODEbutton:shortpresscanswitchCDmode/USBmode/FMmode/BTBluetoothmode. 6.Volume-button:shortpresscanreducethevolumebyoneframe,longpresscanreducethe volumequickly. 7.Volume+button:shortpresscanaddonevolume,longpresscanquicklyaddvolume. 8.Previoussongbutton:shortpresscanplaytheprevioussong,longpresscanfastback. 9.Nextsongbutton:shortpresscanplaythenextsong,longpresscanfastforward. 10.Play/Pausebutton:Shortpresstopause/play.InCD/USBmode,holddownfor3seconds toenterBluetoothlaunch/exitmode.InBluetoothmode,pressandholdfor3secondstoenter Bluetoothreceivingmode. 11.Powerindicator:redlightwillbeonwhencharging,redlightwillbeoffwhenfullycharged. 12.AfterenteringtheBluetoothtransmissionmode,theindicatorlightstartsblinkingrapidly, signifyingit'swaitingfortheBluetoothheadsettoconnect.Onceasuccessfulconnectionis established,theindicatorlightswitchestoaslowerblink.Inthismode,ashortpressofthe MODEbuttoncanonlyswitchbetweenCDmodeandUSBmode.ToexittheBluetooth transmissionmode,youmustlongpressthePlay/Pausebuttonfor3seconds.Afterexitingthe Bluetoothtransmissionmode,ashortpressoftheMODEbuttonallowsyoutoswitchbetween CDmode,USBmode,Emode,andBTmode. 13.PressandholdtheMODEkeyformorethan8seconds,andthemachinewillenterthereset state. NOTE 1.PleaseusetheplayermatchingadapterDC-5V/2A,pleasedonotuseotheradaptersto avoidburningtheplayerwithoutwarranty. 2.Whennotinuseforalongtime,pleaseplaceaCDdiscorinstallthesupplieddustcardto preventdustfromenteringtheCDplayer. 3.DonotusecrackedordamagedCDdiscs.Donottouchthediscreaderswithyourhands. 4.Ifyoucan'treadthecontentsoftheUSBdiscinUSBmode,pleasecheckwhetherthe USBdiscisdamagedorwhethertheformatofthecontentsofthesongsinsideissupported. 5.Thelaserheadpartofthemachinemovementisdust-proofandfume-proof,pleasedo notlookdirectlyatthelaserheadofthemachinemovementwhenitisswitchedontoavoid damagetoyoureyes. U K 0203 Installationinstructions ProductParameterMainFeatures Deskstand 1.Fixthewall-mountedplateonthewallwiththeincluded4screws 2.HangtheCDPlayeronthewall-mountedplate PowerindicatorPowerswitch ModeVolume- Volume+ Previoussong /fastback Play/ pause Nextsong/ fastforward Desktopstand 1.ThedesktopstandisbuiltintothebackoftheCDplayer. 2.Liftthedesktopstandoutwards,opentheangletothemaximum,andsupportitverticallyon thedesktop. CDformatsupport USBsupportformat FMRadioRange Ratedimpedance Speakeroutput Ratedvoltage/current Batterycapacity Chargingtime CD,CD-R,CD-RW,CD-MP3,CD-WMA UBS2.0 76.0MHz-108.0MHz 4Ω 3Wx2 5V/2A 1800mAh about3.5hours USB port Earphones port Type-c chargingport 0405 RemoteControlButtonDescriptionCDModeInstructions + - USB Volume+/- Previous/Next Play/Pause USBmode PresstheCDbuttonontheremotetoswitchtoCDmodeorswitchthe“Mode”key(onthe device)toCDmode.PuttheCD,CD-R,CD-RW,CD-MP3,CD-WMAdiscintothemovement disctrayandflattenit,andthediscrotatestoplayabeautifulandbeautifulsong. USBModeInstructions PluginaU-disktotheCDPlayerUSBport.PressUSBbuttonontheremotetoswitchtoUSB modeorswitchthe“Mode”key(onthedevice)totheUSBmode.ThegreenLEDblinkstoread NOTE: STOP CD 0-9 REPEAT A-B OFF FM Stopplaying CDmode Selectiondigitalarea Singletrackrepeat/ Randomplay/ Normalplayback/ Fulltrackrepeat A-BRepeat PowerOFF FM/Searching Mute Bluetoothmode thecontentsoftheUSBmemorystick,thegreenLEDisalwaysontoplaythecontentsofthe USBmemorystick,andtheredLEDisalwaysoniftheUSBmemorystickisnotrecognised. audiooutput：InCD/USBmode,pluginthe3.5mmaudiocable,theCD'sownspeakerswill automaticallystopworking,andthentheaudiowillbetransmittedtotheexternalheadphone/- speakerdevicethroughtheaudiocable. FMModeInstructions 1.PressFM/SHbuttonontheremotetoswitchtoFMmodeorswitchthe“Mode”key(onthe device)totheFMmode. 2.Thenpressplay/pausebutton,theCDPlayerwillsearchallradiostationsanditwillautomati- callystorethestationsiftherearesuchenoughstationsaround;Aftercompletedthesearching, itwillplaythefirststation. 3.Press<Prev>or<Next>buttontogotopreviousstationornextstation. A-BRepeatFunction TheA-BRepeatfunctionenablesplaybacktoaspecificsectionrepeatedlybysettingthestart point(A)andendpoint(B)forthesection. 1.PressA-Bbuttonontheremotetosetthestartpoint(A)whileplaying. 2.PressA-Bbuttonontheremotetosettheendpoint(B)whileplaying. 3.ThenthespecifiedsectionfromAtoBwillbeplayedbackrepeatedly. 1.Beforeuse,unplugtheinsulatingpieceatthebottomoftheremotecontroltouseit. 2.Note:Whenoperatingtheremotecontrol,theremotecontrolshouldbefacingthefrontofthe player. 4.PressA-BbuttonagaintoexitABrepeat. 5.Note:A-BRepeatfunctiononlyworksonCD,USBmode. + - 1 4 7 VOL USBSTOPCD 2 5 8 3 6 9 REPEAT A-B 0 OFF FM PlayMovingMusic 07 06 BluetoothTransmitModeInstructions Troubleshooting Indicatorlightstatus BluetoothReceiveModeInstructions 1.PressBluetoothbuttonontheremotetoswitchtoBluetoothmodeorswitchthe“Mode”key (onthedevice)totheBluetoothmode,thentheCDPlayerwillbereadytopairotherBluetooth devicessuchasmobilephones,padsetc.,anditsindicatorlightcolorwillchangetodarkblue. 2.Longpress3splay/pausebuttontoactivateBluetoothReceiveMode. 3.ActivatetheBluetoothinyourmobilephoneandchoosethenamed“Y-01”deviceinyour mobilephoneBluetoothdevicelisttopair. 4.Yourmobilephonewillbepaired/connectedtotheCDPlayerinafewseconds. 5.PlayingmusiconyourmobilephoneandtheaudiowillbetransmittedtotheCDPlayer speakerthroughBluetooth. 1.PresstheCD/USBbuttonontheremotetoswitchtoCDmodeorswitchthe“Mode”key(on thedevice)toCD/USBmode,thentheCDPlayerwillbereadytopairotherBluetoothdevices suchasearphones. 2.Longpress3splay/pausebuttontoac…

Text truncated - open the document above for the full version.

SampleAttestationStatement-FCC Date:Sep.02,2024 FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,Maryland21046 Re:Attestationregarding‘covered’equipmentandtheCoveredList FCCID:2BKJZ-Y-01 Towhomitmayconcern, Per2.911(d)(5)(i),[ShenzhenWeichuangTimesTechnologyCo.,Ltd.]certifiesthatthe equipmentforwhichauthorizationissoughtisnot“covered”equipmentprohibitedfromreceiving anequipmentauthorizationpursuanttosection2.903oftheFCCrules. Per2.911(d)(5)(ii),[ShenzhenWeichuangTimesTechnologyCo.,Ltd.]certifiesthat,asofthe dateofthefilingoftheapplication,theapplicant[is]identifiedontheCoveredListasanentity producing“covered”equipment. PerKDB986446D01v03sectionB,2a,[[ShenzhenWeichuangTimesTechnologyCo.,Ltd.] certifiesthattheequipmentforthisapplicationdoesnotcontainKasperskycybersecurityoranti- virussoftware. Sincerely, Signature: PrintedName:farongChen Company:ShenzhenWeichuangTimesTechnologyCo.,Ltd. JobTitle:Manager Email:[email protected] Telephone:17260025020

ShenzhenWeichuangTimesTechnologyCo.,Ltd. LetterofAgency Date：Sep.02,2024 ElementMaterialsTechnology 100FrobisherBusinessPark Malvern Worcestershire WR141BX UK FCCID:2BKJZ-Y-01 ToWhomItMayConcern: Wecertifythatwearenotsubjecttodenialoffederalbenefits,thatincludesFCCbenefits, pursuanttoSection5301oftheAnti-DrugAbuseACTof1988,U.S.C.862.Further,noparty,as definedin47CFR1.2002(b),totheapplication,issubjecttodenialoffederalbenefits,that includesFCCbenefits. Thankyouforyourattentiontothismatter. Sincerelyyours, Signature: PrintedName:farongChen Company:ShenzhenWeichuangTimesTechnologyCo.,Ltd. JobTitle:Manager Email:[email protected] Telephone:17260025020

ShenzhenWeichuangTimesTechnologyCo.,Ltd. RequestforConfidentialityLetter-FCC Date：Sep.02,2024 FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,Maryland21046 Re:Requestforconfidentiality FCCID:2BKJZ-Y-01 Towhomitmayconcern, Weherebyrespectfullyrequestthatundertheprovisionof47CFR0.459and0.457(d)the documentslistedbelowandattachedwiththisapplicationforcertificationbeprovidedwith confidentialstatus.  Schematics.pdf OperationalDescription.pdf  FrequencyBlockDiagrams.pdf Anyexhibit/informationforwhichwehaverequestedconfidentiality,butwhichmaynotbe accordedsuchtreatmentbytheFCC,shouldbereturnedtous. Thedocumentslistedabovecontaintradesecretsthataretreatedasconfidentialbyus. Substantialcompetitiveharmtouscouldresultshouldtheybemadeavailabletothepublic. Sincerely, Signature: PrintedName:farongChen Company: ShenzhenWeichuangTimesTechnologyCo.,Ltd. JobTitle:Manager Email:[email protected] Telephone:17260025020

ShenzhenWeichuangTimesTechnologyCo.,Ltd. Date:Sep.02,2024 Subject:authorizationforaddingfamilymodels FCCID:2BKJZ-Y-01 TowhomitMayconcern, WewouldliketoconfirmtheCDPLAYERWithModels(Y-01,Y-02,Y-03,Y-04,H-01,X-01,B-03, B-04) herebystatethatallthemodelsareelectricalidenticalincludingthesamesoftwareparameter andhardwaredesign(i.e.,circuitdesign,PCBLayout,RFmodule/circuit,antennatype(s)and antennalocation,componentsonPCB,etc.,),samemechanicalstructureanddesign(including productenclosure,materials,etc.,),theonlydifferenceisthemodelname(themodelname variesindifferentsalesareas) Yourssincerely, Signature: PrintedName:farongChen Company:ShenzhenWeichuangTimesTechnologyCo.,Ltd. JobTitle:Manager Email:[email protected] Telephone:17260025020

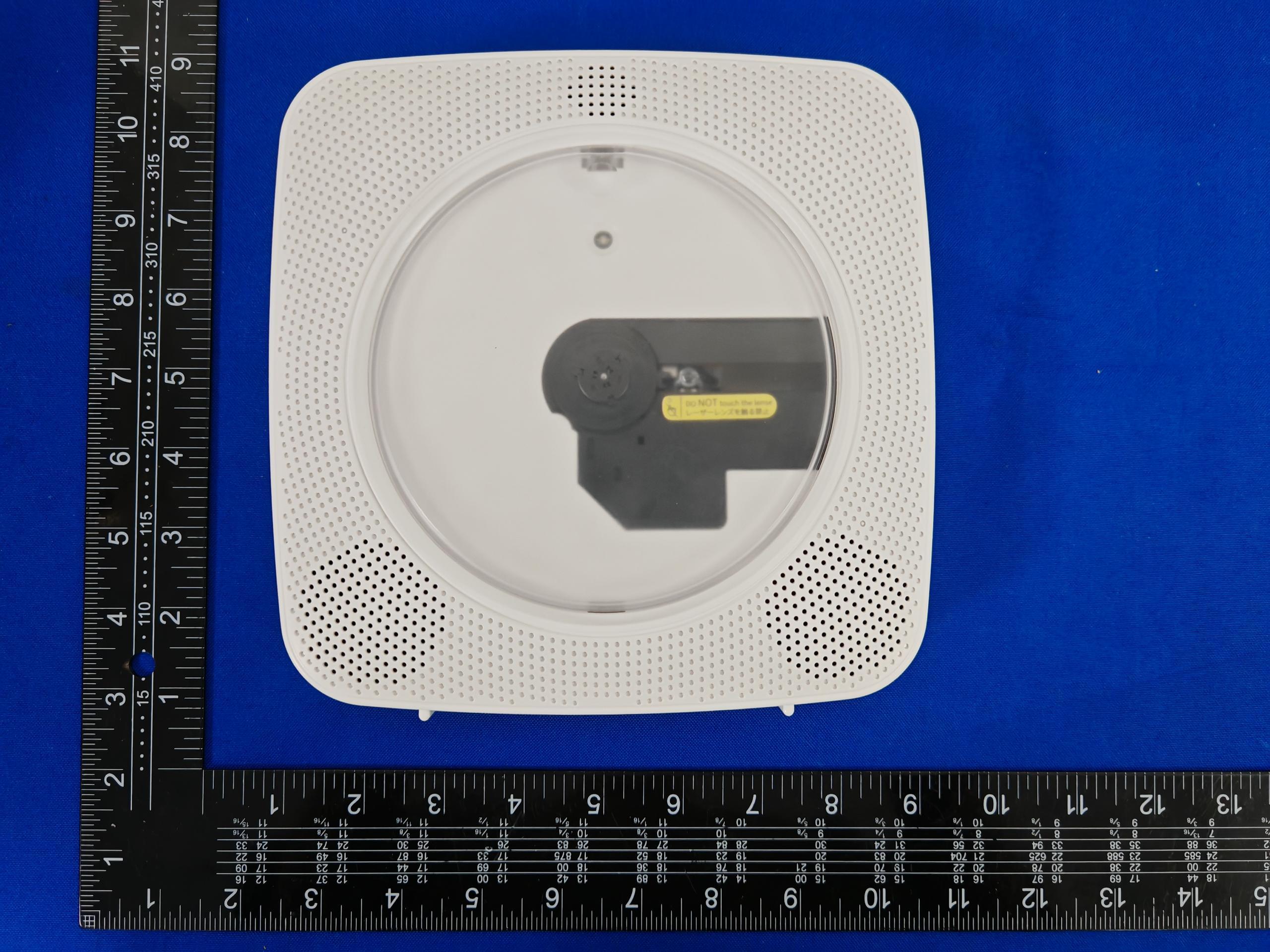

EUTPHOTO(ExternalPhotos) ※※※※※ENDOFREPORT※※※※※

FCCID:2BKJZ-Y-01 Thisdevicecomplieswithpart15oftheFCCRules. Operationissubjecttothefollowingtwoconditions:(1) Thisdevicemaynotcauseharmfulinterference,and(2) thisdevicemustacceptanyinterferencereceived, includinginterferencethatmaycauseundesired operation.

EUTPHOTO(InternalPhotos) BTANT ※※※※※ENDOFREPORT※※※※※

FCCID:2BKJZ-Y-01 RFExposureEvaluation Limits Thecriterialistedinthefollowingtableshallbeusedtoevaluatetheenvironmentimpactofhumanexposure toradiofrequency(RF)radiationasspecifiedin1.1307(b) LimitsforMaximumPermissibleExposure(MPE) Frequencyrange (MHz) Electricfield strength (V/m) Magneticfieldstrength (A/m) Powerdensity (mW/cm 2 ) Averagingtime (minutes) (A)LimitsforOccupational/ControlledExposures 0.3–3.06141.63*(100)6 3.0–301842/f4.89/f*(900/f 2 )6 30–30061.40.1631.06 300–1500f/3006 1500–100,00056 (B)LimitsforGeneralPopulation/UncontrolledExposure 0.3–1.346141.63*(100)30 1.34–30824/f2.19/f*(180/f 2 )30 30–30027.50.0730.230 300–1500f/150030 1500–100,0001.030 f=frequencyinMHz Friistransmissionformula:Pd=(Pout*G)/(4*pi*r 2 ) Where Pd=powerdensityinmW/cm 2 ,Pout=outputpowertoantennainmW; G=gainofantennainlinearscale,Pi=3.1416; R=distancebetweenobservationpointandcenteroftheradiatorincm PdidthelimitofMPE,1mW/cm 2 .Ifweknowthemaximumgainoftheantennaandthetotalpowerinputto theantenna,throughthecalculation,wewillknowthedistancerwheretheMPElimitisreached. TestProcedure SoftwareprovidedbyclientenabledtheEUTtotransmitandreceivedataatlowest,middleandhighest channelindividually. TestResultofRFExposureEvaluation BTmode Frequency Antenna Gain (dBi) Antenna Gain (numeric) Max tune-up conducted power(dBm) Output powerto antenna (mW) Power Densityat R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 2441 012.551.800.0003581PASS Remark:antennagain=0dBi

$QWHQQDGHVFULEH  $QWHQQDGHVFULEH  $QWHQQD SODWH 0 RQRSORHDQWHQQD 0DNHQDPHPRGHOQDPH) $QWHQQD JDLQ G%L )UHTXHQF\UDQJH  * +=   * += &RQQHFWRUW\SHGLUHFW ([WHUQDOYLHZGUDZLQJ 3LFWXUHRIDQWHQQD $QWHQQD5DGLDWLRQ3DWWHUQ 5DGLDWLRQSDWWHUQ#*+= 7RWDO$YHUDJH*DLQGEL  3KL *DLQ  5DGLDWLRQSDWWHUQ#*+= 7RWDO$YHUDJH*DLQGEL  3KL *DLQ  5DGLDWLRQSDWWHUQ#*+= 7RWDO$YHUDJH*DLQGEL  3KL *DLQ

ProjectNo.:ZKT-240821L10274 Page 1 of 86 FCCTESTREPORT FCCID:2BKJZ-Y-01 ReportNumber.....................................: ZKT-240821L10274 DateofTest.......................................................: Aug.15,2024toSep.11,2024 Dateofissue.........................................: Sep.11,2024 Totalnumberofpages..........................86 TestResult..........................................: PASS TestingLaboratory............................: ShenzhenZKTTechnologyCo.,Ltd. Address ............................................... : 1/F,No.101,BuildingB,No.6,TangweiCommunityIndustrial Avenue,FuhaiStreet,Bao'anDistrict,Shenzhen,China Applicant'sname.............................: ShenzhenWeichuangTimesTechnologyCo.,Ltd. Address ............................................... : Room318-2,No.19,BanxingStreet,BantianStreet,Longgang District,ShenzhenCity,China Manufacturer'sname......................: ShenzhenMeiyinInnovationCo.,Ltd. Address ............................................... : No.1001,BuildingA2,KangyuanIndustrialZone,Gushu Community,XixiangStreet,BaoanDistrict,Shenzhen,China Testspecification: Standard................................................: FCCCFRTitle47Part15SubpartCSection15.247 ANSIC63.10:2013 Testprocedure ..................................... : / Non-standardtestmethod................:N/A TestReportFormNo. ....................... : TRF-EL-111_V0 TestReportForm(s)Originator.....: ZKTTesting MasterTRF........................................: Dated:2020-01-06 ThisdevicedescribedabovehasbeentestedbyZKT,andthetestresultsshowthattheequipmentunder test(EUT)isincompliancewiththeFCCrequirements.Anditisapplicableonlytothetestedsample identifiedinthereport. Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofZKT,thisdocumentmay bealteredorrevisedbyZKT,personalonly,andshallbenotedintherevisionofthedocument. Productname ..................................... :CDPLAYER Trademark ........................................... :N/A Model/Typereference......................:Y-01,Y-02,Y-03,Y-04,H-01,X-01,B-03,B-04 Ratings..................................................:DC3.7VforBatteryorDC5VforUSBPort ProjectNo.:ZKT-240821L10274 Page 2 of 86 Testingprocedureandtestinglocation: TestingLaboratory............................:ShenzhenZKTTechnologyCo.,Ltd. Address.................................................:1/F,No.101,BuildingB,No.6,TangweiCommunity IndustrialAvenue,FuhaiStreet,Bao'anDistrict, Shenzhen,China AlenHe Testedby(name+signature)............: JoeLiu Reviewer(name+signature).............: LakeXie Approved(name+signature)............: ProjectNo.:ZKT-240821L10274 Page 3 of 86 TableofContents Page 1.VERSION..................................................................................................................................5 2.TESTSUMMARY...................................................................................................................6 2.1TESTFACILITY.........................................................................................................................7 2.2MEASUREMENTUNCERTAINTY......................................................................................7 3.GENERALINFORMATION..................................................................................................8 3.1GENERALDESCRIPTIONOFEUT...................................................................................8 3.2TestSetupConfiguration........................................................................................................9 3.3SupportEquipment.................................................................................................................10 3.4TestMode.................................................................................................................................11 3.5EQUIPMENTSLISTFORALLTESTITEMS................................................................12 4.EMCEMISSIONTEST........................................................................................................14 4.1Conductedemissions............................................................................................................14 4.1.1POWERLINECONDUCTEDEMISSIONLimits.......................................................14 4.1.2TESTPROCEDURE..........................................................................................................14 4.1.3DEVIATIONFROMTESTSTANDARD.......................................................................14 4.1.4TESTSETUP.......................................................................................................................15 4.1.5EUTOPERATINGCONDITIONS..................................................................................15 4.1.6TestResult （ Chargingmode ） ......................................................................................16 4.2Radiatedemissions................................................................................................................18 4.2.1RadiatedEmissionLimits.................................................................................................18 4.2.2TESTPROCEDURE..........................................................................................................18 4.2.3DEVIATIONFROMTESTSTANDARD.......................................................................19 4.2.4TESTSETUP.......................................................................................................................19 4.2.5EUTOPERATINGCONDITIONS..................................................................................20 4.2.6TESTRESULTS..................................................................................................................21 1GHZ~25GHZ............................................................................................................................24 5.RADIATEDBANDEMISSIONMEASUREMENT........................................................30 5.1TestRequ…
