2BKNN-BH919BLUETOOTH HEADSET

BLUETOOTH HEADSET BLUETOOTH HEADSET BLUETOOTH HEADSET This product is a precision electronic product. You need to pay special attention in use: 1, Please stay away from the electromagnetic environment, stay away from harsh environments such as excessive humidity, smoke and dust. 2, Please do not separate or transform this products. 3, Do not use any corrosive or wear-abrasion cleaner to clean the product. 4 , The device should not be immersed in the water. 5, Please do not squeeze the product. 6 , Please do not put the product under the direct sunshine or be placed in the fire grill environment, please stay away from the high temperature and low temperature environment. 7 , Please do not shake or hit the product vigorously. 8, It is recommended to lower the volume before using the product, and gradually increase the volume after listening to it, until it is suitable. In order to protect hearing, please do not adjust the volume too high (doctors point out that long -term use of large volume listening will damage the listening of the user). When there is tinnitus, please adjust the bass volume or stop using it. 9, Make sure that this product is placed safely, avoid accidents and falls from children's touch. 10, Due to the unstable computer USB output voltage, long - term charging may cause the fuselage to heat. It is recommended to use a regular charger to charge. 11, Please do not dismantle this machine without authorization, otherwise you will lose the right to warranty. If you have any questions, please contact the seller. 12, The changes in the performance and function of the product will not be notified separately. If it is found that the instructions do not match the real thing, please refer to the real thing. BLUETOOTH HEADSET 13 ,When driving, cycling, operating machines, or engaging in the work that need to pay attention to external sounds, please do not use headphones. 14, Charging attention: A, This product built-in a polymer lithium battery, It is rechargeable. It must be more than 2 hours charging in the first few times, and each time must run out the battery before charging again,this way it can extend the battery using life. B, it is recommended to continue charging half hour after full charging to ensure a longer playback time. C, lithium batteries must be replaced by customer service staff, and users cannot replace them by themselves (Note: If the battery is replaced inappropriately, there will be a risk of explosion, and can only be replaced with the same type or equivalent type of battery).In order to protect the environment, please leave the abandoned battery and give it to the professional recycling institution. D,the life of the battery may vary with different use conditions and production time. E, please handle the recycling battery according to local policy, please do not treat the battery as a domestic garbage or throw it into the fire to avoid explosion. 15. Charging: This product can charge by using a 5V1000mA or more adapter that meets the national standard. This product can be charged all the time as long as you connect the product to the adapter. During the charging process, the product has certain heating is a normal phenomenon. 16. If long time don't use this product,please charge product every 3 months to ensure the performance of the battery. 17. This product may be different from the content of the actual use and the content of the instructions due to the update of the software. Please refer to the purchased products. The operating guide is for reference only. BLUETOOTH HEADSET 1. Active noise reduction (ANC)+environmental noise reduction (ENC) headset. 2. Use professional Bluetooth chip, Bluetooth 5.3 version. 3. Use a 40mm high-quality dynamic speaker, high-quality sound performance. 4. Low-power design, continuous use can up to15h. 5. Support Bluetooth SBC and AAC encoding. 6, Ergonomics and lightweight design, provide the most comfortable wearing experience. 7. Product with 3.5mm interface, can be switched to wired headphones. 8. High -sensitivity design is easier to promote and adapt to various playback equipment. 9. Type c interface, charging is more stable and reliable. BLUETOOTH HEADSET DescriptionDescription NO.NO. Volume +/Next Volume -/PREV Type C Port ANC Power (play/pause) 3.5mm audio jack Bluetooth indicator Mic BLUETOOTH HEADSET Turn on/off: Turn on: press the power button 2 seconds, the blue light will bright for 2 seconds and accompanied by the prompt sound "Power on". Turn off: Long press the power button around 5 seconds, the red light flashs 3 times and is accompanied by the prompt sound "Power OFF '. Pair: The first time pairing: After turning on, the blue light of the headphone will automatically enter the waiting state after 2 seconds, and the red and blue lights flickered at this time. Then turn on the mobile phone Bluetooth and search for the Bluetooth device, and select the BT list at the pairing list: BH919 can be connected. After the successful connection, the system will prompt "Connected". Automatically reconnect: If you have connected this Bluetooth headset and use it again, the headset can automatically connect with your phone after turning on. You don't need to reconnect the connection. Call: Answering a call: When income calling enters, press the power button to answer the phone. Hanging up: Short press the power button to hang up the phone. The last call redial: Press the power button twice quickly to dial the last call. Volume control: In the state of music playback or call, click the "+" key to increase the volume, and click the "-" key to reduce the volume. BLUETOOTH HEADSET Up and down song: In the state of music playback, long press the "+" key to next song, and press the "-" key to the previous song. Play/pause: Music playback status, click the power button to play/pause music. Turn on/off ANC: Just Turn on and off the ANC button. Charging: 1. Charging through the adapter: The adapter (non-standard) can be connecte…

Text truncated - open the document above for the full version.

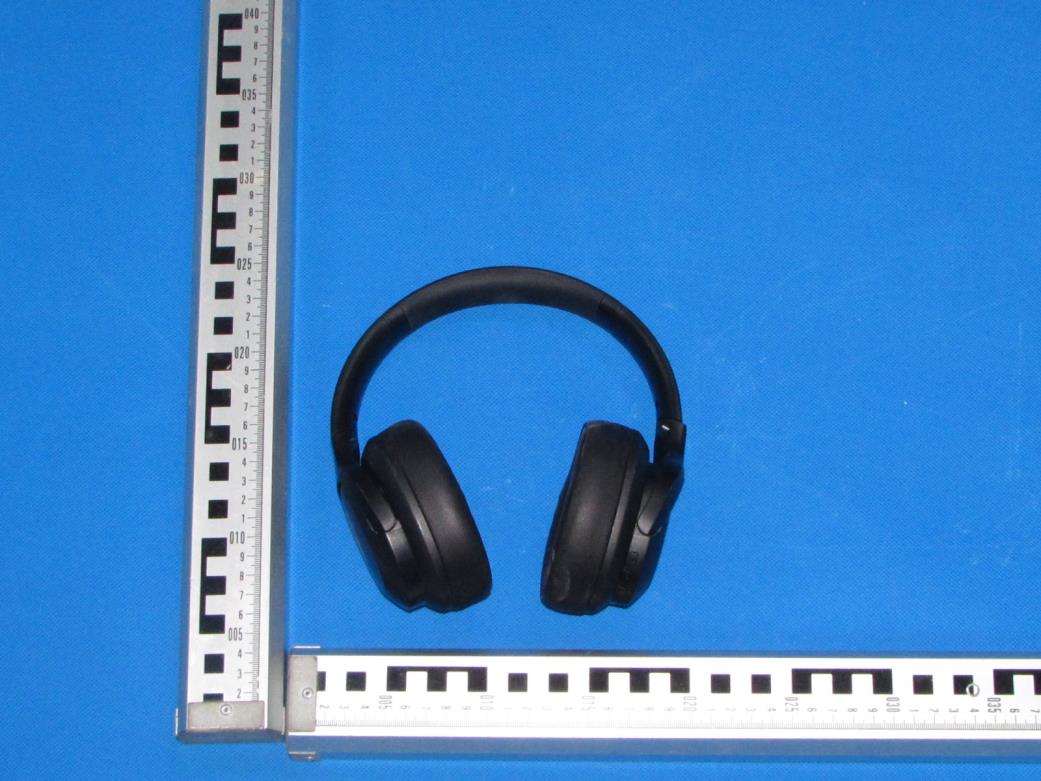

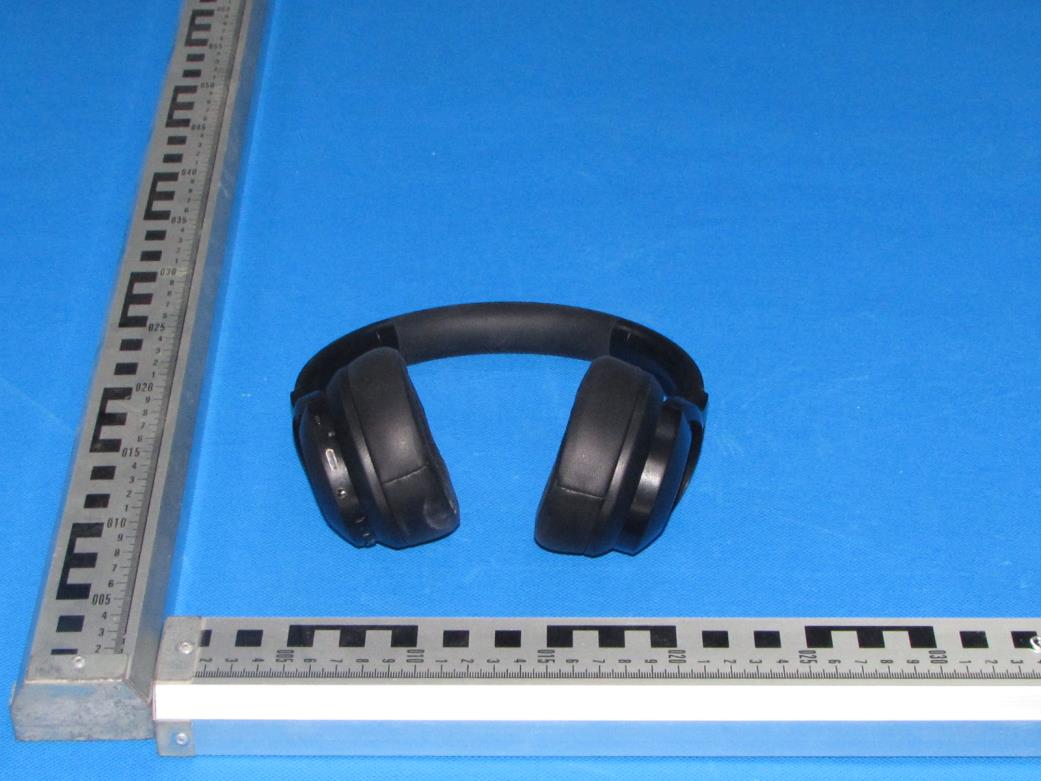

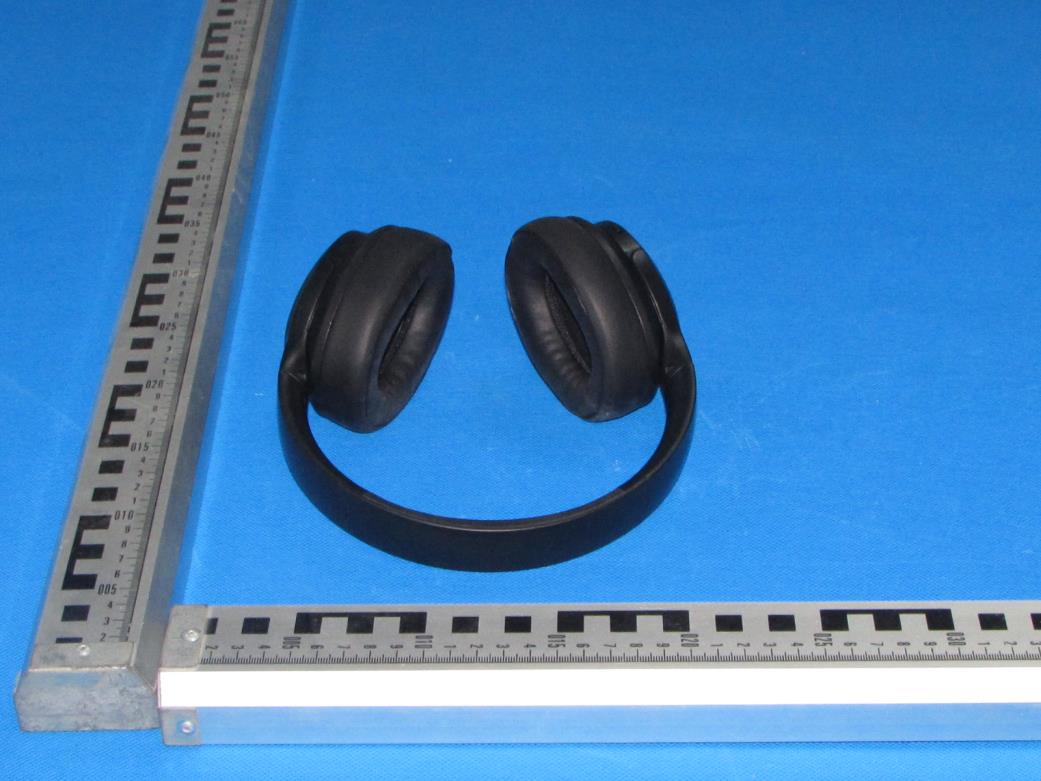

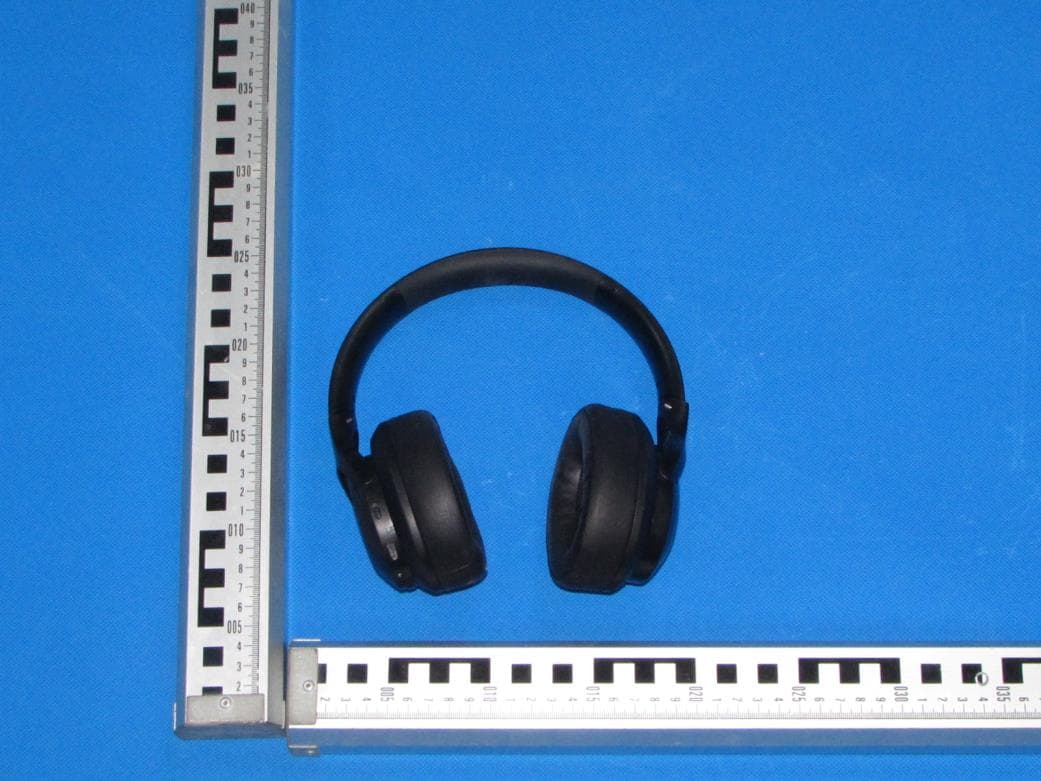

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKNN-BH919 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 4 EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKNN-BH919 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 4 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKNN-BH919 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 4 Fig.5 Fig.6 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKNN-BH919 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 4 Fig.7

Label Location FCC ID: 2BKNN-BH919

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKNN-BH919 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 4 INTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKNN-BH919 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 4 Fig.3 Fig.4 Bluetooth Antenna Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKNN-BH919 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 4 Fig.5 Fig.6 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKNN-BH919 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 4 Fig.7

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKNN-BH919 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 3 RADIO FREQUENCY EXPOSURE Limit According to section B.4 of 447498 D04 Interim General RF Exposure Guidance v01 SAR-based thresholds are derived based on frequency, power, and separation distance of the RF source. The formula defines the thresholds in general for either available maximum time-averaged power or maximum time-averaged ERP, whichever is greater. If the ERP of a device is not easily determined, such as for a portable device with a small form factor, the applicant may use the available maximum time-averaged power exclusively if the device antenna or radiating structure does not exceed an electrical length of λ/4. As for devices with antennas of length greater than λ/4 where the gain is not well defined, but always less than that of a half-wave dipole (length λ/2), the available maximum time-averaged power generated by the device may be used in place of the maximum time-averaged ERP, where that value is not known. The separation distance is the smallest distance from any part of the antenna or radiating structure for all persons, during operation at the applicable ERP. In the case of mobile or portable devices, the separation distance is from the outer housing of the device where it is closest to the antenna. The SAR-based exemption formula of § 1.1307(b)(3)(i)(B), repeated here as Formula (B.2), applies for single fixed, mobile, and portable RF sources with available maximum time-averaged power or effective radiated power (ERP), whichever is greater, of less than or equal to the threshold Pth (mW). This method shall only be used at separation distances from 0.5 cm to 40 cm and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by Formula (B.2). Where and f is in GHz, d is the separation distance (cm), and ERP 20cm is per Formula (B.1). Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKNN-BH919 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 3 The example values shown in Table B.2 are for illustration only. Frequency (MHz) Distance (mm) 5 10 15 20 25 30 35 40 45 50 300 39 65 88 110 129 148 166 184 201 217 450 22 44 67 89 112 135 158 180 203 226 835 9 25 44 66 90 116 145 175 207 240 1900 3 12 26 44 66 92 122 157 195 236 2450 3 10 22 38 59 83 111 143 179 219 3600 2 8 18 32 49 71 96 125 158 195 5800 1 6 14 25 40 58 80 106 136 169 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKNN-BH919 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 3 Conducted Power Results Test Mode Antenna Frequency[MHz] Result[dBm] DH5 Ant1 2402 -1.35 DH5 Ant1 2441 -1.77 DH5 Ant1 2480 -1.30 2DH5 Ant1 2402 -0.57 2DH5 Ant1 2441 -1.12 2DH5 Ant1 2480 -0.63 Manufacturing tolerance GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -2.0 -2.5 -2.0 Tolerance ±(dB) 1 1 1 π/4-DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -1 -1.5 -1 Tolerance ±(dB) 1 1 1 Results Test Mode Max Conducted Tune Up Power(dBm) Max of ERP and Conducted Power including Tune Up (dBm) Max of ERP and Conducted Power including Tune Up (mW) Exemption Limit(mW) GFSK -1 -1.0 0.79 3 π/4-DQPSK 0 0.0 1.00 3 Max of ERP and Conducted Power including Tune Up (dBm) = Max Conducted Tune Up Power(dBm) and Max Conducted Tune Up Power(dBm) + Antenna Gain(dBi)-2.15), whichever is greater. The antenna gain of the EUT for BT is -0.68dBi (Max). the Maximum Eirp is used for Routine Evaluation Exemption according to B.4 of 447498 D04 Interim General RF Exposure Guidance v01. So, the SAR evaluation is not required.

Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain(dBi) Frequency (MHz) Max Min Avg 2400 -1.73178 -30.0815 -8.48713 2450 -0.845801 -38.5605 -7.88012 2500 -0.685586 -24.0318 -6.79139 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(dBi) Frequency (MHz) Max Min Avg 2400 -6.1530 -24.1420 -13.0295 2450 -3.7054 -26.5836 -10.6700 2500 -2.32122 -30.4301 -9.70536 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKNN-BH919 Report No.: TZ0101240801FRF01 Page 1 of 35 Appendix Test Data for BT(BDR/EDR) (Conducted Measurement) Product Name: BLUETOOTH HEADSET Trade Mark: N/A Test Model: BH919 FCC ID: 2BKNN-BH919 Environmental Conditions Temperature: 23.8°C Relative Humidity: 58% ATM Pressure: 100.0 kPa Test Engineer: Allen Lai Supervised by: Hugo Chen NOTE N/A Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Frequency[MHz] 20db EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.999 2401.487 2402.486 --- --- DH5 Ant1 2441 0.993 2440.499 2441.492 --- --- DH5 Ant1 2480 1.023 2479.475 2480.498 --- --- 2DH5 Ant1 2402 1.296 2401.361 2402.657 --- --- 2DH5 Ant1 2441 1.320 2440.343 2441.663 --- --- 2DH5 Ant1 2480 1.317 2479.337 2480.654 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKNN-BH919 Report No.: TZ0101240801FRF01 Page 2 of 35 Test Graphs DH5-Ant1-2402 DH5-Ant1-2441 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKNN-BH919 Report No.: TZ0101240801FRF01 Page 3 of 35 DH5-Ant1-2480 2DH5-Ant1-2402 2DH5-Ant1-2441 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKNN-BH919 Report No.: TZ0101240801FRF01 Page 4 of 35 2DH5-Ant1-2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKNN-BH919 Report No.: TZ0101240801FRF01 Page 5 of 35 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.88462 2401.5580 2402.4427 --- --- DH5 Ant1 2441 0.89305 2440.5567 2441.4498 --- --- DH5 Ant1 2480 0.90322 2479.5492 2480.4524 --- --- 2DH5 Ant1 2402 1.1856 2401.4068 2402.5924 --- --- 2DH5 Ant1 2441 1.1784 2440.4090 2441.5874 --- --- 2DH5 Ant1 2480 1.1901 2479.4023 2480.5924 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKNN-BH919 Report No.: TZ0101240801FRF01 Page 6 of 35 Test Graphs DH5-Ant1-2402 DH5-Ant1-2441 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKNN-BH919 Report No.: TZ0101240801FRF01 Page 7 of 35 DH5-Ant1-2480 2DH5-Ant1-2402 2DH5-Ant1-2441 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKNN-BH919 Report No.: TZ0101240801FRF01 Page 8 of 35 2DH5-Ant1-2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKNN-BH919 Report No.: TZ0101240801FRF01 Page 9 of 35 Appendix C: Maximum peak conducted output power Test Result Test Mode Antenna Frequency[MHz] Conducted Peak Power[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 -1.35 ≤20.97 PASS DH5 Ant1 2441 -1.77 ≤20.97 PASS DH5 Ant1 2480 -1.30 ≤20.97 PASS 2DH5 Ant1 2402 -0.57 ≤20.97 PASS 2DH5 Ant1 2441 -1.12 ≤20.97 PASS 2DH5 Ant1 2480 -0.63 ≤20.97 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKNN-BH919 Report No.: TZ0101240801FRF01 Page 10 of 35 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2441-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKNN-BH919 Report No.: TZ0101240801FRF01 Page 11 of 35 DH5-Ant1-2480-PASS 2DH5-Ant1-2402-PASS 2DH5-Ant1-2441-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKNN-BH919 Report No.: TZ0101240801FRF01 Page 12 of 35 2DH5-Ant1-2480-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKNN-BH919 Report No.: TZ0101240801FRF01 Page 13 of 35 Appendix D: Carrier frequency separation Test Result TestMode Antenna Frequency[MHz] Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 1.002 ≥0.682 PASS 2DH5 Ant1 Hop 0.998 ≥0.880 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKNN-BH919 Report No.: TZ0101240801FRF01 Page 14 of 35 Test Graphs DH5-Ant1-Hop-PASS 2DH5-Ant1-Hop-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKNN-BH919 Report No.: TZ0101240801FRF01 Page 15 of 35 Appendix E: Time of occupancy Test Result TestMode Antenna Frequency[MHz] BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH5 Ant1 Hop 2.885 90 0.26 ≤0.4 PASS 2DH5 Ant1 Hop 2.891 100 0.289 ≤0.4 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKNN-BH919 Report No.: TZ0101240801FRF01 Page 16 of 35 Test Graphs DH5-Ant1-Hop-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKNN-BH919 Report No.: TZ0101240801FRF01 Page 17 of 35 2DH5-Ant1-Hop-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKNN-BH919 Report No.: TZ0101240801FRF01 Page 18 of 35 Appendix F: Number of hopping channels Test Result TestMode Antenna Frequency[MHz] Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKNN-BH919 Report No.: TZ0101240801FRF01 Page 19 of 35 Test Graphs DH5-Ant1-Hop-PASS 2DH5-Ant1-Hop-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKNN-BH919 Report No.: TZ0101240801FRF01 Page 20 of 35 Appendix G: Band edge measurements Test Result TestMode Antenna ChName Frequency[MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 -1.66 -48.36 ≤-21.66 PASS DH5 Ant1 High 2480 -1.91 -49.34 ≤-21.91 PASS DH5 Ant1 Low Hop_2402 -2.79 -48.38 ≤-22.79 PASS DH5 Ant1 High Hop_2480 -1.89 -47.16 ≤-21.89 PASS 2DH5 Ant1 Low 2402 -2.03 -49.66 ≤-22.03 PASS 2DH5 Ant1 High 2480 -1.70 -49.41 ≤-21.7 PASS 2DH5 Ant1 Low Hop_2402 -2.81 -49.64 ≤-22.81 PASS 2DH5 Ant1 High Hop_2480 -1.85 -48.8 ≤-21.85 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKNN-BH919 Report No.: TZ0101240801FRF01 Page 21 of 35 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2480-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKNN-BH919 Report No.: TZ0101240801FRF01 Page 22 of 35 DH5-Ant1-Hop_2402-PASS DH5-Ant1-Hop_2480-PASS 2DH5-Ant1-2402-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKNN-BH919 Report No.: TZ0101240801FRF01 Page 23 of 35 2DH5-Ant1-2480-PASS 2DH5-Ant1-Hop_2402-PASS 2DH5-Ant1-Hop_2480-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKNN-BH919 Report No.: TZ0101240801FRF01 Page 24 of 35 Appendix H: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 0~Reference -2.14 -2.14 --- PASS DH5 Ant1 2402 30~1000 -2.14 -42.37 ≤-22.14 PASS DH5 Ant1 2402 1000~26500 -2.14 -43.45 ≤-22.14 PASS DH5 Ant1 2441 0~Reference -3.10 -3.10 --- PASS DH5 Ant1 2441 30~1000 -3.10 -43.39 ≤-23.1 PASS DH5 Ant1 2441 1000~26500 -3.10 -41.76 ≤-23.1 PASS DH5 Ant1 2480 0~Referenc…

Text truncated - open the document above for the full version.

FCC TEST REPORT Test report On Behalf of Dongguan Kunbao Electronic Technology Co., Ltd For BLUETOOTH HEADSET Model No.: BH919, BH910, BH915, BH920, BH921, BH922, BH923, BH925, BH926, BH927, BH928, BH929, U5, U6,U7, U8, U9 FCC ID: 2BKNN-BH919 Prepared for : Dongguan Kunbao Electronic Technology Co., Ltd Room 303, Building 1, No. 19 Guanglong Road, Huangjiang Town, Dongguan City, Guangdong, China Prepared By : Shenzhen Tongzhou Testing Co.,Ltd 1th Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Date of Test: 2024/8/26 ~ 2024/8/30 Date of Report: 2024/8/31 Report Number: TZ0101240801-BT The test report apply only to the specific sample(s) tested under stated test conditions It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TZ0101240801FRF01 Page 2 of 37 TEST RESULT CERTIFICATION Applicant’s name ................. : Dongguan Kunbao Electronic Technology Co., Ltd Address .................................. : Room 303, Building 1, No. 19 Guanglong Road, Huangjiang Town, Dongguan City, Guangdong, China Manufacture's Name ............ : Dongguan Kunbao Electronic Technology Co., Ltd Address .................................. : Room 303, Building 1, No. 19 Guanglong Road, Huangjiang Town, Dongguan City, Guangdong, China Product description Trade Mark ................................ : N/A Product name ............................ : BLUETOOTH HEADSET Model and/or type reference . : BH919, BH910, BH915, BH920, BH921, BH922, BH923, BH925, BH926, BH927, BH928, BH929, U5, U6,U7, U8, U9 Standards ............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.247 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ........................................... : Date (s) of performance of tests ............. : 2024/8/26 ~ 2024/8/30 Date of Issue .......................................... : 2024/8/31 Test Result .............................................. : Pass Testing Engineer : (Allen Lai) Technical Manager : (Hugo Chen) Authorized Signatory : (Andy Zhang) Report No.: TZ0101240801FRF01 Page 3 of 37 Revision History Revision Issue Date Revisions Revised By 00 2024/8/31 Initial Issue Andy Zhang Report No.: TZ0101240801FRF01 Page 4 of 37 TABLE OF CONTENTS 1 GENERAL INFORMATION ................................................................................................ 5 1.1 Description of Device (EUT) ................................................................................................... 5 1.2 Wireless Function Tested in this Report ................................................................................. 5 1.3 EUT configuration ................................................................................................................... 6 1.4 Description of Test Facility ...................................................................................................... 6 1.5 Statement of the Measurement Uncertainty ............................................................................ 6 1.6 Measurement Uncertainty ....................................................................................................... 7 1.7 Description of Test Modes ...................................................................................................... 7 1.8 Frequency of Channels........................................................................................................... 7 2 TEST METHODOLOGY ..................................................................................................... 8 2.1 EUT Configuration .................................................................................................................. 8 2.2 EUT Exercise ......................................................................................................................... 8 2.3 Test Sample ........................................................................................................................... 8 3 SYSTEM TEST CONFIGURATION .................................................................................... 9 3.1 Justification ............................................................................................................................. 9 3.2 EUT Exercise Software........................................................................................................... 9 3.3 Special Accessories ............................................................................................................... 9 3.4 Block Diagram/Schematics ..................................................................................................... 9 3.5 Equipment Modifications ......................................................................................................... 9 3.6 Test Setup .............................................................................................................................. 9 4 SUMMARY OF TEST RESULTS ...................................................................................... 10 5 MEASUREMENT RESULTS ............................................................................................ 11 5.1 Maximum Peak Conducted Output Power ............................................................................ 11 5.2 Frequency Separation and 20 dB Bandwidth ........................................................................ 12 5.3 Number of Hopping Frequency ............................................................................................. 13 5.4 T…

Text truncated - open the document above for the full version.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKNN-BH919 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 2 TEST SETUP PHOTOS OF THE EUT Conducted Emission Radiated Emission Below 1GHz Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKNN-BH919 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 2 Radiated Emission Above 1GHz
