2BKQY-MVB02MKupView Vanity Mirror

JiangmenShengmengDazeLightingTechnology Co., Ltd Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: September 11, 2024 FCC ID:2BKQY-MVB02 Ref. #1: Attestation Statements Part 2.911(d)(5)(i) Filing JiangmenShengmengDazeLightingTechnology Co., Ltd certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Ref. #2: Attestation Statements Part 2.911(d)(5)(ii) Filing JiangmenShengmengDazeLightingTechnology Co., Ltd certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Applicant: JiangmenShengmengDazeLightingTechnology Co., Ltd Address: No. 67 Zhongtai West Road, Hetang Town, Pengjiang District, Jiangmen City, Guangdong Province, China Contact Person: XIAO LU Tel.: +86-15013642087 Email: [email protected] Sincerely, Signature:

JiangmenShengmengDazeLightingTechnology Co., Ltd U.S. Agent Letter of Attestation To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date: September 11, 2024 Ref: Attestation Statement – Part 2.911(d)(7) filing FCC ID:2BKQY-MVB02 JiangmenShengmengDazeLightingTechnology Co., Ltd(“the applicant”) certifies that, as of the date of the filing of the application, CLF Import and Export Limited (“the agent”) is our designated U.S. agent for service of process for the above reference FCC ID. The applicant accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges it is our responsibility to inform the FCC whenever the agent information changes. CLF Import and Export Limited ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: CLF Import and Export Limited FRN: 0033489683 Address: 1312 17th Street #692, Denver, CO 80202, United States Signature: Contact Person: David Chen Tel: +1 949 254 2565 Email: [email protected] Applicant JiangmenShengmengDazeLightingTechnology Co., Ltd FRN: 0035897024 Address: No. 67 Zhongtai West Road, Hetang Town, Pengjiang District, Jiangmen City, Guangdong Province, China Signature: Contact Person: XIAO LU Tel: +86-15013642087 Email: [email protected]

Inverted F Antenna Specification Summary ITEM ANT SPEC Model Name PCB ANT Horizontal Vertical 2400MHz 2400MHz 2500MHz 2400MHz 2400MHz 2500MHz Center Frequency -1.26-0.76-0.58-5.25-2.46-1.86 MAX. Gain -0.58dB Polarization Horizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance 50 Ohm Manufacture JiangmenShengmengDazeLightingTechnology Co., Ltd Antenna Photo & Length (cm) Address No. 67 Zhongtai West Road, Hetang Town, Pengjiang District, Jiangmen City, Guangdong Province, China 2.5cm 0.8cm Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -1.26174-30.0801-7.18716 2450 -0.765802-36.5604-7.48023 2500 -0.585582-22.0315-6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -5.2537 -22.1424 -12.4294 2450 -2.4652 -24.5837 -10.4702 2500 -1.86120 -29.5214 -9.20432 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

JiangmenShengmengDazeLightingTechnology Co., Ltd Date: September 11, 2024 Product Model Number: MKupView-BSM-02, MKupView-007-02 FCC ID:2BKQY-MVB02 To whom it may concern, Re: Product Certification Representative Authorization Letter We authorize QAI Laboratories Ltd. 3980 North Fraser Way, Burnaby B.C. Canada V5J 5K5 to act on our behalf on all matters concerning the above named equipment. This shall include the following: • Testing • Approval applications and procedures We declare that QAI Laboratories Ltd. is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by QAI Laboratories Ltd. on our behalf shall have the same effect as acts of our own. By: XIAO LU Contact Listed on FCC Wesbite Title: Manager Email: [email protected] Telephone: +86-15013642087 On behalf of: JiangmenShengmengDazeLightingTechnology Co., Ltd

JiangmenShengmengDazeLightingTechnology Co., Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: September 11, 2024 Subject; Request for Confidentiality FCC ID:2BKQY-MVB02 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software Security Requirements for UNII devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: XIAO LU Title: Manager

JiangmenShengmengDazeLightingTechnology Co., Ltd Model Difference Statement Dear Sir/Madam, Added models MKupView-007-02 basis of the original product MKupView-BSM-02 The color of appearance and model name of series models listed are different from the main model, but the circuit and the electronic construction are the same, declared by the manufacturer. Sincerely, Name: XIAO LU Company name: JiangmenShengmengDazeLightingTechnology Co., Ltd Address: No. 67 Zhongtai West Road, Hetang Town, Pengjiang District, Jiangmen City, Guangdong Province, China

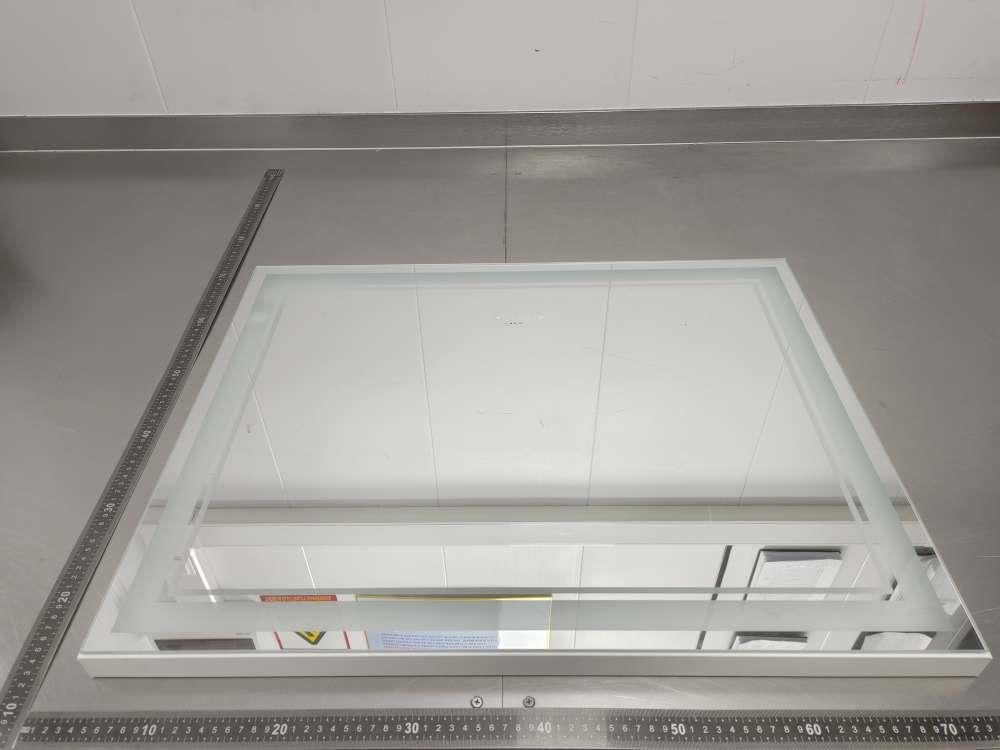

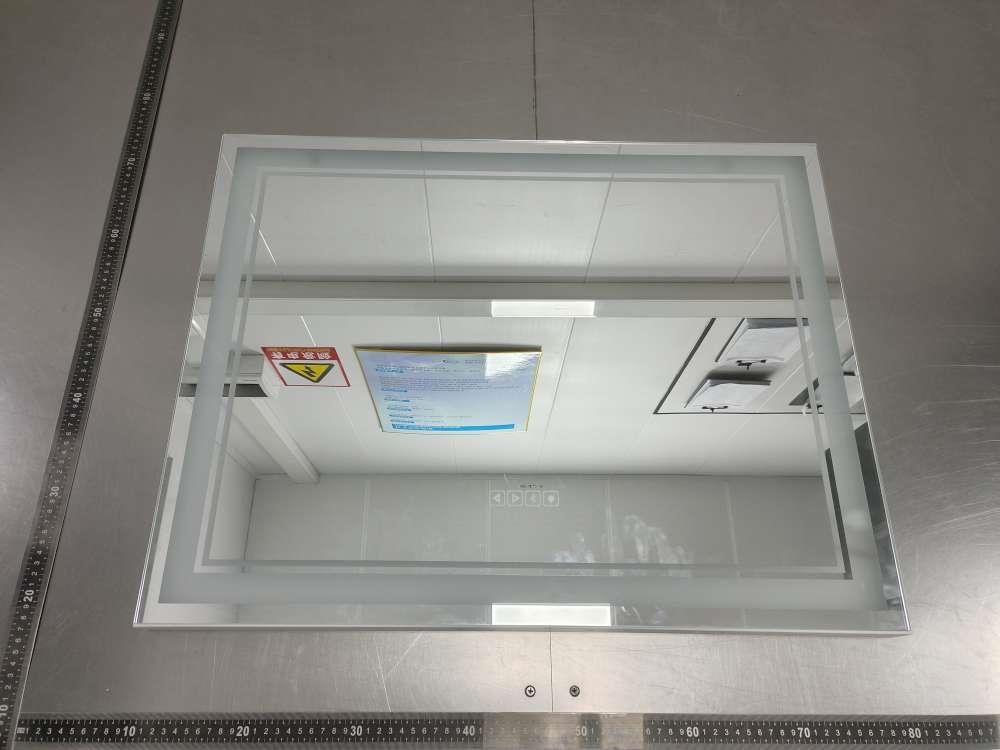

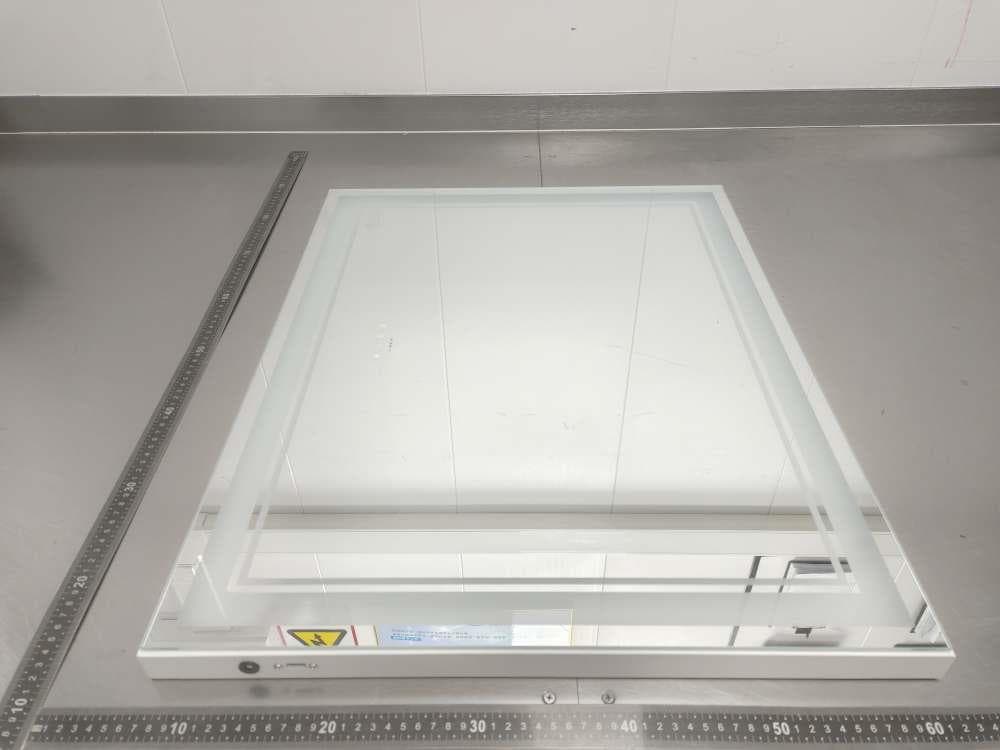

Report No: SSP24080084-1E FCC ID:2BKQY-MVB02 Annex of Test Report Annex A. EUT External Photos EUT View 1 EUT View 2 Report No: SSP24080084-1E FCC ID:2BKQY-MVB02 Annex of Test Report EUT View 3 EUT View 4 Report No: SSP24080084-1E FCC ID:2BKQY-MVB02 Annex of Test Report EUT View 5 EUT View 6 Report No: SSP24080084-1E FCC ID:2BKQY-MVB02 Annex of Test Report EUT View 7 EUT View 8

Report No: SSP24080084-1E FCC ID:2BKQY-MVB02 Annex of Test Report Annex D. Label and Information FCC Label Sample FCC Label Specifications Text is Black in color and is justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Where the EUT is constructed in two or more sections connected by wires and marketed together, the above statement is required to be affixed only to the main control unit. When the EUT is so small or for such use that it is not practicable to place the statement on it, the above information shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. FCC Label Location

FCC ID:2BKQY-MVB02 RF Exposure Evaluation Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm2) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f2) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f2) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz Friis transmission formula: Pd = (Pout*G)/(4*pi*r2) Where Pd = power density in mW/cm2, Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Test Result of RF Exposure Evaluation BLE Mode Output power to antenna (dBm) Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result GFSK 0.51 1.12 0.0002 1.0 PASS BR+EDR Mode Output power to antenna (dBm) Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 8DPSK 1.44 1.39 0.0002 1.0 PASS So a SAR test is not required

CCUT Testing & Certification Report No: SSP24080084-1E FCC Test Report Page 1 of 33 FCC TEST REPORT FCC ID:2BKQY-MVB02 Report No. : SSP24080084-1E Applicant : JiangmenShengmengDazeLightingTechnology Co., Ltd Product Name : MKupView Vanity Mirror Model Name : MKupView-BSM-02 Test Standard : FCC Part 15.247 Date of Issue : 2024-08-30 Shenzhen CCUT Quality Technology Co., Ltd. 1F, Building 35, Changxing Technology Industrial Park, Yutang Street, Guangming District, Shenzhen, Guangdong, China; (Tel.:+86-755-23406590 website: www.ccuttest.com) This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd. CCUT Testing & Certification Report No: SSP24080084-1E FCC Test Report Page 2 of 33 Test Report Basic Information Applicant..................................: JiangmenShengmengDazeLightingTechnology Co., Ltd Address of Applicant...............: No. 67 Zhongtai West Road, Hetang Town, Pengjiang District, Jiangmen City, Guangdong Province, China Manufacturer..........................: JiangmenShengmengDazeLightingTechnology Co., Ltd Address of Manufacturer........: No. 67 Zhongtai West Road, Hetang Town, Pengjiang District, Jiangmen City, Guangdong Province, China Product Name.........................: MKupView Vanity Mirror Brand Name.............................: MKupView Main Model..............................: MKupView-BSM-02 Series Models..........................: MKupView-007-02 Test Standard..........................: FCC Part 15 Subpart C KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.4-2014 ANSI C63.10-2013 Date of Test .............................: 2024-08-09 to 2024-08-30 Test Result...............................: PASS Tested By ................................: (Coke Huang) Reviewed By............................: (Lieber Ouyang) Authorized Signatory............: (Lahm Peng) Note : This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd.. All test data presented in this test report is only applicable to presented test sample. CCUT Testing & Certification Report No: SSP24080084-1E FCC Test Report Page 3 of 33 CONTENTS 1. General Information ...................................................................................................................................................... 5 1.1 Product Information ............................................................................................................................................... 5 1.2 Test Setup Information ........................................................................................................................................... 6 1.3 Compliance Standards ............................................................................................................................................. 7 1.4 Test Facilities .......................................................................................................................................................... 7 1.5 List of Measurement Instruments ............................................................................................................................ 8 1.6 Measurement Uncertainty ....................................................................................................................................... 9 2. Summary of Test Results ............................................................................................................................................. 10 3. Antenna Requirement ................................................................................................................................................. 11 3.1 Standard and Limit................................................................................................................................................ 11 3.2 Test Result ............................................................................................................................................................ 11 4. Conducted Emissions................................................................................................................................................... 12 4.1 Standard and Limit................................................................................................................................................ 12 4.2 Test Procedure ...................................................................................................................................................... 12 4.3 Test Data and Results ............................................................................................................................................ 13 5. Radiated Emissions ..................................................................................................................................................... 16 5.1 Standard and Limit................................................................................................................................................ 16 5.2 Test Procedure ...................................................................................................................................................... 16 5.3 Test Data and Results ............................................................................................................................................ 18 6. Band-edge Emissions(Radiated)................................................................................................................................. 22 6.1 Standard and Limit................................................................................................................................................ 22 6.2 Test Procedure ......................................................................................…
