2BKRA-PW-030Musical boxing target

MUSICBOXINGMACHING USERMANUAL DesignConceptofMusicBoxingMachine TrainingStrikePrinciple:Thisproductishighlyalignedwiththe user-centricfitnessconcept.Whentheboxingtargetlightsupandyouhitit withyourfist,yougetacount.Followtherhythmofthemusic,moveyour body,throwpunches,andstrengthenyourphysique. Methodofusingmusicboxingmachines I.Turnonthedevice: Pressandholdthemiddlebutton(powerbutton)toturnonthedevice.After thesoundtestsongsounds,itisready.Thereisafeedbacksoundeffect whenyoupunch.(Tips:youcanpressandholdtheMODEbuttontocancel orusethehittingsoundeffect,somemodelsdonotsupportit). II.ConnecttheBluetooth: 1.Pressandholdtheleftbutton(LOOP)youwillhear‘’BluetoothMode’’. TurnontheBluetoothfunctiononyourphone,youwillseeaBluetooth devicenamed'Bluetooth',clicktoconnect. 2.Youcouldplaythemusicwithanymusicplayerappsofyourphoneafter youconnectedtheBluetoothwithourdevice. 3.Youalsocanuseyourownwirelessheadphones,externalwireless speakers,andotherplaybackdevices.Usage:Repeattheoperationmethod (1),andthenconnectanyplayerwithyourphone. III.Strikespeedandmodeadjustment: 1.Leftbutton(LOOP)toadjusttheflashingspeedofthelight;Pressitandit willgraduallyacceleratefromH01-H09. 2.Therightbutton(MODE)adjuststheflashingmodeofthelight:pressit anditisvarietyfromP01-P09. IV.Strikecount: Youcancheckthetotalnumberofpuncheshit,thecorrectnumberof consecutivehits,thehittingtimeandadjustingthesoundvolumeby pressingthemiddleswitchbutton. (Note:Pleasemakesureyouhaveturnedonthedevicewhenyouwanna checkstrikecount) 1.Pressoncemiddlebutton(powerbutton),youwillseeCXXX,which representsthenumberofconsecutivehitsyoumakecorrectly.However,if youfailtohitcorrectly,thecountwillrestartfrom0. 2.Presstwicemiddlebutton(powerbutton),youwillseeFXXX,whichis thetotalnumberofpunches. 3.Pressthreetimesmiddlebutton(powerbutton),youwillseeXX.XX, whichrepresentshowlongyouhavebeenexercising. V.Adjustthevolume: Afteryouturnonthedevice,pressfourtimesofthemiddlebutton(Power button).YouwillseeUXX(U00-030),thentaptheleftbuttonLOOPto decreasethesound,andtaptherightbuttonmodetoincreasethesound. Pleasepressthepowerbuttonagainafteryousetwhatthesoundvolume youwantandyouwillsetthevolumesuccessfully. Installationmethods: Theproductinstallationissuitableforsolidwallsurfaces,suchaslatex paintwalls,largewhitewallsurfaces,woodveneers,ceramictiles,andother wallsurfaces.Thewalldoesnotneedtobeperforatedornailed,justusethe providedinstallationaccessories. InstallationHeight:Stickthecomplimentarywallpaperonthewall,withthe installationheightlevelwiththeeyes.Childrenshoulduseaboxingtarget slightlyhigherthantheireyes.YoucanuseVelcrotomoveupanddown, andprioritizeusingVelcroforinstallation. Installationheight Ground Method1(movableinstallationmethod): 1.Fliptheboxingtargetflatonthetable,tearoffthebackglueofthetwo SHORTERVelcrostrips,andstickthemonbothsidesoftheMACHINE centerwiththedistanceofabout10inches. 2.SticktwoLONGERVelcrostripsverticallyontheWALLwithagapof 10inches. 3.FliptheboxingtargetandattachtheshorterVelcrotothelongerVelcroon thewalltoinstallit. Method1(tightsuction) Theshortertwoarepastedonthebackofthemachinewithaspacingof about10inches. AttachthemachinetotheVelcroonthewallwithadistanceofabout26cm betweenlongwallstickers Method2(Ifyouneedchangetheheightfrequently): 10Inches TheSHORTERtwoarepastedonthebackof themachinewithaspacingofabout10inches 10Inches AttachthemachinetotheVelcroonthewallwithadistanceofabout10 inchesbetweenlongwallstickers TheFIXEDinstallationmethod: Thebuilt-incircularbackadhesiveisafixedinstallationmethod,whichcan bepeeledoffandattachedtothemachineononeside,anddirectlyattached tothewallontheothersideforuse. ATTENTION: ●Fixedinstallationmode,can’ttearitoffoften,itwillweakentheviscosity. ●Pleasestickitonasmoothandhardsolidwallsurface(topreventdustand moldfromfallingoffthewall). ★FriendlyReminder: Fatisexhaledfromthemouth,sodonottoclosethemouthwhenpunch, breathingisimportant.Lowertheshoulders,weightdowntheelbow,twist thewaist,twistthebodyafterpunch. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RF Exposure Information The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. FCC Statement

YongkangPingweiElectronicTechnologyCo.,Ltd SixthFloor,158HuajieWestAvenue,YongkangCity,Jinhua City,ZhejiangProvince FederalCommunicationsCommission AuthorizationandEvaluationDivision EquipmentAuthorizationBranch 7435OaklandMillsRoad Columbia,MD21046 2024-09-06 Towhomitmayconcern: We,YongkangPingweiElectronicTechnologyCo.,Ltd,herebycertifythattheequipment forwhichauthorizationissought(FCCID:2BKRA-PW-030)isnot"covered"equipmentprohibited fromreceivinganequipmentauthorizationpursuantto§2.903oftheFCCrules. Wealsocertifythat,asofthedateofthefilingoftheapplication,wearenotidentifiedontheCovered List(https://www.fcc.gov/supplychain/coveredlist)asanentityproducing"covered"equipment. Bysigningthisform,weconfirmtheaboveandthatweareawareoftheapplicationrequirementslisted under§2.911(b)and(d)(5)and(6). TheinformationprovidedinthisletterisbasedonthereferencedrulepartsofTitle47oftheCFRas wellasKDB986446D01. Sincerely, Signature AmbertGao YongkangPingweiElectronicTechnologyCo.,Ltd

YongkangPingweiElectronicTechnologyCo.,Ltd SixthFloor,158HuajieWestAvenue,YongkangCity,JinhuaCity,ZhejiangProvince FederalCommunicationsCommission AuthorizationandEvaluationDivision EquipmentAuthorizationBranch 7435OaklandMillsRoad Columbia,MD21046 2024/09/06 U.S.AgentDesignation YongkangPingweiElectronicTechnologyCo.,Ltdacknowledgestheirconsentforthefollowingcontact locatedintheUnitedStatestoactastheiragentforserviceofprocessfortheequipmentforwhichauthorization issought (FCCID:2BKRA-PW-030): NameandcompanyofU.S.agent:MoloImportExportLLC PhysicalU.S.addressofagent:2334CrystalMileCT,TomsRiver,NJ,08755,USA FRNofU.S.agent: 0033490996 EmailaddressofU.S.agent:[email protected] MoloImportExportLLCacknowledgestheirobligationtoacceptserviceofprocessonbehalfofYongkang PingweiElectronicTechnologyCo.,Ltd YongkangPingweiElectronicTechnologyCo.,LtdwiththeFRN[0035897032]acceptsitsobligationto maintainanagentforserviceofprocessintheUnitedStatesfornolessthanoneyearaftereitherthegranteehas permanentlyterminatedallmarketingandimportationoftheapplicableequipmentwithintheU.S.,orthe conclusionofanyCommission-relatedadministrativeorjudicialproceedinginvolvingtheequipment,whicheveris later. Bysigningthisform,weconfirmtheaboveandthatweareawareoftheapplicationrequirementslistedunder§ 2.911(d)(7). TheinformationprovidedinthisletterisbasedonthereferencedrulepartsofTitle47oftheCFRaswellasKDB 986446D01. Anexpirationdateforthisletterdoesnotexist.IncasetheU.S.agentchanges,thegranteeisobligatedtonotify theFCCwithin30daysviathegrantingTCB. Sincerely, Signature AmbertGao Manager YongkangPingweiElectronicTechnologyCo.,Ltd Signature SamuelWeiss Manager MoloImportExportLLC 4 8 _ [ m o d e l ] U S _ A g e n t _ 2 . 9 1 1 ( d ) ( 7 ) - U , V 0 5

CONFIDENTIALITYREQUEST forCertificationServiceinUSA FederalCommunicationCommission EquipmentAuthorizationDivision,ApplicationProcessingBranch 7435OaklandMillsRoad Columbia,MD21046 Date:<2024-09-06> PursuanttoParagraphs$0.457and0.459oftheCommission'sRules(47C.F.R.)and Section§552(b)(4)oftheFreedomofInformationAct,werequestsconfidentialityfor thefollowingproducts: FCCID Modelname 2BKRA-PW-030PW-030 Fortheproductstatedabove,werequestthatthefollowinginformationbeheld confidential; Thelong-termconfidentialityexhibitscontainourtradesecretsandproprietary informationthatcouldbeofbenefittoourcompetitors. Theshort-termconfidentialityonthebasisofensuringthatbusinesssensitive informationremainsconfidentialuntiltheactualmarketingofournewdevice. Ifyouhaveanyquestions,pleasefeelfreetocontactmeattheaddressshownbelow. Sincerely Name/Title:AmbertGao /N/A Company:YongkangPingweiElectronicTechnologyCo.,Ltd Address:SixthFloor,158HuajieWestAvenue,YongkangCity,Jinhua City,ZhejiangProvince Phone:18589044591 Fax: N/A E-Mail:[email protected]

YongkangPingweiElectronicTechnologyCo.,Ltd SixthFloor,158HuajieWestAvenue,YongkangCity,Jinhua City,ZhejiangProvince FederalCommunicationsCommission AuthorizationandEvaluationDivision EquipmentAuthorizationBranch 7435OaklandMillsRoad Columbia,MD21046 2024-09-06 Towhomitmayconcen: We,theundersigned,herebyauthorizeEurofinsProductServiceGmbHtoactonourbehalfinallmatters relatingtoapplicationsforequipmentauthorizationFCCID:2BKRA-PW-030includingthesigningof all documentsrelatedtothesematters. AnyandallactscarriedoutbyEurofinsProductServiceGmbHonourbehalfshallhavethesameeffect asactsofourown. Bysigningthisapplicationform,weagreetoEurofins'currentvalidGeneralTermsandConditions (AGB),TestingandCertificationRegulations(PZO)whichcanbeviewedonfollowingwebsite www.eurofins.de/eeorretrievedonrequest. Wealsoherebycertifythatnopartytothisapplicationissubjecttoadenialofbenefits,includingFCC benefits,pursuanttoSection5301oftheAnti-DrugAbuseActof1988,21U.S.C.862. Sincerely Name/Title Company: Address: Phone: Fax: E-Mail: AmbertGao/N/A YongkangPingweiElectronicTechnologyCo.,Ltd SixthFloor,158HuajieWestAvenue,YongkangCity,JinhuaCity,Zhejiang Province 18589044591 NA [email protected]

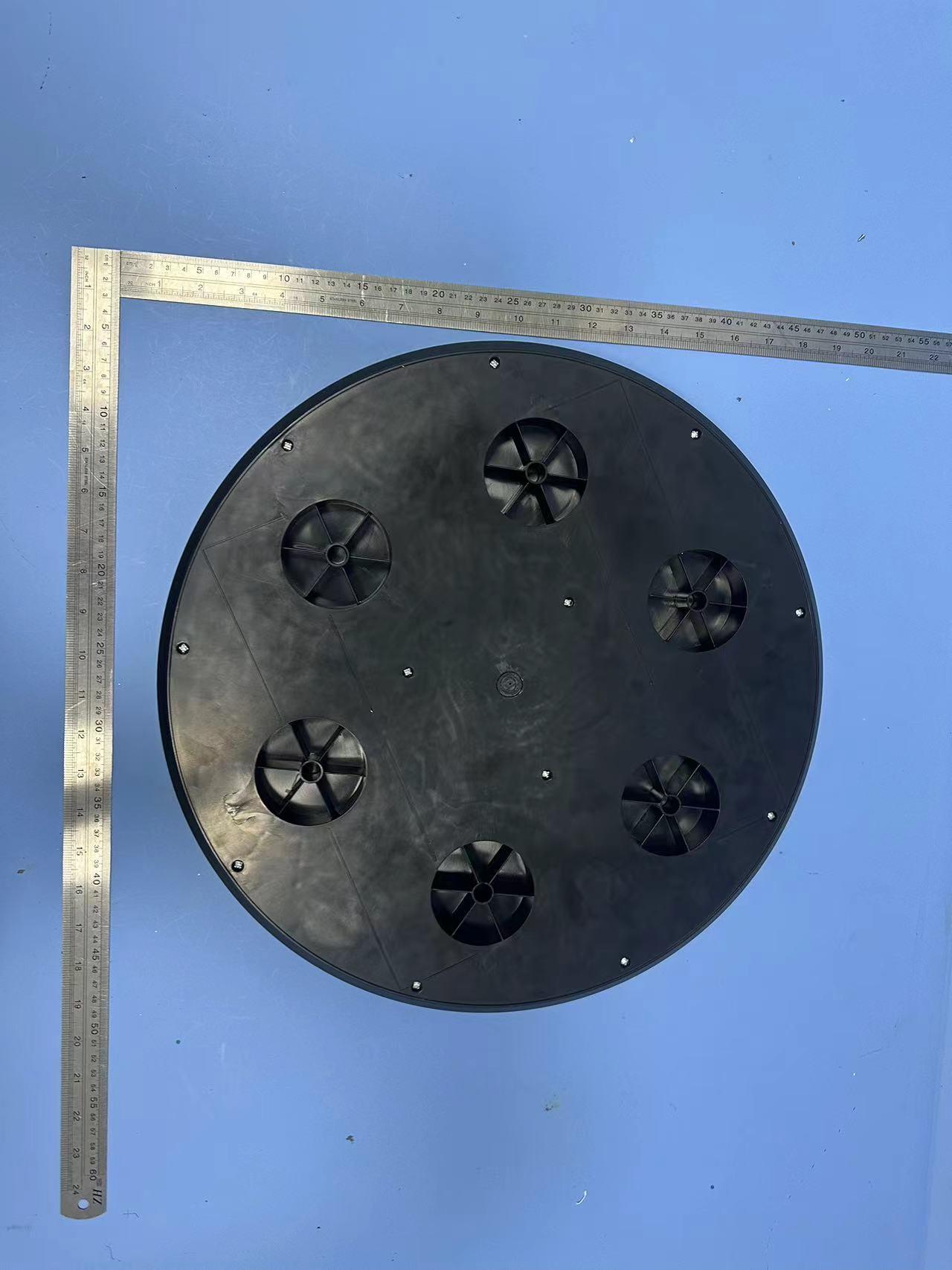

Page: 1 of 3 PHOTOGRAPHSOFEUT FCCID:2BKRA-PW-030 ExternalPhotos ExternalPhotos Page: 2 of 3 ExternalPhotos ExternalPhotos Page: 3 of 3 ExternalPhotos ExternalPhotos

FCCID:2BKRA-PW-030

DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] RFExposureEvaluationReport ApplicationNo.: DNT2409020011R1383-01824 Applicant: YongkangPingweiElectronicTechnologyCo.,Ltd AddressofApplicant: SixthFloor,158HuajieWestAvenue,YongkangCity,JinhuaCity,Zhejiang Province,China EUTDescription: Musicalboxingtarget ModelNo.: PW-030 FCCID: 2BKRA-PW-030 Powersupply DC3.7VFromBattery ChargingVoltage: DC5V Standards: / TradeMark: N/A DateofReceipt: 2024/9/1 DateofTest: 2024/9/2to2024/9/3 DateofIssue: 2024/9/4 TestResult:PASS PreparedBy:(TestingEngineer) ReviewedBy:(ProjectEngineer) ApprovedBy:(Manager) Note:Ifthereisanyobjectiontotheresultsinthisreport,pleasesubmitawritteninquirytothecompanywithin15daysfromthedateof receivingthereport.Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,andisissuedbythecompanyinaccordance withtherequirementsofthe"ConditionsofIssuanceofTestReports"printedintheattachedpage.Unlessotherwisestated,theresults presentedinthisreportonlyapplytothesamplestestedthistime.Partialreproductionofthisreportisnotallowedunlessapprovedbythe companyinwriting. ReportNo.:DNT2409020011R1383-01824Date：September4,2024Page： 2 / 7 DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] ReportReviseRecord ReportVersionReviseTimeIssuedDateValidVersionNotes V2.0/Sep.4,2024ValidOriginalReport ReportNo.:DNT2409020011R1383-01824Date：September4,2024Page： 3 / 7 DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] Contents RFEXPOSUREEVALUATIONREPORT.............................................................................................................................................1 1GENERALINFORMATION..................................................................................................................................................................4 1.1TESTLOCATION.................................................................................................................................................................................4 1.2GENERALDESCRIPTIONOFEUT.....................................................................................................................................................4 2RFEXPOSUREEVALUATION............................................................................................................................................................5 2.1RFEXPOSURECOMPLIANCEREQUIREMENT..................................................................................................................................5 ReportNo.:DNT2409020011R1383-01824Date：September4,2024Page： 4 / 7 DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] 1GeneralInformation 1.1TestLocation Company:DongguanDNTestingCo.,Ltd Address: No.1,WestFourthStreet,SouthXinfaRoad,WushaLiwu,Chang＇anTown, DongguanCity,GuangdongP.R.China Testengineer:WayneLin 1.2GeneralDescriptionofEUT Manufacturer: YongkangPingweiElectronicTechnologyCo.,Ltd AddressofManufacturer: SixthFloor,158HuajieWestAvenue,YongkangCity,JinhuaCity,Zhejiang Province,China EUTDescription: Musicalboxingtarget TestModelNo.: PW-030 AdditionalModel(s): / ChipType: AB22BP2516 Serialnumber: PR2409020011R1383 PowerSupply: DC3.7VFromBattery ChargingVoltage: DC5V TradeMark:NA HardwareVersion:V1.0 SoftwareVersion:V1.0 SampleType: PortableDevice,Module,MobileDevice AntennaType:External,Integrated AntennaGain: Providedbyapplicant 1.9dBi Remark: *Sincetheabovedataand/orinformationisprovidedbytheapplicantrelevantresultsorconclusionsofthisreportare onlymadeforthesedataand/orinformation,DNTisnotresponsiblefortheauthenticity,integrityandresultsofthe dataandinformationand/orthevalidityoftheconclusion. ReportNo.:DNT2409020011R1383-01824Date：September4,2024Page： 5 / 7 DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] 2RFExposureEvaluation 2.1RFExposureComplianceRequirement 2.1.1Limits HumanexposuretoRFemissionsfromportabledevices(47CFR§2.1093),asdefinedbytheFCC,mustbe evaluatedwithrespecttotheFCC-adoptedlimitsforSAR.Evaluationofmobiledevices,asdefinedbytheFCC,may alsobeperformedwithrespecttoSARlimits,butinsuchcasesitisusuallysimplerandmorecost-effectiveto evaluatecompliancewithrespecttofieldstrengthorpowerdensitylimits.Forcertaindevicesthataredesignedtobe usedinbothmobileandportableconfigurationssimilartothosedescribedin47CFR§2.1091(d)(4),suchascertain desktopphonesandwirelessmodemmodules,complianceformobileconfigurationsisalsosatisfiedwhenthesame deviceisevaluatedforSARcomplianceinportableconfigurations. Referto47CFR§2.1093: Aportabledeviceisdefinedasatransmittingdevicedesignedtobeusedinotherthanfixedlocationsandto generallybeusedinsuchawaythattheRFsource'sradiatingstructure(s)is/arewithin20centimetersofthebody oftheuser. Evaluationofcompliancewiththeexposurelimitsin§1.1310ofthischapter,andpreparationofanEAifthelimits areexceeded,isnecessaryforportabledeviceshavingsingleRFsourceswithmorethananavailablemaximum time-averagedpowerof1mW,morethantheERPlistedinTable1to§1.1307(b)(3)(i)(C),ormorethanthePthin thefollowingformula,whicheverisgreater.Thefollowingformulashallonlybeusedinconjunctionwithportable devicesnotexemptby§1.1307(b)(3)(i)(C)atdistancesfrom0.5centimetersto20centimetersandfrequencies from0.3GHzto6GHz. ReportNo.:DNT2409020011R1383-01824Date：September4,2024Page： 6 / 7 DongguanDNTestingCo.,Ltd. Ad…

Text truncated - open the document above for the full version.

Product specification Quick Reference Date Antenna module on the system board Frequenc Range 2400 ~ 2500MHz Ant. Port Input Pwr. (dBm) 0 (Typ. BT class 2 output power) Tot. Rad. Pwr. (dBm) -1.2 (Input pwr – loss pwr) Peak EIRP(dBm) 1.9 Directivity (dBi) 1 (all direction antenna) Efficiency (dB) 6 0.2 % Gain (dBi) 1.9 (Avg Gain XY-plane) Maximum Power (dBm) 1.7 (XY-plane) Minimum Power (dBm) -4(XY-plane) Avg. Power (dBm) -0.5(XY-plane) Input Impendence(ohm) 50 Polarization Type V ertical & Horizontal V . S .W . R < 1.4 All the technical data and information contained herein are subject to change without prior notice Antenna Layout & module on the system board Antenna Gain Gain Table Unit in dBi @2.44GHz XY-plane XZ-plane YZ-plane Efficiency Peak Avg. Peak Avg. Peak Avg. Module Board 1.2 -0.5 1.9 -3.6 1.1 -3.0 6 0.2 % Retum Loss The Environment of Antenna Radiation Pattem 3D radiation pattern diagram XY-plane XZ-plane YZ-plane

DongguanDN TestingCo., Ltd. Add:No. 1, WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'an Town,DongguanCity, GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] FCC Test Report ApplicationNo.: DNT2409020011R1383-01823 Applicant: YongkangPingweiElectronicTechnologyCo., Ltd Addressof Applicant: SixthFloor,158HuajieWestAvenue,YongkangCity,JinhuaCity, Zhejiang Province, China EUT Description: Musicalboxingtarget ModelNo.: PW-030 FCC ID: 2BKRA-PW-030 PowerSupply: DC 3.7VFromBattery ChargingVoltage: DC 5V TradeMark: / Standards: 47 CFRFCCPart 2, SubpartJ 47 CFRPart 15, SubpartC ANSIC63.10:2020 Dateof Receipt: 202 4/9/1 Dateof Test: 202 4/9/2 to 202 4/9/3 Dateof Issue: 202 4/9/4 Test Result:PASS PreparedBy:(TestingEngineer) ReviewedBy:(ProjectEngineer) ApprovedBy:(Manager) Note:If thereis any objectionto the resultsin this report,pleasesubmita writteninquiryto the companywithin15 daysfrom the date of receivingthe report.The test reportis effectiveonly with both signatureand specializedstamp,and is issuedby the companyin accordance with the requirementsof the "Conditionsof Issuanceof Test Reports"printedin the attachedpage.Unlessotherwisestated,the results presentedin this reportonly applyto the samplestestedthis time.Partialreproductionof this reportis not allowedunlessapprovedby the companyin writing. ReportNo.:DNT2409020011R1383-01823Date：September4, 202 4Page： 2 / 66 DongguanDN TestingCo., Ltd. Add:No. 1, WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'an Town,DongguanCity, GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] ReportReviseRecord ReportVersionReviseTimeIssuedDateValidVersionNotes V1.0/ Sep .4, 202 4 ValidOriginalReport ReportNo.:DNT2409020011R1383-01823Date：September4, 202 4Page： 3 / 66 DongguanDN TestingCo., Ltd. Add:No. 1, WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'an Town,DongguanCity, GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] 1 TestSummary Test ItemTest RequirementTest MethodTest ResultResult AntennaRequirement 15.203/247(b) --Clause3.1PASS 20dBEmissionBandwidth 15.247(a)(1) ANSIC63.10:2020Clause3.2PASS ConductedPeakOutput Power 15.247(b)(1) ANSIC63.10:2020Clause3.3PASS CarrierFrequencies Separation 15.247(a)(1) ANSIC63.10:2020Clause3.4PASS DwellTime 15.247(a)(1) ANSIC63.10:2020Clause3.5PASS HoppingChannelNumber 15.247(a)(1) ANSIC63.10:2020Clause3.6PASS Band-edgefor RF ConductedEmissions 15.247(d) ANSIC63.10:2020Clause3.7PASS RF ConductedSpurious Emissions 15.247(d) ANSIC63.10:2020Clause3.8PASS RadiatedSpurious emissions 15.247(d); 15.205/15.209 ANSIC63.10:2020Clause3.9PASS Restrictedbandsaround fundamentalfrequency(Radiated Emission) 15.247(d); 15.205/15.209 ANSIC63.10:2020Clause3.10PASS AC PowerLine Conducted Emission 15.207 ANSIC63.10:2020Clause3.1 1PASS Note: 1. “N/A ” denotestest is not applicablein this test report . ReportNo.:DNT2409020011R1383-01823Date：September4, 202 4Page： 4 / 66 DongguanDN TestingCo., Ltd. Add:No. 1, WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'an Town,DongguanCity, GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] Contents 1 Test Summary.............................................................................................................................................................3 2 GeneralInformation.....................................................................................................................................................5 2.1Test Location................................................................................................................................................5 2.2GeneralDescriptionof EUT .........................................................................................................................6 2.3ChannelList .................................................................................................................................................7 2.4Test Environmentand Mode........................................................................................................................8 2.5PowerSettingof Test Software....................................................................................................................9 2.6Descriptionof SupportUnits........................................................................................................................9 2.7Test Facility..................................................................................................................................................9 2.8MeasurementUncertainty(95%confidencelevels,k= 2) ..........................................................................10 2.9EquipmentList ............................................................................................................................................11 2.10Assistantequipmentusedfor test ..............................................................................................................12 3 Test resultsand MeasurementData .........................................................................................................................13 3.1AntennaRequirement................................................................................................................................13 3.220dBEmissionBandwidth.........................................................................................................................14 3.3ConductedOutputPower...........................................................................................................................15 3.4CarrierFrequenciesSeparationy...............................................................................................................16 3.5DwellTim e................................................................................................................................................…

Text truncated - open the document above for the full version.

ReportNo.:DNT2409020011R1383-01823Date：September4, 202 4Page： 42 / 66 DongguanDN TestingCo., Ltd. Add:No. 1, WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'an Town,DongguanCity, GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] 2DH5_Ant1_2441 2DH5_Ant1_2480 3DH5_Ant1_2402 ReportNo.:DNT2409020011R1383-01823Date：September4, 202 4Page： 43 / 66 DongguanDN TestingCo., Ltd. Add:No. 1, WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'an Town,DongguanCity, GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] 3DH5_Ant1_2441 3DH5_Ant1_2480 ReportNo.:DNT2409020011R1383-01823Date：September4, 202 4Page： 44 / 66 DongguanDN TestingCo., Ltd. Add:No. 1, WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'an Town,DongguanCity, GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] AppendixC: Carrierfrequencyseparation TestResult Test ModeAntennaFreq(MHz)Result[MHz]Limit[MHz]Verdict DH5Ant1Hop1.176≥1.050PASS 2DH5Ant1Hop1.176≥0.894PASS 3DH5Ant1Hop1.172≥0.872PASS ReportNo.:DNT2409020011R1383-01823Date：September4, 202 4Page： 45 / 66 DongguanDN TestingCo., Ltd. Add:No. 1, WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'an Town,DongguanCity, GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] TestGraphs DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop ReportNo.:DNT2409020011R1383-01823Date：September4, 202 4Page： 46 / 66 DongguanDN TestingCo., Ltd. Add:No. 1, WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'an Town,DongguanCity, GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] AppendixD: DwellTime TestResult Test ModeAntennaFreq(MHz) BurstWidth [ms] TotalHops [Num] Result[s]Limit[s]Verdict DH1Ant1Hop0.3753200.12≤0.4PASS DH3Ant1Hop1.6311600.261≤0.4PASS DH5Ant1Hop2.879106.670.307≤0.4PASS 2DH1Ant1Hop0.3853200.123≤0.4PASS 2DH3Ant1Hop1.6371600.262≤0.4PASS 2DH5Ant1Hop2.884106.670.308≤0.4PASS 3DH1Ant1Hop0.3853200.123≤0.4PASS 3DH3Ant1Hop1.6351600.262≤0.4PASS 3DH5Ant1Hop2.887106.670.308≤0.4PASS ReportNo.:DNT2409020011R1383-01823Date：September4, 202 4Page： 47 / 66 DongguanDN TestingCo., Ltd. Add:No. 1, WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'an Town,DongguanCity, GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] TestGraphs DH1_Ant1_Hop DH3_Ant1_Hop DH5_Ant1_Hop 2DH1_Ant1_Hop ReportNo.:DNT2409020011R1383-01823Date：September4, 202 4Page： 48 / 66 DongguanDN TestingCo., Ltd. Add:No. 1, WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'an Town,DongguanCity, GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] 2DH3_Ant1_Hop 2DH5_Ant1_Hop 3DH1_Ant1_Hop ReportNo.:DNT2409020011R1383-01823Date：September4, 202 4Page： 49 / 66 DongguanDN TestingCo., Ltd. Add:No. 1, WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'an Town,DongguanCity, GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] 3DH3_Ant1_Hop 3DH5_Ant1_Hop ReportNo.:DNT2409020011R1383-01823Date：September4, 202 4Page： 50 / 66 DongguanDN TestingCo., Ltd. Add:No. 1, WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'an Town,DongguanCity, GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] AppendixF: Numberof hoppingchannels TestResult TestModeAntennaFreq(MHz)Result[Num]Limit[Num]Verdict DH5Ant1Hop79≥15PASS 2DH5Ant1Hop79≥15PASS 3DH5Ant1Hop79≥15PASS ReportNo.:DNT2409020011R1383-01823Date：September4, 202 4Page： 51 / 66 DongguanDN TestingCo., Ltd. Add:No. 1, WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'an Town,DongguanCity, GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] TestGraphs DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop ReportNo.:DNT2409020011R1383-01823Date：September4, 202 4Page： 52 / 66 DongguanDN TestingCo., Ltd. Add:No. 1, WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'an Town,DongguanCity, GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] AppendixF: Bandedgemeasurements TestResult Test ModeAntennaCh NameFreq(MHz) Ref Level [dBm] Result [dBm] Limit [dBm] Verdict DH5Ant1 Low2402-10.67-50.95≤-30.67PASS High2480-6.97-50.49≤-26.97PASS LowHop_2402-11.00-50.39≤-31PASS HighHop_2480-6.86-50.82≤-26.86PASS 2DH5Ant1 Low2402-10.62-50.55≤-30.62PASS High2480-6.99-50.82≤-26.99PASS LowHop_2402-10.25-51.29≤-30.25PASS HighHop_2480-8.09-50.64≤-28.09PASS 3DH5Ant1 Low2402-10.67-51.04≤-30.67PASS High2480-6.48-50.95≤-26.48PASS LowHop_2402-14.77-51.13≤-34.77PASS HighHop_2480-7.21-50.42≤-27.21PASS . ReportNo.:DNT2409020011R1383-01823Date：September4, 202 4Page： 53 / 66 DongguanDN TestingCo., Ltd. Add:No. 1, WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'an Town,DongguanCity, GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] TestGraphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 DH5_Ant1_High_Hop_2480 ReportNo.:DNT2409020011R1383-01823Date：September4, 202 4Page： 54 / 66 DongguanDN TestingCo., Ltd. Add:No. 1, WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'an Town,DongguanCity, GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] 2DH5_Ant1_Low_2402 2DH5_Ant1_High_2480 2DH5_Ant1_Low_Hop_2402 ReportNo.:DNT2409020011R1383-01823Date：September4, 202 4Page： 55 / 66 DongguanDN TestingCo., Ltd. Add:No. 1, WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'an Town,DongguanCity, GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] 2DH5_Ant1_High_Hop_2480 3DH5_Ant1_Low_2402 3DH5_Ant1_High_2480

Page: 1 of 2 TestSetupOfEUT FCCID:2BKRA-PW-030 ConducedEmissionView RadiatedEmissionTestView|(Below1G) Page: 2 of 2 RadiatedEmissionTestView|(above1G)
