2BKRC-VS627Projector

Power OK Homepage VOL Menu Exit Image Flip Source FOCUS+ FOCUS- Settings Direction key PROJECTOR Press Focus-/- to adjust the clarity of thepictures on the Remote control Power：Power on/off the projectorSource: Select input signal OK: Confirm the setting or enter sub-menu Select desired menu times and make adjustments Homepage: Jump to the homapage directly Exit: Exit and save menu setting Menu: Enter menu or go back to previous item VOL: Adjust the volume Focus +/-: Adjust the focus when the image is blurrySettings: Go to the system settings. FCC Caution. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. *RF warning This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

- Shenzhen Visiontek Electronics Co., Ltd - Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 9/2/2024 U.S. Agent Designation Shenzhen Visiontek Electronics Co., Ltd acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BKRC-VS627): Name and company of U.S. agent: UUX GROUP INC Physical U.S. address of agent: 36 South 18th Avenue, Suite A Brighton, CO USA 80601 FRN of U.S. agent: 0033701590 Email address of U.S. agent: [email protected] UUX GROUP INC acknowledges their obligation to accept service of process on behalf of Shenzhen Visiontek Electronics Co., Ltd. Shenzhen Visiontek Electronics Co., Ltd with the FRN 0035897131 accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Li Jianjiang Manager Shenzhen Visiontek Electronics Co., Ltd Signature Jack Fu Manager UUX GROUP INC 48_[model] US_Agent_2.911(d)(7) - U, V05

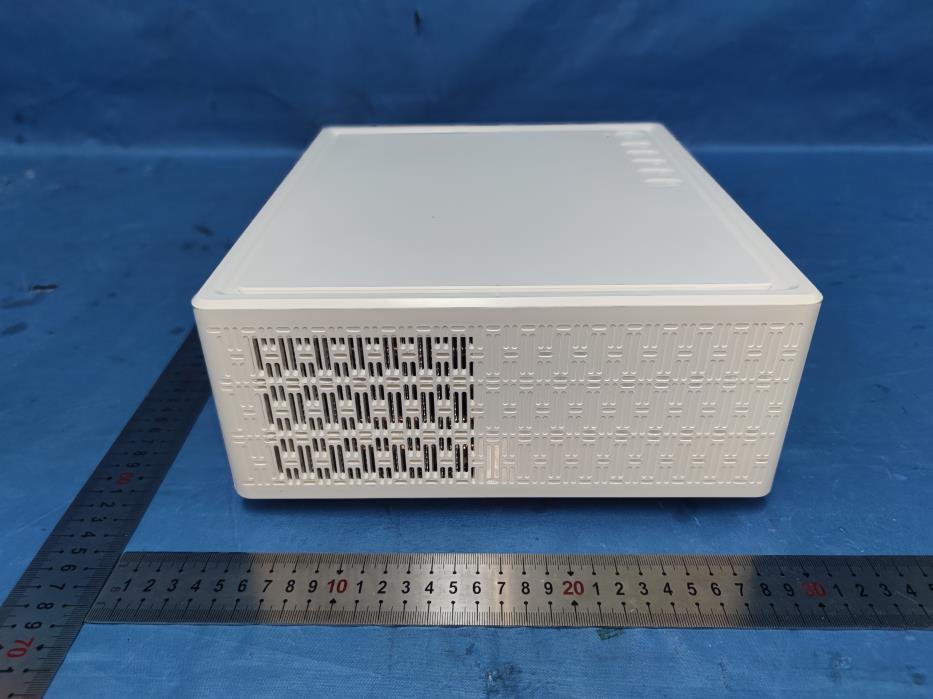

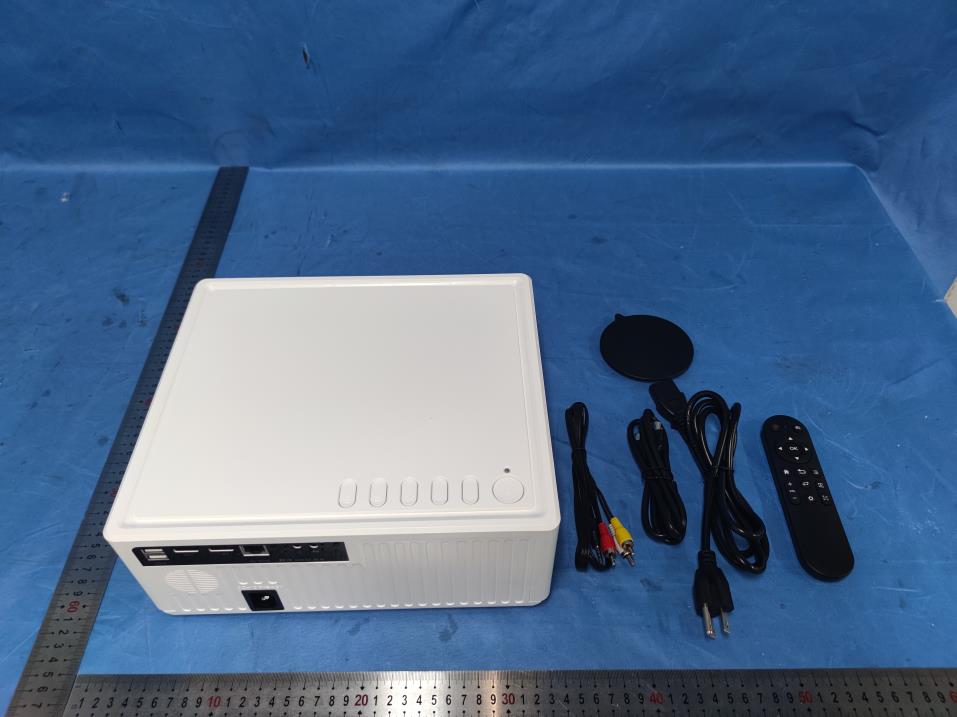

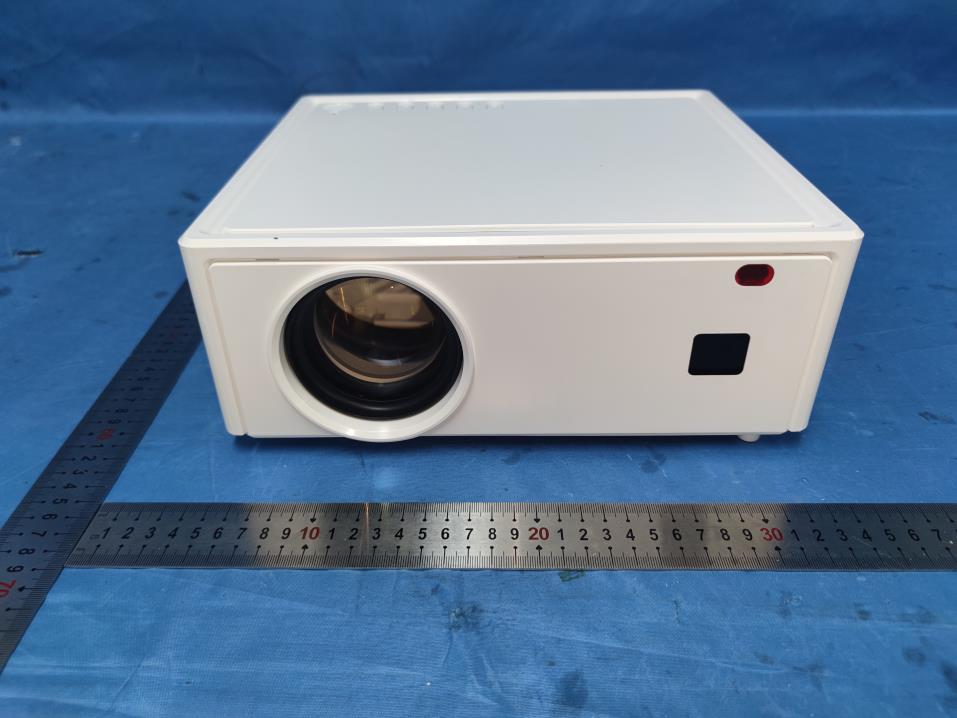

Page 1 of 3 FCC ID: 2BKRC-VS627 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. EUT Constructional Details External EUT Photo Photo 1 Photo 2 Page 2 of 3 FCC ID: 2BKRC-VS627 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 3 Photo 4 Page 3 of 3 FCC ID: 2BKRC-VS627 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 5 Photo 6 ---The End---

Label Size: L70mm * W45mm 1. The label is silk-screen on the sample Projector Model Name: VS627 FCC ID: 2BKRC-VS627 W L

Page 1 of 13 FCC ID: 2BKRC-VS627 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. EUT Constructional Details Internal EUT Photo Photo 1 Photo 2 Page 2 of 13 FCC ID: 2BKRC-VS627 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 3 Photo 4 Page 3 of 13 FCC ID: 2BKRC-VS627 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 5 Photo 6 Page 4 of 13 FCC ID: 2BKRC-VS627 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 7 Photo 8 Page 5 of 13 FCC ID: 2BKRC-VS627 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 9 Photo 10 Page 6 of 13 FCC ID: 2BKRC-VS627 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 11 Photo 12 Page 7 of 13 FCC ID: 2BKRC-VS627 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 13 Photo 14 Page 8 of 13 FCC ID: 2BKRC-VS627 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 15 Photo 16 Page 9 of 13 FCC ID: 2BKRC-VS627 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 17 Photo 18 Page 10 of 13 FCC ID: 2BKRC-VS627 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 19 Photo 20 Page 11 of 13 FCC ID: 2BKRC-VS627 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 21 Photo 22 Page 12 of 13 FCC ID: 2BKRC-VS627 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 23 Photo 24 Antenna Page 13 of 13 FCC ID: 2BKRC-VS627 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 25 Photo 26 ------End------

RF Exposure evaluation FCC ID: 2BKRC-VS627 Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Devices 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Antenna Information EUT can only use antennas certificated as follows provided by manufacturer; Antenna Model No. of antenna: Type of antenna: Gain of the antenna (Max.) Frequency range: WIFI-2.4G/5G SH-P001 FPC antenna 3.53dBi on 2.4GHz 2.57dBi on UNII band 1 4.96dBi on UNII band 3 2400-2500MHz; 5150-5850MHz BT SH-P001 FPC antenna 3.53dBi 2400-2500MHz 5. Manufacturing Tolerance 2.4G WLAN Frequency 802.11b (MHz) 2412 2437 2462 Target (dBm) 9 11 11 Tolerance ± (dB) 1 1 1 Frequency 802.11g (MHz) 2412 2437 2462 Target (dBm) 13 17 17 Tolerance ± (dB) 1 1 1 Frequency 802.11n(HT20) (MHz) 2412 2437 2462 Target (dBm) 13 17 17 Tolerance ± (dB) 1 1 1 Frequency 802.11n(HT40) (MHz) 2422 2437 2452 Target (dBm) 15 17 13 Tolerance ± (dB) 1 1 1 BR_EDR (Conducted) Frequency BR_EDR_GFSK (MHz) 2402 2441 2480 Target (dBm) 4 4 4 Tolerance ± (dB) 1 1 1 Frequency BR_EDR_π/4-DQPSK (MHz) 2402 2441 2480 Target (dBm) 4 4 4 Tolerance ± (dB) 1 1 1 Frequency BR_EDR_8DQPSK (MHz) 2402 2441 2480 Target (dBm) 4 4 4 Tolerance ± (dB) 1 1 1 BLE (Conducted) Frequency GFSK 1Mbps (MHz) 2402 2440 2480 Target (dBm) 0 2 2 Tolerance ± (dB) 1 1 1 5G WLAN U-NII-1(5150MHz-5250MHz) Frequency 802.11a (MHz) 5180 5200 5240 Target (dBm) 10 10 10 Tolerance ± (dB) 1 1 1 Frequency 802.11n(HT20) (MHz) 5180 5200 5240 Target (dBm) 10 10 10 Tolerance ± (dB) 1 1 1 Frequency 802.11n(HT40) (MHz) 5190 5230 Target (dBm) 10 10 Tolerance ± (dB) 1 1 Frequency 802.11ac(VHT20) (MHz) 5180 5200 5240 Target (dBm) 10 10 10 Tolerance ± (dB) 1 1 1 Frequency 802.11ac(VHT40) (MHz) 5190 5230 Target (dBm) 10 10 Tolerance ± (dB) 1 1 Frequency 802.11ac(VHT80) (MHz) 5210 Target (dBm) 10 Tolerance ± (dB) 1 5G WLAN U-NII-3(5725MHz-5850MHz) Frequency 802.11a (MHz) 5745 5785 5825 Target (dBm) 10 10 10 Tolerance ± (dB) 1 1 1 Frequency 802.11n(HT20) (MHz) 5745 5785 5825 Target (dBm) 9 9 8 Tolerance ± (dB) 1 1 1 Frequency 802.11n(HT40) (MHz) 5755 5795 Target (dBm) 10 10 Tolerance ± (dB) 1 1 Frequency 802.11ac(VHT20) (MHz) 5745 5785 5825 Target (dBm) 9 9 8 Tolerance ± (dB) 1 1 1 Frequency 802.11ac(VHT40) (MHz) 5755 5795 Target (dBm) 10 10 Tolerance ± (dB) 1 1 Frequency 802.11ac(VHT80) (MHz) 5775 Target (dBm) 10 Tolerance ± (dB) 1 6. Standalone MPE Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is refer to section 4, the RF power density can be obtained. Modulation Type Output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm2) MPE Limits (mW/cm2) dBm mW BR_EDR 5 3.1623 3.53 2.2542 0.0014 1 BLE 3 1.9953 3.53 2.2542 0.0009 1 2.4G WLAN 18 63.0957 3.53 2.2542 0.0283 1 5G WLAN (5150~5250 MHz) 11 12.5893 2.57 1.8072 0.0045 1 5G WLAN (5725~5875 MHz) 11 12.5893 4.96 3.1333 0.0078 1 Remark: 1. Output power including turn-up tolerance; 2. MPE evaluate distance is 20cm from user manual provide by manufacturer. 7. Summary simultaneous transmission information WIFI +BT Modulation Type Max MPE WIFI (mW/cm 2 ) Max MPE BT (mW/cm 2 ) ∑MPE ratios Limit Results WIFI+BT 0.0283 0.0014 0.0297 1.0 PASS 8. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. ----------------THE END OF REPORT---------------

Note: This device has been tested and found to comply with the standard(s) listed, this test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited. If there is a need to alter or revise this document, the right belongs to Guangdong Asia Hongke Test Technology Limited, and it should give a prior written notice of the revision document. This test report must not be used by the client to claim product endorsement. Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. TEST REPORT Product Name : Projector Brand Name : N/A Model : VS315 Series Model : N/A FCC ID : 2BKRC-VS315 Applicant : Shenzhen Visiontek Electronics Co., Ltd Address : 1st & 2nd Fl, Building 19, Furong 3rd Road, Furong Industrial Area, Xinqiao Street, Bao’an District, Shenzhen Manufacturer : Shenzhen Visiontek Electronics Co., Ltd Address : 1st & 2nd Fl, Building 19, Furong 3rd Road, Furong Industrial Area, Xinqiao Street, Bao’an District, Shenzhen Standard(s) : FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of Receipt : July 30, 2024 Date of Test : July 30, 2024~ Aug.22, 2024 Issued Date : Aug.23, 2024 Issued By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Reviewed by: Approved by: Leon.yi Sean She Page 2 of 24 Report No.: AiTSZ-240730013FW2 Report Revise Record Report Version Issued Date Notes M1 Aug.23, 2024 Initial Release Page 3 of 24 Report No.: AiTSZ-240730013FW2 Contents 1 TEST SUMMARY .................................................................................................................................................... 4 1.1 TEST STANDARDS ......................................................................................................................................................... 4 1.2 TEST SUMMARY ........................................................................................................................................................... 4 1.3 TEST FACILITY .............................................................................................................................................................. 5 1.4 MEASUREMENT UNCERTAINTY ........................................................................................................................................ 5 2 GENGENERAL INFORMATION ................................................................................................................................ 6 2.1 ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 6 2.2 GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 6 2.3 DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 7 2.4 SPECIAL ACCESSORIES ................................................................................................................................................... 8 2.5 EQUIPMENT LIST FOR THE TEST ....................................................................................................................................... 8 3 TEST CONDITIONS AND RESULTS ........................................................................................................................... 9 3.1 CONDUCTED EMISSIONS TEST ......................................................................................................................................... 9 3.2 RADIATED EMISSIONS AND BAND EDGE .......................................................................................................................... 12 3.3 MAXIMUM PEAK CONDUCTED OUTPUT POWER ............................................................................................................... 19 3.4 POWER SPECTRAL DENSITY .......................................................................................................................................... 20 3.5 6DB BANDWIDTH ....................................................................................................................................................... 21 3.6 OUT-OF-BAND EMISSIONS ........................................................................................................................................... 22 3.7 ANTENNA REQUIREMENT ............................................................................................................................................. 23 4 TEST SETUP PHOTOGRAPHS OF EUT .................................................................................................................... 24 5 EXTERNAL PHOTOGRAPHS OF EUT ...................................................................................................................... 24 6 INTERNAL PHOTOGRAPHS OF EUT ...................................................................................................................... 24 Page 4 of 24 Report No.: AiTSZ-240730013FW2 1 TEST SUMMARY 1.1 Test Standards The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz ANSI C63.10: 2013: American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 15.247 Meas Guidance v05r02: Gu…

Text truncated - open the document above for the full version.

Note: This device has been tested and found to comply with the standard(s) listed, this test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited. If there is a need to alter or revise this document, the right belongs to Guangdong Asia Hongke Test Technology Limited, and it should give a prior written notice of the revision document. This test report must not be used by the client to claim product endorsement. Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. TEST REPORT Product Name : Projector Brand Name : N/A Model : VS315 Series Model : N/A FCC ID : 2BKRC-VS315 Applicant : Shenzhen Visiontek Electronics Co., Ltd Address : 1st & 2nd Fl, Building 19, Furong 3rd Road, Furong Industrial Area, Xinqiao Street, Bao’an District, Shenzhen Manufacturer : Shenzhen Visiontek Electronics Co., Ltd Address : 1st & 2nd Fl, Building 19, Furong 3rd Road, Furong Industrial Area, Xinqiao Street, Bao’an District, Shenzhen Standard(s) : FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of Receipt : July 30, 2024 Date of Test : July 30, 2024~ Aug.22, 2024 Issued Date : Aug.23, 2024 Issued By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Reviewed by: Approved by: Leon.yi Sean She Page 2 of 25 Report No.: AiTSZ-240730013FW3 Report Revise Record Report Version Issued Date Notes M1 Aug.23, 2024 Initial Release Page 3 of 25 Report No.: AiTSZ-240730013FW3 Contents 1 TEST SUMMARY .................................................................................................................................................... 4 1.1 TEST STANDARDS ......................................................................................................................................................... 4 1.2 TEST SUMMARY ........................................................................................................................................................... 4 1.3 TEST FACILITY .............................................................................................................................................................. 5 1.4 MEASUREMENT UNCERTAINTY ........................................................................................................................................ 5 2 GENGENERAL INFORMATION ................................................................................................................................ 6 2.1 ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 6 2.2 GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 6 2.3 DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 7 2.4 SPECIAL ACCESSORIES ................................................................................................................................................... 8 2.5 EQUIPMENT LIST FOR THE TEST ....................................................................................................................................... 8 3 TEST CONDITIONS AND RESULTS ......................................................................................................................... 10 3.1 CONDUCTED EMISSIONS TEST ....................................................................................................................................... 10 3.2 RADIATED EMISSIONS AND BAND EDGE .......................................................................................................................... 13 3.3 MAXIMUM PEAK CONDUCTED OUTPUT POWER ............................................................................................................... 20 3.4 POWER SPECTRAL DENSITY .......................................................................................................................................... 21 3.5 6DB BANDWIDTH ....................................................................................................................................................... 22 3.6 OUT-OF-BAND EMISSIONS ........................................................................................................................................... 23 3.7 ANTENNA REQUIREMENT ............................................................................................................................................. 24 4 TEST SETUP PHOTOGRAPHS OF EUT .................................................................................................................... 25 5 EXTERNAL PHOTOGRAPHS OF EUT ...................................................................................................................... 25 6 INTERNAL PHOTOGRAPHS OF EUT ...................................................................................................................... 25 Page 4 of 25 Report No.: AiTSZ-240730013FW3 1 TEST SUMMARY 1.1 Test Standards The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz ANSI C63.10: 2013: American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 15.247 Meas Guidance v05r02: Guid…

Text truncated - open the document above for the full version.

Page 1 of 20 Report No.: AiTSZ-240730013FW3 Conducted Output Power Test Result Conducted Output Power Mode Channel Ant. 0 (dBm) Total (dBm) Limit (dBm) Result IEEE 802.11b 1 5.13 N/A ≤30 PASS 6 8.74 N/A ≤30 PASS 11 7.53 N/A ≤30 PASS IEEE 802.11g 1 10.51 N/A ≤30 PASS 6 14.61 N/A ≤30 PASS 11 14.60 N/A ≤30 PASS IEEE 802.11n_20 1 10.87 N/A ≤30 PASS 6 14.80 N/A ≤30 PASS 11 14.87 N/A ≤30 PASS IEEE 802.11n_40 3 12.81 N/A ≤30 PASS 6 14.55 N/A ≤30 PASS 9 11.78 N/A ≤30 PASS Page 2 of 20 Report No.: AiTSZ-240730013FW3 99% Bandwidth Test Result Mode Channel Ant. Center Frequency (MHz) 99% BW (MHz) IEEE 802.11b 1 0 2412 12.300 6 2437 13.820 11 2462 12.380 IEEE 802.11g 1 2412 17.590 6 2437 22.450 11 2462 17.290 IEEE 802.11n_20 1 2412 19.640 6 2437 22.550 11 2462 18.250 IEEE 802.11n_40 3 2422 36.830 6 2437 37.160 9 2452 37.870 Test Graphs IEEE 802.11b_Channel 1_20MHz_Antenna 0 IEEE 802.11b_Channel 6_20MHz_Antenna 0 IEEE 802.11b_Channel 11_20MHz_Antenna 0 IEEE 802.11g_Channel 1_20MHz_Antenna 0 Page 3 of 20 Report No.: AiTSZ-240730013FW3 IEEE 802.11g_Channel 6_20MHz_Antenna 0 IEEE 802.11g_Channel 11_20MHz_Antenna 0 IEEE 802.11n_Channel 1_20MHz_Antenna 0 IEEE 802.11n_Channel 6_20MHz_Antenna 0 IEEE 802.11n_Channel 11_20MHz_Antenna 0 IEEE 802.11n_Channel 3_40MHz_Antenna 0 IEEE 802.11n_Channel 6_40MHz_Antenna 0 IEEE 802.11n_Channel 9_40MHz_Antenna 0 Page 4 of 20 Report No.: AiTSZ-240730013FW3 6dB Bandwidth Test Result Mode Channel Ant. Center Frequency (MHz) 6 dB Bandwidth (MHz) Limit (MHz) Result IEEE 802.11b 1 0 2412 9.050 ≥0.5 PASS 6 2437 9.030 PASS 11 2462 10.02 PASS IEEE 802.11g 1 2412 10.68 PASS 6 2437 15.69 PASS 11 2462 16.28 PASS IEEE 802.11n_20 1 2412 11.28 PASS 6 2437 16.11 PASS 11 2462 16.96 PASS IEEE 802.11n_40 3 2422 32.94 PASS 6 2437 28.78 PASS 9 2452 20.68 PASS Test Graphs IEEE 802.11b_Channel 1_20MHz_Antenna 0 IEEE 802.11b_Channel 6_20MHz_Antenna 0 IEEE 802.11b_Channel 11_20MHz_Antenna 0 IEEE 802.11g_Channel 1_20MHz_Antenna 0 Page 5 of 20 Report No.: AiTSZ-240730013FW3 IEEE 802.11g_Channel 6_20MHz_Antenna 0 IEEE 802.11g_Channel 11_20MHz_Antenna 0 IEEE 802.11n_Channel 1_20MHz_Antenna 0 IEEE 802.11n_Channel 6_20MHz_Antenna 0 IEEE 802.11n_Channel 11_20MHz_Antenna 0 IEEE 802.11n_Channel 3_40MHz_Antenna 0 IEEE 802.11n_Channel 6_40MHz_Antenna 0 IEEE 802.11n_Channel 9_40MHz_Antenna 0 Page 6 of 20 Report No.: AiTSZ-240730013FW3 Conducted Out Of Band Emission Test Result Mode Channel Ant. OOB Emission Frequency (MHz) OOB Emission Level (dBm) Limit (dBm) Over Limit (dB) Result IEEE 802.11b 1 0 2397.57 -47.328 -25.78 -21.548 PASS 2400.00 -51.276 -25.78 -25.496 PASS 4808.30 -38.952 -25.78 -13.172 PASS 7238.60 -37.355 -25.78 -11.575 PASS 9633.10 -37.760 -25.78 -11.980 PASS 24476.5 -32.656 -25.78 -6.876 PASS 6 4883.17 -39.829 -22.34 -17.489 PASS 7323.49 -39.108 -22.34 -16.768 PASS 9744.67 -38.293 -22.34 -15.953 PASS 24133.6 -33.069 -22.34 -10.729 PASS 11 2483.50 -50.946 -24.43 -26.516 PASS 4908.14 -37.906 -24.43 -13.476 PASS 7369.27 -39.034 -24.43 -14.604 PASS 9837.06 -38.886 -24.43 -14.456 PASS 24727.8 -33.239 -24.43 -8.809 PASS IEEE 802.11g 1 2400.00 -39.932 -24.44 -15.492 PASS 4816.59 -38.541 -24.44 -14.101 PASS 7251.08 -38.242 -24.44 -13.802 PASS 9630.64 -37.610 -24.44 -13.170 PASS 24681.2 -33.148 -24.44 -8.708 PASS 6 4893.16 -38.920 -23.0 -15.920 PASS 7325.16 -38.415 -23.0 -15.415 PASS 9748.00 -37.011 -23.0 -14.011 PASS 24157.7 -33.409 -23.0 -10.409 PASS 11 2483.50 -47.366 -24.91 -22.456 PASS 4930.62 -39.421 -24.91 -14.511 PASS 7377.59 -39.945 -24.91 -15.035 PASS 9865.36 -37.503 -24.91 -12.593 PASS 24504.8 -32.885 -24.91 -7.975 PASS IEEE 802.11n_20 1 2392.58 -39.238 -24.26 -14.978 PASS 2400.00 -42.194 -24.26 -17.934 PASS 4834.10 -38.658 -24.26 -14.398 PASS 7226.90 -38.627 -24.26 -14.367 PASS 9648.10 -36.741 -24.26 -12.481 PASS 24665.4 -30.985 -24.26 -6.725 PASS 6 4859.04 -38.944 -23.02 -15.924 PASS 7321.00 -39.227 -23.02 -16.207 PASS 9738.84 -37.926 -23.02 -14.906 PASS 24657.9 -33.242 -23.02 -10.222 PASS 11 2483.50 -45.788 -25.13 -20.658 PASS 4906.48 -37.883 -25.13 -12.753 PASS 7375.10 -39.212 -25.13 -14.082 PASS 9857.03 -37.675 -25.13 -12.545 PASS 24683.7 -33.556 -25.13 -8.426 PASS IEEE 802.11n_40 3 2397.57 -30.456 -28.18 -2.276 PASS 2400.00 -35.824 -28.18 -7.644 PASS 4820.80 -38.017 -28.18 -9.837 PASS 7241.90 -38.851 -28.18 -10.671 PASS 9726.40 -36.717 -28.18 -8.537 PASS 24608.0 -33.003 -28.18 -4.823 PASS 6 4847.38 -37.786 -24.78 -13.006 PASS 7304.35 -37.432 -24.78 -12.652 PASS 9758.82 -37.194 -24.78 -12.414 PASS Page 7 of 20 Report No.: AiTSZ-240730013FW3 24613.0 -33.272 -24.78 -8.492 PASS 9 2483.50 -36.874 -25.33 -11.544 PASS 4914.80 -37.919 -25.33 -12.589 PASS 7351.79 -38.941 -25.33 -13.611 PASS 9832.90 -37.963 -25.33 -12.633 PASS 24669.6 -32.955 -25.33 -7.625 PASS Test Graphs In-Band Reference Level IEEE 802.11b_Channel 1_20MHz_Antenna 0 Out Of Band Emissi…

Text truncated - open the document above for the full version.
