2BKRX-SK2303DBaby Thick Mirror (Remote Control Version)

250mm 180mm Baby Car Rearview Mirror SPECIFICATION 1. Remove the battery insulation tab from the remote control. 2. Peel off the protective film from the acrylic mirror. 3. It is recommended to connect the power source for the first use. INITITAL USE GUIDE The mirror can be powered by the built-in 3000mAh rechargeable battery or via the included 10 feet charging cable connected to your vehicle’s USB-A port or a power bank. POWER SUPPLY 1. Read all instructions before use. 2. Avoid exposing the product to direct sunlight, high temperatures, heating above 60°C, or incineration. 3. Do not place on wet surfaces. 4. Do not open, crush, or subject to impact or modification. 5. Discontinue use if you notice any unusual smell, heating, or other abnormalities. 6. Dispose of responsibly by recycling; do not discard with household waste. Use designated recycling systems or contact the retailer for proper disposal. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation. ATTENTION 1.To install, detach the magic tape strap and wrap it securely around the headrest opposite the infant's seat, ensuring a tight fit by fastening the magic tape clasp. 2.Pull the strap to fix the mirror to the headrest, ensuring it stays in place during travel. 3.Sitting in the driver's seat, adjust the mirror to the best angle that allows for a clear and convenient view of the infant during driving. (Optionally, one can ask for assistance from a helper if available.) Note: Please ensure all components are correctly installed and securely fastened to ensure driving safety and the infant's comfort. INSTALLATION GUIDE Red Light: Battery is below 20%—please charge immediately. Yellow Light: Charging in progress. Green Light: Battery is fully charged. BATTERY INDICATOR CHARGING THE MIRROR REMOTE CONTROL INSTRUCTIONS LED lights Acrylic mirror The rotating can be adjusted in 360 degrees 360° Adjustable straps with velcro ON/OFF 30S 30S 60S 60S ON/OFF Use the remote control to turn the LED light on and off, or press the button on the back of the mirror. Adjust Brightness: With 7 levels of brightness, use the "+" and "-" buttons on the remote control to select the appropriate brightness level. Timer Mode: Select "30s" or "60s" on the remote to activate the timer. A 3-seconds breathing light will confirm signal receipt, and the light will turn off automatically after 30 or 60 seconds based on your selection. Memory brightness: The brightness in always-on mode and timer mode will be set to the last used brightness level; after the battery runs out and the power is restored, the default brightness is 40%. Use the included 10-feet charging cable to connect the mirror to a power source for charging. Product Size Product Material Battery Capacity Charge Cable LED Lights Color Temperature Remote Control Battery levels of brightness 11*8*1 inchMirror: 10*6.5inch ABS & Acrylic Lens 3000mAh (DC5V/1A) 10-Feet USB-C to USB-A 37 LEDs 3500K CR2032 10%,25%,40%,55%, 70%,85%, 100%

Shenzhen Minyao Technology Co., Ltd. 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – Equipment Type Company name: Shenzhen Minyao Technology Co., Ltd. Address: 1502, Building 8, Xinyi Lingyu R&D Center, No. 26, Honglang North 2nd Road, No.69 Xingdong community , Xinan area, Baoan Distr China Product Name: Baby Thick Mirror (Remote Control Version) FCC ID: 2BKRX-SK2303D Model(s): A-SK2303D-1-2 2.911(d)(5)(i) Equipment Type We, [Shenzhen Minyao Technology Co., Ltd.] (“the applicant”) certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Jieyin Su Date: Sep. 18, 2024 Title and Company name: Manager; Shenzhen Minyao Technology Co., Ltd. NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Shenzhen Minyao Technology Co., Ltd. 2.911 (d)(5)(ii) Applicant Attestation v1.2 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: Shenzhen Minyao Technology Co., Ltd. Address: 1502, Building 8, Xinyi Lingyu R&D Center, No. 26, Honglang North 2nd Road, No.69 Xingdong community , Xinan area, Baoan Distr China Product Name: Baby Thick Mirror (Remote Control Version) FCC ID: 2BKRX-SK2303D Model(s): A-SK2303D-1-2 2.911(d)(5)(ii) Applicant filing We, [Shenzhen Minyao Technology Co., Ltd.] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 , established pursuant to § 1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: Jieyin Su Date: Sep. 18, 2024 Title and Company name: Manager; Shenzhen Minyao Technology Co., Ltd. NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Shenzhen Minyao Technology Co., Ltd. Agent Authorization Company: Shenzhen Minyao Technology Co., Ltd. Address: 1502, Building 8, Xinyi Lingyu R&D Center, No. 26, Honglang North 2nd Road, No.69 Xingdong community , Xinan area, Baoan Distr China Product Name: Baby Thick Mirror (Remote Control Version) Model Number(s): A-SK2303D-1-2 Product Description: Baby Thick Mirror (Remote Control Version) We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Sep. 18, 2024 Name: Jieyin Su Title: Manager Company: Shenzhen Minyao Technology Co., Ltd.

< Shenzhen Minyao Technology Co., Ltd. > Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD21046 Date: Sep. 18, 2024 Subject; Request for Long Term Confidentiality FCC ID: 2BKRX-SK2303D To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Jieyin Su Title: Manager

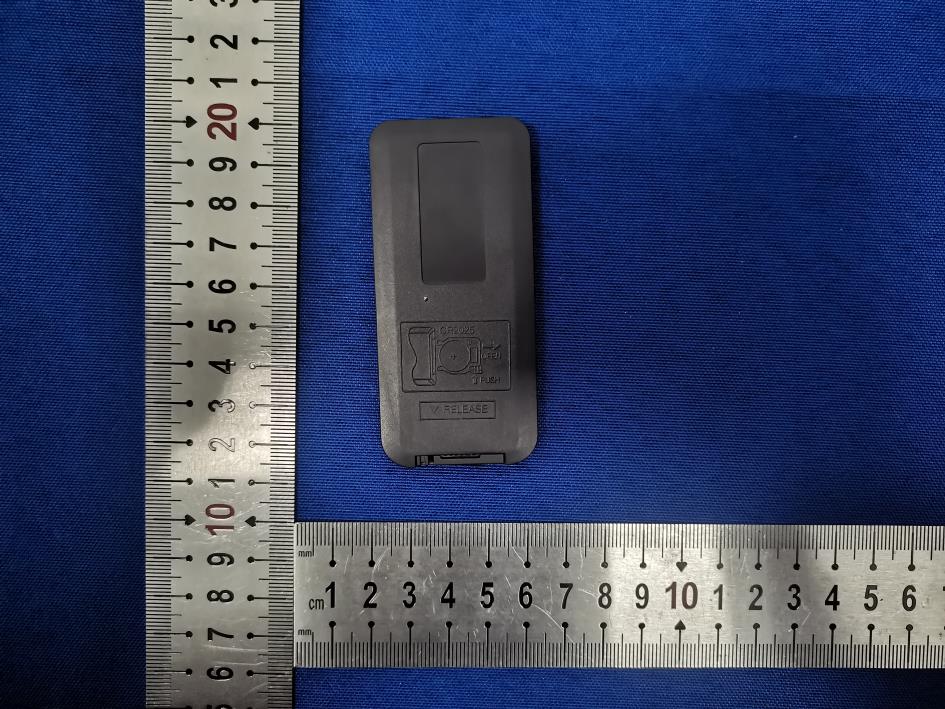

Model: A-SK2303D-1-2 Model: A-SK2303D-1-2 Model: A-SK2303D-1-2 Model: A-SK2303D-1-2

FCC ID LABEL: Label Location: FCC ID: 2BKRX-SK2303D

Model: A-SK2303D-1-2 Model: A-SK2303D-1-2 Model: A-SK2303D-1-2 Model: A-SK2303D-1-2 PCB Antenna

MPE ESTIMATION FCC ID: 2BKRX-SK2303D 1. Limit for Portable Equipment Exposure Frequency 1-g SAR 100MHz-6GHz 3.0 According to 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] •[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 2. Estimation Result Frequency Reading result(dBμV/m) PK Output Power (dBm) Output Power(mW) Test Separation Distance (mm) Measurement Result 1-g SAR ASK 433.92 MHz 73.73 -21.47 0.007 5 0.000922 3.0 Note: PK Output Power (dBm)= Reading result(dBμV/m)-95.2 Reading result see the test report UNIA24082116ER-61. The SAR evaluation is not required. ------The End------

天线尺寸图 芯片天线：由方框标出的环绕形方式和标出的绕板边形式两部分组成 环绕部分尺寸 图标的尺寸：①、4.5mm②、8.2mm③、0.7mm④、0.7mm⑤、3mm 绕板边部分 图标的尺寸：①、4.2cm②、3.0cm③、7.3cm 从RF天线脚出来部分 图标的尺寸：①、4.2mm②、8.0mm③、1.2mm④、1.21cm

Page 1 of 21 Report No.: UNIA24082116ER-61 FCC RADIO TEST REPORT FCC ID: 2BKRX-SK2303D Sample : Baby Thick Mirror (Remote Control Version) Trade Mark : N/A Main Model : A-SK2303D-1-2 Additional Model : N/A Report No. : UNIA24082116ER-61 Prepared for Shenzhen Minyao Technology Co., Ltd. 1502, Building 8, Xinyi Lingyu R&D Center, No. 26, Honglang North 2nd Road, No.69 Xingdong community , Xinan area, Baoan Distr China Prepared by Shenzhen United Testing Technology Co., Ltd. D101&D401, No. 107, Kaicheng High-Tech Park, Taoyuan Community, Dalang Sub-District, Longhua District, Shenzhen, Guangdong, China Page 2 of 21 Report No.: UNIA24082116ER-61 TEST RESULT CERTIFICATION Applicant .............................. : Shenzhen Minyao Technology Co., Ltd. Address.................................. : 1502, Building 8, Xinyi Lingyu R&D Center, No. 26, Honglang North 2nd Road, No.69 Xingdong community , Xinan area, Baoan Distr China Manufacturer ........................ : Huizhou Jiayao Smart Technology Co., Ltd. Address.................................. : 2~3 floor, 33#, No. 6 Xinhua Avenue, Chenjiang Street, Zhongkai High-tech Zone, Huizhou, Guangdong. Product description Product .................................. : Baby Thick Mirror (Remote Control Version) Trade Mark ............................. : N/A Model Name .......................... : A-SK2303D-1-2 Test Methods ........................ : FCC Part 15 Subpart C 15.231 ANSI C63.10: 2013 This device described above has been tested by Shenzhen United Testing Technology Co., Ltd., and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of UNI, this document may be altered or revised by Shenzhen United Testing Technology Co., Ltd., personnel only, and shall be noted in the revision of the document. Date of Test Date (s) of performance of tests ............ : Aug. 26, 2024 ~ Sep. 04, 2024 Date of Issue ......................................... : Sep. 04, 2024 Test Result ............................................. : Pass Edited by: Jason Ye Reviewed by: Kelly Cheng Approved by: Liuze Table of Contents Pages Page 3 of 21 Report No.: UNIA24082116ER-61 Table of Contents Pages 1 TEST SUMMARY ......................................................................................................................... 4 1.1 TEST PROCEDURES AND RESULTS ....................................................................................... 4 1.2 TEST FACILITY .......................................................................................................................... 5 1.3 MEASUREMENT UNCERTAINTY .............................................................................................. 6 2 GENERAL INFORMATION .......................................................................................................... 7 2.1 GENERAL DESCRIPTION OF EUT ..................................................................................... 7 2.2 CARRIER FREQUENCY OF CHANNELS ............................................................................ 8 2.3 OPARATION OF EUT DURING TESTING ........................................................................... 8 2.4 DESCRIPTION OF TEST SETUP ........................................................................................ 8 2.5 ENVIRONMENTAL CONDITIONS ....................................................................................... 8 2.6 MEASUREMENT INSTRUMENTS LIST .............................................................................. 9 3 CONDUCTED EMISSIONS TEST .............................................................................................. 10 4 RADIATED EMISSION TEST .................................................................................................... 11 5 -20DB OCCUPIED BANDWIDTH .............................................................................................. 18 6 DEACTIVATION TIME ............................................................................................................... 19 6 ANTENNA REQUIREMENT ....................................................................................................... 20 7 PHOTOGRAPH OF TEST .......................................................................................................... 21 Page 4 of 21 Report No.: UNIA24082116ER-61 1 TEST SUMMARY 1.1 TEST PROCEDURES AND RESULTS FCC Requirements FCC Part 15.207 Conducted Emission Not applicable FCC §15.231(a)(1) Automatically Deactivate PASS FCC §15.231 Duty Cycle PASS FCC Part 15.231(b) Electric Field Strength of Fundamental Emission PASS FCC Part 15.205 &15.209& 15.231(b) Electric Field Strength of Spurious Emission PASS FCC Part 15.231(c) -20dB bandwidth PASS Page 5 of 21 Report No.: UNIA24082116ER-61 1.2 TEST FACILITY Test Firm : Shenzhen United Testing Technology Co., Ltd. Address : D101&D401, No. 107, Kaicheng High-Tech Park, Taoyuan Community, Dalang Sub-District, Longhua District, Shenzhen, Guangdong, China The testing quality ability of our laboratory meet with "Quality Law of People's Republic of China" Clause 19.The testing quality system of our laboratory meets with ISO/IEC-17025 requirements. This approval result is accepted by MRA of APLAC. Our test facility is recognized, certified, or accredited by the following organizations: A2LA Certificate Number: 4747.01 The EMC Laboratory has been accredited by A2LA, and in compliance with ISO/IEC 17025:2017 General Requirements for testing Laboratories. FCC Registration Number: 674885 The EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications commission. IC Registration Number: 31584 The EMC Laboratory has been registered and fully described in a report filed with the (IC) Industry Canada. Page 6 of 21 Report N…

Text truncated - open the document above for the full version.

Model: A-SK2303D-1-2 Radiated Emission test
