2BKTG-M6PROWireless glasses

产品规格 产品型号:M6Pro开放式定向音频智能眼镜 镱架颜色:黑色 镜架材质:TR90/混合材质 镜片材质:PC/UV400 声道: 双喇叭, 立体声 无线版本:V53 充电时间:约120分钟 电池容量:120MAH(典型值) 充电电压和电流:DC5V 支持模式: HEP/HSP/A2 DPFAVRCP 功能操作说明 插上充电器自动关机,或在开机状态,长按右镜腿按键区5秒, 1.开机 2.关机 在关机状态,长按右境腿按键区3秒, 提示“开机” 提示“关机” 手机来电时,单击多功能区可接听电话 3.播放/暂停 在待机状态下,单击多功能键可直接播放,或暂停播放 4.切换歌曲 播放音乐时双击多功能键可切换下一曲,三击多功能键可切换上一曲 5.来电接听 6.来电挂断 当电池电量低电时,每隔30秒会发出提示音,需尽快给设备补电 手机通话时,单击多功能区可挂断电话 7.来电拒接 手机来电时,长按多功能区1.5秒均可拒接来电 8.低电量提示 9:激活语音助手:耳机与手机连接状态下,长按1.5秒多功能键, 听到提示音“嘟”以后松开 点击配对即可连接成功。 配对方式 1.眼镜开机后,自动进入配对状态,红蓝灯交瞥闪烁 2:打开要连接的设备,搜索并连接设备M6Pro设备自动弹出配对窗口, 充电操作 充电时红灯会长亮;充电完成,红蓝灯交替闪烁10后熄灭. 1.将Micro充电线一头插上充电仓,一头插上充电器即可给眼镜充电, 提示 1: 使用本产品前请仔细阅读说明书,并保留说明书 2:首欢使用,请先将本产品充电满电 3:如果产品长期〔超过两周] 不充电, 使用前请对其充电. 使用而且吸术性较强眼镜布轻轻抹拭干净, 注意不要太用力, 按拭时, 4:较的镜片不要直接擦拭, 应先镜片打湿, 再用眼镜布拭干,尽量 眼镜布要朝着同一个方式模式， 不能来回模式， 也不能在镜片上转着圈擦， 5:当电池充电超出-10°C-60°C的时候, 产品将会影响工作。 120 In standby mode, click the multifunction key to play directly or pause playback next track, and triple tap the multifunction key to switch to the previous track When playing music, double-click the multifunction key to switch to the the phone. When a mobile phone calls, click on the multifunction area to answer When making a phone call, click on the multifunction area to end the phone. 9: Activate voice assistant: When the headphones are connected to the phone, long press and hold the 1.5 second multifunction button FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

TERMINUS SOFTWARE INC. 2024.09.24 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for 2BKTG-M6PRO [TERMINUS SOFTWARE INC.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, ZHU YONG JIA TERMINUS SOFTWARE INC. 2024.09.24 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for 2BKTG-M6PRO [TERMINUS SOFTWARE INC.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, ZHU YONG JIA

Attestation Statements 2024.09.24 TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for 2BKTG-M6PRO (TERMINUS SOFTWARE INC.), the undersigned, hereby authorize (TERMINUS SOFTWARE INC.) to act as our designated U.S. agent for service of process, (TERMINUS SOFTWARE INC.) accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. (TERMINUS SOFTWARE INC.) accepts the responsibility to act as designated U.S. agent for service of process. Applicant Information： Company name: TERMINUS SOFTWARE INC. Contact Name: ZHU YONG JIA Address: 50 ENGINEERS LN FARMINGDALE, NY 11735, USA Telephone No: 17665010193 Email: [email protected] Signature U.S. Agent Information: Company Name: TERMINUS SOFTWARE INC. Address: 1624 Market St, Ste 226, #30327 Denver CO, 80202 USA FRN: 0035905553 Contact Name: ZHU YONG JIA Telephone No: 17665010193 Email: [email protected] Signature

TERMINUS SOFTWARE INC. 2024-09-24 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (Wireless glasses / M6 Pro AND 2BKTG- M6PRO) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the • Schematics • Block diagram • Operation description required to be submitted with this application be permanently withheld from public review. These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Please contact me if there is any information you may need. Sincerely, Name: ZHU YONG JIA

TERMINUS SOFTWARE INC. 2024-09-24 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (Shenzhen STS Test Services Co., Ltd) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Name: ZHU YONG JIA

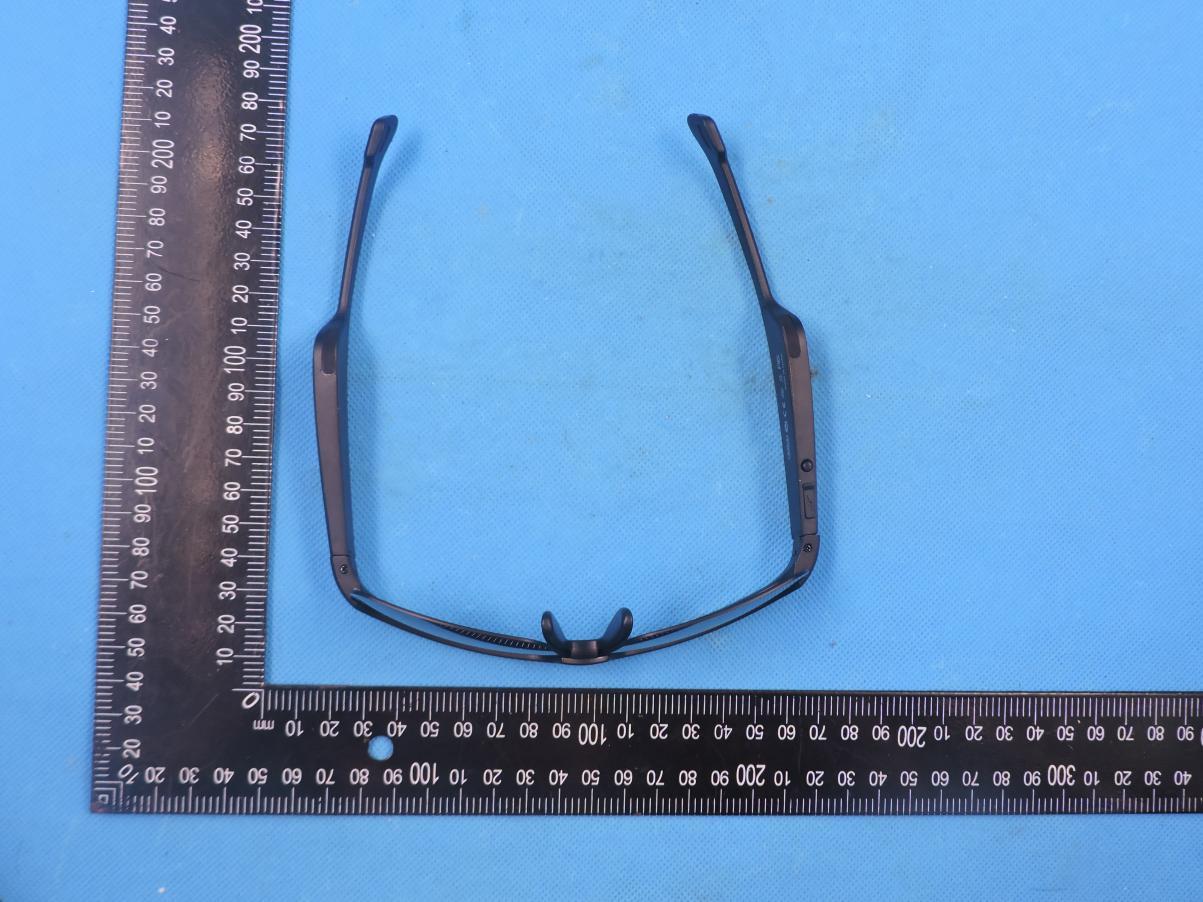

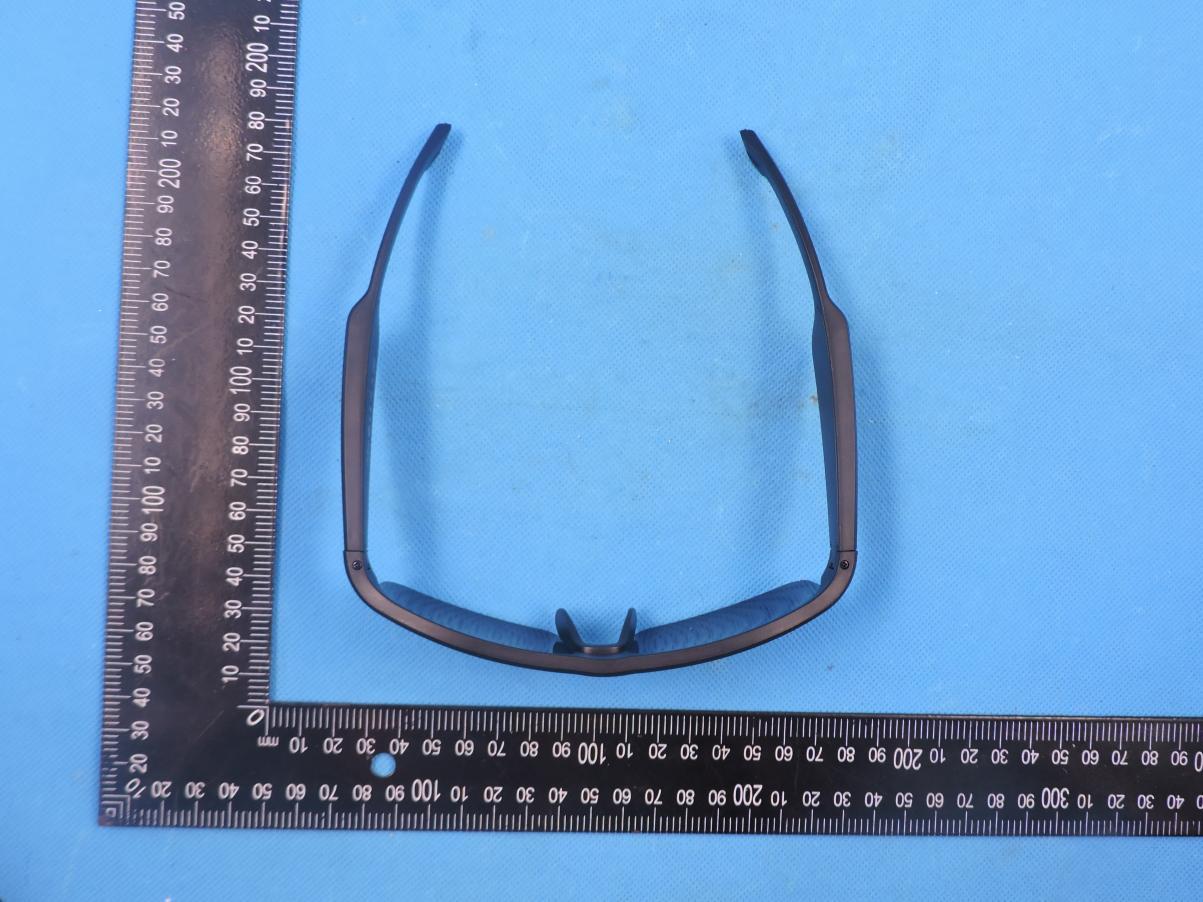

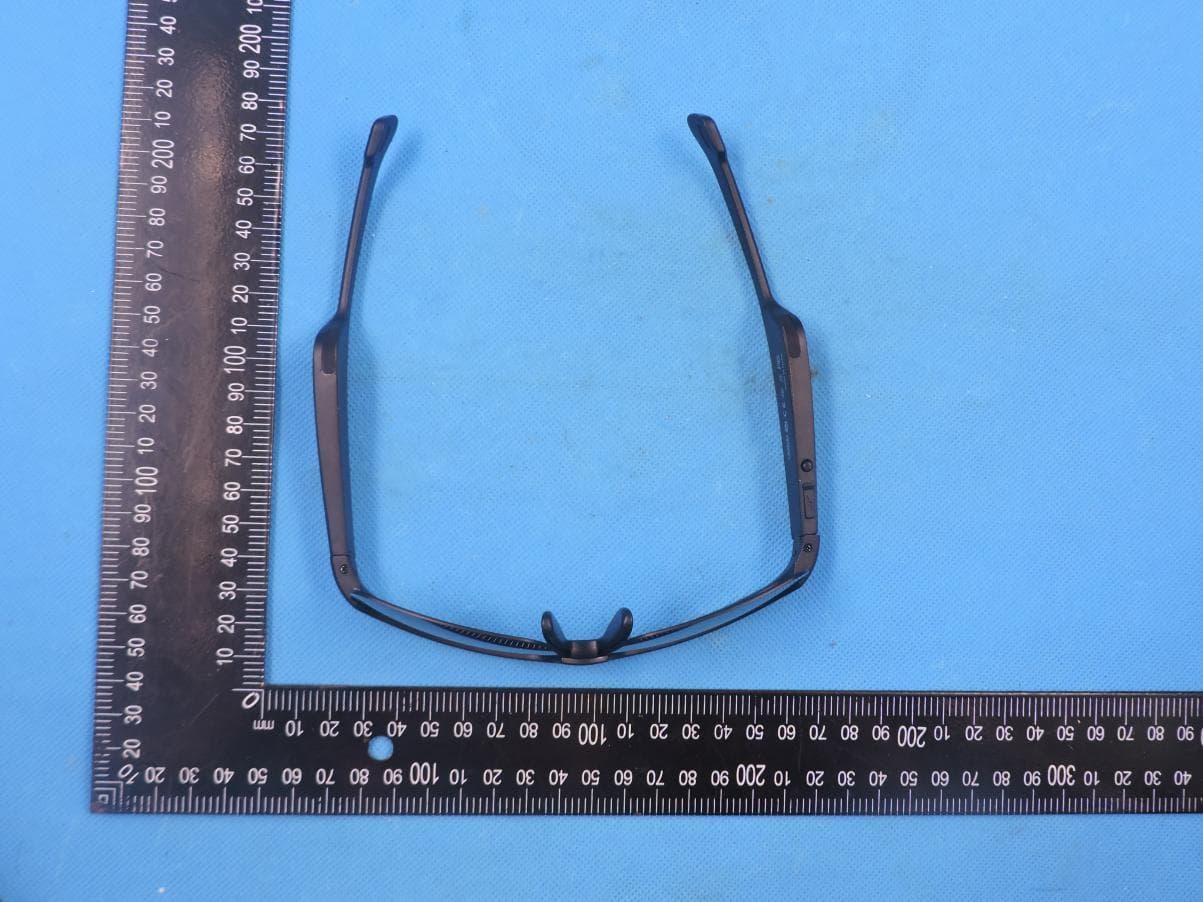

Page 1 of 3 Report No.: STS2408162 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: M6 Pro Photo 1 Photo 2 Page 2 of 3 Report No.: STS2408162 Photo 3 Photo 4 Page 3 of 3 Report No.: STS2408162 Photo 5 Photo 6

Label 7mm 20mm Wireless glasses EJU Model: M6 Pro FCC ID: 2BKTG-M6PRO

Page 1 of 3 Report No.: STS2408162 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model:M6 Pro Photo 1 Photo 2 BT Antenna Page 2 of 3 Report No.: STS2408162 Photo 3 Photo 4 Page 3 of 3 Report No.: STS2408162 Photo 5 Photo 6

The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the ShenZhen STS Test Services Co., Ltd. Radio Test Report Report No.: STS2408162H01 Issued for TERMINUS SOFTWARE INC. 50 ENGINEERS LN FARMINGDALE, NY 11735, USA Product Name: Wireless glasses Brand Name: EJU Model Name: M6 Pro Series Model(s): M8 Pro FCC ID: 2BKTG-M6PRO Test Standards: FCC 47CFR §2.1093 Page 2 of 9 Report No.: STS2408162H01 TEST REPORT Applicant’s Name ................. : TERMINUS SOFTWARE INC. Address ................................. : 50 ENGINEERS LN FARMINGDALE, NY 11735, USA Manufacturer's Name ........... : Hangzhou Terminus Network Technology Co., Ltd. Address ................................. : Building 2, Feitian Park, Yunqi Town, Westlake District, Hangzhou, Zhejiang Province, China Product Description Product Name ........................ : Wireless glasses Brand Name .......................... : EJU Model Name .......................... : M6 Pro Series Model(s) ...................... : M8 Pro Test Standards ..................... : FCC 47CFR §2.1093 447498 D04 Interim General RF Exposure Guidance v01 The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the ShenZhen STS Test Services Co., Ltd. Date of Test ........................................... : Date of receipt of test item ...................... : 30 Aug. 2024 Date (s) of performance of tests ............. : 27 Aug. 2024~07 Sept. 2024 Date of Issue .......................................... : 07 Sept. 2024 Test Result .............................................. : Pass Testing Engineer : (Aaron Bu) Technical Manager : (Tony Liu) Authorized Signatory : (Bovey Yang) Page 3 of 9 Report No.: STS2408162H01 TABLE OF CONTENTS 1. GENERAL INFORMATION 5 1.1 GENERAL DESCRIPTION OF THE EUT 5 1.2 TEST FACTORY 5 2. FCC 47CFR §2.1093 REQUIREMENT 6 2.1 TEST STANDARDS 6 2.2 LIMIT 6 2.3 TEST RESULT 9 Page 4 of 9 Report No.: STS2408162H01 Revision History Rev. Issue Date Report No. Effect Page Contents 00 07 Sept. 2024 STS2408162H01 ALL Initial Issue Page 5 of 9 Report No.: STS2408162H01 1. GENERAL INFORMATION 1.1 GENERAL DESCRIPTION OF THE EUT Product Name Wireless glasses Brand Name EJU Model Name M6 Pro Series Model(s) M8 Pro Model Difference Only the model name and appearance are different Product Description The EUT is Wireless glasses Operation Frequency: 2402 – 2480 MHz Modulation Type: BT BR(1Mbps): GFSK BT EDR(2Mbps): π/4-DQPSK BT EDR(3Mbps): 8DPSK Antenna gain: -0.58dBi Antenna Designation: PCB Rating Input: DC 5V Hardware Version V1.2 Software Version V5.3 1.2 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : 101, Building B, Zhuoke Science Park, No.190 Chongqing Road, ZhanChengShequ, Fuhai Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 Page 6 of 9 Report No.: STS2408162H01 2. FCC 47CFR §2.1093 REQUIREMENT 2.1 TEST STANDARDS Follow the maximum permissible exposure (MPE) limits specified in 447498 D04 Interim General Radio Frequency Exposure Guidelines v01. The gain of the antenna used in the product was extracted from the supplied antenna data sheet and the maximum total power input to the antenna was also measured. Calculate the distance from the product to the MPE limit by the formula. 2.2 LIMIT For single RF sources (i.e., any single fixed RF source, mobile device, or portable device, as defined in paragraph (b)(2) of this section): A single RF source is exempt if: (A) The available maximum time-averaged power is no more than 1 mW, regardless of separation distance. This exemption may not be used in conjunction with other exemption criteria other than those in paragraph (b)(3)(ii)(A) of Part 1.1307. Medical implant devices may only use this exemption and that in paragraph (b)(3)(ii)(A); (B) Or the available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold Pth (mW) described in the following formula. This method shall only be used at separation distances (cm) from 0.5 centimeters to 40 centimeters and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by: Page 7 of 9 Report No.: STS2408162H01 (C) Or using below table and the minimum separation distance (R in meters) from the body of a nearby person for the frequency (f in MHz) at which the source operates, the ERP (watts) is no more than the calculated value prescribed for that frequency. For the exemption in Table 1 to apply, R must be at least λ/2π, where λ is the free-space operating wavelength in meters. If the ERP of a single RF source is not easily obtained, then the available maximum time-averaged power may be used in lieu of ERP if the physical dimensions of the radiating structure(s) do not exceed the electrical length of λ/4 or if the antenna gain is less than that of a half-wave dipole (1.64 linear value). RF Source frequency (MHz) Threshold ERP(watts) 0.3-1.34 1,920 R 2 . 1.34-30 3,450 R 2 /f 2 . 30-300 3.83 R 2 . 300-1,500 0.0128 R 2 f. 1,500-100,000 19.2R 2 . Page 8 of 9 Report No.: STS2408162H01 For multiple RF sources: Multiple RF sources are exempt if: (A) The available maximum time-averaged power of each source is no more than 1 mW and there is a separation distance of two centimeters between any portion of a radiating structure operating and the nearest portion of any other radiating structure in the same device, except if the sum of multiple sources is less than 1 mW during the time-averaging period, in which case they may be treated as a single source (separation is not required). This exemption may not be used in conjunction with other exemption criteria other than those is paragraph (b)(3)(i)(A) of Part 1.1307. Medical implant devices may only use this exem…

Text truncated - open the document above for the full version.

Inverted F Antenna Specification Summary ITEMANT SPEC Model Name 2.4G ANT HorizontalVertical 2400MHz 2400MHz2500MHz2400MHz2400MHz 2500MHz Center Frequency -1.26-0.76-0.58-5.25-2.46-1.86 MAX. Gain -0.58dB PolarizationHorizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance50 Ohm Antenna Length 38.20mm Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) 3.8mm 9.6mm Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain (dB) Frequency (MHz) MaxMinAvg 2400-1.26174-30.0801-7.18716 2450-0.765802-36.5604-7.48023 2500-0.585582-22.0315-6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -5.2537 -22.1424 -12.4294 2450 -2.4652 -24.5837 -10.4702 2500 -1.86120 -29.5214 -9.20432 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the Shenzhen STS Test Services Co., Ltd. Radio Test Report Report No.:STS2408162W01 Issued for TERMINUS SOFTWARE INC. 50 ENGINEERS LN FARMINGDALE, NY 11735, USA Product Name: Wireless glasses Brand Name: EJU Model Name: M6 Pro Series Model(s): M8 Pro FCC ID: 2BKTG-M6PRO Test Standards: FCC Part15.247 Page 2 of 94 Report No.:STS2408162W01 TEST REPORT Applicant’s Name ................. : TERMINUS SOFTWARE INC. Address .................................. : 50 ENGINEERS LN FARMINGDALE, NY 11735, USA Manufacturer's Name ........... : Hangzhou Terminus Network Technology Co., Ltd. Address .................................. : Building 2, Feitian Park, Yunqi Town, Westlake District, Hangzhou, Zhejiang Province, China Product Description Product Name ........................ : Wireless glasses Brand Name ........................... : EJU Model Name ........................... : M6 Pro Series Model(s) .................... : M8 Pro Test Standards ...................... : FCC Part15.247 Test Procedure ....................... : ANSI C63.10-2020 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the Shenzhen STS Test Services Co., Ltd. Date of Test ................................ : Date of receipt of test item .......... : 30 Aug. 2024 Date (s) of performance of tests . :27 Aug. 2024~07 Sept. 2024 Date of Issue .............................. : 07 Sept. 2024 Test Result .................................. :Pass Testing Engineer : (Aaron Bu) Technical Manager : (Tony Liu) Authorized Signatory: (Bovey Yang) Page 3 of 94 Report No.:STS2408162W01 Table of Contents Page 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 10 2.3 FREQUENCY HOPPING SYSTEM REQUIREMENTS 10 2.4 TABLE OF PARAMETERS OF TEST SOFTWARE SETTING 12 2.5 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 12 2.6 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 13 2.7 EQUIPMENTS LIST 14 3. EMC EMISSION TEST 15 3.1 CONDUCTED EMISSION MEASUREMENT 15 3.2 RADIATED EMISSION MEASUREMENT 19 4. CONDUCTED SPURIOUS & BAND EDGE EMISSION 31 4.1 LIMIT 31 4.2 TEST PROCEDURE 31 4.3 TEST SETUP 32 4.4 EUT OPERATION CONDITIONS 32 4.5 TEST RESULTS 32 5. NUMBER OF HOPPING CHANNEL 33 5.1 LIMIT 33 5.2 TEST PROCEDURE 33 5.3 TEST SETUP 33 5.4 EUT OPERATION CONDITIONS 33 5.5 TEST RESULTS 33 6. AVERAGE TIME OF OCCUPANCY 34 6.1 LIMIT 34 6.2 TEST PROCEDURE 34 6.3 TEST SETUP 34 6.4 EUT OPERATION CONDITIONS 34 6.5 TEST RESULTS 34 7. HOPPING CHANNEL SEPARATION MEASUREMEN 35 Page 4 of 94 Report No.:STS2408162W01 Table of Contents Page 7.1 LIMIT 35 7.2 TEST PROCEDURE 35 7.3 TEST SETUP 35 7.4 EUT OPERATION CONDITIONS 35 7.5 TEST RESULTS 35 8. BANDWIDTH TEST 36 8.1 LIMIT 36 8.2 TEST PROCEDURE 36 8.3 TEST SETUP 36 8.4 EUT OPERATION CONDITIONS 36 8.5 TEST RESULTS 36 9. OUTPUT POWER TEST 37 9.1 LIMIT 37 9.2 TEST PROCEDURE 37 9.3 TEST SETUP 38 9.4 EUT OPERATION CONDITIONS 38 9.5 TEST RESULTS 38 10. ANTENNA REQUIREMENT 38 10.1 STANDARD REQUIREMENT 38 10.2 EUT ANTENNA 38 APPENDIX 1-TEST DATA 39 1. DWELL TIME 39 2. MAXIMUM PEAK CONDUCTED OUTPUT POWER 49 3. -20DB BANDWIDTH 55 4. CARRIER FREQUENCIES SEPARATION 61 5. NUMBER OF HOPPING CHANNEL 67 6. BAND EDGE 70 7. BAND EDGE(HOPPING) 77 8. CONDUCTED RF SPURIOUS EMISSION 84 APPENDIX 2-PHOTOS OF TEST SETUP 94 Page 5 of 94 Report No.:STS2408162W01 Revision History Rev. Issue Date Report No. Effect Page Contents 00 07 Sept. 2024 STS2408162W01 ALL Initial Issue Page 6 of 94 Report No.:STS2408162W01 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02. FCC Part 15.247,Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS -- 15.247(a)(1) Hopping Channel Separation PASS -- 15.247(a)(1)&(b)(1) Output Power PASS -- 15.209 Radiated Spurious Emission PASS -- 15.247(d) Conducted Spurious & Band Edge Emission PASS -- 15.247(a)(1)(iii) Number of Hopping Frequency PASS -- 15.247(a)(1)(iii) Dwell Time PASS -- 15.247(a)(1) Bandwidth PASS -- 15.205 Restricted bands of operation PASS -- Part 15.247(d)/part 15.209(a) Band Edge Emission PASS -- 15.203 Antenna Requirement PASS -- NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2020. Page 7 of 94 Report No.:STS2408162W01 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : 101, Building B, Zhuoke Science Park, No.190 Chongqing Road, ZhanChengShequ, Fuhai Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ±U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.755dB 2 Unwanted Emissions, conducted ±2.874dB 3 All emissions, radiated 9K-30MHz ±3.80dB 4 All emissions, radiated 30M-1GHz ±4.18dB 5 All emissions, radiated 1G-6GHz ±4.90dB 6 All emissions, radiated>6G ±5.24dB 7 Conducted Emission (9KHz-150KHz) ±2.19dB 8 Conducted Emission (150KHz-30MHz) ±2.53dB 9 Occupied Channel Bandwidth ±3.5% 10 Duty Cycle ±3.2% Page 8 of 94 Report No.:STS2408162W01 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name Wireless glasses Brand Name EJU Model Name M6 Pro Series Model(s) …

Text truncated - open the document above for the full version.

Page 1 of 2 FCC ID: 2BKTG-M6PRO DSS Setup photo Model Number: M6 Pro DSS conduction DSS radiation L Page 2 of 2 FCC ID: 2BKTG-M6PRO DSS radiation H
