2BKTM-MK-TO2MONKi Table Order

When Using When Charging ᆞIf the adapter cord is damaged, replace the adapter immediately to avoid risk. ᆞAvoid pulling on the adapter cord or handling the power plug with wet hands. ᆞPrevent damage by not bending the adapter cord excessively or placing heavy objects on it. ᆞDo not plug multiple power plugs into a single outlet simultaneously. ᆞDo not spray water directly onto any part of the product during cleaning. ᆞGently wipe the product's surface with a soft, dry cloth. ᆞAvoid using chemicals or cleaning solutions, as they may damage the surface and cause paint to peel. ᆞIf you notice smoke or an unusual odor, disconnect the adapter and battery pack, and contact customer service. ᆞAvoid dropping or subjecting the product to impact. Keep it away from heavy vibrations or magnetic fields. ᆞDo not handle the product or adapter with wet hands. If moisture or foreign substances enter the product or adapter, discontinue use and contact customer service. ᆞKeep the product away from direct sunlight and heat sources, such as heaters. ᆞAvoid using the product in areas with high humidity, dust, soot, or extreme temperatures. ᆞDo not place heavy objects on the product. ᆞNever disassemble, repair, or modify the product. Store the product out of reach of young children. Miscellanies ᆞPlease use the battery pack after fully charging it. ᆞUse the original packaging when moving the product to ensure its safety. ￜ Read all precautions before using the product. ￜ If you encounter any inconvenience or malfunction during use, contact an authorized dealer or customer service. ￜ For warranty repairs within the warranty period, present the product warranty certificate included in this manual. ￜ The following information is provided to ensure safe and proper use of the product and to prevent accidents and property damage. Please adhere to these guidelines at all times. Main Unit Battery Pack Assembling the stand Detaching the battery pack ※ The images of this product are for illustrative purposes only and may differ from the actual product. Main UnitManualsHolder Before Starting ᆞBefore use, detach the battery pack from the main unit, then reattach it. ᆞThis will reset the battery pack and initiate its functionality. ᆞRefer to the left image below to connect the stand to the main body by inserting the screw from the bottom of the stand upward. ᆞAs shown in the right image below, insert the table into the 'ﾧ'-shaped gap of the stand, then tighten the long screw at the bottom of the stand to secure it to the table. ᆞHold both sides of the battery pack with your hands and pull it forward to detach the battery pack Powering On ᆞPress and hold the power switch to turn the power on. Powering Off ᆞWhile the power is ON, press and hold the power switch to display the power-off popup on the LCD screen. Touch 'Power Off' to turn off the power. Charging ᆞBe sure to connect a 5V DC, 2A adapter to the USB Type C connector on the back of the main unit only when the power is OFF; this will charge the battery pack. ᆞIf a 5V DC, 2A adapter is connected to the USB Type C connector on the back of the main unit while the power is ON, the adapter will supply power instead of the battery pack (the battery pack will not be charged Check battery pack capacity ᆞWhen the battery pack is detached from the main unit or charger, the battery pack's capacity display LED is off. In this state, pressing the power switch on the top of the battery pack will display the current capacity on the LED for approximately 30 seconds. Pressing the power switch again within 30 seconds will turn off the LED. Removing the battery pack while the power is ON may cause file or system damage. Only detach the battery pack to power off the device if the system is malfunctioning or experiencing abnormal behavior, such as freezing. MONKi Table Order Product Manual LCD Screen Card ReaderBattery Pack Power ButtonSpeaker 1 6 2 3 4 5 Precautions Before UsePrecautions What's Included Names of the Parts How to installHow to Operate 1 2 3 Camera 64 5 Power Button Connector to Main Unit 12 1 2 Table (Front)(Bottom) (Top)(Front)(Side) (Side)(Side) -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. Radiation Exposure Statement To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum distance of 20cm from your body. FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

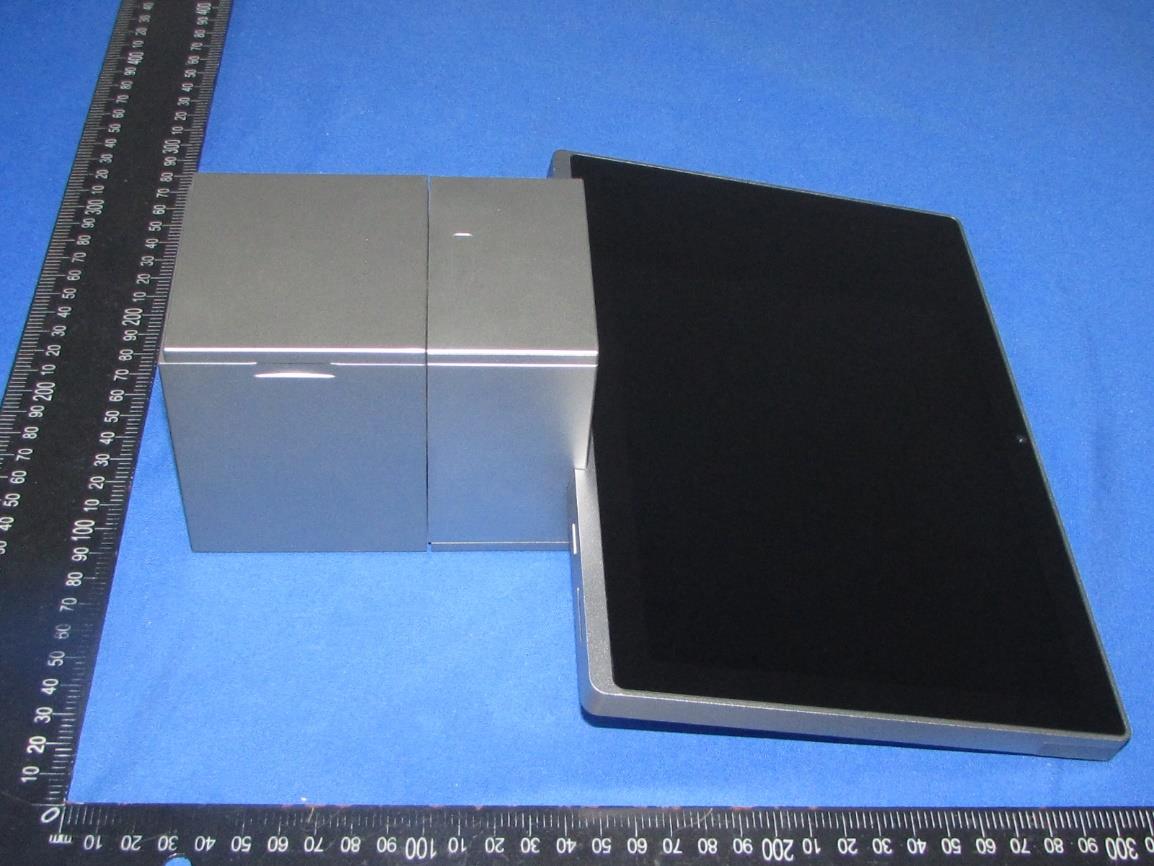

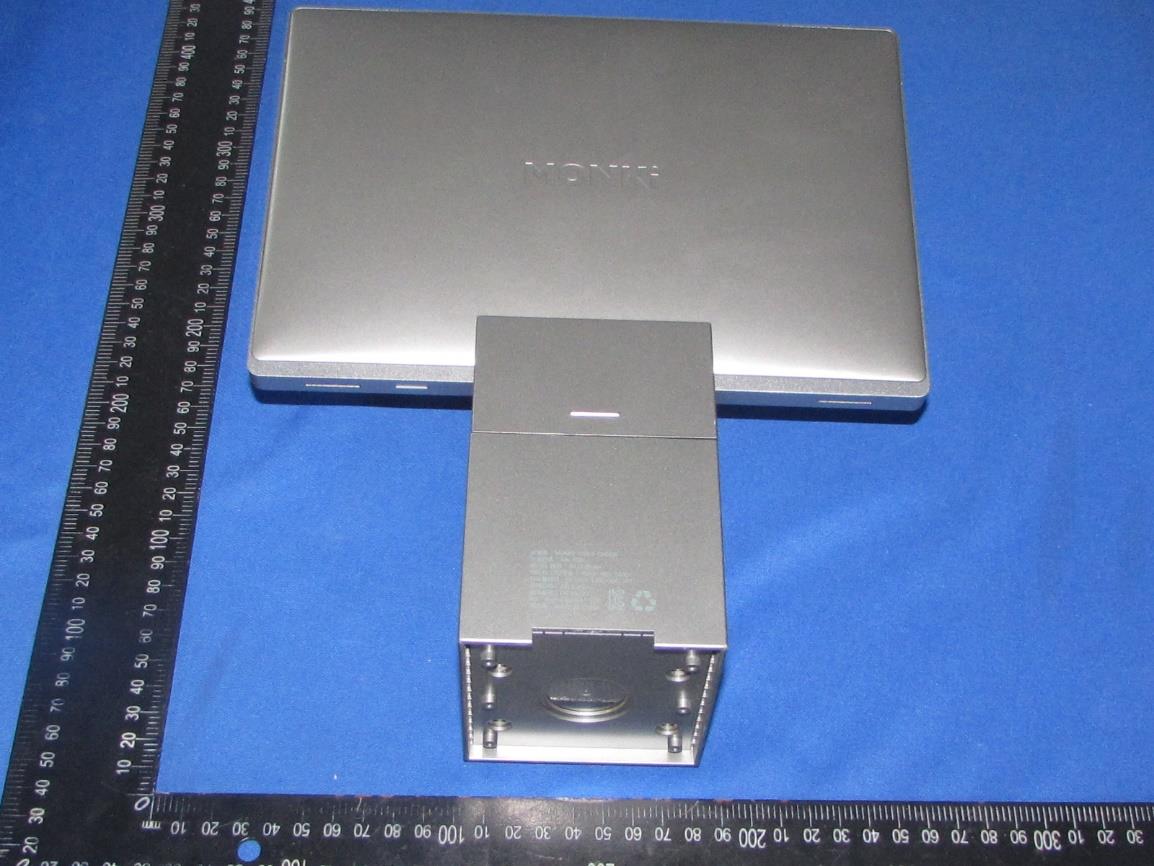

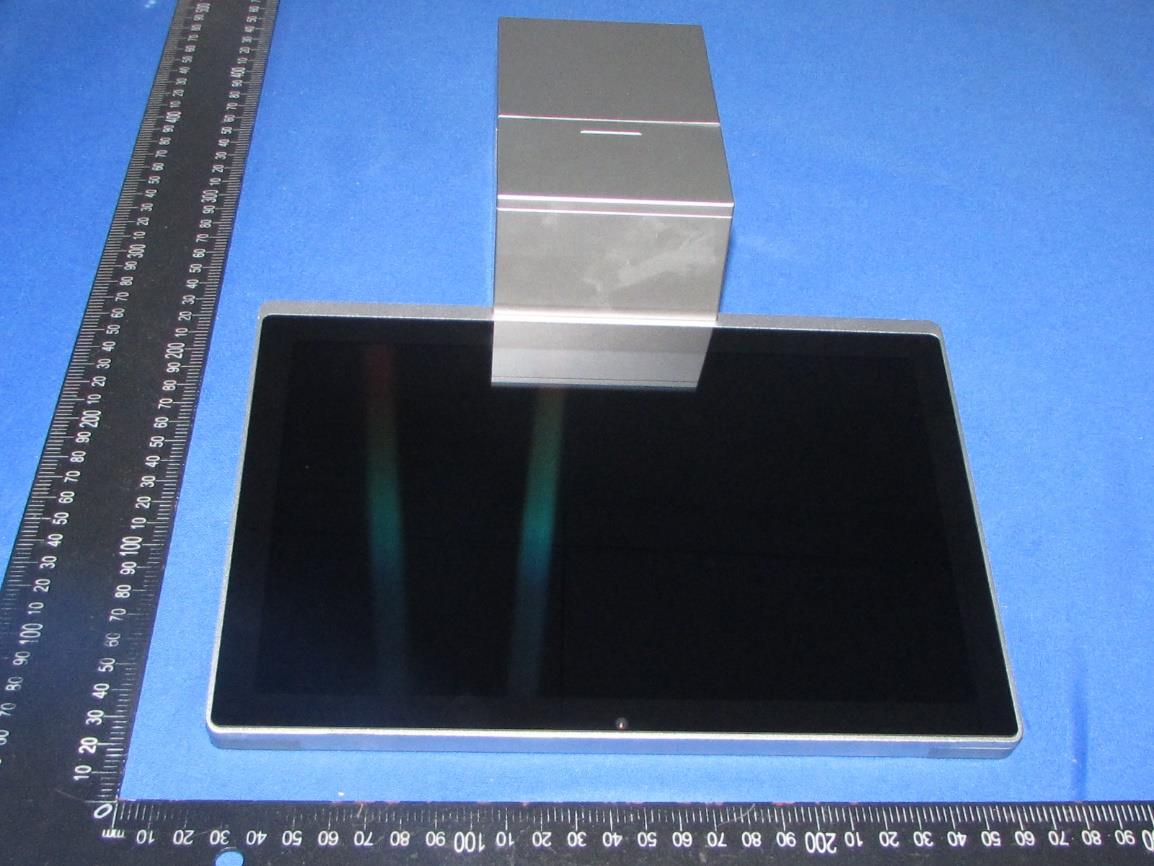

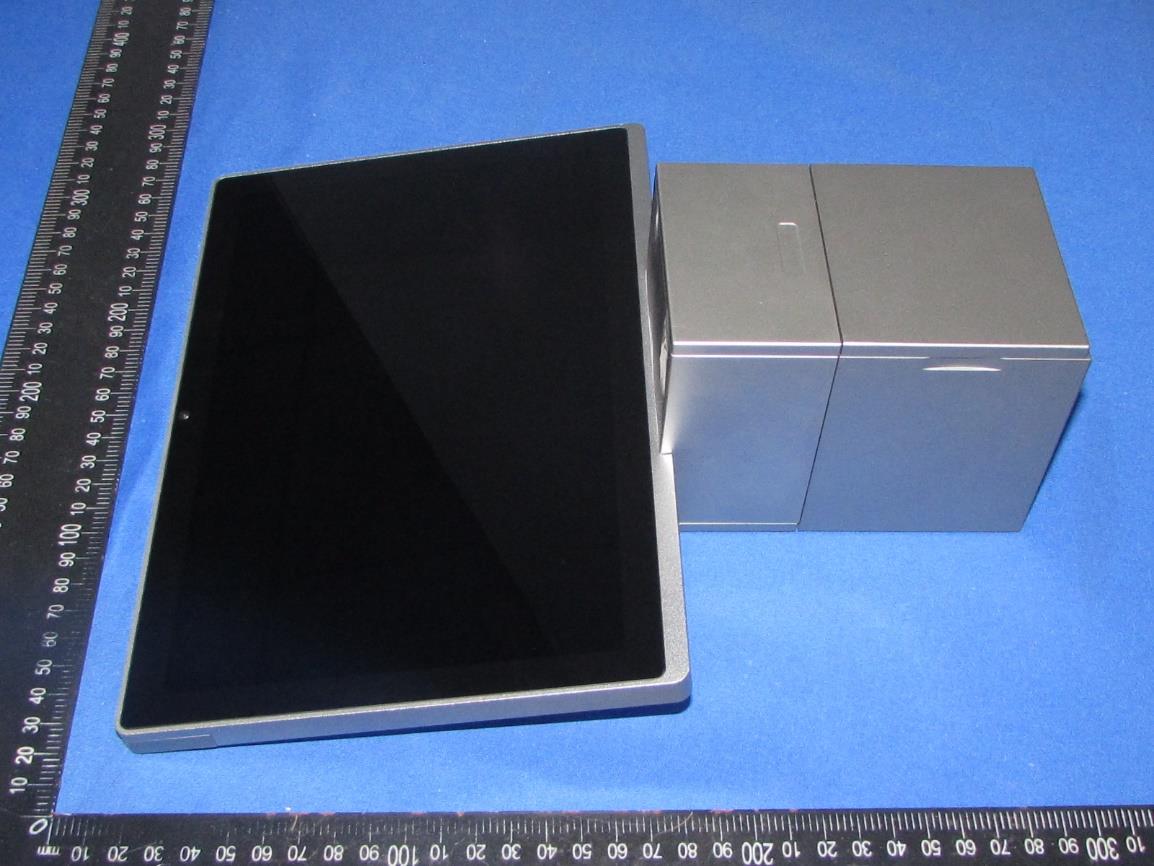

FCC ID:2BKTM-MK-TO2 Page 1 of 3 Exterior Photographs of EUT Fig.1 Fig.2 FCC ID:2BKTM-MK-TO2 Page 2 of 3 Fig.3 Fig.4 FCC ID:2BKTM-MK-TO2 Page 3 of 3 Fig.5 Fig.6

Label Location FCC ID: 2BKTM-MK-TO2

FCC ID:2BKTM-MK-TO2 Page 1 of 12 Exterior Photographs of EUT Fig.1 Fig.2 FCC ID:2BKTM-MK-TO2 Page 2 of 12 Fig.3 Fig.4 FCC ID:2BKTM-MK-TO2 Page 3 of 12 Fig.5 Fig.6 FCC ID:2BKTM-MK-TO2 Page 4 of 12 Fig.7 Fig.8 FCC ID:2BKTM-MK-TO2 Page 5 of 12 Fig.9 Fig.10 FCC ID:2BKTM-MK-TO2 Page 6 of 12 Fig.11 Fig.12 FCC ID:2BKTM-MK-TO2 Page 7 of 12 Fig.13 Fig.14 FCC ID:2BKTM-MK-TO2 Page 8 of 12 Fig.15 Fig.16 FCC ID:2BKTM-MK-TO2 Page 9 of 12 Fig.17 Fig.18 2.4G antenna FCC ID:2BKTM-MK-TO2 Page 10 of 12 Fig.19 Fig.20 5G antenna FCC ID:2BKTM-MK-TO2 Page 11 of 12 Fig.21 Fig.22 FCC ID:2BKTM-MK-TO2 Page 12 of 12 Fig.23 Fig.24

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKTM-MK-TO2 This report shall not be reproduced except in full, without the written approval of Shzhen Tongzhou Testing Co.,Ltd Page 1 of 9 Maximum Permissible Exposure Report 1 PRODUCT INFORMATION EUT : MONKi Table Order Model Number : MK-TO2 Model Declaration : N/A Test Model : MK-TO2 Power Supply : DC 3.6V by battery Hardware version : V701_MB_V1.0 Software version : V1.0 2 EVALUATION METHOD Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKTM-MK-TO2 This report shall not be reproduced except in full, without the written approval of Shzhen Tongzhou Testing Co.,Ltd Page 2 of 9 3 LIMIT 3.1 Refer evaluation method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices 3.2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4 MPE CALCULATION METHOD Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5 ANTENNA INFORMATION Antenna Gain and type refer to Antenna specification Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKTM-MK-TO2 This report shall not be reproduced except in full, without the written approval of Shzhen Tongzhou Testing Co.,Ltd Page 3 of 9 6 CONDUCTED POWER WiFi 2.4GHz Band Test Mode Antenna Frequency[MHz] Result [dBm] 11B Ant1 2412 5.07 11B Ant1 2437 4.12 11B Ant1 2462 4.60 11G Ant1 2412 5.02 11G Ant1 2437 4.60 11G Ant1 2462 4.81 11N20SISO Ant1 2412 5.10 11N20SISO Ant1 2437 4.59 11N20SISO Ant1 2462 4.45 11N40SISO Ant1 2422 4.92 11N40SISO Ant1 2437 4.88 11N40SISO Ant1 2452 4.70 5G Band UNII-1 Band Test Mode Antenna Frequency[MHz] Result [dBm] 11A Ant1 5180 3.81 11A Ant1 5200 3.71 11A Ant1 5240 4.84 11N20SISO Ant1 5180 3.94 11N20SISO Ant1 5200 3.85 11N20SISO Ant1 5240 4.95 11N40SISO Ant1 5190 3.75 11N40SISO Ant1 5230 4.66 11AC20SISO Ant1 5180 4.19 11AC20SISO Ant1 5200 3.59 11AC20SISO Ant1 5240 1.97 11AC40SISO Ant1 5190 3.80 11AC40SISO Ant1 5230 3.17 11AC80SISO Ant1 5210 3.82 UNII-3 Band Test Mode Antenna Frequency[MHz] Result [dBm] 11A Ant1 5745 4.41 11A Ant1 5785 3.47 11A Ant1 5825 2.81 11N20SISO Ant1 5745 5.46 11N20SISO Ant1 5785 3.52 11N20SISO Ant1 5825 2.36 11N40SISO Ant1 5755 4.12 11N40SISO Ant1 5795 3.09 11AC20SISO Ant1 5745 2.60 11AC20SISO Ant1 5785 3.07 11AC20SISO Ant1 5825 1.78 11AC40SISO Ant1 5755 2.13 11AC40SISO Ant1 5795 1.96 11AC80SISO Ant1 5775 4.13 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKTM-MK-TO2 This report shall not be reproduced except in full, without the written approval of Shzhen Tongzhou Testing Co.,Ltd Page 4 of 9 7 MANUFACTURING TOLERANCE WiFi 2.4GHz Band IEEE 802.11b(Average) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 4.5 3.5 4 Tolerance ±(dB) 1 1 1 IEEE 802.11g(Average) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 4.5 4 4.5 Tolerance ±(dB) 1 1 1 IEEE 802.11n HT20(Average) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 4.5 4 4 Tolerance ±(dB) 1 1 1 IEEE 802.11n HT40(Average) Channel Channel 3 Channel 6 Channel 9 Target (dBm) 4.5 4.5 4 Tolerance ±(dB) 1 1 1 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKTM-MK-TO2 This report shall not be reproduced except in full, without the written approval of Sh…

Text truncated - open the document above for the full version.

SHENZHENDIBITONGTELECOMMUNICATIONTECHNOLOGYCO.,LTD. WIFIantenna Productdesignandmanufacturingspecifications ◆Customer: ◆Projec:V701 ◆Name:5.8GWIFIAntenna ◆Antennamaterials:FPC+Cable+EVA ◆Partno: ◆Designer: ◆Check: ◆Approved： Rm505,8thbuilding,Yungu2ndperiod,pingshanNo.1Road,XiliTown,NanshanDistrict,ShenZhen,China Tel:86-755-83763273/13927478525 Fax:86-755-83763348 Email:[email protected] List: 1.Antenna2Ddiagram 2.Technicaltarget 3.S11SWR/Impedancetestresults 4.Dynamictestinstruction 5.MatchingCircuit 6.Antennatestreport 7.Environmentaltreatment 8.Packingmethod 1.Antenna2Ddiagram 2.Technicaltarget A.ElectricalParameter FrequencyRange5000~5900MHz VSWR5000~5900MHz：≤2.5 Gain（Max） 5000~5900MHz:3.26dBi Averageradiationefficiency5000~5900MHz:44.4% InputImpedance50ohm B.Material FPC+Cable+EVA C.EnvironmentalScience WorkingTemperature-30 ̊C~+85 ̊C Storagetemperature-30 ̊C~+85 ̊C 3.S11SWR/Impedancetestresults VSWR:5000-5900MHz≤2.5 InputImpedance:50Ohm 4.Dynamictestinstructions-Antennasareplacedinelectronicscales Testinginstrument:AnritsCMW500+AnechoicChamber6X4X3m(3D-OTA) RF in/out Agilent5071B AgilentMT8820C 5.MatchingCircuit （ Thematchhasnotchanged ） 6.Antennatestreport PassiveEfficiency/Gain/Pattern 7.Environmentaltreatment (Antennaposition) 8.Packingmethod 1.2Ddrawingoftheproduct Theproductmaterial number ProductnameV701_2.4GWIFI ProductversionV7 2.Photosofallstackedlayers inthebox 3.Photoofthewholecaseafter sealing Numberoffullpages200PCS Remarks:thequantityofeachboxshallbe actual,thepictureontheleftsideshallbe forreference,andtheactualgoodsshallbe regardedasstandard. Storageconditions:between-10°to30°, humidity70%Rhbelowtheindoor. 4.Awholepackofphotos 5.Aphotographofthelabelonthe surfaceoftheentirecase Note:thepictureinthepictureaboveisonlyusedforpackingstandarddemonstration,notforfinaldataaudit. ConfirmerYangXiaopingDate2024-4-8

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKTM-MK-TO2 Report No.: TZ0077240804-FRF04 Page 1 of 34 RF Test Data for RLAN(5.2G) (Conducted Measurement) Product Name: MONKi Table Order Trade Mark: / Test Model: MK-TO2 FCC ID: 2BKTM-MK-TO2 Environmental Conditions Temperature: 23.8°C Relative Humidity: 58% ATM Pressure: 100.0 kPa Test Engineer: Allen Lai Supervised by: Hugo Chen NOTE N/A Appendix A1: Emission Bandwidth Test Result Test Mode Antenna Frequency [MHz] 26db EBW [MHz] FL [MHz] FH [MHz] Limit [MHz] Verdict 11A Ant1 5180 18.560 5170.600 5189.160 --- --- 11A Ant1 5200 18.440 5190.800 5209.240 --- --- 11A Ant1 5240 18.520 5230.760 5249.280 --- --- 11N20SISO Ant1 5180 19.360 5170.360 5189.720 --- --- 11N20SISO Ant1 5200 19.360 5190.320 5209.680 --- --- 11N20SISO Ant1 5240 19.640 5230.200 5249.840 --- --- 11N40SISO Ant1 5190 41.200 5169.360 5210.560 --- --- 11N40SISO Ant1 5230 40.880 5209.680 5250.560 --- --- 11AC20SISO Ant1 5180 19.200 5170.400 5189.600 --- --- 11AC20SISO Ant1 5200 19.440 5190.360 5209.800 --- --- 11AC20SISO Ant1 5240 19.120 5230.440 5249.560 --- --- 11AC40SISO Ant1 5190 41.120 5169.680 5210.800 --- --- 11AC40SISO Ant1 5230 40.560 5209.840 5250.400 --- --- 11AC80SISO Ant1 5210 80.800 5170.000 5250.800 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKTM-MK-TO2 Report No.: TZ0077240804-FRF04 Page 2 of 34 Test Graphs 11A-Ant1-5180 11A-Ant1-5200 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKTM-MK-TO2 Report No.: TZ0077240804-FRF04 Page 3 of 34 11A-Ant1-5240 11N20SISO-Ant1-5180 11N20SISO-Ant1-5200 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKTM-MK-TO2 Report No.: TZ0077240804-FRF04 Page 4 of 34 11N20SISO-Ant1-5240 11N40SISO-Ant1-5190 11N40SISO-Ant1-5230 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKTM-MK-TO2 Report No.: TZ0077240804-FRF04 Page 5 of 34 11AC20SISO-Ant1-5180 11AC20SISO-Ant1-5200 11AC20SISO-Ant1-5240 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKTM-MK-TO2 Report No.: TZ0077240804-FRF04 Page 6 of 34 11AC40SISO-Ant1-5190 11AC40SISO-Ant1-5230 11AC80SISO-Ant1-5210 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKTM-MK-TO2 Report No.: TZ0077240804-FRF04 Page 7 of 34 Appendix A2: Occupied channel bandwidth Test Result Test Mode Antenna Frequency [MHz] OCB [MHz] FL [MHz] FH [MHz] Limit [MHz] Verdict 11A Ant1 5180 16.496 5171.7356 5188.2316 --- --- 11A Ant1 5200 16.526 5191.7367 5208.2627 --- --- 11A Ant1 5240 16.481 5231.7456 5248.2266 --- --- 11N20SISO Ant1 5180 17.629 5171.1606 5188.7896 --- --- 11N20SISO Ant1 5200 17.677 5191.1542 5208.8312 --- --- 11N20SISO Ant1 5240 17.643 5231.1574 5248.8004 --- --- 11N40SISO Ant1 5190 36.354 5171.8183 5208.1723 --- --- 11N40SISO Ant1 5230 36.305 5211.8787 5248.1837 --- --- 11AC20SISO Ant1 5180 17.612 5171.1781 5188.7901 --- --- 11AC20SISO Ant1 5200 17.659 5191.1705 5208.8295 --- --- 11AC20SISO Ant1 5240 17.672 5231.1422 5248.8142 --- --- 11AC40SISO Ant1 5190 36.320 5171.8972 5208.2172 --- --- 11AC40SISO Ant1 5230 36.212 5211.8676 5248.0796 --- --- 11AC80SISO Ant1 5210 74.522 5172.9387 5247.4607 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKTM-MK-TO2 Report No.: TZ0077240804-FRF04 Page 8 of 34 Test Graphs 11A-Ant1-5180 11A-Ant1-5200 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKTM-MK-TO2 Report No.: TZ0077240804-FRF04 Page 9 of 34 11A-Ant1-5240 11N20SISO-Ant1-5180 11N20SISO-Ant1-5200 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKTM-MK-TO2 Report No.: TZ0077240804-FRF04 Page 10 of 34 11N20SISO-Ant1-5240 11N40SISO-Ant1-5190 11N40SISO-Ant1-5230 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKTM-MK-TO2 Report No.: TZ0077240804-FRF04 Page 11 of 34 11AC20SISO-Ant1-5180 11AC20SISO-Ant1-5200 11AC20SISO-Ant1-5240 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKTM-MK-TO2 Report No.: TZ0077240804-FRF04 Page 12 of 34 11AC40SISO-Ant1-5190 11AC40SISO-Ant1-5230 11AC80SISO-Ant1-5210 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKTM-MK-TO2 Report No.: TZ0077240804-FRF04 Page 13 of 34 Appendix B: Maximum conducted output power Test Result Test Mode Antenna Frequency [MHz] Conducted Power [dBm] Conducted Limit [dBm] Verdict 11A Ant1 5180 3.81 ≤23.98 PASS 11A Ant1 5200 3.71 ≤23.98 PASS 11A Ant1 5240 4.84 ≤23.98 PASS 11N20SISO Ant1 5180 3.94 ≤23.98 PASS 11N20SISO Ant1 5200 3.85 ≤23.98 PASS 11N20SISO Ant1 5240 4.95 ≤23.98 PASS 11N40SISO Ant1 5190 3.75 ≤23.98 PASS 11N40SISO Ant1 5230 4.66 ≤23.98 PASS 11AC20SISO Ant1 5180 4.19 ≤23.98 PASS 11AC20SISO Ant1 5200 3.59 ≤23.98 PASS 11AC20SISO Ant1 5240 1.97 ≤23.98 PASS 11AC40SISO Ant1 5190 3.80 ≤23.98 PASS 11AC40SISO Ant1 5230 3.17 ≤23.98 PASS 11AC80SISO Ant1 5210 3.82 ≤23.98 PASS Note：The Duty Cycle Factor is compensated in the result. Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKTM-MK-TO2 Report No.: TZ0077240804-FRF04 Page 14 of 34 Appendix C: Maximum power spectral density Test Result Test Mode Antenna Frequency [MHz] Result [dBm/MHz] Limit [dBm/MHz] Verdict 11A Ant1 5180 -7.01 ≤11.00 PASS 11A Ant1 5200 -7.61 ≤11.00 PASS 11A Ant1 5240 -6.21 ≤11.00 PASS 11N20SISO Ant1 5180 -7.34 ≤11.00 PASS 11N20SISO Ant1 5200 -7.57 ≤11.00 PASS 11N20SISO Ant1 5240 -6.51 ≤11.00 PASS 11N40SISO Ant1 5190 -10.20 ≤11.00 PASS 11N40SISO Ant1 5230 -9.05 ≤11.00 PASS 11AC20SISO Ant1 5180 -7.28 ≤11.00 PASS 11AC20SISO Ant1 5200 -7.82 ≤11.00 PASS 11AC20SISO Ant1 5240 -8.45 ≤11.00 PASS 11AC40SISO Ant1 5190 -10.13 ≤11.00 PASS 11AC40SISO Ant1 5230 -10.32 ≤11.00 PASS 11AC80SISO Ant1 5210 -12.70 ≤11.00 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKTM-MK-TO2 Report No.: TZ0077240804-FRF04 Page 15 of 34 Test Graphs 11A-Ant1-5180-PASS 11A-Ant1-5200-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKTM-MK-TO2 Report No.: TZ0077240804-FRF04 Page 16 of 34 11A-Ant1-5240-PASS 11N20SISO-Ant1-5180-PASS 11N20SISO-Ant1-5200-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKTM-MK-TO2 Report No.: TZ0077240804-FRF04 Page 17 of 34 11N20SISO-Ant1-5240-PASS 11N40SISO-Ant1-5190-PASS 11N40SISO-Ant1-5230-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKTM-MK-TO2 Report No.: TZ0077240804-FRF04 Page 18 of 34 11AC20SISO-Ant1-5180-PASS 11AC20SISO-Ant1-5200-PASS 11A…

Text truncated - open the document above for the full version.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKTM-MK-TO2 Report No.: TZ0077240804-FRF07 Page 1 of 35 RF Test Data for RLAN(5. 8G) (Conducted Measurement) Product Name: MONKi Table Order Trade Mark: / Test Model: MK-TO2 FCC ID: 2BKTM-MK-TO2 Environmental Conditions Temperature: 23.8°C Relative Humidity: 58% ATM Pressure: 100.0 kPa Test Engineer: Allen Lai Supervised by: Hugo Chen NOTE N/A Appendix A2: Occupied channel bandwidth Test Result Test Mode Antenna Frequency [MHz] OCB [MHz] FL [MHz] FH [MHz] Limit [MHz] Verdict 11A Ant1 5745 16.511 5736.7137 5753.2247 --- --- 11A Ant1 5785 16.509 5776.7159 5793.2249 --- --- 11A Ant1 5825 16.481 5816.7677 5833.2487 --- --- 11N20SISO Ant1 5745 17.629 5736.1417 5753.7707 --- --- 11N20SISO Ant1 5785 17.620 5776.1566 5793.7766 --- --- 11N20SISO Ant1 5825 17.633 5816.1734 5833.8064 --- --- 11N40SISO Ant1 5755 36.315 5736.7734 5773.0884 --- --- 11N40SISO Ant1 5795 36.339 5776.8003 5813.1393 --- --- 11AC20SISO Ant1 5745 17.702 5736.1352 5753.8372 --- --- 11AC20SISO Ant1 5785 17.694 5776.1164 5793.8104 --- --- 11AC20SISO Ant1 5825 17.721 5816.0986 5833.8196 --- --- 11AC40SISO Ant1 5755 36.194 5736.8479 5773.0419 --- --- 11AC40SISO Ant1 5795 36.241 5776.7962 5813.0372 --- --- 11AC80SISO Ant1 5775 74.734 5737.3055 5812.0395 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKTM-MK-TO2 Report No.: TZ0077240804-FRF07 Page 2 of 35 Test Graphs 11A-Ant1-5745 11A-Ant1-5785 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKTM-MK-TO2 Report No.: TZ0077240804-FRF07 Page 3 of 35 11A-Ant1-5825 11N20SISO-Ant1-5745 11N20SISO-Ant1-5785 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKTM-MK-TO2 Report No.: TZ0077240804-FRF07 Page 4 of 35 11N20SISO-Ant1-5825 11N40SISO-Ant1-5755 11N40SISO-Ant1-5795 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKTM-MK-TO2 Report No.: TZ0077240804-FRF07 Page 5 of 35 11AC20SISO-Ant1-5745 11AC20SISO-Ant1-5785 11AC20SISO-Ant1-5825 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKTM-MK-TO2 Report No.: TZ0077240804-FRF07 Page 6 of 35 11AC40SISO-Ant1-5755 11AC40SISO-Ant1-5795 11AC80SISO-Ant1-5775 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKTM-MK-TO2 Report No.: TZ0077240804-FRF07 Page 7 of 35 Appendix A: Min emission bandwidth Test Result Test Mode Antenna Frequency [MHz] 6db EBW [MHz] FL [MHz] FH [MHz] Limit [MHz] Verdict 11A Ant1 5745 16.320 5736.800 5753.120 0.5 PASS 11A Ant1 5785 16.320 5776.800 5793.120 0.5 PASS 11A Ant1 5825 16.320 5816.800 5833.120 0.5 PASS 11N20SISO Ant1 5745 17.160 5736.200 5753.360 0.5 PASS 11N20SISO Ant1 5785 17.560 5776.160 5793.720 0.5 PASS 11N20SISO Ant1 5825 17.520 5816.200 5833.720 0.5 PASS 11N40SISO Ant1 5755 35.360 5737.080 5772.440 0.5 PASS 11N40SISO Ant1 5795 35.040 5777.480 5812.520 0.5 PASS 11AC20SISO Ant1 5745 17.560 5736.200 5753.760 0.5 PASS 11AC20SISO Ant1 5785 17.480 5776.280 5793.760 0.5 PASS 11AC20SISO Ant1 5825 17.520 5816.160 5833.680 0.5 PASS 11AC40SISO Ant1 5755 35.680 5736.840 5772.520 0.5 PASS 11AC40SISO Ant1 5795 35.120 5777.400 5812.520 0.5 PASS 11AC80SISO Ant1 5775 72.640 5737.400 5810.040 0.5 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKTM-MK-TO2 Report No.: TZ0077240804-FRF07 Page 8 of 35 Test Graphs 11A-Ant1-5745-PASS 11A-Ant1-5785-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKTM-MK-TO2 Report No.: TZ0077240804-FRF07 Page 9 of 35 11A-Ant1-5825-PASS 11N20SISO-Ant1-5745-PASS 11N20SISO-Ant1-5785-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKTM-MK-TO2 Report No.: TZ0077240804-FRF07 Page 10 of 35 11N20SISO-Ant1-5825-PASS 11N40SISO-Ant1-5755-PASS 11N40SISO-Ant1-5795-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKTM-MK-TO2 Report No.: TZ0077240804-FRF07 Page 11 of 35 11AC20SISO-Ant1-5745-PASS 11AC20SISO-Ant1-5785-PASS 11AC20SISO-Ant1-5825-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKTM-MK-TO2 Report No.: TZ0077240804-FRF07 Page 12 of 35 11AC40SISO-Ant1-5755-PASS 11AC40SISO-Ant1-5795-PASS 11AC80SISO-Ant1-5775-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKTM-MK-TO2 Report No.: TZ0077240804-FRF07 Page 13 of 35 Appendix B: Maximum conducted output power Test Result Test Mode Antenna Frequency [MHz] Conducted Power [dBm] Conducted Limit [dBm] Verdict 11A Ant1 5745 4.41 ≤30.00 PASS 11A Ant1 5785 3.47 ≤30.00 PASS 11A Ant1 5825 2.81 ≤30.00 PASS 11N20SISO Ant1 5745 5.46 ≤30.00 PASS 11N20SISO Ant1 5785 3.52 ≤30.00 PASS 11N20SISO Ant1 5825 2.36 ≤30.00 PASS 11N40SISO Ant1 5755 4.12 ≤30.00 PASS 11N40SISO Ant1 5795 3.09 ≤30.00 PASS 11AC20SISO Ant1 5745 2.60 ≤30.00 PASS 11AC20SISO Ant1 5785 3.07 ≤30.00 PASS 11AC20SISO Ant1 5825 1.78 ≤30.00 PASS 11AC40SISO Ant1 5755 2.13 ≤30.00 PASS 11AC40SISO Ant1 5795 1.96 ≤30.00 PASS 11AC80SISO Ant1 5775 4.13 ≤30.00 PASS Note：The Duty Cycle Factor is compensated in the result. Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKTM-MK-TO2 Report No.: TZ0077240804-FRF07 Page 14 of 35 Appendix C: Maximum power spectral density Test Result Test Mode Antenna Frequency [MHz] Result [dBm/MHz] DC Factor [dB] RBW Factor [dB] Limit [dBm/MHz] Verdict 11A Ant1 5745 -9.40 0.40 2.22 ≤30.00 PASS 11A Ant1 5785 -10.46 0.31 2.22 ≤30.00 PASS 11A Ant1 5825 -11.00 0.38 2.22 ≤30.00 PASS 11N20SISO Ant1 5745 -8.57 1.52 2.22 ≤30.00 PASS 11N20SISO Ant1 5785 -10.78 0.39 2.22 ≤30.00 PASS 11N20SISO Ant1 5825 -11.72 0.39 2.22 ≤30.00 PASS 11N40SISO Ant1 5755 -12.60 0.83 2.22 ≤30.00 PASS 11N40SISO Ant1 5795 -13.67 0.84 2.22 ≤30.00 PASS 11AC20SISO Ant1 5745 -10.70 3.41 2.22 ≤30.00 PASS 11AC20SISO Ant1 5785 -10.24 3.32 2.22 ≤30.00 PASS 11AC20SISO Ant1 5825 -11.51 2.90 2.22 ≤30.00 PASS 11AC40SISO Ant1 5755 -13.16 4.65 2.22 ≤30.00 PASS 11AC40SISO Ant1 5795 -12.60 4.12 2.22 ≤30.00 PASS 11AC80SISO Ant1 5775 -13.00 6.17 2.22 ≤30.00 PASS Note：1.The Result and Limit Unit is dBm/500 kHz in the band 5.725−5.85 GHz. 2.The Duty Cycle Factor and RBW Factor is compensated in the graph. Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKTM-MK-TO2 Report No.: TZ0077240804-FRF07 Page 15 of 35 Test Graphs 11A-Ant1-5745-PASS 11A-Ant1-5785-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BKTM-MK-TO2 Report No.: TZ0077240804-FRF07 Pag…

Text truncated - open the document above for the full version.

This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report apply only to the specific sample(s) tested under stated test conditions. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Page 1 of 40 TEST REPORT Report Number : TZ0077240804FRF04 Product Name : MONKi Table Order Model/Type reference : MK-TO2 FCC ID : 2BKTM-MK-TO2 Prepared for : Shenzhen OBJECT Technology Co., Ltd 1-5F, Building 2, Guangming Shenlan No.1 Park, First Industrial Zone, Loucun Community, Xinhu Street, Guangming District, Shenzhen, China Prepared By : Shenzhen Tongzhou Testing Co.,Ltd. 1st Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Standards : FCC CFR Title 47 Part 15E, ANSI C63.10: 2013 Date of Test : 2024/8/28 ~ 2024/9/19 Date of Issue : 2024/9/20 Prepared by : Lena Wen (File administrators) Reviewed by : Hugo Chen (Technical Manager) Approved by : Andy Zhang (General Manager) Report No.: TZ0077240804FRF04 Page 2 of 40 ** Report Revise Record ** Report Version Revise Time Issued Date Valid Version Notes V1.0 / 2024/9/20 Valid Initial release Report No.: TZ0077240804FRF04 Page 3 of 40 TABLE OF CONTENTS 1. G E N E R A L I N F O R M A T I O N ....................................................... 4 1.1. Client Information ................................................................................................................... 4 1.2. Description of Device (EUT) ................................................................................................... 4 1.3. Wireless Function Tested in this Report .............................................................................. 4 1.4. EUT configuration ................................................................................................................... 5 1.5. Description of Test Facility .................................................................................................... 5 1.6. Statement of the Measurement Uncertainty ......................................................................... 6 1.7. Measurement Uncertainty ...................................................................................................... 6 1.8. Description of Test Modes ..................................................................................................... 6 2. T E S T M E T H O D O L O G Y ............................................................ 7 2.1. EUT Configuration .................................................................................................................. 7 2.2. EUT Exercise ........................................................................................................................... 7 2.3. Test Sample ............................................................................................................................. 7 3. S Y S T E M T E S T C O N F I G U R A T I O N .............................................. 8 3…
