2BKTW-VU202RVirtual USB Server

1 VU202R_SPEC_EN 2 Rev.DateContents of Revision ChangeRemark 1.0.02024-08-27Initial release WSY 3 INTRODUCTION VU202R Router is exquisite,portable and small wireless router which designed for those whouse mobile devices like smart phone, PADs, notebook to surf the internet. Minibox V1.0 Router has 2FE RJ45 ports which support both wired connection and wireless connection at the same time.it allows users not only able to share their internet by wired connection but also wireless connection. FEATURE VU202R Router comply with internet standard IEEE802.11b,IEEE802.11g and IEEE802.11n,maximum wireless rate can reach to 150Mbps ,with 1x2 MIMO technology, the range of transmission is 8 times than that of original IEEE802.11g standard, wireless signal is more Powerful ,wider extension. More then three colours can be choice,white, black, blue and etc.... S CPU:AR9331Mips24Kc400MHz.  DDR:64MB  Flash:16MB(8MB/16MBoptional)  CompatiblewithIEEE802.11b/g/n.Wirelessspeedupto150Mbps. Compactandportable,smallenoughtotakeontheroad. Poweredthrougha5VMicroUSBportbyanexternalpoweradapter.  Compatiblewithalmostall2.4GHzWiFidevices.  SupportsAP,Router,Client,Bridgeoperatiosnmodes. SupportsWEP,WPA/WPA2,WPA-PSK/WPA2-PSKencryptions. 1*USBPort(Optional).  1*SystemStatusLED  1*10/100MbpsWANPort 1*10/100MbpsLANPort Size:64mmx44.5mmx22.3mm.  AntennaType:Built-insmartomnidirectionalantenna.  Morethenthreecolourscanbechoice,white,black,blueandetc...  SupportedbyOpenwrt/LEDE. Communicatewiththesincereandopenworld!! 4  CanSalePCBA,CasingandPCBA+Casing. Interface 110/100MbpsWANPort 110/100MbpsLANPort 1USBPort 1RESETButton 1SystemStatusLED 1UARTconsole(inthecase) 1MicroUSB(5V/0.5AInput) WirelessStandards IEEE802.11b/g/n Indicator System AntennaType Built-insmartomnidirectionalantenna Dimensions64mmx44.5mmx22.3mm CPU AR9331 DDR264MB Frequcency2.4～2.484GHz SignalRate 11n:Upto135Mbps(dynamic) 11g:Upto54Mbps(dynamic) 11b:Upto11Mbps(dynamic) EIRP <20dBm(EIRP) ReceptionSensitivity 135M:-70dBm@10%PER 65M:-73dBm@10%PER 54M:-76dBm@10%PER WirelessModesAPMode,RouterMode WirelessFunctions Enable/DisableWirelessRadio,WDSBridge,WMM,Wireless Statistics WirelessSecurity64/128/152-bitWEP,WPA/WPA2,WPA-PSK/WPA2-PSK WANTypeDynamicIP/StaticIP/PPPoE/PPTP/L2TP DHCPServer,Client,DHCPClientList,AddressReservation QualityofServiceWMM,BandwidthControl 5 PortForwardingVirtualServer,PortTriggering,UPnP,DMZ DynamicDNSDynDns,Comexe,NO-IP VPNPass-ThroughPPTP,L2TP,IPSec(ESPHead) AccessControl LocalManagementControl,HostList,AccessSchedule,Rule Management FirewallSecurity DoS,SPIFirewallIPAddressFilter/MACAddressFilter/DomainFilter IPandMACAddressBinding ManagementAccessControlLocalManagementRemoteManagement CertificationCE,FCC,RoHS SystemRequirements Microsoft®Wind ows®98S E,NT,2000,XP,Vista™orW indows7, MAC®OS,NetWare®,UNIX®orLinux Environment OperatingTemperature:0°C~40°C(32°F~104°F) StorageTemperature:-40°C~70°C(-40°F~158°F) OperatingHumidity:10%~90% non-condensingStorageHumidity:5%~90%non-condensing 6 PICTURES(PCBA) 7 CASEING-WHITE CASEING-BLACK 8 CASEING-BLUE 9 STRUCTURE LengthWidthHeight Size64mm44.5mm22.3mm OPERATINGENVIRONMENT Workingtemperature:0°Cto40°C; StorageTemperature:-40°C~70°C(-40°F~158°F) Humidity:10%to90%RH; non-condensingStorageHumidity:5%~90%non-condensing FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: · Reorient or relocate the receiving antenna. · Increase the separation between the equipment and receiver. · Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. · Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RF Exposure Information This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

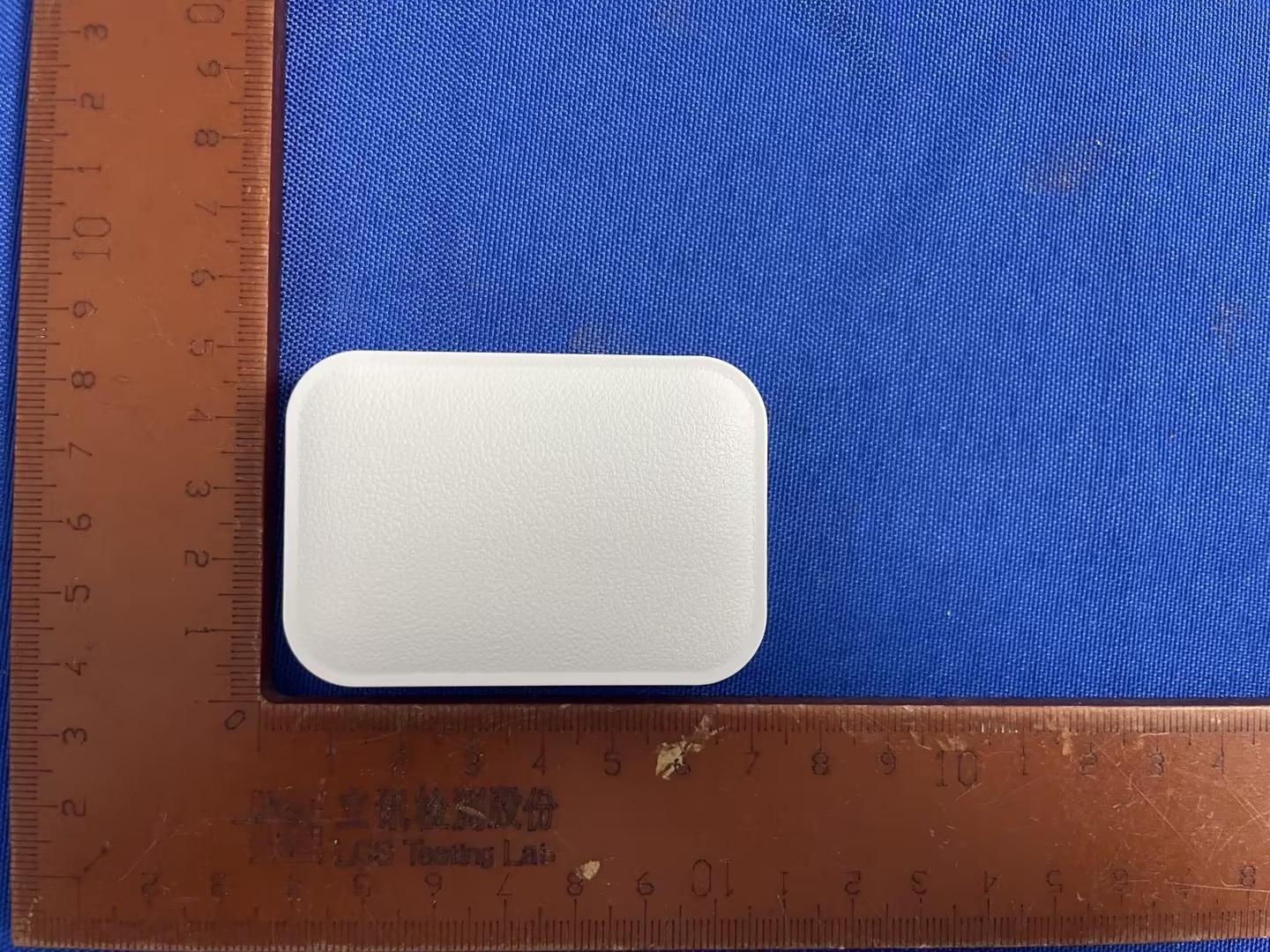

Page 1 of 5 FCC ID: 2BKTW-VU202R Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity External Photos of the EUT Fig. 1 Fig. 2 Page 2 of 5 FCC ID: 2BKTW-VU202R Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 3 Fig. 4 Page 3 of 5 FCC ID: 2BKTW-VU202R Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 5 Fig. 6 Page 4 of 5 FCC ID: 2BKTW-VU202R Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 7 Fig. 8 Page 5 of 5 FCC ID: 2BKTW-VU202R Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 9

Page 1 of 1 FCC ID: 2BKTW-VU202R Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity LABEL AND LOCATION Label Location

Page 1 of 3 FCC ID: 2BKTW-VU202R Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Internal Photos of the EUT Fig. 1 Fig. 2 Page 2 of 3 FCC ID: 2BKTW-VU202R Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 3 Fig. 4 Page 3 of 3 FCC ID: 2BKTW-VU202R Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 5 Antenna

Page 1 of 5 FCC ID: 2BKTW-VU202R Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Maximum Permissible Exposure Report 1. Product Information FCC ID : 2BKTW-VU202R EUT : Virtual USB Server Test Model : VU202R Ratings : Input: DC 5V, 1A Hardware Version : V2.0.0 Software Version : V1.0 WIFI(2.4G Band) : Frequency Range : 2412MHz-2462MHz Channel Spacing : 5MHz Channel Number : 11 Channels for 20MHz bandwidth (2412~2462MHz) 7 Channels for 40MHz bandwidth (2422~2452MHz) Modulation Type : IEEE 802.11b: DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11n: OFDM (64QAM, 16QAM, QPSK, BPSK) Antenna Description : Internal Antenna, 2.51dBi(Max.) Exposure category : General population/uncontrolled environment EUT Type : Production Unit Device Type : Mobile Device Page 2 of 5 FCC ID: 2BKTW-VU202R Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. 3. Limit 3. 1 Refer Evaluation Method ANSI C95.1–2019: IEEE Standard for Safety Levels with Respect to Human Exposure to Electric, Magnetic, and Electromagnetic Fields, 0 Hz to 300 GHz FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices. 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Uncontrolled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density Page 3 of 5 FCC ID: 2BKTW-VU202R Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information EUT can only use antennas certificated as follows provided by manufacturer; Internal/External Identification Antenna type and antenna number Operate frequency band Maximum antenna gain Notes Internal Antenna Internal Antenna 2400-2500MHz 2.51dBi WIFI Antenna 6. Conducted Power [2.4G WLAN] Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) IEEE 802.11b 1 2412 15.44 6 2437 15.39 11 2462 15.22 IEEE 802.11g 1 2412 14.71 6 2437 13.73 11 2462 14.58 IEEE 802.11n HT20 1 2412 13.02 6 2437 13.5 11 2462 13.3 IEEE 802.11n HT40 3 2422 12.75 6 2437 12.39 9 2452 12.43 Page 4 of 5 FCC ID: 2BKTW-VU202R Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity 7. Manufacturing Tolerance [2.4G WLAN] IEEE 802.11b(Peak) Channel Channel 01 Channel 06 Channel 11 Target (dBm) 15.0 15.0 15.0 Tolerance ± (dB) 1.0 1.0 1.0 IEEE 802.11g(Peak) Channel Channel 01 …

Text truncated - open the document above for the full version.

Page 1 of 38 FCC ID: 2BKTW-VU202R Report No.: LCSA08234032EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity FCC TEST REPORT For Isage Communications Pte. Ltd. Virtual USB Server Test Model: VU202R Prepared for : Isage Communications Pte. Ltd. Address : 1014 Geylang East Avenue 3, #02-202, Singapore 389729 Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : August 23, 2024 Number of tested samples : 2 Sample No. : A240823029-1, A240823029-2 Serial number : Prototype Date of Test : August 23, 2024 ~ August 28, 2024 Date of Report : September 03, 2024 Page 2 of 38 FCC ID: 2BKTW-VU202R Report No.: LCSA08234032EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCSA08234032EA Date of Issue ................................... : September 03, 2024 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : Isage Communications Pte. Ltd. Address ........................................... : 1014 Geylang East Avenue 3, #02-202, Singapore 389729 Test Specification Standard ......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No. ................... : TRF-4-E-147 A/0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. ........................... : Virtual USB Server Trade Mark ..................................... : N/A Test Model ...................................... : VU202R Ratings ............................................ : Input: DC 5V, 1A Result ........................................... : Positive Compiled by: Supervised by: Approved by: Vera Deng/ Administrator Cary Luo/ Technique principal Gavin Liang/ Manager Page 3 of 38 FCC ID: 2BKTW-VU202R Report No.: LCSA08234032EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity FCC -- TEST REPORT EUT......................................... : Virtual USB Server Test Model............................... : VU202R Applicant............................... : Isage Communications Pte. Ltd. Address.................................. : 1014 Geylang East Avenue 3, #02-202, Singapore 389729 Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Shenzhen Gainstrong Technology Co., Ltd. Address................................... : 4/F, Building B, Hengmingzhu Industrial Park, Qian Jin Road 2, Baoan District, Shenzhen, Guangdong Telephone............................... : / Fax.......................................... : / Factory................................... : Shenzhen Gainstrong Technology Co., Ltd. Address................................... : 4/F, Building B, Hengmingzhu Industrial Park, Qian Jin Road 2, Baoan District, Shenzhen, Guangdong Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCSA08234032EA September 03, 2024 Date of issue Page 4 of 38 FCC ID: 2BKTW-VU202R Report No.: LCSA08234032EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Revision History Report Version Issue Date Revision Content Revised By 000 September 03, 2024 Initial Issue -- Page 5 of 38 FCC ID: 2BKTW-VU202R Report No.: LCSA08234032EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity TABLE OF CONTENTS 1. GENERAL INFORMATION ...............................…

Text truncated - open the document above for the full version.

客 戶： 品 名： 料 号： 客户料号： 东莞市超威电子有限公司 Chaowei Electronics CO.,LTD 规格书 2.4GHz Antenna CW-IM1704-A01 送样日期： 工程部 品保部 采购部 核准 送样人 胡美晴 地址：东莞市长安镇厦岗沙区祥隆路8号 TEL ：0769-85644081 E-mail:[email protected] http://chaowei2000.1688.com 客戶确认 供应厂商 2024.08.28 赵 亚 军 2024.08.28 Index: 1. Reliability Testing 2. Specification 3. S Parameter Test Data 4. Antenna Radiation Pattern ============================================================= 1. Reliability Testing Test Item Procedure Requirement 1. Visual inspection and Dimension Check Applicable methods using x5 magnification follow specification 2. Rapid Changing of Temperature -40 ̊C (30minutes) to 80 ̊C (30minutes); 24 cycles After 2 hours recovery: 1. no visible damage 2. bandwidth tolerance < ±5% 3. Damp Heat 24 hours at 60 ̊C; 90 ~ 95% RH After 2 hours recovery: 1. no visible damage 2. bandwidth tolerance < ±5% 4. Endurance 24 hours at 80 ̊C After 2 hours recovery: 1. no visible damage 2. bandwidth tolerance < ±5% 5. Connector Pull Strength Test >= 1.0 Kg Hold 2~3S: 1. no visible damage 2. bandwidth tolerance < ±5% 2. Specification A. Electrical Characteristics Center Frequency 2400-2500MHz Wavelength1/4-wave S.W.R ≤1.5 Gain (Max) 2.51dBi Impedance50 Ohm Peak Gain 2.51dBi Polarization Linear Horizontal Beamwidth 360° B. Material Marerial of Plastic C7521 Connector Type DIP C. Environmental Storage Temperature - 40 ̊C ~ + 85 ̊C Operation Temperature - 40 ̊C ~ + 85 ̊C 3.S.W .R. Testing Result 4. Antenna Radiation Pattern Antenna Anechoic Chamber Dimension: 7x3 x3 m Quite Zone: 600mm @1 GHz Isolation: >100dB @ 1 MHz ~ 10 GHz Testing Equipment: Agilent E5071C Received Antenna: 0.4 ~ 6.0 GHz for Gain Calibration Double Ridged Horn Antenna 5.Testing Equipment Specification:

Page 1 of 55 FCC ID: 2BKTW-VU202R Report No.: LCSA08234032EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Appendix A RF Test Data for 2.4GWIFI(Conducted Measurement) Product Name: Virtual USB Server Test Model: VU202R Environmental Conditions Temperature: 23.8 C Relative Humidity: 52.1% ATM Pressure: 100.0 kPa Test Engineer: Jay Luo Supervised by: Nick Peng Page 2 of 55 FCC ID: 2BKTW-VU202R Report No.: LCSA08234032EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity A.1 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT b 2412 Ant1 7.616 >=0.5 Pass NVNT b 2437 Ant1 8.114 >=0.5 Pass NVNT b 2462 Ant1 7.618 >=0.5 Pass NVNT g 2412 Ant1 16.306 >=0.5 Pass NVNT g 2437 Ant1 16.089 >=0.5 Pass NVNT g 2462 Ant1 16.305 >=0.5 Pass NVNT n20 2412 Ant1 17.133 >=0.5 Pass NVNT n20 2437 Ant1 17.045 >=0.5 Pass NVNT n20 2462 Ant1 17.004 >=0.5 Pass NVNT n40 2422 Ant1 35.745 >=0.5 Pass NVNT n40 2437 Ant1 35.503 >=0.5 Pass NVNT n40 2452 Ant1 35.613 >=0.5 Pass Page 3 of 55 FCC ID: 2BKTW-VU202R Report No.: LCSA08234032EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Test Graphs -6dB Bandwidth NVNT b 2412MHz Ant1 -6dB Bandwidth NVNT b 2437MHz Ant1 Page 4 of 55 FCC ID: 2BKTW-VU202R Report No.: LCSA08234032EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity -6dB Bandwidth NVNT b 2462MHz Ant1 -6dB Bandwidth NVNT g 2412MHz Ant1 Page 5 of 55 FCC ID: 2BKTW-VU202R Report No.: LCSA08234032EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity -6dB Bandwidth NVNT g 2437MHz Ant1 -6dB Bandwidth NVNT g 2462MHz Ant1 Page 6 of 55 FCC ID: 2BKTW-VU202R Report No.: LCSA08234032EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity -6dB Bandwidth NVNT n20 2412MHz Ant1 -6dB Bandwidth NVNT n20 2437MHz Ant1 Page 7 of 55 FCC ID: 2BKTW-VU202R Report No.: LCSA08234032EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity -6dB Bandwidth NVNT n20 2462MHz Ant1 -6dB Bandwidth NVNT n40 2422MHz Ant1 Page 8 of 55 FCC ID: 2BKTW-VU202R Report No.: LCSA08234032EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity -6dB Bandwidth NVNT n40 2437MHz Ant1 -6dB Bandwidth NVNT n40 2452MHz Ant1 Page 9 of 55 FCC ID: 2BKTW-VU202R Report No.: LCSA08234032EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity A.2 Maximum Peak Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit (dBm) Verdict NVNT b 2412 Ant1 15.44 30 Pass NVNT b 2437 Ant1 15.39 30 Pass NVNT b 2462 Ant1 15.22 30 Pass NVNT g 2412 Ant1 14.71 30 Pass NVNT g 2437 Ant1 13.73 30 Pass NVNT g 2462 Ant1 14.58 30 Pass NVNT n20 2412 Ant1 13.02 30 Pass NVNT n20 2437 Ant1 13.5 30 Pass NVNT n20 2462 Ant1 13.3 30 Pass NVNT n40 2422 Ant1 12.75 30 Pass NVNT n40 2437 Ant1 12.39 30 Pass NVNT n40 2452 Ant1 12.43 30 Pass Page 10 of 55 FCC ID: 2BKTW-VU202R Report No.: LCSA08234032EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity A.3 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Conducted PSD (dBm/3kHz) Duty Factor (dB) Total PSD (dBm/3kHz) Limit (dBm/3kHz) Verdict NVNT b 2412 Ant1 -8.47 0 -8.47 8 Pass NVNT b 2437 Ant1 -9.87 0 -9.87 8 Pass NVNT b 2462 Ant1 -8.7 0 -8.7 8 Pass NVNT g 2412 Ant1 -16.56 0 -16.56 8 Pass NVNT g 2437 Ant1 -16.6 0 -16.6 8 Pass NVNT g 2462 Ant1 -16.02 0 -16.02 8 Pass NVNT n20 2412 Ant1 -17.01 0 -17.01 8 Pass NVNT n20 2437 Ant1 -16.7 0 -16.7 8 Pass NVNT n20 2462 Ant1 -17.33 0 -17.33 8 Pass NVNT n40 2422 Ant1 -20.96 0 -20.96 8 Pass NVNT n40 2437 Ant1 -22.55 0 -22.55 8 Pass NVNT n40 2452 Ant1 -21.6 0 -21.6 8 Pass Page 11 of 55 FCC ID: 2BKTW-VU202R Report No.: LCSA08234032EA Shenzhen LCS Compliance Testing La…

Text truncated - open the document above for the full version.

Page 1 of 2 FCC ID: 2BKTW-VU202R Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Test Setup Photos of the EUT Test Setup Photo(s) of Radiated Emissions Measurement Fig. 1 Fig. 2 Page 2 of 2 FCC ID: 2BKTW-VU202R Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Test Setup Photo(s) of Conducted Emissions Measurement Fig. 3
