2BKUK-RFCOMPACTRF WIRELESS COMPACT K/B

RFCOMPACT Series 2.4GHZ RF WIRELESS COMPACT KEYBOARD FOR PC Welcome to the Macally family and thank you for purchasing the RFCOMPACT keyboard. Our mission is to deliver aesthetically pleasing, high-quality and affordable peripherals and accessories to satisfied customers. We do that by creating products that are both innovative and practical but most important easy-to-use. If you have any questions, feedback, or just want to say hi, please reach out to us at [email protected] or on any one of our social media channels. Don’t forget to share your setup with us using #macally and follow us for to get exclusive offers. With Love From Southern California, Macally PACKAGE CONTENTS SYSTEM REQUIREMENTS HARDWARE BASICS Keyboard • Keyboard • USB-A RF Dongle/Receiver • 2 “AAA” Batteries • User Guide • Laptop or desktop with an available USB-A port • Windows 7/8/10/11 NOTE If you have a computer with USB-C only please get a USB-C to a USB-A adapter. OFFON 12 3 4 INSTALLATION INSTRUCTIONS 1. Put the 2 AAA in the battery compartment. 2. Turn the keyboard on. 3. Plug the RF Dongle/Receiver into your computer. 1. On/Off switch 2. Battery cover & RF dongle storage compartment 3. LED light - Caps Lock/Power/Syncing Caps Lock • Blue (Active) • No LED (Inactive) Power (When turning on) • Blue (Turns on then off) • Red flashing (Low battery, time to change) Re-syncing • Syncing (Blue light flashes then stops after it finish syncing) 4. USB RF Dongle/Receiver USB-A TOP F-ROW SHORTCUTS The keyboards top F-row is defaulted to boot up in function key mode by default. There are 16 shortcuts (in blue print) built in to boost your productivity that can be utilized by holding down the fn key followed by the shortcut you want to use. Below is a table of what each shortcut does. Open default web browser. Open mail Open default music player Previous track Play/Pause Next track Mute Volume down Volume up Insert Print screen Scroll Lock Page up Page down Home End Shortcut description SAFETY INSTRUCTIONS The following steps can be used in the event that you received a replacement dongle or if the keyboard was not synced prior to you receiving them. 1. Turn the keyboard off, and unplug the dongle/receiver. 2. Place the keyboard close to the USB port where the dongle/receiv- er will be plugged into. 3. Switch the keyboard on, immediately, press Esc and the Q key simultaneously until the blue LED light starts flashing. 4. Immediately, plug the dongle/receiver back into your computer. 5. If the keyboard and the dongle/receiver syncs successfully the LED light will stop flashing and turn off. 6. The keyboard should be able to be used again. If not, please resync again. Please read the following carefully. Incorrect use of this product may result in reduced performance, permanent damage and void your warranty. • Keep this device away from liquid, humidity and moisture. • Operate this device only within the specific temperature range of 0°C (32° F) to 5°C to 40°C(104° F) • Please refrain from taking the device apart. Doing so will void your warranty. • Do not dispose this product in the garbage. Take it to your local recycling center. RESYNCING THE DONGLE/RECEIVER SPECIFICATIONS Tech support Tech support hours are from 9:00 AM to 5:00 PM Monday through Friday (Pacific Standard Time). • E-Mail: [email protected] • Phone: (909) 230-6888 Warranty Macally Peripherals warrants that this product will be free from defects in title, materials and manufacturing workmanship for one year in North America from the date of the purchase. If the product is found to be defective then, as your sole remedy and as the manufacturer’s only obligation, Macally will repair or replace the product. This warranty is exclusive and is limited to the product that this user’s guide came with. This warranty shall not apply to products that have been subjected to abuse, misuse, abnormal elec- trical or environmental conditions, or any condition other than what can be considered normal use. The liability of Macally Peripherals arising from this warranty and sale shall be limited to a refund of the purchase price. In no event shall Macally Peripherals be liable for costs of procurement of substitute products or services, or for any lost profits, or for any consequential, incidental, direct or indirect damages, however caused and on any theory of liability, arising from this warranty and sale. These limitations shall apply notwithstanding any failure of essential purpose of any limited remedy. Number of keys Switches Keyboard interface 78 Keys Scissor-key USB-A Dongle/Receiver FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2, Changes or modifications not expressly approved by the party responsible for com- pliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules, These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications, However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from…

Text truncated - open the document above for the full version.

MaceGroupInc(Macally) Address：8620RochesterAve,RanchoCucamonga,CA91730,USA Date:2024-09-12 FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 Ref:AttestationStatementsPart2.911(d)(7)Filing SUBJECT:FCCApplicationforFCCID:2BKUK-RFCOMPACT FRN:0035909860 (“MaceGroupInc(Macally)”)certifiesthat,asofthedateofthefilingoftheapplication,Mace GroupInc(MacallyisourdesignatedU.S.agentforserviceofprocessfortheabove referencedFCCID.(“MaceGroupInc(Macally)”)acceptstomaintainanagentfornoless thanoneyearafterthegranteehasterminatedallmarketingandimportationorthe conclusionofanyCommission-relatedproceedinginvolvingtheequipment. MaceGroupInc(Macallyaccepts,asofthedateofthefilingoftheapplication,theobligation ofthedesignatedU.S.agentforserviceofprocessfortheabovereferencedFCCID. DesignatedU.S.AgentInformation: Name:MaceGroupInc(Macally) Address:8620RochesterAve,RanchoCucamonga,CA91730,USA FRN：0035909860 ContactPerson:NelsonZhuang Tel.:+19092306889 Email:[email protected] Sincerely, SignedonbehalfofMaceGroup Inc(Macally) SignedonbehalfofMaceGroupInc(Macally NelsonZhuangNelsonZhuang Name:NelsonZhuangName:NelsonZhuang Title:ManagerTitle:Manager Date:2024-09-12Date:2024-09-12

(MaceGroupInc(Macally)) FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA Date:2024-09-12 FCCID:2BKUK-RFCOMPACT Ref.#1:AttestationStatementsPart2.911(d)(5)(i)Filing (“MaceGroupInc(Macally)”)certifiesthattheequipmentforwhichauthorizationissought isnot“covered”equipmentprohibitedfromreceivinganequipmentauthorizationpursuant tosection2.903oftheFCCrules. Ref.#2:AttestationStatementsPart2.911(d)(5)(ii)Filing (“MaceGroupInc(Macally)”)certifiesthat,asofthedateofthefilingofthe application,theapplicantisnotidentifiedontheCoveredListasanentityproducing “covered”equipment. Applicant:MaceGroupInc(Macally) Address:8620RochesterAve,RanchoCucamonga,CA91730,USA ContactPerson:NelsonZhuang Tel.:+19092306889 Email:[email protected] Sincerely, Signature: NelsonZhuang

Bluetooth Antenna specification&Test report Yichip Microelectronics ©2014 Antenna plate Monopole Antenna Antenna peak gain Frequency range Connect type Direct Connect Gian and Efficiency Frequency (MHz) Efficiency(%) Gain(dBi) 2300 28.41 -1.40 2320 38.63 -0.11 2340 42.82 0.36 2360 47.04 0.41 2380 47.39 0.58 2400 53.31 0.73 2420 63.69 2.10 2440 66.14 2.52 2460 64.61 2.72 2480 63.93 2.79 2500 65.00 2.97 2520 60.03 2.90 2540 58.27 3.12 3D and 1D Radiation Patterns Cut1 Max: 3 Min: -7 Scale: 1/div Angle (? 0 1 8 0 3 0 2 1 0 6 0 2 4 0 9 0 2 7 0 1 2 0 3 0 0 1 5 0 3 3 0 Cut2 Max: 4 Min: -16 Scale: 2/div Angle (? Cut3 Max: 4 Min: -10 Scale: 2/div Angle (? 0 1 8 0 3 0 2 1 0 6 0 2 4 0 9 0 2 7 0 1 2 0 3 0 0 1 5 0 3 3 0 0 1 8 0 3 0 2 1 0 6 0 2 4 0 9 0 2 7 0 1 2 0 3 0 0 1 5 0 3 3 0

MaceGroupInc(Macally) Date：2024-09-12 ProductModelNumber:RFCOMPACT Towhomitmayconcern, Re:ProductCertificationRepresentativeAuthorizationLetter WeauthorizeQAILaboratoriesLtd.3980NorthFraserWay,BurnabyB.C. CanadaV5J5K5toactonourbehalfonallmattersconcerningtheabove namedequipment. Thisshallincludethefollowing: Testing Approvalapplicationsandprocedures WedeclarethatORGANIZATION.isallowedtoforwardallinformation relatedtotheapprovalprojecttotheappliedcertificationbodyandtothe notificationentitiesandtodiscussanyissuesconcerningtheapproval application.AnyandallactscarriedoutbyORGANIZATION.onourbehalf shallhavethesameeffectasactsofourown. By:NelsonZhuang ContactListedonFCCWesbite Title:Manager Email:[email protected] Telephone:+19092306889 Onbehalfof:MaceGroupInc(Macally)

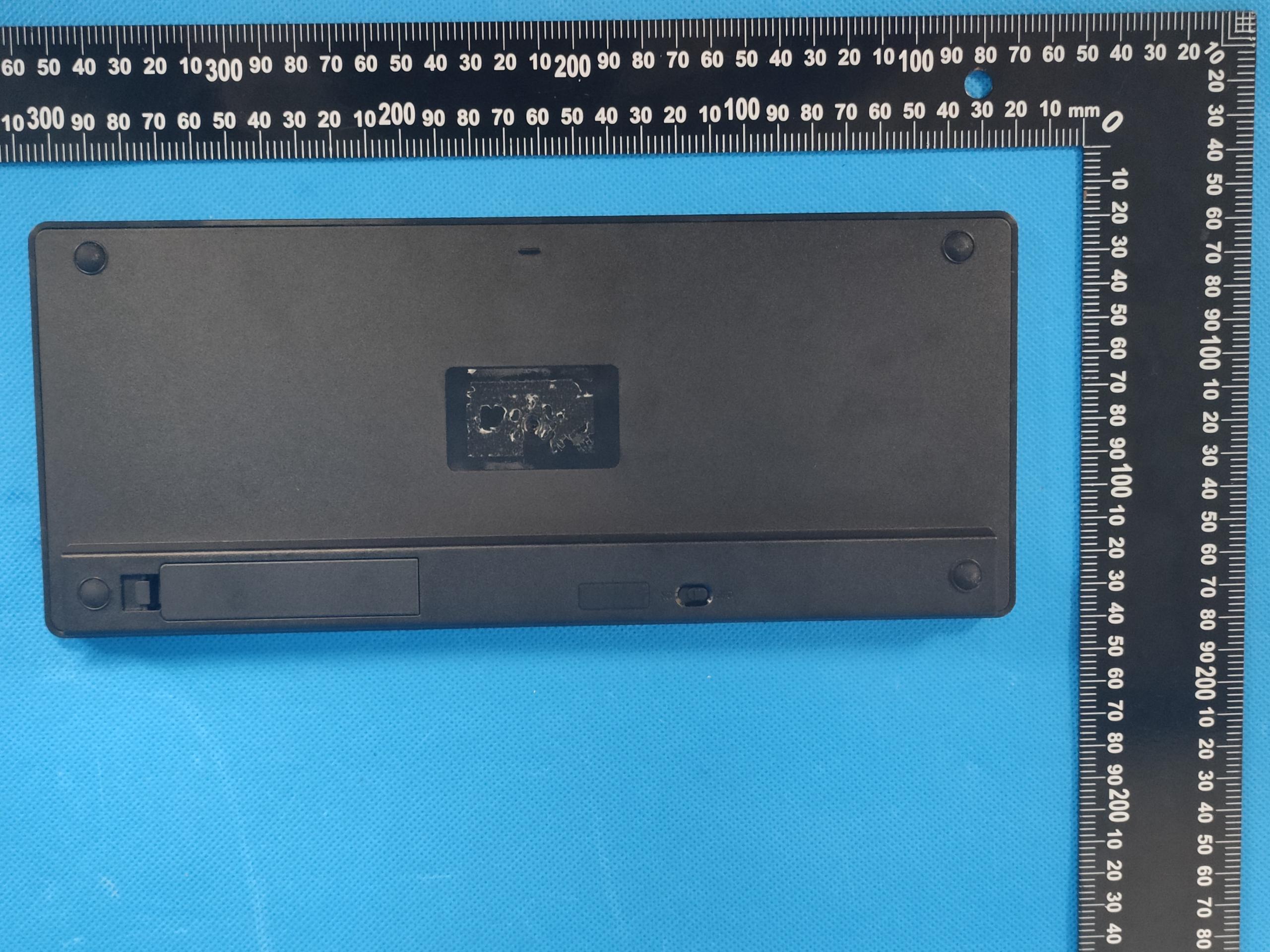

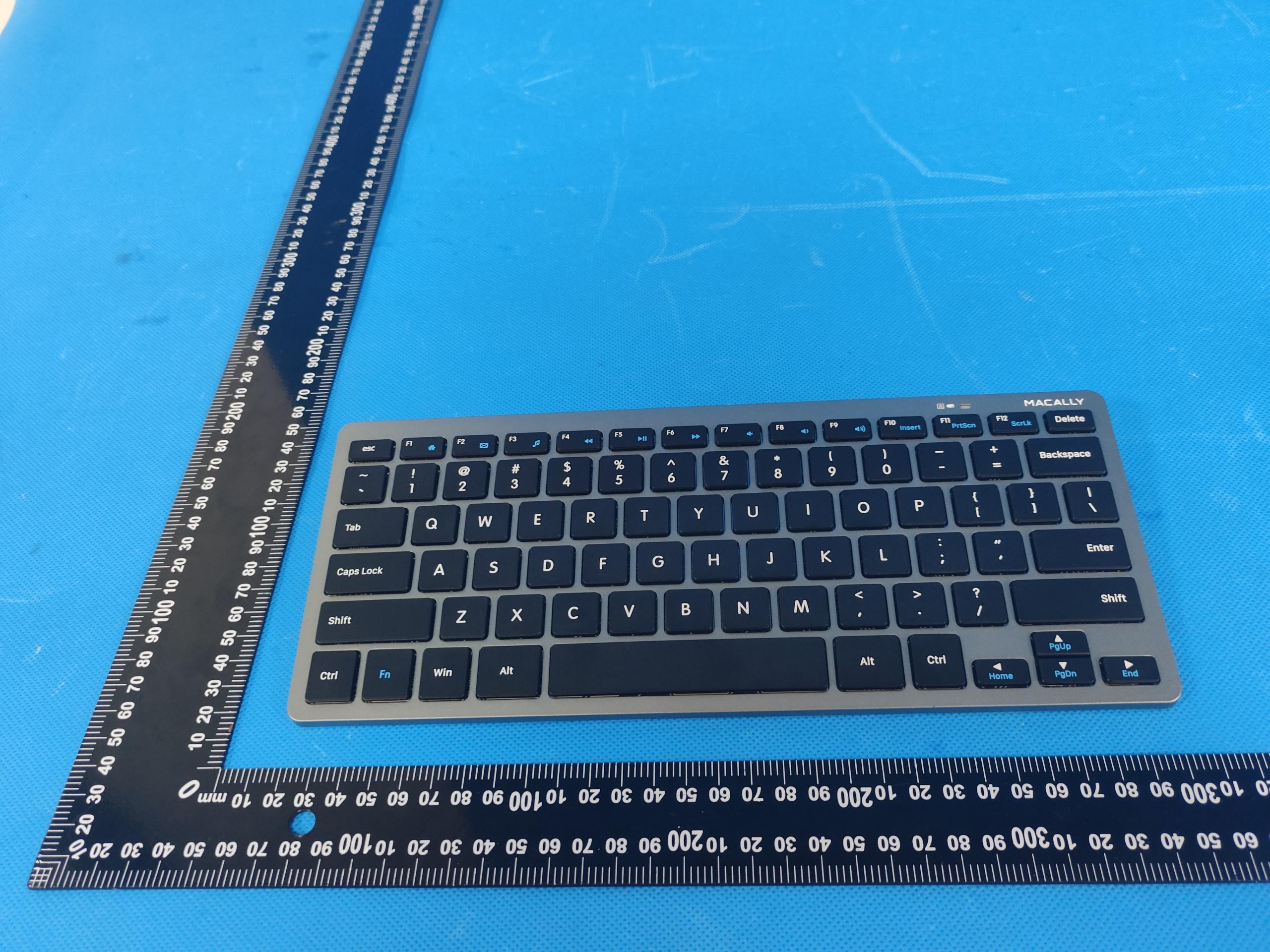

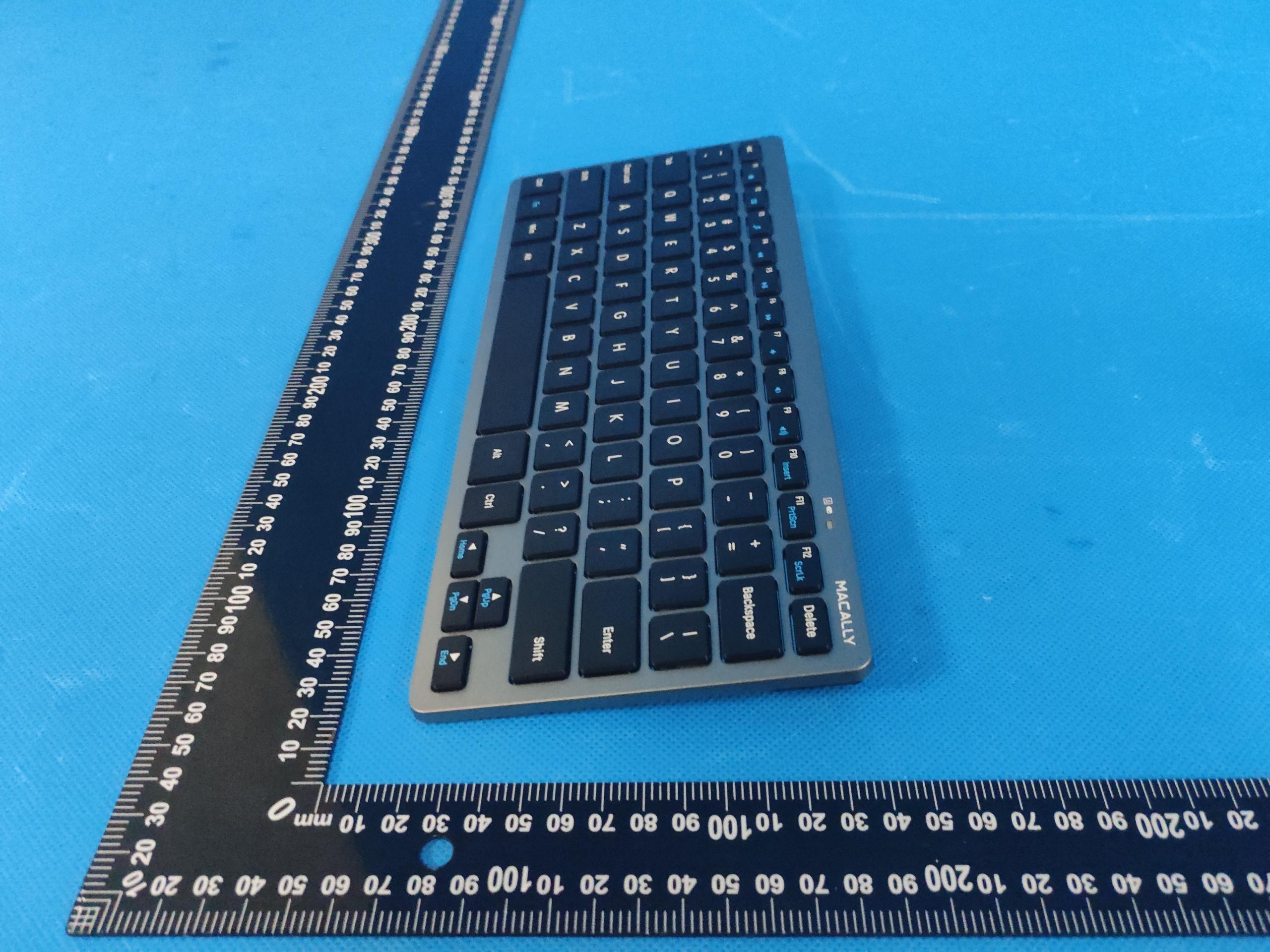

FCCID:2BKUK-RFCOMPACT EUTPHOTOSExternalPhotos FCCID:2BKUK-RFCOMPACT FCCID:2BKUK-RFCOMPACT ※※※※※ENDOFREPORT※※※※※

Size:3mmX15mm FCCID:2BKUK-RFCOMPACT

FCCID:2BKUK-RFCOMPACT EUTPHOTOSInternalPhotos FCCID:2BKUK-RFCOMPACT FCCID:2BKUK-RFCOMPACT ※※※※※ENDOFREPORT※※※※※ ANT

FCCID:2BKUK-RFCOMPACT RFExposureEvaluation AccordingtoKDB447498D01GeneralRFExposureGuidancev06andpart2.1093，Unless specificallyrequiredbythepublishedRFexposureKDBprocedures,standalone1-gheador bodyand10-gextremitySARevaluationforgeneralpopulationexposureconditions,by measurementornumericalsimulation,isnotrequiredwhenthecorrespondingSARTest ExclusionThresholdcondition(s),listedbelow,is(are)satisfied. For100MHzto6GHzandtestseparationdistances≤50mm,the1-gand10-gSARtest exclusionthresholdsaredeterminedbythefollowing: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance, mm)]·[√f (GHz) ]≤3.0for1-gSAR,and≤7.5for10-gextremitySAR,where f (GHz) istheRFchanneltransmitfrequencyinGHz PoweranddistanceareroundedtothenearestmWandmmbeforecalculation Theresultisroundedtoonedecimalplaceforcomparison Here, ForBluetooth Mode Max Power (dBm) Tune-up power (dBm) Max Power (mW) Frequency(MHz) Min. Distance (mm) Calc. thresholds limit GFSK -5.89 -5±10.40 24375 0.125 3.0 SoaSARtestisnotrequired

ProjectNo.:ZHT-240826020E Page 1 of 43 FCCTESTREPORT FCCID:2BKUK-RFCOMPACT ReportNumber.....................................:ZHT-240826020E DateofTest...........................................:Aug.26,2024toSept.04,2024 Dateofissue.........................................:Sept.04,2024 TestResult .......................................... :PASS TestingLaboratory...............................:GuangdongZhonghanTestingTechnologyCo.,Ltd. Address ............................................... :Room104,Building1,YibaolaiIndustrialPark,QiaotouCommunity, FuhaiStreet,Bao'anDistrict,Shenzhen,Guangdong,China Applicant'sname ................................ :MaceGroupInc(Macally) Address ............................................... :8620RochesterAve,RanchoCucamonga,CA91730,USA Manufacturer'sname ......................... :GuangzhouQiaochuElectronicTechnologyCo.,Ltd Address...............................................:No.19YintuoBuilding,TianxiaPaling3rdRoad,BaijiangVillage, XinTangTown,ZengchengDistrict,Guangzhou,China Testspecification: Standard ................................................ :FCCCFRTitle47Part15SubpartCSection15.247 Testprocedure......................................:KDB558074D0115.247MeasGuidancev05r02 ANSIC63.10:2013 Non-standardtestmethod ................ :N/A ThisdevicedescribedabovehasbeentestedbyZHT,andthetestresultsshowthattheequipmentunder test(EUT)isincompliancewiththeFCCrequirements.Anditisapplicableonlytothetestedsample identifiedinthereport. Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofZHT,thisdocumentmay bealteredorrevisedbyZHT,personalonly,andshallbenotedintherevisionofthedocument. Productname.......................................:RFWIRELESSCOMPACTK/B Trademark...........................................:MACALLY Model/Typereference ......................... :RFCOMPACT Modeldifference ................................... :/ Rating....................................................::Input:DC1.5VviaAAAbattery ProjectNo.:ZHT-240826020E Page 2 of 43 Testingprocedureandtestinglocation: TestingLaboratory.......................................:GuangdongZhonghanTestingTechnologyCo.,Ltd. Address............................................................:Room104,Building1,YibaolaiIndustrialPark,Qiaotou Community,FuhaiStreet,Bao'anDistrict,Shenzhen, Guangdong,China LeonLi Testedby(name+signature).......................: BaretWu Reviewer(name+signature).......................: LeviLee Approved(name+signature).......................: ProjectNo.:ZHT-240826020E Page 3 of 43 TableofContents Page 1.VERSION...................................................................................................................5 2.SUMMARYOFTESTRESULTS...............................................................................6 2.1TESTFACILITY.................................................................................................................7 2.2MEASUREMENTUNCERTAINTY....................................................................................7 3.GENERALINFORMATION........................................................................................8 3.1GENERALDESCRIPTIONOFEUT.................................................................................8 3.2DESCRIPTIONOFTESTMODES....................................................................................9 3.3TESTSETUPCONFIGURATION......................................................................................9 3.4DESCRIPTIONOFSUPPORTUNITS(CONDUCTEDMODE)......................................10 3.5EQUIPMENTSLISTFORALLTESTITEMS.................................................................11 4.EMCEMISSIONTEST............................................................................................................13 5.RADIATEDBANDEMISSIONMEASUREMENT.....................................................22 5.1TESTREQUIREMENT:..............................................................................................22 5.2TESTPROCEDURE..................................................................................................22 5.3DEVIATIONFROMTESTSTANDARD.....................................................................22 5.4TESTSETUP..............................................................................................................23 5.5EUTOPERATINGCONDITIONS..............................................................................23 5.6TESTRESULT...........................................................................................................24 6.POWERSPECTRALDENSITYTEST......................................................................25 6.1APPLIEDPROCEDURES/LIMIT.............................................................................25 6.2TESTPROCEDURE..................................................................................................25 6.3DEVIATIONFROMSTANDARD...............................................................................25 6.4TESTSETUP..............................................................................................................25 6.5EUTOPERATIONCONDITIONS..............................................................................25 6.6TESTRESULTS.........................................................................................................26 7.1APPLIEDPROCEDURES/LIMIT.............................................................................28 7.2TESTPROCEDURE..................................................................................................28 7.3DEVIATIONFROMSTANDARD...............................................................................28 7.4TESTSETUP..............................................................................................................28 7.5EUTOPERATIONCONDITIONS..............................................................................28 7.6TESTRESULTS..................................................................…

Text truncated - open the document above for the full version.

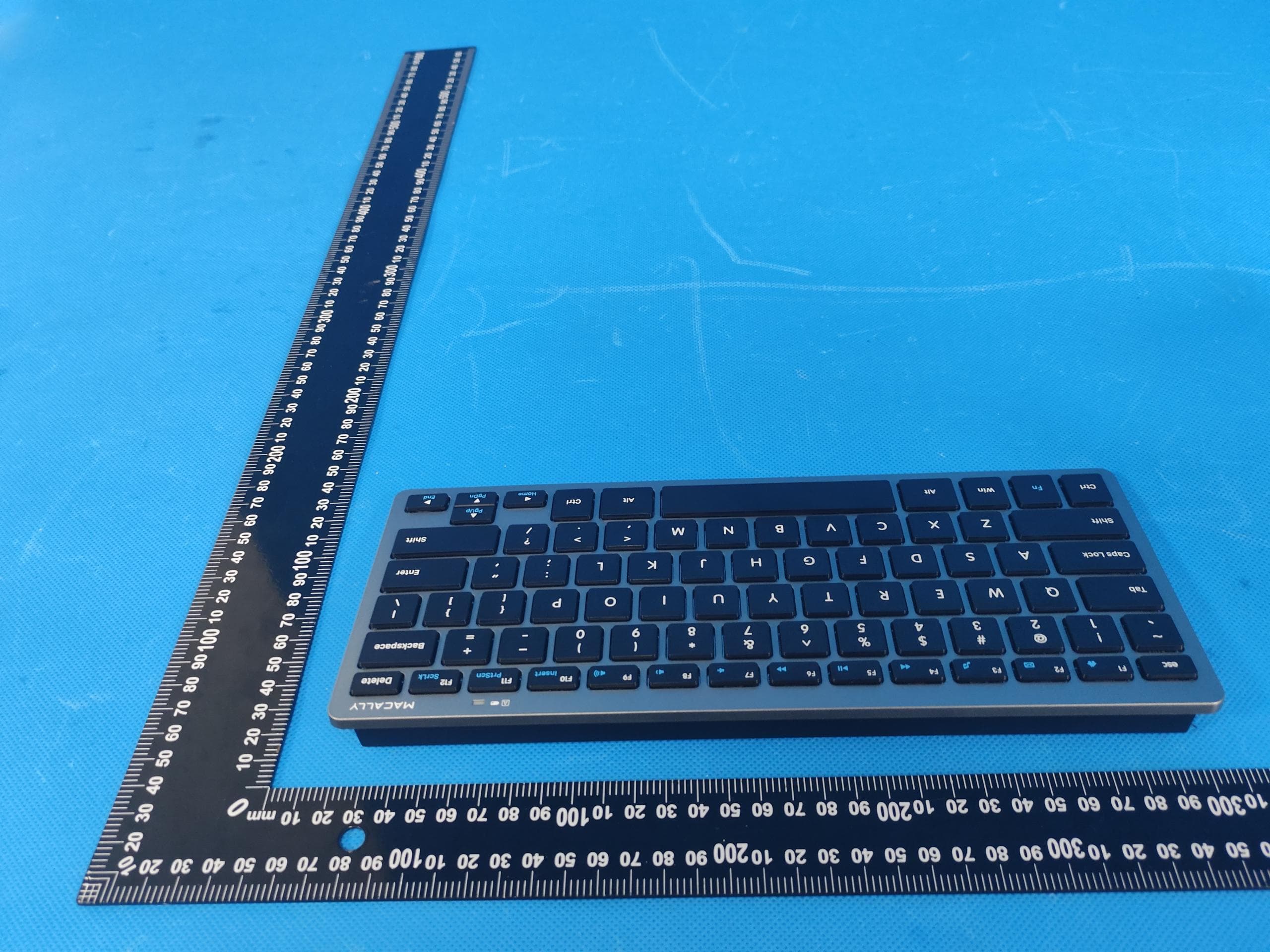

FCCID:2BKUK-RFCOMPACT EUTTESTPHOTOS ※※※※※ENDOFREPORT※※※※※
