2BKZR-PF-WC25IN1 Fold Wireless Charger

5IN1 WIRELESS CHARGER User Manual Type-C Fast Charging Cable 1 M PF-WC2 5IN Foldable Desktop Wireless charger Model&AccessoriesProduct WarrantyProduct DescriptionSpecification Parameter Model Application Method Product Characteristic Accessories USER MANUAL PF-WC2 PF-WC2 1,The warranty period: 12 Months. 2,The following conditions are not covered by the warranty: *Beyond the warranty period. *Consumers self-repair and disassemble this product. *Damage caused by improper use. *Non-product quality problems, man-made damage. -10~30 15W Max 5W Max 3W Max 2W Max 10W Max DC 15V/3A,35W MAX Output Wireless forphone Type-C1 Input Output Wireless fdr Tws Output Wireless for watch Output wireless forPencil Gen2 Output Type-cp Working Environment Temperature 1.Please connect the wireless charger to the Type-C charging cable correctly andthen connect the power supply . lf the indicator is not on,please check and 3.Place the device with wireless charging function into the designated area. *when the device is working on, the indicator light blue. *when the device is standby, the indicator light red. 2.This device requires a Type-C charger of more than 40W to achieve fullperformance. 4.The inductive distance of this 5IN1 wireless charger is ≤5mm. *When the contact distance is> 5mm, the charge does not work properly, *when there has a foreign object,the red light flashing.Please check and remove the foreign object. 5.Please check whether the 5IN1 wireless charger is connected properly,whetherthe device supports wireless charging and is compatible with this product. 1.This product is multi-functional 5-in-1 wireless fast charger,- Support the devices with wireless charging function charging:Apple mobile phones,Bluetooth headphones, Smart watches,Capacitive pen and other devices. 2.Silicone anti-slip, folding design, the maximum expansion of180 degrees, does not take up space, easy to store, carry. 3.Zinc alloy material, metal high-end texture,stylish, elegant,- simple and not simple. 1 3 2 For watch Type-C2 Output For iphone Type-C1 Input 6 7 indicator light For Tws 4 For pencil Gen2 5 PF-WC2

(polifall) FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA Date:2024-09-25 FCCID:2BKZR-PF-WC2 Ref.#1:AttestationStatementsPart2.911(d)(5)(i)Filing (“polifall”)certifiesthattheequipmentforwhichauthorizationissoughtisnot“covered” equipmentprohibitedfromreceivinganequipmentauthorizationpursuanttosection2.903 oftheFCCrules. Ref.#2:AttestationStatementsPart2.911(d)(5)(ii)Filing (“polifall”)certifiesthat,asofthedateofthefilingoftheapplication,theapplicantis notidentifiedontheCoveredListasanentityproducing“covered”equipment. Applicant:polifall Address:#718,36,Kkonmaeul-ro,Deogyang-gu,Goyang-si,Gyeonggi-do,RepublicofKorea 10545 ContactPerson:GADONKANG Tel.:+827082870743 Email:[email protected] Sincerely, Signature:

polifall Address：#718,36,Kkonmaeul-ro,Deogyang-gu,Goyang-si,Gyeonggi-do,RepublicofKorea 10545 Date:2024-09-25 FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 Ref:AttestationStatementsPart2.911(d)(7)Filing SUBJECT:FCCApplicationforFCCID:2BKZR-PF-WC2 FRN:0035568179 (“polifall”)certifiesthat,asofthedateofthefilingoftheapplication,GSSSERVICEINCisour designatedU.S.agentforserviceofprocessfortheabovereferencedFCCID.(“polifall”) acceptstomaintainanagentfornolessthanoneyearafterthegranteehasterminatedall marketingandimportationortheconclusionofanyCommission-relatedproceedinginvolving theequipment. GSSSERVICEINCaccepts,asofthedateofthefilingoftheapplication,theobligationofthe designatedU.S.agentforserviceofprocessfortheabovereferencedFCCID. DesignatedU.S.AgentInformation: Name:GSSSERVICEINC Address:6547NAcademyBlvd#2266ColoradoSpringsCOLORADO80918UnitedStates FRN：0033402082 ContactPerson:MichouxLogan Tel.:001-949-2990192 Email:[email protected] Sincerely, Signedonbehalfof（polifall） SignedonbehalfofGSSSERVICEINC Name:GADONKANGName:MichouxLogan Title:CEOTitle:Manager Date:2024-09-25Date:2024-09-25

polifall Date：2024-07-15 ProductModelNumber:PF-WC2,W10,WA23 FCCID:2BKZR-PF-WC2 Towhomitmayconcern, Re:ProductCertificationRepresentativeAuthorizationLetter WeauthorizeQAILaboratoriesLtd.3980NorthFraserWay,BurnabyB.C. CanadaV5J5K5toactonourbehalfonallmattersconcerningtheabove namedequipment. Thisshallincludethefollowing: Testing Approvalapplicationsandprocedures WedeclarethatQAILaboratoriesLtd.isallowedtoforwardallinformation relatedtotheapprovalprojecttotheappliedcertificationbodyandtothe notificationentitiesandtodiscussanyissuesconcerningtheapproval application.AnyandallactscarriedoutbyQAILaboratoriesLtd.onour behalfshallhavethesameeffectasactsofourown. By: ContactListedonFCCWesbite Title:CEO Email:[email protected] Telephone:+827082870743 Onbehalfof:polifall

polifall OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:September25,2024 Subject;RequestforConfidentiality FCCID:2BKZR-PF-WC2 ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthese documentsmightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantage inthemarket. SchematicDiagram BlockDiagram PartsList OperationalDescription Tune-upProcedure SoftwareSecurityRequirementsforUNIIdevices Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); ExternalPhotos TestSetupPhotos InternalPhotos UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:GADONKANG Title:CEO

polifall ModelDifference Productdescription:5IN1FoldWirelessCharger Modelname:PF-WC2,W10,WA23 FCCID:2BKZR-PF-WC2 PF-WC2istestedmodel,othermodelsarederivativemodels.Themodelsareidentical incircuit,onlydifferentonthemodelnames.SothetestdataofPF-WC2canrepresent theremainingmodels. Client’ssignature: Client’sname/title:GADONKANG/CEO Contactinformation/address:#718,36,Kkonmaeul-ro,Deogyang-gu,Goyang-si, Gyeonggi-do,RepublicofKorea10545

深圳市澳智鑫电子科技有限公司 Shenzhen aozhixin electronic technology electronics co., ltd 制 修 订 履 历 版本Version 制/修订日 期 Revise Date 制/修订内容 ReviseContents (Record)V2.22024.1.18新订 Newly ordered 样品承认书 SPECIFICATIONFORFLASHLENS ★客户名称/Customer： ★客户料号/Customeritem： ★产品型号/Productmodel： ★物料描述/Description： ★物料材质/Code ★送样数量/SamplesQ'ty： ★发行日期/IssueDate： MPP MPP 3PCS 2024.1.18 ferrite Single coil assembly ★客户确认栏（CUSTOMERCONFIRM） DateofReceipt: 接收日期: Receivedby: 担当: ★本司确认栏(供应商) 品质研发部 QE审核 CheckedBy 核准 Approved 审核 Checked By 制定 Prepared By 曹恒兵 地址: Address: TEL： 品质政策，进取创新，精益求精，追求卓越。 Confirmation column of our company (supplier) Quality policy, enterprising and innovative, striving for perfection and pursuing Excellence. 深圳市澳智鑫电子科技有限公司 MPP single coil assembly 40.5 * 20.5 * 0.08 * 80p * 11ts, G42.5 * 19.5 * 1.0mm, double slot, lead 7 mm. 2024/1/18 V2.2 Material code Shenzhen aozhixin electronic technology electronics co., ltd Floor 4, Building 4, Silian Shantang Industrial Zone, Henggang Street, Longgang District, Shenzhen 客户确认 /CustomerAdmit 客户名称/Customer 客户料号/CustP/N 产品名称/Name 规格/PartNo 日期/Date 版本/Version 拟定/DesignBy 审查/Check.By 审批/ApproveBy 曹恒兵 产品承认书 SPECIFICATIONFORAPPROVAL 深圳市澳智鑫电子科技有限公司 版本 Rev. 变更前 BeforeChange 变更後 AfterChange 更改日期 ChangeDate 审批 ApprovedBy 二、变更的规格说明/RequestForNewSPEC. 一、送样的原因/SampleSubmissionReason 1.新规格/NewSPEC2.NewMaterial/追加材料3.ECR/变更4.改善包装。 √ Improvepacking 深圳市澳智鑫电子科技有限公司 4.1Appearance & size (Unit: mm) 三、备注/Remark: 3.1本产品符合环境关联物质的管理规定要求. AboveproductcomplytoliyinEnvironmentalmaterialsystemrequirement. 3.2如未回传，则以贵司下订单为样品通过! InEventOfNoSignBack,WeWillUnderTakeP.O.AsAcceptanceToSampleApproval! 四、产品规格/ProductSpecification A 40.5 ± 0.8 B 20.5±0.5 C 1.06±0.5 D 7 ± 2.0 E 3±2.0 G 42.5 ± 0.6 I 19.5±0.5 H 2.35 ± 0.15 深圳市澳智鑫电子科技有限公司 4.2原理图/SCHEMATICDIAGRAM: 4.3绕线参数/WindingSpecification: 序号 NO. 端子 TERMINAL 线径 WIRE 圈数 Turns 绕线方向 WindingDirection 1SF Litz0.08*80P 11TsCCW 4.4电气特性ELECTRICALCHARACTERISTICS : 温度TEMPERATURE:25±10°C,湿度RELATIVEHUMIDITY:65±20% 序号 NO. 项目 ITEM 端子 TERMINAL 标准 SPECIFICATION 测试条件 TESTFREQUENCY 测试仪器 TESTEQUIPMENTS 1 LSS-F 8.2uH±10% 100KHz/1.0V TH2830 2 DCR S-F 51mΩ±10% ZX5512B 深圳市澳智鑫电子科技有限公司 五：磁片特性MaterialCharacteristics:（附页） 5.1 主要参数 MAINPARAMETERS NO 参数代号单位测试条件 BP40 1 起始磁导率 lnitialpenrmeability Ui\ 25°C2300±25％ 2 饱和磁通密度 Saturationfluxdensity BsmTH=1194A/m 25°C 510 100 °C 390 3 功率损耗 PcvPowerLoss Pc Kw/ ㎥ 25 °C ,100kHz,200mT 650 100°C,100kHz,200mT 450 4 居里温度 Curietemperature Tc °C ≥215 5 密度 Density d Kg/ ㎥ 4.8 × 10 3 5.2 材料特性曲线 MaterialCharacteristicsCurve μ i — T 曲线 Pcv — T 曲线 深圳市澳智鑫电子科技有限公司 Bs-t curve 5.3Appearance size: AQL=1.0/ electrical performance (L) :AQL=0.65. Cleanliness: The surface of the magnetic sheet is shiny, with uniform and smooth color and no obvious looseness. ① There must be no dust or magnetic powder on the surface of the magnetic sheet that affects the film sticking or gluing. Disruption and damage of magnetic disk: the allowable standards for each damaged part are ≤5mm in length, ≤1.0mm in width ② and ≤0.5mm in depth, and the interval between every two damaged parts is 1 mm. It is judged as a broken part, and each product is allowed to accept 3 broken parts within this standard. Cracks: Only two inconspicuous cracks with a length less than 5mm and a width less than 0.5mm are allowed in the ③ magnetic core, and cracks and delamination that affect the electromagnetic performance and mechanical strength of the magnetic core are not allowed. Yin and Yang surfaces: the dimensions are within the tolerance range, so inspection is not required.④ Crystal spots and bright spots: the crystals on the ground surface are ≤ 2mm, and the number of single sides is < 3.⑤ Surface flatness: The allowable concave-convex depth of the surface is ≤0.08mm (in principle, there are no obvious line ⑥ marks). Mechanical strength: ≥1kg (instrument: intelligent DSZ-500N pressure gauge)⑦

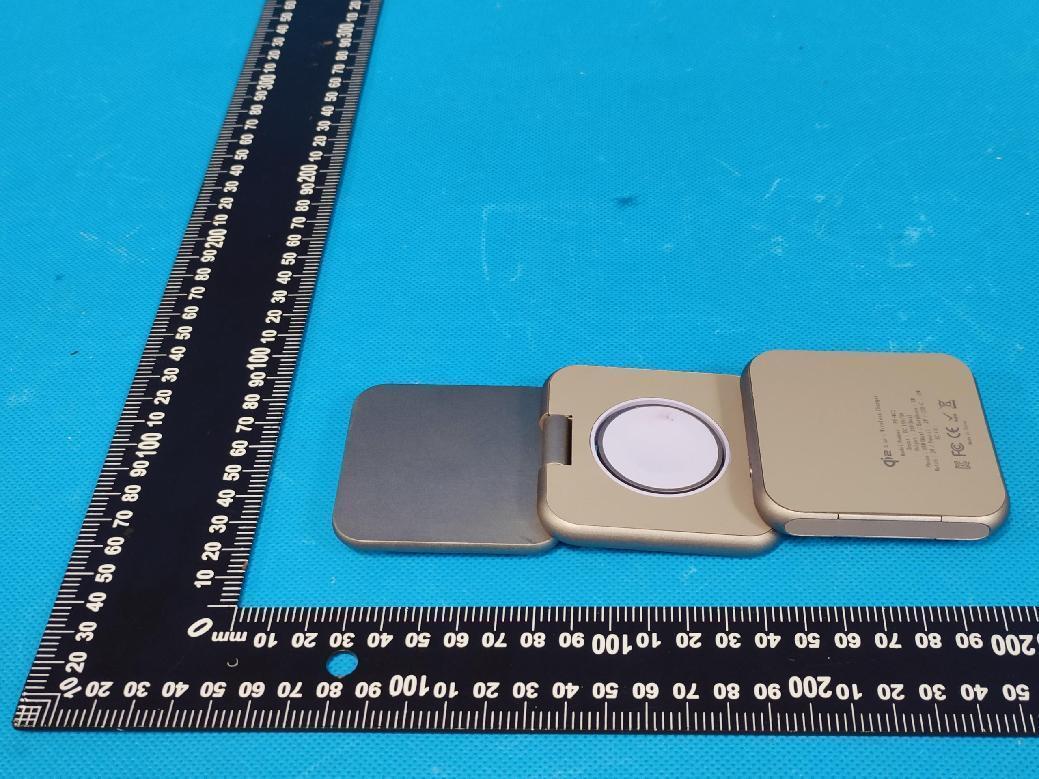

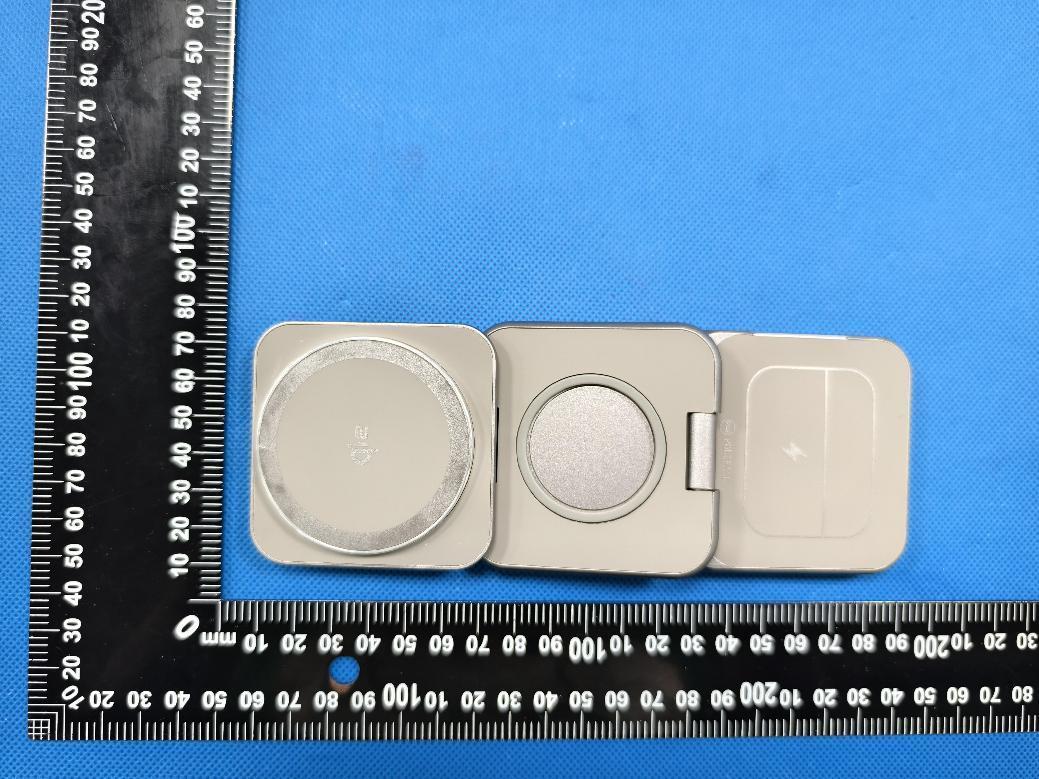

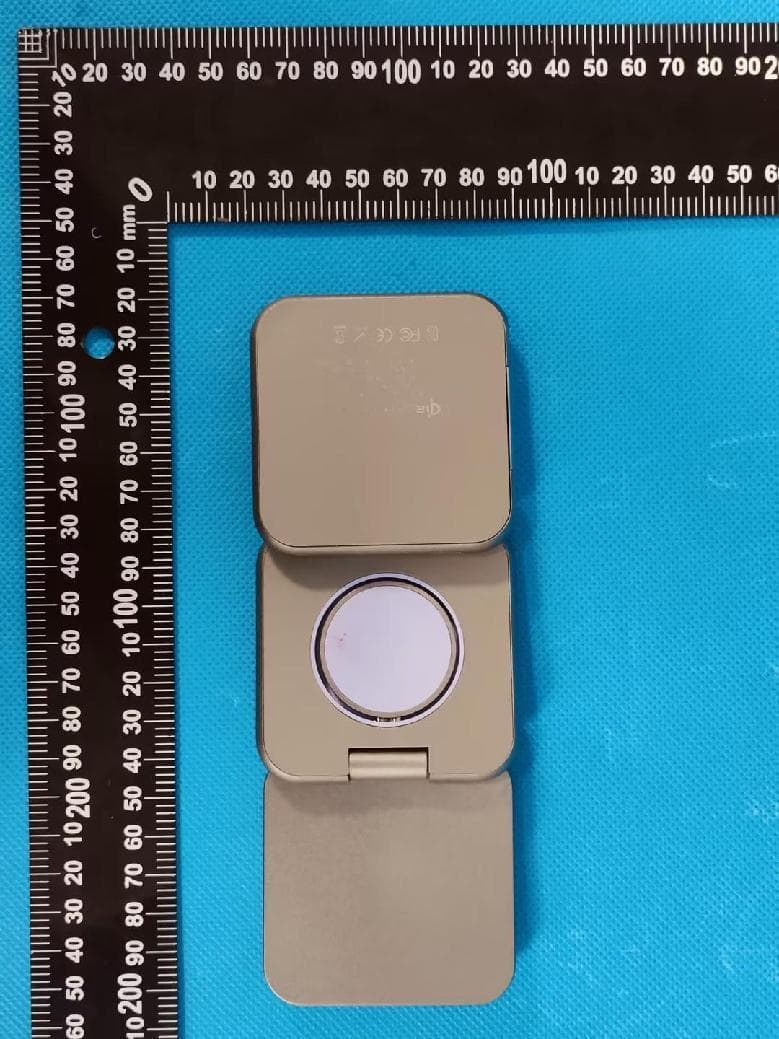

FCCID:2BKZR-PF-WC2 EUTPHOTOS(ExternalPhotos) FCCID:2BKZR-PF-WC2 FCCID:2BKZR-PF-WC2 FCCID:2BKZR-PF-WC2 FCCID:2BKZR-PF-WC2 ※※※※※ENDOFREPORT※※※※※

Size:3mmX12mm FCCID:2BKZR-PF-WC2

FCCID:2BKZR-PF-WC2 EUTPHOTO(InternalPhotos) FCCID:2BKZR-PF-WC2 Phonecoil FCCID:2BKZR-PF-WC2 Watch/Pencilcoil FCCID:2BKZR-PF-WC2 Earphonecoil FCCID:2BKZR-PF-WC2 FCCID:2BKZR-PF-WC2 FCCID:2BKZR-PF-WC2 ※※※※※ENDOFREPORT※※※※※

FCCID:2BKZR-PF-WC2 ProductName:5IN1FoldWirelessCharger ProductModelNo.:PF-WC2,W10,WA23 ModelDifference: PF-WC2istestedmodel,othermodelsarederivativemodels.The modelsareidenticalincircuit,onlydifferentonthemodelnames.So thetestdataofPF-WC2canrepresenttheremainingmodels. TestAuxiliary:Poweradapter Transmittingmode:KeeptheEUTincontinuouslywirelesschargingmode Powersupply:Input:DC15V/3A Output:35W(Max) Phone:15W(Max)/Earphone:5W Watch:3W/Pencil:2W/USB-C:10W TestModes: Mode1ACAdapter+Wirelesschargingmode(Phonecoil:15W) Mode2ACAdapter+Wirelesschargingmode(Phonecoil:10W) Mode3ACAdapter+Wirelesschargingmode(Phonecoil:7.5W) Mode4ACAdapter+Wirelesschargingmode(Phonecoil:5W) Mode5ACAdapter+Wirelesschargingmode(Earphonecoil:5W) Mode6ACAdapter+Wirelesschargingmode(Watchcoil:3W) Mode7ACAdapter+Wirelesschargingmode(Watchcoil:2W) Mode8ACAdapter+Phonecoil(15W)+Earphonecoil(5W)+Watchcoil(3W) Mode9ACAdapter+Phonecoil(10W)+Earphonecoil(5W)+Watchcoil(3W) Mode10ACAdapter+Phonecoil(7.5W)+Earphonecoil(5W)+Watchcoil(3W) Mode11ACAdapter+Phonecoil(5W)+Earphonecoil(5W)+Watchcoil(3W) Note:Allmodesandcoilweretested,onlytheworst-casewasrecordedinthereport.Mode1istheworst mode. Auxiliaryequipment Item EquipmentMfr/BrandModel/TypeNo.SeriesNo.Note E-1AdapterHUAWEIHW-059200CHQ/AE E-2Wirelesschargingload/EESON/AE E-3MobilephoneXiaomiCommunicationsCo.,Ltd.Xiaomi12SPro/AE E-4SmartwatchHegeTechnologyCo.,LtdSW506/AE 1MeasuringStandard KDB680106D01WirelessPowerTransferv04 2Requirements Accordingtotheitem5ofKDB680106D01v04: Inductivewirelesspowertransferapplicationsthatmeetallofthefollowingrequirementsareexcludedfrom submittinganRFexposureevaluation. (1)Thepowertransferfrequencyisbelow1MHz. TheEUTfrequencyrangeis:110-365KHz. (2)Theoutputpowerfromeachtransmittingelement(e.g.,coil)islessthanorequalto15watts. Theoutputpowerisequalto15W,Onlythreecoil. (3)Aclientdeviceprovidingthemaximumpermittedloadisplacedinphysicalcontactwiththetransmitter (i.e.,thesurfacesofthetransmitterandclientdeviceenclosuresneedtobeinphysicalcontact) EUTcanbedirectlycharged. (4)Only§2.1091-Mobileexposureconditionsapply(i.e.,thisprovisiondoesnotcover§2.1093-Portable exposureconditions). EUTisamobiledevice (5)TheE-fieldandH-fieldstrengths,atandbeyond20cmsurroundingthedevicesurface,aredemonstrated tobelessthan50%oftheapplicableMPElimit,perKDB447498,Table1.Thesemeasurementsshallbe takenalongtheprincipalaxesofthedevice,withoneaxisorientedalongthedirectionoftheestimated maximumfieldstrength,andforthreepointsperaxisoruntila1/d(inversedistancefromtheemitterstructure) fieldstrengthdecayisobserved.Symmetryconsiderationsmaybeusedfortestreductionpurposes.The deviceshallbeoperatedindocumentedworst-casecompliancescenarios(i.e.,theonesthatleadtothe maximumfieldcomponents),andwhilealltheradiatingstructures(e.g.,coilsorantennas)thatbydesigncan simultaneouslytransmitareenergizedattheirnominalmaximumpower. Yes,theEUTfieldstrengthlevelsareless50%xMPElimit. (6)Forsystemswithmorethanoneradiatingstructure,theconditionsspecifiedin(5)mustbemetwhenthe systemisfullyloaded(i.e.,clientsabsorbingmaximumpoweravailable),andwithalltheradiatingstructures operatingatmaximumpoweratthesametime,asperdesignconditions.Ifthedesignallowsoneormore radiatingstructurestobepoweredatahigherlevelwhileotherradiatingstructuresarenotpowered,then thosecasesmustbetestedaswell.Forinstance,adevicemayusethreeRFcoilspoweredat5W,oronecoil poweredat15W:inthiscase,bothscenariosshallbetested. Yes,EUThasonlythreecoil. Limits Thecriterialistedinthefollowingtableshallbeusedtoevaluatetheenvironmentimpactofhumanexposure toradiofrequency(RF)radiationasspecifiedin1.1307(b) LimitsforMaximumPermissibleExposure(MPE) 3TestSetup 4TestProcedure 1)TheRFexposuretestwasperformedinanechoicchamber. 2)Themeasurementprobewasplacedattestdistance(20cmfromallsidesand20cmfromthetop)whichis betweentheedgeofthechargerandthegeometriccenterofprobe. 3)Thehighestemissionlevelwasrecordedandcomparedwithlimitassoonasmeasurementofeachpoints (A,B,C,D,E)werecompleted. 4)TheEUTwasmeasuredaccordingtothedictatesofKDB680106D01v04. Remark：TheEUT’stestpositionA,B,C,DandEisvalidfortheEandHfieldmeasurements. 5TestInstrumentslist TestEquipmentManufacturerModelNo.SN. Cal.Date (mm-dd-yy) Cal.Duedate (mm-dd-yy) MagneticAmplitudeand GradientProbeSystem SPEAG MAGPy-8H3D+E3D V2&MAGPy-DASV2 SZ186-06&3061Feb.26,2024Feb.25,2025 6TestResult Allmodesandcoilweretested,onlytheworst-casewasrecordedinthereport.Mode1is theworstmode. E-FiledStrengthat20cmfromtheedgessurroundingtheEUT(V/m) FrequencyRange(MHz) Test PositionA Test PositionB Test PositionC Test PositionD 50%Limits (V/m) Limits (V/m) testresult 0.110-0.3650.450.670.510.61307614PASS E-FiledStrengthat20cmfromthetopoftheEUT(V/m) FrequencyRange (MHz) Test PositionE 50%Limits (V/m) Limits (V/m) testresult 0.110-0.3650.20307614PASS H-FiledStrengthat20cmfromtheedgessurroundingtheEUT(A/m) FrequencyRange(MHz) Test PositionA Test PositionB Test PositionC Test PositionD 50%Limits (V/m) Limits (A/m) test result 0.110-0.3650.180.160.100.130.8151.63PASS H-FiledStrengthat20cmfromthetopoftheEUT(A/m) FrequencyRange (MHz) Test PositionE 50%Limits (V/m) Limits (A/m) testresult 0.110-0.3650.370.8151.63PASS 7.TestSet-upPhoto
