1 IDP Intelligent Digital Pipette – User Manual This manual provides an overview of the key features and basic operating instructions for the COEVOS IDP Series Intelligent Digital Pipette (hereinafter referred to as "IDP Pipette"). Scope of Application The IDP Pipette is equipped with OTA (Over-the-Air) firmware upgrades, intelligent voice interaction, and a closed-loop pipetting record system. It is designed for aspirating and dispensing liquid volumes ranging from 0.2 μL to 5 mL. This manual applies to the following models: • IDP S Series, IDP E Series (single-channel pipettes) • IDP S8 Series, IDP E8 Series (8-channel pipettes) • IDP S12 Series, IDP E12 Series (12-channel pipettes) • IDP SA Series, IDP EA Series (adjustable-spacing pipettes) • IDP SD Series, IDP ED Series (2-in-1 pipettes) Quick Start Guide ① Adjustment Ring Rotate to adjust the volume setting ② Joystick Move up/down/left/right or press to navigate settings or perform aspiration/dispensing ③ Tip Eject Button Press to eject pipette tips ④ Type-C Charging Port Insert Type-C cable to charge ⑤ Magnetic Charging Port Attach to ICS3000 rotating magnetic charging stand ⑥ Power Button Press and hold for 3 seconds to turn the device on or off 2 Charging The IDP Pipette supports two charging methods: Type-C USB charging and Magnetic charging。 Mode Selection After powering on, the IDP Pipette enters the main menu. From the main menu, you can navigate using the joystick (up, down, left, right) to select the desired mode or function.Press the joystick vertically to enter a selected mode.To return to the main menu from any mode, press the joystick again. Mode Description Pipetting Transfers liquid by aspirating and dispensing equal volumes. Mixing Transfers a defined volume of liquid, then performs automatic or manual mixing Manual Pipetting Real-time control of aspiration and dispensing, mimicking mechanical pipette experience. Aliquot Dispensing Repeated dispensing of equal volumes. Reverse Pipetting Retains a residual volume after dispensing the preset amount Advanced Functions Includes sequential dispensing, dilution, and pipetting programs Co-Link Quickly connects to the Co-Link network Settings Configure Co-Link, device ID, beeping sound, language, and restore factory settings Service Access serial number, firmware version, calibration date, upgrade tools, etc Information Displays model, volume range, Co-Link network info, firmware version Sequential Dispensing Dispenses multiple volumes of varying amounts 3 Pipetting Operation （1）Aspiration: Immerse the tip into the liquid and tilt the joystick upward to aspirate the preset volume. （2）Dispensing: Move the tip above the target container and tilt the joystick downward to dispense. （3）Automatic Blow-Out: If enabled, the device will automatically blow out remaining liquid after dispensing. （4）Manual Blow-Out: After dispensing, tilt the joystick downward again to manually blow out. Settings / Modify Parameters （1）Mode Settings: On the operation interface, push the joystick right to enter parameter settings. （2）Unlock Settings: Move joystick up/down to select a setting, then push right to unlock it. （3）Volume Settings: Move joystick left/right to move the cursor, up/down to change values, then press to save and return. （4）Other Settings: Move joystick up/down to adjust values, then push left to save and return. （5）Menu Settings: Move joystick up/down to choose an option, then press or push right to unlock. Adjust values, then push left to save and return. （6）Service Menu: Move joystick up/down to view service items (upgrade, calibration, contact info). Use press or push right to enter, push left to return. Volume Adjustment via Control Ring （1）Unlock Volume: Rotate the ring continuously until the progress bar is full to unlock volume adjustment. （2）Adjust Volume: Use the joystick up/down/left/right for coarse adjustment, and rotate the ring for fine tuning. （3）Lock Volume: Press the joystick, or leave it idle for 5 seconds to lock the volume. Dilution Aspirate two different liquids in sequence with an air gap in between. After dispensing all liquids, mixing will follow. Pipetting Plan Customize pipetting programs by combining multiple pipetting modes freely. 4 Maintenance （1）Cleaning: Wipe off surface contaminants using a damp cloth and mild detergent. （2）Disinfection: Use alcohol wipes to disinfect external surfaces. The entire IDP pipette supports UV disinfection. The lower end of the pipette supports autoclave sterilization. （3）Warning: Do not use spray-type cleaners on the upper part of the pipette. Liquid may penetrate internal components and cause damage or safety hazards. Technical Specifications Input Voltage 5V Input Current 1A Power Consumption 5W Operating Environment Indoor use only Operating Temperature 15°C-30°C Maximum Altitude 2000 meters Device Weight (excluding tips) Single-channel pipette: Max. 209g Multichannel pipette: Max. 386g Safety Information Regardless of the instructions below, all local regulations and safety standards must be followed. （1）This product must be used in a secure and reliable network environment. （2）Only charge the IDP Pipette using charging devices recommended by COEVOS. （3）Do not use the pipette or charge it near flammable materials or in explosive environments. （4）Do not charge the pipette in confined or poorly ventilated spaces. （5）Avoid placing the pipette in hot areas (≥40°C) during charging. （6）Improper use of the pipette may lead to personal injury. Do not drop or subject the 5 pipette to mechanical stress or extreme temperatures. (Extreme is defined as: >40°C or <15°C) （7）Do not immerse the product in liquid. Avoid using spray cleaners on the pipette. （8）Always operate the pipette in accordance with this manual to avoid safety hazards Battery Charging （1）Fully charge the battery before first use. （2）Charge via Type-C port or with the ICS magnetic stand. （3）If the pipette is unused, charge it at least once every 3 months to mainta…

Text truncated - open the document above for the full version.

Rev 1/26/2023 Beijing Coevos Technology Co., Ltd Room 404, 4/F, Bldg 7, No.16 Xinya Street, Daxing District, Beijing, China Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 04-28-2026 Ref: Attestation Statements Part 2.911(d)(7) Filing FCC ID: 2BKZUIDP001 Applicant FRN: 0035930064 [Beijing Coevos Technology Co., Ltd] (“the applicant”) certifies that, as of the date of the filing of the application, [FCC US Agent, LLC] is our designated U.S. agent for service of process for the above referenced FCC ID. [Beijing Coevos Technology Co., Ltd] accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. [FCC US Agent, LLC] accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Name: FCC US Agent, LLC U.S. Agent FRN: 0033402884 Address: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA Contact Person: Tim Payne Tel.: 708-571-3148 Email: [email protected] Sincerely, Beijing Coevos Technology Co., Ltd FCC US Agent, LLC Shaowei Li Tim Payne [Insert U.S. Agent signature]

Beijing COEVOS Technology Co., Ltd. Room 404,4/F,Bldg 7,No.16 Xinya Street,Daxing District Beijing China Date: 04-29-2026 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Ref: Attestation Statements Part 2.911(d)(5)(i) and Part 2.911(d)(5)(ii) Filing Re. KDB 986446 D01 FCC ID:2BKZUIDP001 Dear Sir or Madam, Beijing COEVOS Technology Co., Ltd..certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, Beijing COEVOS Technology Co., Ltd.certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List ( as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment . If you have any questions, please contact us. Sincerely, Contact name: Shaowei Li Company name: Beijing COEVOS Technology Co., Ltd. Address: Room 404,4/F,Bldg 7,No.16 Xinya Street,Daxing District Beijing China E-mail: [email protected] Tel: 008613241556240

Beijing COEVOS Technology Co., Ltd. Room 404,4/F,Bldg 7,No.16 Xinya Street,Daxing District Beijing China Date (04/29/2026) TUV SUD BABT UNLIMITED TCB Octagon House, Segensworth North, Fareham, Hampshire, PO15 5RL, United Kingdom Dear Sir or Madam, We, (Beijing COEVOS Technology Co., Ltd..), hereby authorize Jiaxi XU from TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151 Heng Tong Road Shanghai 201108 P.R. China to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on (Dec.31,2026). Sincerely, Company Officer: Contact name: Shaowei Li Telephone Number: 008613241556240 Email: [email protected]

Beijing COEVOS Technology Co., Ltd. Room 404,4/F,Bldg 7,No.16 Xinya Street,Daxing District Beijing China Date (04/29/2026) TUV SUD BABT UNLIMITED TCB Octagon House, Segensworth North, Fareham, Hampshire, PO15 5RL, United Kingdom Confidentiality Request FCC ID: 2BKZUIDP001 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, (Beijing COEVOS Technology Co., Ltd.) hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Block Diagrams Theory of Operation (Beijing COEVOS Technology Co., Ltd.) also hereby requests short-term confidential treatment of information accompanying this application as outlined below for a period of 180 days: Internal Photos The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: Contact name: Shaowei Li Telephone Number: 008613241556240 Email: [email protected]

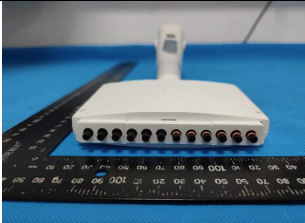

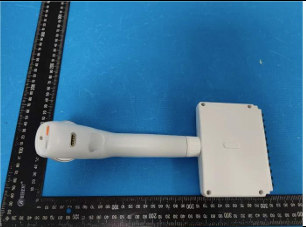

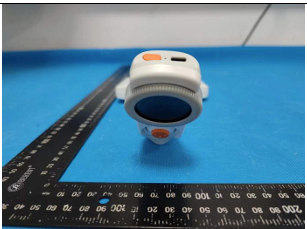

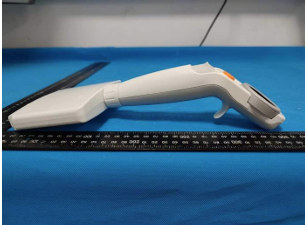

EUT Appearance Report No.: EFTA26040284-IE-02 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-01-032E Page 1 of 5 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. EUT Appearance EUT Appearance Report No.: EFTA26040284-IE-02 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-01-032E Page 2 of 5 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. EUT Appearance Report No.: EFTA26040284-IE-02 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-01-032E Page 3 of 5 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. a: EUT EUT Appearance Report No.: EFTA26040284-IE-02 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-01-032E Page 4 of 5 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. b: disassembly EUT Appearance Report No.: EFTA26040284-IE-02 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-01-032E Page 5 of 5 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. c: part

Label & Location

Prepared by: Wei Fangying Approved by: Xu Kai Eurofins TA Technology (Shanghai) Co., Ltd. Building 3, No.145, Jintang Rd, Pudong Shanghai, P.R.China TEL: +86-021-50791141/2/3 FAX: +86-021-50791141/2/3-8000 SAR TEST REPORT Applicant Beijing COEVOS Technology Co., Ltd. FCC ID 2BKZUIDP001 Product IDP Pipette Model IDP Sa-xxxx, IDP Sbc-xxxx, IDP Ea-xxxx, IDP Ebc-xxxx (a,b,c: Variable parameters a=8, 12, D or blank. Number of channels (e.g., 8 for 8 channels, 12 for 12 channels, D for dual-function, blank for no value. bc=A4, A6 or A8. Adjustable spacing (e.g., A4 for 4-channel adjustable spacing, A6 for 6-channel adjustable spacing, A8 for 8-channel adjustable spacing. xxxx=0002, 1205, 0025, 0125, 0200, 0300, 1000, 1250, 5000.Represents volume range parameters (e.g.,0002=2.5μL, 1205 = 12.5 μL, 0025 = 25 μL, 0125 = 125 μL,0200 = 200 μL, 0300 = 300 μL, 1000=1000μL, 1250 = 1250 μL,5000 = 5000 μL) Report No. EFTA26040284-IE-02-S1 Issue Date April 28, 2026 Eurofins TA Technology (Shanghai) Co., Ltd. tested the above equipment in accordance with the requirements in IEEE 1528-2013, ANSI/IEEE C95.1-1992. The test results show that the equipment tested can demonstrate compliance with the requirements as documented in this report. SAR Test Report Report No.: EFTA26040284-IE-02-S1 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-06-003S Page 2 of 60 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. Table of Contents 1 Test Laboratory ................................................................................................................................. 3 1.1 Notes of the Test Report ............................................................................................................ 3 1.2 Test Facility ................................................................................................................................ 3 1.3 Testing Location......................................................................................................................... 3 1.4 Laboratory Environment ............................................................................................................ 3 2 Statement of Compliance .................................................................................................................. 4 3 Description of Equipment Under Test ............................................................................................... 5 4 Test Specification, Methods and Procedures ................................................................................... 7 5 Operational Conditions during Test ................................................................................................... 8 5.1 Test Positions ............................................................................................................................ 8 5.1.1 Body SAR ............................................................................................................................ 8 5.2 Measurement Variability ............................................................................................................ 9 5.3 Test Configuration ................................................................................................................... 10 5.3.1 Wi-Fi Test Configuration ................................................................................................. 10 6 SAR Measurements System Configuration .................................................................................... 12 6.1 SAR Measurement Set-up ....................................................................................................... 12 6.2 DASY5 E-field Probe System .................................................................................................. 13 6.3 SAR Measurement Procedure ................................................................................................. 14 7 Main Test Equipment ....................................................................................................................... 16 8 Tissue Dielectric Parameter Measurements & System Check ....................................................... 17 8.1 Tissue Verification ................................................................................................................... 17 8.2 System Check .......................................................................................................................... 18 8.3 SAR System Validation ............................................................................................................ 20 9 Normal and Maximum Output Power .............................................................................................. 21 9.1 WLAN Mode ............................................................................................................................. 21 10 Measured and Reported (Scaled) SAR Results ............................................................................. 22 10.1 EUT Antenna Locations ........................................................................................................... 22 10.2 Measured SAR Results ........................................................................................................... 23 11 Measurement Uncertainty ............................................................................................................... 24 ANNEX A: Test Layout ........................................................................................................................... 25 ANNEX B: System Check Results ......................................................................................................... 26 ANNEX C: Highest Graph Results ......................................................................................................... 27 ANNEX D: Probe Calibration Certificate (SN: 3677) .................…

Text truncated - open the document above for the full version.

承认书项目表 Confirmation Letter Project Table NO. 内 容 （Contents） 页数 （Number of Page） 页码 （Page Code） 1 承认书封面 （Spec Cover） 1 1 2 承认书项目表（Spec Item ） 1 2 3 工程成品图 （Drawing） 1 3 4 电性测试报告（Test Reports ） 1 4 5 S 参数测试 （S Parameter ） 1 5 6 增益测试 （Gain Test ） 1 6 7 8 9 10 - - - 11 - - - 12 - - - Add：No. 6 Qilin East Road, Daning, Humen Town, Dongguan City SCALE: 1/1 DESIDNED BY CHECKED BY SIGN B C D DATE DESCRIPTION APPROVER jeff 2014-03-18 leon 2014-03-18 YD 2014-03-18 Tolerance X.X ±0.20 X.XX ±0.10 X° ±3 No. REVISION: A Dongguan Chuangjie Electronics Co., Ltd 1 1 IPEX Connector CI-113 1 O.D. 1.13mm Black Coaxial Cable R-CB-113B 1 FPC 37*10*0.3mm FPC WF3710-113B-60 APPROVED BY DWG NAME: PART NO.: WF3710-113B-60 TITLE: 2.4G 5G 5.8G Antenna 2 3 Q'ty Material Name Part Number 电性测试报告 Test Reports Electrical Properties Frequency 2.4GHz ~ 2.5GHz Impedance 50 0hm Nominal V.S.W.R 1.92 : 1 Max Return Loss -10 dB Max Radiation Omni-directional Gain (Peak) 3dBi Cable Loss 3.2 dB / m Max @ 2450 MHz Polarization Linear, Vertical Admitted Power 1 W Connector ipex Physical Properties Antenna Material FPCB Cable Type O.D. 1.13mm // 120 mm Operating Temp. -10 ~ +60 ̊C Storage Temp. -10 ~ +70 ̊C Cable Color Black Add：No. 6 Qilin East Road, Daning, Humen Town, Dongguan City S 参数测试 S Parameter Test Agilent E5071C Add：No. 6 Qilin East Road, Daning, Humen Town, Dongguan City 增益测试 Gain Test Antenna Radiation Pattern VS Gain Add：No. 6 Qilin East Road, Daning, Humen Town, Dongguan City

Prepared by: Xu Ying Approved by: Xu Kai Eurofins TA Technology (Shanghai) Co., Ltd. Building 3, No.145, Jintang Rd, Pudong Shanghai, P.R.China TEL: +86-021-50791141/2/3 FAX: +86-021-50791141/2/3-8000 RF TEST REPORT Applicant Beijing COEVOS Technology Co., Ltd. FCC ID 2BKZUIDP001 Product IDP Pipette Model IDP Sa-xxxx, IDP Sbc-xxxx, IDP Ea-xxxx, IDP Ebc-xxxx (a,b,c: Variable parameters a=8, 12, D or blank. Number of channels (e.g., 8 for 8 channels, 12 for 12 channels, D for dual-function, blank for no value. bc=A4, A6 or A8. Adjustable spacing (e.g., A4 for 4-channel adjustable spacing, A6 for 6-channel adjustable spacing, A8 for 8- channel adjustable spacing. xxxx=0002, 1205, 0025, 0125, 0200, 0300, 1000, 1250, 5000. Represents volume range parameters (e.g., 0002=2.5μL, 1205 = 12.5 μL, 0025 = 25 μL, 0125 = 125 μL, 0200 = 200 μL, 0300 = 300 μL, 1000=1000μL, 1250 = 1250 μL, 5000 = 5000 μL) Report No. EFTA26040284-IE-01-R1V1 Issue Date April 29, 2026 Eurofins TA Technology (Shanghai) Co., Ltd. tested the above equipment in accordance with the requirements in FCC CFR47 Part 15C. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. RF Test Report Report No.: EFTA26040284-IE-01-R1V1 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-04-005R Page 2 of 69 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. TABLE OF CONTENT 1. Test Laboratory ............................................................................................................................... 5 1.1. Notes of the Test Report ......................................................................................................... 5 1.2. Test Facility ............................................................................................................................. 5 1.3. Testing Location ...................................................................................................................... 5 2. General Description of Equipment Under Test ............................................................................... 6 2.1. Applicant and Manufacturer Information ................................................................................ 6 2.2. General Information ................................................................................................................ 6 3. Applied Standards ........................................................................................................................... 7 4. Test Configuration ........................................................................................................................... 8 5. Test Case ........................................................................................................................................ 9 5.1. Maximum output power .......................................................................................................... 9 5.2. 99% Bandwidth and 6dB Bandwidth .................................................................................... 10 5.3. Band Edge ............................................................................................................................ 11 5.4. Power Spectral Density ........................................................................................................ 12 5.5. Spurious RF Conducted Emissions ...................................................................................... 14 5.6. Unwanted Emission .............................................................................................................. 16 5.7. Conducted Emission ............................................................................................................. 23 6. Test Results .................................................................................................................................. 24 6.1. Maximum output power ........................................................................................................ 24 6.2. 99% Bandwidth and 6dB Bandwidth .................................................................................... 25 6.3. Band Edge ............................................................................................................................ 38 6.4. Power Spectral Density ........................................................................................................ 46 6.5. Spurious RF Conducted Emissions ...................................................................................... 53 6.6. Unwanted Emission .............................................................................................................. 65 6.7. Conducted Emission ............................................................................................................. 66 7. Main Test Instruments................................................................................................................... 67 8. The EUT Appearance ................................................................................................................... 68 9. Test Setup Photos ......................................................................................................................... 69 RF Test Report Report No.: EFTA26040284-IE-01-R1V1 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-04-005R Page 3 of 69 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. Version Revision Description Issue Date Rev.0 Initial issue of report. April 29, 2026 Rev.1 Updated information and description. April 29, 2026 Note: This revised report (Report No.: EFTA26040284-IE-01-R1V1) supersedes and replaces the previously issued report (Report No.: EFTA26040284-IE-01-R1). Please discard or destroy the previously issued report and dispose of it a…

Text truncated - open the document above for the full version.

Test Result Report No.: EFTA26040284-IE-01-R1-ANNEX A Eurofins TA Technology (Shanghai) Co., Ltd. Page 1 of 30 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. ANNEX A: Test Result The radiated emission was measured in the following position: EUT stand-up position (Z axis), lie-down position (X, Y axis). The worst emission was found in lie-down position (X axis) and the loop antenna is coplanar, the others are vertical and horizontal. and the worst case was recorded. Test Result Report No.: EFTA26040284-IE-01-R1-ANNEX A Eurofins TA Technology (Shanghai) Co., Ltd. Page 2 of 30 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. 1. Unwanted Emission 1.1. Wi-Fi 2.4GHz The following graphs display the maximum values of horizontal and vertical by software. Blue trace uses the peak detection, Green trace uses the average detection. A symbol () in the test plot below means (dBμV/m) The signal beyond the limit is carrier. 0 10 20 30 40 50 60 70 80 90 100 110 120 2310 2320 2330 2340 2350 2360 2370 2380 2390 2400 2410 2420 2430 Level in dB 礦 /m Frequency in MHz FCC RE PK FCC RE AV 2.389320000 GHz 48.794 dB礦/m 2.389590000 GHz 36.377 dB礦/m 802.11b-Channel 1 Peak+ Average 0 10 20 30 40 50 60 70 80 90 100 110 120 2450 2455 2460 2465 2470 2475 2480 2485 2490 2495 2500 Level in dB 礦 /m Frequency in MHz FCC RE PK FCC RE AV 2.496843750 GHz 47.371 dB礦/m 2.486000000 GHz 36.338 dB礦/m 802.11b-Channel 11 Peak+ Average 0 10 20 30 40 50 60 70 80 90 100 110 120 2310 2320 2330 2340 2350 2360 2370 2380 2390 2400 2410 2420 2430 Level in dB 礦 /m Frequency in MHz FCC RE PK FCC RE AV 2.387685000 GHz 45.411 dB礦/m 2.374230000 GHz 34.588 dB礦/m 802.11g-Channel 1 Peak+ Average 0 10 20 30 40 50 60 70 80 90 100 110 120 2450 2455 2460 2465 2470 2475 2480 2485 2490 2495 2500 Level in dB 礦 /m Frequency in MHz FCC RE PK FCC RE AV 2.489562500 GHz 47.068 dB礦/m 2.489562500 GHz 34.910 dB礦/m 802.11g-Channel 11 Peak+ Average 0 10 20 30 40 50 60 70 80 90 100 110 120 2310 2320 2330 2340 2350 2360 2370 2380 2390 2400 2410 2420 2430 Level in dB 礦 /m Frequency in MHz FCC RE PK FCC RE AV 2.362095000 GHz 45.548 dB礦/m 2.367525000 GHz 33.509 dB礦/m 802.11n HT20-Channel 1 Peak+ Average 0 10 20 30 40 50 60 70 80 90 100 110 120 2450 2455 2460 2465 2470 2475 2480 2485 2490 2495 2500 Level in dB 礦 /m Frequency in MHz FCC RE PK FCC RE AV 2.490187500 GHz 47.624 dB礦/m 2.484687500 GHz 35.719 dB礦/m 802.11n HT20-Channel 11 Peak+ Average 0 10 20 30 40 50 60 70 80 90 100 110 120 2310 2320 2340 2360 2380 2400 2420 2440 2450 Level in dB 礦 /m Frequency in MHz FCC RE PK FCC RE AV 2.389502500 GHz 48.788 dB礦/m 2.388260000 GHz 37.013 dB礦/m 802.11n HT40-Channel 3 Peak+ Average 0 10 20 30 40 50 60 70 80 90 100 110 120 2430 2440 2450 2460 2470 2480 2490 2500 Level in dB 礦 /m Frequency in MHz FCC RE PK FCC RE AV 2.485125000 GHz 49.247 dB礦/m 2.484722500 GHz 38.546 dB礦/m 802.11n HT40–Channel 9 Peak+ Average Test Result Report No.: EFTA26040284-IE-01-R1-ANNEX A Eurofins TA Technology (Shanghai) Co., Ltd. Page 3 of 30 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. Result of RE Sweep the whole frequency band through the range from 9kHz to the 10th harmonic of the carrier. The Radiates Emission from 9kHz to 30MHz and 18GHz to 26.5GHz are more than 20dB below the limit are not reported. Remark: 1. Correction Factor = Antenna factor + Insertion loss (cable loss + amplifier gain) 2. Margin = Limit – Quasi-Peak/ MAX Peak/ Average 3. A symbol () in the test plot below means (dBμV/m) 4. The following graphs display the maximum values of coaxial and coplanar for 9k-30MHz; horizontal and vertical for above 30MHz by software. 5. For below 1GHz QP Level @Spectrum Overview H QP Level @Spectrum Overview V QP Level @Final Results QP Limit For above 1GHz PK Level @Spectrum Overview H PK Level @Spectrum Overview V PK Level @Final Results PK Limit AVG Level @Spectrum Overview H AVG Level @Spectrum Overview V AVG Level @Final Results AVG Limit Test Result Report No.: EFTA26040284-IE-01-R1-ANNEX A Eurofins TA Technology (Shanghai) Co., Ltd. Page 4 of 30 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. Continuous TX mode: During the test, the Radiates Emission from 9kHz to 1GHz was performed in all modes with all channels, the test data of the worst-case condition (802.11 n 20MHz) was recorded in this report. 0 20 40 60 80 100 120 30M 50 60 80 100M200300 400 500 800 1G Level in dB 礦 /m Frequency in Hz FCC RE QP Rad…
