2BL52-ABW07True Wireless Earphones

Three steps group U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: Three steps group FRN: 0036266120 Contact Name: Annie Wang Address: 4200 mission blvd ontario California 91761, United States Telephone No: 626-922-1007 Email: [email protected] This letter is to confirm that we (Three steps group) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: 2024-11-22 Signed by (Printed Name/Title): Annie Wang / Manager The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: Three steps group FRN: 0036266120 FCC ID: 2BL52-ABW07 Contact Name: Annie Wang Address: 4200 mission blvd ontario California 91761, United States Telephone No: 626-922-1007 Email: [email protected] Applicant Signature: Date: 2024-11-22 Signed by (Printed Name/Title): Annie Wang / Manager

Three steps group 2024.11.22 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for FCC ID: 2BL52-ABW07 [Three steps group] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) Annie Wang Three steps group 2024.11.22 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for FCC ID: 2BL52-ABW07 [Three steps group] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Annie Wang

Three steps group 2024.11.22 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: True Wireless Earphones Trademark: AIRMARS MODEL : Airmars-ABW07 FCC ID : 2BL52-ABW07 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Annie Wang / Manager Contact information / address: 4200 mission blvd ontario California 91761, United States

Three steps group 2024.11.22 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Annie Wang / Manager Contact information / address: 4200 mission blvd ontario California 91761, United States

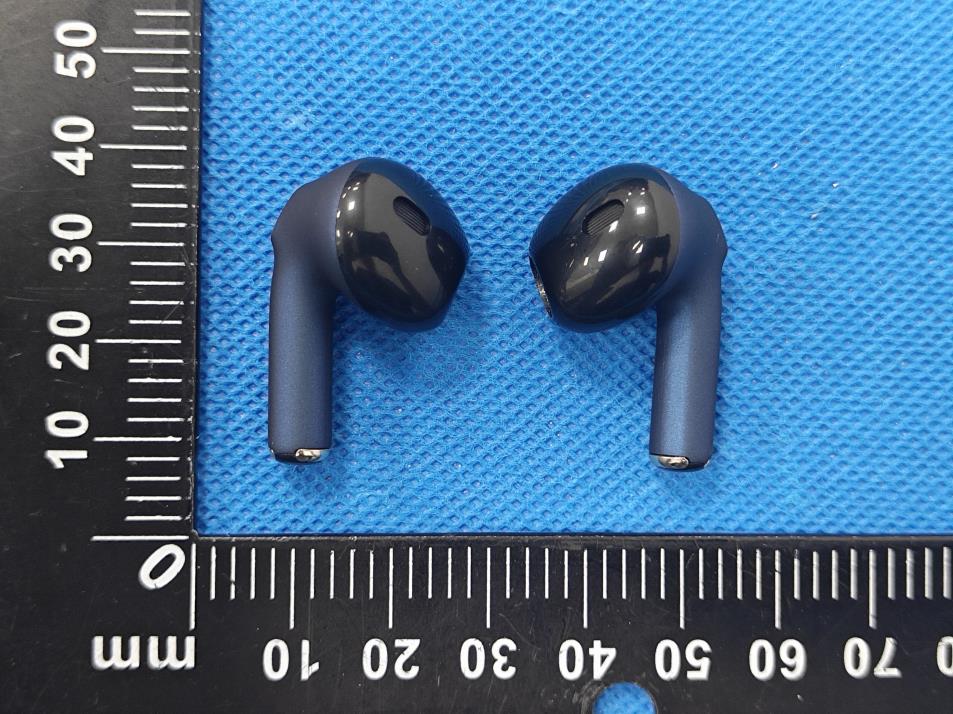

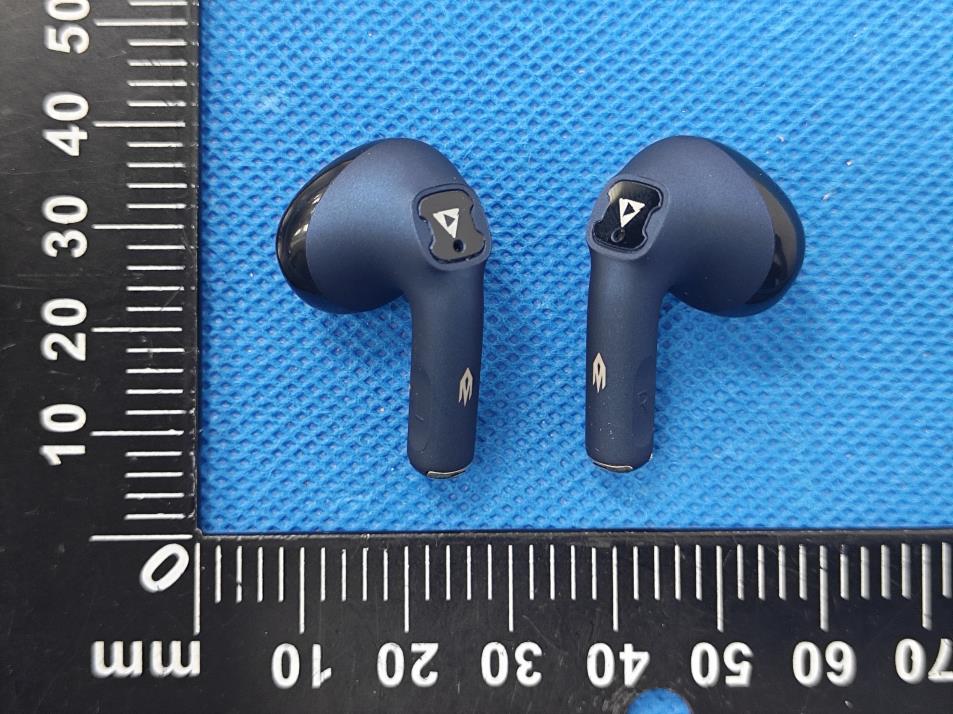

Report No.:BCTC2411379901E External Photos Report No.:BCTC2411379901E Report No.:BCTC2411379901E Report No.:BCTC2411379901E

Label & label location Location: Due to the size of the headset is too small, so the label is placed in the user manual. Label: True Wireless Earphones FCC ID: 2BL52-ABW07

Report No.:BCTC2411379901E Internal Photos Antenna Antenna Report No.:BCTC2411379901E Report No.:BCTC2411379901E

RF EXPOSURE EVALUATION METHOD FCC ID: 2BL52-ABW07 Applicable standard： In accordance with FCC 47 CFR part 2 (2.1093) this device has been defined as a portable device which is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable devices must be evaluated using the specified in FCC 47 CFR part 2 (2.1093) and ANSI/IEEEC95.1-1992. and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528-2003. Per FCC KDB 447498 D01 v06, the 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances s 50 mm are determined by: SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Condition Mode Frequency (MHz) Conducted Power (dBm) Limit (dBm) Verdict NVNT 1-DH1 2402 1.53 21 Pass NVNT 1-DH1 2441 1.58 21 Pass NVNT 1-DH1 2480 0.57 21 Pass NVNT 2-DH1 2402 3.64 21 Pass NVNT 2-DH1 2441 3.58 21 Pass NVNT 2-DH1 2480 2.5 21 Pass NVNT 3-DH1 2402 3.68 21 Pass NVNT 3-DH1 2441 3.77 21 Pass NVNT 3-DH1 2480 2.86 21 Pass max possible output power (PK,conducted)：3±1dBm 4dBm=2.51mW 2402MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 2.51/5*√2.402=0.778≤3.0 2441MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 2.51/5*√2.441=0.784≤3.0 2480MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 2.51/5*√2.48=0.791≤3.0 Conclusion: 1. [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] < 3.0. 2. SAR Test Exclusion Thresholds is 3.0 for separation distance 5mm. Therefore, SAR test is not required.

2.4GHz 3216 Chip Antenna: RANT3216F245C03 _ Application: WLAN, 802.11b/g, Bluetooth, WLAN, etc... Features SMD, high reliability, ultra Impact, Omni-directional... Part number Information RANT3216F245C03 (A)(B)(C)(D)(E)(F) Electrical Specification The specification is defined on EVB. Dimension and Terminal Configuration No.Terminal Name 1Feeding/GNG 2GND/Feeding (A)Product TypeChip Antenna (B) Size Code 3.2x1.6mm( ± 0.2mm) (C) MaterialHigh K material (D) Frequency2.4 ~ 2.5GHz (E) Feeding modePIFA & Single Feeding (F) Antenna typeType=03 Working Frequency Range2400 ~2500 MHz Bandwidth 120 MHz (Min.) Peak Gain Impedance50 Ohm Return loss10 dB ( Min) PolarizationLinear Azimuth BeamwidthOmni-directional Operation Temperature(°C)-40 ~85°C Resistance to Soldering Heats 10sec. ( @ 280°C) TerminationNi / Au (Leadless) Dimension (mm) L 3.20±0.20 W 1.60±0.20 T 0.45±0.20 咏成國際科技有限公司電話: RAIN International Technology Co., Ltd.TEL: 1.24dBi 2.4GHz 3216 Chip Antenna: RANT3216F245C03 _ 1 Evaluation BoardReference 长条板 PCB 推荐 Dimension 圆板 Antenna Layout Reference Unit :mm Electrical Characteristics Return Loss & Radiation Return Loss Frequency(MHz) S11 (dB) 2400-10.50 2450-30.62 2500-11.47 2.4GHz 3216 Chip Antenna: RANT3216F245C03 _ Radiation 2400MHz2450MHz2500MHz Efficiency82.52%85.26%83.01% Peak Gain1.15 dBi1.24 dBi1.19 dBi Directivity1.89 dBi1.97 dBi1.91 dBi X Y Z 2400MHz 2450MHz 2500MHz 2.4GHz 3216 Chip Antenna: RANT3216F245C03 _ Taping Specifications Reel and Taping Specification Reel Specification TYPESIZEABCD 32167”5K/Reel 9.0±0.5 60±213.5±0.5178±2 Tapping Specification PackagingTypeABWEFGHTψDP Paper Type3216 1.90±0.2 0 3.50±0.2 0 8.0±0.2 0 1.75±0.1 0 3.5±0.054.0±0.102.0±0.050.75±0.1 0 1.50±0.1 0 4.0±0.1 2.4GHz 3216 Chip Antenna: RANT3216F245C03 _ Reliability Table Test ItemProcedure Requirements Ceramic Type Remark (Reference) Electrical Characterization Fulfill the electrical specification User Spec. Thermal Shock 1. Preconditioning: 50 ± 10°C/ 1 hr , then keep for 24 ± 1 hrs at room temp. 2. Initial measure: Spec: refer Initialspec. 3. Rapid change of temperature test: -30°Cto +85°C; 100 cycles; 15 minutes at Lower category temperature; 15 minutes at Upper category temperature. No Visible Damage. Fulfill the electrical specification. MIL-STD-202 107 Temperature Cycling 1. Initial measure: Spec: refer Initialspec. 2. 100 Cycles (-30°Cto +85°C), Soak Mode=1 (2 Cycle/hours). 3. Measurement at 24 ± 2Hours after testcondition. No Visible Damage. Fulfill the electrical specification. JESD22 JA104 High Temperature Exposure 1. Initial measure: Spec: refer Initialspec. 2. Unpowered; 500hours @ T=+85°C. 3. Measurement at 24 ± 2 hours aftertest. No Visible Damage. Fulfill the electrical specification. MIL-STD-202 108 Low Temperature Storage 1. Initial measure: Spec: refer Initialspec. 2. Unpowered: 500hours @ T=-30°C. 3. Measurement at 24 ± 2 hours aftertest. No Visible Damage. Fulfill the electrical specification. MIL-STD-202 108 Solderability (SMD Bottom Side) Dipping method: a. Temperature: 235 ±5°C b. Dipping time: 3 ±0.5s The solder should cover over 95% of the critical area of bottom side. IEC 60384-21/22 4.10 Soldering Heat Resistance (RSH) Preheating temperature: 150 ± 10°C. Preheating time: 1~2 min. Solder temperature: 260 ± 5°C. Dipping time: 5 ± 0.5s No Visible Damage.IEC 60384-21/22 4.10 Vibration5g's for 20 min., 12 cycles each of 3 orientations Note: Use 8"X5" PCB .031" thick 7 secure points on, one long side and 2 secure points at corners of opposite sides. Parts mounted within 2" from any secure point. Test from 10-2000 Hz. No Visible Damage.MIL-STD-202 Method 204 Mechanical Shock Three shocks in each direction shall be applied along the three mutually perpendicular axes of the test specimen (18 shocks) Peak value: 1,500g’s Duration: 0.5ms Velocity change: 15.4 ft/s Waveform: Half-sine No Visible Damage.MIL-STD-202 Method 213 Humidity Bias 1. Humidity: 85% R.H., Temperature:85 ± 2 °C. 2. Time: 500 ± 24hours. 3. Measurement at 24 ± 2hrs after testcondition. No Visible Damage. Fulfill the electrical specification. MIL-STD-202 Method 106 2.4GHz 3216 Chip Antenna: RANT3216F245C01 _ Board Flex (SMD) 1. Mounting method: IR-Reflow. PCB Size (L:100 × W:40 × T:1.6mm) 2. Apply the load in direction of the arrow until bending reaches 2 mm. No Visible Damage.AEC-Q200 005 AdhesionForce of 1.8Kg for 60 seconds.No Visible Damage Magnification of 20X or greater may be employed for inspection of the mechanical integrity of the device body terminals and body/terminal junction. AEC-Q200 006 Physical Dimension Any applicable method using x10 magnification, micrometers, calipers, gauges, contour projectors, or other measuring equipment, capable of determining the actual specimen dimensions. In accordance with specification. JESD22 JB100 Revision History RevisionDateContent 12019/03/01New Datasheet 22020/02/22Add 2D radiation characteristic

No.：BCTC/RF-EMC-005 Page: 1 of 84 Edition：B.2 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2411379901E Applicant: Three steps group Product Name: True Wireless Earphones Test Model: Airmars-ABW07 Tested Date: 2024-11-05 to 2024-11-11 Issued Date: 2024-11-11 Report No.:BCTC2411379901E No.：BCTC/RF-EMC-005 Page: 2 of 84 Edition：B.2 FCC ID: 2BL52-ABW07 The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: True Wireless Earphones Trademark: AIRMARS Model/Type Reference: Airmars-ABW07 Prepared For: Three steps group Address: 4200 mission blvd ontario California 91761, United States Manufacturer: Three steps group Address: 4200 mission blvd ontario California 91761, United States Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2024-11-05 Sample tested Date: 2024-11-05 to 2024-11-11 Issue Date: 2024-11-11 Report No.: BCTC2411379901E Test Standards FCC Part15.247 ANSI C63.10-2013 Test Results PASS Remark: This is Bluetooth Classic radio test report. Tested by: Approved by: Lei Chen/Project Handler Zero Zhou/Reviewer Report No.:BCTC2411379901E No.：BCTC/RF-EMC-005 Page: 3 of 84 Edition：B.2 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 8 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List .......................................................................................................... 9 4.5 Test Mode ........................................................................................................... 10 4.6 Table Of Parameters Of Text Software Setting ................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test procedure .................................................................................................... 13 6.4 EUT operating Conditions ................................................................................... 13 6.5 Test Result .......................................................................................................... 14 7. Radiated emissions ............................................................................................. 16 7.1 Block Diagram Of Test Setup .............................................................................. 16 7.2 Limit .................................................................................................................... 17 7.3 Test procedure .................................................................................................... 18 7.4 EUT operating Conditions ................................................................................... 19 7.5 Test Result .......................................................................................................... 19 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 23 8.1 Block Diagram Of Test Setup .............................................................................. 23 8.2 Limit .................................................................................................................... 23 8.3 Test procedure .................................................................................................... 24 8.4 EUT operating Conditions ................................................................................... 24 8.5 Test Result .......................................................................................................... 25 9. Spurious RF Conducted Emissions ..................................................................... 26 9.1 Block Diagram Of Test Setup .............................................................................. 26 9.2 Limit .................................................................................................................... 26 9.3 Test procedure .................................................................................................... 26 9.4 Test Result .......................................................................................................... 27 10. 20 dB Bandwidth ...................................................................…

Text truncated - open the document above for the full version.

Report No.:BCTC2411379901E No.：BCTC/RF-EMC-005 Page: 62 of 84 Edition：B.2 CFS NVNT 1-DH1 2480MHz CFS NVNT 2-DH1 2402MHz Report No.:BCTC2411379901E No.：BCTC/RF-EMC-005 Page: 63 of 84 Edition：B.2 CFS NVNT 2-DH1 2441MHz CFS NVNT 2-DH1 2480MHz Report No.:BCTC2411379901E No.：BCTC/RF-EMC-005 Page: 64 of 84 Edition：B.2 CFS NVNT 3-DH1 2402MHz CFS NVNT 3-DH1 2441MHz Report No.:BCTC2411379901E No.：BCTC/RF-EMC-005 Page: 65 of 84 Edition：B.2 CFS NVNT 3-DH1 2480MHz Report No.:BCTC2411379901E No.：BCTC/RF-EMC-005 Page: 66 of 84 Edition：B.2 13. Number Of Hopping Frequency 13.1 Block Diagram Of Test Setup 13.2 Limit Frequency hopping systems in the 2400-2483.5 MHz band shall use at least 15 channels. 13.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 100kHz. VBW = 300kHz. Sweep = auto; Detector Function = Peak. Trace = Max hold. 3. Allow the trace to stabilize. It may prove necessary to break the span up to sections. in order to clearly show all of the hopping frequencies. The limit is specified in one of the subparagraphs of this Section. 4. Set the spectrum analyzer: Start Frequency = 2.4GHz, Stop Frequency = 2.4835GHz. Sweep=auto; 13.4 Test Result Temperature: 26°C Relative Humidity: 54% Test Voltage: DC 3.7V Remark: N/A Condition Mode Hopping Number Limit Verdict NVNT 1-DH1 79 15 Pass NVNT 2-DH1 79 15 Pass NVNT 3-DH1 79 15 Pass Report No.:BCTC2411379901E No.：BCTC/RF-EMC-005 Page: 67 of 84 Edition：B.2 Test Graphs Hopping No. NVNT 1-DH1 2441MHz Hopping No. NVNT 2-DH1 2441MHz Report No.:BCTC2411379901E No.：BCTC/RF-EMC-005 Page: 68 of 84 Edition：B.2 Hopping No. NVNT 3-DH1 2441MHz Report No.:BCTC2411379901E No.：BCTC/RF-EMC-005 Page: 69 of 84 Edition：B.2 14. Dwell Time 14.1 Block Diagram Of Test Setup 14.2 Limit Frequency hopping systems in the 2400-2483.5 MHz band shall use at least 15 channels. The average time of occupancy on any channel shall not be greater than 0.4 seconds within a period of 0.4 seconds multiplied by the number of hopping channels employed. Frequency hopping systems may avoid or suppress transmissions on a particular hopping frequency provided that a minimum of 15 channels are used. 14.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set spectrum analyzer span = 0. Centred on a hopping channel; 3. Set RBW = 1MHz and VBW = 3MHz.Sweep = as necessary to capture the entire dwell time per hopping channel. Set the EUT for DH5, DH3 and DH1 packet transmitting. 4. Use the marker-delta function to determine the dwell time. If this value varies with different modes of operation (e.g.. data rate. modulation format. etc.). repeat this test for each variation. The limit is specified in one of the subparagraphs of this Section. Submit this plot(s). Report No.:BCTC2411379901E No.：BCTC/RF-EMC-005 Page: 70 of 84 Edition：B.2 14.4 Test Result Temperature: 26°C Relative Humidity: 54% Test Voltage: DC 3.7V Remark: N/A Condition Mode Frequency (MHz) Pulse Time (ms) Total Dwell Time (ms) Burst Count Period Time (ms) Limit (ms) Verdict NVNT 1-DH1 2441 0.4 127.6 319 31600 400 Pass NVNT 1-DH3 2441 1.657 255.178 154 31600 400 Pass NVNT 1-DH5 2441 2.905 290.5 100 31600 400 Pass NVNT 2-DH1 2441 0.408 130.152 319 31600 400 Pass NVNT 2-DH3 2441 1.66 253.98 153 31600 400 Pass NVNT 2-DH5 2441 2.91 325.92 112 31600 400 Pass NVNT 3-DH1 2441 0.408 130.152 319 31600 400 Pass NVNT 3-DH3 2441 1.66 275.56 166 31600 400 Pass NVNT 3-DH5 2441 2.91 296.82 102 31600 400 Pass Note: Total Dwell Time (ms) = Pulse Time (ms)*Burst Count Report No.:BCTC2411379901E No.：BCTC/RF-EMC-005 Page: 71 of 84 Edition：B.2 Test Graphs Dwell NVNT 1-DH1 2441MHz One Burst Dwell NVNT 1-DH1 2441MHz Accumulated Report No.:BCTC2411379901E No.：BCTC/RF-EMC-005 Page: 72 of 84 Edition：B.2 Dwell NVNT 1-DH3 2441MHz One Burst Dwell NVNT 1-DH3 2441MHz Accumulated Report No.:BCTC2411379901E No.：BCTC/RF-EMC-005 Page: 73 of 84 Edition：B.2 Dwell NVNT 1-DH5 2441MHz One Burst Dwell NVNT 1-DH5 2441MHz Accumulated Report No.:BCTC2411379901E No.：BCTC/RF-EMC-005 Page: 74 of 84 Edition：B.2 Dwell NVNT 2-DH1 2441MHz One Burst Dwell NVNT 2-DH1 2441MHz Accumulated Report No.:BCTC2411379901E No.：BCTC/RF-EMC-005 Page: 75 of 84 Edition：B.2 Dwell NVNT 2-DH3 2441MHz One Burst Dwell NVNT 2-DH3 2441MHz Accumulated Report No.:BCTC2411379901E No.：BCTC/RF-EMC-005 Page: 76 of 84 Edition：B.2 Dwell NVNT 2-DH5 2441MHz One Burst Dwell NVNT 2-DH5 2441MHz Accumulated Report No.:BCTC2411379901E No.：BCTC/RF-EMC-005 Page: 77 of 84 Edition：B.2 Dwell NVNT 3-DH1 2441MHz One Burst Dwell NVNT 3-DH1 2441MHz Accumulated Report No.:BCTC2411379901E No.：BCTC/RF-EMC-005 Page: 78 of 84 Edition：B.2 Dwell NVNT 3-DH3 2441MHz One Burst Dwell NVNT 3-DH3 2441MHz Accumulated Report No.:BCTC2411379901E No.：BCTC/RF-EMC-005 Page: 79 of 84 Edition：B.2 Dwell NVNT 3-DH5 2441MHz One Burst Dwell NVNT 3-DH5 2441MHz Accumulated Report No.:BCTC2411379901E No.：BCTC/RF-EMC-005 Page: 80 of 84 Edition：B.2 15. Antenna Requirement 15.1 Limit 15.203 requirement: For intentional device, according to 15.203: an intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. 15.2 Test Result The EUT antenna is Chip antenna, fulfill the requirement of this section. Report No.:BCTC2411379901E No.：BCTC/RF-EMC-005 Page: 81 of 84 Edition：B.2 16. EUT Photographs EUT Photo 1 EUT Photo 2 NOTE: Appendix-Photographs Of EUT Constructional Details. Report No.:BCTC2411379901E No.：BCTC/RF-EMC-005 Page: 82 of 84 Edition：B.2 17. EUT Test Setup Photographs Conducted Emissions Photo Radiated Measurement Photos Report No.:BCTC2411379901E No.：BCTC/RF-EMC-005 Page: 83 of 84 Edition：B.2 Report No.:BCTC2411379901E No.：BCTC/RF-EMC-005 Page: 84 of 84 Edition：B.2 STATEMENT 1. The equipment lists are traceable to the national reference standards. 2. The test report can not be partially copied unl…

Text truncated - open the document above for the full version.

Report No.:BCTC2411379901E No.：BCTC/RF-EMC-005 Page: 82 of 84 Edition：B.2 17. EUT Test Setup Photographs Conducted Emissions Photo Radiated Measurement Photos Report No.:BCTC2411379901E No.：BCTC/RF-EMC-005 Page: 83 of 84 Edition：B.2
