2BLA7-GC3001Control Box

GC3001 Control Box Product User Manual 01 Product Introduction The GC3001 Control Box is a 433MHz wireless remote control copier that supports integration with Smart Life. It is primarily designed for curtain devices that are compatible with 433MHz remote control. Non-smart curtains can be integrated with Smart Life by connecting to the GC3001, enabling mobile and remote control. This provides users with a convenient smart experience 1 Indicator light Power port Scan the QR code for Smart Life or search for "Smart Life" in the app store, download and install the app.If it is your first time to download and use, please register an account and log in. Press and hold the device button for 3 seconds,and the white light on the device will flash,indicating that it has entered the network configuration state. Open the Smart Life APP, click the"+" on the top right corner of the homepage, and enter the device addition page to start searching for devices. Click on the discovered device, fill in the Wifi information, and follow the instructions to 02 Connectto Smart Life APP proceed. 2 Guidelines for distribution network Press and hold for 3 seconds to reset the device to factory settings. The indicator light will flash, indicating that the de ·During the connection process, please ensure that your phone is connected to 2.4G Wi-Fi and keep it as close as possible to this product； ·If the addition fails, please press and hold the device button for 3 seconds until the indicator light flashes, and then reconnect； ·The device must be installed in the same space as the curtain motor to avoid affecting signal transmission。 vice is in the network configuration state 03 Add/delete curtain motor Addition of curtain motor 1The added curtain motor must be properly aligned with the transmitter and have its upper and lower limit switches properly set 2 、 Enter the Smart Life APP homepage, click on the added smart controller, and enter the smart controller page。 3、Click "Add Device" at the bottom of the page to enter the "Select Device Type" interface 4、Select the type of curtain you are about to add, enter the "Device Code Addition" interface, and follow the instructions to add the code Delete curtain motor 1 、 Enter the Smart Life APP homepage, click on the added smart co ntroller , and enter the smart controller page。 2、Long press the added curtain motor device, and the page enters a selectable state 3、Select the curtain motor you want to delete and click "Delete" 4、After successful deletion, the curtain motor device will disappear from th e homepage of the smart controller 5、You can also access the control page of the device you wish to delete, cl ick on "More Settings", and then proceed to the settings page. From there, c lick on "Delete Device" at the bottom to complete the deletion process 3 04 Product Parameters Product NameControl Box TYPEGC3001 Adapter OutputDC5V/1A Maximum Power Supply5W Working Temperature-10 °C ~+55 °C Working Humidity10%~90%(no condensation) Wireless Technology433.92MHz, Bluetooth and Wi-Fi 4 FCC Caution. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body.

NINGBO GERWIN MECHANIC&ELECTRONICS TECHNOLOGY CO.,LTD Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: May 6, 2026 Subject; Request for Confidentiality FCC ID: 2BLA7-GC3001 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure SOFTWARE SECURITY REQUIREMENTS FOR U-NII DEVICES In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: LEIJIE LU Title: GENERAL MANAGER

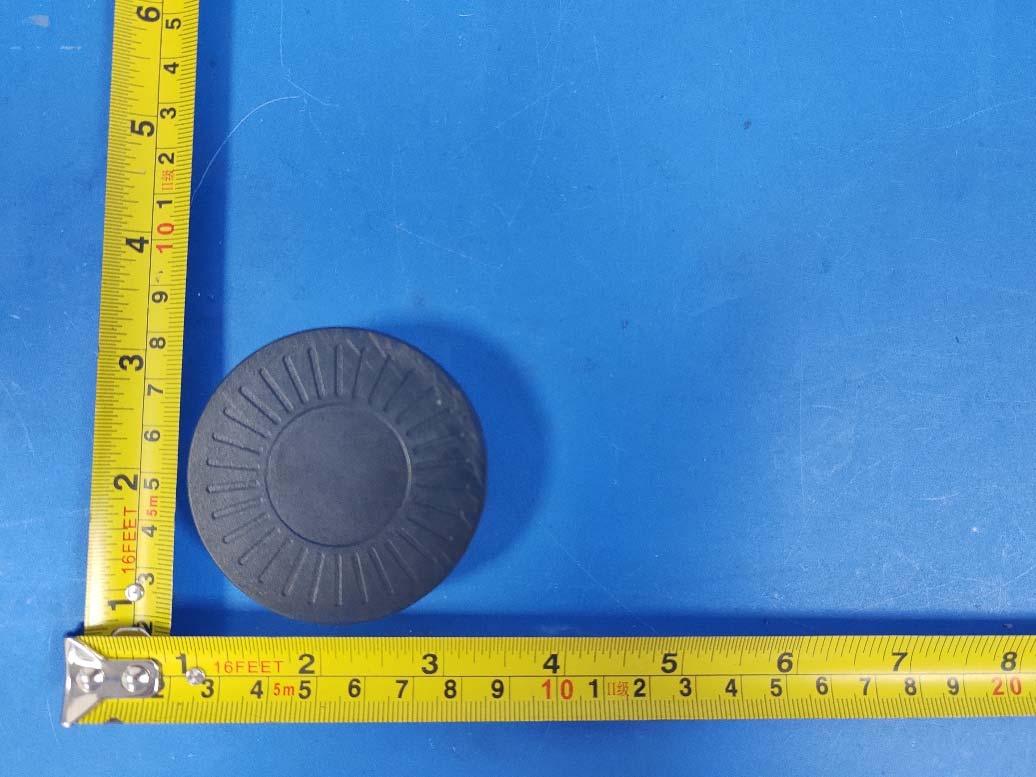

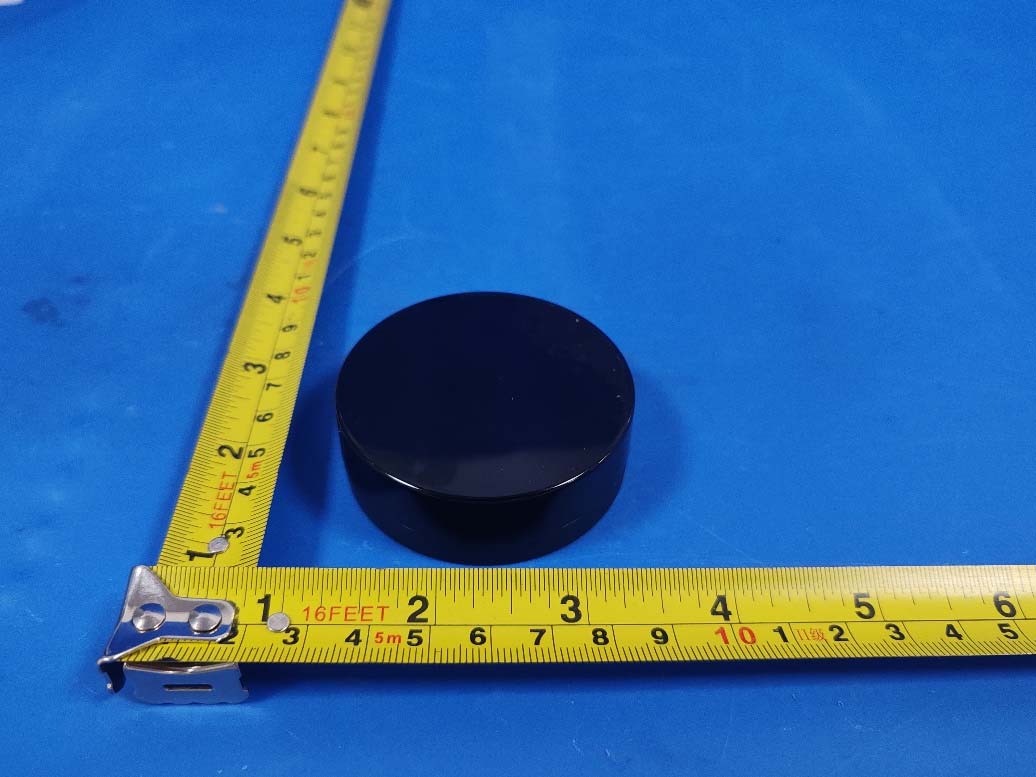

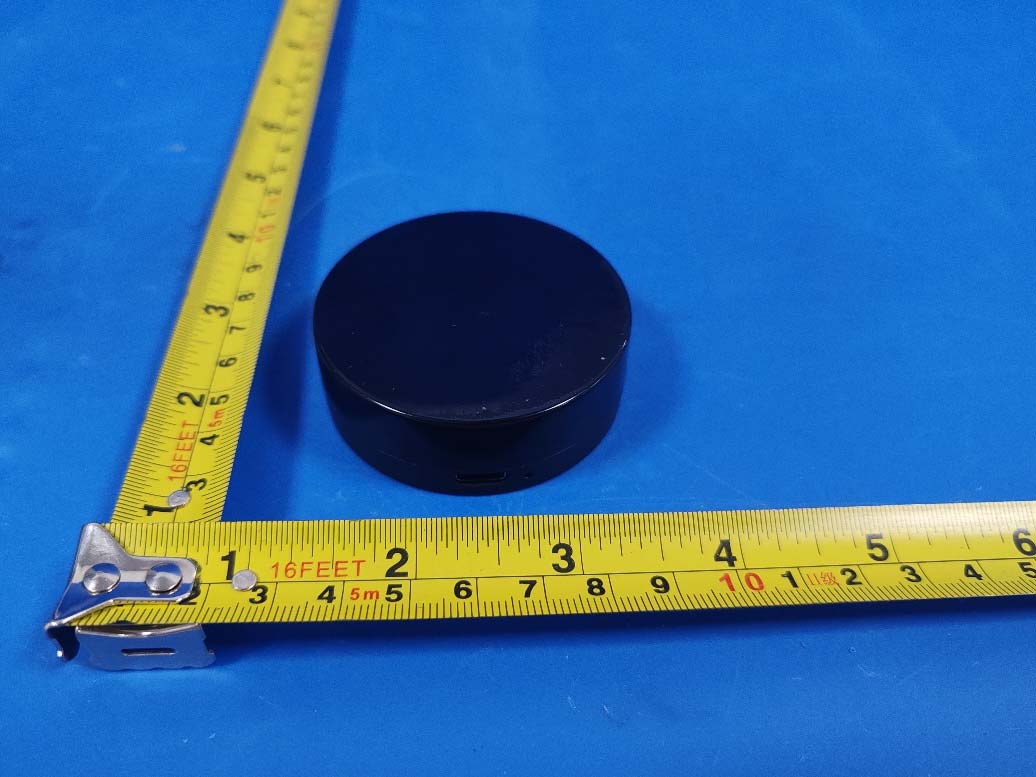

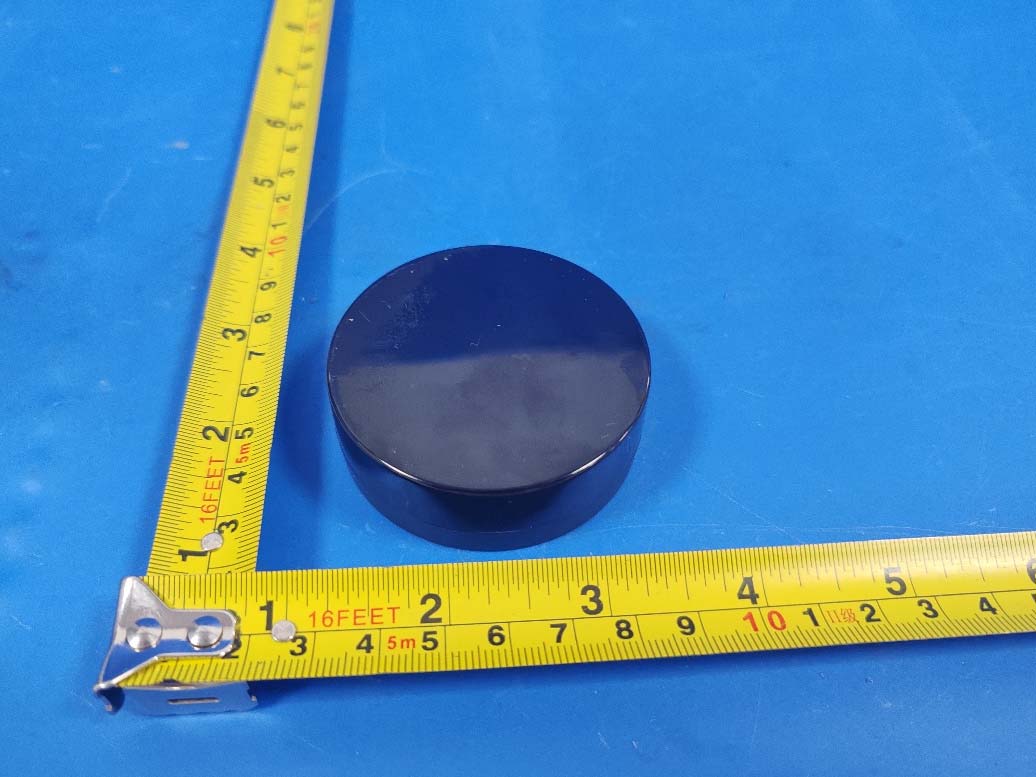

Page 1 of 4 Report No.: LGT26C154 Appendix - External Photographs of EUT Constructional Details Photo 1 Photo 2 Page 2 of 4 Report No.: LGT26C154 Appendix - External Photographs of EUT Constructional Details Photo 3 Photo 4 Page 3 of 4 Report No.: LGT26C154 Appendix - External Photographs of EUT Constructional Details Photo 5 Photo 6 Page 4 of 4 Report No.: LGT26C154 Appendix - External Photographs of EUT Constructional Details Photo 7

Label

Page 1 of 3 Report No.: LGT26C154 Appendix - Internal Photographs of EUT Constructional Details Photo 1 Photo 2 Page 2 of 3 Report No.: LGT26C154 Appendix - Internal Photographs of EUT Constructional Details Photo 3 Photo 4 433 ANT BT ANT Page 3 of 3 Report No.: LGT26C154 Appendix - Internal Photographs of EUT Constructional Details Photo 5

The test report is effective only with both signature and specialized stamp. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report only apply to the tested sample. Shenzhen LGT Test Service Co., Ltd. Tel: 0755-89668180 E-mail:[email protected] Web: www.lgt-cert.com Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Page 1 of 8 RF TEST REPORT Product Name: Control Box Model Number: GC3001 FCC ID: 2BLA7-GC3001 Issued For : NINGBO GERWIN MECHANIC&ELECTRONICS TECHNOLOGY CO.,LTD Tianhu Road, Luotuo Street, Ningbo, Zhejiang, China Issued By : Shenzhen LGT Test Service Co., Ltd. Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Report Number: LGT26C154HA01 Received Date: Mar. 18, 2026 Date of Test: Mar. 18, 2026 ~ Apr. 02, 2026 Date of Issue: Apr. 02, 2026 Report No.: LGT26C154HA01 Page 2 of 8 TEST REPORT CERTIFICATION Applicant: NINGBO GERWIN MECHANIC&ELECTRONICS TECHNOLOGY CO.,LTD Address: Tianhu Road, Luotuo Street, Ningbo, Zhejiang, China Manufacturer: NINGBO GERWIN MECHANIC&ELECTRONICS TECHNOLOGY CO.,LTD Address: Tianhu Road, Luotuo Street, Ningbo, Zhejiang, China Product Name: Control Box Trademark: Model Number: GC3001 Sample Status: Normal APPLICABLE STANDARDS STANDARD TEST RESULTS FCC 47 CFR §2.1091 KDB 447498 D01 General RF Exposure Guidance v06 PASS Prepared by: Approved by: Zane Shan Vita Li Engineer Technical Director Report No.: LGT26C154HA01 Page 3 of 8 TABLE OF CONTENTS 1 . GENERAL INFORMATION 5 1.1 GENERAL DESCRIPTION OF THE EUT 5 1.2 TEST LABORATORY 5 2 . FCC 47CFR §2.1091 REQUIREMENT 6 2.1 TEST STANDARDS 6 2.2 LIMIT 6 2.3 EUT OPERATION CONDITION 7 2.4 CLASSIFICATION 7 2.5 TEST RESULT 8 Report No.: LGT26C154HA01 Page 4 of 8 Revision History Rev. Issue Date Revisions 00 Apr. 02, 2026 Initial Issue Report No.: LGT26C154HA01 Page 5 of 8 1. GENERAL INFORMATION 1.1 GENERAL DESCRIPTION OF THE EUT Product Name: Control Box Test Model Number: GC3001 Series Number: N/A Model Difference: N/A Hardware version: V1.2 Software version: V1.0.2 1.2 TEST LABORATORY Company Name: Shenzhen LGT Test Service Co., Ltd. Address: Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Accreditation Certificate: A2LA Certificate No.: 6727.01 FCC Registration No.: 746540 CAB ID: CN0136 Report No.: LGT26C154HA01 Page 6 of 8 2. FCC 47CFR §2.1091 REQUIREMENT 2.1 TEST STANDARDS The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The gain of the antennas used in the product is extracted from the Antenna data sheets provided and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis Transmission formula is far field assumption, the calculated result of that is an over-prediction for near field power density. It is taken as worst case to specify the safety range. 2.2 LIMIT According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of the human exposure to radio-frequency (RF) radiation as specified in 1.1307 (b) Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm²) Limits for Occupational / controlled Exposures 0.3-3.0 614 1.63 *(100) 3.0-30 1842/f 4.89/f *(900/f 2 ) 30-300 61.4 0.163 1.0 300 - 1500 -- -- F/300 1500 – 100000 -- -- 5.0 Limits for General population / Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 1.34-30 824/f 2.19/f *(180/f 2 ) 30-300 27.5 0.073 0.2 300 - 1500 -- -- F/1500 1500 – 100000 -- -- 1.0 F= Frequency in MHz * = Plane-wave equivalent power density. Friss Formula Friss Transmission Formula: Pd = (Pout * G) / (4*pi*r²) Where Pd = power density in mW/cm² Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = Distance between observation point and the center of radiator in cm If we know the maximum gain of the antenna and the total output power to the antenna, through calculation, we will know MPE value at distance 20cm. Report No.: LGT26C154HA01 Page 7 of 8 2.3 EUT OPERATION CONDITION EUT was enabled to transmit and receive at lowest, middle and highest channels. 2.4 CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance from the antenna should be included in the User manual. So, this device is classified as Mobile device. Report No.: LGT26C154HA01 Page 8 of 8 2.5 TEST RESULT The MPE result of worst mode: RF Functio n Frequency (MHz) Max Turn up Power (dBm) Max Turn up Power (mW) ANT Gain (dBi) ANT Gain (gain of antenna in linear scale) Power Density (mW/cm²) Limit (mW/ cm²) Ratio Resul t 433.92 433.92 -63.50 0.00000 045 2 1.58 0.000000 00014 1 0.000 0000 0014 Pass Note: The maximum Equivalent Isotropic Radiated Power : 31.26dBuV/m‐95.3=-64.04dBm (refer to C63.10, section 10.3.9) The 2.4GHz Wi-Fi max power density 0.0301 (mW/cm 2 ), Ratio: 0.0301. The BLE max power density 0.0011 (mW/cm 2 ), Ratio: 0.0011. 433.92MHz+2.4GHz Wi-Fi or BLE Multiple transmission: 0.0301+0.00000000014=0.03010000014<1 Note: 1. The RF Exposure is less than the limit, complies with the exemption requirements. 2. 2.4GHz Wi-Fi and BLE Worst MPE refer to Wi-Fi and Bluetooth Module FCC ID: 2ANDL-T1-3S, because the 2.4GHz Wi-Fi and BLE share the same antenna and can't transmit simultaneously. ※※※※※END OF THE REPORT※※※※※

BW433SNX28-5W9 研发生产销售FPC\PCB\金属\胶棒\吸盘\机柜等RF天线 www.batwireless.com 第 1 页共 8 页 产品规格承认书 Productspecifications acknowledgment 承认厂商： (Recognizedmanufacturers) 制造厂商：深圳市蝙蝠无线技术有限公司 （ Manufacturer ） 产品名称： 433 （ Description ） 产品选型表： （ ProductType ） 型号 BW433SNX28-5W9 Add: 1301, No. 8 Langhua Road, Dalang Street, Longhua, Shenzhen, China Shenzhen Bat Wireless Technology Co., Ltd Spring Antenna BW433SNX28-5W9 研发生产销售FPC\PCB\金属\胶棒\吸盘\机柜等RF天线 www.batwireless.com 第 2 页共 8 页 1.1Specifications 天线型号 AntennasTypeBW433SNX28-5W9 频率范围FrequencRange(MHz)433 输入阻抗InputImpendence(Ω) 50Ω 电压驻波比V.S.W.R <2 增益Gain(dBi) 2dBi 极化形式PolarizationType垂直Vertical 功率容量PowerCapacity(w)50 雷电保护LingtningProtection None 工作电压DCVoltage（V） None 天线尺寸Dimension（mm）28x5 接口形式/ConnectorType: None 电缆型号Cabletype（mm） None 电缆长度Cablelength(mm) None 辐射体Radiator 重量Weight(g) None 工作温度OperatingTemperature（°C）-40~80 储藏温度StorageTemperature（°C）-20~85 Antenna Type: Spring Antenna BW433SNX28-5W9 研发生产销售FPC\PCB\金属\胶棒\吸盘\机柜等RF天线 www.batwireless.com 第 3 页共 8 页 1.2AntennaPicture BW433SNX28-5W9 BW433SNX28-5W9 研发生产销售FPC\PCB\金属\胶棒\吸盘\机柜等RF天线 www.batwireless.com 第 4 页共 8 页 2. Electrical Electrical S S pecification pecification 2.1TestEquipment A.VSWRandinputimpedance:Agilent8753/E5071NetworkAnalyzer B.Antennagainandefficiency:ETSthree-dimensionalanechoicchamber 2.2TestSetup 2.2.1FrequencyRange 2.2.2VSWR Step1:Theantennaisarrangedonthecustomerprovidedtestfixture. Step2:TheVSWRoftheantennaismeasuredviaAgilent8720/8753NetworkAnalyzer(seefigure.1). 2.2.3RadiationpatternandGain A.The3Dchamberprovideslessthan-40dBreflectivityfrom800MHzto6GHzanda40cmdiameter sphericalquietzone.Themeasurementresultsarecalibratedusingbothdipolesandstandardgain horns(seefigure.2). B.Theantennaundertestedisarrangedintheturnedtableandadecouplingsleeveisusedtoreduce feedlineradiation(seefigure.3). C.Themeasuredresultsoftheradiationpatternsandantennagainareobtainedfromthecontrol systemandshowedonthemonitor(seefigure.4and5). Figure.1 BW433SNX28-5W9 研发生产销售FPC\PCB\金属\胶棒\吸盘\机柜等RF天线 www.batwireless.com 第 5 页共 8 页 Figure.2 Figure.3 Figure.4 Figure.5 BW433SNX28-5W9 研发生产销售FPC\PCB\金属\胶棒\吸盘\机柜等RF天线 www.batwireless.com 第 6 页共 8 页 3.PerformanceData 3.1Passivedata VSWR（电压驻波比）/ReturnLoss（回波损耗）/SmithChart（史密斯圆图） BW433SNX28-5W9 研发生产销售FPC\PCB\金属\胶棒\吸盘\机柜等RF天线 www.batwireless.com 第 7 页共 8 页 BW433SNX28-5W9 研发生产销售FPC\PCB\金属\胶棒\吸盘\机柜等RF天线 www.batwireless.com 第 8 页共 8 页 4. 4. Mechanical Mechanical S S pecification pecification 4.1AssemblyDrawing 5. 免责声明(Disclaimer)： 本着为用户提供更好服务的原则，深圳市蝙蝠无线技术限公司（下称“蝙蝠无线”）在本手册中将尽可能地为用户 呈现详实、准确的产品信息。但介于本手册的内容具有一定的时效性，蝙蝠无线不能完全保证该文档在任何时段的时效性 与适用性。蝙蝠无线有权在没有通知的情况下对本手册上的内容进行更新，恕不另行通知。为了得到最新版本的信息，请 尊敬的用户定时访问蝙蝠无线官方网站或者与蝙蝠无线工作人员联系。感谢您的包容与支持！ Inordertoprovideouruserswithbetterservice,ShenzhenBatWirelessTechnologyCo.,Ltd(hereinafter referredtoasBatWireless)willtrytopresentasdetailedandaccurateproductinformationaspossiblein thismanual.However,duetothetimelinessofthemanualcontent,BatWirelessshallnotabsolutelyguarantee theunlimitedtimelinessandapplicabilityofthefile.BatWirelesshastherighttoupdatethemanualcontent withoutfurthernotice.Togetthelatesteditioninformation,plsvisittheofficialwebsiteofBatWireless orcontactourcustomerservicestaff.Thanksforyourtrustandsupport! Unit:mm

The test report is effective only with both signature and specialized stamp. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report only apply to the tested sample. Shenzhen LGT Test Service Co., Ltd. Tel: 0755-89668180 E-mail:[email protected] Web: www.lgt-cert.com Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Page 1 of 33 RF TEST REPORT Product Name: Control Box Model Number: GC3001 FCC ID: 2BLA7-GC3001 Issued For : NINGBO GERWIN MECHANIC&ELECTRONICS TECHNOLOGY CO.,LTD Tianhu Road, Luotuo Street, Ningbo, Zhejiang, China Issued By : Shenzhen LGT Test Service Co., Ltd. Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Report Number: LGT26C154RF01 Received Date: Mar. 18, 2026 Date of Test: Mar. 18, 2026 ~ Apr. 14, 2026 Date of Issue: Apr. 14, 2026 Report No.: LGT26C154RF01 Page 2 of 33 TEST REPORT CERTIFICATION Applicant: NINGBO GERWIN MECHANIC&ELECTRONICS TECHNOLOGY CO.,LTD Address: Tianhu Road, Luotuo Street, Ningbo, Zhejiang, China Manufacturer: NINGBO GERWIN MECHANIC&ELECTRONICS TECHNOLOGY CO.,LTD Address: Tianhu Road, Luotuo Street, Ningbo, Zhejiang, China Product Name: Control Box Trademark: Model Number: GC3001 Sample Status: Normal APPLICABLE STANDARDS STANDARD TEST RESULTS FCC Part 15.231, Subpart C ANSI C63.10-2020 PASS Prepared by: Approved by: Zane Shan Vita Li Engineer Technical Director Report No.: LGT26C154RF01 Page 3 of 33 TABLE OF CONTENTS Page 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 9 2.3 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 9 2.4 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 10 2.5 EQUIPMENTS LIST 11 3. EMC EMISSION TEST 12 3.1 CONDUCTED EMISSION MEASUREMENT 12 3.2 TEST PROCEDURE 13 3.3 TEST SETUP 13 3.4 TEST RESULTS 14 4. RADIATED EMISSION MEASUREMENT 16 4.1 RADIATED EMISSION LIMITS 16 4.2 TEST PROCEDURE 18 4.3 DEVIATION FROM TEST STANDARD 18 4.4 TEST SETUP 19 4.5 EUT OPERATING CONDITIONS 20 4.6 TEST RESULTS 20 4.7 FIELD STRENGTH CALCULATION 21 5. BANDWIDTH TEST 25 5.1 LIMIT 25 5.2 TEST REQUIREMENTS 25 5.3 TEST PROCEDURE 25 5.4 TEST SETUP 25 5.5 EUT OPERATION CONDITIONS 25 5.6 TEST RESULTS 26 6. DUTY CYCLE 27 6.1 TEST PROCEDURE 27 6.2 TEST SETUP 27 6.3 EUT OPERATION CONDITIONS 27 6.4 TEST RESULTS 28 Report No.: LGT26C154RF01 Page 4 of 33 7. AUTOMATICALLY DEACTIVATE 30 7.1 STANDARD REQUIREMENT 30 7.2 TEST PROCEDURE 30 8. ANTENNA REQUIREMENT 32 8.1 STANDARD REQUIREMENT 32 8.2 EUT ANTENNA 32 APPENDIX I-PHOTOS OF TEST SETUP 33 Report No.: LGT26C154RF01 Page 5 of 33 Revision History Rev. Issue Date Revisions 00 Apr. 14, 2026 Initial Issue Report No.: LGT26C154RF01 Page 6 of 33 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part 15.231, Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS -- 15.205(a)/15.209/ 15.231(b) Radiated Spurious Emission PASS -- 15.231(a)(1)/ 15.231(b)(2) Transmission requirement PASS -- 15.231(C) 20 dB Bandwidth PASS -- 15.203 Antenna Requirement PASS -- NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2020. Report No.: LGT26C154RF01 Page 7 of 33 1.1 TEST FACTORY Company Name: Shenzhen LGT Test Service Co., Ltd. Address: Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Accreditation Certificate: FCC Registration No.: 746540 CAB ID: CN0136 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. Parameter Uncertainty RF Output Power, Conducted ±0.71dB Unwanted Emission, Conducted ±0.63dB Conducted emission ±2.80dB All Emissions, Radiated (0.009-30MHz) ±2.16dB All Emissions, Radiated (30MHz-1GHz) ±4.61dB All Emissions, Radiated (1GHz-18GHz) ±5.49dB Note: The measurement uncertainty is not included in the test result. Report No.: LGT26C154RF01 Page 8 of 33 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name: Control Box Test Model Number: GC3001 Series Number: N/A Model Difference: N/A Frequency band: 433.92 MHz Modulation Type: FSK Antenna Type: Spring Antenna Antenna Gain: 2dBi Power Rating Input: 5V/1A Hardware version: V1.2 Software version: V1.0.2 Connecting I/O Port(s): N/A Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications orthe User Manual. 2. The antenna information refers to the manufacturer provide report, applicable only to the tested sample identified in the report. Due to the incorrect antenna information, a series of problems such as the accuracy of the test results will be borne by the customer. Report No.: LGT26C154RF01 Page 9 of 33 2.2 DESCRIPTION OF THE TEST MODES To investigate the maximum EMI emission characteristics generates from EUT, the test system was pre-scanning tested base on the consideration of following EUT operation mode or test configuration mode which possible have effect on EMI emission level. Each of these EUT operation mode(s) or test configuration mode(s) mentioned above was evaluated respectively. Pretest Mode Description Mode 1 TX Mode For Radiated Emission Final Test Mode Description Mode 1 TX Mode 2.3 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED During test, Keep EUT is in continuous transmission mode, Both open button and closed button have been tested, The two keys were tested to assess and only record the worst case in the report (Open botton). E-1 EUT Report No.: LGT26C154RF01 Page 10 of …
