2BLAD-FX3000Auto diagnostic scanner

Page1 INDEX Trademarks.....................................................................2 SafetyInstructions..........................................................2 SafetyWarning...............................................................2 Chapter1GeneralIntroduction..................................4 1.1LayoutforFX3x00ELITESERIESScanner..........4 1.2TechnicalSpecifications.........................................5 1.3StandardAccessoryKits........................................5 Chapter2GetReadybeforeDiagnosis.....................5 2.1CableConnectionforOn-BoardDiagnosis..........5 2.2ApplicationIconIntroduction................................7 Chapter3ToStartaNewTest................................10 3.1VehicleSelection................................................10 3.2ManualSelection.................................................12 Chapter4SoftwareUpdate......................................14 4.1UpdateviaWIFI...................................................15 4.2UpdateviaUSB...................................................16 Chapter5Troubleshooting.......................................17 Services........................................................................17 Warranty.......................................................................18 Copyright......................................................................20 Disclaimer.....................................................................20 Page2 Trademarks ANCEListhetrademarkofOBDSPACE TECHNOLOGYCO.,LTD,registeredworldwide.All othermarksaretrademarksorregisteredtrademarksof theirrespectiveholders. Nopartofthismanualmaybereproduced,storedina retrievalsystemortransmitted,inanyformorbyany means,electronic,mechanical,photocopying,recording, orotherwise,withoutthepriorwrittenpermissionof OBDSPACETECHNOLOGYCO.,LTD. DisclaimerofWarrantiesandLimitationofLiabilitiesAll information,specificationsandillustrationsinthis manualarebasedonthelatestinformationavailableat thetimeofprinting.ANCELreservestherighttomake changesatanytimewithoutnotice.Whileinformationof thismanualhasbeencarefullycheckedforaccuracy, noguaranteeisgivenforthecompletenessand correctnessofthecontents,includingbutnotlimitedto theproductspecifications,functions,andillustrations. ANCELwillnotbeliableforanydirectdamagesorfor anyspecial,incidental,orindirectdamagesorforany economicconsequentialdamages(includinglost profits). SafetyInstructions ThesafetymessageshereincoversituationsANCEL isawareofANCELcannotknow,evaluateoradvise youastoallofthepossiblehazards.Youmustbe certainthatanyconditionorserviceprocedure encountereddoesnotjeopardizeyourpersonalsafety. SafetyWarning  Alwaysperformtheautomotivetestinginasafe environment. WearsafetyeyeprotectionthatmeetsANSI standards.  Keepclothing,hair,hands,tools,testequipment, etc.awayfromallmovingorhotengineparts. Operatethevehicleinawell-ventilatedworkarea, forexhaustgasesarepoisonous.  PutthetransmissioninPARK(forautomatic transmission)orNEUTRAL(formanual Page3 transmission)andmakesuretheparkingbrakeis engaged. Putblocksinfrontofthedrivewheelsandnever leavethevehicleunattendedwhiletesting.  Beextracautiouswhenworkingaroundthe ignitioncoil,distributorcap,ignitionwiresand sparkplugs.Thesecomponentscreatehazardous voltageswhentheengineisrunning.  Keepafireextinguishersuitableforgasoline, chemical,andelectricalfiresnearby. Donotconnectordisconnectanytestequipment whiletheignitionisonortheengineisrunning.  Keepthetestequipmentdry,clean,freefromoil, waterorgrease.Useamilddetergentonaclean clothtocleantheoutsideoftheequipmentas necessary.  Donotdrivethevehicleandoperatethetest equipmentatthesametime.Anydistractionmay causeanaccident.  Refertotheservicemanualforthevehiclebeing servicedandadheretoalldiagnosticprocedures andprecautions.Failuretodosomayresultin personalinjuryordamagetothetestequipment.  Toavoiddamagingthetestequipmentor generatingfalsedata,makesurethevehicle batteryisfullychargedandtheconnectiontothe vehicleDLCiscleanandsecure.  Donotplacethetestequipmentonthe distributorofthevehicle.Strongelectro-magnetic interferencecandamagetheequipment. Page4 Chapter1GeneralIntroduction TheFX3x00ELITESERIESScanneristhehandheld devicecombingwiththebestpossiblecoverageof OE-leveltohelpyoudiagnosesymptoms,codes,and customercomplaintseasily,quicklyandefficiently.This manualdescribestheconstructionandoperationofthe deviceandhowitworks. 1.1LayoutforFX3x00ELITESERIESScanner No.KeyNameKeyDefinition 1Diagnostic Port Providesconnectionbetweenvehicle andthescanner 2FNKeyShortpressforselection,longpress forscreenshotorselectall. 3UpKeyDirectionKeyusedforup. 4DownKeyDirectionKeyusedfordown. 5LeftKeyDirectionKeyusedforleftandpage up. 6RightKeyDirectionKeyusedforrightandpage down 7OKKeyExecutesaselectedoptionand generallygoestothenextscreen. 8BackKeyExitsascreenandgenerallyreturns topreviousscreen. 9USBPortSetupthedatatransmissionbetween deviceandPC. 10Data Manager Key ShortcutkeyforDataManager. Page5 1.2TechnicalSpecifications 1ScreenDisplay4.3”TFTcolordisplay 2Packing(LxWxH)240*120*100mm 3GrossWeight(FullKits)0.90kg 4OSPlatformLinux 5Memory16G 6InputVoltageDC12V 1.3StandardAccessoryKits 1ToolBag 2MainUnit 3OBDmaincable 4USBCable 5UserManual 6CartonBox Chapter2GetReadybeforeDiagnosis 2.1CableConnectionforOn-BoardDiagnosis MakesuretheFX3x00ELITESERIESScanneriswell connectedforvehiclediagnosis. Connection: ToconnectthemainunitwiththeOBDmaincabletoget powersupply. Page6 No.DescriptionFeaturesandFunctions 1 Diagnostic Socketoncar Socketlocationvariesbasedon differentcarmakes/models 2MainCable Toconnecttheconnectorand thevehicle 3 Diagnostic ScannerMain Unit Tocommunicatewithvehicleand displaythediagnosticresult Thesystembootsupandshowsthescreenwiththe FX3x00ELITESERIESScannerJobMenuasbelow: Almostalloperationsonthedisplayarecontrolledby menudriven,whichallowsyoutoquicklylocatethe testprocedure,ordatathatyouneed,throughaof choicesandquestions.Detaileddescriptionsofthe menustructuresarefoundinthechaptersforthe va…

Text truncated - open the document above for the full version.

OBDSPACE TECHNOLOGY CO.,LTD Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 10-08-2024 FCC ID: 2BLAD-FX3000 Ref. #1: Attestation Statements Part 2.911(d)(5)(i) Filing (OBDSPACE TECHNOLOGY CO.,LTD) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Ref. #2: Attestation Statements Part 2.911(d)(5)(ii) Filing (OBDSPACE TECHNOLOGY CO.,LTD) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Applicant: OBDSPACE TECHNOLOGY CO.,LTD Address: D03, Block A, No.973 Minzhi Ave, Longhua District, Shenzhen,Guangdong, China Contact Person: Ming Yang Tel.: 0086 15361404282 Email: [email protected] Sincerely, Signature:

Attestation Statements Date: 2024-10-08 TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for (FCC ID: 2BLAD-FX3000) OBDSPACE TECHNOLOGY CO.,LTD the undersigned, hereby authorize HOPEK CORPORATION INC to act as our designated U.S. agent for service of process, OBDSPACE TECHNOLOGY CO.,LTD accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. HOPEK CORPORATION INC accepts the responsibility to act as designated U.S. agent for service of process. Applicant Information： Company name: OBDSPACE TECHNOLOGY CO.,LTD Contact Name: Ming Yang Address: D03, Block A, No.973 Minzhi Ave, Longhua District, Shenzhen,Guangdong, China Telephone No: 0086 15361404282 Email: [email protected] FRN: 0035983394 Signature: Ming Yang U.S. Agent Information: Company Name:HOPEK CORPORATION INC Address:4358 S BANNOCK ST ENGLEWOOD, CO 80110 United States FRN: 0034562900 Contact Name:Peter Davis Telephone No: 561-235-6113 Email: [email protected] Signature: Peter Davis

Inverted F Antenna Specification Summary ITEM ANT SPEC Model Name 2.4G ANT Horizontal Vertical 2400MHz 2400MHz2500MHz2400MHz2400MHz 2500MHz Center Frequency -1.26 -0.76 -0.58 -5.25 -2.46 -1.86 MAX. Gain -0.58dB Polarization Horizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance 50 Ohm Antenna Length 15.20mm Antenna Photo & Length (mm) Manufacturer: OBDSPACE TECHNOLOGY CO.,LTD Address: D03, Block A, No.973 Minzhi Ave, Longhua District, Shenzhen,Guangdong, China Antenna Type PCB Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -1.26174 -30.0801 -7.18716 2450 -0.765802 -36.5604 -7.48023 2500 -0.585582 -22.0315 -6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -5.2537 -22.1424 -12.4294 2450 -2.4652 -24.5837 -10.4702 2500 -1.86120 -29.5214 -9.20432 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

Effective Date: April 2, 2020 QSF 7.6.4-8 – Agent Authorization Letter Template Page 1 of 1 Revision Date: Revision: 0 OBDSPACE TECHNOLOGY CO.,LTD Date：10/08/2024 Product Model Number: FX3000, FX3000 Elite, FX3000 Pro, FX3000 Plus, FX3100, FX3200, FX3300, FX3400, FX3500, FX3600, FX3700, FX3800, FX3900 FCC ID：2BLAD-FX3000 To whom it may concern, Re: Product Certification Representative Authorization Letter We authorize QAI Laboratories Ltd. 3980 North Fraser Way, Burnaby B.C. Canada V5J 5K5 to act on our behalf on all matters concerning the above named equipment. This shall include the following: • Testing • Approval applications and procedures We declare that ORGANIZATION. is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by ORGANIZATION. on our behalf shall have the same effect as acts of our own. By: Ming Yang Contact Listed on FCC Wesbite Title: Project Manager Email: [email protected] On behalf of: OBDSPACE TECHNOLOGY CO.,LTD

OBDSPACE TECHNOLOGY CO.,LTD Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: October 8, 2024 Subject; Request for Confidentiality FCC ID: 2BLAD-FX3000 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Ming Yang Title: Project Manager

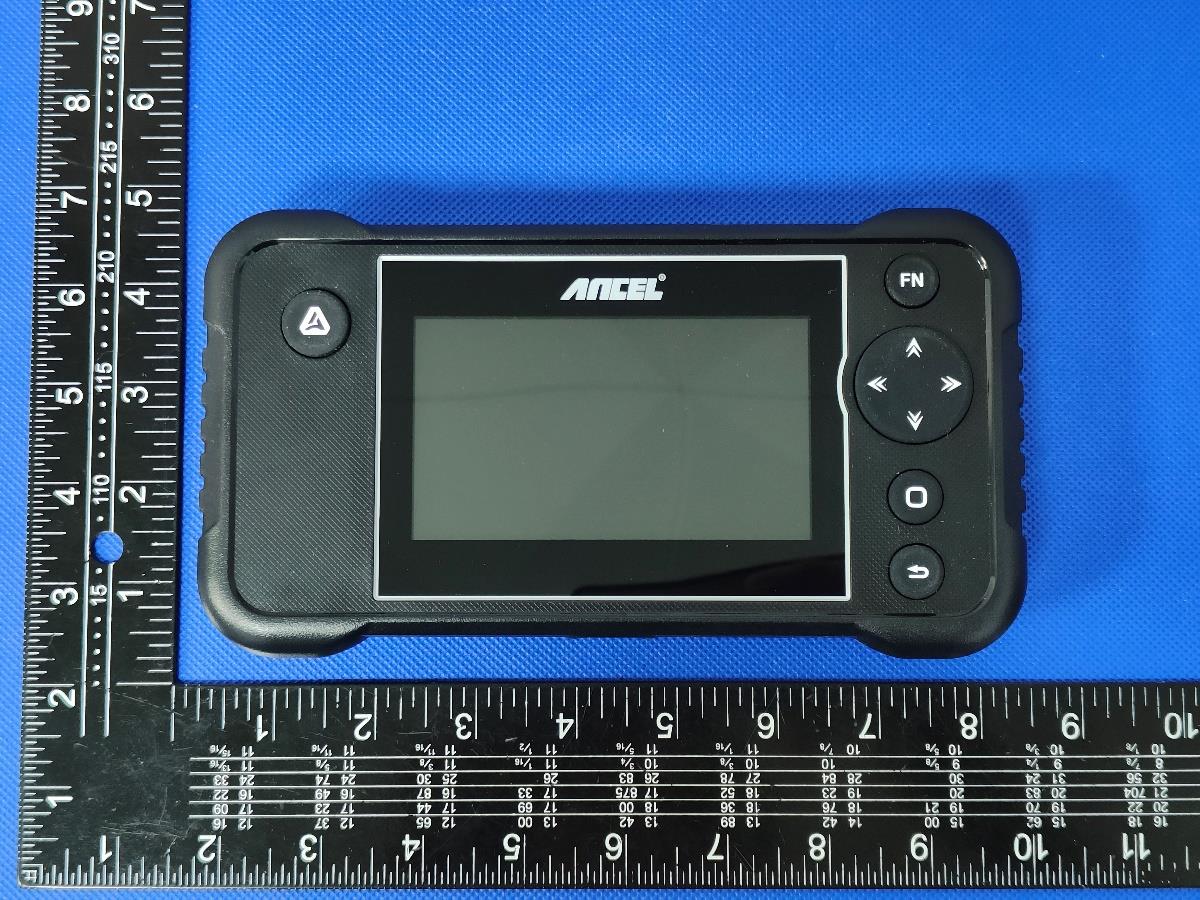

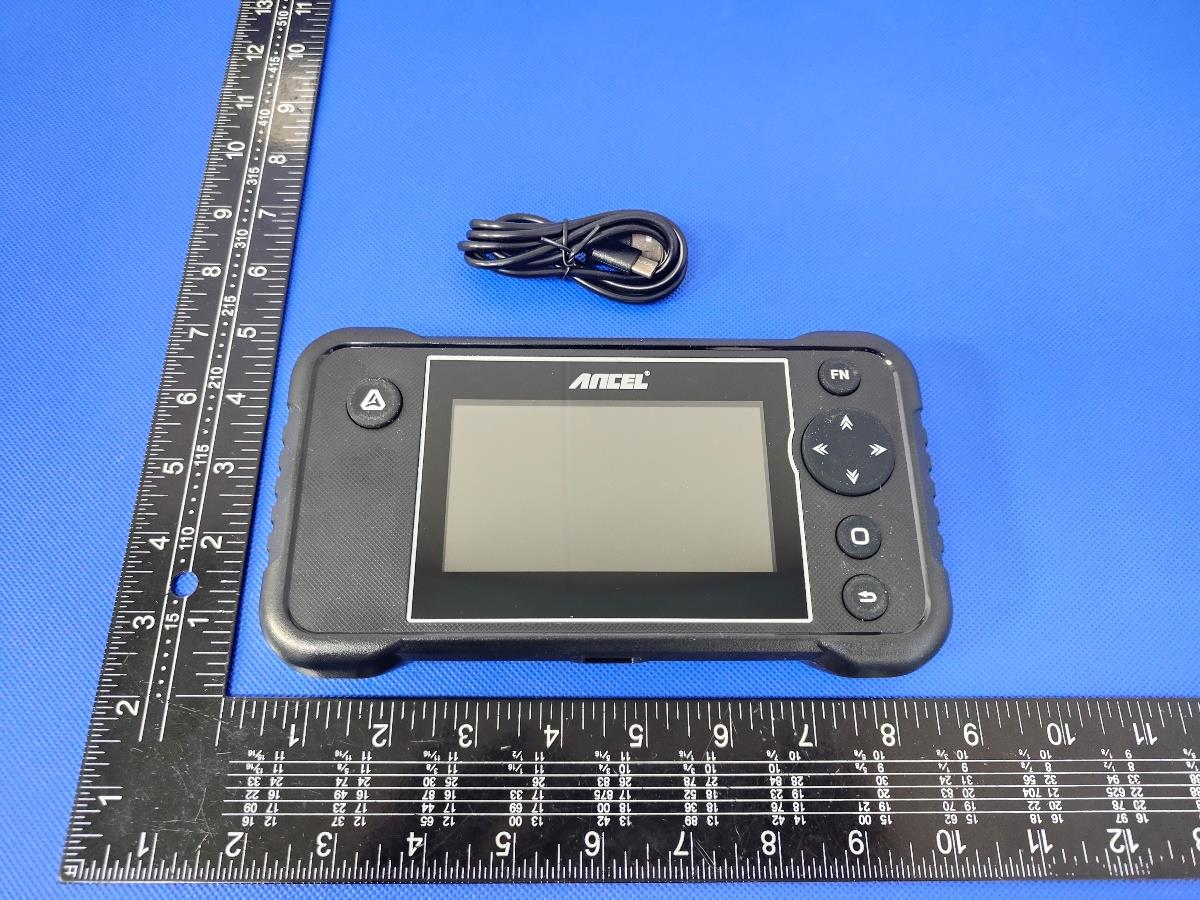

Page 1 of 4 Report No.: FCS202409351 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: FX3000 Photo 1 Photo 2 Page 2 of 4 Report No.: FCS202409351 Photo 3 Photo 4 Page 3 of 4 Report No.: FCS202409351 Photo 5 Photo 6 Page 4 of 4 Report No.: FCS202409351 Photo 7

Label Size: 20mm * 40mm The label is attached to the sample by means of stickers Auto diagnostic scanner Model: FX3000 FCC ID: 2BLAD-FX3000

Page 1 of 2 Report No.: FCS202409351 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: FX3000 Photo 1 Photo 2 2.4G WIFI Antenna Page 2 of 2 Report No.: FCS202409351 Photo 3

FCC Test Report Report No: FCS202409351H01 Issued for Applicant: OBDSPACE TECHNOLOGY CO.,LTD Address: D03, Block A, No.973 Minzhi Ave, Longhua District, Shenzhen,Guangdong, China Product Name: Auto diagnostic scanner Brand Name: Ancel Model Name: FX3000 Series Model: FX3000 Elite, FX3000 Pro, FX3000 Plus, FX3100, FX3200, FX3300, FX3400, FX3500, FX3600, FX3700, FX3800, FX3900 FCC ID: 2BLAD-FX3000 Test Standard: FCC 47CFR §2.1091 Issued By: Flux Compliance Service Laboratory Add: Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.FCS-lab.com Page 2 of 9 Report No.: FCS202409351H01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.FCS-lab.com TEST RESULT CERTIFICATION Applicant’s Name ................... : OBDSPACE TECHNOLOGY CO.,LTD Address ................................. : D03, Block A, No.973 Minzhi Ave, Longhua District, Shenzhen,Guangdong, China Manufacture's Name .............. : OBDSPACE TECHNOLOGY CO.,LTD Address ................................. : D03, Block A, No.973 Minzhi Ave, Longhua District, Shenzhen,Guangdong, China Product Description Product Name ....................... : Auto diagnostic scanner Brand Name .......................... : Ancel Model Name .......................... : FX3000 Series Model ......................... : FX3000 Elite, FX3000 Pro, FX3000 Plus, FX3100, FX3200, FX3300, FX3400, FX3500, FX3600, FX3700, FX3800, FX3900 Test Standards ...................... : FCC 47CFR §2.1091 447498 D01 Interim General RF Exposure Guidance v06 This device described above has been tested by Flux Compliance Service Laboratory, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of Flux Compliance Service Laboratory, this document may be altered or revised by Flux Compliance Service Laboratory, personal only, and shall be noted in the revision of the document. Date of Test ............................... : Date (s) of performance of tests . : Sep.18, 2024 ~ Sep. 25, 2024 Date of Issue .............................. : Sep. 26, 2024 Test Result ................................. : Pass Tested by : (Scott Shen) Reviewed by : (Duke Qian) Approved by : (Jack Wang) Page 3 of 9 Report No.: FCS202409351H01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.FCS-lab.com TABLE OF CONTENTS 1. GENERAL INFORMATION 5 1.1 GENERAL DESCRIPTION OF THE EUT 5 1.2 TEST FACTORY 6 2. FCC 47CFR §2.1091 REQUIREMENT 7 2.1 TEST STANDARDS 7 2.2 LIMIT 7 2.3 TEST RESULT 9 Page 4 of 9 Report No.: FCS202409351H01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.FCS-lab.com Revision History Rev. Issue Date Contents 00 Sep. 26, 2024 Initial Issue Page 5 of 9 Report No.: FCS202409351H01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.FCS-lab.com 1. GENERAL INFORMATION 1.1 GENERAL DESCRIPTION OF THE EUT Product Name Auto diagnostic scanner Brand Ancel Model Number FX3000 Series Model(s) FX3000 Elite, FX3000 Pro, FX3000 Plus, FX3100, FX3200, FX3300, FX3400, FX3500, FX3600, FX3700, FX3800, FX3900 Model Difference Only different of model name. Product Description The EUT is Auto diagnostic scanner Operation Frequency: 802.11b/g/n 20: 2412~2462 MHz Modulation Type: 802.11b(DSSS):CCK,DQPSK,DBPSK 802.11g(OFDM):BPSK,QPSK,16-QAM,64-QAM 802.11n(OFDM):BPSK,QPSK,16-QAM,64-QAM Antenna gain: -0.58 dBi Antenna Designation: PCB antenna Power Supply Input: DC 12V from adapter Battery N/A Hardware version number V1.0 Software version number V1.0 Page 6 of 9 Report No.: FCS202409351H01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.FCS-lab.com 1.2 TEST FACTORY Company Name: Flux Compliance Service Laboratory Address: Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Telephone: +86-769-27280901 Fax: +86-769-27280901 FCC Test Firm Registration Number: 514908 Designation number: CN0127 A2LA accreditation number：5545.01 ISED Number：25801 CAB ID ：CN0097 Page 7 of 9 Report No.: FCS202409351H01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.FCS-lab.com 2. FCC 47CFR §2.1091 REQUIREMENT 2.1 TEST STANDARDS According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure requirement KDB447498 D01v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The gain of the antennas used in the product is extracted from the Antenna data sheets provided and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis…

Text truncated - open the document above for the full version.

FCC Test Report Report No: FCS202409351W01 Issued for Applicant: OBDSPACE TECHNOLOGY CO.,LTD Address: D03, Block A, No.973 Minzhi Ave, Longhua District, Shenzhen,Guangdong, China Product Name: Auto diagnostic scanner Brand Name: Ancel Model Name: FX3000 Series Model: FX3000 Elite, FX3000 Pro, FX3000 Plus, FX3100, FX3200, FX3300, FX3400, FX3500, FX3600, FX3700, FX3800, FX3900 FCC ID: 2BLAD-FX3000 Issued By: Flux Compliance Service Laboratory Add: Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.FCS-lab.com Page 2 of 51 Report No.: FCS202409351W01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.FCS-lab.com TEST RESULT CERTIFICATION Applicant’s Name ................... : OBDSPACE TECHNOLOGY CO.,LTD Address .................................. : D03, Block A, No.973 Minzhi Ave, Longhua District, Shenzhen,Guangdong, China Manufacture's Name .............. : OBDSPACE TECHNOLOGY CO.,LTD Address .................................. : D03, Block A, No.973 Minzhi Ave, Longhua District, Shenzhen,Guangdong, China Product Description Product Name ........................ : Auto diagnostic scanner Brand Name ........................... : Ancel Model Name ........................... : FX3000 Series Model .......................... : FX3000 Elite, FX3000 Pro, FX3000 Plus, FX3100, FX3200, FX3300, FX3400, FX3500, FX3600, FX3700, FX3800, FX3900 Test Standards ....................... : FCC Rules and Regulations Part 15 Subpart C, Section 247 Test Procedure ....................... : ANSI C63.10:2013 This device described above has been tested by Flux Compliance Service Laboratory, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of Flux Compliance Service Laboratory, this document may be altered or revised by Flux Compliance Service Laboratory, personal only, and shall be noted in the revision of the document. Date of Test ............................... : Date (s) of performance of tests . : Sep.18, 2024 ~ Sep. 25, 2024 Date of Issue ............................. : Sep. 26, 2024 Test Result ................................. : Pass Tested by : (Scott Shen) Reviewed by : (Duke Qian) Approved by : (Jack Wang) Page 3 of 51 Report No.: FCS202409351W01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.FCS-lab.com Table of Contents 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 10 2.3 TEST SOFTWARE AND POWER LEVEL 10 2.4 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 11 2.5 EQUIPMENTS LIST 12 3. EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.2 TEST PROCEDURE 14 3.3 TEST SETUP 14 3.4 EUT OPERATING CONDITIONS 14 3.5 TEST RESULTS 15 4. RADIATED EMISSION MEASUREMENT 17 4.1 RADIATED EMISSION LIMITS 17 4.2 TEST PROCEDURE 19 4.3 TEST SETUP 20 4.4 EUT OPERATING CONDITIONS 20 4.5 FIELD STRENGTH CALCULATION 21 4.6 TEST RESULTS 22 5. CONDUCTED SPURIOUS & BAND EDGE EMISSION 27 5.1 LIMIT 27 5.2 TEST PROCEDURE 27 5.3 TEST SETUP 27 5.4 EUT OPERATION CONDITIONS 27 5.5 TEST RESULTS 28 6. POWER SPECTRAL DENSITY TEST 29 6.1 LIMIT 29 Page 4 of 51 Report No.: FCS202409351W01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.FCS-lab.com Table of Contents 6.2 TEST PROCEDURE 29 6.3 TEST SETUP 29 6.4 EUT OPERATION CONDITIONS 29 6.5 TEST RESULTS 29 7. BANDWIDTH TEST 30 7.1 LIMIT 30 7.2 TEST PROCEDURE 30 7.3 TEST SETUP 30 7.4 EUT OPERATION CONDITIONS 30 7.5 TEST RESULTS 30 8. PEAK OUTPUT POWER TEST 31 8.1 LIMIT 31 8.2 TEST PROCEDURE 31 8.3 TEST SETUP 31 8.4 EUT OPERATION CONDITIONS 31 8.5 TEST RESULTS 32 9. ANTENNA REQUIREMENT 33 9.1 STANDARD REQUIREMENT 33 9.2 EUT ANTENNA 33 APPENDIX I:TEST RESULTS 34 CONDUCTED OUTPUT POWER 34 99% BANDWIDTH 35 6DB BANDWIDTH 37 CONDUCTED OUT OF BAND EMISSION 39 DUTY CYCLE 44 POWER SPECTRAL DENSITY 50 Page 5 of 51 Report No.: FCS202409351W01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.FCS-lab.com Revision History Rev. Issue Date Contents 00 Sep. 26, 2024 Initial Issue Page 6 of 51 Report No.: FCS202409351W01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.FCS-lab.com 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02. FCC Part 15.247, Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS -- 15.247 (a)(2) 6dB Bandwidth PASS -- 15.247 (b)(3) Output Power PASS -- 15.209 Radiated Spurious Emission PASS -- 15.247 (d) Conducted Spurious & Band Edge Emission PASS -- 15.247 (e) Power Spectral Density PASS -- 15.205 Restricted Band Edge Emission PASS -- Part 15.247(d)/ Part 15.209(a) Band Edge Emission PASS -- 15.203 Antenna Requirement PASS -- NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2013. Page 7 of 51 Report No.: FCS202409351W01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Te…

Text truncated - open the document above for the full version.

Page 1 of 2 FCC ID: 2BLAD-FX3000 Setup photo Model name: FX3000 DTS Conducted Emission DTS radiation L Page 2 of 2 FCC ID: 2BLAD-FX3000 DTS radiation H
