2BLBK-DA01Wireless Solar Driveway Alarm

Wireless Solar Driveway Alarm User Manual Read and follow the safety instructions below: Safety Instructions • Keep the device away f rom water immersion, extreme heat, or open flames. This product is weather-resistant but not designed for submersion. • Motion detection is based on passive inf rared (PIR) technology and may be affected by environmental conditions such as heavy rain, sandstorms, tempera- ture fluctuations, or moving heat sources, which may result in false alarms or reduced sensitivity. • The working temperature should be between 14°F to 140°F (-10°C to 60°C). • Do not attempt to disassemble or modify the product, as this may result in mal- function and will void the warranty. • This product is not a toy. Keep out of reach of children to prevent misuse or acci- dental damage. Product Overview Receiver 1 2 3 4 5 6 1 2 3 4 5 6 Mute / ON / OFF Slide Switch Volume +/- Pairing Button LED Indicator Type-C Charging Port (10 adjustable levels) Previous / Next Chime (37 tones available) Solar Motion Sensor 1 2 3 4 Solar Panel Sensor Lens Type-C Charging Port Power / Sensitivity Switch (PIR Detection Area) (OFF / High / Low) 1 2 3 4 How to Charge Receiver Charging Fully charged The receiver includes a built-in backup battery: -Can be used while plugged in -Can also operate wirelessly after a full charge When the battery is low, the receiver will announce: “Battery low.” Solar Motion Sensor When the sensor battery is low, the receiver will announce:“Sensor battery low.” USB Charging Solar Charging Recommendation: Fully charge both the receiver and sensor before first use to ensure optimal performance. Fully charged Charging Pairing Setup Step 1: Power On Receiver Turn on the receiver. It will automatically play a default factory chime once powered on. Step 2: Enter Pairing Mode Press the Pairing Button once to enter pairing mode. While in pairing mode: Press the Pairing Button again to exit pairing mode manually. The receiver will announce: “Pairing, please select a sound, then wave your hand in front of the sensor.” Use the Chime Selection Buttons (◀ / ▶) to select your desired chime. Note: If no operation is performed within 10 seconds after power-on, the receiver will enter sleep mode. In sleep mode, pressing the Pairing Button once will wake the device and replay the last selected chime. Press the Pairing Button again to enter pairing mode. OFF ON Step 3: Sensor Activation & Pairing Completion Step 4: Pairing Multiple Sensors After selecting the chime, switch the sensor f rom OFF to H or L (sensitivity mode) to power it on. Then wave your hand in f ront of the sensor to complete pairing. · The sensor will detect motion and activate · The LED indicator will flash white · The receiver will announce: “Pairing complete.” After pairing the f irst sensor, additional sensors can be added one by one: 1.Set the already paired sensor to OFF using the bottom switch. 2.Set the next sensor f rom OFF to H or L mode (working mode). 3.Repeat Steps 2–3 to pair each additional sensor individually. Note: To change the chime of an already paired sensor, re-enter pairing mode and repeat the pairing process. Important: During f inal installation, ensure all sensors are set to H or L mode (not OFF) to remain active. Automatic Exit (Timeout) During pairing mode, if no operation is detected on both the receiver and the sensor within 25 seconds, the system will automatically exit pairing mode. The receiver will announce: “Exiting pairing.” Sensor Removal · Remove all paired sensors: Press and hold the Pairing Button to delete all previously paired sensors at once. The receiver will announce:“Paired sensor removed.” · Disable a single sensor: Turn the sensor switch to OFF at the bottom of the device. Solar Sensor Installation Solar Motion SensorMounting PlateLocking Ring Nut ScrewsWrench Installation Steps Step 1: Position the mounting plate on the desired surface. Mark the hole locations, drill holes, and secure the plate f irmly using screws. Recommended Installation Height Install the motion sensor at a height of 3.3–4 ft (1–1.2 m) above the ground for optimal detection performance. Height 3.3–4 ft LOW 32.8ft(10m) HIGHT 55.7ft(17m) 1 2 3 Installation Tips · Mount the sensor level and perpendicular to the ground. Do not tilt it up or down, or install it at an angle. · Ensure the solar panel receives direct sunlight for eff icient charging, but avoid pointing the sensor lens directly toward strong sunlight to prevent false alarms. · Position the sensor to face an open detection area such as a driveway or pathway. · Avoid aiming the sensor at trees, bushes, or moving objects, as wind movement may trigger false alerts. Step 2: Attach the solar sensor to the mounted backplate. Use a wrench to tighten the ring nut onto the backplate, securing the sensor f irmly in place for stability. 1 2 3 Specifications Model DA01 Detection Range High: 49–56 ft (15–17 m) Low: 26–33 ft (8–10 m) Detection Angle Horizontal: 35° Recommended Installation Height 3.3–4 ft (1–1.2 m) Receiver Power 4000mAh Rechargeable Battery Supports Plug-in & Wireless Use Sensor Power Solar Powered + 2000mAh Rechargeable Battery Supports Solar Charging & USB Charging Operating Temperature 14°F to 140°F (-10°C to 60°C) Sensor Waterproof Rating IP65 Troubleshooting Q1: Why is there no detection or the range is short? A: Install the sensor at 3.3–4 ft (1–1.2 m) and keep it level, facing the detection area Switch to High sensitivity mode Q2: Why does the sensor trigger false alarms? A: Switch to Low sensitivity mode in complex environments Q3: Why is the receiver not working or no sound? A: Recharge the receiver or keep it plugged in Disable mute mode or increase the volume Re-pair the sensor and receiver FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residen…

Text truncated - open the document above for the full version.

Shenzhen Midou Technology Co., Ltd. Rm 2701, Bldg 1, Xinyi Lingyu RD Ctr, 30 Honglang N 2nd Rd, Baoan Dist, Shenzhen, Guangdong, 518101 China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2026/05/27 U.S. Agent Designation Shenzhen Midou Technology Co., Ltd. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BLBK-DA01): Name and company of U.S. agent: DAME INC Physical U.S. address of agent: 19 Preston St, Unit 1, Goffstown NH 03045 NH, NH 3045 United States FRN of U.S. agent: 0036816189 Phone of U.S. agent: (603) 867-6886 Email address of U.S. agent: [email protected] DAME INC acknowledges their obligation to accept service of process on behalf of Shenzhen Midou Technology Co., Ltd. with the FRN [0035987866] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. An expiration date for this letter does not exist. Sincerely, Signature Yuan wei project manager Shenzhen Midou Technology Co., Ltd. Signature Liangshu Zhang Manager DAME INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

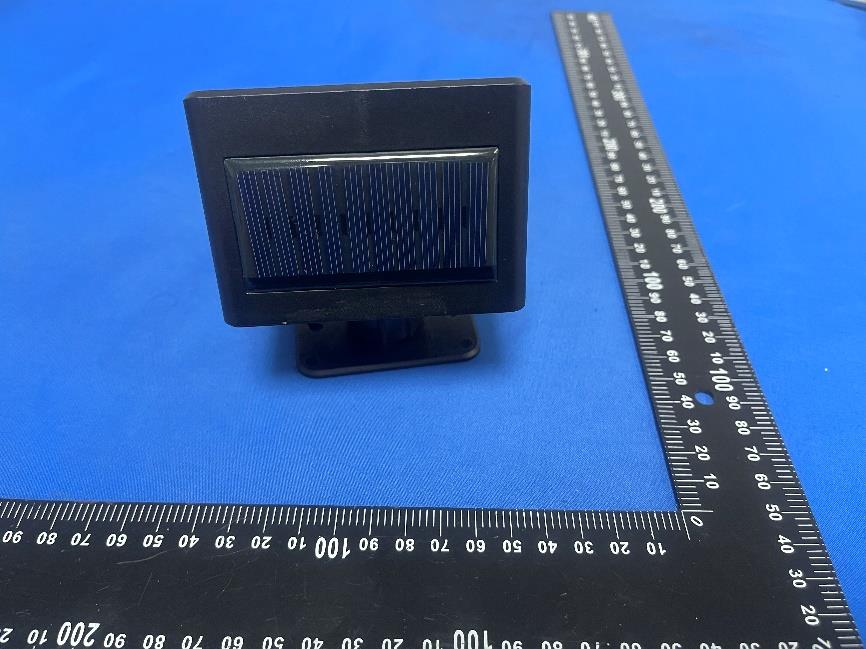

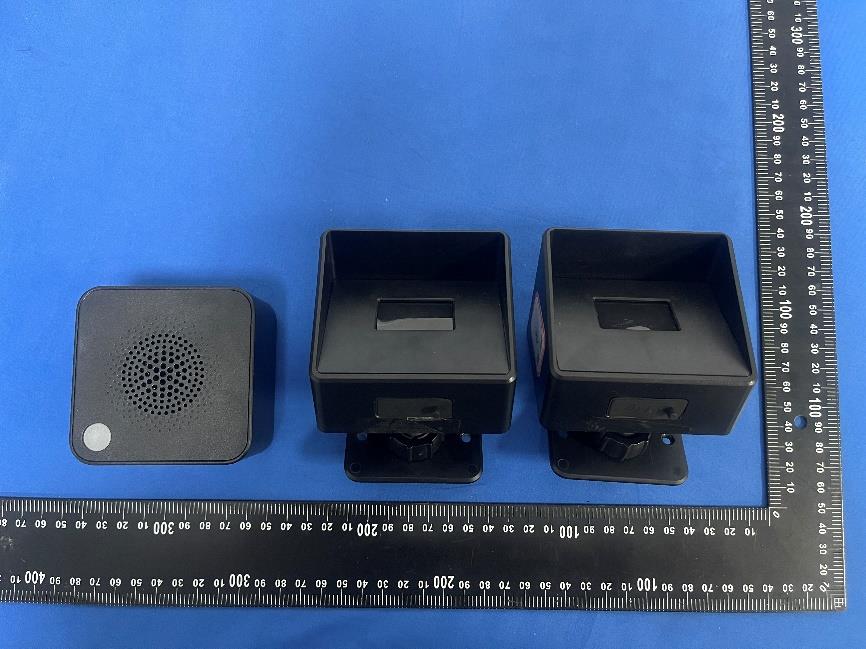

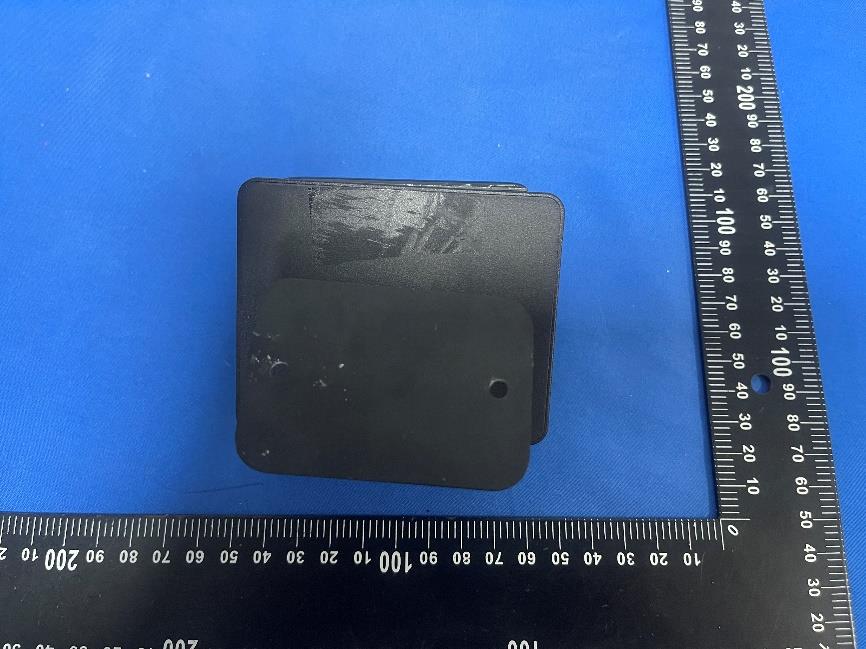

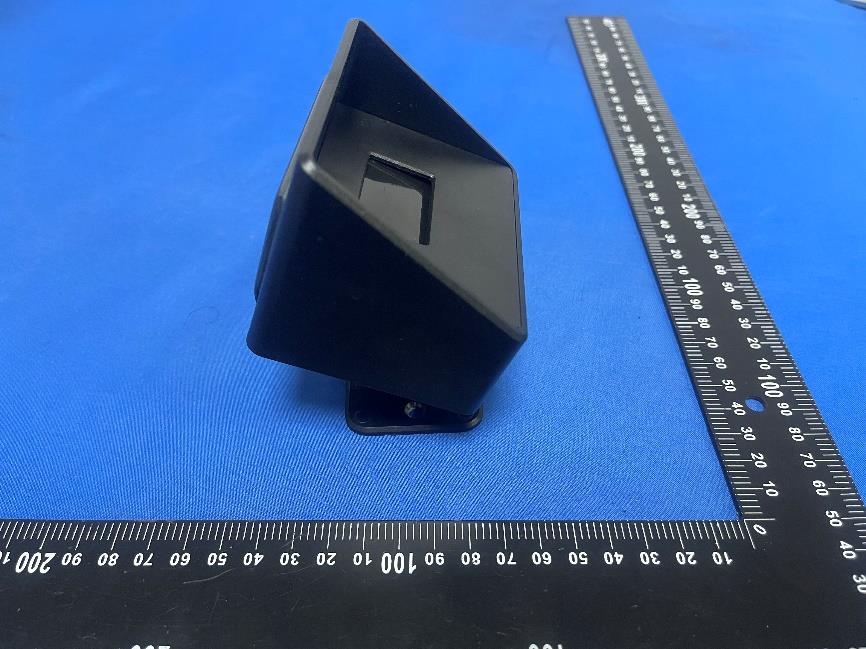

FCCC: 2BLBK-DA01 External Photos of the EUT FCCC: 2BLBK-DA01 FCCC: 2BLBK-DA01

Label and Location Size: L: 3.0cm*W: 2.0cm FCCC: 2BLBK-DA01 Label and Location

FCCC: 2BLBK-DA01 Internal Photos of the EUT FCCC: 2BLBK-DA01 FCCC: 2BLBK-DA01 Antenna FCCC: 2BLBK-DA01

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure evaluation Report Reference No. ..................... : FCC ID. ........................................... : CTA26050700202 2BLBK-DA01 Compiled by ( position+printed name+signature) .. : File administrators Zoey Cao Supervised by ( position+printed name+signature) .. : Project Engineer Ace Chai Approved by ( position+printed name+signature) .. : RF Manager Eric Wang Date of issue ..................................... : May 13, 2026 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ........................... : Shenzhen Midou Technology Co., Ltd. Address ............................................ : Rm 2701, Bldg 1, Xinyi Lingyu RD Ctr, 30 Honglang N 2nd Rd, Baoan Dist, Shenzhen, Guangdong, 518101 China Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Wireless Solar Driveway Alarm Trade Mark ........................................ N/A Manufacturer ..................................... : Shenzhen Midou Technology Co., Ltd. Model/Type reference ....................... : DA01 Listed Models ................................... : N/A Ratings .............................................. : Input: DC 5V Battery: 3.7V 2000mAh 7.4Wh Result ................................................ : PASS Report No.: CTA26050700202 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Wireless Solar Driveway Alarm Model /Type : DA01 Listed Models : N/A Applicant : Shenzhen Midou Technology Co., Ltd. Address : Rm 2701, Bldg 1, Xinyi Lingyu RD Ctr, 30 Honglang N 2nd Rd, Baoan Dist, Shenzhen, Guangdong, 518101 China Manufacturer : Shenzhen Midou Technology Co., Ltd. Address : Rm 2701, Bldg 1, Xinyi Lingyu RD Ctr, 30 Honglang N 2nd Rd, Baoan Dist, Shenzhen, Guangdong, 518101 China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26050700202 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ................................................... 4 2 S U M M A R Y .............................................................. 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Special Accessories 5 2.4 Modifications 5 3 T E S T E N V I R O N M E N T ................................................ 6 3.1 Address of the test laboratory 6 3.2 Test Facility 6 3.3 Statement of the measurement uncertainty 6 4 T E S T L I M I T ............................................................ 7 4.1 Requirement 7 4.2 Conducted Power Results 7 4.3 Manufacturing tolerance 8 4.4 Evaluation Result 8 4.5 Simultaneous Transmission for SAR Exclusion 8 5 C O N C L U S I O N .......................................................... 8 Report No.: CTA26050700202 Page 4 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Device, RF Exposure, Equipment Authorization Procedures. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices Report No.: CTA26050700202 Page 5 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : May 07, 2026 Testing commenced on : May 07, 2026 Testing concluded on : May 13, 2026 2.2 Product Description Product Name: Wireless Solar Driveway Alarm Model/Type reference: DA01 Power supply: Input: DC 5V Battery: 3.7V 2000mAh 7.4Wh Testing sample ID: CTA260507002-1# (Engineer sample), CTA260507002-2#(Normal sample) Modulation: ASK Operation frequency: 432.99MHz Channel number: 1 Antenna type: Spring antenna Antenna gain: -4.95 dBi 2.3 Special Accessories The following is the EUT test of the auxiliary equipment pro…

Text truncated - open the document above for the full version.

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China FCC PART 15 SUBPART C TEST REPORT FCC PART 15.231 Report Reference No. .................... : FCC ID. ........................................... : CTA26050700201 2BLBK-DA01 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : May 13, 2026 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ........................................... : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Shenzhen Midou Technology Co., Ltd. Address : Rm 2701, Bldg 1, Xinyi Lingyu RD Ctr, 30 Honglang N 2nd Rd, Baoan Dist, Shenzhen, Guangdong, 518101 China Test specification ........................... : Standard ........................................... : FCC Part 15.231 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Wireless Solar Driveway Alarm Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Midou Technology Co., Ltd. Model/Type reference ...................... : DA01 Listed Models .................................. : N/A Modulation ....................................... : ASK Frequency ......................................... 432.990MHz Ratings ............................................. : Input: DC 5V Battery: 3.7V 2000mAh 7.4Wh Result ............................................... : PASS Report No.: CTA26050700201 Page 2 of 29 T E S T R E P O R T Equipment under Test : Wireless Solar Driveway Alarm Model /Type : DA01 Listed Models : N/A Applicant : Shenzhen Midou Technology Co., Ltd. Address : Rm 2701, Bldg 1, Xinyi Lingyu RD Ctr, 30 Honglang N 2nd Rd, Baoan Dist, Shenzhen, Guangdong, 518101 China Manufacturer : Shenzhen Midou Technology Co., Ltd. Address : Rm 2701, Bldg 1, Xinyi Lingyu RD Ctr, 30 Honglang N 2nd Rd, Baoan Dist, Shenzhen, Guangdong, 518101 China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26050700201 Page 3 of 29 Contents 1 T E S T S T A N D A R D S .................................................................. 4 2 S U M M A R Y ............................................................................. 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT configuration 5 2.6 Block Diagram of Test Setup 6 2.7 Special Accessories 6 2.8 Related Submittal(s) / Grant (s) 6 2.9 Modifications 6 3 T E S T E N V I R O N M E N T ............................................................... 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ............................................ 10 4.1 AC Power Conducted Emission 10 4.2 Radiated Emission 13 4.3 20dB Bandwidth 19 4.4 Deactivation Time 20 4.5 Antenna Requirement 21 5 T E S T S E T U P P H O T O S O F T H E E U T .......................................... 22 6 P H O T O S O F T H E E U T ............................................................. 23 Report No.: CTA26050700201 Page 4 of 29 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.231:Periodic operation in the band 40.66-40.70 MHz and above 70 MHz. ANSI C63.10-2020+Cor. 1-2023+C63.10a-2024 + Errata to C63.10a-2024 : American National Standard for Testing Unlicensed Wireless Devices Report No.: CTA26050700201 Page 5 of 29 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : May 07, 2026 Testing commenced on : May 07, 2026 Testing concluded on : May 13, 2026 2.2 Product Description Product Name: Wireless Solar Driveway Alarm Model/Type reference: DA01 Power supply: Input: DC 5V Battery: 3.7V 2000mAh 7.4Wh Testing sample ID: CTA260507002-1# (Engineer sample), CTA260507002-2#(Normal sample) Modulation: ASK Operation frequency: 432.99MHz Channel number: 1 Antenna type: Spring antenna Antenna gain: -4.95 dBi 2.3 Equipment Under Test Power supply system utilised Power supply voltage : ○ 230V / 50 Hz ○ 120V / 60Hz ○ 12 V DC ○ 24 V DC ● Other (specified in blank below) Input: DC 5V Battery: 3.7V 2000mAh 7.4Wh 2.4 Short description of the Equipment under Test (EUT) This is Wireless Solar Driveway Alarm For more details, refer to the user’s manual of the EUT. 2.5 EUT configuration The following peripheral devices and interface cables were connected during the measurement: ○ - supplied by the manufacturer ● - supplied by the lab ● Adapter information (Auxiliary test supplied by test Lab): Model: EP-TA20CBC Input: AC 100-240V 50/60Hz Output: DC 5V 2A Report No.: CTA26050700201 Page 6 of 29 2.6 Block Diagram of Test Setup 2.7 Special Accessories Follow auxiliary equipment(s) test with EUT that provided by the manufacturer or laboratory is listed as follow: Description Manufacturer Model Technical Param…

Text truncated - open the document above for the full version.

弹簧天线 型号: BW433SND31-5Z5 描述: 433MHz弹簧天线 特性: 433MHz频率 结构: 360º全向辐射 尺寸: 31mm x ⌀5mm x 5mm 符合 RoHS & REACH 规定 天线规格书 蝙蝠无线 BAT WIRELESS 1 / 13 Antenna Datasheet www.batwireless.cn 目 录 September-2-2025-A01 2 / 13 蝙蝠无线 BAT WIRELESS www.batwireless.cn 1. 产品描述3 2. 产品规格4 3. 实物图5 4. 尺寸图6 5. 测试设备7-8 6. 性能数据9-10 6.1 电压驻波比9 6.2 回波损耗9 6.3 增益10 6.4 效率10 6.5 天线增益与效率10 7. 辐射模式图11-12 7.1 2D辐射模式图11 7.2 3D辐射模式图12 法律声明： 本着为用户提供更好服务的原则，深圳市蝙蝠无线技术有限公司（下称“蝙蝠无线”）在本手册中将尽可能地为用户 呈现详 实、准确的产品信息。但介于本手册的内容具有一定的时效性，蝙蝠无线不能完全保证该文档在任何时段的时效性与适 用性。 蝙蝠无线有权在没有通知的情况下对本手册上的内容进行更新，恕不另行通知。为了得到最新版本的信息，请尊敬的 用户定时 访问蝙蝠无线官方网站或者与蝙蝠无线工作人员联系。感谢您的包容与支持！ 版权声明：本产品手册所有内容（包括文字、图表、标识及设计）均受著作权法及国际版权条约保护。任何单位和个人未经我 司事先书面授权，不得以任何形式（包括电子、机械、影印等）复制、修改、传播、分发和使用本手册全部或部分内容。侵权 者将承担相应法律责任。保留所有权利。 商标声明：本手册中出现涉及到蝙蝠无线商品名称及企业标识均属我公司（含关联公司）合法所有。严禁任何未经授权的使用、 复制或仿冒行为。手册引用的第三方商标权利归相应权利人所有，其使用仅作说明目的，不构成商业关联或授权暗示。我公司 保留追究侵权法律责任的一切权利。 免责声明：本手册所载产品信息仅供参考，产品实际性能可能因使用环境、配置差异而有所不同。本公司不对手册内容的准确 性、完整性或适用性作任何明示或默示保证，亦不承担因使用或无法使用本手册内容而产生的直接或间接损失。用户应自行评 估产品适用性并遵循实际操作规范。最终解释权归本公司所有。 经典应用场景： 无线遥控领域：车库门遥控器、汽车钥匙、智能家居设备 安防与报警系统：无线门磁、红外探测器、烟雾报警器 物联网：智能水表/电表 蝙蝠无线BW433SND31-5Z5是一款是一种专为433MHz频段无线通信设计的紧凑型天线，采用弹簧状螺旋结构，兼具机械 柔韧性与电气性能，抗震动、耐弯折，适合车载或移动设备。体积小巧，重量轻，支持PCB焊接，便于嵌入智能家居设备、无 线模块。螺旋结构可降低多径干扰，增强复杂环境下的信号稳定性。 1. 产品描述 / Description www.batwireless.cn September-2-2025-A01 蝙蝠无线提供定制化服务以优化您的设备，我们拥有成熟的研发团队，能够迅速响应以满足您的需求。如果您有任何要 求，请联系我们的销售和 FAE。 3 / 13 零件编号说明 BW 公司 / Company 蝙蝠无线 / Bat Wireless 433 频段 / Frequency 433MHz / 433MHz S 名称 / Name 弹簧天线 / Spring Antenna N 类型 / Type 内置 / Internal D 常数 / Constant D / D 31-5 大概尺寸 / Dimensions 31-5mm / 31-5mm Z 特点 / Feature 直脚 / Bent 5 脚长 / Length 5 / 5 BW433SND31-5Z5 蝙蝠无线 BAT WIRELESS 参数 / Parameters 典型值 / Typ.单位 / Unites 备注 / Notes 类型 / Antenna Type弹簧天线 / Spring Antenna 频率 / Frequency Range433MHz 输入阻抗 / Input Impendence 50 Ω 驻波比 / V.S.W.R 2 增益 / Gain -4.95 dBi 极化方式 / Polarization Type垂直 / Vertical 功率容量 / Power Capacity 50W 雷电保护 / Lightning Protection - 工作电压 / DC Voltage -V 辐射体 / Radiator - 尺寸 / Dimensions 31 x ⌀5 x 5 mm 接口形式 / Connector Type - 电缆型号 / Cable Type - 电缆长度 / Cable Length - mm 安装方式 / Mount way - 颜色 / Color金黄色 材料 / Meterial 磷铜 重量 / Weight - g 防护等级 / Waterproof Rating - ROHS标准 / ROHS Complaint 符合 工作温度 / Operating Temperature -45~ +85 °C 存储温度 / Storage Temperature -45~ +85 °C 2. . 产品规格 / Specification www.batwireless.cn September-2-2025-A01 电气特性 / Electrical Characteristics 机械特性 / Mechanical Characteristics 环境特性 / Environmental Characteristics 4 / 13 蝙蝠无线 BAT WIRELESS 3. . 实物图 / Dimensions www.batwireless.cn September-2-2025-A01 5 / 13 蝙蝠无线 BAT WIRELESS 图片仅供参考，以实物为准。 4. . 尺寸图 / Mechanical Drawing www.batwireless.cn September-2-2025-A01 6 / 13 蝙蝠无线 BAT WIRELESS Testing Capability / 测试能力 Description / 能力描述 Active measurement 有源测试 Capability /测试指标: TRP 、TIS 、EIRP 、EIS,. etc Mode /测试制式: 2G/3G/4G/5G 、Wi-Fi b/g/n/a/ac/ax 、BT 、NB-IOT 、 Cat-M(eMTC) 、GPS/BEIDOU/GLONASS 、ZigBee 、LoRa(Non- Signaling),.etc Pasive measurement 无源测试 Test category /测试类型: Gain 、Efficiency 、2D pattern 、3D pattern 、 Pattern roundness、Axial Ratio, ECC,Phase center,. etc Polarization /极化方式: Circular polarization, linear polarization, elliptical polarization DT-3500 Datasheet / 系统规格 Specification:Description Test Frequency /测试频域: 400MHz-8.5GHz System Size /系统尺寸: L*W*H=4*3.5*3.5m Number of Probes /探头数目:23 (Probe) + 1 (link) Interval Angle /采样夹脚: 15º Sampling Diameter /采样直径: 2200mm Carring Capacity /承载能力: ≦40kg 5. . 测试设备 / Test Equipment Keysight/E5071C 网络分析仪 R&S/CMW500 综测仪 R&S/SMBV100B 信号源 www.batwireless.cn September-2-2025-A01 7 / 13 蝙蝠无线 BAT WIRELESS RF Link diaram of multi probe spherical near-field testing system 多探头球面近场测试系统射频链路图 RF Link Overview RF Link Passive measurement www.batwireless.cn September-2-2025-A01 RF Link Overview 总射频链路图 RF Link of Passive measurement 无源测试链路图 RF Link Overview 总射频链路图 RF Link of Passive measurement 无源测试链路图 8 / 13 蝙蝠无线 BAT WIRELESS www.batwireless.cn 6.1 电压驻波比 / VSWR September-2-2025-A01 6.2 回波损耗 / Return Loss 9 / 13 蝙蝠无线 BAT WIRELESS 6. . 性能数据 / Performance Data 6. . 性能数据 / Performance Data www.batwireless.cn 6.3 增益 / Gain September-2-2025-A01 6.4 效率 / Efficiency 10 / 13 蝙蝠无线 BAT WIRELESS 频率 / Frequency (MHz)430433440 最大增益 / Gain (dBi) -4.91-4.95-6.07 效率 / Efficiency (%)10.74 10.57.08 6.5 天线增益与效率 0.00 10.00 20.00 30.00 40.00 50.00 60.00 70.00 80.00 90.00 100.00 4 2 0 . 0 4 2 1 . 0 4 2 2 . 0 4 2 3 . 0 4 2 4 . 0 4 2 5 . 0 4 2 6 . 0 4 2 7 . 0 4 2 8 . 0 4 2 9 . 0 4 3 0 . 0 4 3 1 . 0 4 3 2 . 0 4 3 3 . 0 4 3 4 . 0 4 3 5 . 0 4 3 6 . 0 4 3 7 . 0 4 3 8 . 0 4 3 9 . 0 4 4 0 . 0 4 4 1 . 0 4 4 2 . 0 4 4 3 . 0 4 4 4 . 0 4 4 5 . 0 4 4 6 . 0 4 4 7 . 0 4 4 8 . 0 4 4 9 . 0 4 5 0 . 0 Efficiency (%) -16.42 -14.42 -12.42 -10.42 -8.42 -6.42 -4.42 4 2 0 . 0 4 2 1 . 0 4 2 2 . 0 4 2 3 . 0 4 2 4 . 0 4 2 5 . 0 4 2 6 . 0 4 2 7 . 0 4 2 8 . 0 4 2 9 . 0 4 3 0 . 0 4 3 1 . 0 4 3 2 . 0 4 3 3 . 0 4 3 4 . 0 4 3 5 . 0 4 3 6 . 0 4 3 7 . 0 4 3 8 . 0 4 3 9 . 0 4 4 0 . 0 4 4 1 . 0 4 4 2 . 0 4 4 3 . 0 4 4 4 . 0 4 4 5 . 0 4 4 6 . 0 4 4 7 . 0 4 4 8 . 0 4 4 9 . 0 4 5 0 . 0 Gain (dBi) 7. . 辐射模式 / Radiation Patterns www.batwireless.cn September-2-2025-A01 7.1 2D 辐射模式图 / Radiation Patterns 11 / 13 蝙蝠无线 BAT WIRELESS www.batwireless.cn September-2-2025-A01 12 / 13 蝙蝠无线 BAT WIRELESS 7. . 辐射模式 / Radiation Patterns 7.2 3D 辐射模式图 / Radiation Patterns 版本： September-2-2025-A01 日期： 2025-9-2 备注： 首次更新 作者： Carly 文档记录 / Documentation www.batwireless.cn September-2-2025-A01 13 / 13 变更记录 / Change Log 蝙蝠无线 BAT WIRELESS Office Add：Room 1301, 13th Floor, No. 8 Langhua Road, Xinshi Community, Dalang Street, Longhua District, Shenzhen 蝙蝠无线 BAT WIRELESS 地址：深圳市龙华区大浪街道新石社区浪花路8号1301 深圳市蝙蝠无线技术有限公司 Shenzhen Bat Wireless Technology Co,.Ltd Tel：+86-0755-21031236 Email：[email protected]
