2BLDA-Y3Car Bluetooth Audio Receiver

车载蓝牙音频接收器 产品参数 Product ParametersReminderInstructions 使用说明温馨提示 FCCWarning Statement FCC警告声明CC辐射暴露声明 Car Bluetooth Audio Receiver Car Bluetooth Audio Receiver 产品名称：车载蓝牙接收器 蓝牙名称：BT-MUSIC 蓝牙协议：HFP/HSP/A2DP/AVRCP 信噪比：95db 频响范围：20HZ-20KHZ 有效距离：≤10米(无遮挡） 接听电话：支持 供电方式：USB供电 工作电压：5V-1A 包装清单 蓝牙接收器*1 说明书*1 合格证*1 Product Name: Car Bluetooth Receiver Bluetooth Name: BT-MUSIC Bluetooth protocol: HFP/HSP/A2DP/AVRCP Signal to noise ratio: 95db Frequency response range: 20HZ-20KHZ Effective distance: ≤ 10 meters (unobstruct-ed) Answering the phone: Support Power supply method: USB power supply Working voltage: 5V-1A Packing list Bluetooth receiver * 1 Instructions *1 Certificate *1 1. Insert the Bluetooth receiver into the USB and 3.5mm ports respectively. 2. Set the car stereo or speaker to AUX line input mode. 3. Open your phone's Bluetooth search and connect to BT-MUSIC. 4. The connection is successful, and the indicator light is constantly on (flashing before connection). If the connection fails within 3 minutes, please try the following steps: 1. Keep the distance between the Bluetooth receiver and the phone within 10 meters. 2. Re plug and unplug the Bluetooth receiver. 3. Restart the phone. Changes or modifications not expresly approved by the party responsible for complance could void the user's authority to operate theequipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCCRules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipmenigenerates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmfulnterference to radio communications, However, there is no quarantee that interference wil not occur in a particular installation. If thisequipment does cause harmful interference to radio or television reception, which can be determined by tuming the ecuipment of and on, theuser is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna Increase the separation between the equipment and receiver Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement The antennas used for this transmiter must be instaled to provide a separation distance of at least 20 cm from all persons and must not beco-located for operating in conjunction with any other antenna or transmitter. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)This device may not cause harmful interference, and(2)This device must accept any interference received, including interference that may cause undesired operation. 1.蓝牙接收器分别插入USB和3.5毫米接口。 2.车机或者音箱调到AUX线输入模式。 3.打开手机蓝牙搜索并连接BT-MUSIC。 4.连接成功，指示灯常亮状态（连接前闪烁状态）。 如3分钟内连接失败，请尝试以下步骤： 1.保持蓝牙接收器和手机距离在10米内。 2.重新插拔蓝牙接收器。 3.重启手机。 未经负责合规的一方明确批准的更改或修改可能会使用户 操作设备的权限无效。根据FCC规则第15部分，该设备经过 测试，符合B类数字设备的限制。这些限制旨在为住宅安装中 的有害干扰提供合理的保护。该设备产生并可以辐射射频能 量，如果不按照说明安装和使用，可能会对无线电通信造成 有害干扰。但是，不能保证在特定安装中不会发生干扰。如果 此设备确实对无线电或电视接收造成有害干扰，可以通过启 动和打开来确定，鼓励用户尝试通过以下一种或多种措施来 纠正干扰： 重新定向或重新定位接收天线，增加设备和接收器之间的 间距，将设备连接到与接收器连接的电路不同的插座上。 请咨询经销商或经验丰富的无线电/电视技术人员以获取 帮助。的间隔距离，并且不得与任何其他天线或发射机结 合使用。 用于该发射机的天线必须安装成与所有人保持至少20厘米 的间隔距离，并且不得与任何其他天线或发射机结合使用。 该设备符合FCC规则第15部分。操作受以下两个条件的约 束：（1）此设备可能不会造成有害干扰，（2）此设备必须接受 任何接收到的干扰，包括可能导致意外操作的干扰。 Car Bluetooth Audio Receiver

(Shenzhen Elicks Technology Co., Ltd.) (2024.10.10) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2BLDA-Y3) [Shenzhen Elicks Technology Co., Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) Liuxi Zhang (Shenzhen Elicks Technology Co., Ltd.) (2024.10.10) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID: 2BLDA-Y3) [Shenzhen Elicks Technology Co., Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Liuxi Zhang

Shenzhen Elicks Technology Co., Ltd. 2024.10.10 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Liuxi Zhang / Manager Contact information / address: 501, Building 12, Junyuan Community, Dawangshan Community, Shajing Street, Bao’an District, Shenzhen, China

Shenzhen Elicks Technology Co., Ltd. 2024.10.10 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: Car Bluetooth Audio Receiver Trademark: N/A MODEL: Y3 EC1, EC2, EC3, EC5, EC6, EC7, EC8, EC9, E3, E5, E6, E7, E8, E9, Y1, Y2, Y3, Y5, Y6, Y7, Y8, Y9, E6PRO FCC ID: 2BLDA-Y3 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Liuxi Zhang / Manager Contact information / address: 501, Building 12, Junyuan Community, Dawangshan Community, Shajing Street, Bao’an District, Shenzhen, China

Shenzhen Elicks Technology Co., Ltd. Model Difference 2024/10/10 EUT NAME: Car Bluetooth Audio Receiver Trademark: N/A MODEL: Y3 EC1, EC2, EC3, EC5, EC6, EC7, EC8, EC9, E3, E5, E6, E7, E8, E9, Y1, Y2, Y3, Y5, Y6, Y7, Y8, Y9, E6PRO FCC ID: 2BLDA-Y3 All the model are the same circuit and RF module, except model names and appearance of the color. Regards Sincerely Client’s signature: Client’s name / title : Liuxi Zhang / Manager Contact information / address: 501, Building 12, Junyuan Community, Dawangshan Community, Shajing Street, Bao’an District, Shenzhen, China

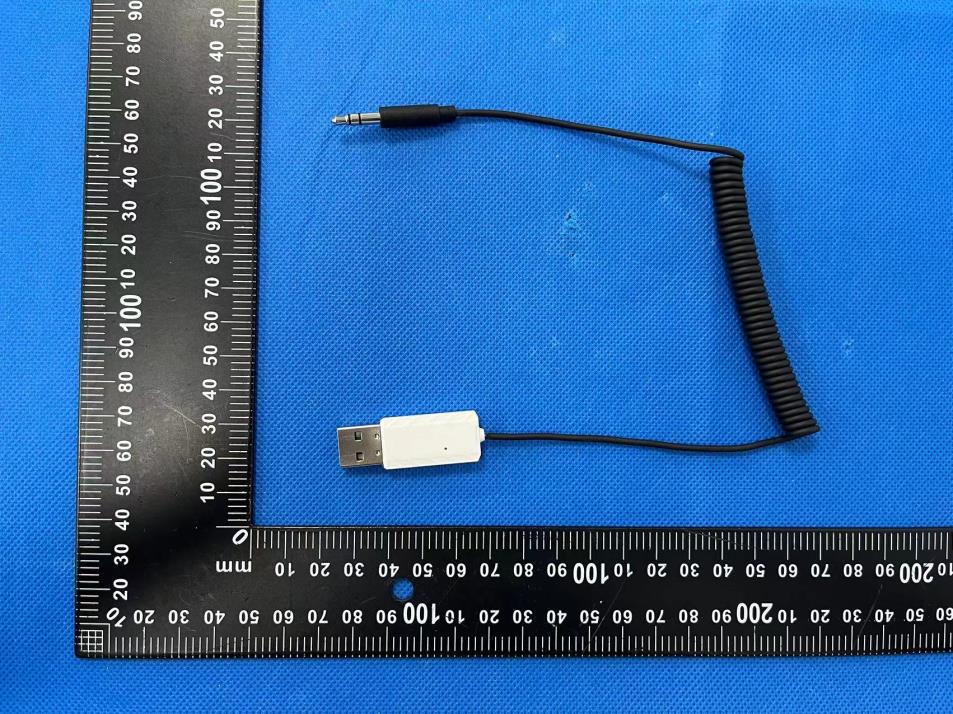

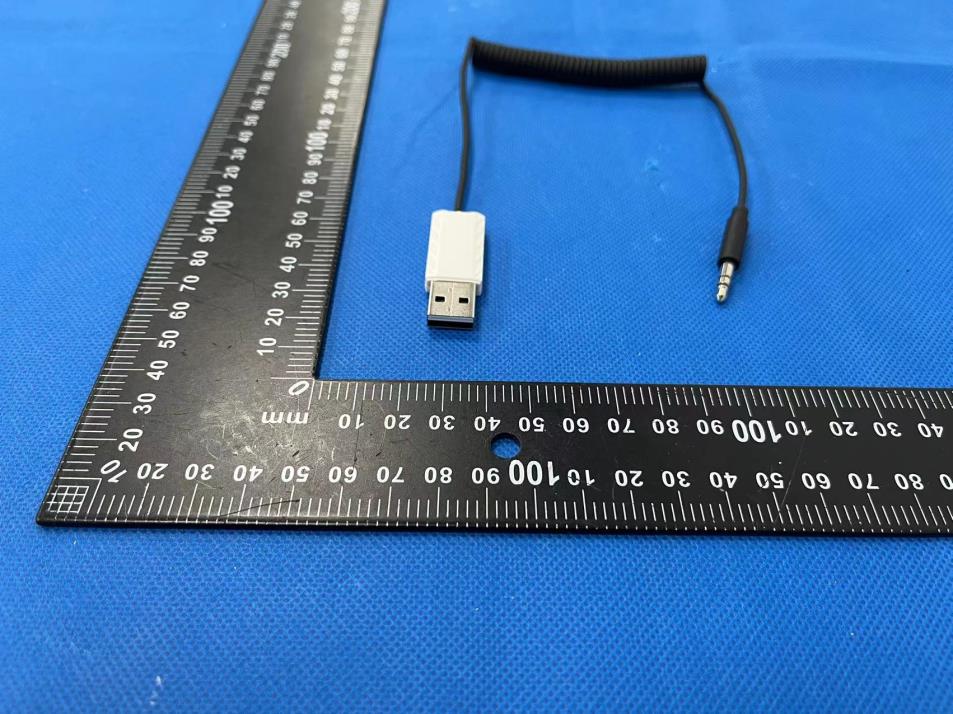

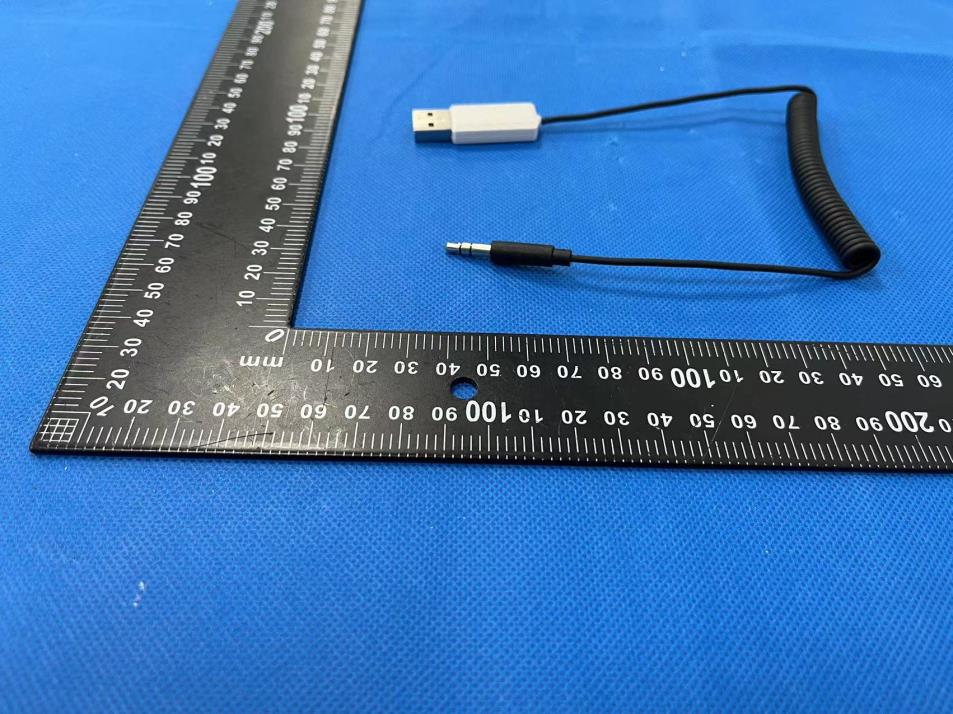

External Photos

Label & label location Location: Label: FCC ID: 2BLDA-Y3

Internal Photos Antenna

FCC §15.247 (i), §2.1091 – RF Exposure FCC ID: 2BLDA-Y3 Applied procedures / limit According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna, R=0.2m TEST RESULTS Tune up Produce power Maximum peak output power (dBm) Output power to antenna (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm2) Limit (mW/ cm2) Result BT 6±1 7 5.012 1.55 (1.9dBi) 0.00155 1 Pass BLE 3±1 4 2.512 1.55 (1.9dBi) 0.00078 1 Pass Conclusion: For the max result≤ 1.0, compliance with FCC's RF Exposure

Application: WLAN, 802.11b/g, Bluetooth, WLAN, etc... Features SMD, high reliability, ultra Impact, Omni-directiona Part number Information RANT2012F245C07 (A) (B) (C) (D)(E) (F) (A)Product Type PCB Antenna (B)Size13.4*8.6mm(+-0.2mm) (C) Material High K material (D) Frequency 2.4 ~ 2.5GHz (E) Feeding modePIFA & Single Feeding (F) Antenna type Type=07 Electrical Specification Working Frequency Range2400 ~2484 MHz Bandwidth 84 (Min.) Peak Gain 1.24 dBi (Peak) Impedance 50 Ohm Return loss 10 dB ( Min) PolarizationLinear Azimuth BeamwidthOmni-directional Operation Temperature(°C) -40 ~85 °C Resistance to Soldering Heats 10sec. ( @ 280°C) Termination Ni / Au (Leadless) The specification is defined on EVB. Antenna Layout & module on the system board 咏成國際科技有限公司電話: 13530576606 RAIN International Technology Co., Ltd. 7 / F, Building F, Zhichuang Park, Tong 'an, Gushu, Shenzhen Electrical Characteristics Return Loss & Radiation Return Loss 1 Frequency(MHz) S11 (dB) 2400-10.50 2450-30.62 2500-11.47 Radiation 2400MHz 2450MHz 2500MHz Efficiency82.52%85.26%83.01% Peak Gain1.15 dBi1.24 dBi1.19 dBi Directivity1.89 dBi1.97 dBi1.91 dBi X Y Z 2400MHz 2450MHz 2500MHz

No.：BCTC/RF-EMC-005 Page: 1 of 85 Edition：B.2 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2409510287-1E Applicant: Shenzhen Elicks Technology Co., Ltd. Product Name: Car Bluetooth Audio Receiver Test Model: Y3 Tested Date: 2024-09-26 to 2024-10-09 Issued Date: 2024-10-09 Report No.: BCTC2409510287-1E No.：BCTC/RF-EMC-005 Page: 2 of 85 Edition：B.2 FCC ID: 2BLDA-Y3 The test report is effective only with both signature and specialized stamp.This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full.The tested sample(s) and the sample information are provided by the client. Product Name: Car Bluetooth Audio Receiver Trademark: N/A Model/Type Reference: Y3 EC1, EC2, EC3, EC5, EC6, EC7, EC8, EC9, E3, E5, E6, E7, E8, E9, Y1, Y2, Y3, Y5, Y6, Y7, Y8, Y9, E6PRO Prepared For: Shenzhen Elicks Technology Co., Ltd. Address: 501, Building 12, Junyuan Community, Dawangshan Community, Shajing Street, Bao'an District, Shenzhen, China Manufacturer: Shenzhen Elicks Technology Co., Ltd. Address: 501, Building 12, Junyuan Community, Dawangshan Community, Shajing Street, Bao'an District, Shenzhen, China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2024-09-26 Sample Tested Date: 2024-09-26 to 2024-10-09 Issue Date: 2024-10-09 Report No.: BCTC2409510287-1E Test Standards: FCC Part15.247 ANSI C63.10-2013 Test Results: PASS Remark: This is Bluetooth Classic radio test report. Tested by: Approved by: Shanshan. Zhang / Project Handler Zero Zhou/Reviewer Report No.: BCTC2409510287-1E No.：BCTC/RF-EMC-005 Page: 3 of 85 Edition：B.2 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 9 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List ........................................................................................................ 10 4.5 Test Mode ........................................................................................................... 10 4.6 Table Of Parameters Of Text Software Setting ................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test procedure .................................................................................................... 13 6.4 EUT operating Conditions ................................................................................... 13 6.5 Test Result .......................................................................................................... 14 7. Radiated emissions ............................................................................................. 16 7.1 Block Diagram Of Test Setup .............................................................................. 16 7.2 Limit .................................................................................................................... 17 7.3 Test procedure .................................................................................................... 18 7.4 EUT operating Conditions ................................................................................... 19 7.5 Test Result .......................................................................................................... 19 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 25 8.1 Block Diagram Of Test Setup .............................................................................. 25 8.2 Limit .................................................................................................................... 25 8.3 Test procedure .................................................................................................... 26 8.4 EUT operating Conditions ................................................................................... 26 8.5 Test Result .......................................................................................................... 27 9. Spurious RF Conducted Emissions ..................................................................... 28 9.1 Block Diagram Of Test Setup .............................................................................. 28 9.2 Limit .................................................................................................................... 28 9.3 Test procedure ...........................................................…

Text truncated - open the document above for the full version.

Report No.: BCTC2409510287-1E No.：BCTC/RF-EMC-005 Page: 46 of 85 Edition：B.2 Band Edge(Hopping) NVNT 2-DH1 2402MHz Hopping Ref Band Edge(Hopping) NVNT 2-DH1 2402MHz Hopping Emission Report No.: BCTC2409510287-1E No.：BCTC/RF-EMC-005 Page: 47 of 85 Edition：B.2 Band Edge(Hopping) NVNT 2-DH1 2480MHz Hopping Ref Band Edge(Hopping) NVNT 2-DH1 2480MHz Hopping Emission Report No.: BCTC2409510287-1E No.：BCTC/RF-EMC-005 Page: 48 of 85 Edition：B.2 Band Edge(Hopping) NVNT 3-DH1 2402MHz Hopping Ref Band Edge(Hopping) NVNT 3-DH1 2402MHz Hopping Emission Report No.: BCTC2409510287-1E No.：BCTC/RF-EMC-005 Page: 49 of 85 Edition：B.2 Band Edge(Hopping) NVNT 3-DH1 2480MHz Hopping Ref Band Edge(Hopping) NVNT 3-DH1 2480MHz Hopping Emission Report No.: BCTC2409510287-1E No.：BCTC/RF-EMC-005 Page: 50 of 85 Edition：B.2 10. 20 dB Bandwidth 10.1 Block Diagram Of Test Setup 10.2 Limit N/A 10.3 Test procedure 1. Set RBW = 30kHz. 2. Set the video bandwidth (VBW) ≥ 3 x RBW. 3. Detector = Peak. 4. Trace mode = max hold. 5. Sweep = auto couple. 6. Allow the trace to stabilize. 7. Measure the maximum width of the emission that is constrained by the frequencies associated with the two outermost amplitude points (upper and lower frequencies) that are attenuated by 6 dB relative to the maximum level measured in the fundamental emission. 10.4 Test Result Temperature: 26 °C Relative Humidity: 54%RH Pressure: 101KPa Test Voltage : AC 120V/60Hz Condition Mode Frequency (MHz) -20dB Bandwidth (MHz) Verdict NVNT 1-DH1 2402 0.858 Pass NVNT 1-DH1 2441 0.820 Pass NVNT 1-DH1 2480 0.854 Pass NVNT 2-DH1 2402 1.261 Pass NVNT 2-DH1 2441 1.265 Pass NVNT 2-DH1 2480 1.277 Pass NVNT 3-DH1 2402 1.216 Pass NVNT 3-DH1 2441 1.212 Pass NVNT 3-DH1 2480 1.215 Pass Report No.: BCTC2409510287-1E No.：BCTC/RF-EMC-005 Page: 51 of 85 Edition：B.2 Test Graphs -20dB Bandwidth NVNT 1-DH1 2402MHz -20dB Bandwidth NVNT 1-DH1 2441MHz Report No.: BCTC2409510287-1E No.：BCTC/RF-EMC-005 Page: 52 of 85 Edition：B.2 -20dB Bandwidth NVNT 1-DH1 2480MHz -20dB Bandwidth NVNT 2-DH1 2402MHz Report No.: BCTC2409510287-1E No.：BCTC/RF-EMC-005 Page: 53 of 85 Edition：B.2 -20dB Bandwidth NVNT 2-DH1 2441MHz -20dB Bandwidth NVNT 2-DH1 2480MHz Report No.: BCTC2409510287-1E No.：BCTC/RF-EMC-005 Page: 54 of 85 Edition：B.2 -20dB Bandwidth NVNT 3-DH1 2402MHz -20dB Bandwidth NVNT 3-DH1 2441MHz Report No.: BCTC2409510287-1E No.：BCTC/RF-EMC-005 Page: 55 of 85 Edition：B.2 -20dB Bandwidth NVNT 3-DH1 2480MHz Report No.: BCTC2409510287-1E No.：BCTC/RF-EMC-005 Page: 56 of 85 Edition：B.2 11. Maximum Peak Output Power 11.1 Block Diagram Of Test Setup 11.2 Limit FCC Part15 (15.247) , Subpart C Section Test Item Limit Frequency Range (MHz) Result 15.247(b)(1) Peak Output Power 0.125 watt or 21dBm 2400-2483.5 PASS 11.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 2MHz. VBW = 6MHz. Sweep = auto; Detector Function = Peak. 3. Keep the EUT in transmitting at lowest, medium and highest channel individually. Record the max value. 11.4 Test Result Temperature: 26 °C Relative Humidity: 54%RH Pressure: 101KPa Test Voltage : AC 120V/60Hz Condition Mode Frequency (MHz) Conducted Power (dBm) Limit (dBm) Verdict NVNT 1-DH1 2402 3.70 21 Pass NVNT 1-DH1 2441 3.03 21 Pass NVNT 1-DH1 2480 2.32 21 Pass NVNT 2-DH1 2402 5.52 21 Pass NVNT 2-DH1 2441 5.08 21 Pass NVNT 2-DH1 2480 4.33 21 Pass NVNT 3-DH1 2402 6.20 21 Pass NVNT 3-DH1 2441 5.78 21 Pass NVNT 3-DH1 2480 5.10 21 Pass Report No.: BCTC2409510287-1E No.：BCTC/RF-EMC-005 Page: 57 of 85 Edition：B.2 Test Graphs Power NVNT 1-DH1 2402MHz Power NVNT 1-DH1 2441MHz Report No.: BCTC2409510287-1E No.：BCTC/RF-EMC-005 Page: 58 of 85 Edition：B.2 Power NVNT 1-DH1 2480MHz Power NVNT 2-DH1 2402MHz Report No.: BCTC2409510287-1E No.：BCTC/RF-EMC-005 Page: 59 of 85 Edition：B.2 Power NVNT 2-DH1 2441MHz Power NVNT 2-DH1 2480MHz Report No.: BCTC2409510287-1E No.：BCTC/RF-EMC-005 Page: 60 of 85 Edition：B.2 Power NVNT 3-DH1 2402MHz Power NVNT 3-DH1 2441MHz Report No.: BCTC2409510287-1E No.：BCTC/RF-EMC-005 Page: 61 of 85 Edition：B.2 Power NVNT 3-DH1 2480MHz Report No.: BCTC2409510287-1E No.：BCTC/RF-EMC-005 Page: 62 of 85 Edition：B.2 12. Hopping Channel Separation 12.1 Block Diagram Of Test Setup 12.2 Limit Frequency hopping systems shall have hopping channel carrier frequencies separated by a minimum of 25 kHz or the 20 dB bandwidth of the hopping channel, whichever is greater. Alternatively, frequency hopping systems operating in the 2400-2483.5 MHz band may have hopping channel carrier frequencies that are separated by 25 kHz or two-thirds of the 20 dB bandwidth of the hopping channel, whichever is greater, provided the systems operate with an output power no greater than 0.125W. 12.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 30kHz. VBW = 100kHz , Span = 2.0MHz. Sweep = auto; Detector Function = Peak. Trace = Max hold. 3. Allow the trace to stabilize. Use the marker-delta function to determine the separation between the peaks of the adjacent channels. The limit is specified in one of the subparagraphs of this Section Submit this plot. 12.4 Test Result Mode Test Channel Separation (MHz) Limit(MHz) Result 1-DH1 Low 0.998 0.572 PASS 1-DH1 Middle 1.002 0.547 PASS 1-DH1 High 1.000 0.569 PASS 2-DH1 Low 1.000 0.841 PASS 2-DH1 Middle 1.002 0.843 PASS 2-DH1 High 1.000 0.851 PASS 3-DH1 Low 1.000 0.811 PASS 3-DH1 Middle 1.002 0.808 PASS 3-DH1 High 1.002 0.810 PASS Report No.: BCTC2409510287-1E No.：BCTC/RF-EMC-005 Page: 63 of 85 Edition：B.2 Test Graphs CFS NVNT 1-DH1 2402MHz CFS NVNT 1-DH1 2441MHz Report No.: BCTC2409510287-1E No.：BCTC/RF-EMC-005 Page: 64 of 85 Edition：B.2 CFS NVNT 1-DH1 2480MHz CFS NVNT 2-DH1 2402MHz Report No.: BCTC2409510287-1E No.：BCTC/RF-EMC-005 Page: 65 of 85 Edition：B.2 CFS NVNT 2-DH1 2441MHz CFS NVNT 2-DH1 2480MHz Report No.: BCTC2409510287-1E No.：BCTC/RF-EMC…
