2BLDP-WB101Pan-Tilt Outdoor Solar Camera

Smart camera Instruction Scan QR code and download Yi IoT app Sign up and log in Select Country Account and Password Forgot Password Sign up Other login methods How to add camera Method 1: Connect cameras with WI-FI When the camera is powered on, the camera will beep continuously, waiting for the connection from the app. Then operate on the app as shown below. Connect camera through Wifi Check the button If you don't hear the beeps, please press the "RESET" on the camera. Continue for more than 5 seconds, until you heard the beeps, that means the reset is successful. Note: 1. Only support 2.4G. Please refer to the product hardware information. 2. Please turn on location of phone connected to wifi in mobile phone setting, fill wifi password The QR code that appears on the mobile phone is scanned against the camera lens, and the device emits a prompt sound "QR code scan successful" and "WiFi connected", click Next, and wait for the network configuration to be completed. If the camera can successfully connect to Wi-Fi, the app will display the next page. Pairing successful How to use app Depending on the hardware capabilities, the functions displayed on the app may be different. If it isn’t a PTZ camera, there isn’t a PTZ control panel. Camera setting Full screen Local screenshot Local record Voice intercom Hear sound of device PTZ control Playback Playback Alert messages Full screen Local screenshot Local record Voice intercom Hear sound of device Playback Playback Alert messages Camera setting Alert message Alert clip SD card playback Cloud playback Select date Select time Cloud storage Cloud storage subscription Cloud storage subscription Common problems Q: The camera is offline or offline 1. Check if the power supply is working properly 2. Power off and restart the device to reconnect to the network 3. The signal coverage is weak 4. Signal interference shielding in special places Q: How does the camera store video 1. The camera supports the F32 format with a maximum capacity of 128G. After the card is recognized, it automatically records, and when the storage is full, it automatically overwrites the original recording and loops recording; 2. Support opening cloud storage service to store video; For more app-related questions or issues, on the Profile tab in the app, we provide “Customer Service” or “Contact Us” options to help you. Special statement The product is subject to the actual product, the instruction manual is for reference only Mobile phone app and device firmware version support update, users can upgrade through the app. The manual may contain technical descriptions or inconsistencies with product functions or typographical errors. Please understand, please refer to the final interpretation of our company. Do not install the product in a place where it is damp, dusty, high temperature, flammable or explosive and out of reach of children. Note: This equipment has been tested and found to comply with the limits for a Cla ss B digital device, pursuant to part 15 of the FCC Rules. These limits are designed t o provide reasonable protection against harmful interference in a residential installa tion. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interf erence to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interf erence to radio or television reception, which can be determined by turning the equ ipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. — Connect the equipment into an outlet on a circuit different from that to which the re ceiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. YiIoT Camera Instruction Scan the QR code to download

ShenZhen DZinno Technology Co. ,Ltd. 1403,14th Floor,Building 4,Phase 2, Tian'an Yungu Industrial Park,Gangtou Community,Bantian Street,Longgang District,Shenzhen, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-9-27 To whom it may concern: We, ShenZhen DZinno Technology Co. ,Ltd., hereby certify that the equipment for which authorization is sought (FCC ID: 2BLDP-WB101) is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist) as an entity producing “covered” equipment. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Sincerely, Signature Xianshen Jin Manager ShenZhen DZinno Technology Co. ,Ltd. 62_[model] CoveredEqu_2.911(d)(5)(i) and (ii) - U, V03

ShenZhen DZinno Technology Co. ,Ltd. 1403,14th Floor, Building 4, Phase 2, Tian'an Yungu Industrial Park, Gangtou Community, Bantian Street, Longgang District, Shenzhen, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024/09/26 U.S. Agent Designation ShenZhen DZinno Technology Co. ,Ltd. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BLDP-CB201): Name and company of U.S. agent: REP America LLC Physical U.S. address of agent: REP America LLC,1942 Broadway St. STE 314C Boulder, CO 80302 United States FRN of U.S. agent: 0034192500 Email address of U.S. agent: [email protected] REP America LLC acknowledges their obligation to accept service of process on behalf of ShenZhen DZinno Technology Co. ,Ltd. ShenZhen DZinno Technology Co. ,Ltd. with the FRN [0035997154] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Xianshen Jin Manager ShenZhen DZinno Technology Co. ,Ltd. Signature Ben Xu Manager REP America LLC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

ShenZhen DZinno Technology Co. ,Ltd. Add: 1403,14th Floor,Building 4,Phase 2, Tian'an Yungu Industrial Park,Gangtou Community,Bantian Street,Longgang District,Shenzhen, China Date: 2024-9-27 FCC ID: 2BLDP-WB101 Dear Sir/Madam, We, ShenZhen DZinno Technology Co. ,Ltd. Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: Pan-Tilt Outdoor Solar Camera Model no.: WB101, WB102, WB103, WB104, WB105, WB106, WB107, WB108, WB109, WB110, WB111, WB112, WB113, WB114, WB115 Sincerely, Name/Title： Xianshen Jin/Manager Company: ShenZhen DZinno Technology Co. ,Ltd. Address: 1403,14th Floor,Building 4,Phase 2, Tian'an Yungu Industrial Park,Gangtou Community,Bantian Street,Longgang District,Shenzhen, China Phone: 13424388340 Fax: N/A E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2024-9-27> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2BLDP-WB101 WB101 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Xianshen Jin/Manager Company: ShenZhen DZinno Technology Co. ,Ltd. Address: 1403,14th Floor,Building 4,Phase 2, Tian'an Yungu Industrial Park,Gangtou Community,Bantian Street,Longgang District,Shenzhen, China Phone: 13424388340 Fax: N/A E-Mail: [email protected]

ShenZhen DZinno Technology Co. ,Ltd. 1403,14th Floor,Building 4,Phase 2, Tian'an Yungu Industrial Park,Gangtou Community,Bantian Street,Longgang District,Shenzhen, China Date: 2024-9-27 FCC ID: 2BLDP-WB101 Model Number: WB101 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, ShenZhen DZinno Technology Co. ,Ltd., declare that this EUT (FCC ID: 2BLDP-WB101) doesn’t have Ad Hoc mode function on “non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, Name/Title： Xianshen Jin/Manager Company: ShenZhen DZinno Technology Co. ,Ltd. Address: 1403,14th Floor,Building 4,Phase 2, Tian'an Yungu Industrial Park,Gangtou Community,Bantian Street,Longgang District,Shenzhen, China Phone: 13424388340 Fax: N/A E-Mail: [email protected]

ShenZhen DZinno Technology Co. ,Ltd. 1403,14th Floor,Building 4,Phase 2, Tian'an Yungu Industrial Park,Gangtou Community,Bantian Street,Longgang District,Shenzhen, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-9-27 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2BLDP-WB101 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Xianshen Jin/Manager Company: ShenZhen DZinno Technology Co. ,Ltd. Address: 1403,14th Floor,Building 4,Phase 2, Tian'an Yungu Industrial Park,Gangtou Community,Bantian Street,Longgang District,Shenzhen, China Phone: 13424388340 Fax: N/A E-Mail: [email protected]

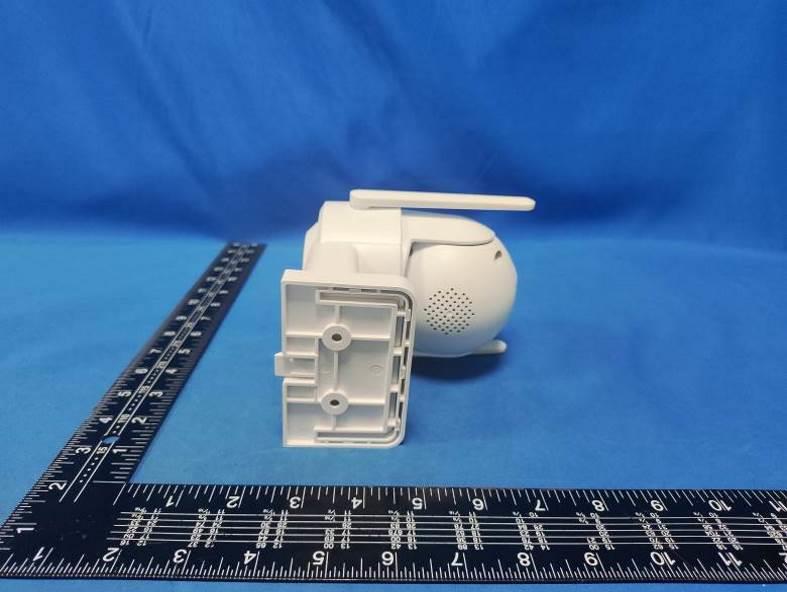

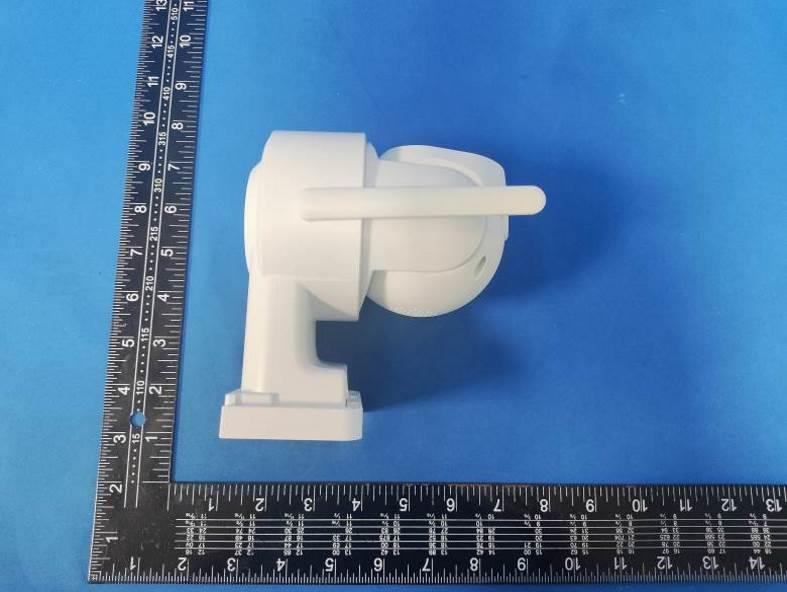

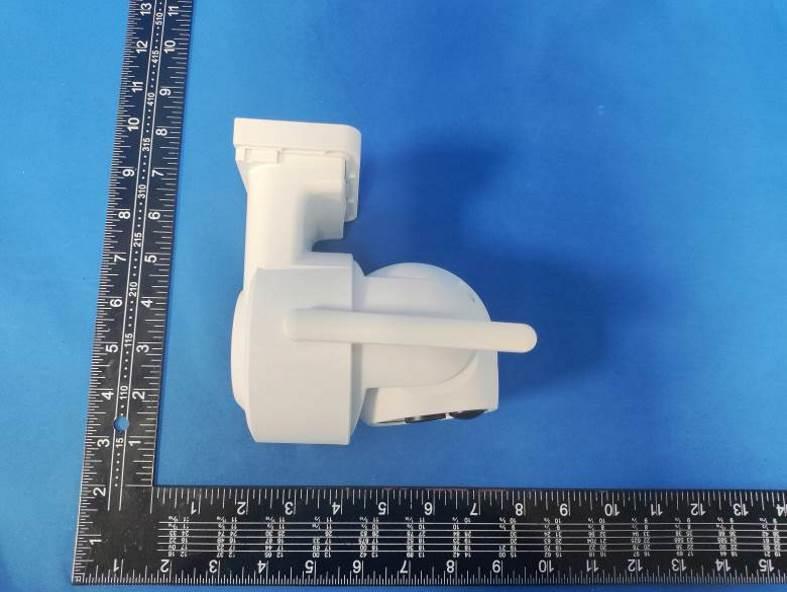

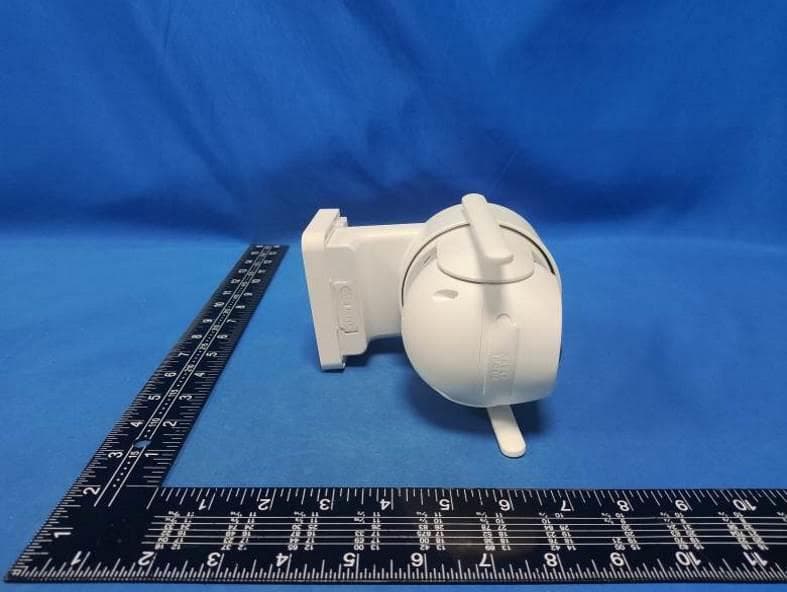

FCC ID: 2BLDP-WB101 External Photos of the EUT FCC ID: 2BLDP-WB101 FCC ID: 2BLDP-WB101

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location FCC ID : 2BLDP-WB101

FCC ID: 2BLDP-WB101 Internal Photos of the EUT FCC ID: 2BLDP-WB101 FCC ID: 2BLDP-WB101 FCC ID: 2BLDP-WB101 FCC ID: 2BLDP-WB101 FCC ID: 2BLDP-WB101 FCC ID: 2BLDP-WB101 Fake Antenna FCC ID: 2BLDP-WB101 ANT FCC ID: 2BLDP-WB101

RF Exposure evaluation FCC ID: 2BLDP-WB101 Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Antenna Information WB101 can only use antennas certificated as follows provided by manufacturer; Antenna No. Model No. of antenna: Type of antenna: Gain of the antenna (Max.) Frequency range: 2.4GWIFI / PCB Antenna 0.65dBi for 2400-2500MHz; 5. Manufacturing Tolerance Mode Max. Peak Conducted Output Power (dBm) Max. tune-up 2.4GWIFI 15.7 15.0±1 6. Standalone MPE Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is refer to section, the RF power density can be obtained. Modulation Type Output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW 2.4GWIFI 16.0 39.8107 0.65 1.1614 0.0092 1.0000 Remark: 1. Output power (Peak) including turn-up tolerance; 2. MPE evaluate distance is 20cm from user manual provide by manufacturer. 7. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. ----------------THE END OF REPORT---------------

1. Antenna Description: Antenna type PCB antenna Model WB101 Frequency range 2400-2500MHz Manufacturer ShenZhenDZinno Technology Co.Ltd. ANT Peak Gain 0.65 dBi 2. Antenna Photo: Length :9.33mm Width:6.51mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID............................................. : CTA24091401201 2BLDP-WB101 Compiled by ( position+printed name+signature) . : File administrators Jinghua Xiao Supervised by ( position+printed name+signature) . : Project Engineer Xudong Zhang Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Sep. 21, 2024 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : ShenZhen DZinno Technology Co. ,Ltd. Address ............................................ : 1403,14th Floor, Building 4, Phase 2, Tian'an Yungu Industrial Park, Gangtou Community, Bantian Street, Longgang District, Shenzhen, China Test specification ........................... : Standard ........................................... : FCC Part 15.247 TRF Originator .................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Pan-Tilt Outdoor Solar Camera Trade Mark ....................................... : N/A Manufacturer .................................... : ShenZhen DZinno Technology Co. ,Ltd. Model/Type reference ...................... : WB101 Listed Models .................................. : WB102, WB103, WB104, WB105, WB106, WB107, WB108, WB109, WB110, WB111, WB112, WB113, WB114, WB115 Modulation Type ............................... : CCK/DSSS/OFDM Operation Frequency ........................ : From 2412 - 2462MHz Rating ............................................... : DC 3.7V From battery and DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA24091401201 Page 2 of 46 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Pan-Tilt Outdoor Solar Camera Model /Type : WB101 Listed Models : WB102, WB103, WB104, WB105, WB106, WB107, WB108, WB109, WB110, WB111, WB112, WB113, WB114, WB115 Applicant : ShenZhen DZinno Technology Co. ,Ltd. Address : 1403,14th Floor, Building 4, Phase 2, Tian'an Yungu Industrial Park, Gangtou Community, Bantian Street, Longgang District, Shenzhen, China Manufacturer : ShenZhen DZinno Technology Co. ,Ltd. Address : 1403,14th Floor, Building 4, Phase 2, Tian'an Yungu Industrial Park, Gangtou Community, Bantian Street, Longgang District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA24091401201 Page 3 of 46 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Test Description 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 11 4.1 AC Power Conducted Emission 11 4.2 Radiated Emission 14 4.3 Maximum Peak Conducted Output Power 20 4.4 Power Spectral Density 21 4.5 6dB Bandwidth 24 4.6 Out-of-band Emissions 27 4.7 Antenna Requirement 34 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 35 6 P H O T O S O F T H E E U T ........................................................... 36 Report No.: CTA24091401201 Page 4 of 46 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices KD…
