2BLFA-HJ-WX8Bwireless charger

Wireless Charger Features: .Water resistance .Pressure resistance .Smart and conveninent charging .Easy for assembly for the hole of office desk in the cafe/restaurant/airport/train/guest room/ station Specific ation Model: HJ-WX8A/B/C/D Input: QC3.0 DC9V2A 12V1.5A Wireless output:5W 7.5W 10W 15W Standby energy consumption:<50mA Working frequency rang:110k-205kHz Working frequency:72%(max) Launch distance:2-6mm Installation diameter:60mm Temperature of outer case:55°C(max) Size:Ø73.8*18mm Weight:85g Use: -Phone built-in or add a wireless receiver to it. -The LED indicator remains red when connected to the power and turn off after sucessful connection. -QI standard transmitter is charged automatically once recofnized approximately 5 seconds. -If you put the offset distance>7MM will not charge. Notice: -Insert the computer USB 2.0 is ptohibited as small current by computer. -USB 3.0 is the minimum requirement. -Plesse remove the USB insert again if it can`t charge,mobile phone`s receiver must be on center. MIDE IN CHINA This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Radiation Exposure Statement This device complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. The FCC certification of this device refers to RF exposure testing performed in typical operating conditions, where a person is no closer than 20 centimeters from the device surface at all times, except for non-repetitive patterns with transient time intervals in the order of a second. Only in the stated conditions, the device is shown to fully comply with the FCC RF Exposure requirements of KDB 447498.

SHENZHEN HONGJIXINGYUAN ELECTRONIC CO.,LTD 601,Yongchang Building, New Building 4,Xicheng Industrial Zone,Longteng Community,Xixiang Street,Bao'an District,China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-10-5 To whom it may concern: We, SHENZHEN HONGJIXINGYUAN ELECTRONIC CO.,LTD, hereby certify that the equipment for which authorization is sought (FCC ID: 2BLFA-HJ-WX8B) is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist) as an entity producing “covered” equipment. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Sincerely, Signature chuanxing Qin Manager SHENZHEN HONGJIXINGYUAN ELECTRONIC CO.,LTD 62_[model] CoveredEqu_2.911(d)(5)(i) and (ii) - U, V03

SHENZHEN HONGJIXINGYUAN ELECTRONIC CO.,LTD 601, Yongchang Building, New Building 4, Xicheng Industrial Zone, Longteng Community, Xixiang Street, Bao'an District, Shenzhen, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024/09/29 U.S. Agent Designation SHENZHEN HONGJIXINGYUAN ELECTRONIC CO.,LTD acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BLFA-HJ-WX8B): Name and company of U.S. agent: SELLER HELPER INC. Physical U.S. address of agent: 1312 17th Street 1298Denver CO 80202United States denver, CO 80202 United States FRN of U.S. agent: 0033406737 Email address of U.S. agent: [email protected] SELLER HELPER INC. acknowledges their obligation to accept service of process on behalf of SHENZHEN HONGJIXINGYUAN ELECTRONIC CO.,LTD SHENZHEN HONGJIXINGYUAN ELECTRONIC CO.,LTD with the FRN [0036009058] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature chuanxing Qin Manager SHENZHEN HONGJIXINGYUAN ELECTRONIC CO.,LTD Signature Fairy Lee Manager SELLER HELPER INC. 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

SHENZHEN HONGJIXINGYUAN ELECTRONIC CO.,LTD Add: 601,Yongchang Building, New Building 4,Xicheng Industrial Zone,Longteng Community,Xixiang Street,Bao'an District,China Date: 2024-10-5 FCC ID: 2BLFA-HJ-WX8B Dear Sir/Madam, We, SHENZHEN HONGJIXINGYUAN ELECTRONIC CO.,LTD Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: wireless charger Model no.: HJ-WX8B, HJ-WX8A, HJ-WX8C, HJ-WVX8D Sincerely, Name/Title： chuanxing Qin/Manager Company: SHENZHEN HONGJIXINGYUAN ELECTRONIC CO.,LTD Address: 601,Yongchang Building, New Building 4,Xicheng Industrial Zone,Longteng Community,Xixiang Street,Bao'an District,China Phone: 0755-36521017 Fax: N/A E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2024-10-5> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2BLFA-HJ-WX8B HJ-WX8B For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： chuanxing Qin/Manager Company: SHENZHEN HONGJIXINGYUAN ELECTRONIC CO.,LTD Address: 601,Yongchang Building, New Building 4,Xicheng Industrial Zone,Longteng Community,Xixiang Street,Bao'an District,China Phone: 0755-36521017 Fax: N/A E-Mail: [email protected]

SHENZHEN HONGJIXINGYUAN ELECTRONIC CO.,LTD 601,Yongchang Building, New Building 4,Xicheng Industrial Zone,Longteng Community,Xixiang Street,Bao'an District,China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-10-5 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2BLFA-HJ-WX8B including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： chuanxing Qin/Manager Company: SHENZHEN HONGJIXINGYUAN ELECTRONIC CO.,LTD Address: 601,Yongchang Building, New Building 4,Xicheng Industrial Zone,Longteng Community,Xixiang Street,Bao'an District,China Phone: 0755-36521017 Fax: N/A E-Mail: [email protected]

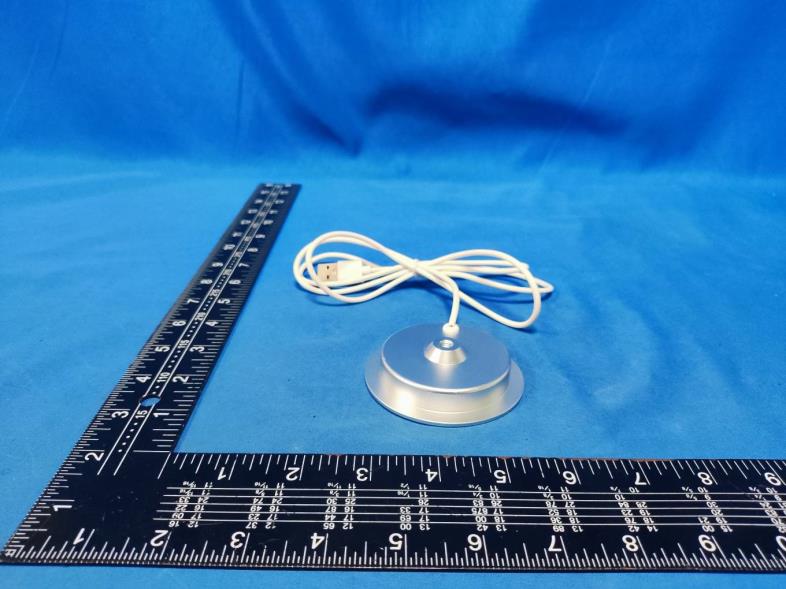

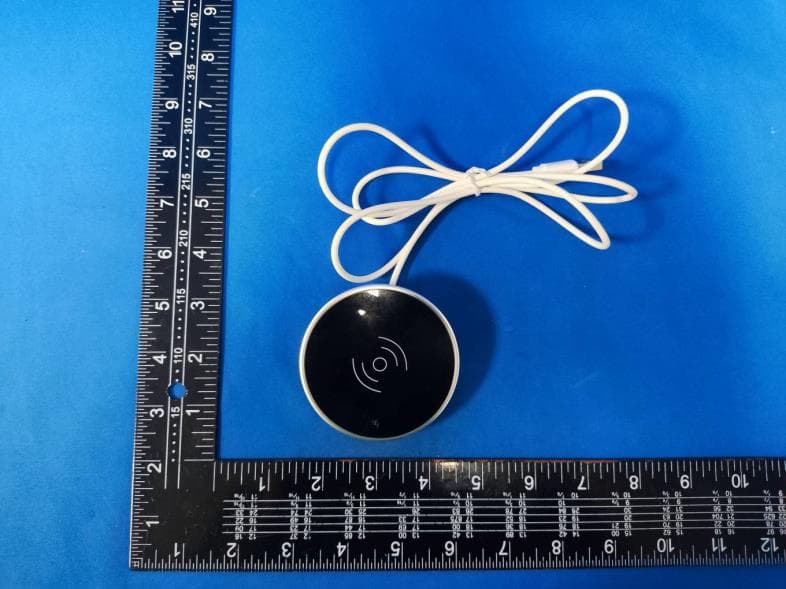

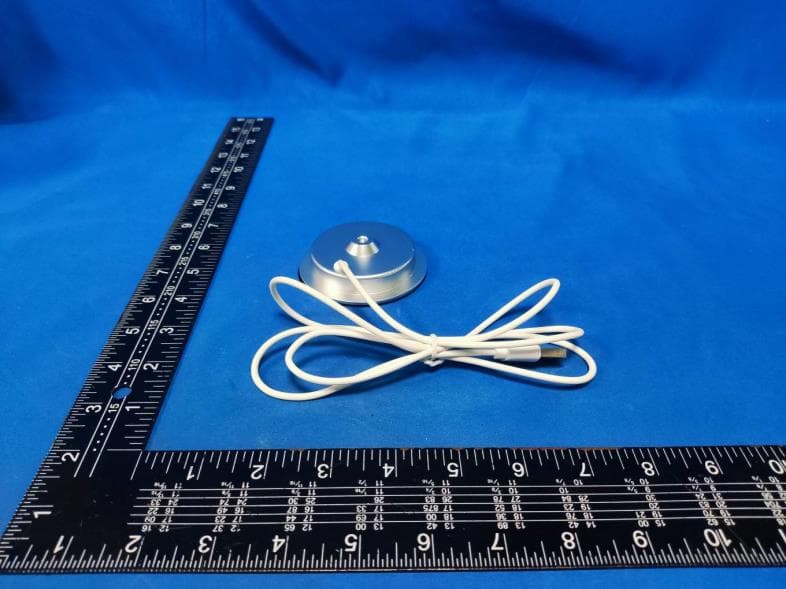

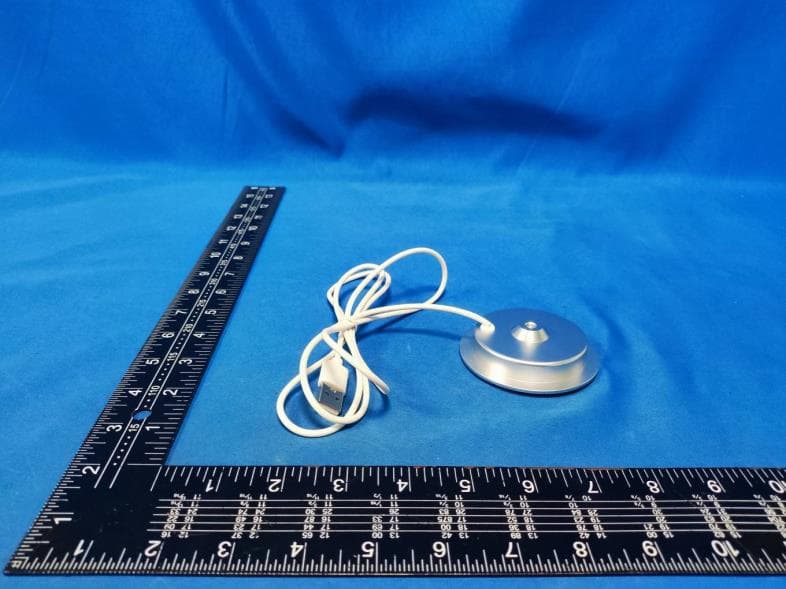

FCC ID: 2BLFA-HJ-WX8B External Photos of the EUT FCC ID: 2BLFA-HJ-WX8B

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location FCC ID : 2BLFA-HJ-WX8B

FCC ID: 2BLFA-HJ-WX8B Internal Photos of the EUT FCC ID: 2BLFA-HJ-WX8B ANT

Page 1 of 5 RF Exposure Evaluation FCC ID: 2BLFA-HJ-WX8B 1 Measuring Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. According KDB680106 D01: KDB 680106 D01 Wireless Power Transfer v04. 2 Requirements According to the item 3 of KDB 680106 D01v04: Inductive wireless power transfer applications that meet all of the following requirements are excluded from submitting an RF exposure evaluation. (1) Mobile Device and Portable Device Configurations (2) Equipment Authorization Procedures for Devices Operating at Frequencies Below 4 MHz (3) The aggregate H-field strengths anywhere at or beyond 15 cm surrounding the device, and 20 cm away from the top surface. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Page 2 of 5 3 Test Setup 4 Test Procedure 1) The RF exposure test was performed in anechoic chamber. 2) The measurement probe was placed at test distance (15 cm from all sides and 20 cm from the top) which is between the edge of the charger and the geometric center of probe. 3) The highest emission level was recorded and compared with limit as soon as measurement of each points (A, B, C, D, E) were completed. 4) The EUT was measured according to the dictates of KDB 680106 D01v04. Remark：The EUT’s test position A, B, C, D and E is valid for the E and H field measurements. 5 Equipment Approval Considerations The EUT does comply with KDB 680106 D01 as follow table. Requirements of KDB 680106 D01 Yes / No Description Mobile Device and Portable Device Configurations Yes Mobile Device Equipment Authorization Procedures for Devices Operating at Frequencies Below 4 MHz Yes The device operate in the frequency range 110KHz~205KHz RF Exposure compliance may be ensured only for a minimum separation distance that is greater than 20 cm, while use conditions at smaller distances can still be considered unlikely. Yes The EUT H-field strengths at 15 cm surrounding the device and 20 cm above the top surface. Page 3 of 5 6 Description of the test mode Equipment under test was operated during the measurement under the following conditions: Charging and communication mode Test Modes: Mode 1 AC/DC Adapter (5V/2.0A) + EUT + Mobile phone (Battery Status: <1%) Pre-Tested Mode 2 AC/DC Adapter (5V/2.0A) + EUT + Mobile phone (Battery Status: <50%) Pre-Tested Mode 3 AC/DC Adapter (5V/2.0A) + EUT + Mobile phone (Battery Status: 100%) Pre-Tested Mode 4 AC/DC Adapter (9V/2.0A) + EUT + Mobile phone (Battery Status: <1%) Pre-Tested Mode 5 AC/DC Adapter (9V/2.0A) + EUT + Mobile phone (Battery Status: <50%) Pre-Tested Mode 6 AC/DC Adapter (9V/2.0A) + EUT + Mobile phone (Battery Status: 100%) Pre-Tested Mode 7 AC/DC Adapter (12V/1.5A) + EUT + Mobile phone (Battery Status: <1%) Record Mode 8 AC/DC Adapter (12V/1.5A) + EUT + Mobile phone (Battery Status: <50%) Record Mode 9 AC/DC Adapter (12V/1.5A) + EUT + Mobile phone (Battery Status: 100%) Record Note: All test modes were pre-tested, but we only recorded the worst case in this report. 7 Description of Support Units Follow auxiliary equipment(s) test with EUT that provided by the manufacturer or laboratory is listed as follow: Description Manufacturer Model Technical Parameters Certificate Provided by Adapter / EP-TA20CBC Input: AC 100-240V 50/60Hz Output: DC 5V 2A SDOC Lab. Page 4 of 5 8 Test Instruments list Test Equipment Manufacturer Model No. SN. Cal.Date (mm-dd-yy) Cal.Due date (mm-dd-yy) Exposure Level Tester Narda ELT-400 N-0231 June 24 2024 June 23 2025 Magnetic field probe 100cm 2 Narda ELT probe 100cm 2 M0675 June 24 2024 June 23 2025 9 Test Result H-Field Strength at 15 cm from the edges surrounding the EUT and 15cm from the top surface of the EUT Chargin g Battery Level Unit Frequency Range (MHz) Measured H-Field Strength Values (A/m) FCC H-Field Strength Limits (A/m) Test Position A Test Position B Test Position C Test Position D Test Position E 1% uT 0.118 0.439 0.435 0.459 0.446 0.441 -- 1% A/m 0.118 0.351 0.348 0.367 0.357 0.353 1.63 50% uT 0.118 0.248 0.249 0.236 0.234 0.244 -- 50% A/m 0.118 0.198 0.199 0.189 0.187 0.195 1.63 99% uT 0.118 0.169 0.159 0.148 0.144 0.140 -- 99% A/m 0.118 0.135 0.127 0.118 0.115 0.112 1.63 H-Field Strength at 20cm from the top surface of the EUT Charging Battery Level Unit Frequency Range (MHz) Measured H-Field Strength Values (A/m) FCC H-Field Strength Limits (A/m) Test Position E 1% uT 0.118 0.414 -- 1% A/m 0.118 0.331 1.63 50% uT 0.118 0.209 -- 50% A/m 0.118 0.167 1.63 99% uT 0.118 0.126 -- 99% A/m 0.118 0.101 1.63 Note:1. A/m=uT/1.25 Note: 2. During test the frequencies less than 1 MHz and E/H ratio less than 1/10 of the 377-ohm free space wave impedance, only record H-field measurements result. Page 5 of 5 10 Conclusion A minimum safety distance of 20 cm to the antenna is required when the device is charging a smart phone for mobile exposure. The detected emissions are below the limitations according FCC KDB 680106 and confirmed by the FCC according to KDB Inquire. 11 Test Set-up Photo ------End------

1. Antenna Description: Antenna type Loop coil antenna Model HJ-WX8B Frequency range 110KHz - 205KHz Manufacturer SHENZHEN HONGJIXINGYUAN ELECTRONIC CO.,LTD ANT Peak Gain 0.0 dBi 2. Antenna Photo: Length: 46.20mm Width: 13.39mm

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT Report Reference No. ..................... : FCC ID............................................. : CTA24092501201 2BLFA-HJ-WX8B Compiled by ( position+printed name+signature) . : File administrators Jinghua Xiao Supervised by ( position+printed name+signature) . : Project Engineer Xudong Zhang Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Sep. 27, 2024 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : SHENZHEN HONGJIXINGYUAN ELECTRONIC CO.,LTD Address............................................ : 601, Yongchang Building, New Building 4, Xicheng Industrial Zone, Longteng Community, Xixiang Street, Bao'an District, Shenzhen, China Test specification ........................... : Standard ........................................... : FCC Rules and Regulations Part 15 Subpart C (Section 15.209), ANSI C63.10: 2013 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : wireless charger Trade Mark ....................................... : Manufacturer .................................... : SHENZHEN HONGJIXINGYUAN ELECTRONIC CO.,LTD Model/Type reference ...................... : HJ-WX8B Listed Models .................................. : HJ-WX8A, HJ-WX8C, HJ-WVX8D Modulation Type ............................... : ASK Operation Frequency ........................ : From 110KHz~205KHz Rating ............................................... : Input: DC5V2A, 9V2A, 12V1.5A Wireless output:5W, 7.5W, 10W, 15W Result ............................................... : PASS Report No.: CTA24092501201 Page 2 of 22 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : wireless charger Model /Type : HJ-WX8B Listed Models : HJ-WX8A, HJ-WX8C, HJ-WVX8D Applicant : SHENZHEN HONGJIXINGYUAN ELECTRONIC CO.,LTD Address : 601, Yongchang Building, New Building 4, Xicheng Industrial Zone, Longteng Community, Xixiang Street, Bao'an District, Shenzhen, China Manufacturer : SHENZHEN HONGJIXINGYUAN ELECTRONIC CO.,LTD Address : 601, Yongchang Building, New Building 4, Xicheng Industrial Zone, Longteng Community, Xixiang Street, Bao'an District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA24092501201 Page 3 of 22 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Description of the test mode 5 2.4 Special Accessories 5 2.5 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 6 3.1 Address of the test laboratory 6 3.2 Test Facility 6 3.3 Environmental conditions 6 3.4 Summary of measurement results 7 3.5 Statement of the measurement uncertainty 7 3.6 Equipments Used during the Test 7 4 T E S T C O N D I T I O N S A N D R E S U L T S ............................................. 9 4.1 AC Power Conducted Emission 9 4.2 Radiated Emission 12 4.3 The 20dB bandwidth 16 4.4 Antenna Requirement 17 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 18 6 PH O T O S O F T H E E U T ........................................................... 19 Report No.: CTA24092501201 Page 4 of 22 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules and Regulations Part 15 Subpart C (Section 15.207): Conducted limits. FCC Rules and Regulations Part 15 Subpart C (Section 15.209): Radiated emission limits; general requirements. ANSI C63.10: 2013: American National Standard for Testing Unlicensed Wireless Devices Report No.: CTA24092501201 Page 5 of 22 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : Sep. 21, 2024 Testing commenced on : Sep. 21, 2024 Testin…

Text truncated - open the document above for the full version.

FCC ID: 2BLFA-HJ-WX8B Test Setup Photos of the EUT
