2BLHG-NMF-NG2-F25Neumafit Gen2

Neumafit Gen2 User Manual 1. System Configuration This device is a completely wireless, all-in-one system consisting of hardware (Respiratory Measurement Unit), software (App), and single-use consumables. ComponentFunction DescriptionHandling Precautions Respiratory Measurement Unit Breath flow/gas analysis & Bluetooth transmission Do NOT wash with water (Non-waterproof) Neumafit AppDevice control, data reception, and FatMax analysis Installed on smartphone Disposable MaskFacial mask for breath collection Single-use only (Do not reuse) 2. Power & Connection 2.1 Power On 1.Touch and hold the touch area on the surface of theRespiratory Measurement Unitfor3 seconds. 2.The status LED will light up, indicating the device is ready for immediate use. (No warm-up time required). FCC ID : 2BLHG-NMF-NG2-F25 2.2 App Launch & Bluetooth Pairing 1.Turn on the Bluetooth function on your smartphone. 2.Launch the'Neumafit' Appand log in. 3.Select[Connect Device]on the main screen of the App. 4.Select the detectedRespiratory Measurement Unitto pair. Once connected, the App will display a 'Connected' status at the top. 3. Assembly & Wearing [WARNING]TheRespiratory Measurement Unitis a precision electronic device. Ensure that no moisture or foreign substances enter the internal components. 3.1 Assembly 1.Open the packaging of a newDisposable Mask. 2.Align the connector of theRespiratory Measurement Unitwith theopening located on the SIDEof the mask and push it in. 3.Ensure theRespiratory Measurement Unitis fully inserted into the side hole of the mask. ○ Note: There is no "click" sound during assembly. Visually check to ensure there are no gaps between the unit's edge and the mask opening, and verify it is securely fixed. 3.2 Wearing 1.Input the subject's physical information (Body Weightis mandatory) into the Neumafit App. 2.Place the mask with the attachedRespiratory Measurement Unitonto the subject's face (covering nose and mouth). ○ Note: Position the mask carefully to prevent it from sagging to one side due to the weight of the unit. 3.Adjust the headgear (straps) to apply appropriate pressure, ensuring no air leaks around the edges of the mask. 4. FatMax Measurement Protocol 4.1 Start Measurement & Data Reception 1.When the subject is ready, press the[Start Measurement]button on the Neumafit App. 2.Resting Phase:Collect breath data for the initial 2 minutes while the subject is in a comfortable standing position. 3.Exercise Phase:Perform the exercise according to the protocol provided by the App (incremental increase in intensity). 4.Real-time Monitoring:Breath data analyzed by theRespiratory Measurement Unitis transmitted to the App in real-time and displayed as graphs. 4.2 Termination Criteria 1.When theFatMax Zoneis identified or the RER (Respiratory Exchange Ratio) reaches1.0 or higher. 2.If the subject cannot continue the exercise. 3.In the above situations, press the[Stop]button on the App to complete the measurement. 4.3 Review Results ● Immediately after termination, check theFatMax Zone(maximal fat oxidation heart rate zone) and the energy metabolism report on the App screen. 5. Maintenance & Shutdown 5.1 Disassembly & Disposal 1.After the measurement is complete, remove the mask from the subject. 2.Carefully pull theRespiratory Measurement Unitout of theside holeof the mask. 3.Immediately discard the used Disposable Mask.(Reuse is strictly prohibited to prevent cross-contamination). 5.2 Cleaning the Respiratory Measurement Unit [CAUTION] Do NOT wash with water. The Respiratory Measurement Unit is not waterproof. Submerging it in water or rinsing it under running water will cause damage to internal circuits and sensors. 1.Gently wipe the exterior of theRespiratory Measurement Unitwith an alcohol swab or disinfectant wipe. 2.Store the unit in a well-ventilated, dry place, ensuring no liquid enters the internal air passages. 5.3 Power Off 1.Disconnect or close theNeumafit App. 2.Touch and hold the touch area on theRespiratory Measurement Unitfor5 seconds. 3.The LED will turn off, indicating that the power is completely shut down. 6. Specifications ItemDetails Product NameNeumafit Form FactorMask-attached (Side-mount) Wireless Metabolic Analyzer CommunicationBluetooth Low Energy (BLE) Dedicated AppNeumafit App Power ControlCapacitive Touch (ON: 3s / OFF: 5s) Waterproof RatingNon-waterproof (Do not wash) ConsumablesDisposable Mask (Single-use) Power SourceInternal Lithium Battery (Rechargeable) FCC Compliance Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC Caution Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this eq…

Text truncated - open the document above for the full version.

neumafit Inc. 32-1-306, 1, Gwanak-ro, Gwanak-gu, Seoul, South Korea Tel: +82-10-2274-3514 Rev 1/26/2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: February 27, 2025 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID : 2BLHG-NMF-NG2-F25 [neumafit Inc.] (“the applicant”) certifies that the equipment for which authorization is soughtis not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. [neumafit Inc.] (“the applicant”) certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant toDA-24-886andKDB 986446 D01 Covered Equipment Guidancesection B(2a). Device is inherently compliant based on hardware limitations or software controls. or A Software Bill of Materials (SBOM) is provided to the TCB for review, and The end-user or third parties cannot install additional software on this device. Sincerely, CEO / Jinmo Kim neumafit Inc. neumafit Inc. 32-1-306, 1, Gwanak-ro, Gwanak-gu, Seoul, South Korea Tel: +82-10-2274-3514 Rev 1/26/2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: February 27, 2025 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID : 2BLHG-NMF-NG2-F25 [neumafit Inc.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is notidentified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, CEO / Jinmo Kim neumafit Inc.

neumafit Inc. 32-1-306, 1, Gwanak-ro, Gwanak-gu, Seoul, South Korea Tel: +82-10-2274-3514 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: February 27, 2025 Ref: Attestation Statements Part 2.911(d)(7) Filing FCC ID : 2BLHG-NMF-NG2-F25 Applicant FRN : 0036061190 neumafit inc. certifies that, as of the date of the filing of the application, FCC US AGENT, LLC. is our designated U.S. agent for service of process for the above referenced FCC ID. neumafit inc. accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. FCC US AGENT, LLC. accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Name: FCC US AGENT, LLC. U.S. Agent FRN: 0033402884 Address: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA Contact Person: Tim Payne Tel.: 708-571-3147 Email: [email protected] Sincerely, neumafit Inc. FCC US AGENT, LLC. CEO / Jinmo Kim Tim Payne [U.S. Agent signature] Rev 1/26/2023

neumafit Inc. 32-1-306, 1, Gwanak-ro, Gwanak-gu, Seoul, South Korea Tel: +82-10-2274-3514 Date: February 27, 2025 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Confidentiality Request regarding application for certification of FCC ID : 2BLHG-NMF-NG2-F25 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules and IC regulation, we hereby request confidential treatment of information accompanying this application as outlined below: PERMANENT Exhibit TypeFile Name Part ListPart List.pdf Schematics Diagram(s)Schematic.pdf Operation descriptionOperation description.pdf Block diagramBlock diagram.pdf And the above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, CEO / Jinmo Kim neumafit Inc.

neumafit Inc. 32-1-306, 1, Gwanak-ro, Gwanak-gu, Seoul, South Korea Tel: +82-10-2274-3514 Date: February 27, 2025 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 FCC ID : 2BLHG-NMF-NG2-F25 To whom it may concern: I, the undersigned, hereby authorize Young-Jin, Lee of KES Co., Ltd. and hereafter referred to as KES Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Young-Jin, Lee of KES Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing KES Co., Ltd. as our agent, we still recognize that we are responsible to: a)comply with the relevant provisions of the certification program; b)make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c)make claims regarding certification only in respect of the scope for which certification has been granted; d)do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e)upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f)use certification only to indicate the products are certified as being in conformity with specified standards; neumafit Inc. 32-1-306, 1, Gwanak-ro, Gwanak-gu, Seoul, South Korea Tel: +82-10-2274-3514 g)endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h)ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i)keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j)take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k)document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, CEO /Jinmo Kim neumafit Inc. REMARK: 1.This authorization letter will be sent along with your application when filing with the Certification Division. 2.Please follow the format and type it on company letterhead and send original to us. 3.Authorized signature must be in agreement with grantee code contact in FCC database.

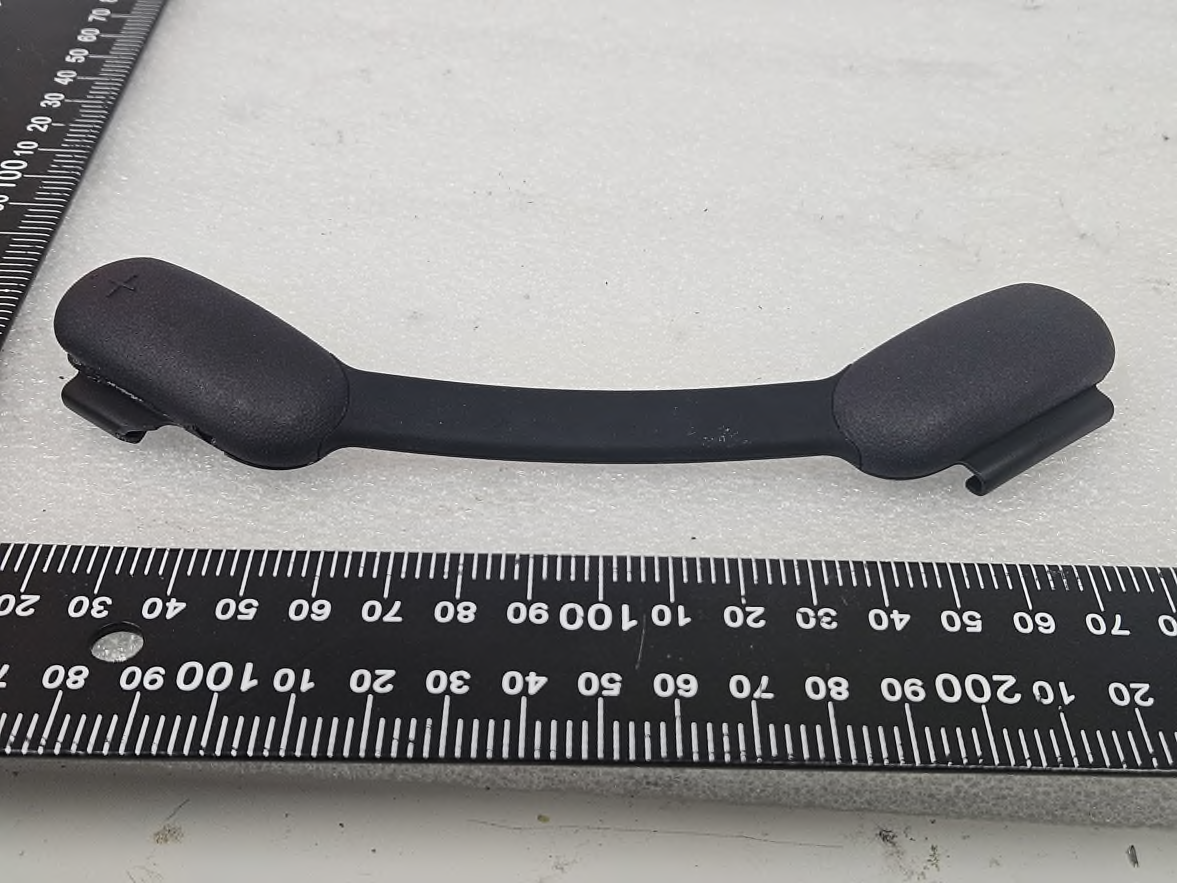

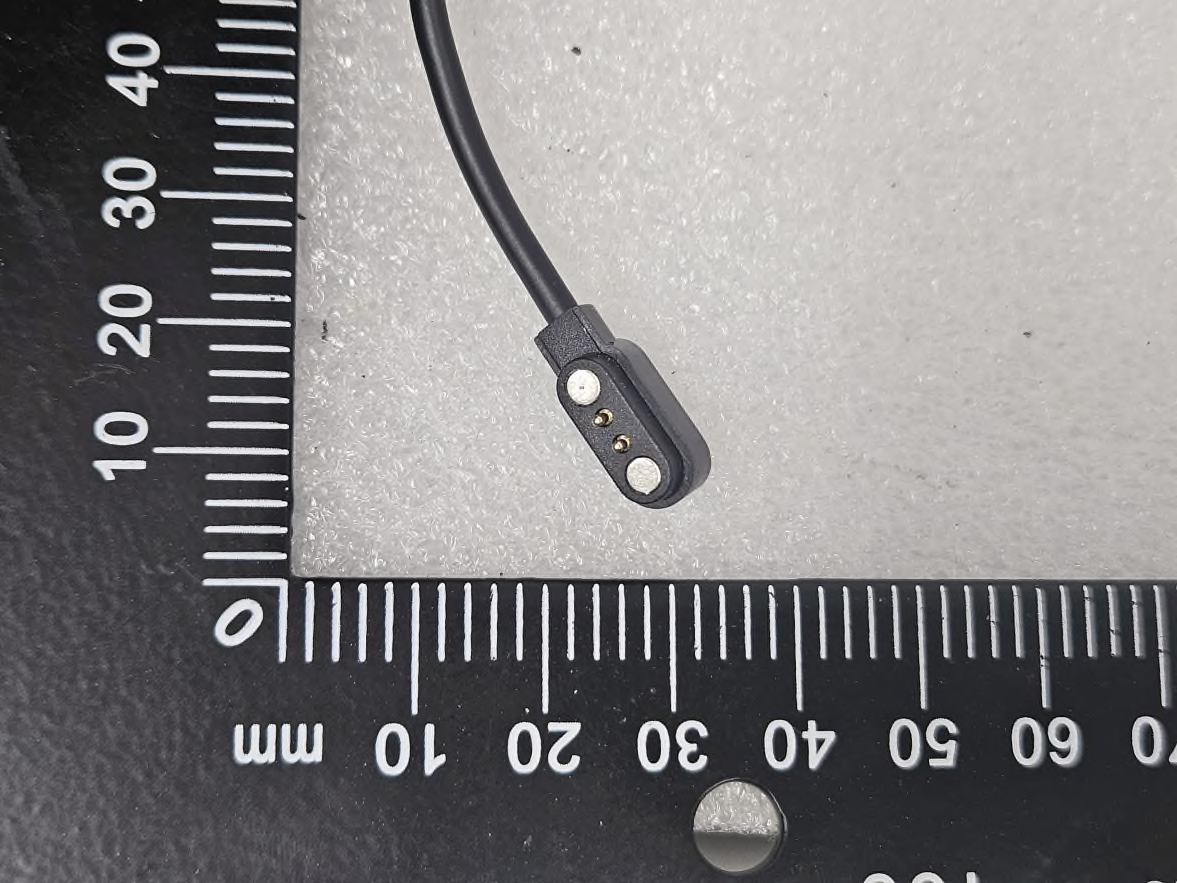

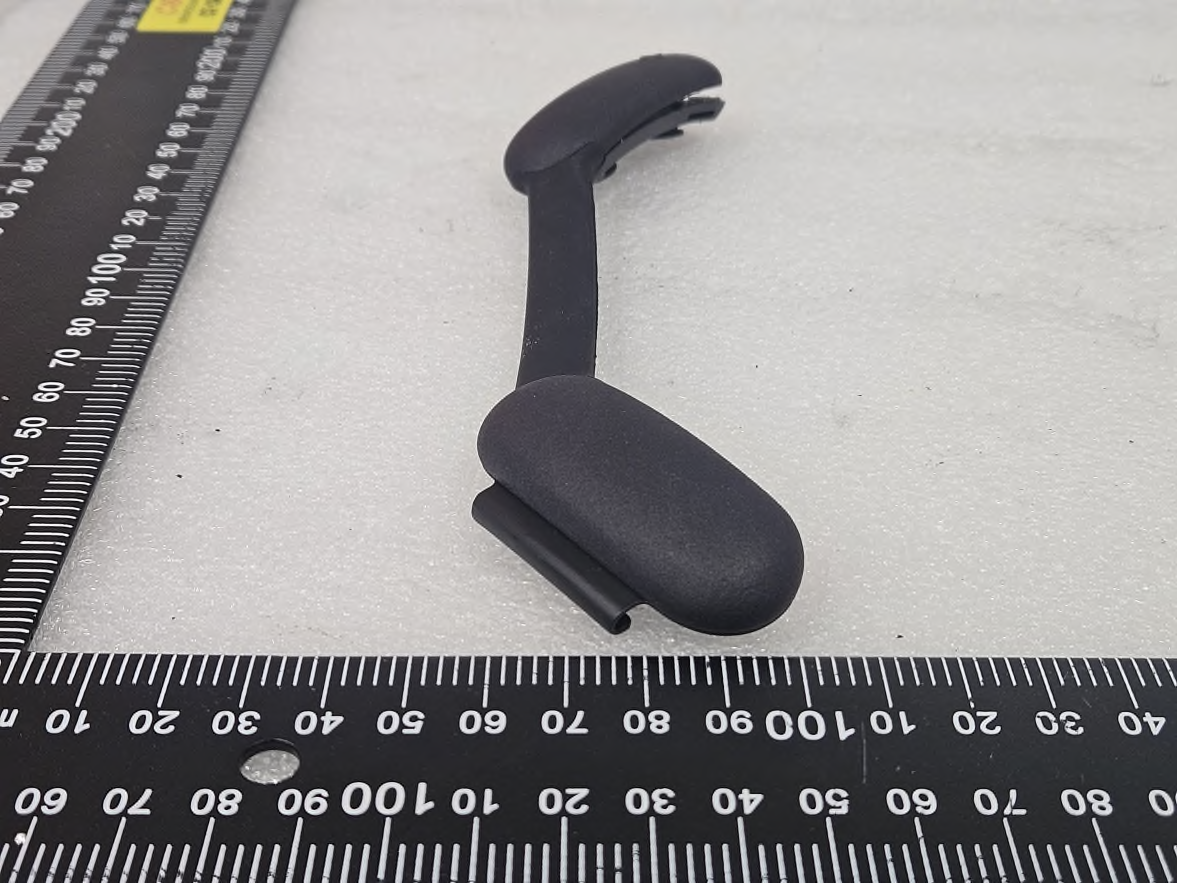

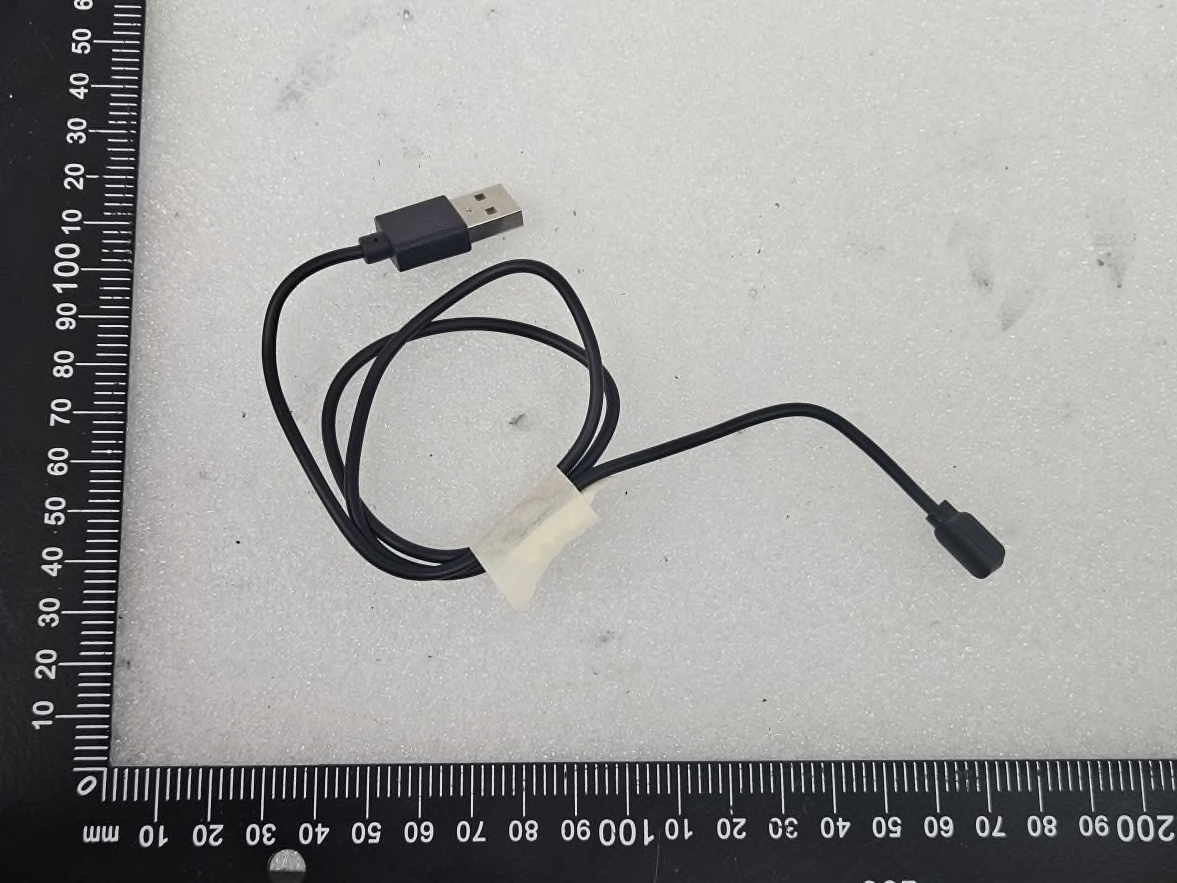

FCC ID : 2BLHG-NMF-NG2-F25Page 1 of 2 External photos FCC ID : 2BLHG-NMF-NG2-F25Page 2 of 2

FCC ID : 2BLHG-NMF-NG2-F25Page 1 of 1 Label Location Label The device is so small that it is not practicable to place the statement specified under 15.19 statement request & information about manufacturer, the information required by this paragraph shall be placed in a prominent location in the User’s Manual.

FCC ID : 2BLHG-NMF-NG2-F25Page 1 of 2 Internal photos FCC ID : 2BLHG-NMF-NG2-F25Page 2 of 2 Chip Antenna

FCC ID : 2BLHG-NMF-NG2-F25Page 1 of 1 RF exposure FCC ID : 2BLHG-NMF-NG2-F25 According to 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100㎒to 6㎓ at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(㎓)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, Where; f(㎓) is the RF channel transmit frequency in㎓ Power and distance are rounded to the nearest㎽andmmbefore calculation The result is rounded to one decimal place for comparison Results Mode Frequency (㎓) Distance (mm) Maxtune-up power (㏈m) Calculation value Exclusion Threshold (㏈m)(㎽) LE 1 Mbps2.402 ~ 2.48053.001.9950.628≤3.0 LE 2 Mbps2.402 ~ 2.48053.001.9950.628≤3.0

Report No. : KES-RF250790 Page26/47 KES-QP16-F01(00-23-01-01)KES Co., Ltd. You can check the authenticity of this test report on the authenticity verification page on our website (www.kes.co.kr). Horizontal // Peak for 3㎓to 18㎓Vertical // Peak for 3㎓to 18㎓ Horizontal // Average for 3㎓to 18㎓Vertical // Average for 3㎓to 18㎓ Note. 1. Average test would be performed if the peak result were greater than the average limit. Report No. : KES-RF250790 Page27/47 KES-QP16-F01(00-23-01-01)KES Co., Ltd. You can check the authenticity of this test report on the authenticity verification page on our website (www.kes.co.kr). Mode:LE 1 Mbps Distance of measurement:3 meter Channel:39 -Spurious Frequency (㎒) Level (㏈㎶) Detect mode Ant. Pol. (H/V) CF (㏈) DCF (㏈) Field strength (㏈㎶/m) Limit (㏈㎶/m) Margin (㏈) 2 588.7443.15PeakV1.36-44.5174.0029.49 2 589.1450.86PeakH1.36-52.2274.0021.78 2 589.1446.74AverageH1.360.6648.7654.005.24 2 607.9454.11PeakH1.38-55.4974.0018.51 2 607.9451.04AverageH1.380.6653.0854.000.92 4 959.6042.06PeakH7.06-49.1274.0024.88 4 959.6034.66AverageH7.060.6642.3854.0011.62 9 919.6043.99PeakV14.71-58.7074.0015.30 9 919.6037.67AverageV14.710.6653.0454.000.96 9 921.1041.65PeakH14.72-56.3774.0017.63 9 921.1034.73AverageH14.720.6650.1154.003.89 -Band edge Frequency (㎒) Level (㏈㎶) Detect mode Ant. Pol. (H/V) CF (㏈) DCF (㏈) Field strength (㏈㎶/m) Limit (㏈㎶/m) Margin (㏈) 2 483.54 51.94PeakH1.31-53.2574.0020.75 2 483.7644.31PeakV1.31-45.6274.0028.38 Restricted band // Horizontal // PeakRestricted band // Vertical // Peak Report No. : KES-RF250790 Page28/47 KES-QP16-F01(00-23-01-01)KES Co., Ltd. You can check the authenticity of this test report on the authenticity verification page on our website (www.kes.co.kr). Horizontal // Peak for 1㎓to 3㎓Vertical // Peak for 1㎓to 3㎓ Horizontal // Average for 1㎓to 3㎓Vertical // Average for 1㎓to 3㎓ Blank Report No. : KES-RF250790 Page29/47 KES-QP16-F01(00-23-01-01)KES Co., Ltd. You can check the authenticity of this test report on the authenticity verification page on our website (www.kes.co.kr). Horizontal // Peak for 3㎓to 18㎓Vertical // Peak for 3㎓to 18㎓ Horizontal // Average for 3㎓to 18㎓Vertical // Average for 3㎓to 18㎓ Note. 1. Average test would be performed if the peak result were greater than the average limit. Report No. : KES-RF250790 Page30/47 KES-QP16-F01(00-23-01-01)KES Co., Ltd. You can check the authenticity of this test report on the authenticity verification page on our website (www.kes.co.kr). Mode:LE 2 Mbps Distance of measurement:3 meter Channel:0 -Spurious Frequency (㎒) Level (㏈㎶) Detect mode Ant. Pol. (H/V) CF (㏈) DCF (㏈) Field strength (㏈㎶/m) Limit (㏈㎶/m) Margin (㏈) 1 076.4943.08PeakV-7.69-35.3974.0038.61 2 530.3548.83PeakH1.36-50.1974.0023.81 2 594.5444.46PeakH1.36-45.8274.0028.18 9 606.1044.40PeakV14.39-58.7974.0015.21 9 606.1035.16AverageV14.392.3751.9254.002.08 9 609.1043.03PeakH14.39-57.4274.0016.58 9 609.1036.68AverageH14.392.3753.4454.000.56 -Band edge Frequency (㎒) Level (㏈㎶) Detect mode Ant. Pol. (H/V) CF (㏈) DCF (㏈) Field strength (㏈㎶/m) Limit (㏈㎶/m) Margin (㏈) 2 342.0642.07PeakV0.71-42.7874.0031.22 2 354.3641.81PeakH0.78-42.5974.0031.41 Restricted band // Horizontal // PeakRestricted band // Vertical // Peak Report No. : KES-RF250790 Page31/47 KES-QP16-F01(00-23-01-01)KES Co., Ltd. You can check the authenticity of this test report on the authenticity verification page on our website (www.kes.co.kr). Horizontal // Peak for 1㎓to 3㎓Vertical // Peak for 1㎓to 3㎓ Horizontal // Peak for 3㎓to 18㎓Vertical // Peak for 3㎓to 18㎓ Horizontal // Average for 3㎓to 18㎓Vertical // Average for 3㎓to 18㎓ Note. 1. Average test would be performed if the peak result were greater than the average limit. Report No. : KES-RF250790 Page32/47 KES-QP16-F01(00-23-01-01)KES Co., Ltd. You can check the authenticity of this test report on the authenticity verification page on our website (www.kes.co.kr). Mode:LE 2 Mbps Distance of measurement:3 meter Channel:20 -Spurious Frequency (㎒) Level (㏈㎶) Detect mode Ant. Pol. (H/V) CF (㏈) DCF (㏈) Field strength (㏈㎶/m) Limit (㏈㎶/m) Margin (㏈) 1 037.10 43.78PeakV-7.92-35.8674.0038.14 2 569.7453.46PeakH1.36-54.8274.0019.18 2 569.7447.23AverageH1.362.3750.9654.003.04 2 569.7444.43PeakV1.36-45.7974.0028.21 2 597.7449.35PeakH1.36-50.7174.0023.29 2 597.7441.64AverageH1.362.3745.3754.008.63 9 769.6043.14PeakH14.02-57.1674.0016.84 9 769.6035.52AverageH14.022.3751.9154.002.09 9 769.6045.41PeakV14.02-59.4374.0014.57 9 769.6036.03AverageV14.022.3752.4254.001.58 Horizontal // Peak for 1㎓to 3㎓Vertical // Peak for 1㎓to 3㎓ Horizontal // Average for 1㎓to 3㎓Vertical // Average for 1㎓to 3㎓ Blank Report No. : KES-RF250790 Page33/47 KES-QP16-F01(00-23-01-01)KES Co., Ltd. You can check the authenticity of this test report on the authenticity verification page on our website (www.kes.co.kr). Horizontal // Peak for 3㎓to 18㎓Vertical // Peak for 3㎓to 18㎓ Horizontal // Average for 3㎓to 18㎓Vertical // Average for 3㎓to 18㎓ Note. 1. Average test would be performed if the peak result were greater than the average limit. Report No. : KES-RF250790 Page34/47 KES-QP16-F01(00-23-01-01)KES Co., Ltd. You can check the authenticity of this test report on the authenticity verification page on our website (www.kes.co.kr). Mode:LE 2 Mbps Distance of measurement:3 meter Channel:39 -Spurious Frequency (㎒) Level (㏈㎶) Detect mode Ant. Pol. (H/V) CF (㏈) DCF (㏈) Field strength (㏈㎶/m) Limit (㏈㎶/m) Margin (㏈) 2 589.1451.10PeakH1.36-52.4674.0021.54 2 589.1444.78AverageH1.362.3748.5154.005.49 2 607.3453.84PeakH1.38-55.2274.0018.78 2 607.3446.01AverageH1.382.3749.7654.004.24 2 607.3443.24PeakV1.38-44.6274.0029.38 4 959.6041.53PeakH7.06-48.5974.0025.41 4 959.6032.60AverageH7.062.3742.0354.0011.97 9 918.1041.86PeakH14.70-56.5674.0017.44 9 918.1033.39AverageH14.702.3750.4654.003.54 9 921.1043.08PeakV14.72-57.8074.0016.20 9 921.1033.99AverageV14.722.3751.0854.002.92 -Band edge Frequency (㎒) Level (㏈㎶) Detect mode Ant. Pol. (H/V) CF (㏈) DCF (㏈) Field strength (㏈㎶/m) Limit (㏈㎶/m) M…

Text truncated - open the document above for the full version.

TEST REPORT Report No. : KES-RF250790 Page1/47 KES Co., Ltd. #3002, #3503, #3701, 40, Simin-daero365beon-gil, Dongan-gu, Anyang-si,Gyeonggi-do, 14057, Republic ofKorea Tel : +82-31-425-6200, Fax : +82-31-341-3838 KES-QP16-F01(00-23-01-01)KES Co., Ltd. You can check the authenticity of this test report on the authenticity verification page on our website (www.kes.co.kr). FCC TEST REPORT 1. Client ○ Name : neumafit Inc. ○ Address : 32-1-306, 1, Gwanak-ro, Gwanak-gu, Seoul, South Korea 2. Sample Description ○ Product item : Neumafit Gen2 ○ Model name : NG2-F25 ○ Manufacturer etc. : neumafit Inc. 3. Date of test :2025.12.15 ~ 2025.12.17 4. Location of Test :Permanent Testing LabOn Site Testing ○ Address : 473-21, Gayeo-ro, Yeoju-si, Gyeonggi-do, 12658, Rep. of Korea 5. FCC Rule part(s) :Part 15 Subpart C 15.247 6. Test result :PASS The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced and copied without permission without the written consent of KES Co., Ltd. This laboratory is not accredited for the test results marked *. This test report is not related to KOLAS accreditation. Affirmation Tested byTechnical Manager Name : Gu-Bong, Kang(Signature) Name :Yeong-Jun Cho(Signature) 2025. 02. 27. KES Co., Ltd. Report No. : KES-RF250790 Page2/47 KES-QP16-F01(00-23-01-01)KES Co., Ltd. You can check the authenticity of this test report on the authenticity verification page on our website (www.kes.co.kr). REPORT REVISION HISTORY DateTest Report No.Revision History 2026.02.27KES-RF250790Initial This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. This document may be altered or revised by KES Co., Ltd. personnel only, and shall be noted in the revision section of the document. Any alteration of this document not carried out by KES Co., Ltd. will constitute fraud and shall nullify the document. Report No. : KES-RF250790 Page3/47 KES-QP16-F01(00-23-01-01)KES Co., Ltd. You can check the authenticity of this test report on the authenticity verification page on our website (www.kes.co.kr). TABLE OF CONTENTS 1.General information ................................................................................................................................... 4 1.1.EUT description .......................................................................................................................... 4 1.2.Test configuration........................................................................................................................ 4 1.3.Information about derivative model ............................................................................................ 5 1.4.Accessory information ................................................................................................................ 5 1.5.Device modifications................................................................................................................... 5 1.6.Sample calculation ..................................................................................................................... 5 1.7.Measurement Uncertainty .......................................................................................................... 5 1.8.Frequency/channel operations ................................................................................................... 6 2.Summary of tests ....................................................................................................................................... 7 3.Test results ................................................................................................................................................. 8 3.1.6㏈bandwidth .......................................................................................................................... 8 3.2.Output power .............................................................................................................................11 3.3.Power spectral density ............................................................................................................. 13 3.4.Radiated restricted band and emissions .................................................................................. 16 3.5.Conducted spurious emissions & band edge ........................................................................... 38 3.6.AC conducted emissions .......................................................................................................... 43 3.7.Antenna Requirement............................................................................................................... 45 Appendix A. Measurement equipment.......................................................................................................... 46 Report No. : KES-RF250790 Page4/47 KES-QP16-F01(00-23-01-01)KES Co., Ltd. You can check the authenticity of this test report on the authenticity verification page on our website (www.kes.co.kr). 1.General information Applicant:neumafit Inc. Applicant address:32-1-306, 1, Gwanak-ro, Gwanak-gu, Seoul, South Korea Test site:KES Co., Ltd. Test site address:#3002, #3503, #3701, 40, Simin-daero365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Rep. of Korea 473-21, Gayeo-ro, Yeoju-si, Gyeonggi-do, 12658, Rep. of Korea Test FacilityFCC Accreditation Designation No.: KR0100, Registration No.: 444148 FCC rule part(s):15.247 FCC ID:2BLHG-NMF-NG2-F25 Test device serial No.:ProductionPre-productionEngineering 1.1.EUT description Equipment under testNeumafit Gen2 Frequency range & Number of channels 2 402㎒~ 2 480㎒(LE 1/2 Mbps) : 40 ch ModelNG2-F25 Modulation techniqueGFSK Antenna specification Chip Antenna // Peak gain: 2.5㏈i Power sourceDC 3.7 V (Battery) H/W version1.0 F/W version2L17-1 1.2.Test configuration Theneumafit Inc. // Neumafit Gen2 // NG2-F25 // FCC ID: 2BLHG-NMF-NG2-F25was tested according to the specification of EUT, the EUT m…

Text truncated - open the document above for the full version.

Product Specification Chip Antenna 3.2 x 1.6 x 0.5 (mm) WiFi/Bluetooth Ceramic Chip Antenna (AA055U) Engineering Specification #412, Ace high-end Tower3. 371-50 Gasan-dong, Geumcheon-gu, seoul 153-803 Korea Tel : 82-785-2777~8,2624-0887~8 Fax : 82-785-2744 개정 이력 NO 일 자 변경전 변경후 개정사유 Rev. 1 2020.06.01 Black White 디자인 변경 1.0 3.2 x 1.6 x 0.5 (mm) WiFi/Bluetooth Ceramic Chip Antenna (AA055U) Engineering Specification 2. Features *Stable and reliable in performances *Low profile, compact size *RoHS compliance *SMT processes compatible 3. Applications *ISM 2.4 GHz applications *ZigBee/BLE applications *Bluetooth earphone systems *Hand-held devices when WiFi / Bluetooth functions are needed, e.g., Smart phones *IEEE802.11 b/g/n *Wireless PCMCIA cards or USB dongles 4. Description Innolink’s AA055U ceramic chip antenna is designed for ISM 2.4GHz applications, covering frequencies 2400~2500MHz. Fabricated with proprietary design and processes, AA055U shows excellent performance and is fully compatible with SMT processes which can decrease the assembly cost and improve device’s quality and consistency. 2442 MHz / 2450MHz ( unit : dBi ) 2442MHz 2450MHz 10. Reminders for users of Innolink’s AA055U ceramic chip antennas 10-1. This chip antenna is made of ceramic materials which are relatively more rigid and brittle compared to printed circuit board materials. Bending of circuit board at the locations where chip antenna is mounted may cause the cracking of solder joints or antenna itself. 10-2. Punching/cutting of the break-off tab of PCB panel may cause severe bending of the circuit board which may result in cracking of solder joints or chip antenna itself. Therefore break-off tab shall be located away from the installation site of chip antenna. 10-3. Be cautious when ultrasonic welding process needs to be used near the locations where chip antennas are installed. Strong ultrasonic vibration may cause the cracking of chip antenna solder joints. 12. Operating & Storage Conditions 12-1. Operating (1) Maximum Input Power: 2 W (2) Operating Temperature: -40°C to 85°C 12-2. Storage (1) Storage Temperature: -5°C to 40°C (2) Relative Humidity: 20% to 70% (3) Shelf Life: 1 year 13. Notice (1) Installation Guide: Please refer to Innolink’s application note “General guidelines for the installation of Innolink’s chip antennas” for further information. (2) All specifications are subject to change without notice.

FCC ID : 2BLHG-NMF-NG2-F25 Page 1 of 1 Test setup photos Radiated test AC Conducted test Blank
