2BLIDMN54LMMN54LM series

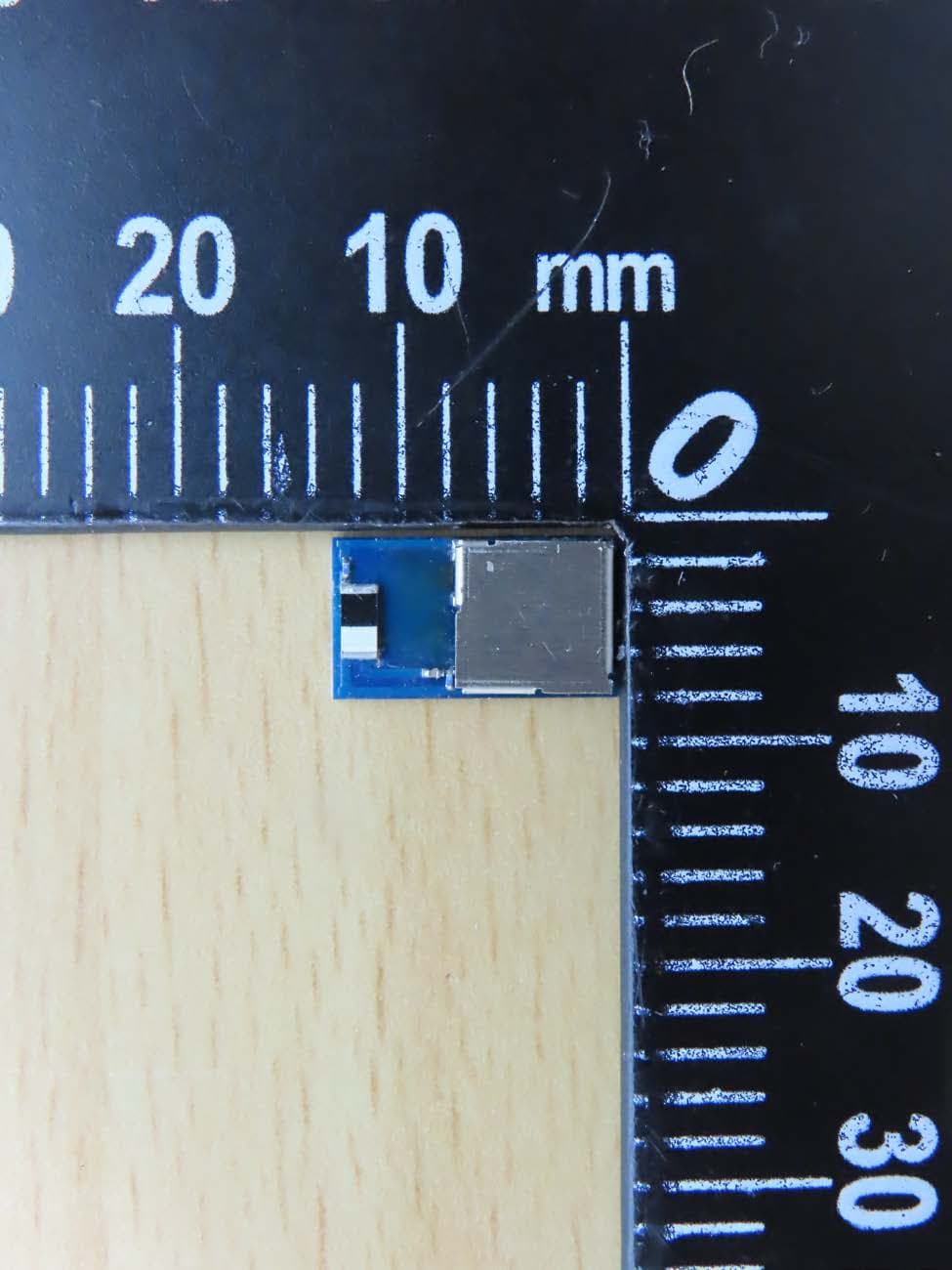

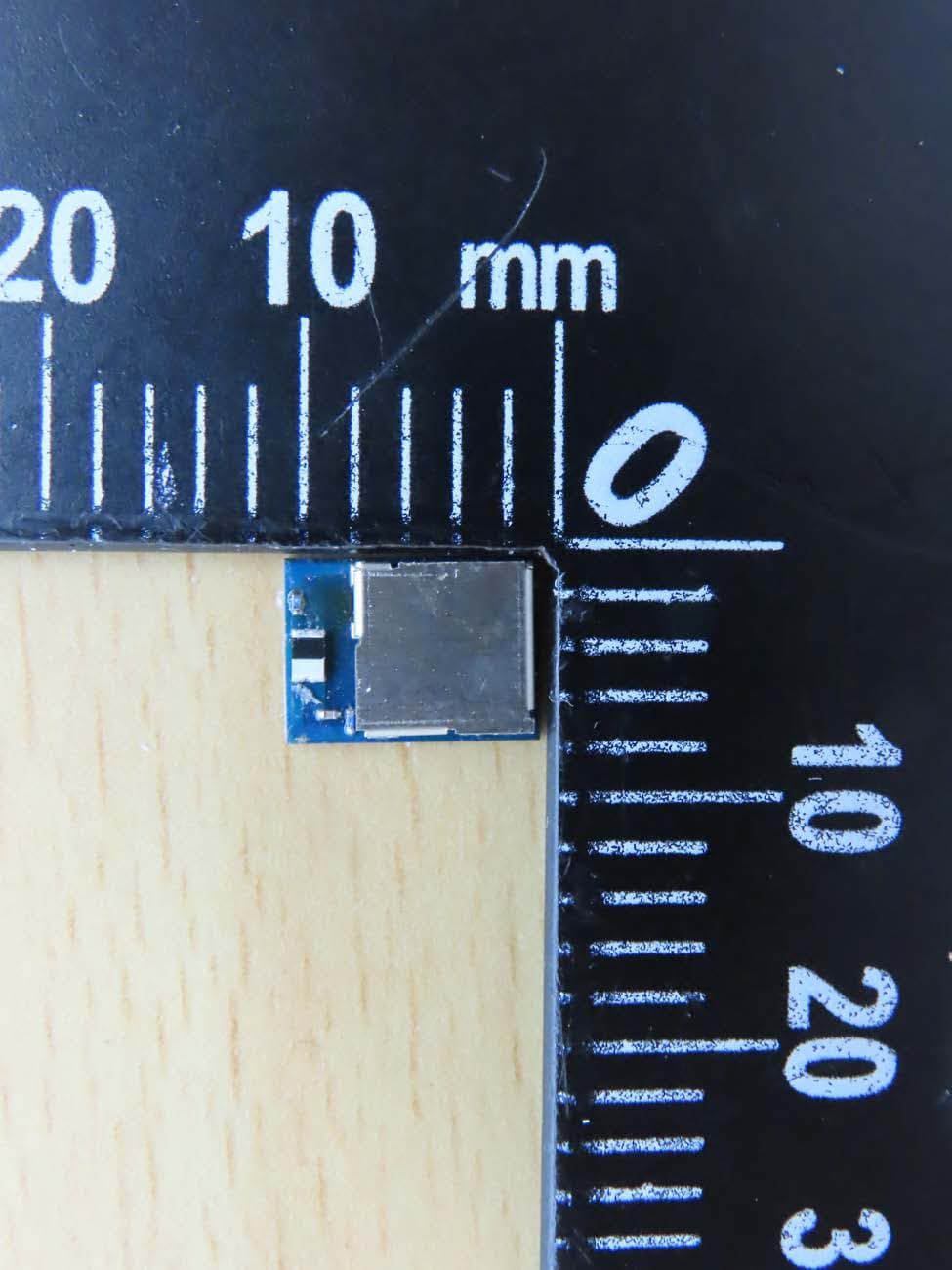

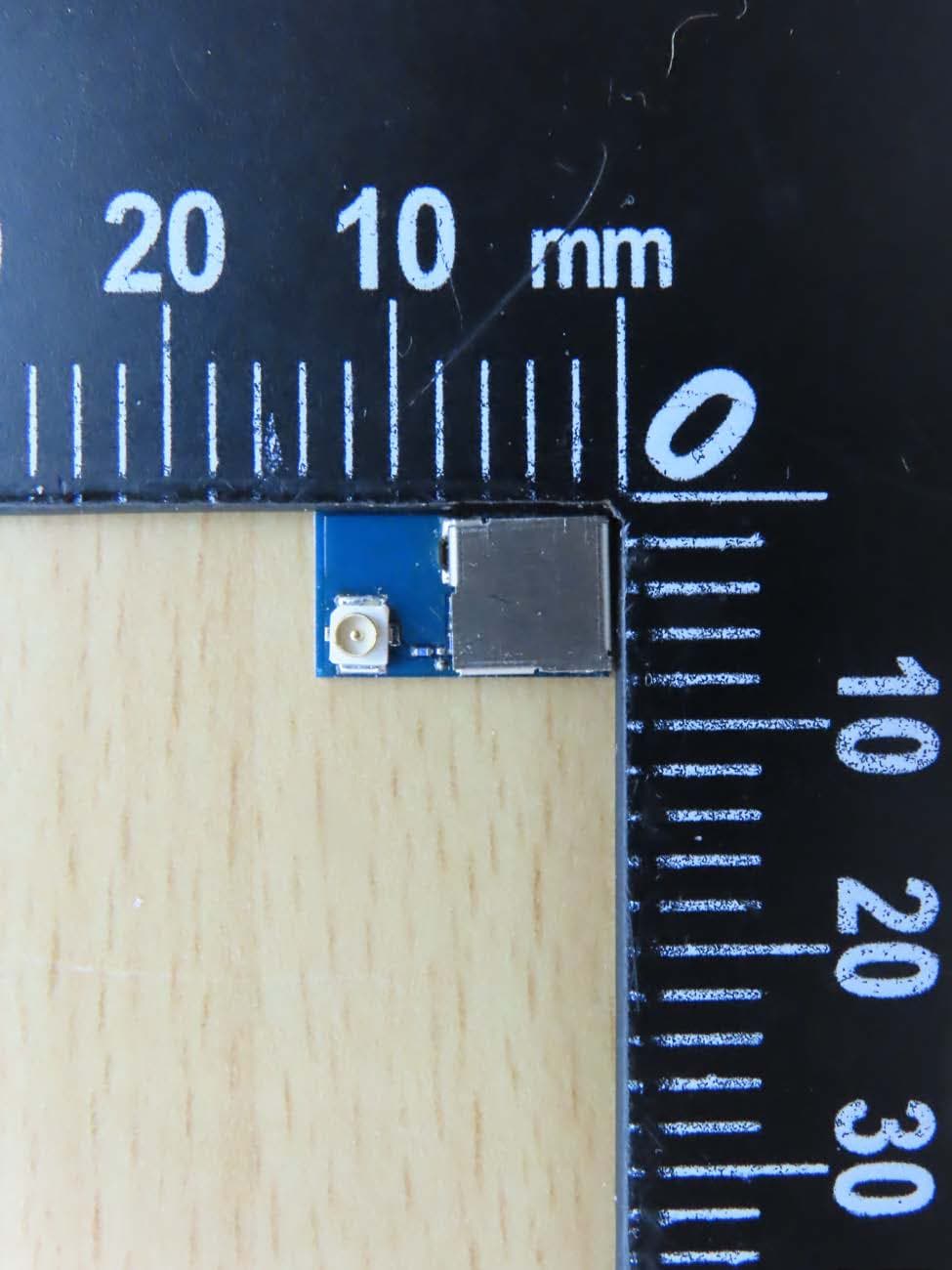

i MN54LM Bluetooth® Low Energy Module 操作手冊 BLE Solution: Nordic NRF54LM20A RF IC Crystal Chip antenna Nordic NRF54LM20A/V1 32MHz/20ppm Embedded Embedded Overview and Benefits Overview(概述) The MN54LM from Aradconn is a highly flexible, ultra-low power, Bluetooth Low Energy module based on the nRF54LM20A SoC from Nordic Semiconductor. With an Arm® Cortex®-M33 with FPU 32-bit processor, embedded 2.4GHz transceiver, and integrated chip antenna. Providing full use of the nRF54LM20A’s capabilities and peripherals, which include I2C, SPI, UART, I2S, ADC, GPIO, PWM interfaces. 愛瑞德MN54LM-C產品為基於Nordic Semiconductor的nRF54LMA20 SoC晶片所開發高適用 性且低能耗的藍芽模組。 FPU 32 位元處理器、嵌入式 2.4GHz 收發器和整合式晶片天線的 Arm® Cortex®-M33。充分利用 nRF54LM20A 的功能和周邊，包括 I2C、SPI、UART、I2S、 ADC、GPIO、PWM 介面。 Benefits(優點) • Bluetooth qualification and Regulatory certification reduce the burden to enter the market. 具備藍牙資格和監管認證減輕了進入市場的負擔。 • Complete RF solution with no additional RF design, allowing faster time to launch a new product, and providing long working distance. 具備完整的無線射頻解決方案，無需額外的射頻設計，可以更快地推出新產品，並提 供遠距離工作範圍。 MN54LM: up to 500 meters in open space. @1 Mbps 於開放場域1Mbps具500公尺的傳輸距離。 • Compact size: (L) 13 x (W) 7.5 x (H) 2.0mm. 產品尺寸(L) 13 x (W) 7.5 x (H) 2.0mm。 • Provides flexibility in the OEM’s application development choice with full support for using Nordic SDK and firmware tools. 針對OEM開發應用提供完整的Nordic SDK及韌體工具支援。 1 1. Features (功能) • 2.4 GHz transceiver • -95.5 dBm sensitivity in 1Mbps Bluetooth® low energy mode • -103 dBm sensitivity in 125kbps Bluetooth® low energy mode(long range) • -10 to +8dBm TX power, configurable in 1 dB steps • Supported data rates: • Bluetooth® LE –LE 2 M, LE 1 Mbps, LE Coded • 10.9 mA/ @3V DC/DC peak current in TX (8 dBm) • 3.3 mA/@3V DC/DC peak current in RX • RSSI (1 dB resolution) • Arm® Cortex®-M33 32-bit processor with TrustZone® technology, 128 MHz • 503 CoreMark®,3.93 CoreMark/MHz EEMBC CoreMark executing from non-volatile memory • Single-precision floating-point unit (FPU) • Memory protection unit (MPU) • Digital signal processing (DSP) instructions • Serial wire debug (SWD) • Memory • 2.036MB NVM/512 kB RAM • Coprocessor • RISC-V 128MHZ Coprocessor • Operating condition • 1.7 V to 3.6 V supply and I/O voltage • Single 32 MHz crystal operation • Optional 32.768 kHz clock • Operating temperature from -40°C to 85°C • Peripherals • 30 general purpose I/O pins • High-Speed USB interface(USBHS) • Global RTC (GRTC) that can run in System OFF mode and implement a shared system timer • Seven 32-bit timers with counter mode • Two individual watchdog timers for secure and non-secure context (WDT) • Up to seven fully featured serial interfaces with EasyDMA ,supporting I2C, SPI and UART • One high-speed SPIM up to 32 MHz, six up to 8 MHz • One high-speed UARTE up to 4 Mbps, six up to 1 Mbps • Six TWI up to 400 kHz and I2C compatible • I2S two channel Inter-IC sound interface • Pulse density modulation (PDM) interface • Three pulse width modulation (PWM) four-channel units with autonomous waveform generator. • SAADC with up to eight programmable gain channels. 14-bit at 62.5ksps, 12-bit at 125 ksps, and up to 10-bit at 2 Msps. • Two quadrature decoders (QDEC) • Comparator and low-power comparator with wake-up from System OFF mode • Temperature sensor 3 2.1 Dimensions All dimensions are in millimeters. Item Dimension Tolerance Length 13.0mm ±0.30 mm Width 7.5mm ±0.30mm Height 2.0mm ±0.30mm 2.2 Footprint All dimensions are in millimeters. 5 3. Pin Assignment Pin No. Name Pin function Description (A1) GND Ground The pad must be connected to a solid ground plane (A2) VBUS Power USB 5V supply (A3) P1.02 Digital I/O General-purpose I/O NFC2 NFC input NFC antenna connection (A6) D+ Analog I/O USB D+ line (A8) P0.00 Digital I/O General-purpose I/O (A10) P0.05 Digital I/O General-purpose I/O (A11) SWDIO Debug Serial wire data. Bidirectional with standard-drive and on-chip pull-up. (A12) GND Ground The pad must be connected to a solid ground plane (A13) GND Ground The pad must be connected to a solid ground plane (A14) GND Ground The pad must be connected to a solid ground plane (A15) GND Ground The pad must be connected to a solid ground plane (A16) GND Ground The pad must be connected to a solid ground plane (B1) P1.30 Digital I/O General-purpose I/O AIN2 Analog input Analog input (B2) P1.31 Digital I/O General-purpose I/O AIN1 Analog input Analog input (B5) P1.01 Digital I/O General-purpose I/O NFC1 NFC input NFC antenna connection (B7) D- Analog I/O USB D- line (B9) P0.03 Digital I/O General-purpose I/O GRTC PWM Clock PIN GRTC PWM output (B11) SWDCLK Debug Serial wire clock. Input with on-chip pull-down. (B12) GND Ground The pad must be connected to a solid ground plane (C1) P1.03 Digital I/O General-purpose I/O AIN7 Analog input Analog input Clock pin Can be set as TWI (C3) P1.04 Digital I/O General-purpose I/O AIN6 Analog input Analog input Clock pin Can be set as TWI (C7) P3.04 Digital I/O General-purpose I/O Clock pin Can be set as TWI (C10) P0.04 Digital I/O General-purpose I/O GRTCLFCLKOUT Clock PIN GRTC LF clock output (C11) nRESET Reset Pin reset with on-chip pull-up (D2) P1.29 Digital I/O General-purpose I/O AIN3 Analog input Analog input (E3) P2.05 Digital I/O General-purpose I/O Digital I/O SPIM/SPIS CSN Digital I/O UARTE RTS Digital I/O QSPI CSN 7 Pin No. Name Pin function Description (E5) P2.10 Digital I/O General-purpose I/O Digital I/O SPIM/SPIS CSN Digital I/O UARTE RTS (E7) P0.07 Digital I/O General-purpose I/O Clock pin Can be set as TWI (E12) GND Ground The pad must be connected to a solid ground plane (F2) P2.04 Digital I/O General-purpose I/O Digital I/O SPIM/SPIS SDI Digital I/O UARTE CTS Digital I/O QSPI D1 (G1) P2.03 Digital I/O General-purpose I/O Digital I/O QSPI D2 (G3) P2.09 Digital I/O General-purpose I/O Digital I/O SPIM/SPIS SDI Digital I/O UARTE CTS (G7) P3.11 Digital I/O General-purpose I/O (H2) P2.02 Digital I/O General-purpose I/O Digital I/O SPIM/SPIS SDO Digital I/O UARTE TXD Digital…

Text truncated - open the document above for the full version.

of Applicant: Arad Connectivity Co., Ltd. Address: 5F.-1, No. 63, Sec. 1, Hangzhou S. Rd., Zhongzheng Dist. Taipei City 100022 Taiwan Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: TW1072, TW1140, TW1146, TW1477, TW0037 Industry Canada filed test laboratory Reg. No.: 20037, 31634 Report No.: W6M22607-25274-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E- mail: [email protected] 47 CFR PART 15 SUBPART C TEST REPORT for MN54LM series Model No.: MN54LM series FCC ID: 2BLIDMN54LM Registration number: W6M22607-25274-C-1 FCC ID: 2BLIDMN54LM Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 35 TABLE OF CONTENTS 1 GENERAL INFORMATION ......................................................................................................................................... 2 1.1 NOTES ...................................................................................................................................................................... 2 1.2 TESTING LABORATORY ............................................................................................................................................. 3 1.3 APPLICATION DETAILS .............................................................................................................................................. 3 1.4 GENERAL INFORMATION OF TEST ITEM ..................................................................................................................... 4 1.5 DUTY CYCLE AND FACTOR ........................................................................................................................................ 5 1.6 TEST STANDARDS ..................................................................................................................................................... 7 2 TEST CONFIGURATION ............................................................................................................................................. 8 2.1 TEST ENVIRONMENT ................................................................................................................................................. 8 2.2 MEASUREMENT UNCERTAINTY ................................................................................................................................. 8 2.3 TEST EQUIPMENT LIST .............................................................................................................................................. 9 3 TEST RESULTS (ENCLOSURE) ............................................................................................................................... 10 3.1 PEAK OUTPUT POWER (TRANSMITTER) ................................................................................................................... 11 3.2 SPURIOUS EMISSIONS RADIATED – TRANSMITTER OPERATING ............................................................................... 16 3.3 EMISSIONS IN NONRESTRICTED FREQUENCY BANDS ................................................................................................ 18 3.4 MINIMUM 6 DB BANDWIDTH .................................................................................................................................. 21 3.5 PEAK POWER SPECTRAL DENSITY .......................................................................................................................... 25 3.6 POWER LINE CONDUCTED EMISSION ...................................................................................................................... 29 Appendix: Diagrams Registration number: W6M22607-25274-C-1 FCC ID: 2BLIDMN54LM Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 35 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. Laboratory disclaimer- 1. The test results of this test report relate exclusively to the item tested as specified in 1.5. 2. The test report may only be reproduced or published in full. 3. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. 4. Antenna gain is provided by applicant and laboratory issue relevant data and results. Tester: August 18, 2026 Sky Liu Date WTS-Lab. Name Signature Technical responsibility for area of testing: August 18, 2026 Kevin Wang Date WTS Name Signature Registration number: W6M22607-25274-C-1 FCC ID: 2BLIDMN54LM Worldwide Testing Services(Taiwan) Co., Ltd. Page 3 of 35 1.2 Testing laboratory 1.2.1 Location 10m OATS No.5-1, Lishui, Shuang Sing Village, Wanli Dist., New Taipei City 207, Taiwan (R.O.C.) 3 meter semi-anechoic chamber No. 99, Sec. 1, Balian Rd., Xizhi Dist., New Taipei City 221032, Taiwan (R.O.C.) Worldwide Testing Services (Taiwan) Co., Ltd. 6F., No. 58, Ln. 188, Ruiguang Rd., Neihu Dist., Taipei City 114 , Taiwan (R.O.C.) Tel: 886-2-6606-8877 1.2.2 Details of accreditation status Accredited testing laboratory FCC filed test laboratory Reg. No.: TW1072, TW1140, TW1146, TW1477, TW0037 Industry Canada filed test laboratory Reg. No.: 20037, 31634 Test location, where different from Worldwide Testing Services (Taiwan) Co., Ltd. : Name: ./. Accredited no.: ./. Street: ./. Town: ./. Country: ./.…

Text truncated - open the document above for the full version.

Registration number: W6M22607-25274-FCC FCC ID: 2BLIDMN54LM Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 42 of 68 Set Up Photo of Radiated Emission EMI MN54LM-U(PCB Antenna) Below 1 GHz Registration number: W6M22607-25274-FCC FCC ID: 2BLIDMN54LM Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 43 of 68 Above 1 GHz Registration number: W6M22607-25274-FCC FCC ID: 2BLIDMN54LM Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 44 of 68 Registration number: W6M22607-25274-FCC FCC ID: 2BLIDMN54LM Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 45 of 68 MN54LM-C Below 1 GHz Registration number: W6M22607-25274-FCC FCC ID: 2BLIDMN54LM Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 46 of 68 Above 1 GHz Registration number: W6M22607-25274-FCC FCC ID: 2BLIDMN54LM Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 47 of 68 Registration number: W6M22607-25274-FCC FCC ID: 2BLIDMN54LM Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 48 of 68 MN54LM-P Below 1 GHz Registration number: W6M22607-25274-FCC FCC ID: 2BLIDMN54LM Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 49 of 68 Above 1 GHz Registration number: W6M22607-25274-FCC FCC ID: 2BLIDMN54LM Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 50 of 68 Registration number: W6M22607-25274-FCC FCC ID: 2BLIDMN54LM Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 51 of 68 RF MN54LM-U(Dipole Antenna) Below 1 GHz Registration number: W6M22607-25274-FCC FCC ID: 2BLIDMN54LM Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 52 of 68 Above 1 GHz Registration number: W6M22607-25274-FCC FCC ID: 2BLIDMN54LM Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 53 of 68 Registration number: W6M22607-25274-FCC FCC ID: 2BLIDMN54LM Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 54 of 68 MN54LM-U(PCB Antenna) Below 1 GHz Registration number: W6M22607-25274-FCC FCC ID: 2BLIDMN54LM Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 55 of 68 Above 1 GHz Registration number: W6M22607-25274-FCC FCC ID: 2BLIDMN54LM Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 56 of 68 Registration number: W6M22607-25274-FCC FCC ID: 2BLIDMN54LM Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 57 of 68 MN54LM-C Below 1 GHz Registration number: W6M22607-25274-FCC FCC ID: 2BLIDMN54LM Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 58 of 68 Above 1 GHz Registration number: W6M22607-25274-FCC FCC ID: 2BLIDMN54LM Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 59 of 68 Registration number: W6M22607-25274-FCC FCC ID: 2BLIDMN54LM Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 60 of 68 MN54LM-P Below 1 GHz Registration number: W6M22607-25274-FCC FCC ID: 2BLIDMN54LM Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 61 of 68 Above 1 GHz Registration number: W6M22607-25274-FCC FCC ID: 2BLIDMN54LM Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 62 of 68 Registration number: W6M22607-25274-FCC FCC ID: 2BLIDMN54LM Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 63 of 68 Set Up Photo of Conducted Emission EMI MN54LM-U(PCB Antenna) Registration number: W6M22607-25274-FCC FCC ID: 2BLIDMN54LM Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 64 of 68 MN54LM-C Registration number: W6M22607-25274-FCC FCC ID: 2BLIDMN54LM Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 65 of 68 MN54LM-P Registration number: W6M22607-25274-FCC FCC ID: 2BLIDMN54LM Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 66 of 68 RF MN54LM-U(PCB Antenna) Registration number: W6M22607-25274-FCC FCC ID: 2BLIDMN54LM Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 67 of 68 MN54LM-C Registration number: W6M22607-25274-FCC FCC ID: 2BLIDMN54LM Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 68 of 68 MN54LM-P

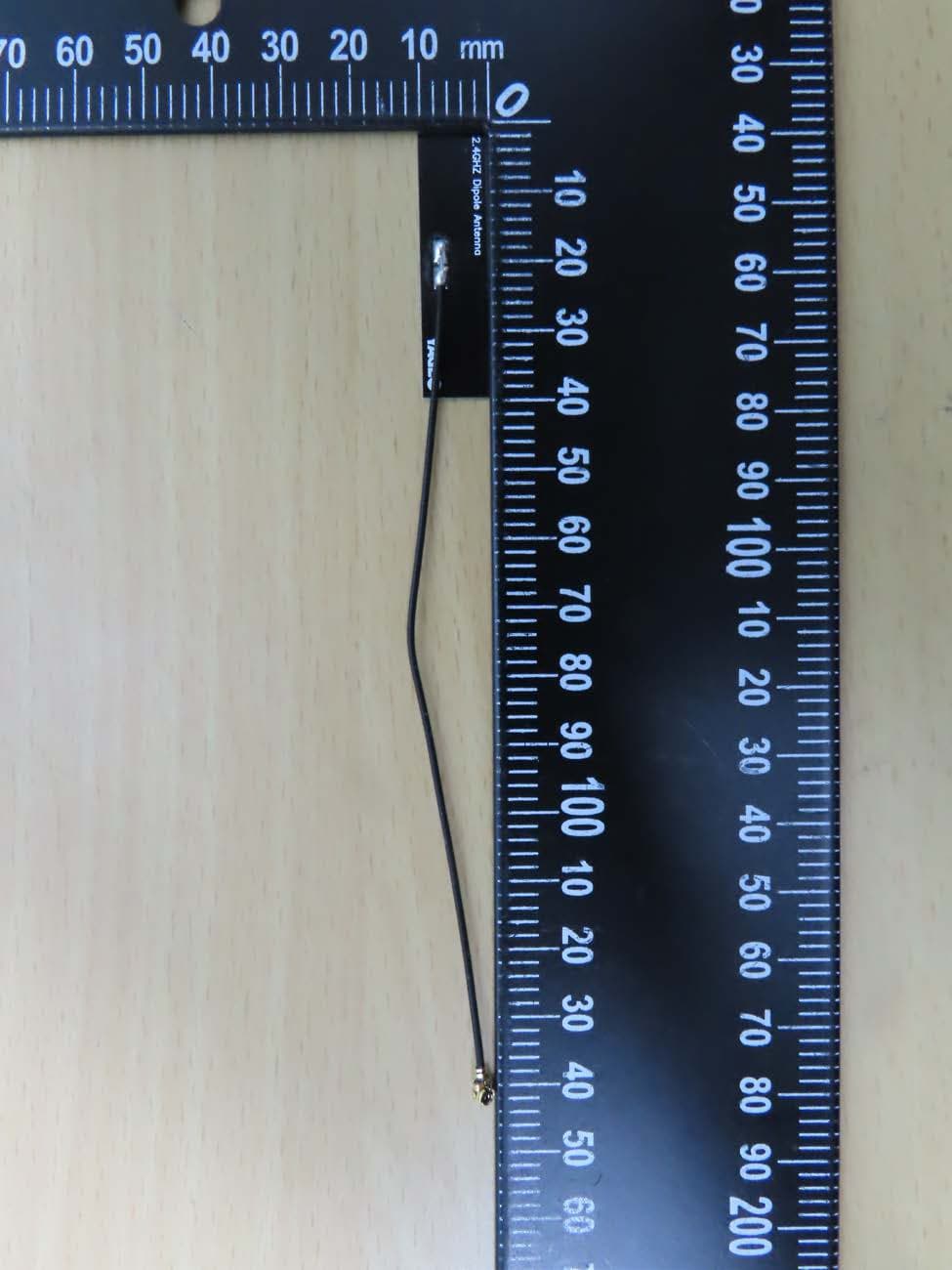

DATA SHEET WIRELESS COMPONENTS PCB type antenna ANTX100P111B24003 2.40 ~ 2.50GHZ Product S pecification – April 8, 2015 V.0 www.yageo.com Apr. 8, 2015 V0 Wireless Components 2 7 Product specification PCB Type Antenna FEATURES & BENEFITS  The smallest PCB antenna in the market  Miniature design allows users to save required space  Double-side adhesive tape makes it easy to instal in device  Ranges of types of connector and cable provide a flexible design options  Halogen free and RoHS compliant APPLICATIONS  Tablet / Desktop PC  Internet TV / STB / Game console / Camera  WiFi network devices (IEEE 802.11b/g/n)  Bluetooth / ZigBee devices  Car Infotainment  Smart meter  Lighting control  POS terminal  Wireless Industrial Control ORDERING INFORMATION - GLOBAL PART NUMBER, PHYCOMP CTC & 12NC All part numbers are identified by the series, packing type, material, size, antenna type, working frequency and packing quantity. Y Y A A G G E E O O B B R R A A N N D D o o r r d d e e r r i i n n g g c c o o d d e e GLOBAL PART NUMBER ( PREFERRED ) ANT X100 P 111 B 24 00 3 (1) (2) (3) (4) (5) (6) (7) ( 1 ) FAMILY ANT = Antenna products ( 2 ) CONNECTOR & CABLE LENGTH ( MM) X = I-PEX 100 = 100mm ( 3 ) ANTENNA TYPE P=PCB ( 4 ) SERIAL NUMBER 111 = SERIAL NUMBER 111 ( 5 ) PACKAGE TYPE B = Bulk ( 6 ) WORKING FREQUENCY 2400= 2.40 ~ 2.50 GHz ( 7 ) CABLE TYPE 3 = 1.13mm diameter Mini-Coaxial Cable www.yageo.com Apr. 8, 2015 V0 Wireless Components 3 7 Product specification PCB Type Antenna SPECIFICATIONS DESCRIPTION VALUE Working Frequency 2.40 ~ 2.50 GHz VSWR 2.5:1max Peak Gain 3.3 dBi Polarization Linear Radiation Pattern Omni-directional Impedance 50 Ω Nominal Operating Temperature –40 °C to 85 °C Maximum Power 1 W PCB Dimension 39mm x 10mm x 0.55mm Radio Connector I-PEX (20278-112R-13) Cable Diameter / Length / Color 1.13mm / 100mm / Black Mounting Adhesive Tape (HF-DS) Ta b l e 1 O O U U T T L L I I N N E E S S F i g . 1 Antenna outlines DIMENSIONS DIMENSION VALUE L (mm) 100 ±3.00 W (mm) 39± 0.30 H ( mm) 10 ± 0.30 T ( mm) 0.55 ± 0.15 A ( mm) 2.30 Max B ( mm) 20.00 ± 1.00 Table 2 Mechanical Dimension www.yageo.com Apr. 8, 2015 V0 Wireless Components 4 7 Product specification PCB Type Antenna F i g . 2 Application Instruction APPLICATION INSTRUCTION Antenna element should be placed at the edge of device, has minimum clearance from metalic object: A: 10 mm Min B: 10 mm Min C: 10 mm Min Antenna PCB www.yageo.com Apr. 8, 2015 V0 Wireless Components 5 7 Product specification PCB Type Antenna F i g . 3 Return loss & VSWR Measurement RETURN LOSS & VSWR www.yageo.com Apr. 8, 2015 V0 Wireless Components 6 7 Product specification PCB Type Antenna 0 180 30 210 60 240 90270 120 300 150 330 0 180 30 210 60 240 90270 120 300 150 330 0 180 30 210 60 240 90270 120 300 150 330 F i g . 4 Antenna radiation patterns at 2.45 GHz Device Setup & Coordinates ANTENNA RADIATION PATTERNS ANTENNA GAIN & EFFICIENCY FREQUENCY (GHz) AVERAGE GAIN (dBi) EFFICIENCY (%) PEAK GAIN (dBi) 2.40 -1.0 80.4 3.3 2.45 -1.3 73.7 3.2 2.50 -1.8 65.6 3.2 X-Y Plane X-Z Plane Y-Z Plane Ta b l e 3 Scale: 5 dBi / div Max : 5 dBi Min : -20 dBi Antenna PCB www.yageo.com Apr. 8, 2015 V0 Wireless Components 7 7 Product specification PCB Type Antenna REVISION HISTORY REVISION DATE CHANGE NOTIFICATION DESCRIPTION Version 0 Apr. 08, 2015 - - New data sheet for PCB type antenna, 2.40 ~ 2.50GHz

DATA SHEET WIRELESS COMPONENTS PCB type antenna ANTX100P011B24003 2.40 ~ 2.50GHZ Product S pecification – April 24, 2015 V.1 www.yageo.com Apr. 24, 2015 V1 Wireless Components 2 7 Product specification PCB Type Antenna FEATURES & BENEFITS  The smallest PCB antenna in the market  Miniature design allows users to save required space  Double-side adhesive tape makes it easy to instal in device  Ranges of types of connector and cable provide a flexible design options  Halogen free and RoHS compliant APPLICATIONS  Tablet / Desktop PC  Internet TV / STB / Game console / Camera  WiFi network devices (IEEE 802.11b/g/n)  Bluetooth / ZigBee devices  Car Infotainment  Smart meter  Lighting control  POS terminal  Wireless Industrial Control ORDERING INFORMATION - GLOBAL PART NUMBER, PHYCOMP CTC & 12NC All part numbers are identified by the series, packing type, material, size, antenna type, working frequency and packing quantity. Y Y A A G G E E O O B B R R A A N N D D o o r r d d e e r r i i n n g g c c o o d d e e GLOBAL PART NUMBER ( PREFERRED ) ANT X100 P 01 1 B 24 00 3 (1 ) (2) (3) (4) (5) (6) (7) ( 1 ) FAMILY ANT = Antenna products ( 2 ) CONNECTOR & CABLE LENGTH ( MM) X = I-PEX 100 = 100mm ( 3 ) ANTENNA TYPE P=PCB ( 4 ) SERIAL NUMBER 011 = SERIAL NUMBER 011 ( 5 ) PACKAGE TYPE B = Bulk ( 6 ) WORKING FREQUENCY 2400= 2.40 ~ 2.50 GHz ( 7 ) CABLE TYPE 3 = 1.13mm diameter Mini-Coaxial Cable www.yageo.com Apr. 24, 2015 V1 Wireless Components 3 7 Product specification PCB Type Antenna SPECIFICATIONS DESCRIPTION VALUE Working Frequency 2.40 ~ 2.50 GHz VSWR 2.5:1max Peak Gain 2.2 dBi Polarization Linear Radiation Pattern Omni-directional Impedance 50 Ω Nominal Operating Temperature –40 °C to 85 °C Maximum Power 1 W PCB Dimension 39mm x 10mm x 0.55mm Radio Connector I-PEX (20278-112R-13) Cable Diameter / Length / Color 1.13mm / 100mm / Black Mounting Adhesive Tape (HF-DS) Ta b l e 1 O O U U T T L L I I N N E E S S F i g . 1 Antenna outlines DIMENSIONS DIMENSION VALUE L (mm) 100 ±3.00 W (mm) 39± 0.30 H ( mm) 10 ± 0.30 T ( mm) 0.55 ± 0.15 A ( mm) 2.30 Max B ( mm) 2.00 ± 1.00 Table 2 Mechanical Dimension www.yageo.com Apr. 24, 2015 V1 Wireless Components 4 7 Product specification PCB Type Antenna F i g . 2 Application Instruction APPLICATION INSTRUCTION Antenna element should be placed at the edge of device, has minimum clearance from metalic object: A: 10 mm Min B: 10 mm Min C: 10 mm Min www.yageo.com Apr. 24, 2015 V1 Wireless Components 5 7 Product specification PCB Type Antenna F i g . 3 Return loss & VSWR Measurement RETURN LOSS & VSWR www.yageo.com Apr. 24, 2015 V1 Wireless Components 6 7 Product specification PCB Type Antenna 0 180 30 210 60 240 90270 120 300 150 330 0 180 30 210 60 240 90270 120 300 150 330 0 180 30 210 60 240 90 270 120 300 150 330 F i g . 4 Antenna radiation patterns at 2.45 GHz Device Setup & Coordinates ANTENNA RADIATION PATTERNS ANTENNA GAIN & EFFICIENCY FREQUENCY (GHz) AVERAGE GAIN (dBi) EFFICIENCY (%) PEAK GAIN (dBi) 2.40 -1.7 67.8 2.1 2.45 -1.8 68.2 2.2 2.50 -2.0 63.1 2.2 X-Y Plane X-Z Plane Y-Z Plane Ta b l e 3 Scale: 5 dBi / div Max : 5 dBi Min : -25 dBi www.yageo.com Apr. 24, 2015 V1 Wireless Components 7 7 Product specification PCB Type Antenna REVISION HISTORY REVISION DATE CHANGE NOTIFICATION DESCRIPTION Version 1 Apr. 24, 2015 - - Application instruction Update Version 0 Dec. 18, 2014 - - New data sheet for PCB type antenna, 2.40 ~ 2.50GHz Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Pulse: ANTX100P011B24003

WP006.A (01/24)1 pulseelectronics.com PCB Type Antenna External Antenna ANTX100ETHAB24553 Series 2.4GHz/ 5GHz dual band operator Omnidirectional radiation Features and Benefits Wireless Components 3 13 Product specification www.yageo.com Dec. 19, 2018 R02 1. ORDERING INFORMATION - GLOBAL PART NUMBER, PHYCOMP CTC & 12NC All part numbers are identified by the series, packing type, material, size, antenna type, working frequency and packing quantity. ANT X 100 E THA B 2455 3 (1) (2) (3) (4) (5) (6) (7) (8) ( 1 ) FAMILY ANT= Antenna Products ( 2 ) CONNECTOR TYPE X= IPEX ( 3 ) CABLE LENGTH 100=100 mm ( 4 ) ANTENNA TYPE E=External ( 5 ) TOOLING CODE THA ( 6 ) PACKAGE TYPE B=Bulk ( 7 ) FREQUENCY BAND 2455=2.4&5GHz (8)CABLE TYPE 3=1.13 WP006.A (01/24)2 pulseelectronics.com PCB Type Antenna External Antenna ANTX100ETHAB24553 Series Wireless Components 4 13 Product specification www.yageo.com Dec. 19, 2018 R02 2. SPECIFICATIONS A. Electrical Characteristics Working Frequency 2400 ~ 2500 MHz 5150 ~ 5850 MHz VSWR <= 2.0 @ 2400 ~ 2500 MHz <= 2.5 @ 5150 ~ 5850 MHz Peak Gain 2.0 dBi @ 2400 ~ 2500 MHz 3.0 dBi @ 5150 ~ 5850 MHz Polarization Linear Impedance 50 Ohm B. Material & Mechanical Characteristics Material of Radiator Cu Material of Plastic TPE / PC+ABS Cable Type O.D. 1.13 mm Connector Type Mini Connector C. Environmental Operation Temperature - 40 ̊C ~ + 65 ̊C Storage Temperature - 40 ̊C ~ + 80 ̊C Specifications WP006.A (01/24)3 pulseelectronics.com PCB Type Antenna External Antenna ANTX100ETHAB24553 Series Test Methodology Wireless Components 5 13 Product specification www.yageo.com Dec. 19, 2018 R02 3 .TEST METHODOLOGY 3.1 Test equipment The equipment for the antenna measurement we used is as follows. A. Agilent 8753ET / 8719D Network Analyzer to measure the VSWR and input impedance. B. Three-dimensional anechoic chamber to measure the gain (Standard dipole and horn were used to calibrate the chamber) C. Digital caliper to measure the dimensions. D. Climatic chamber for mechanical tests. 3.2 Test setup 3.2.1 Frequency Range 2400 ~ 2500MHz; 5150 ~ 5850MHz 3.2.2 Antenna configuration The antenna basically has two parts; the stamping and the cable assembly with the connector on one side. The detailed drawing is attached. 3.2.3 VSWR The VSWR is measured with Agilent 8753ET / 8719D network analyzer. All the measurements are performed with the customer provided fixture. Figure 1 shows the schematic diagram for measuring VSWR. Test port cable Figure 1. The schematic diagram for measuring VSWR D.U.T Agilent 8753ET Network Analyzer Test Port WP006.A (01/24)4 pulseelectronics.com PCB Type Antenna External Antenna ANTX100ETHAB24553 Series Wireless Components 6 13 Product specification www.yageo.com Dec. 19, 2018 R02 3.2.4 Radiation pattern and gain The radiation pattern must have the omni-directional characteristic in both positions. The radiation pattern measurements are performed in the three- dimensional anechoic chamber. The chamber provides less than –30dB reflectivity from 700MHz through 8GHz. The chamber is calibrated using both standard dipole and horn antenna. The gain here is expressed as dBi that standardizes the isotropic antenna. The gain measurements are also performed in the same chamber described previously. Figure 2 shows the schematic diagram for measuring radiation pattern and gain. Figure 2. The schematic diagram for measuring radiation pattern and gain 2D / 3D Anechoic chamber Probe array Controller RF Unit (0.4 ~ 6GHz) Primary Synthesizer Mainiliary Synthesizer Motion Controller Data Acquisition & Processing PC WP006.A (01/24)5 pulseelectronics.com PCB Type Antenna External Antenna ANTX100ETHAB24553 Series Performance Data Wireless Components 7 13 Product specification www.yageo.com Dec. 19, 2018 R02 4. PERFORMANCE DATA 4.1 Antenna-S Parameter Test Data WP006.A (01/24)6 pulseelectronics.com PCB Type Antenna External Antenna ANTX100ETHAB24553 Series Antenna-Radiation Pattern Test Data Wireless Components 8 13 Product specification www.yageo.com Dec. 19, 2018 R02 4.2 Antenna-Radiation Pattern Test Data 2400 MHz 2450 MHz 2500 MHz WP006.A (01/24)7 pulseelectronics.com PCB Type Antenna External Antenna ANTX100ETHAB24553 Series www.yageo.com Dec. 19, 2018 R02 Wireless Components 9 13 Product specification 5150 MHz 5600 MHz 5850 MHz WP006.A (01/24)8 pulseelectronics.com PCB Type Antenna External Antenna ANTX100ETHAB24553 Series Wireless Components 10 13 Product specification www.yageo.com Dec. 19, 2018 R02 5. CHARACTERISTICS AND RELIABILITY TEST Test Items 測測試試項項目目 Test Condition and Procedure測測試試方方法法 Requirements要要求求 Result 結結果果 C 1 V.S.W.R. 電電壓壓駐駐波波比比 Set DUT on Network Analyzer; make individual calibration to test 設設置置網網路路分分析析儀儀參參數數進進行行測測試試 Directive DUT specification 符 符合合待待測測物物規規範範 PASS C 2 Insertion Loss插插入入損損 失失 Set DUT on Network Analyzer; make individual calibration to test 設設置置網網路路分分析析儀儀參參數數進進行行測測試試 Directive DUT specification 符 符合合待待測測物物規規範範 N/A C 3 Antenna Gain 天 天線線增增益益 Set DUT on Antenna Chamber; make individual calibration to test 設設置置天天線線暗暗室室參參數數 進進行行測測試試 Directive DUT specification 符 符合合待待測測物物規規範範 PASS C 4 Voltage Breakdown 耐 耐電電壓壓 Test voltage should be applied between insulated portions, or between ground as specified. 在 在绝绝缘缘部部分分测测试试电电压压,或或指指定定接接地地面面之之间间 Max Voltage≥≥ 500 V or directive material specification最 最大大電電壓壓≥≥ 500V或或符符合合材材料料規規範範 N/A C 5 Insulation Resistance 絕 絕緣緣阻阻抗抗 Set Voltage: 500 ± 50V; between the insulated portions, or between ground as specified. 設 設置置電電壓壓500 ± 50V,在在绝绝缘缘部部份份測測試試或或指指定定接接地地面面 之之间间 Resistance≥≥500 M ohm or directive material specification阻 阻抗抗≥≥500M ohm或或符符合合材材料料規規範範 N/A C 6 Contact Resistance 接 接觸觸阻阻抗抗 Air Temp: 26°C; measured with test equipment 室室溫溫26°°C，，指指定定量量測測設設備備 Directive material specification 符 符合合材材料料規規範範 N/A M 1 Vibration 震震動動 GB / T2423.48-2008 Amplitude: 0.03 inch (1.5mm); Freq: 20 to 80 to 20 Hz 3 directions; 2 hours for each direction 振 振幅幅1.5mm；；頻頻率率20~80~20Hz；；3個個方方向向各各2H 1. No Visual Damage 2. Frequency Tol.≤≤5% 無 無明明…

Text truncated - open the document above for the full version.

Arad Connectivity Co., Ltd Tel : +886-2-2680-0180 Office Add : 9F., No. 162, Sec. 3, Jiayuan Rd., Shulin Dist., New Taipei City 238671 , Taiwan (R.O.C.) www.aradconn.com TEST REPORT Applicant: Arad Connectivity Co., Ltd. Address: 5F-1, No. 63, Sec.1, Hangzhou S. Rd., Zhongzheng Dist., Taipei City 100022, Taiwan (R.O.C.) Equipment Type: MN54LM Series Model Name: MN54LM-S Chip Antenna Brand Name: Aradconn Issue Date: 2026/7/29 Gain and Efficiency Frequency Gain (dBi) Efficiency (%) 2400MHz -1.72 23 2410MHz -1.61 25 2420MHz -1.52 26 2430MHz -1.35 28 2440MHz -1.10 30 2450MHz -1.31 29 2460MHz -1.40 27 2470MHz -1.61 25 2480MHz -1.72 23 2490MHz -2.01 19 2500MHz -2.25 18 Arad Connectivity Co., Ltd Tel : +886-2-2680-0180 Office Add : 9F., No. 162, Sec. 3, Jiayuan Rd., Shulin Dist., New Taipei City 238671 , Taiwan (R.O.C.) www.aradconn.com Antenna Pattern 2D
