2BLKF-AR03Wireless Bluetooth Earphone

说明书 WirelessBluetoothEarphone InstructionManual AR03 OPERATIONINSTRUCTIONS LeftearphoneL Click:Pause/Play Doubleclick:Previoussong(Telephoneanswering/hangingup) ThreeStrike:Reducevolume FiveStrike:threeEQswitchingoptions Longpressfor2seconds:Switchbetweengame/musicmodes RightearphoneR Click:Pause/Play Doubleclick:Nextsong(Telephoneanswering/hangingup) ThreeStrike:Increasevolume FiveStrike:threeEQswitchingoptions Longpressfor2seconds:ANCswitch+transparencyswitch Longpressfor3seconds-manualpoweron CHARGINGBAYSPECIFICATIONS Batterycapacity:300mAh3.7V Chargingtime:≈1.5hours (Alltechnicalinformationissubjecttoactualperformance) WARRANTY&SERVICEINSTRUCTIONS DearUsers: Informationandinstructionsaslistedonthispamphletshouldbefollowedcarefully.This wouldensureasmoothpost-salesexperienceandsecureyourunderstandingsinlegal bindingsbetweenARTTIandyou. Precautions ·LeftandrightearpiecesaremarkedLandRrespectively. ·Pleaserefrainfromstriking,bumping,soakingorsqueezingtheearpiecesexcessivelysoas tonotdamagetheinternalcomponents. ·Earpieceplugsshouldnotbepulledtoohardinordertopreventdamagingtheconnectors. ·Foryourpersonalsafety,pleasedonotusetheearphoneswhendriving,cycling,or crossingthestreet. ·Donotplugintheearphonesintopoweroutlets. ·Pleasedonotusetheearphonesfortoolongwithsustainedhighvolumepressure.Doing somaypermanentlydamageyourhearing. ·Thefilternozzlescanbeblockedbyearwaxafteranextendedperiodoftime.Pleaseunclog itoccasionallytoensureoptimalperformanceoftheearphones. ·Pleasecleanyourearphonesfrequentlyandreplacethemifitneedstobetoprotectyour hearing. ·Childrenshouldbeusingthisproductunderadultsupervisionasitisnotatoy. WarrantyClauses ·After-salesservicewillbeavailablewhentheend-userproducesalegitimateretailinvoice andwarrantycard. ·Productreplacementwillonlybeacceptedwheninspectionsarecompletedbyan approvedARTTIengineer.Earphonesneedtobeintact,earphonechassisshouldbefreeof blemishesandnotdamaged. ·Thisproductiscoveredbya12-monthwarrantyuponpurchasedate. ·Thisproductiscoveredbya7-dayproductreplacementuponpurchasedate,shouldthe earphonemalfunctionwithoutuserserviceandthechassisisfreeofblemishesandnot damaged. ·Onlytheearphoneunitsarecoveredbythiswarranty.Accessoriesandgiftsarenot included. LimitationofService Shouldoneofthefollowingsituationlistedbelowoccur,ARTTIisnotliableforrepairor service: ·Damagesormalfunctionscausedbyshock,bump,drop,bendorotherformsof mishandling. ·MalfunctioncausedbyopeningupoftheearpieceswithoutwrittenpermissionbyARTTI. ·Malfunctionscausedbystoringtheunitsinhumidenvironments,incloseproximityto strongmagneticsourcesorsubmersionunderwater. ·Faultscausedbynaturaldisasters ·Failuretoprovideproofofwarranty,includingthewarrantycardandinvoice. CustomerSupportChannels Weprovidemultiplewaysforcustomerstoobtainsupportandservices. Brandofficialwebsite：https://artti.cn Email：[email protected] ServiceTel：+860755-23012170 FCCWarningStatement:Changesormodificationstothisunitnotexpressly approvedbythepartyresponsibleforcompliancecouldvoidtheuser’s authoritytooperatetheequipment.Thisequipmenthasbeentestedandfound tocomplywiththelimitsforaClassBdigitaldevice,pursuanttoPart15ofthe FCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainst harmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates, usesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedin accordancewiththeinstructions,maycauseharmfulinterferencetoradio communications. However,thereisnoguaranteethatinterferencewillnotoccurinaparticular installation.Ifthisequipmentdoescauseharmfulinterferencetoradioor televisionreception,whichcanbedeterminedbyturningtheequipmentoffand on,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreof thefollowingmeasures: -Reorientorrelocatethereceivingantenna. -Increasetheseparationbetweentheequipmentandreceiver. - Connecttheequipmentintoanoutletonacircuitdifferentfromthatto whichthereceiverisconnected. - Consultthedealeroranexperiencedradio/TVtechnicianforhelp. ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothe followingtwoconditions:(1)thisdevicemaynotcauseharmfulinterference, and(2)thisdevicemustacceptanyinterferencereceived,including interferencethatmaycauseundesiredoperation. FCCRadiationExposureStatement ThedevicehasbeenevaluatedtomeetgeneralRFexposurerequirement.The devicecanbeusedinportableexposureconditionwithoutrestriction.

ShenzhenFujingElectronicsCo.,Ltd 2.911(d)(5)(i)EquipmentTypeAttestationv1.2 Section2.911(d)(5)(i)Certification–EquipmentType Companyname:ShenzhenFujingElectronicsCo.,Ltd Address:206,BuildingA2,AreaB2,Fuhai,FuyongCommunity,FuyongStreet,Bao'anDistrict, ShenzhenChina ProductName:WirelessBluetoothEarphone FCCID:2BLKF-AR03 Model(s):AR03 2.911(d)(5)(i)EquipmentType We,[ShenzhenFujingElectronicsCo.,Ltd](“theapplicant”)certifythattheequipmentforwhich authorizationissoughtthroughcertificationisnot:  Prohibitedfromreceivinganequipmentauthorizationpursuantto§2.903;oftheFCCrules.  Identifiedasanequipmenttypeinthe“CoveredList” NOTE1 Yourssincerely, Name:PuPanDate:2024.10.11 TitleandCompanyname:Manager/ShenzhenFujingElectronicsCo.,Ltd NOTE1 “CoveredList”;istheListofEquipmentandServicesCoveredBySection2ofTheSecureNetworksAct,availableat https://www.fcc.gov/supplychain/coveredlist References; 1)986446D01CoveredEquipmentv01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2)FederalRegisterdocument2022-28263publishedon02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

ShenzhenFujingElectronicsCo.,Ltd 2.911(d)(5)(ii)ApplicantAttestationv1.3 Section2.911(d)(5)(ii)Certification–Applicant(CoveredList) Companyname:ShenzhenFujingElectronicsCo.,Ltd Address:206,BuildingA2,AreaB2,Fuhai,FuyongCommunity,FuyongStreet,Bao'anDistrict, ShenzhenChina ProductName:WirelessBluetoothEarphone FCCID:2BLKF-AR03 Model(s):AR03 2.911(d)(5)(ii)Applicantfiling We,[ShenzhenFujingElectronicsCo.,Ltd](“theapplicant”)certifythat,asofthedateofthefilingof theapplication,theapplicantisnotidentified NOTE1 onthe“CoveredList” NOTE2 ,established pursuantto§1.50002ofthischapter,asanentityproducingcoveredcommunicationsequipment. Yourssincerely, Name:PuPanDate:2024.10.11 TitleandCompanyname:Manager/ShenzhenFujingElectronicsCo.,Ltd NOTE1 Deleteoptionnotapplicabletothisapplication. NOTE2 “CoveredList”;istheListofEquipmentandServicesCoveredBySection2ofTheSecureNetworksAct,availableat https://www.fcc.gov/supplychain/coveredlist References; 1)986446D01CoveredEquipmentv01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2)FederalRegisterdocument2022-28263publishedon02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Shenzhen Fujing Electronics Co., Ltd 2.911 (d)(7)USA Agent v1.5 Section 2.911(d)(7) USA Agent for Service of Process Company name: Shenzhen Fujing Electronics Co., Ltd Address:206, Building A2, Area B2, Fuhai, Fuyong Community, Fuyong Street, Bao'an District, Shenzhen China Product Name:Wireless Bluetooth Earphone FCCID: 2BLKF-AR03 Model(s):AR03 2.911(d)(7) USA Designated Agent for Service of Process We, [Shenzhen Fujing Electronics Co., Ltd] (“the applicant”) designate [Stone Trading Limited] NOTE1 for the purpose of accepting service of process on behalf of the applicant. Applicant consent: We acknowledge our consent to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address of the designated agent and acknowledge our acceptance of our obligation to maintain an agent for service of process in the United States for no less than one year after either we the grantee have permanently terminated all marketing and importation of the applicable equipment within the U.S., or at the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. Agent obligation: We acknowledge our obligation to accept service of process in the United States for matters related to the applicable equipment at our physical U.S. address and email address for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or at the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. USA Agent Company name: Stone Trading Limited USA Address: 6547 N Academy Blvd #2266, Colorado Springs, CO 80918, United States FRN Number: 0033401936 Contact Name: Dongmei Fang Telephone No: +12134573118 Email: [email protected] Applicant Company name:Shenzhen Fujing Electronics Co., Ltd Address:206, Building A2, Area B2, Fuhai, Fuyong Community, Fuyong Street, Bao'an District, Shenzhen China Grantee FRN Number：0036086726 FCC Grantee Code:2BLKF Contact Name:Pu Pan Telephone No:18219242862 Email:[email protected] Signature: Shenzhen Fujing Electronics Co., Ltd 2.911 (d)(7)USA Agent v1.5 Title: Manager Signature: Title:Manager Date: 2024.10.11 Date:2024.10.11 NOTE 1: An applicant located in the United States may designate itself as the agent for service of process. Reference; Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-nation al-security-threats-to-the-communications-supply-chain-through-the

ShenzhenFujingElectronicsCo.,Ltd AgentAuthorization Company:ShenzhenFujingElectronicsCo.,Ltd Address:206,BuildingA2,AreaB2,Fuhai,FuyongCommunity,FuyongStreet,Bao'an District,ShenzhenChina ProductName:WirelessBluetoothEarphone ModelNumber(s):AR03 ProductDescription:WirelessBluetoothEarphone WeauthorizeMiCOMLabsInc.,575BoulderCourt,Pleasanton,California94566,USA, toactonourbehalfonallmattersconcerningthecertificationofabovenamed equipment. WedeclarethatMiCOMLabsInc.isallowedtoforwardallinformationrelatedtothe approvalandcertificationofequipmenttotheregulatoryagenciesasrequiredandto discussanyissuesconcerningtheapprovalapplication.Anyandallactscarriedoutby MiCOMLabsonourbehalfshallhavethesameeffectasactsofourown. Signature:Date:2024.10.11 Name:PuPan Title:Manager Company:ShenzhenFujingElectronicsCo.,Ltd

ShenzhenFujingElectronicsCo.,Ltd OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:2024.10.11 Subject;RequestforConfidentiality FCCID:2BLKF-AR03 ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthesedocuments mightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantageinthemarket. SchematicDiagram BlockDiagram PartsList OperationalDescription Tune-upProcedure Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); ExternalPhotos TestSetupPhotos InternalPhotos UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:PuPan Title:Manager

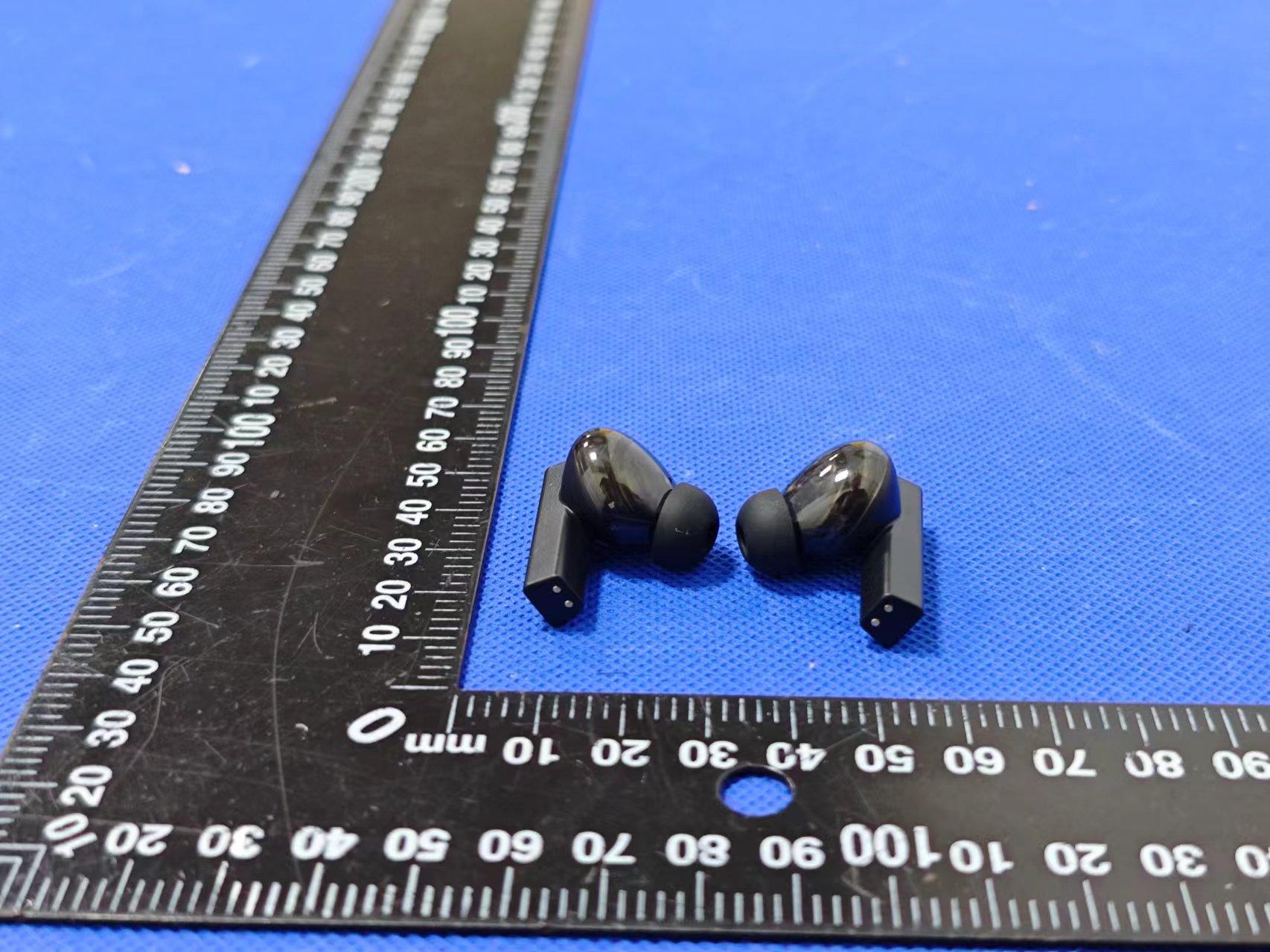

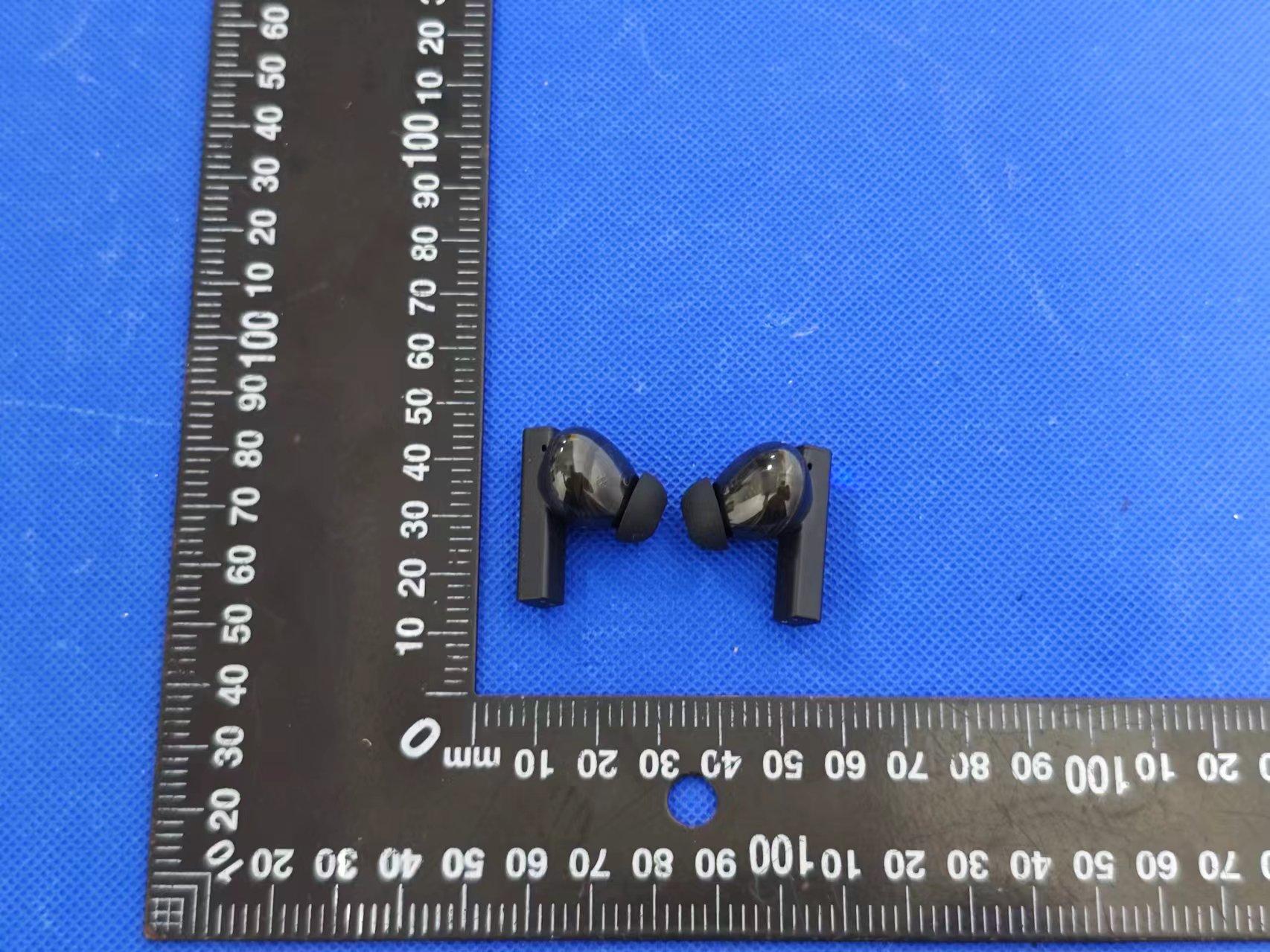

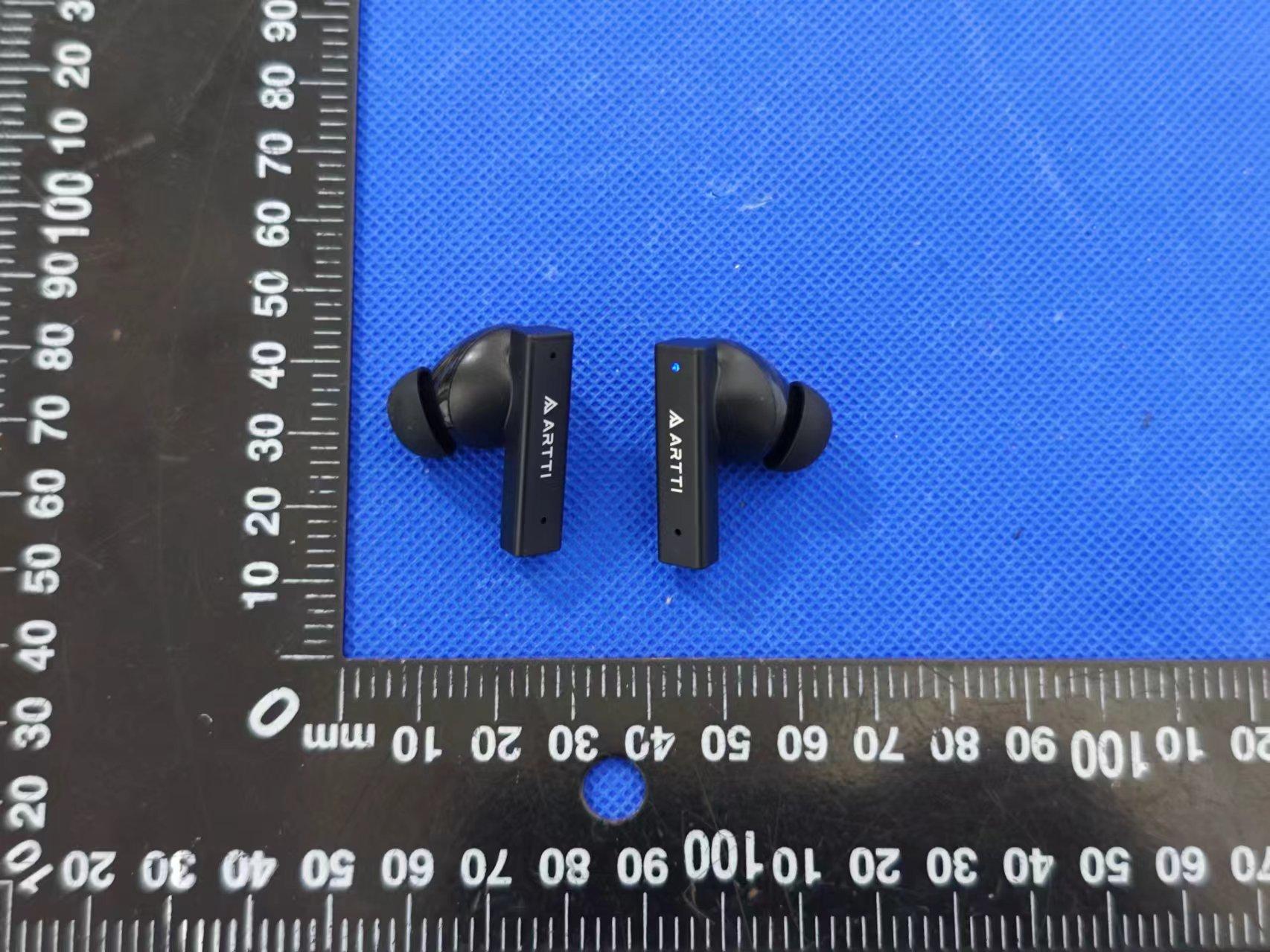

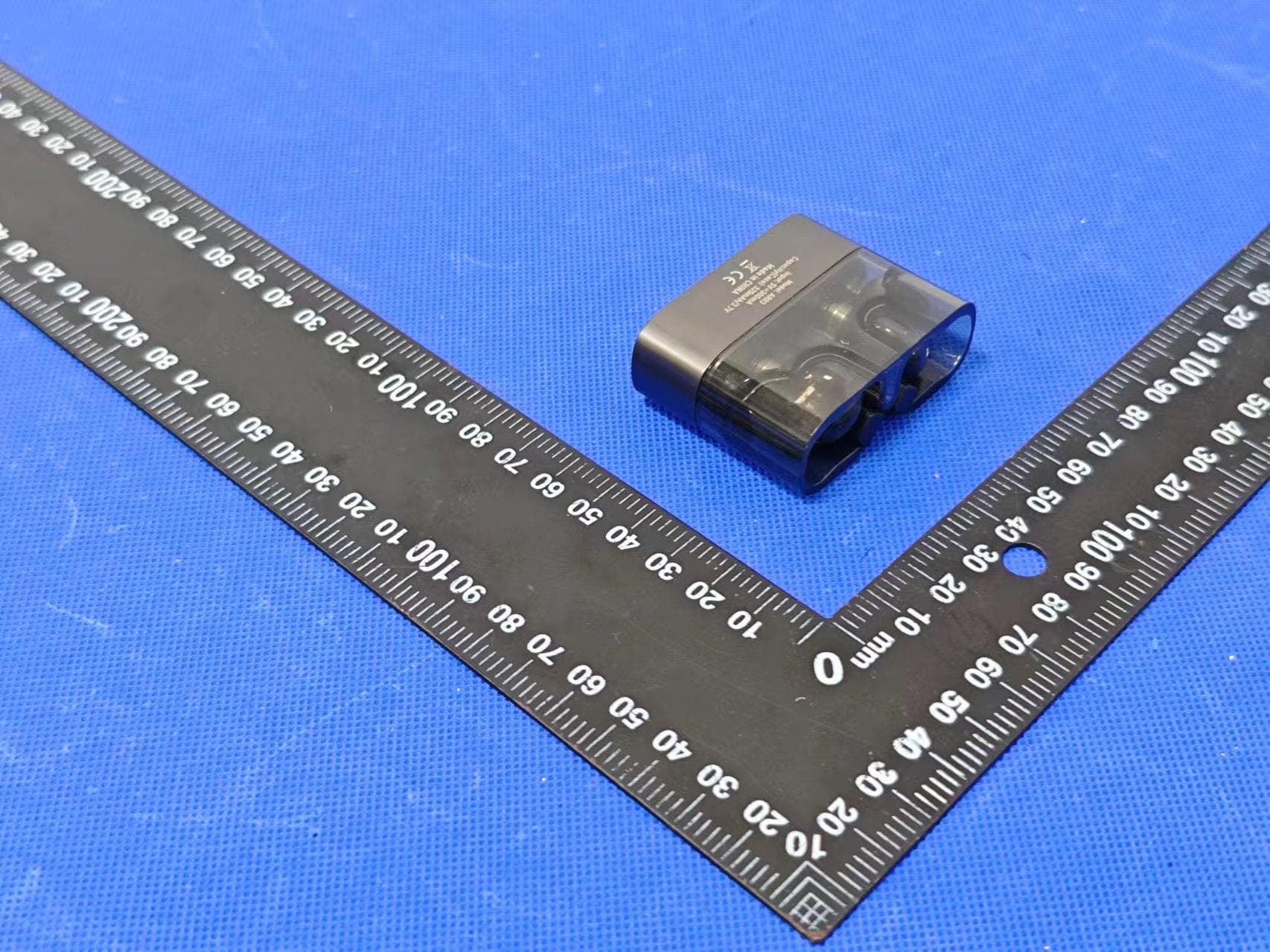

EUTPHOTO(ExternalPhotos) Photo1 Photo2 Photo3 Photo4 Photo5 Photo6 Photo7 Photo8 ※※※※※ENDOFREPORT※※※※※

Labelandlabellocation 4cm 2cm WirelessBluetoothEarphone FCCID:2BLKF-AR03

EUTPHOTO(InternalPhotos) Photo1 Photo2 Photo3 Photo4 Photo5 Photo6 ※※※※※ENDOFREPORT※※※※※ ANT ANT

FCCID:2BLKF-AR03 RFExposureEvaluation AccordingtoKDB447498D01GeneralRFExposureGuidancev06andpart2.1093， UnlessspecificallyrequiredbythepublishedRFexposureKDBprocedures,standalone 1-gheadorbodyand10-gextremitySARevaluationforgeneralpopulationexposure conditions,bymeasurementornumericalsimulation,isnotrequiredwhenthe correspondingSARTestExclusionThresholdcondition(s),listedbelow,is(are)satisfied. For100MHzto6GHzandtestseparationdistances≤50mm,the1-gand10-gSARtest exclusionthresholdsaredeterminedbythefollowing: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance, mm)]·[√f (GHz) ]≤3.0for1-gSAR,and≤7.5for10-gextremitySAR,where f (GHz) istheRFchanneltransmitfrequencyinGHz PoweranddistanceareroundedtothenearestmWandmmbeforecalculation Theresultisroundedtoonedecimalplaceforcomparison Here, EDR ModeMax Power(dBm) Max Power(mW) Frequency(MHz)Min. distance(mm) Calc. thresholds limit GFSK-4.9180.322240250.1003.0 π/4-DQPSK-5.0670.311248050.0983.0 8-DPSK-6.2800.236248050.0743.0 SoaSARtestisnotrequired.
