2BLKJ-HX-818Corner Floor Lamp

User Manual Scan QR Code Download APP We hope you never have the need, but if you do, our service is friendly. If you have any question, please contact us. We will response your inquiry within 24 hours. Telephone:(725) 255-2966 Email:[email protected] We will help you solve the problem! Troubleshooting 1. Cannot connect to "Magic Lantern" app. a. Check if the lamp is powered on, try disconnecting and re-powering. b. Check if Bluetooth on the smartphone is enabled, or try connecting with another smartphone. c. Make sure the app is the lat est version. d. When connecting for the first time, ensure the smartphone is near the lamp. 3. The remote control does not work a. Check if the remote control battery has power b. Reset the remote control, then re-pair it. Reset the remote: Disconnect the power for 5-10 seconds, within 15 seconds after power-on, long press the "AUTO" button on the remote control until t he light flashes 3 times, decoding is successful. Re-pairing: Disconnect the power for 5-10 seconds, within 15 seconds after power-on, long press the "AUTO" button on the remote control until t he light flashes 3 times, Re-pairing is successful. 4. Why the app need permissions for location, bluetooth, microphone, a. Location permissions: Android system requires location to scan for bluetooth devices and connect. It's not ''Magic Lantern'' app needs the buyer's location inf ormation, it's the Android system that needs it. IOS system does not require location permissions. b. Bluetooth permissions: Allow bluetooth to connect to use the app. c. The recording, storage, and camera permissions are optional (Optionally close). They are only required when using some functions. Stroage: When using the music mode, need to read the music in the mobile phone. Microphone:When using the mic mode, you need to grab the surrounding sound. Camera: When uploading profile pictures. d. We do not record and sove any buyer's location and other inf ormation. You can set all permissions to allow only while app in use. Please call or email us, we will provide you with a satisf actory solution. Packing List Lamp Pole Lamp Base Power Adaper with Cable Remote Control User Manual Allen Wrench Spare screws 10 3 1 1 1 1 1 Installation Step1: Check if all the parts are completely. Connect the power adapter to check if floor lamp can work normally. Be sure to test before installing. Any questions, please feel free to contact us by email or phone Warning Step2: Install the light tubes from bottom to top one by one. Step3: Install the screws to fix the light pole. Control Manner Control Button APP Control 1. Scan the below QR code or search "Magic Lantern" on Apple APP or Google play store, download and install it on your phone or tablet. 2. . Turn on Bluetooth on your phone. Please do not connect the device on the Bluetooth interface (the picture below is an error example). After turn on the Bluetooth, icon in the upper left corner. please open straight to the Magic Lantern app.Click the list mark means sucessfully connected. mark means Bluetooth unconnected, please tap this mark to make it connected 14 Keys RF Remote Control R +- B W G 1H 2H MODE SPEED+ SPEED- AUTO Turn on/off Loop playback of 20 modes White Blue Red Green Music mode (3 types) Brightness decrease Brightness increase Choose one of the 20 modes to play fixedly 1 hour shut down 2 hours shut down Specification Voltage Wattage Colors Control Method Material Weight(Pounds) Product Size(Inch) AC 100-240V,DC 12V 16.8W RGBIC APP/RF Remote/Button Aluminum Alloy 1.9 pounds 4.72*4.72*59 inch WARNING: 1. Indoor use only.It is non-waterproof. 2. Please use the packaged adapter to meet the working power requirement. 3. Power off before installation, cleaning and idle. 4. Please do not use it in humid environments or at high temperatures 5.Please do not use a power supply higher than 12V in US. 6. Please do not plug or unplug the power cord with wet hands keep it in a dry environment. 7. Please stop using it if there are any defective issues found in the product. FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation Made in China . 2. Can multiple users control a single lamp at the same time use APP? a. Each lamp can only be connected to one APP account at a time. b. If multiple accounts want to use the one lamp, user A must disconnect on Magic Lantern APP. Then user B can connect and use it on the APP. Check if all the parts are completely. RGBIC 1 2 3 Connect the wires on the pole with the power adapter.Plug in, to check if they can work normally. If the lamp does not light up after connecting to the power supply,please press the switch button on the base of the lamp. User Manual AUTO B W G SPEED+ SPEED- R - 1H2H MODE - - Lamp Base Power Adapter Allen Wrench Remote Control Lamp Pole ×3 Spare screws×10 Tighten Already installed. Donnot move 20mode switching Turn on/off FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the eq…

Text truncated - open the document above for the full version.

huaxindongguankejiyouxiangongsi fenggangyongshengbeilu6hao4dong801shi dongguanshifenggangz henguangdongsheng China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-10-13 To whom it may concern: We, huaxindongguankejiyouxiangongsi, hereby certify that the equipment for which authorization is sought (FCC ID: 2BLKJ-HX-818) is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist) as an entity producing “covered” equipment. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Sincerely, Signature Renlan Luo Manager huaxindongguankejiyouxiangongsi 62_[model] CoveredEqu_2.911(d)(5)(i) and (ii) - U, V03

huaxindongguankejiyouxiangongsi Add: fenggangyongshengbeilu6hao4dong801shi dongguanshifenggangz henguangdongsheng China Date: 2024-10-13 FCC ID: 2BLKJ-HX-818 Dear Sir/Madam, We, huaxindongguankejiyouxiangongsi Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: Corner Floor Lamp Model no.: HX-818, KS-ICLP, KS-ICLP-01, KS-ICLP-02, KS-ICLP-04, KS-ICLP-05, KS-RGBIC0-1, KS-RGBIC-02, KS-RGBIC-03, KS-RGBIC-04,KS-RGBIC-05 Sincerely, Name/Title： Renlan Luo/Manager Company: huaxindongguankejiyouxiangongsi Address: fenggangyongshengbeilu6hao4dong801shi dongguanshifenggangz henguangdongsheng China Phone: 15814692725 Fax: N/A E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2024-10-13> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2BLKJ-HX-818 HX-818 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Renlan Luo/Manager Company: huaxindongguankejiyouxiangongsi Address: fenggangyongshengbeilu6hao4dong801shi dongguanshifenggangz henguangdongsheng China Phone: 15814692725 Fax: N/A E-Mail: [email protected]

huaxindongguankejiyouxiangongsi fenggangyongshengbeilu6hao4dong801shi dongguanshifenggangz henguangdongsheng China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-10-13 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2BLKJ-HX-818 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Renlan Luo/Manager Company: huaxindongguankejiyouxiangongsi Address: fenggangyongshengbeilu6hao4dong801shi dongguanshifenggangz henguangdongsheng China Phone: 15814692725 Fax: N/A E-Mail: [email protected]

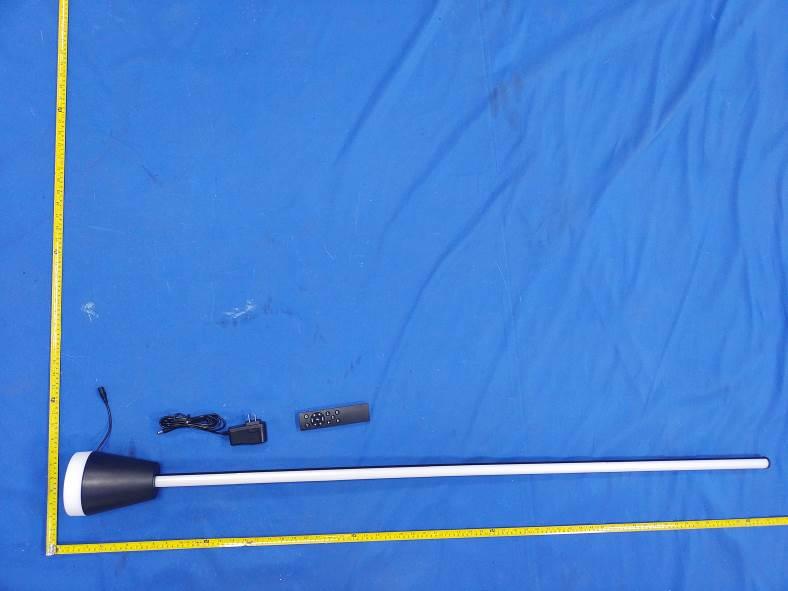

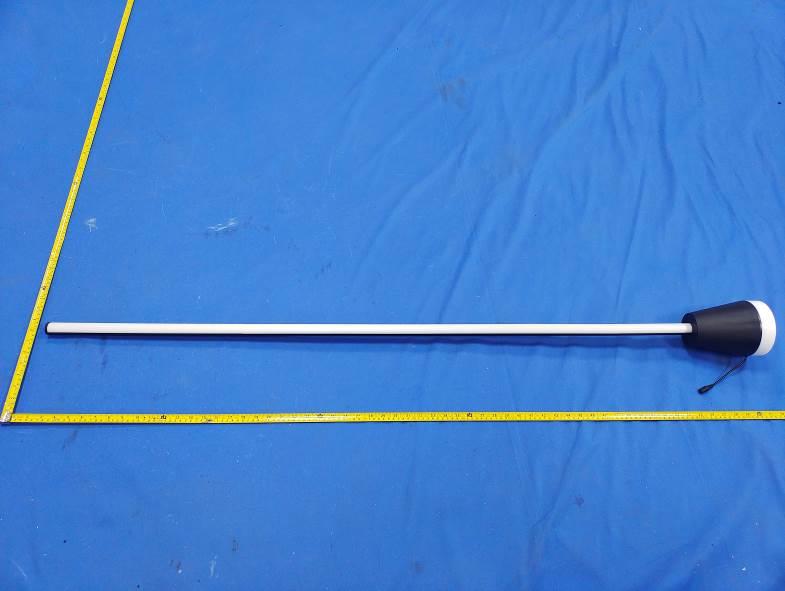

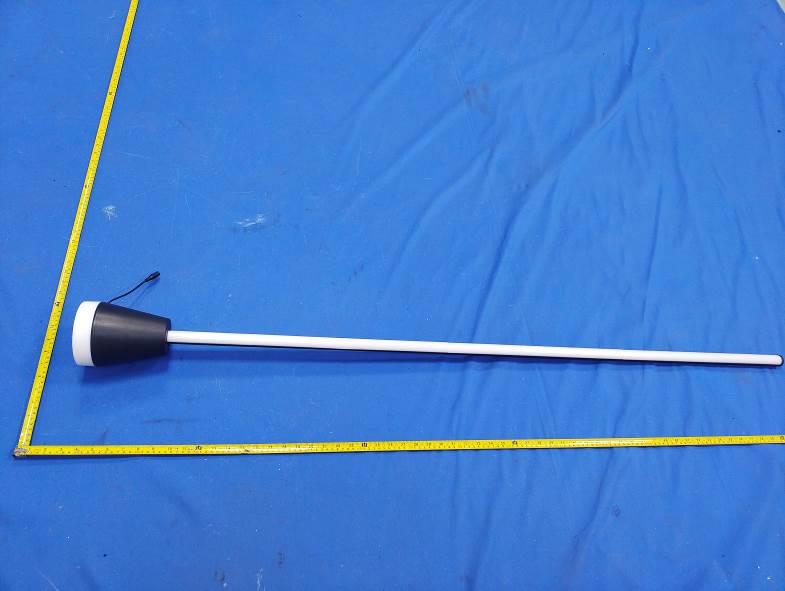

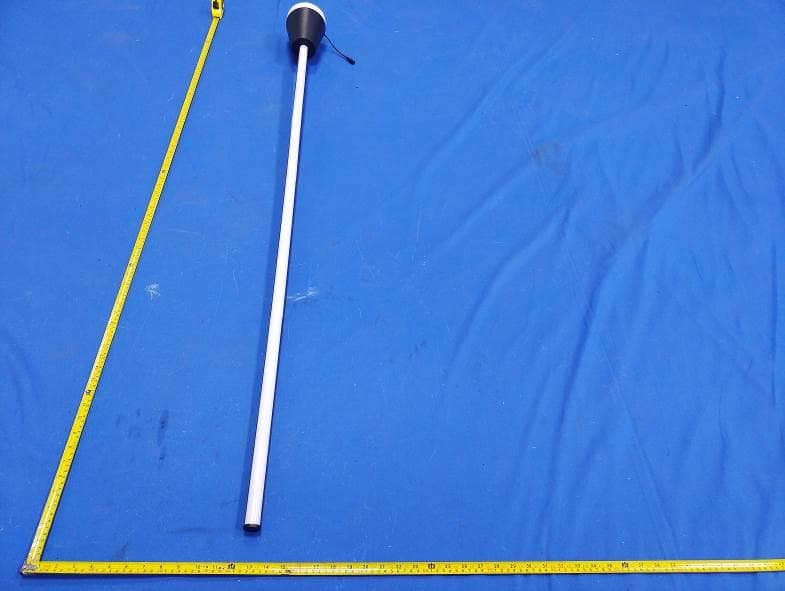

FCC ID: 2BLKJ-HX-818 External Photos of the EUT FCC ID: 2BLKJ-HX-818 FCC ID: 2BLKJ-HX-818

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location FCC ID : 2BLKJ-HX-818

FCC ID: 2BLKJ-HX-818 Internal Photos of the EUT FCC ID: 2BLKJ-HX-818 FCC ID: 2BLKJ-HX-818 FCC ID: 2BLKJ-HX-818 FCC ID: 2BLKJ-HX-818 ANT FCC ID: 2BLKJ-HX-818

RF Exposure evaluation FCC ID: 2BLKJ-HX-818 1.1. Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.2. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 1.3. Manufacturing tolerance GFSK (Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) -2.0 -1.0 -1.0 Tolerance ±(dB) 1.0 1.0 1.0 Page 2 of 2 2. E v a l u a t i o n R e s u l t Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW BLE 2.450 5 0.0 1.000 0.3130<3.0 Yes 3. C o n c l u s i o n The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06 .....................End of Report.........................

1. Antenna Description: Antenna type PCB antenna Model HX-818 Frequency range 2400-2500MHz Manufacturer Huaxin (Dongguan)Technology Co., Ltd. ANT Peak Gain 0.38 dBi 2. Antenna Photo: Length :11.48mm Width:2.73mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID. ........................................... : CTA24092600301 2BLKJ-HX-818 Compiled by ( position+printed name+signature) .. : File administrators Jinghua Xiao Supervised by ( position+printed name+signature) .. : Project Engineer Xudong Zhang Approved by ( position+printed name+signature) .. : RF Manager Eric Wang Date of issue ..................................... : Oct. 09, 2024 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : huaxindongguankejiyouxiangongsi Address ............................................ : fenggangyongshengbeilu6hao4dong801shidongguanshifenggangzhe nguangdongsheng523000CN Test specification ...........................: Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description ................... : Corner Floor Lamp Trade Mark ....................................... : Keepsmile Manufacturer .................................... : Huaxin (Dongguan)Technology Co., Ltd. Model/Type reference....................... : HX-818 Listed Models .................................. : KS-ICLP, KS-ICLP-01, KS-ICLP-02, KS-ICLP-04, KS-ICLP-05, KS-RGBIC0-1, KS-RGBIC-02, KS-RGBIC-03, KS-RGBIC-04, KS-RGBIC-05 Modulation ....................................... : GFSK Frequency .......................................... From 2402MHz to 2480MHz Ratings ............................................. : DC 12.0V From external circuit Result................................................ : PASS Report No.: CTA24092600301 Page 2 of 39 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Corner Floor Lamp Model /Type : HX-818 Listed Models : KS-ICLP, KS-ICLP-01, KS-ICLP-02, KS-ICLP-04, KS-ICLP-05, KS-RGBIC0-1, KS-RGBIC-02, KS-RGBIC-03, KS-RGBIC-04, KS-RGBIC-05 Applicant : huaxindongguankejiyouxiangongsi Address : fenggangyongshengbeilu6hao4dong801shidongguanshifenggangzhen guangdongsheng523000CN Manufacturer : Huaxin (Dongguan)Technology Co., Ltd. Address : Room 801, Building 4, No.6, Yongsheng North Road, Fenggang, Dongguan City, Guangdong Province China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA24092600301 Page 3 of 39 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S .................................................................. 4 2 S U M M A R Y ............................................................................. 5 2.1 General Remarks 5 2.2 Product Description* 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T ............................................................... 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ............................................ 11 4.1 AC Power Conducted Emission 11 4.2 Radiated Emissions and Band Edge 14 4.3 Maximum Peak Output Power 21 4.4 Power Spectral Density 22 4.5 6dB Bandwidth 24 4.6 Out-of-band Emissions 26 4.7 Antenna Requirement 30 5 T E S T S E T U P P H O T O S O F T H E E U T .......................................... 31 6 P H O T O S O F T H E E U T ............................................................. 32 Report No.: CTA24092600301 Page 4 of 39 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 V05r02: Guidance for Performing Compliance Measurements on Digital Transmission Systems (DTS) Operating Under §15.247 Report No.: CTA24092600301 Page 5 of 39 Shenzhen CTA Testing Technology Co., Ltd…

Text truncated - open the document above for the full version.

FCC ID: 2BLKJ-HX-818 Test Setup Photos of the EUT
