2BLKN-EP71Label Printer

Label Printer User Manual 123456789101112131415 1617181920212223242526272829303132 33343536 FRANÇAIS ESPAÑOL 01~08 09~15 1 6~22 23~29 30~36 DEUTSCH ENGLISH ITALIANO 123456789101112131415 1617181920212223242526272829303132 33343536 1.What’s in the box 2.What’s what USB-C cable Cover release button Reset button USB-C port Power button Label cartridge compartment Cover Display Multi-function button Label printerUser manual Label Printer User Manual 123456789101112131415 1617181920212223242526272829303132 33343536 3.Install / Replace Label Cartridge ① Press the cover button to open the lid. ② Remove the old cartridge. ③ Insert the new MakeID cartridge. ⑤ Pull the label end out to the paper exit. ④ Push down until it clicks into place. ⑥ Close the lid firmly until it locks. 123456789101112131415 1617181920212223242526272829303132 33343536 B A 1.Download “MakeID Label Design” from: https://www.makeid.com/support; 2.Install the software on your computer; 3.Connect the printer with the USB C cable to your computer; 4.Turn on the printer; 5.Open the software and edit the label content; 6.Click “Print” to start the printing process. 1.Scan QR code to installMakeID Label Pro APP; 2.Turn on Bluetooth on your phone; 3.Open the app, tap the printer icon in the top right; 4.Select your printer (name = SN code on b ot to m); 5.Edit your label, then tap “Print”. 1.Power :Hold 3 seconds to turn on/off; 2.Feed :Press once to feed a label; hold 3 seconds to print test page; 3.Menu : Press to enter settings (darkness, auto off, language).Press to switch parameter settings; 4.Pause :Press to pause, press again to resume printing, hold 3s to cancel printing. 4.Print from phone 6.Button Guide 5.Print from Computer 123456789101112131415 1617181920212223242526272829303132 33343536 8.Maintenance – Clean Print Head 1.Turn off the printer; 2.Open lid, remove cartridge; 3.Wait until print head is fully cool; 4.Gently wipe the print line with a cotton swab or lint-free cloth dampened with anhydrous ethanol; 5.Wait 3–5 minutes until completely dry; 6.Reinstall cartridge and close lid; Important:Do not touch the print head with fingers or metal.Do not use petrol, acetone or other chemicals. 1.Does not print ·Check Bluetooth / battery / cartridge installation. 2.Label not recognized ·Reopen and close the lid; use a new genuine cartridge. 3.Print light / blurry ·Clean the print head; increase print darkness. 4.Print head overheating ·Stop printing, open lid, wait 5–10 minutes to cool. 5.Battery fails to charge ·Continuous printing or long-term storage may cause the battery to over-discharge. It takes 6 to 8 hours to restore and fully charge the battery. 7. Troubleshooting 123456789101112131415 1617181920212223242526272829303132 33343536 The black line is print line. 9.Safety Warnings 1.Print head becomes hot: do NOT touch during or right after printing; 2.Keep away from water, heat, direct sunlight; 3.Keep out of reach of small children; 4.Do not take apart the printer; 5.Please use only a 5V USB-C power adapter that complies with applicable safety regulations and holds valid safety certifica- tions. where is the print line? 123456789101112131415 1617181920212223242526272829303132 33343536 10.Warranty Policy Warranty Period 2-years warranty for the printer against hardware defects from date of purchase, when used normally as instructed. What is covered Manufacturing defects and malfunctions under normal home or office use. What is NOT covered Damage from dropping, water, crushing, impact Use of non-MakeID labels or ribbons Disassembly, unauthorized repair or modification Wrong power, improper storage or environment Accidents, fire, flood or other natural disasters How to get service Contact us with your order number, name, contact info and a short description of the issue. Service email: [email protected] 123456789101112131415 1617181920212223242526272829303132 33343536 11.Specifications ItemParameter Print methodThermal transfer Resolution300dpi Print speedmax 50mm/s Valid printing width105.6mm Label Width56mm,93mm,110mm Battery2600mAh Display1.14 inch ConnectionBluetooth,USBType-C Input5V/1.4A Dimension167*160*74mm Weight680g(cartridge not included) Work environment0~4020%~90%RHnon-condensing Storage environment-20~605%~93%RHnon-condensing 123456789101112131415 1617181920212223242526272829303132 33343536 FCC COMPLIANCE STATEMENT: This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions: this device may not cause harmful interference, and this device must accept any interference received.in- cluding interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. N TE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment gener- ates,uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interfer- ence will not occur in a particular installation. lf this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and onthe user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmi…

Text truncated - open the document above for the full version.

Chongqing Pinsheng Technology Co.,Ltd. 2026-08-20 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2BLKN-EP71) [ Chongqing Pinsheng Technology Co.,Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, the equipment does not utilize cyber-security or anti-virus software from Kaspersky Lab, Inc, or any of its successors and assignees, which is also on the “covered list”. Sincerely, Lei Sun Manager Chongqing Pinsheng Technology Co.,Ltd. Chongqing Pinsheng Technology Co.,Ltd. 2026-08-20 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID: 2BLKN-EP71) [ Chongqing Pinsheng Technology Co.,Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Lei Sun Manager Chongqing Pinsheng Technology Co.,Ltd.

Chongqing Pinsheng Technology Co., Ltd. Declaration on model difference We the undersigned hereby confirm that these models are identical, and all models have the same RF module and antenna, PCB layout, schematics and component. Only the model names, colors, Resolution, Brands are different. Product name FCC ID Model no. Label Printer 2BLKN-EP71 EP71, P71, P71A, P71B, P71C, P71S, P71T, GTP71, GTP71E, GTP71F, GTP71G, GTP71H, GP71, GP71T, GP71U, GP71V, GP71W, GP71X, GP71Y, EP71, EP71R, P71-3R, P71A-3R, P71S-3R, GTP71-3R, GTP71G- 3R, GTP71H-3R, GP71-3R, GP71T-3R, GP71U-3R, EP71-3R, EP71R-3R, AP71, AP71A, AP71S, AP71T, AP71P, AP71-3R, AP71A-3R, AP71S-3R, AP71T-3R, BP71, BP71S, BP71-3R, BP71S-3R, W1610, W1610A, W1610B, W1610S, W1610P, W1610, W1610A-3R, W1610B-3R, W1610S-3R, W1610P-3R, M400B, M400B-S, M400B-T, M400B-P, M400B-A, M400B-3R, M400B-S3R, M400B-T3R, M400B-P3R, M400B- A3R, EM7B, EM7B-S, EM7B-P, EM7B-3R, EM7B-S3R, EM7B-P3R, PB7, PB7A, PB7B, PB7H, PB7G, PB7-3R, PB7A-3R, PB7B-3R, PB7H-3R, PB7G-3R Sincerely, Lei Sun Manager Chongqing Pinsheng Technology Co.,Ltd.

Chongqing Pinsheng Technology Co., Ltd. 2026-08-20 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Guangdong Global Testing Technology Co., Ltd. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Lei Sun Manager Chongqing Pinsheng Technology Co.,Ltd.

Chongqing Pinsheng Technology Co.,Ltd. 2026-08-20 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR ( EUT Name: Label Printer /Model: EP71, P71, P71A, P71B, P71C, P71S, P71T, GTP71, GTP71E, GTP71F, GTP71G, GTP71H, GP71, GP71T, GP71U, GP71V, GP71W, GP71X, GP71Y, EP71, EP71R, P71-3R, P71A-3R, P71S-3R, GTP71-3R, GTP71G-3R, GTP71H-3R, GP71-3R, GP71T-3R, GP71U-3R, EP71-3R, EP71R-3R, AP71, AP71A, AP71S, AP71T, AP71P, AP71-3R, AP71A-3R, AP71S-3R, AP71T-3R, BP71, BP71S, BP71-3R, BP71S-3R, W1610, W1610A, W1610B, W1610S, W1610P, W1610, W1610A-3R, W1610B-3R, W1610S-3R, W1610P-3R, M400B, M400B-S, M400B-T, M400B-P, M400B-A, M400B-3R, M400B-S3R, M400B-T3R, M400B-P3R, M400B-A3R, EM7B, EM7B-S, EM7B-P, EM7B-3R, EM7B-S3R, EM7B-P3R, PB7, PB7A, PB7B, PB7H, PB7G, PB7-3R, PB7A-3R, PB7B-3R, PB7H-3R, PB7G-3R/FCC ID: 2BLKN-EP71) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the (Block Diagram, Operational Description, Schematics) required to be submitted with this application be permanently withheld from public review. SPECIFY REASON FOR REQUEST (i.e. the above documents are company proprietary information that could never get into the possession of your competition). Please contact me if there is any information you may need. Sincerely, Lei Sun Manager Chongqing Pinsheng Technology Co.,Ltd.

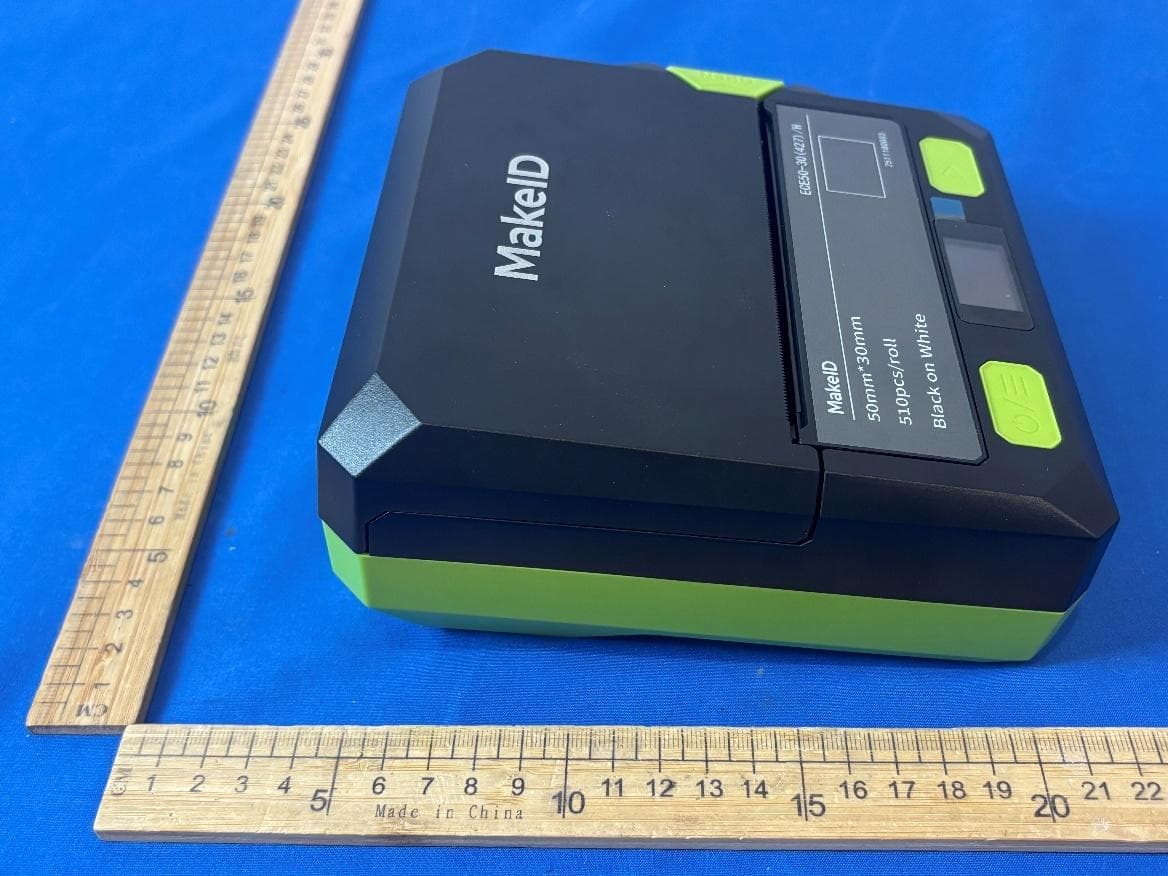

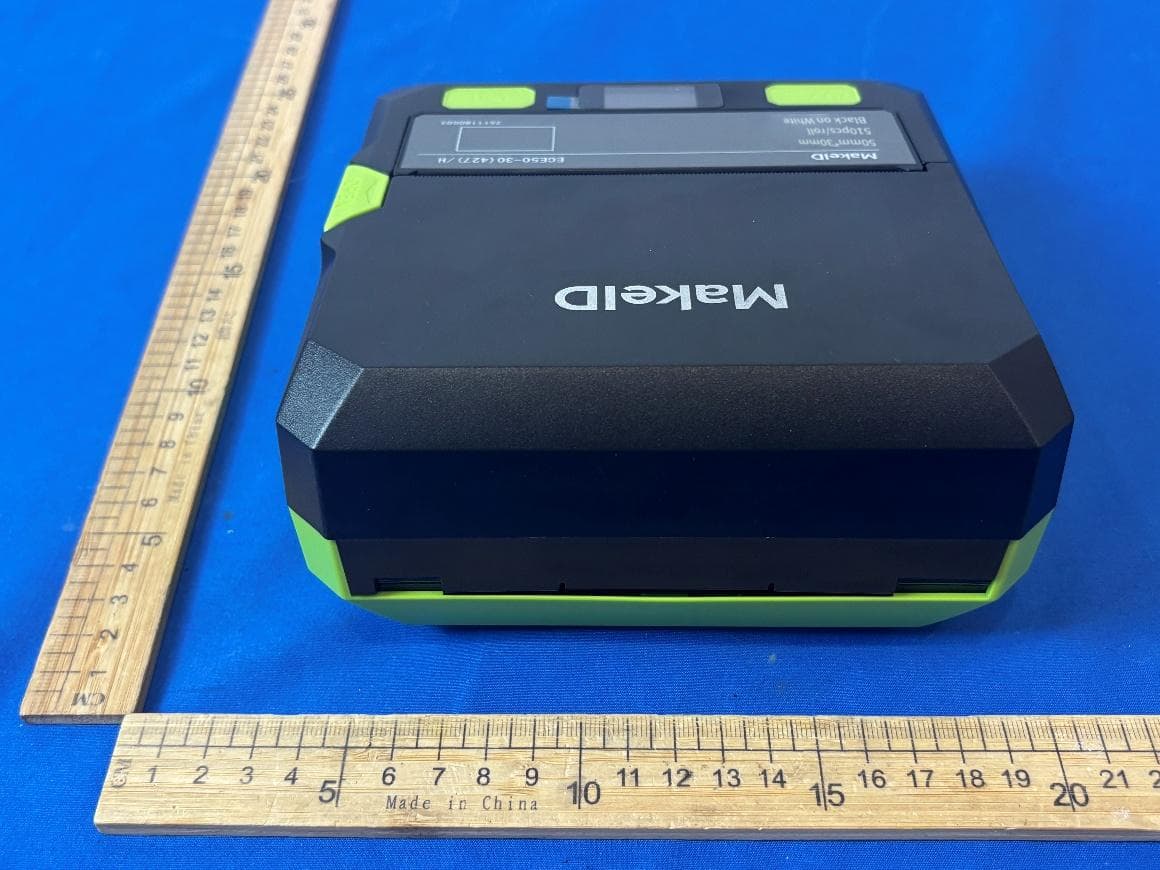

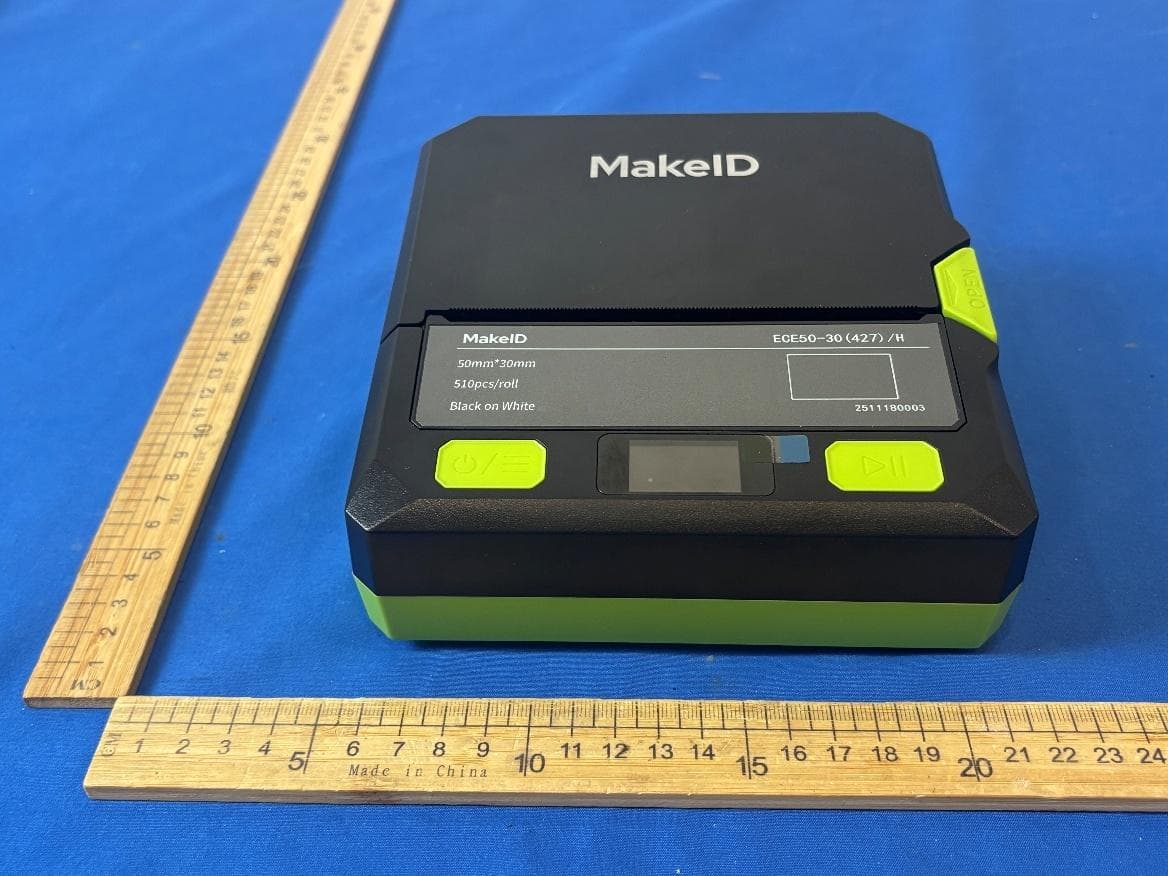

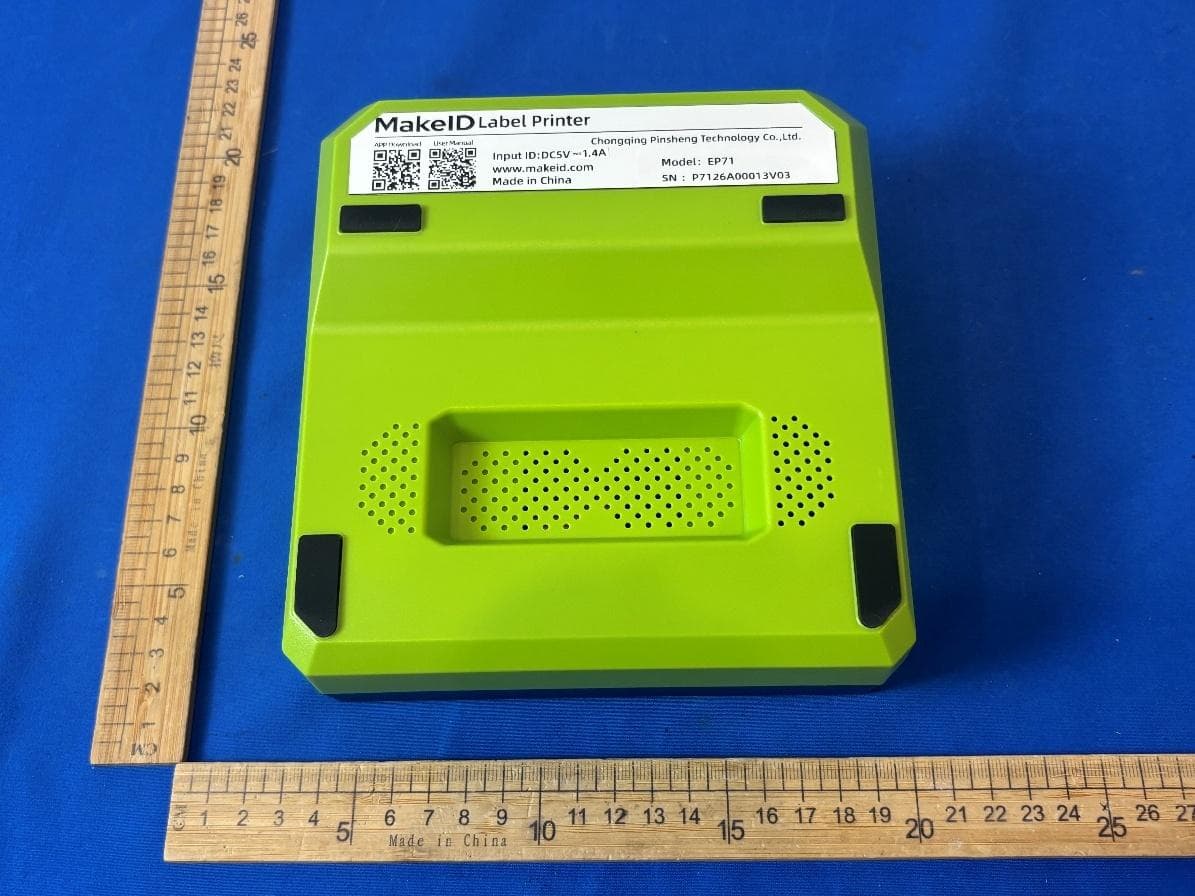

External Photographs View of EUT-1 View of EUT-2 Page 2 of 4 View of EUT-3 View of EUT-4 Page 3 of 4 View of EUT-5 View of EUT-6 Page 4 of 4 View of EUT-7

Internal Photographs Internal View of EUT-1 Internal View of EUT-2 Page 2 of 7 Internal View of EUT-3 Internal View of EUT-4 Page 3 of 7 Internal View of EUT-5 Internal View of EUT-6 NFC ANT Page 4 of 7 Internal View of EUT-7 Internal View of EUT-8 BT ANT Page 5 of 7 Internal View of EUT-9 Internal View of EUT-10 Page 6 of 7 Internal View of EUT-11 Internal View of EUT-12 Page 7 of 7 Internal View of EUT-13

RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) FCC ID: 2BLKN-EP71 EUT Specification EUT Portable Smart Label Printer Frequency band (Operating) BT: 2.402GHz ~ 2.480GHz BLE: 2.402GHz ~ 2.480GHz NFC: 13.56 MHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power BR+EDR BR+EDR:1.93 dBm BLE BLE 1M: 0.01 dBm NFC: 45.44 (dBμV/m)@3m Antenna gain (Max) BR+EDR: 1.4 dBi BLE: 1.4 dBi NFC:0 dBi Evaluation applied MPE Evaluation SAR Evaluation 2 / 3 Limits for Maximum Permissible Exposure(MPE) Friis transmission formula: Pd=(Pout*G)\(4*pi*R2) Where P d = Power density in mW/cm 2 , P out =output power to antenna in mW. G= gain of antenna in linear scale, Pi=3.1416 R= distance between observation point and center of the radiator in cm=20cm P d the limit of MPE, 1mW/cm 2 . If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. For multiple RF sources: Multiple RF sources are exempt if: in the case of fixed RF sources operating in the same time-averaging period, or of multiple mobile or portable RF sources within a device operating in the same time averaging period, if the sum of the fractional contributions to the applicable thresholds is less than or equal to 1 as indicated in the following equation Evaluated k : the maximum reported SAR or MPE of fixed, mobile, or portable RF source k either in the device or at the transmitter site from an existing evaluation at the location of exposure. Exposure Limit k : either the general population/uncontrolled maximum permissible exposure (MPE) or specific Absorption rate (SAR) limit for each fixed, mobile, or portable RF source k. 3 / 3 Measurement Result Operation Mode Channel Frequency (MHz) Max Measured Power (dBm) Tune up tolerance (dBm) Max tune up conducted power (dBm) Output Peak power (mW) Ant. Gain (dBi) Ant. Gain (numeric) Power density at 20cm (mW/ cm2) Power density Limits (mW/ cm2) Results BR+EDR (3DH5) 2480 1.93 2±1 3 1.995 0.55 1.38 0.000548 1 PASS BLE 1Mbps 2480 0.01 0±1 1 1.259 0.55 1.38 0.000346 1 PASS Operation Mode Channel Freq. (MHz) Field Strength (dBμV/m)@3m Field Strength (dBμV/m)@0.05m Field Strength (V/m) @0.05m Limits (V/m) NFC 13.56 45.44 81.003 0.01122 60.767 Note：1. Limits(V/m)=824/f=824/13.56=60.767 2. dBuV/m=20*Log10((V/m)*1000000) 3. Max. E-field Strength @ 0.05m = Max. E-field Strength @ 3m + 20log (3m/0.05m) No need to test SAR. Signature: Alan He Date: 2026-08-17

Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT BLE 1M 2402 Ant1 62.16 2.06 2.57 NVNT BLE 1M 2440 Ant1 62.24 2.06 2.57 NVNT BLE 1M 2480 Ant1 62.4 2.05 2.56 2 / 22 Duty Cycle NVNT BLE 1M 2402MHz Ant1 Duty Cycle NVNT BLE 1M 2440MHz Ant1 3 / 22 Duty Cycle NVNT BLE 1M 2480MHz Ant1 4 / 22 Maximum Peak Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit Conducted(dBm) Verdict NVNT BLE 1M 2402 Ant1 -5.17 30 Pass NVNT BLE 1M 2440 Ant1 -2.8 30 Pass NVNT BLE 1M 2480 Ant1 0.01 30 Pass 5 / 22 Peak Power NVNT BLE 1M 2402MHz Ant1 Peak Power NVNT BLE 1M 2440MHz Ant1 6 / 22 Peak Power NVNT BLE 1M 2480MHz Ant1 7 / 22 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT BLE 1M 2402 Ant1 0.6336 0.5 Pass NVNT BLE 1M 2440 Ant1 0.6324 0.5 Pass NVNT BLE 1M 2480 Ant1 0.6285 0.5 Pass 8 / 22 -6dB Bandwidth NVNT BLE 1M 2402MHz Ant1 -6dB Bandwidth NVNT BLE 1M 2440MHz Ant1 9 / 22 -6dB Bandwidth NVNT BLE 1M 2480MHz Ant1 10 / 22 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT BLE 1M 2402 Ant1 1.0037 NVNT BLE 1M 2440 Ant1 1.0045 NVNT BLE 1M 2480 Ant1 1.004 11 / 22 OBW NVNT BLE 1M 2402MHz Ant1 OBW NVNT BLE 1M 2440MHz Ant1 12 / 22 OBW NVNT BLE 1M 2480MHz Ant1 13 / 22 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Conducted PSD (dBm/3kHz) Limit (dBm/3kHz) Verdict NVNT BLE 1M 2402 Ant1 -20.36 8 Pass NVNT BLE 1M 2440 Ant1 -17.92 8 Pass NVNT BLE 1M 2480 Ant1 -15.28 8 Pass 14 / 22 PSD NVNT BLE 1M 2402MHz Ant1 PSD NVNT BLE 1M 2440MHz Ant1 15 / 22 PSD NVNT BLE 1M 2480MHz Ant1 16 / 22 Band Edge Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT BLE 1M 2402 Ant1 -52.72 -20 Pass NVNT BLE 1M 2480 Ant1 -58.14 -20 Pass 17 / 22 Band Edge NVNT BLE 1M 2402MHz Ant1 Ref Band Edge NVNT BLE 1M 2402MHz Ant1 Emission 18 / 22 Band Edge NVNT BLE 1M 2480MHz Ant1 Ref Band Edge NVNT BLE 1M 2480MHz Ant1 Emission 19 / 22 Conducted RF Spurious Emission Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT BLE 1M 2402 Ant1 -35.76 -20 Pass NVNT BLE 1M 2440 Ant1 -38.92 -20 Pass NVNT BLE 1M 2480 Ant1 -38.64 -20 Pass 20 / 22 Tx. Spurious NVNT BLE 1M 2402MHz Ant1 Ref Tx. Spurious NVNT BLE 1M 2402MHz Ant1 Emission 21 / 22 Tx. Spurious NVNT BLE 1M 2440MHz Ant1 Ref Tx. Spurious NVNT BLE 1M 2440MHz Ant1 Emission 22 / 22 Tx. Spurious NVNT BLE 1M 2480MHz Ant1 Ref Tx. Spurious NVNT BLE 1M 2480MHz Ant1 Emission

Antenna Manufacturer: Chongqing Xinkeyuan Electronics Co., Ltd. Antenna Type: PCB On-board Antenna Peak Antenna Gain: 1.4 dBi Antenna Model: PCB Serpentine Antenna 生 Gi an and Efficiency Frequency 匠ficiency（ 盼 Gain(dBi) 〈圃.z) 240'.:? 35 0. 7 2420 39 1. 1 2440 4� 1. 4 2460 40 l. 2 2480 36 。，S 叫叫~ <> the" S«I阳‘’ 里 ，。 础。如MS X-Y z π；；~ 监禁；；：·，，：差远a y 叫嗣啊！可3 ~--·-- 12·剑”’叶 <"1-S剧柿、，一二二＝二－－－－二二 ’ Im，。 ‘’。，.u Y-Z .. Th陪，.Section O 。 1”·3.B X-Z

TRF No.: 04-E001-0B TRF Originator: GTG TRF Date: 2023-12-13 Web: www.gtggroup.com E-mail: [email protected] Tel.: 86-400 755 8988 CFR 47 FCC PART 15 SUBPART C TEST REPORT For Label Printer MODEL NUMBER: EP71, P71, P71A, P71B, P71C, P71S, P71T, GTP71, GTP71E, GTP71F, GTP71G, GTP71H, GP71, GP71T, GP71U, GP71V, GP71W, GP71X, GP71Y, EP71, EP71R, P71-3R, P71A-3R, P71S-3R, GTP71-3R, GTP71G-3R, GTP71H-3R, GP71-3R, GP71T-3R, GP71U-3R, EP71-3R, EP71R-3R, AP71, AP71A, AP71S, AP71T, AP71P, AP71-3R, AP71A-3R, AP71S-3R, AP71T-3R, BP71, BP71S, BP71-3R, BP71S-3R, W1610, W1610A, W1610B, W1610S, W1610P, W1610, W1610A-3R, W1610B-3R, W1610S-3R, W1610P- 3R, M400B, M400B-S, M400B-T, M400B-P, M400B-A, M400B-3R, M400B-S3R, M400B-T3R, M400B-P3R, M400B-A3R, EM7B, EM7B-S, EM7B-P, EM7B-3R, EM7B- S3R, EM7B-P3R, PB7, PB7A, PB7B, PB7H, PB7G, PB7-3R, PB7A-3R, PB7B-3R, PB7H-3R, PB7G-3R REPORT NUMBER: E04A26040684F00101 ISSUE DATE: August 17, 2026 FCC ID: 2BLKN-EP71 Prepared for Chongqing Pinsheng Technology Co., Ltd. 7Floor, No.5 middle Huangshan Avenue, North New Zone, Chongqing Prepared by Guangdong Global Testing Technology Co., Ltd. Room 101-105, 203-210, Building 1, No.2, Keji 8 Road, Songshan Lake Park, Dongguan city, Guangdong, People’s Republic of China, 523808 This report is based on a single evaluation of the submitted sample(s) of the above mentioned product, it does not imply an assessment of the production of the products. This report shall not be reproduced, except in full, without the written approval of Guangdong Global Testing Technology Co., Ltd. REPORT NO.: E04A26040684F00101 Page 2 of 42 TRF No.: 04-E001-0B Global Testing , Great Quality. Revision History Rev. Issue Date Revisions Revised By V0 August 17, 2026 Initial Issue REPORT NO.: E04A26040684F00101 Page 3 of 42 TRF No.: 04-E001-0B Global Testing , Great Quality. Summary of Test Results Test Item Clause Limit/Requirement Result Antenna Requirement N/A FCC Part 15.203/15.247 (c) Pass AC Power Line Conducted Emission ANSI C63.10-2020, Clause 6.2 FCC Part 15.207 Pass Conducted Output Power ANSI C63.10-2020, Clause 11.9.1.2 FCC Part 15.247 (b)(3) Pass 6dB Bandwidth and 99% Occupied Bandwidth ANSI C63.10-2020, Clause 11.8.1 or 11.8.2 FCC Part 15.247 (a)(2) Pass Power Spectral Density ANSI C63.10-2020, Clause 11.10.2 FCC Part 15.247 (e) Pass Conducted Band edge and spurious emission ANSI C63.10-2020, Clause 11.11 FCC Part 15.247(d) Pass Radiated Band edge and Spurious Emission ANSI C63.10-2020, Clause 11.12 FCC Part 15.247(d) FCC Part 15.205/15.209 Pass Duty Cycle ANSI C63.10-2020, Clause 11.6 None; for reporting purposes only. Pass Note: 1. For ISED, this report is also performed according to ANSI C63.10-2020 + Cor.1-2023 + C63.10a-2024 + Errata to C63.10a-2024 standards. 2. N/A: In this whole report not applicable. *This test report is only published to and used by the applicant, and it is not for evidence purpose in China. *The measurement result for the sample received is <Pass> according to < CFR 47 FCC PART 15 SUBPART C, ISED RSS-247 Issue 4> when <Accuracy Method> decision rule is applied. REPORT NO.: E04A26040684F00101 Page 4 of 42 TRF No.: 04-E001-0B Global Testing , Great Quality. CONTENTS 1. ATTESTATION OF TEST RESULTS ..................................................................................... 5 2. TEST METHODOLOGY ......................................................................................................... 7 3. FACILITIES AND ACCREDITATION ..................................................................................... 7 4. CALIBRATION AND UNCERTAINTY ................................................................................... 8 4.1. MEASURING INSTRUMENT CALIBRATION ........................................................... 8 4.2. MEASUREMENT UNCERTAINTY ............................................................................ 8 5. EQUIPMENT UNDER TEST .................................................................................................. 9 5.1. DESCRIPTION OF EUT ........................................................................................... 9 5.2. CHANNEL LIST ........................................................................................................ 9 5.3. MAXIMUM CONDUCTED OUTPUT POWER ......................................................... 10 5.4. TEST CHANNEL CONFIGURATION ...................................................................... 10 5.5. THE WORSE CASE POWER SETTING PARAMETER .......................................... 10 5.6. DESCRIPTION OF AVAILABLE ANTENNAS ......................................................... 10 5.7. SUPPORT UNITS FOR SYSTEM TEST ................................................................. 11 5.8. SETUP DIAGRAM .................................................................................................. 11 6. MEASURING EQUIPMENT AND SOFTWARE USED......................................................... 12 7. ANTENNA PORT TEST RESULTS ..................................................................................... 14 7.1. Conducted Output Power ........................................................................................ 14 7.2. 6dB Bandwidth and 99% Occupied Bandwidth ....................................................... 15 7.3. Power Spectral Density ........................................................................................... 17 7.4. Conducted Band edge and spurious emission ........................................................ 18 7.5. Duty Cycle .............................................................................................................. 20 8. RADIATED TEST RESULTS ............................................................................................... 21 8.1. Radiated Band edge and Spurious Emission .......................................................... 26 9. ANTENNA REQUIREMENT ...................................................................…
