2BLYB-E10Phone Holder With Wireless Speaker

Phone Holder With Wireless Speaker User Manual PRODUCT OVERVIEW [email protected] ①Magnetic Mount ②Answer/Play/Pause ③Volume Down/Previous Track ④Power Button ⑤Volume Up/Next Track ⑥Light Mode ⑦Type-C Charging Port ①Magnetische Montage ②Antworten/Abspielen/Pausieren ③Lautstärke Verringern/Vorheriges Stück ④Power-Taste ⑤Lautstärke Erhöhen/Nächstes Stück ⑥Lichtmodus ⑦Type-C-Ladeanschluss ①Montage magnétique ②Répondre/Lire/Pause ③Diminuer le volume/Piste précédente ④Bouton d'alimentation ⑤Augmenter le volume/Piste suivante ⑥Mode Lumière ⑦Port de chargement Type-C ① ② ③ ④ ⑤ ⑥ ⑦ PRODUCT OVERVIEW EN DE FR ①Montaggio magnetico ②Rispondere/Riprodurre/Pausa ③Diminuire il volume/Traccia precedente ④Pulsante di alimentazione ⑤Aumentare il volume/Traccia successiva ⑥Modalità Luce ⑦Porta di ricarica Type-C iPhone 12 series and above can work directly iPhone 12 Serie und höhere können direkt funktionieren Les séries iPhone 12 et supérieures peuvent fonctionner directement Le serie iPhone 12 e successive possono funzionare direttamente Las series iPhone 12 y superiores pueden funcionar directamente ①Montaje magnético ②Contestar/Reproducir/Pausa ③Disminuir el volumen/Pista anterior ④Botón de alimentación ⑤Aumentar el volumen/Pista siguiente ⑥Modo Luz ⑦Puerto de carga Type-C DE FR Which iPhones is it suitable for ?How to make it suitable for other phones?SPECIFICATIONS FoldingLeft and right 210° 210° EN DE FR IT ES EN DE FR IT ES Other Phones/Phone cases can work with Metal Rings Andere Telefone/Telefonhüllen können mit Metallringen verwendet werden Autres téléphones/étuis de téléphone peuvent fonctionner avec des anneaux en métal Altri telefoni/custodie per telefoni possono funzionare con l'anello in metallo Otro teléfono/funda de teléfono puede funcionar con anillo de metal EN DE FR IT ES Device Name：BH009A Rated Power：5W Product Materials：ABS + zinc alloy Control Method：Physical Buttons Battery：Built-in 3.7V 2000mAh Playtime：8H(Full Charge+With Lights On+100% Volume） Charge Time：Approximately 3.5H Input：Type-c 5V 1A Gerätename：BH009A Nennleistung：5W Produktmaterialien：ABS + Zinklegierung Steuerungsmethode：Physische Tasten Akku：Integrierter 3.7V 2000mAh Wiedergabezeit：8Std. (Volladung + Lichter an + 100% Lautstärke） Ladezeit：Ungefähr 3.5Std. Eingang：Type-c 5V 1A Nom de l'appareil：BH009A Puissance nominale：5W Matériaux du produit：ABS + alliage de zinc Méthode de contrôle：Boutons physiques Batterie：Intégrée 3.7V 2000mAh Temps de lecture：8h (Charge complète + Lumières allumées + Volume à 100%） Temps de charge：Environ 3.5h Entrée：Type-c 5V 1A Nome del dispositivo：BH009A Potenza nominale：5W Materiali del prodotto：ABS + lega di zinco Metodo di controllo：Pulsanti fisici Batteria：Integrata 3.7V 2000mAh Tempo di riproduzione：8h (Carica completa + Luci accese + Volume al 100%） Tempo di carica：Circa 3.5h Ingresso：Type-c 5V 1A Nombre del dispositivo：BH009A Potencia nominal：5W Materiales del producto：ABS + aleación de zinc Método de control：Botones físicos Batería：Integra 3.7V 2000mAh Tiempo de reproducción：8h (Carga completa + Luces encendidas + Volumen al 100%） Tiempo de carga：Aproximadamente 3.5h Entrada：Type-c 5V 1A EN DE FR IT ES LED INDICATOR LIGHT EN DE FR IT ES Non-Magnet case Nicht magnetisches Gehäuse Boîtier non magnétique Custodia senza magnete Caso no magnético iPhone 12 series and above can work with a MagSafe case or no case Die iPhone 12-Serie und Modelle darüber können mit einem MagSafe-Gehäuse oder ohne Gehäuse funktionieren La série iPhone 12 et les modèles supérieurs peuvent fonctionner avec un étui MagSafe ou sans étui La serie iPhone 12 e i modelli superiori possono funzionare con una custodia MagSafe o senza custodia La serie iPhone 12 y los modelos superiores pueden funcionar con una funda MagSafe o sin funda ButtonFunction Turn on/off TWS mode Clearing Pairings Reset Function Press and hold for 2S Triple-press in the powered-on state Press and hold for 5S in the power-off state Music Play/Pause Call Answer/End Wake Up Voice Assistant Single-press Double-press Press and hold for 8S in the power-off state Operation Method EN DE FR IT ES 1.Charging: The LED will be red when the device is charging. When the device finishes charging, the light will go out 2.Pair Mode：In pairing mode, the blue LED flashes，After successful pairing,the blue LED will turn off 3.Clearing Pairings: In the off state, press and hold the power button for 5S to clear all devices that have been connected to the speaker. The blue LED will flash, and a voice prompt will say "Factory reset" 4.Disconnecting: Press and hold the "+" and "-" buttons simultaneously for 2S to disconnect. The blue LED will flash, and a voice prompt will say "Disconnected" 1.Laden: Die LED leuchtet rot, wenn das Gerät lädt. Wenn das Gerät vollständig aufgeladen ist, erlischt die Lampe 2.Kopplungsmodus：Im Kopplungsmodus blinkt die blaue LED. Nach erfolgreichem Koppeln schaltet die blaue LED aus 3.Kopplungen löschen: Im ausgeschalteten Zustand halten Sie die Einschalttaste 5 Sekunden lang gedrückt, um alle Geräte zu löschen, die mit dem Lautsprecher verbunden waren. Die blaue LED blinkt, und ein Sprachhinweis sagt "Factory reset" (Werkszurücksetzung) 4.Trennen: Halten Sie die "+"- und "-"-Tasten gleichzeitig 2 Sekunden lang gedrückt, um die Verbindung zu trennen. Die blaue LED blinkt, und ein Sprachhinweis sagt "Disconnected" (Getrennt) 1.Chargement : Le LED est rouge lorsque l'appareil est en charge. Lorsque l'appareil est complètement chargé, la lumière s'éteint 2.Mode d'appariement : En mode d'appariement, le LED bleu clignote. Après un appariement réussi, le LED bleu s'éteint 3.Effacement des appariements : À l'état éteint, maintenez enfoncé le bouton d'alimentation pendant 5 secondes pour effacer tous les appareils connectés au haut-parleur. Le LED bleu clignote, et une indication vocale dit "Factory reset" (Réinitialisation d'usine) 4.Déconnexion : Maintenez enfoncés simultanément les boutons "+" et "-" pendant 2 secondes pour déconnecter…

Text truncated - open the document above for the full version.

DongguanSiliangElectronicTechnologyCo.,Ltd Address：Room1301,Building2,No.69FengqingRoad,Fenggang,FenggangTown,Dongguan City,GuangdongProvince,China Date:2025-12-05 FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 Ref:AttestationStatementsPart2.911(d)(7)Filing SUBJECT:FCCApplicationforFCCID:2BLYB-E10 FRN:0036209948 (“DongguanSiliangElectronicTechnologyCo.,Ltd”)certifiesthat,asofthedateofthefilingof theapplication,GOLDENVICTORYINTERNATIONALTRADINGCOLTDisourdesignated U.S.agentforserviceofprocessfortheabovereferencedFCCID.(“DongguanSiliang ElectronicTechnologyCo.,Ltd”)acceptstomaintainanagentfornolessthanoneyearafter thegranteehasterminatedallmarketingandimportationortheconclusionofany Commission-relatedproceedinginvolvingtheequipment. GOLDENVICTORYINTERNATIONALTRADINGCOLTDaccepts,asofthedateofthefiling oftheapplication,theobligationofthedesignatedU.S.agentforserviceofprocessforthe abovereferencedFCCID. DesignatedU.S.AgentInformation: Name:GOLDENVICTORYINTERNATIONALTRADINGCOLTD Address:11016THSTREETSUITE1400DENVER,CO80202UnitedStates FRN：0036377570 ContactPerson:LeonHowar Tel.:(337)255-0461 Email:[email protected] Sincerely, Signedonbehalfof（DongguanSiliang ElectronicTechnologyCo.,Ltd） SignedonbehalfofGOLDENVICTORY INTERNATIONALTRADINGCOLTD Name:xiangyuLiuName:LeonHowar Title:ManagerTitle:Manager Date:2025-12-05Date:2025-12-05

Rev1/26/2023 (DongguanSiliangElectronicTechnologyCo.,Ltd) FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA Date:12-5-2025 Ref:AttestationStatementsPart2.911(d)(5)(i)Filing FCCID:2BLYB-E10 (“DongguanSiliangElectronicTechnologyCo.,Ltd”)certifiesthattheequipmentforwhichauthorization issoughtisnot“covered”equipmentprohibitedfromreceivinganequipmentauthorizationpursuantto section2.903oftheFCCrules. (“DongguanSiliangElectronicTechnologyCo.,Ltd”)certifiesthattheequipmentforwhichauthorization issoughtdoesnotincludecybersecurityoranti-virussoftwareproducedorprovidedbyKasperskyLab, Inc.oranyofitssuccessorsandassignees,includingequipmentwithintegratedKasperskyLab,Inc.(or anyofitssuccessorsandassignees)cybersecurityoranti-virussoftwarepursuanttoDA-24-886andKDB 986446D01CoveredEquipmentGuidancesectionB(2a). Deviceisinherentlycompliantbasedonhardwarelimitationsorsoftwarecontrols. or ASoftwareBillofMaterials(SBOM)isprovidedtotheTCBforreview,and Theend-userorthirdpartiescannotinstalladditionalsoftwareonthisdevice. Sincerely, (Applicantsignature): (Applicantprintedname):xiangyuLiu Rev1/26/2023 (DongguanSiliangElectronicTechnologyCo.,Ltd) FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA Date:12-5-2025 Ref:AttestationStatementsPart2.911(d)(5)(ii)Filing FCCID:2BLYB-E10 (“DongguanSiliangElectronicTechnologyCo.,Ltd”)certifiesthat,asofthedateofthefilingofthe application,DongguanSiliangElectronicTechnologyCo.,LtdisnotidentifiedontheCoveredList(asa specificallynamedentityoranyofitssubsidiariesoraffiliates)asanentityproducing“covered” equipment. Sincerely, (Applicantsignature): (Applicantprintedname):xiangyuLiu

DongguanSiliangElectronicTechnologyCo.,Ltd Date:December5,2025 ProductModelNumber:E10,BH009A,BH009BBH009C,BH009D, BH009E FCCID:2BLYB-E10 Towhomitmayconcern, Re:ProductCertificationRepresentativeAuthorizationLetter WeauthorizeQAILaboratoriesLtd.3980NorthFraserWay,BurnabyB.C. CanadaV5J5K5toactonourbehalfonallmattersconcerningtheabove namedequipment. Thisshallincludethefollowing: Testing Approvalapplicationsandprocedures WedeclarethatQAILaboratoriesLtd.isallowedtoforwardallinformation relatedtotheapprovalprojecttotheappliedcertificationbodyandtothe notificationentitiesandtodiscussanyissuesconcerningtheapproval application.AnyandallactscarriedoutbyQAILaboratoriesLtd.onour behalfshallhavethesameeffectasactsofourown. By: ContactListedonFCCWesbite Title:Manager Email:[email protected] Telephone:+8615818568996 Onbehalfof:DongguanSiliangElectronicTechnologyCo.,Ltd

DongguanSiliangElectronicTechnologyCo.,Ltd OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:December5,2025 Subject;RequestforConfidentiality FCCID:2BLYB-E10 ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthese documentsmightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantage inthemarket. SchematicDiagram BlockDiagram PartsList OperationalDescription Tune-upProcedure SoftwareSecurityRequirementsforUNIIdevices Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); ExternalPhotos TestSetupPhotos InternalPhotos UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:xiangyuLiu Title:Manager

DongguanSiliangElectronicTechnologyCo.,Ltd ModelDifference Date:2025-12-05 Productdescription:PhoneHolderWithWirelessSpeaker Modelname:E10,BH009A,BH009BBH009C,BH009D,BH009E FCCID:2BLYB-E10 E10istestedmodel,othermodelsarederivativemodels.Themodelsareidenticalin circuit,onlydifferentonthemodelnamesandcolors.SothetestdataofE10can representtheremainingmodels. Client’ssignature: Client’sname/title:xiangyuLiu/Manager Contactinformation/address:Room1301,Building2,No.69FengqingRoad, Fenggang,FenggangTown,DongguanCity,GuangdongProvince,China

Product specification Quick Reference Date Antenna module on the system board Frequenc Range 2400 ~ 2500MHz Ant. Port Input Pwr. (dBm) 0 (Typ. BT class 2 output power) Tot. Rad. Pwr. (dBm) -1.2 (Input pwr – loss pwr) Peak EIRP(dBm) 1.2 Efficiency (dB) 6 0.2 % Gain (dBi) 1.68 (Peak Gain ) Maximum Power (dBm) 1.7 (XY-plane) Minimum Power (dBm) -4(XY-plane) Avg. Power (dBm) -0.5(XY-plane) InputImpendence(ohm)50 Polarization Type V ertical & Horizontal . R < 1.4 Antenna Layout & module on the system boa All thetechnical dataandinformationcontained herein aresubject to changewithoutpriornotice rd Antenna Gain Gain Table Unit in dBi @2.44GHz XY-plane XZ-plane YZ-plane Efficiency Peak Avg. Peak Avg. Peak Avg. Module Board 1.35 -0.48 1.68 -3.83 1.11 6 0.2 -2.99% V . S .W 14.5mm 5.5mm Antenna Type: PCB antenna Retum Loss Dongguan Siliang Electronic Technology Co., Ltd Address: Room 1301, Building 2, No. 69 Fengqing Road, Fenggang, Fenggang Town, Dongguan City, Guangdong Province, China The Environment of Antenna Radiation Pattem 3D radiation pattern diagram XY-plane XZ-plane YZ-plane

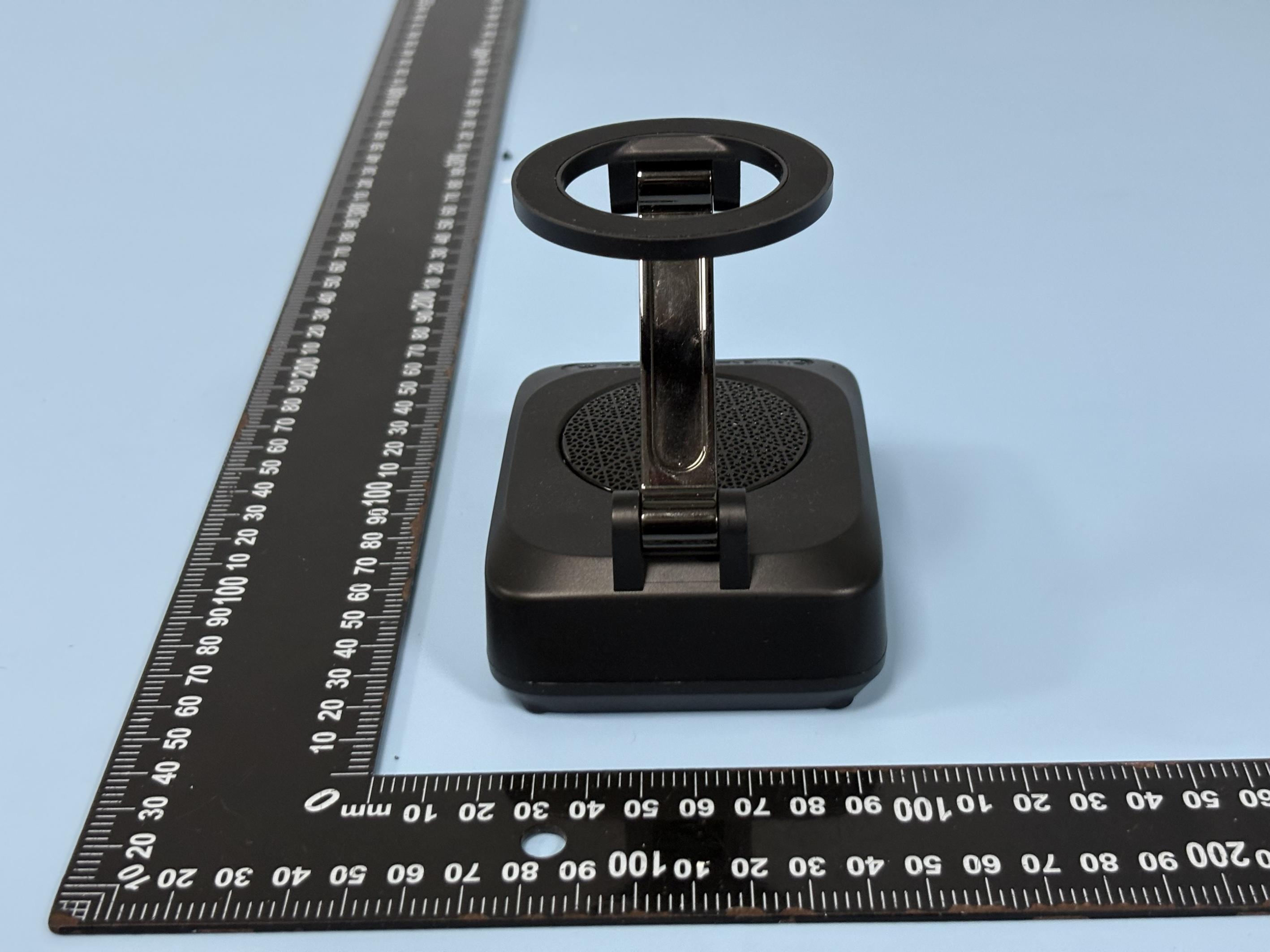

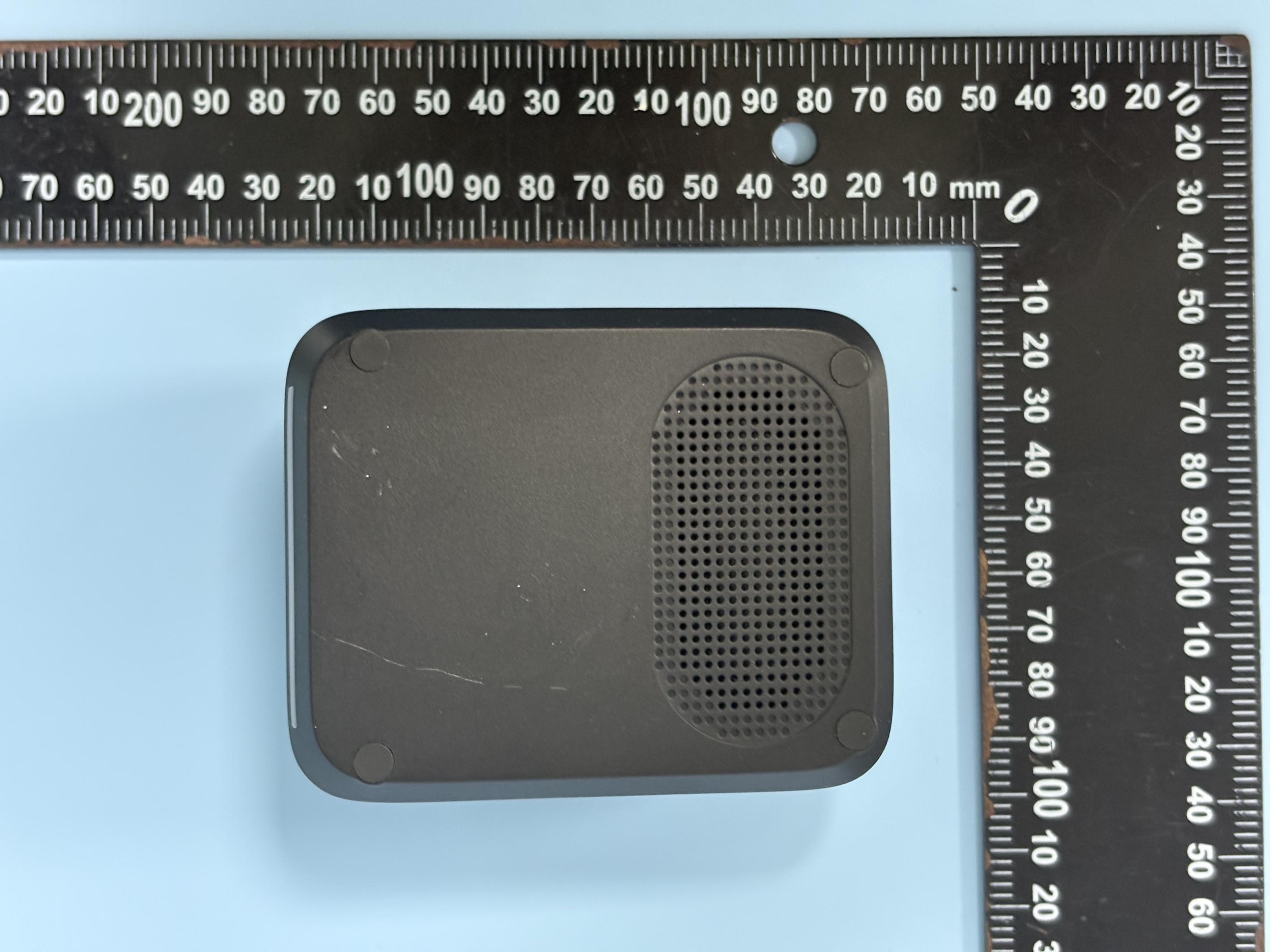

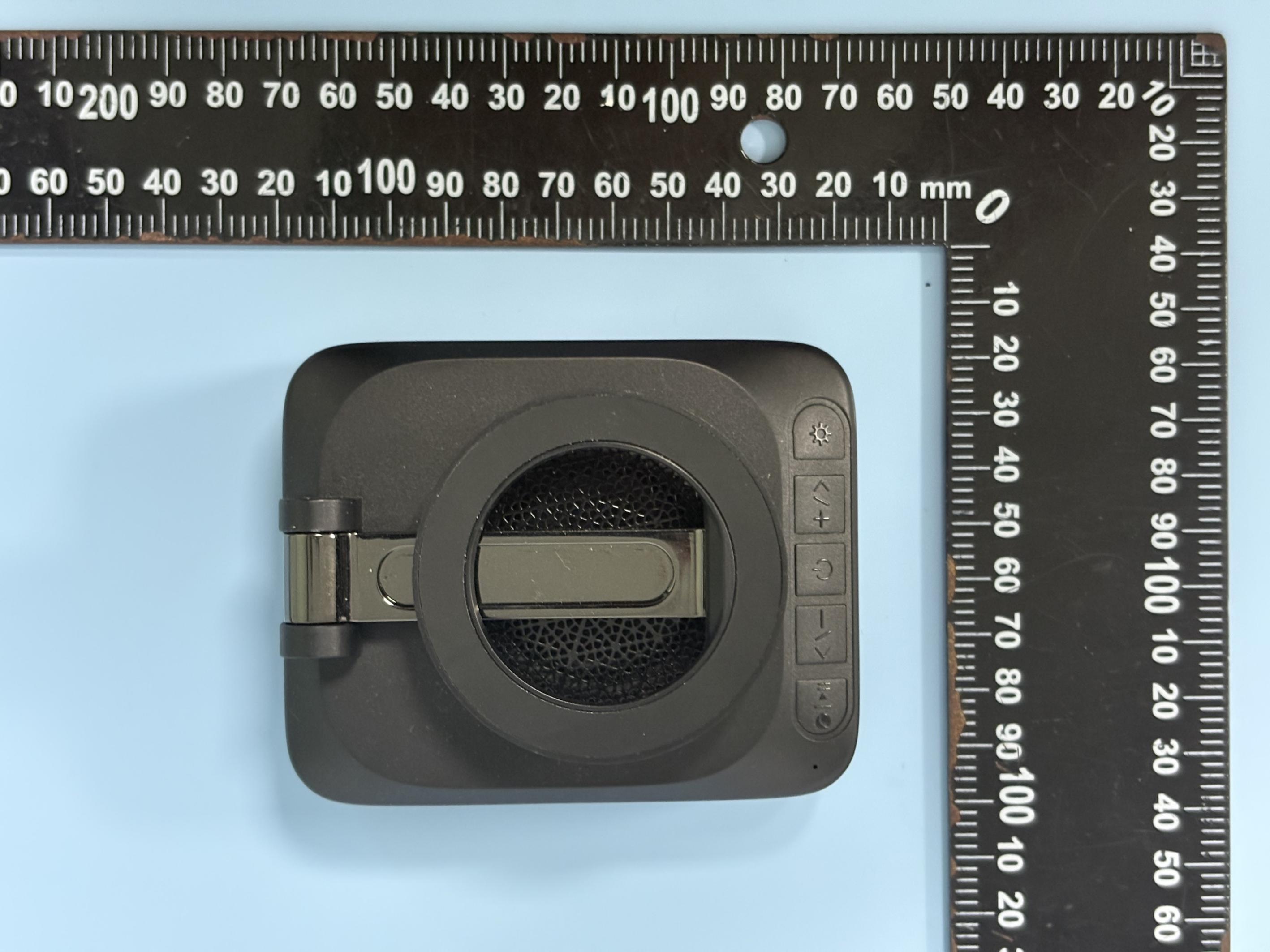

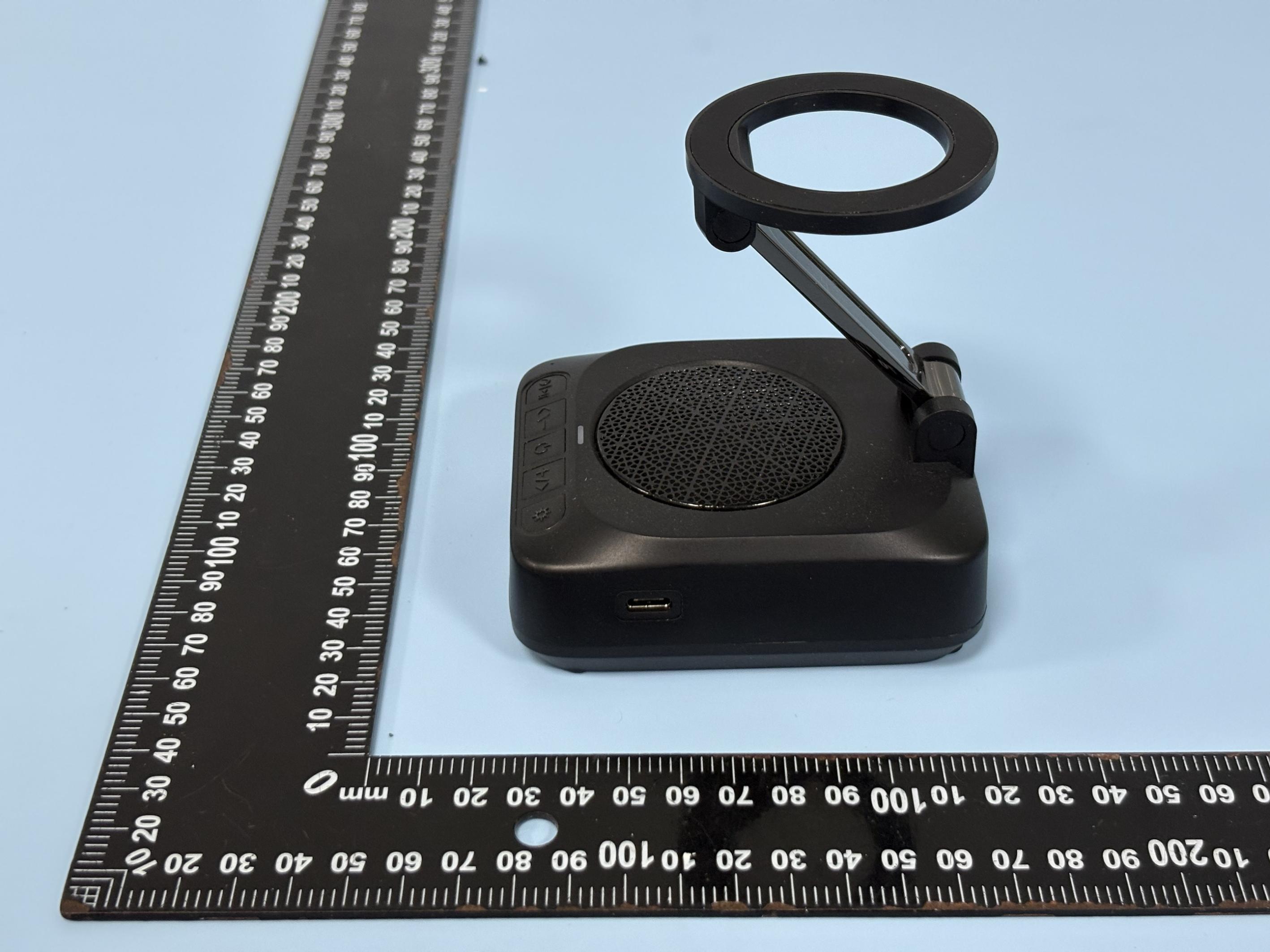

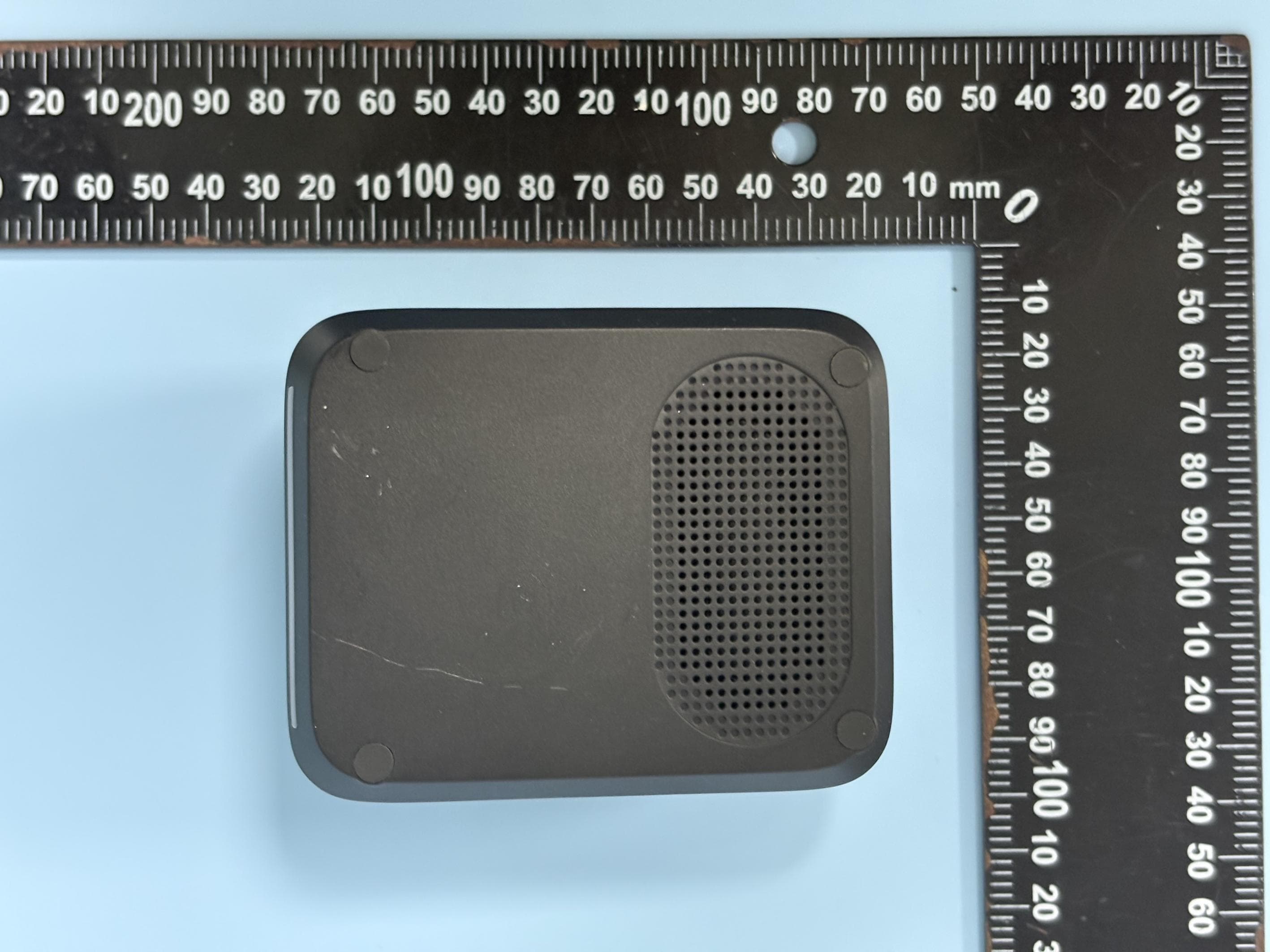

FCCID:2BLYB-E10 EUTPHOTOSExternalPhotos FCCID:2BLYB-E10 FCCID:2BLYB-E10 FCCID:2BLYB-E10 ※※※※※ENDOFREPORT※※※※※

FCCID:2BLYB-E10 EUTPHOTOSInternalPhotos FCCID:2BLYB-E10 FCCID:2BLYB-E10 ※※※※※ENDOFREPORT※※※※※ ANT

FCCID:2BLYB-E10 RFExposureEvaluation AccordingtoKDB447498D01GeneralRFExposureGuidancev06andpart2.1093，Unless specificallyrequiredbythepublishedRFexposureKDBprocedures,standalone1-gheador bodyand10-gextremitySARevaluationforgeneralpopulationexposureconditions,by measurementornumericalsimulation,isnotrequiredwhenthecorrespondingSARTest ExclusionThresholdcondition(s),listedbelow,is(are)satisfied. For100MHzto6GHzandtestseparationdistances≤50mm,the1-gand10-gSARtest exclusionthresholdsaredeterminedbythefollowing: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance, mm)]·[√f (GHz) ]≤3.0for1-gSAR,and≤7.5for10-gextremitySAR,where f (GHz) istheRFchanneltransmitfrequencyinGHz PoweranddistanceareroundedtothenearestmWandmmbeforecalculation Theresultisroundedtoonedecimalplaceforcomparison Here, ForBluetooth Mode Max Power (dBm) Tune-up power (dBm) Max Power (mW) Frequency(MHz) Min. Distance (mm) Calc. thresholds limit BLE01±11.00248050.31503.0 BR/EDR1.18 0±11.26 24805 0.3968 3.0 SoaSARtestisnotrequired

ProjectNo.:ZHT-251114133W01-2 Page 1 of 92 Intheconfigurationtested,theEUTcompliedwiththestandardsspecifiedabove. PreparedbyReviewedby:Approvedby: LeonLi/EngineerBaretWu/DirectorLeviLee/Manager Note:ThisdevicedescribedabovehasbeentestedbyZHT,andthetestresultsshowthattheequipment undertest(EUT)isincompliancewiththeFCCrequirements.Anditisapplicableonlytothetestedsample identifiedinthereport.Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofZHT, thisdocumentmaybealteredorrevisedbyZHT,personalonly,andshallbenotedintherevisionofthe document. FCCTESTREPORT FCCID:2BLYB-E10 ReportNo........................:ZHT-251114133W01-2 Product............................:PhoneHolderWithWirelessSpeaker Trademark.......................:/ Model(s)...........................:E10 BH009A,BH009BBH009C,BH009D,BH009E ModelDifference..............:E10istestedmodel,othermodelsarederivativemodels.Themodelsare identicalincircuit,onlydifferentonthemodelnamesandcolors.Sothe testdataofE10canrepresenttheremainingmodels. Applicant..........................:DongguanSiliangElectronicTechnologyCo.,Ltd Address............................:Room1301,Building2,No.69FengqingRoad,Fenggang,Fenggang Town,DongguanCity,GuangdongProvince,China Manufacturer....................:DongguanSiliangElectronicTechnologyCo.,Ltd Address............................:Room1301,Building2,No.69FengqingRoad,Fenggang,Fenggang Town,DongguanCity,GuangdongProvince,China Preparedby.....................:GuangdongZhonghanTestingTechnologyCo.,Ltd. Address............................:Room104/201,Building1,YibaolaiIndustrialPark,Qiaotou,Fuhai Subdistrict,Bao'anDistrict,Shenzhen,Guangdong,China DateofReceipt................:Nov.14,2025 DateofTest(s)................: Nov.14,2025toNov.30,2025 DateofIssue....................:Nov.30,2025 Standard .......................................... ::FCCCFRTitle47Part15SubpartCSection15.247 Testprocedure ................................ ::KDB558074D0115.247MeasGuidancev05r02 ANSIC63.10-2020 ProjectNo.:ZHT-251114133W01-2 Page 2 of 92 TableofContents Page 1.TESTSUMMARY..............................................................................................................................3 2.GENERALINFORMATION...............................................................................................................4 2.1GENERALDESCRIPTIONOFEUT................................................................................................4 2.2TestSetupConfiguration.................................................................................................................6 2.3SupportEquipment..........................................................................................................................6 2.4TestMode........................................................................................................................................6 3.TESTFACILITYANDTESTINSTRUMENTUSED..........................................................................7 3.1TESTFACILITY...............................................................................................................................7 3.2INSTRUMENTLISTFORALLTESTITEMS..................................................................................7 3.3Testingsoftware...............................................................................................................................9 3.4MEASUREMENTUNCERTAINTY..................................................................................................9 4.EMCEMISSIONTEST....................................................................................................................10 4.1Conductedemissions.....................................................................................................................10 4.2Radiatedemissions........................................................................................................................14 5.RADIATEDBANDEMISSIONMEASUREMENT...........................................................................22 5.1TestRequirement:.........................................................................................................................22 5.2TESTPROCEDURE......................................................................................................................22 5.3DEVIATIONFROMTESTSTANDARD.........................................................................................23 5.4TESTSETUP.................................................................................................................................23 5.5EUTOPERATINGCONDITIONS..................................................................................................23 5.6TESTRESULT...............................................................................................................................24 6.CONDUCTEDBANDEDGEANDSPURIOUSEMISSION............................................................26 6.1Limit................................................................................................................................................26 6.2TestSetup......................................................................................................................................26 6.3Testprocedure...............................................................................................................................26 6.4DEVIATIONFROMSTANDARD...................................................................................................26 6.5TestResult.....................................................................................................................................27 7.20DB&99%BANDWIDTH...............................................................................................................51 7.1TestSetup......................................................................................................................................51 7.2Limit.…

Text truncated - open the document above for the full version.

ProjectNo.:ZHT-251114133W01-2 Page 55 of 92 -20dBBandwidthNVNT3-DH52402MHzAnt1 -20dBBandwidthNVNT3-DH52441MHzAnt1 ProjectNo.:ZHT-251114133W01-2 Page 56 of 92 -20dBBandwidthNVNT3-DH52480MHzAnt1 ProjectNo.:ZHT-251114133W01-2 Page 57 of 92 TestGraphs OBWNVNT1-DH52402MHzAnt1 OBWNVNT1-DH52441MHzAnt1 ProjectNo.:ZHT-251114133W01-2 Page 58 of 92 OBWNVNT1-DH52480MHzAnt1 OBWNVNT2-DH52402MHzAnt1 ProjectNo.:ZHT-251114133W01-2 Page 59 of 92 OBWNVNT2-DH52441MHzAnt1 OBWNVNT2-DH52480MHzAnt1 ProjectNo.:ZHT-251114133W01-2 Page 60 of 92 OBWNVNT3-DH52402MHzAnt1 OBWNVNT3-DH52441MHzAnt1 ProjectNo.:ZHT-251114133W01-2 Page 61 of 92 OBWNVNT3-DH52480MHzAnt1 ProjectNo.:ZHT-251114133W01-2 Page 62 of 92 8.MaximumPeakOutputPower TestRequirement:FCCPart15CSection15.247(b)(1),RSS2475.4(b) TestMethod:ANSIC63.10-2020 8.1BlockDiagramOfTestSetup 8.2Limit Forfrequencyhoppingsystemsoperatinginthe2400-2483.5MHzbandemployingatleast75 non-overlappinghoppingchannels,andallfrequencyhoppingsystemsinthe5725-5850MHzband:1watt. Forallotherfrequencyhoppingsystemsinthe2400-2483.5MHzband:0.125watts. ForFHSsoperatingintheband2400-2483.5MHz,themaximumpeakconductedoutputpowershallnot exceed1.0Wifthehopsetuses75ormorehoppingchannels;themaximumpeakconductedoutputpower shallnotexceed0.125Wifthehopsetuseslessthan75hoppingchannels.Thee.i.r.p.shallnotexceed4W. 8.3Testprocedure 1.RemovetheantennafromtheEUTandthenconnectalowRFcablefromtheantennaporttothespectrum. 2.Setthespectrumanalyzer:RBW=2MHz.VBW=6MHz.Sweep=auto;DetectorFunction=Peak. 3.KeeptheEUTintransmittingatlowest,mediumandhighestchannelindividually.Recordthemaxvalue. 8.4DEVIATIONFROMSTANDARD Nodeviation. 8.5TestResult ModeTestchannel PeakOutputPower (dBm) PeakOutput PowerLimit (dBm) Result GFSK Lowest-1.31 21.00PassMiddle-0.08 Highest-0.02 π/4DQPSK Lowest-0.48 21.00 PassMiddle0.68 Highest0.74 8DPSK Lowest-0.09 21.00 PassMiddle1.11 Highest1.18 ProjectNo.:ZHT-251114133W01-2 Page 63 of 92 TestGraphs PeakPowerNVNT1-DH52402MHzAnt1 PeakPowerNVNT1-DH52441MHzAnt1 ProjectNo.:ZHT-251114133W01-2 Page 64 of 92 PeakPowerNVNT1-DH52480MHzAnt1 PeakPowerNVNT2-DH52402MHzAnt1 ProjectNo.:ZHT-251114133W01-2 Page 65 of 92 PeakPowerNVNT2-DH52441MHzAnt1 PeakPowerNVNT2-DH52480MHzAnt1 ProjectNo.:ZHT-251114133W01-2 Page 66 of 92 PeakPowerNVNT3-DH52402MHzAnt1 PeakPowerNVNT3-DH52441MHzAnt1 ProjectNo.:ZHT-251114133W01-2 Page 67 of 92 PeakPowerNVNT3-DH52480MHzAnt1 ProjectNo.:ZHT-251114133W01-2 Page 68 of 92 9.HOPPINGCHANNELSEPARATION TestRequirement:FCCPart15CSection15.247(a)(1),RSS2475.1 TestMethod:ANSIC63.10-2020 Receiversetup: RBW=30KHz,VBW=100KHz,detector=Peak Limit: GFSK,π/4-DQPSK&8DSK:0.025MHzor2/3ofthe20dBbandwidth (whicheverisgreater) 9.1TestSetup 9.2Testprocedure 1.RemovetheantennafromtheEUTandthenconnectalowRFcablefromtheantennaport tothespectrum. 2.Setthespectrumanalyzer:RBW=30kHz.VBW=100kHz,Span=2.0MHz.Sweep=auto;Detector Function=Peak.Trace=Maxhold. 3.Allowthetracetostabilize.Usethemarker-deltafunctiontodeterminetheseparationbetweenthepeaksof theadjacentchannels.ThelimitisspecifiedinoneofthesubparagraphsofthisSectionSubmitthisplot. 9.3DEVIATIONFROMSTANDARD Nodeviation. 9.4TestResult ModeAntennaHoppingFreq1(MHz)HoppingFreq2(MHz)HFS(MHz)Limit(MHz)Verdict 1-DH5Ant12402.0042403.0241.020.685Pass 1-DH5Ant12441.1382442.1060.9680.689Pass 1-DH5Ant12478.94624801.0540.691Pass 2-DH5Ant12401.84482403.00181.1570.877Pass 2-DH5Ant12441.12822442.02780.89960.886Pass 2-DH5Ant12478.8632480.18641.32340.904Pass 3-DH5Ant12401.852402.87441.02440.866Pass 3-DH5Ant12440.87082441.87441.00360.863Pass 3-DH5Ant12478.8762479.88481.00880.855Pass ProjectNo.:ZHT-251114133W01-2 Page 69 of 92 TestGraphs CFSNVNT1-DH52402MHzAnt1 CFSNVNT1-DH52441MHzAnt1 ProjectNo.:ZHT-251114133W01-2 Page 70 of 92 CFSNVNT1-DH52480MHzAnt1 CFSNVNT2-DH52402MHzAnt1 ProjectNo.:ZHT-251114133W01-2 Page 71 of 92 CFSNVNT2-DH52441MHzAnt1 CFSNVNT2-DH52480MHzAnt1 ProjectNo.:ZHT-251114133W01-2 Page 72 of 92 CFSNVNT3-DH52402MHzAnt1 CFSNVNT3-DH52441MHzAnt1 ProjectNo.:ZHT-251114133W01-2 Page 73 of 92 CFSNVNT3-DH52480MHzAnt1 ProjectNo.:ZHT-251114133W01-2 Page 74 of 92 10.NUMBEROFHOPPINGFREQUENCY TestRequirement:FCCPart15CSection15.247(a)(1)(iii),RSS-2475.1 TestMethod:ANSIC63.10-2020 Receiversetup: RBW=100kHz,VBW=300kHz,Frequencyrange=2400MHz-2483.5MHz, Detector=Peak Limit: 15channels 10.1TestSetup 10.2Testprocedure 1.RemovetheantennafromtheEUTandthenconnectalowRFcablefromtheantennaporttothespectrum. 2.Setthespectrumanalyzer:RBW=100kHz.VBW=300kHz.Sweep=auto;DetectorFunction=Peak. Trace=Maxhold. 3.Allowthetracetostabilize.Itmayprovenecessarytobreakthespanuptosections.inordertoclearly showallofthehoppingfrequencies.ThelimitisspecifiedinoneofthesubparagraphsofthisSection. 4.Setthespectrumanalyzer:StartFrequency=2.4GHz,StopFrequency=2.4835GHz.Sweep=auto; 10.3DEVIATIONFROMSTANDARD Nodeviation. 10.4TestResult ModeAntennaHoppingNumberLimitVerdict 1-DH5Ant17915Pass 2-DH5Ant17915Pass 3-DH5Ant17915Pass ProjectNo.:ZHT-251114133W01-2 Page 75 of 92 TestGraphs HoppingNo.NVNT1-DH52402MHzAnt1 HoppingNo.NVNT1-DH52441MHzAnt1 ProjectNo.:ZHT-251114133W01-2 Page 76 of 92 HoppingNo.NVNT1-DH52480MHzAnt1 HoppingNo.NVNT2-DH52402MHzAnt1 ProjectNo.:ZHT-251114133W01-2 Page 77 of 92 HoppingNo.NVNT2-DH52441MHzAnt1 HoppingNo.NVNT2-DH52480MHzAnt1 ProjectNo.:ZHT-251114133W01-2 Page 78 of 92 HoppingNo.NVNT3-DH52402MHzAnt1 HoppingNo.NVNT3-DH52441MHzAnt1 ProjectNo.:ZHT-251114133W01-2 Page 79 of 92 HoppingNo.NVNT3-DH52480MHzAnt1 ProjectNo.:ZHT-251114133W01-2 Page 80 of 92 11.DWELLTIME TestRequirement:FCCPart15CSection15.247(a)(1)(iii),RSS-2475.1 TestMethod:ANSIC63.10-2020 Receiversetup: RBW=1MHz,VBW=3MHz,Span=0Hz,Detector=Peak Limit: 0.4Second 11.1TestSetup 11.2Testprocedure 1.RemovetheantennafromtheEUTandthenconnectalowRFcablefromtheantennaporttothespectrum. 2.Setspectrumanalyzerspan=0Hz; 3.SetRBW=1MHzandVBW=3MHz.Sweep=asnecessarytocapturetheentiredwelltimeperhopping channel.SettheEUTforDH5,DH3andDH1packettransmitting. 4.Usethemarker-deltafunctiontodeterminethedwelltime.Ifthisvaluevarieswithdifferentmodesof operati…

Text truncated - open the document above for the full version.

FCCID:2BLYB-E10 EUTTESTPHOTOS . FCCID:2BLYB-E10 ※※※※※ENDOFREPORT※※※※※
