2BM29-X100ZICALSTAR

TabletPC 15.6"LCDIPSPanel UserManual 1 Contents NotesofImportance......................................................................................................2 Features.........................................................................................................................3 PackageContents...........................................................................................................3 Drawing..........................................................................................................................4 MainMenu....................................................................................................................5 PowerOn/Off.................................................................................................................5 AccesstoTheApplication..............................................................................................6 WirelessInternet...........................................................................................................6 DateTransmission..........................................................................................................7 FactoryReset.................................................................................................................8 2 NotesofImportance 1)Pleasekeepthedeviceawayfromexcesstemperature(50Cabove),toocold(0°C below)orwetplace. 2)Donotgrievoushitthedeviceorplacesomethingheavyonit. 3)Onlyusetheaccessoriesspecifiedbythemanufacturer. 4)Pleasekeepthedeviceawayfrombenzene,diluentsorotherchemical. 5)Keepthedeviceawayfromwater. 6)Theproductshouldbeservicedbytheprofessionalserviceman,donottryto serviceitbyyourself. 7)Pleaseunplugthepowerplugoftheproductwhennotinuseforalongtimeor duringtherainstorm. 8)Inordertoavoiddamagingthetouchpanel,neverplacetheheavyorsharp objectsonthetouchpanelwhenuseortransportit. 9)Arrangeallcablesandcordssothatpeopleandpetsarenotlikelytotripoveror accidentallypull onthemmovearoundorwalkthroughthearea.Donotallowchildrentoplaywith cablesandcords. 3 Features ◆LCDIPSpanel ◆15.6"Resolution(1920*1080) ◆Quadcoreprocessor ◆RAM2GB ◆Internalmemory16GB ◆Android11 ◆10-Pointcapacitivetouch ◆Buletooth4.0 ◆WiFi802.1b/g/n ◆4P-2.0mm,serialport ◆4P-2.0mmconnecttoRl45box ◆2.0USBOTG/USBHost ◆TF,Supportupto64GB ◆2.0M/P,Frontcamera ◆Videoformat:3gp,mpg,wmv,ts,vob,mp4,movetc.,supportupto1080p ◆Audioformat:aac,amr,ape,flac,m4r,mp2,mp3,wav,wma,oggetc. ◆Photo:jpg/png/bmp ◆2*3WSpeaker ◆Adapter:12V/2A PackageContents PleasemakesureallofthefollowingarepresentwhenyouunpackyourdigitalTablet PC. 1.TabletPC 2.Poweradapter 4 Drawing 5 MainMenu 1)InsertthepowerleadintotheDCsocket,andtheninserttheotherendintothe powersocket. 2)Turnontheproductbyholdingthepowerbuttonfor3seconds. 3)Screenwillshowthestartinglogo. PowerOn/Off 1)Poweron:turnonthedevicebyholdingthepowerbuttonfor3secondswhenthe productpoweroff. 2)Poweroff:holdingthepowerbuttonfor5secondsandclickoktopoweroffwhen theproductatworkingstatus. 6 AccesstoTheApplication 1)Inthemainmenu,clickicontogotoAPPSmenuscreen. 2)Slidethescreenleftward/rightwardfast,switchtotheothermenuscreen. 3)Clicktheappsicontoenterintoappsclickthe"RETURN"icon,returntoprevious page,clickthe"HOME"iconreturntothemainmenu. WirelessInternet 1)EnterintothesettingsandturnontheWi-Fi,connecttotheavailablenetworks. 2)EnterintotheAPPSandclickthe'browser',thenyouwillgetintothegoogle homepage. 3)Youcaninputthewebsiteonthetopthatyoulike,oryoucansearchthe interestingnewsandvideosbythegooglesearch. 7 DateTransmission ConnectingPCanddevicebyusingUSBcable,USBiconwillbeappearedonthe upperleftsideofstatusbar,itreferstoUSBhasbeenconnected.Asfollows: Whentheoperationmenuappeared,click"USBconnected": Click"TurnonUSBstorage"onpromptedwindow: Atthistime,youcanfinddevicestoragecardandSDcard(ifthecardhasbeen pluggedin)inmycomputerlist. Afterdatatransmission,click"TurnoffUSBstorage",andthenitwillquitthedata transmissionstate. 8 FactoryReset Ifyourdevicehasbeencontractedthevirus,orworkedunexpectedlybyinstalling third-partyapplications,thenyoucanerasealldatafromyourdeviceviaresettablet. Operation:click'Settings''Backup&reset''factorydatareset',thenclickthe'reset tablet'and'eraseeverything',asthefollowingpicture: Thissymbolontheproductorintheinstructionsmeansthatyourelectricaland electronicequipment shouldbedisposedofattheendofitslifeseparatelyfromyourhouseholdwaste. Thereareseparatecollectionsystemsforrecyclinginyourcountry.Formore information,pleasecontactthelocalauthorityoryourretailerwhereyoupurchased theproduct. FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interferenc…

Text truncated - open the document above for the full version.

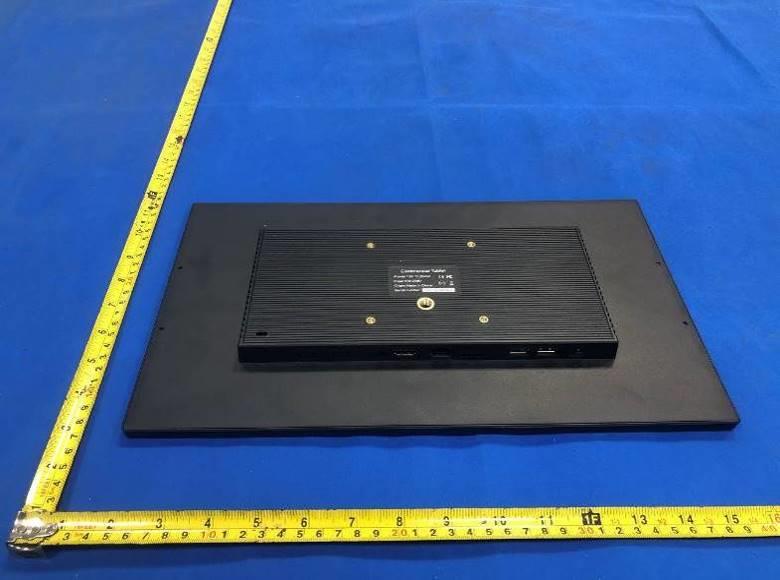

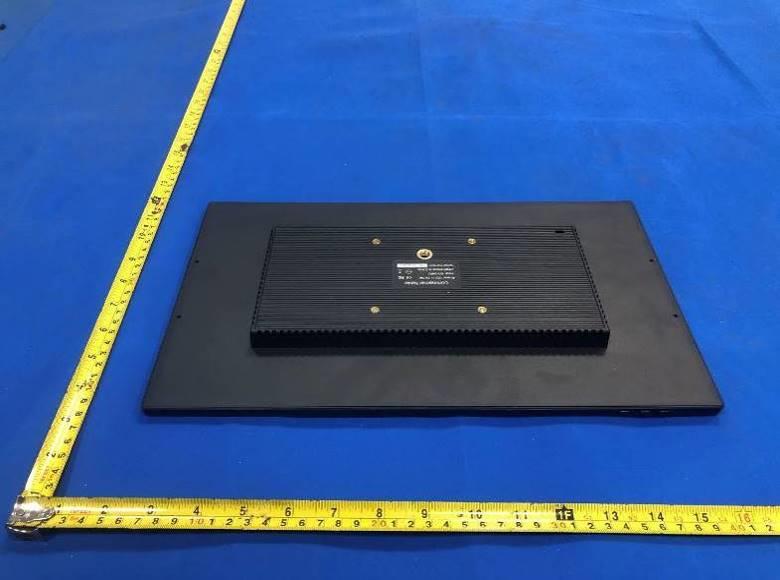

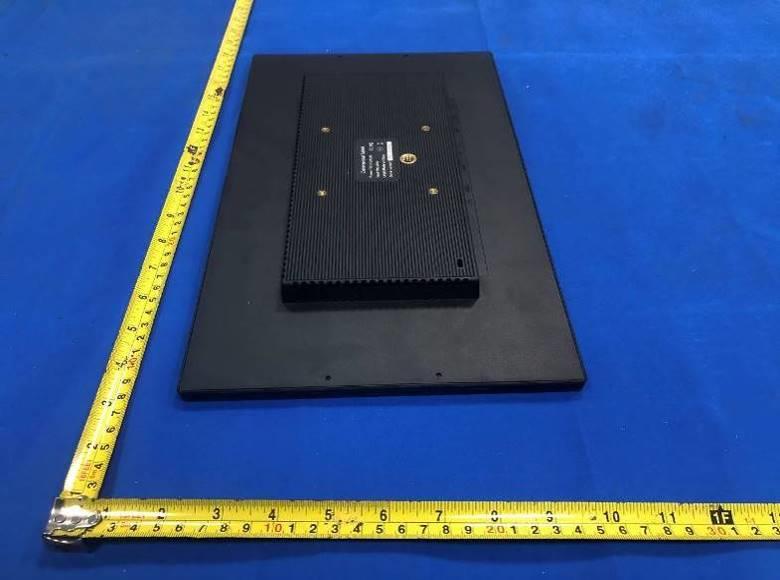

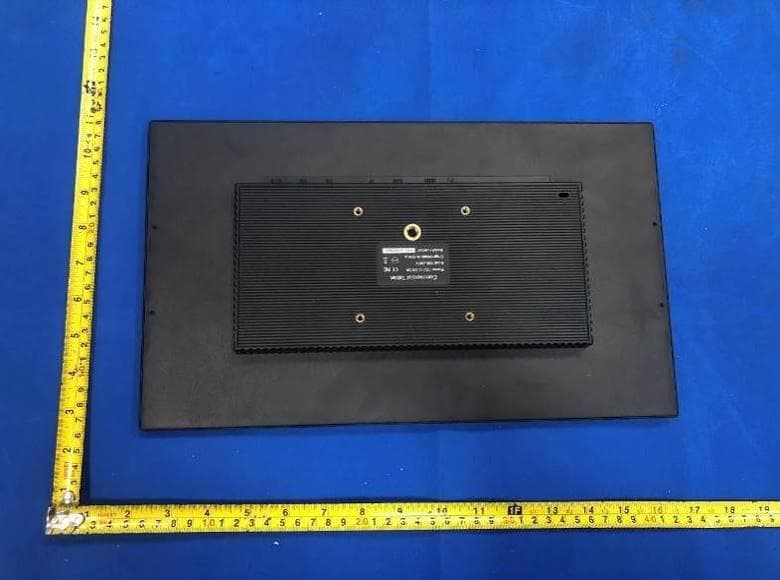

FCC ID: 2BM29-X100 External Photos of the EUT FCC ID: 2BM29-X100 FCC ID: 2BM29-X100

Label and Location Size: L: 3.0cm*W: 2.0cm Label and Location FCC ID : 2BM29-X100

FCC ID: 2BM29-X100 Internal Photos of the EUT FCC ID: 2BM29-X100 ANT FCC ID: 2BM29-X100 FCC ID: 2BM29-X100 FCC ID: 2BM29-X100 FCC ID: 2BM29-X100

RF Exposure evaluation FCC ID: 2BM29-X100 Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Antenna Information X100 can only use antennas certificated as follows provided by manufacturer; Antenna No. Model No. of antenna: Type of antenna: Gain of the antenna (Max.) Frequency range: BT/2.4GWIFI / PIFA antenna 0.88dBi for 2400-2500MHz; 5. Manufacturing Tolerance BT GFSK(Peak) Channel Channel 00 Channel 39 Channel 78 Target (dBm) 2.0 2.0 0.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK (Peak) Channel Channel 00 Channel 39 Channel 78 Target (dBm) 2.0 0.0 2.0 Tolerance ±(dB) 1.0 1.0 1.0 8DPSK (Peak) Channel Channel 00 Channel 39 Channel 78 Target (dBm) -2.0 0.0 -2.0 Tolerance ±(dB) 1.0 1.0 1.0 WIFI(Peak) Frequency (MHz) 11b 2412 2437 2462 Target (dBm) 14.0 14.0 14.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11g 2412 2437 2462 Target (dBm) 13.0 13.0 13.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11n(HT20) 2412 2437 2462 Target (dBm) 13.0 13.0 13.0 Tolerance ± (dB) 1.0 1.0 1.0 6. Standalone MPE Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is 0.88dBi, the RF power density can be obtained. Modulation Type Output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW BT 3.0 1.9953 0.88 1.2246 0.0005 1.0000 2.4GWIFI 15.0 31.6228 0.88 1.2246 0.0077 1.0000 Remark: 1. Output power (Peak) including turn-up tolerance; 2. MPE evaluate distance is 20cm from user manual provide by manufacturer. 7. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. ----------------THE END OF REPORT---------------

1. Antenna Description: Antenna type PIFA antenna Model X100 Frequency range 2400-2500MHz Manufacturer Shenzhen Zhixin Chuangzhi Technology Co., Ltd ANT Peak Gain 0.88 dBi 2. Antenna Photo: Length :27.23mm Width:13.24mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID............................................. : CTA24121600402 2BM29-X100 Compiled by ( position+printed name+signature) . : File administrators Xudong Zhang Supervised by ( position+printed name+signature) . : Project Engineer Zoey Cao Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Dec. 24, 2024 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Shenzhen Zhixin Chuangzhi Technology Co., Ltd Address ............................................ : 807, Block A, Shahe Century Holiday Plaza, No. 9030, Shennan Avenue, Xinghe Street Community, Shahe Street, Nanshan District, Shenzhen, China Test specification ........................... : Standard ........................................... : FCC Part 15.247 TRF Originator .................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : ZICALSTAR Trade Mark ....................................... : ZICALSTAR Manufacturer .................................... : Shenzhen Zhixin Chuangzhi Technology Co., Ltd Model/Type reference ...................... : X100 Listed Models .................................. : X100-T25-156-B-U Modulation Type ............................... : CCK/DSSS/OFDM Operation Frequency ........................ : From 2412 - 2462MHz Rating ............................................... : DC 12.0V From external circuit Result ............................................... : PASS Report No.: CTA24121600402 Page 2 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : ZICALSTAR Model /Type : X100 Listed Models : X100-T25-156-B-U Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number is different for these model. Applicant : Shenzhen Zhixin Chuangzhi Technology Co., Ltd Address : 807, Block A, Shahe Century Holiday Plaza, No. 9030, Shennan Avenue, Xinghe Street Community, Shahe Street, Nanshan District, Shenzhen, China Manufacturer : Shenzhen Zhixin Chuangzhi Technology Co., Ltd Address : 807, Block A, Shahe Century Holiday Plaza, No. 9030, Shennan Avenue, Xinghe Street Community, Shahe Street, Nanshan District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA24121600402 Page 3 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT configuration 6 2.6 EUT operation mode 6 2.7 Block Diagram of Test Setup 6 2.8 Related Submittal(s) / Grant (s) 6 2.9 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Test Description 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 11 4.1 AC Power Conducted Emission 11 4.2 Radiated Emission 14 4.3 Maximum Peak Conducted Output Power 20 4.4 Power Spectral Density 21 4.5 6dB Bandwidth 24 4.6 Out-of-band Emissions 27 4.7 Antenna Requirement 34 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 35 6 P H O T O S O F T H E E U T ........................................................... 36 Report No.: CTA24121600402 Page 4 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 …

Text truncated - open the document above for the full version.

Report No.: CTA24121600402 Page 31 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n20 Reference Reference CH01 CH06 30MHz-3GHz 30MHz-3GHz 1GHz -25GHz 1GHz -25GHz Report No.: CTA24121600402 Page 32 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n20 Reference CH11 30MHz-3GHz 1GHz -25GHz Report No.: CTA24121600402 Page 33 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Band-edge Measurements for RF Conducted Emissions: 802.11b Left bandedge Right bandedge 802.11g Left bandedge Right bandedge 802.11n(HT20) Left bandedge Right bandedge Report No.: CTA24121600402 Page 34 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 4.7 Antenna Requirement Standard Applicable For intentional device, according to FCC 47 CFR Section 15.203: An intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. The use of a permanently attached antenna or of an antenna that uses a unique coupling to the intentional radiator, the manufacturer may design the unit so that a broken antenna can be replaced by the user, but the use of a standard antenna jack or electrical connector is prohibited FCC CFR Title 47 Part 15 Subpart C Section 15.247(c) (1) (I): (i) Systems operating in the 2400-2483.5 MHz band that is used exclusively for fixed. Point-to-point operations may employ transmitting antennas with directional gain greater than 6dBi provided the maximum conducted output power of the intentional radiator is reduced by 1 dB for every 3 dB that the directional gain of the antenna exceeds 6dBi. Test Result: The maximum gain of antenna was 0.88 dBi. Remark:The antenna gain is provided by the customer , if the data provided by the customer is not accurate, Shenzhen CTA Testing Technology Co., Ltd. does not assume any responsibility. Report No.: CTA24121600402 Page 35 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 5 T e s t S e t u p P h o t o s o f t h e E U T Report No.: CTA24121600402 Page 36 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 6 P h o t o s o f t h e E U T Reference to the test report No. CTA24121600401. ********************** End of Report **********************

FCC ID: 2BM29-X100 Test Setup Photos of the EUT
