2BM2K-M7Wireless data transceiver

Shenzhen Navynav Technology Co., Ltd.

Click to zoom

Application Details

Equipment Class: TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant: Apr 01, 2026
Application Purpose: Original Equipment
Equipment Note: Wireless data transceiver
Frequency Range: 410.00000000 - 470.00000000
Company: Shenzhen Navynav Technology Co., Ltd.
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Document No.： NQR.CP-M5-2401-001 Shenzhen Navynav Technology Co.,Ltd. Addr：Rm 502,Han’s Laser Technology Centre, Shennan Ave No.9988,Nanshan District, Shenzhen,P.R.C www.navynav.com M7 Product Specification Document No.： NQR.CP-M5-2401-001 Product Model： M7 Product Name： Built-in transceiver and data transmission radio station Prepared by/Date: Reviewed by/Date: Approved by/Date: Document Revision Record S/N Modify chapters/clauses Modify the summary Version Modified date Modifier Approver 1 All Create a first draft V1.0 2025.1 2 3 4 Document No.：NQR.CP-M5-2 401-001 I Table of Contents I.OVERVIEW 1.1 Product Features ................................................................................................................. 1 1.2 Application Area ................................................................................................................. 1 II. TECHNICAL PARAMETERS .......................................................................................... 2 2.1 Working conditions ............................................................................................................. 2 2.2 Power consumption parameter ........................................................................................... 2 2.3 Radio frequency characteristics .......................................................................................... 2 2.4 Modem ................................................................................................................................ 3 2.5 Operating temperature ........................................................................................................ 3 2.6 Communication Interface ................................................................................................... 4 2.7 Structural characteristics ..................................................................................................... 4 III. PIN DEFINITION ............................................................................................................ 4 I V. MECHANICAL CHARACTERISTICS ............................................................................ 5 4.1 Module size ......................................................................................................................... 5 Document No.： NQR.CP-M5-2 401-001 1 I. Overview M7 is a radio station, supporting both UHF radio . Specifically developed for the surveying and mapping as well as precision agriculture markets, it features long communication distance, good protocol compatibility, and strong anti-interference capability. Figure 1-1: M7 appearance diagram 1.1 Product features Radio station operating frequency range: 410-470 MHz The package size and pin definition are compatible with HX-DU2005D and HX-DU5002D radios. The integration of transceivers can meet the requirements of communication links between base stations and mobile stations. Support online upgrade function. Supports H, L power switching. Document No.： NQR.CP-M5-2 401-001 2 1.2 Application field Surveying and mapping, precision agriculture II.Technical Specifications 2.1 Working conditions Parameter Minimum Typical value Maximum Unit Instructions Working voltage \ 7.5 \ V 5W recommended @ 7.5V Operating temperature -40- 70 °C Operating humidity 10 - 90 %RH Storage temperature -45- 85 °C Electrostatic discharge voltage (Contact discharge) - - 4 KV Electrostatic discharge voltage (Air discharge) - - 6 KV 2.2 Power consumption parameter Parameter Minimum Typical value Maximum Unit Remarks Emission current 0.8 1.6 1.8 A 1W transmitting current 0.8A 2W transmitting current 1.1A 5W transmitting current 1.6A Receive current - 80 - mA Standby current - 80 - mA 2.3 Radio frequency characteristics Item Content Operating frequency 410-470 MHz Do cument No.： N QR.CP-M5-2 401-001 3 W orking modehalf-duplex Channel bandwidth 12.5kHz Modulation scheme 4FSK FSK modes Carrier power 5.0W, 2.0W, Three power levels are available (default antenna port impedance is 50Ω) Carrier power stability ±1.5 dB Power consumption (typical value) Transmitting high power: [email protected] DC Transmitting medium power: [email protected] DC Standby power consumption: [email protected] DC Reception sensitivity FSK mode: better than -114dBm@BER 10-5,9600 Co-channel suppression >-12dB 2. 4 Modem Serial port speed 9600bps, 19200bps, 38400bps, 115200bps 2. 5 Operating temperature Operating temperature -40~+75°C Storage temperature -45~+85°C Document No.： NQR.CP-M5-2 401-001 4 2. 6 Communication interface Item Content Serial port Standard TTL level Data bit: 8 bits Stop bit: 1 bit Validation: No validation 2. 7 Structural characteristics Item Content Size 75 (length) × 46 (width) × 11 (height) mm Weight About 60g Antenna interface MCX female socket Antenna interface impedance 50 ohm Data interface 2*8pin /1.27mm III.Pin Definition The distribution of M7 pins is shown in the figure below: Pin definition: Pin 1 - VCC - regulated +7.5V DC power input Pin 2 - VCC - regulated +7.5V DC power input Pin 3 - VCC - regulated +7.5V DC power input Pin 4 - VCC - regulated +7.5V DC power input Pi n 5 - RSSI output Pin 6 - suspended Pi n 7 - TXD Pin 8 - RXD Pin 9 - CONF IG - pull down to enter configuration mode, High level indicates data transmission mode Pin 10 - for testing, needs to be suspended Pin 11 - for testing, needs to be suspended Pin 12 - for testing, needs to be suspended Pin 13 - External power supply negative input Pin 14 - External power supply negative input Pin 15 - External power supply negative input Pin 16 - External power supply negative input Document No.： NQR.CP-M5-2401-001 5 IV. Mechanical characteristics 4.1 Module size The view and dimensions are shown in the following figure Document No.： NQR.CP-M5-2401-001 6 Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject…

Text truncated - open the document above for the full version.

Attestation Statements

BaVpaVp<JpJFVOapuku^,u 6R Auun 2Jp6JV{FVOapulu^,Vp{VBaVppJp(V<u!! <JpaJp.c{cO BaVpaVp ,adpJ FVl" 1J# 0 nJcl$k !'zz Oun )WKevq7WW| .JV# 10.0A(6,?::H<3,(F3?<B,?::3BB3?<B (au{dJdupJpR0JlJcup/ccdup ?JikJpR:cklAuJR ,uknNcJ :. AVZ%(VJdupBJVnVp,1A !kRCcc 1ckdp^ 1,,3."+;4 ; DbXrbXr=LrLGXPbrwmw_-w 8SOV{d[VaJJuZaVRJVuZaV[kdp^uZaV JyykcOJcup aVJyyldOJpdRVpc[VRupaV,uV{VR6cJJpVpcy{uROdp^OuV{VR VzdynVp (pTu}y}uTQTuVpuV5JyV}ju]J}Vdp\{oJdup BcpOV{Vk Ef`sJ ~V& Printed Name: ZhiRong Hu Title: Radio frequency engineer Uhh*YMhxt9YY

Attestation Statements

U.S. AGENT LETTER OF ATTESTATION Date: 2026-02-10 FE DERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47§2.91 l (d)( 7) Filing FCC I D: 2BM2K-M7 Shenzhen Navynav Technology Co., Ltd. certifies that, as of the date of the filing of the application, Iconsigh Inc. is our designated U.S. agent for service of process for the above referenced FCC ID. Shenzhen Navynav Technology Co., Ltd. accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Iconsigh Inc. accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Info而ation: C ompany Name: Iconsigh Inc. Address: 2310 Homestead Road, Suite C 1, Los Altos, CA, 94024, USA FRN: 0033398652 T el.:+ 1 (408) 320-9867 Email: [email protected] Signed by (printed n ame): Benjamin Kaur Signature: A pplicant: Shenzhen Navynav Technology Co., Ltd. A ddress: Room 502, Han's Laser Technology Centre Shennan Ave No.9988, Nanshan District, Shenzhen China FRN: 0036430254 Tel: +86 17722606810 Email: 15738 l [email protected] Signed by (printed name): ZhiRong Hu Sign atur e: 归呤邯

Cover Letter(s)

Shenzhen Navynav Technology Co., Ltd. Room 502, Han's Laser Technology Centre Shennan Ave No.9988, Nanshan District, Shenzhen China Tel: +86 17722606810 Fax:+86 75521015617 E-mail: [email protected] Modular Approval Letter Date: 2026-02-10 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Application Examiner, We, Shenzhen Navynav Technology Co., Ltd. is submitting this application for certification of product named as Wireless data transceiver, Model Numbers: M7 (FCC ID: 2BM2K-M7). It is seeking modular approval. The radio meets the requirements for modular approval . Compliance to each of the requirements is described below: 1.“The modular transmitter must have its own RF shielding.” Yes, it is fulfilled. The radio portion of the module has its own RF shielding. The shielding is installed at the factory. Please see the EUT photos. 2.“The modular transmitter must have buffered modulation/data inputs.” Yes, it is fulfilled. The EUT has buffered data inputs to insure compliance with Part 90 requirements under conditions of excessive data rates or over modulation. Please see the Schematics exhibit. 3.“The modular transmitter must have its own power supply regulation.” Yes, it is fulfilled. The EUT has its own power supply regulation to insure compliance. 4.“The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c).” Yes. The EUT has a Dipole ANT, antenna gain is 2 dBi. 5.“The modular transmitter must be tested in a stand-alone configuration.” Yes, it is fulfilled. The EUT was tested in a stand-alone configuration. 6. “The modular transmitter must be labeled with its own FCC ID number.” Yes, it is fulfilled. The module will be labeled with its own FCC ID number. Please see FCC ID label & location exhibit. 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” Yes, it is fulfilled. The necessary explanation to be complied with this requirement is contained in the user manual, and please refer to the User manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” Yes, the module is intended to use in distance more that 60cm. FCC RF exposure requirement satisfied with 47CFR §2.1091. Please contact me if you have additional questions. Your attention to this matter is greatly appreciated. Sincerely Yours, Signature Printed Name: ZhiRong Hu Title: Radio frequency engineer

External Photos

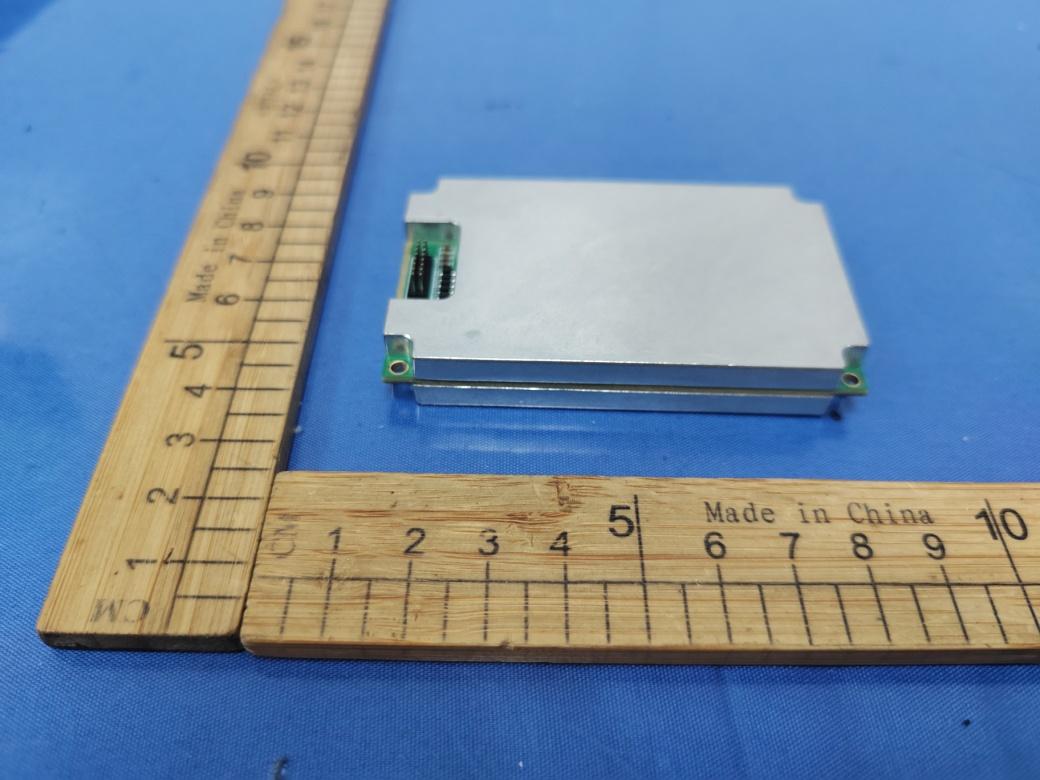

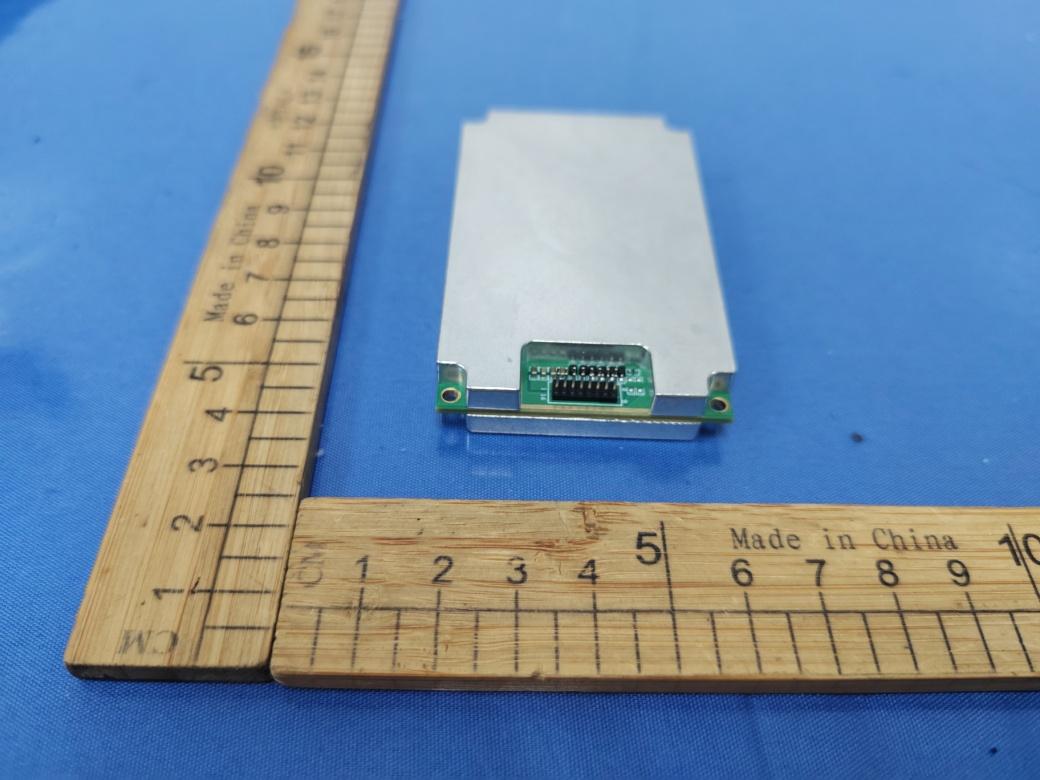

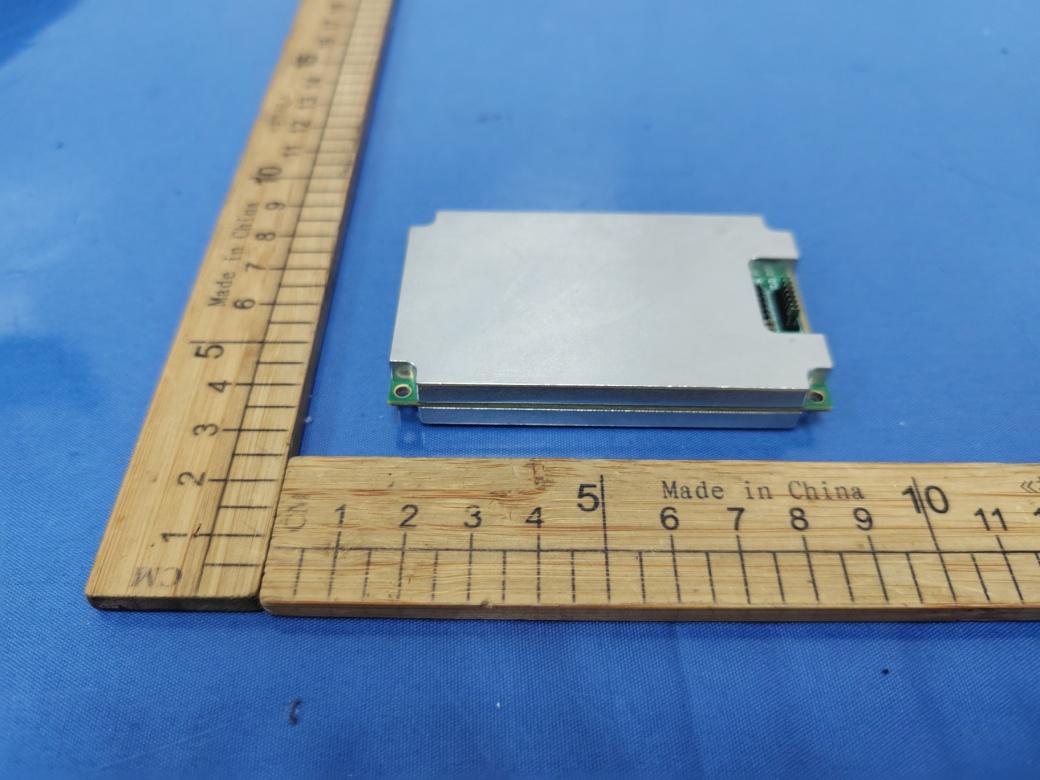

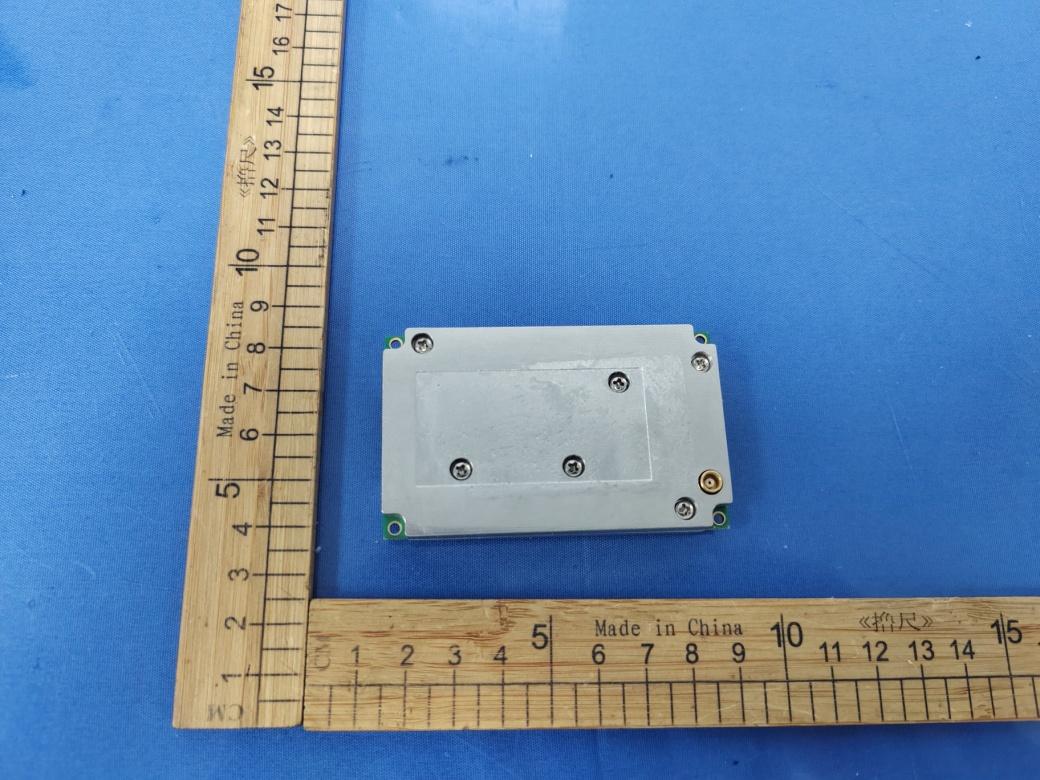

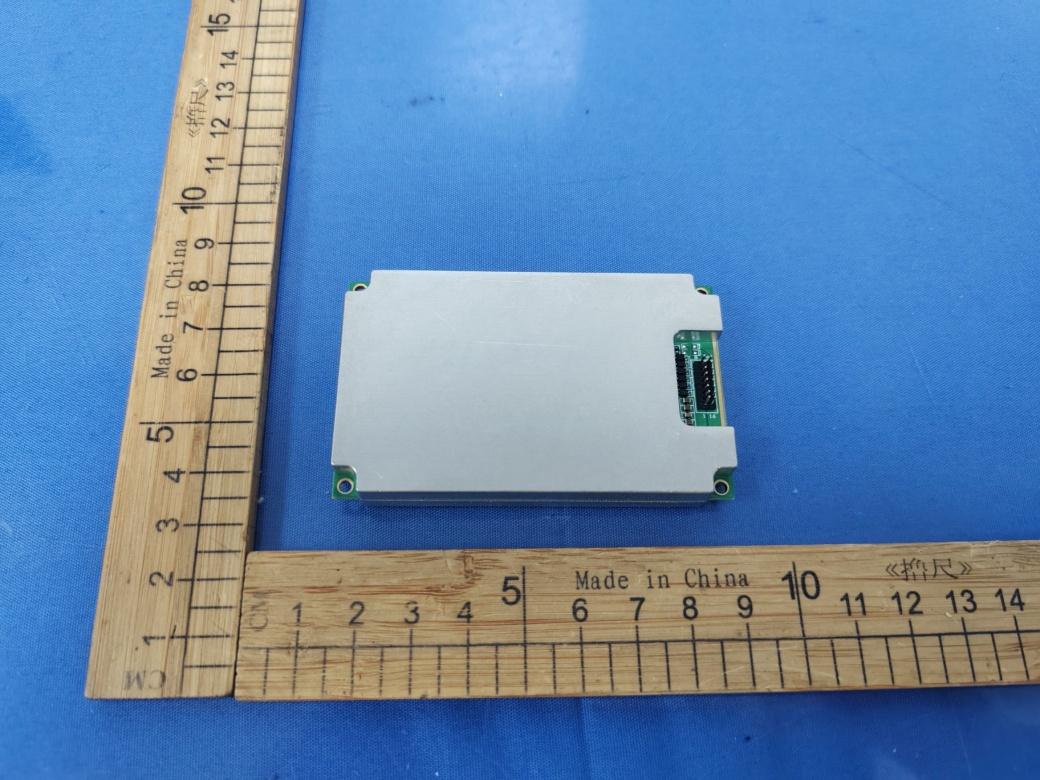

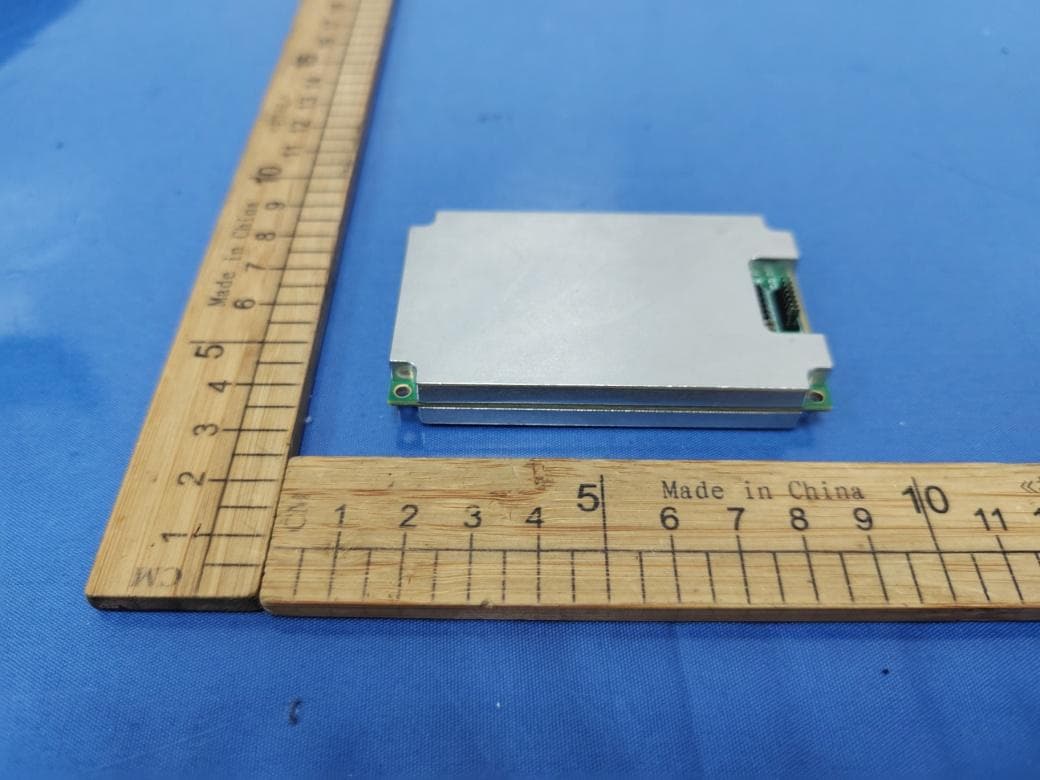

Shenzhen Accurate Technology Co., Ltd. No.: 2504A05479E-RF EUT External Photos External Photos Page 1 / 5 External Photos Shenzhen Accurate Technology Co., Ltd. No.: 2504A05479E-RF EUT External Photos External Photos Page 2 / 5 Shenzhen Accurate Technology Co., Ltd. No.: 2504A05479E-RF EUT External Photos External Photos Page 3 / 5 Antenna Connector Socket Shenzhen Accurate Technology Co., Ltd. No.: 2504A05479E-RF EUT External Photos External Photos Page 4 / 5 Antenna Connector + Antenna Antenna Connector Antenna Shenzhen Accurate Technology Co., Ltd. No.: 2504A05479E-RF EUT External Photos External Photos Page 5 / 5 Antenna Note: The applicant claimed that the module is shipped without an antenna connector and antenna. ***** END ***** ***** END *****
