2BM35-V11portable monitor

User Manual portable monitor Thisis a plug-and-playmonitorand doesnot requireany driversetup ProductAppearance ProductName portable monitor ProductSize357 ×213 ×14 mm Screensize15.6inchResolution1920*1080 Productweight0.9KgRefreshfrequency60Hz Is it touchingNOBrightness 220 cd/m²～260cd/m² Viewingangle17 0°Contrast1000:1 FuselageMaterialABSSpeakers8Ω/1W*2 Outputport 3.5mmheadphone jack InputportminiHDMI,Type-C×2 PackingList miniHDMIto HDMIcable*1, USBto Type-Ccable*1 , USBpower adapter*1, manual*1 *Note:Theabovedataare relatedto themeasurementtools,environment, personnelandotherobjectivefactors,theremaybe errors,suchas erroris normal, pleasetaketheactualmeasurementshallprevail.If thereare updatesandchanges to thehardwareparametersandtheaboveparameterinformationhasnotbeen updatedin a timelymanner,pleasereferto theactualproductreceived. ProductInformation Interface&Button Introduction ButtonandInterfaceDescriptions : Return/PowerButton，Longpress:Poweron/off；Shortpress:Toggle projectionsource;ServesasreturnkeywhenOSDmenuisdisplayed : Brightness/IncreaseButton，Pressonce:Displaysbrightnessadjustmentmenu， Pressagain:Increasesbrightness;Adjustsvolumeupwhenvolumemenuisactive :Volume/DecreaseButton，Pressonce:Displaysvolumeadjustmentmenu， Pressagain:Decreasesvolume;Adjustsbrightnessdownwhenbrightnessmenuis active :Shortpress:Displayssettingsmenu(brightness,volume,aspectratio,auto- rotate,language) Longpress:Toggleswirelessprojectionmode(CM-A/CM-B) :Type-C①：Powersupplyport(supportsfastcharging) :Type-C②：Datatransferport,Wiredprojectioninterface(supportPDprotocol) :Mini-HDMI:Wiredprojectioninterface :Earphone：3.5mmheadphonejack CM-A/CM-BMode ： Defaultmode:CM-AForregionswherewirelessprojectionisunavailable,long-press OSDtoswitchtoCM-Bmode. ProjectionSourceSwitching Uponstartup,thedevicedefaultstothewirelessprojectiondisplay. Short-pressthePowerbuttontoswitchtoHDMIwiredprojection. Basicoperationofdeviceconnection Pressandholdthedevice'sBack/Powerbuttonformorethan3secondsto turniton.Thedevicehasabuilt-inbattery,sonoexternalpowersupplyisrequired unlessthebatteryistoolow. 1.Mobilephonewirelessscreenprojectiontoequipment: 1.1.Androidmobilephonewirelessscreentothedevice: Turnonthe"wirelessscreen"functionofthemobilephone,waitfortheDISP-4B6ABB devicetobefound,thenclickonit,waitforafewseconds,andyoucanuseitafterthe connectionissuccessful.Asshowninthefigurebelow. 1.2.iPhoneoriPadwirelessscreentodevice: Turnonthe"screenmirroring"functionoftheiPhoneoriPad,waitfortheDISP-4B6ABB devicetobefound,thenclickonit,andfinallyenterthepassword:1234,waitafewseconds, andyoucanuseitaftertheconnectionissuccessful.asshowninthefollowingfigure. ※Note:ThepasswordisonlyrequiredwhentheiPhoneoriPadisusedtowirelesslyproject thescreentotheP2Pdeviceforthefirsttime.Ifthepasswordisnotpromptedduringthe screenprojectionprocess,thereisnoneedtoworry. 2.laptopwirelessprojectionscreentothedevice: 2.1.ThenotebookcomputerofmocOSsystemwirelesslyprojectsthescreen (screenmirroring)tothedevice,andthespecificoperationisshowninthe followingfigure: 2.2.Windowssystemlaptopwirelessscreentothedevice: PresstheWin+K（）keyonthelaptopkeyboard,waitfortheDISP-4B6ABBdeviceto befound,thenclickonit,andyoucanuseitaftertheconnectionissuccessful.asshowninthe followingfigure. Aftertheconnectionissuccessful,thecomputercanbesettoexpandthedisplay,asshown inthefollowingfigure: 1.Right-clickthelaptopdesktopandselectthescreenresolutionordisplaysettings； 2.ScreenRotationSettings:ClickontheOrientationdrop-downlistandselectHorizontalor portrait; 3.DuplicateandExtendedModeSettings:ClickontheMultipleDisplaysdrop-downlistand selectExtend/Duplicatethesedisplays. ※Note:Ifyoufailtoseetheadditionalmonitor,simplyclick"Detect".Iftheadditionalmonitor stilldoesnotappear,restartthecomputerandperformthestepsagain. Note：Ifyoucan'tfindthe orientationoption,checkif yourlaptopsupportsthis feature. Firstofall,clickon"Control Centre"inthetoprightcorner ofyourdesktop; Next,select "ScreenMirroring"; Finally,selectthesame devicenameastheSSID onthemonitorscreen. Basicoperationofwiredconnections Afterthedeviceisturnedon,pressthe"back/powerbutton()"toswitchtothewired screenmodepage.UseaType-Ccabletoconnectthemonitortoadeviceequippedwitha full-featuredType-Cport;oruseaMini-HDMI-to-HDMIcabletoconnectthemonitortoa deviceequippedwithanHDMIport. 1.ConnecttoyoursmartphonewithaType-Ccable: 1.1.ConnecttoaAndroidphoneortabletwithafull-featuredType-Cport: 1 ConnectthemobilephonetotheType-C②port()ofthedevicewithaType-Cline; ②TheIDaddressfordownloadingHCCastwillpopuponthemobilephone,andclickto downloadandinstalltheHCCastapplication; ③Aftersuccess,opentheHCCastapplicationandallowthescreentostartprojection.The stepsareshowninthefigurebelow. ※Note:Ifthedownloadaddressdoesnotpopupafterinsertingthemobilephone,youcanuse thescan1scanfunctiononthebrowsertodownloadHCCast'stwo-dimensionalcodescancode downloadonthedevicepage. 1.2.ConnecttoiPhoneoriPad 1 ConnectthemobilephonetotheType-C②port()ofthedevicewithaType-Cline; 2 ThetrustinterfacewillpopupontheiPhone.Clickthe"Trust"optiontoproject.asshown inthefollowingfigure. ※Note:IfyouriPhoneislightning,pleaseconnectitwithaType-C-to-lightningcable. Type-CtoType-CCable HDMItoMini- HDMICable 2.ConnecttolaptopordesktopPC. 3.ConnecttoagamingdeviceequippedwithanHDMIport. 4.ConnecttootherdevicesequippedwithHDMIport. 5.ConnectedtoaNintendogameconsole. 5.1.ConnecttotheSwitchDockwithanHDMIcable. HDMItoMini- HDMICable HDMItoMini- HDMICable HDMItoMini-HDMI Cable Aboutafter-salesand shipping Anyqualityproblemscausedby externalforceswillnotbe returnedor exchanged. Suchas: drop,hit,touch,disassemblethemachineto changeor accident. Wedo notcovertheshippingcostforreturnsor exchangesthatarenot of quality;if thereis a qualityproblem, we coverthestandardshipping.cost AboutWarranty Thewarrantyonlycoversthemainbodyof theproduct.Software,accessories, consumables,etc.storedin theproductor connectedproductsare notcoveredby the warranty. Warrantyis not coveredif. 1)Due to fire, earthquake, light ning, …

Text truncated - open the document above for the full version.

Shenzhen Chengyisheng Electronics Co., Ltd Covered Equipment Certification Attestation Letter 3/19/2026 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2BM35-V11 Shenzhen Chengyisheng Electronics Co., Ltd (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Shenzhen Chengyisheng Electronics Co., Ltd (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Shenzhen Chengyisheng Electronics Co., Ltd (“the applicant”) certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Signed: Printed name: lin Chen Title: Manager Company Name: Shenzhen Chengyisheng Electronics Co., Ltd Date: 03/19/2026

Shenzhen Chengyisheng Electronics Co., Ltd U.S. Agent Letter of Attestation To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date: March 19, 2026 Ref: Attestation Statement – Part 2.911(d)(7) filing FCC ID: 2BM35-V11 Shenzhen Chengyisheng Electronics Co., Ltd (“the applicant”) certifies that, as of the date of the filing of the application, CLF Import and Export Limited (“the agent”) is our designated U.S. agent for service of process for the above reference FCC ID. The applicant accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges it is our responsibility to inform the FCC whenever the agent information changes. CLF Import and Export Limited ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: CLF Import and Export Limited FRN: 0033489683 Address: 1312 17th Street #692, Denver, CO 80202, United States Signature: Contact Person: David Chen Tel: +1 949 254 2565 Email: [email protected] Applicant Company Name: Shenzhen Chengyisheng Electronics Co., Ltd FRN: 0036440642 Address: 1901, Block A, Building 1, Anhongji Xingyao Plaza, No. 32 Huaxing Road, Tongsheng Community, Dalang Street, Longhua District, Shenzhen, China Signature: Contact Person: lin Chen Tel: 13332938857 Email: [email protected]

DATE: March 19, 2026 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Shenzhen CCUT Quality Technology Co., Ltd. (1F, Building 35, Changxing Technology Indstrl Park Changzhen Community, Yutang Street,Shenzhen,China) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Shenzhen Chengyisheng Electronics Co., Ltd (1901, Block A, Building 1, Anhongji Xingyao Plaza, No. 32 Huaxing Road, Tongsheng Community, Dalang Street, Longhua District, Shenzhen, China <Signature> Name: lin Chen Title: Manager Company: Shenzhen Chengyisheng Electronics Co., Ltd

Date: March 19, 2026 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Compliance Testing, LLC to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). Sincerely, <Signature> Name: lin Chen Title: Manager Company: Shenzhen Chengyisheng Electronics Co., Ltd

DATE: March 19, 2026 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2BM35-V11 Product Name: portable monitor Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description  SOFTWARE SECURITY DESCRIPTION These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name: lin Chen Title: Manager Company: Shenzhen Chengyisheng Electronics Co., Ltd

Shenzhen Chengyisheng Electronics Co., Ltd Model Difference Statement DATE: March 19, 2026 FCC ID: 2BM35-V11 Dear Sir/Madam, Added models V2, V3, V4, V5, V6, V7, V8, V9, V10 basis of the original product V1. The color of appearance and model name of series models listed are different from the main model, but the circuit and the electronic construction are the same, declared by the manufacturer. Sincerely, Name: lin Chen Title: Manager Company name: Shenzhen Chengyisheng Electronics Co., Ltd Address: 1901, Block A, Building 1, Anhongji Xingyao Plaza, No. 32 Huaxing Road, Tongsheng Community, Dalang Street, Longhua District, Shenzhen, China

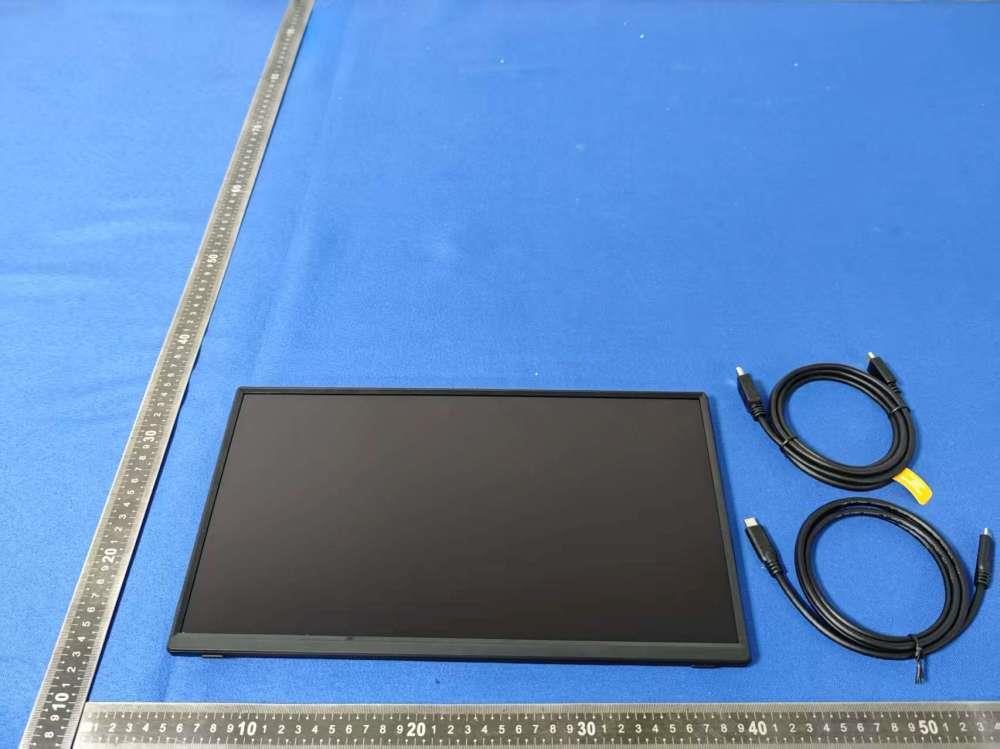

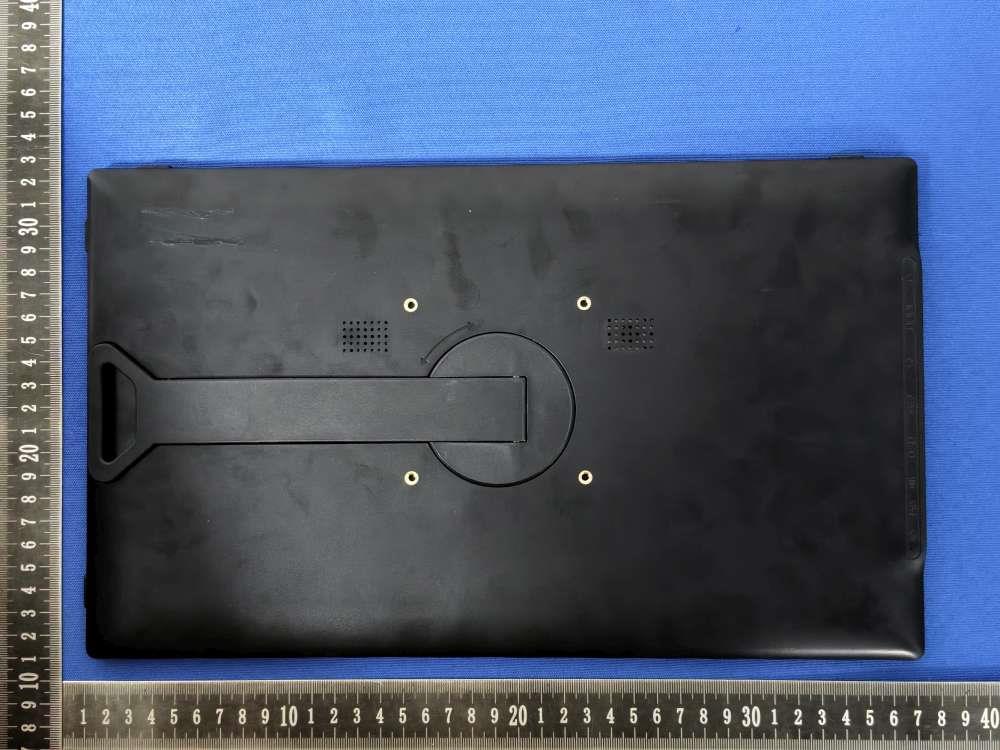

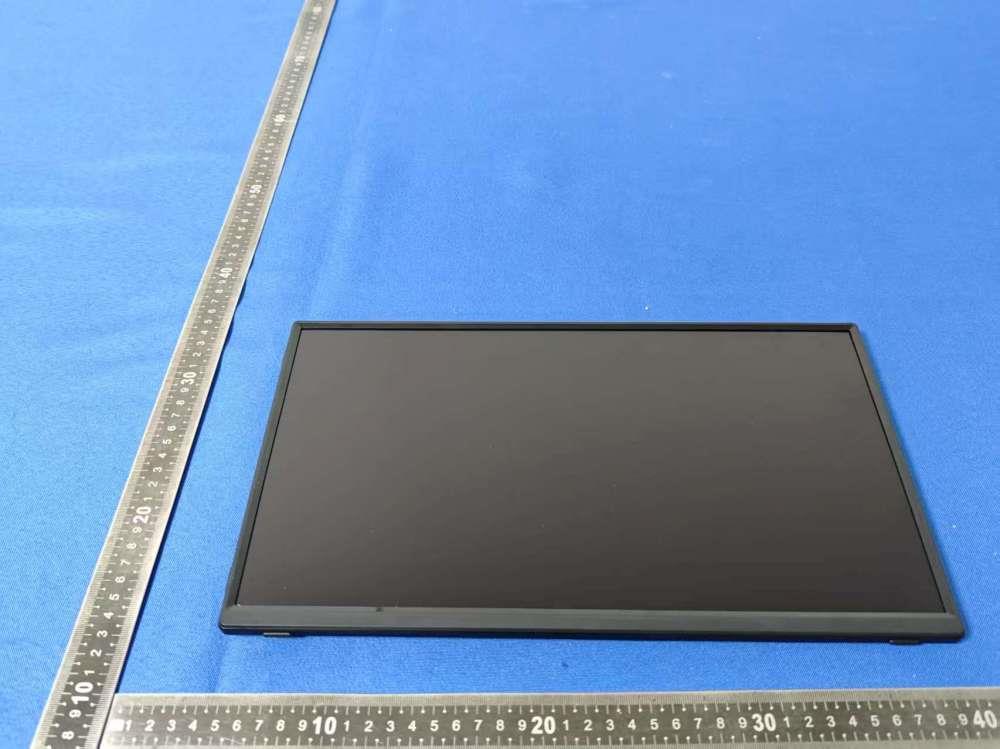

Report No: SSP26020097-1&2E FCC ID: 2BM35-V11 Annex of Test Report Annex A. EUT External Photos Model: V1 EUT View 1 EUT View 2 Report No: SSP26020097-1&2E FCC ID: 2BM35-V11 Annex of Test Report EUT View 3 EUT View 4 Report No: SSP26020097-1&2E FCC ID: 2BM35-V11 Annex of Test Report EUT View 5 EUT View 6 Report No: SSP26020097-1&2E FCC ID: 2BM35-V11 Annex of Test Report EUT View 7 EUT View 8

Report No: SSP26020097-1&2E FCC ID: 2BM35-V11 Annex of Test Report Annex D. Label and Inf ormation FCC Label Sample FCC Label Specifications Text is Black in color and is justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Where the EUT is constructed in two or more sections connected by wires and marketed together, the above statement is required to be affixed only to the main control unit. When the EUT is so small or for such use that it is not practicable to place the statement on it, the above information shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. FCC Label Location Label Location

Report No: SSP26020097-1&2E FCC ID: 2BM35-V11 Annex of Test Report Annex B. EUT Internal Photos Model: V1 EUT Internal View 1 EUT Internal View 2 Report No: SSP26020097-1&2E FCC ID: 2BM35-V11 Annex of Test Report EUT Internal View 3 EUT Internal View 4 Report No: SSP26020097-1&2E FCC ID: 2BM35-V11 Annex of Test Report EUT Internal View 5 EUT Internal View 6 FPCB ANT Report No: SSP26020097-1&2E FCC ID: 2BM35-V11 Annex of Test Report EUT Internal View 7 EUT Internal View 8

FCC ID: 2BM35-V11 RF Exposure Evaluation According to KDB 447498 D01 General RF Exposure Guidance v06 and part 2.1093，Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Here, The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. For 2.4GWiFi Max Conducted Power(dBm) Tune-up Power(dBm) Max Tune-up Power(dBm) Max Power(mW) Frequency(MHz) Min. distance(mm) Calc. thresholds limit 6.21 6(±1) 7 5.01 2412 5 1.55617 3.0 For 5.8GWiFi Max Conducted Power(dBm) Tune-up Power(dBm) Max Tune-up Power(dBm) Max Power(mW) Frequency(MHz) Min. distance(mm) Calc. thresholds limit 5.41 5(±1) 6 3.98 5745 5 1.90791 3.0 The device cannot transmit with 2.4G WI-FI and 5.8G WI-FI simultaneously. So a SAR test is not required

Report No: SSP26020097-1E FCC Test Report Page 1 of 50 FCC TEST REPORT FCC ID: 2BM35-V11 Report No. : SSP26020097-1E Applicant : Shenzhen Chengyisheng Electronics Co., Ltd Product Name : portable monitor Model Name : V1 Test Standard : FCC Part 15.247 Date of Issue : 2026-03-14 Shenzhen CCUT Quality Technology Co., Ltd. 1F, Building 35, Changxing Technology Industrial Park, Yutang Street, Guangming District, Shenzhen, Guangdong, China; (Tel.:+86-755-23406590 website: www.ccuttest.com) This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd. Report No: SSP26020097-1E FCC Test Report Page 2 of 50 Test Report Basic Information Applicant..................................: Shenzhen Chengyisheng Electronics Co., Ltd Address of Applicant...............: 1901, Block A, Building 1, Anhongji Xingyao Plaza, No. 32 Huaxing Road, Tongsheng Community, Dalang Street, Longhua District, Shenzhen, China Manufacturer..........................: Shenzhen Chengyisheng Electronics Co., Ltd Address of Manufacturer........: 1901, Block A, Building 1, Anhongji Xingyao Plaza, No. 32 Huaxing Road, Tongsheng Community, Dalang Street, Longhua District, Shenzhen, China Product Name.........................: portable monitor Brand Name.............................: - Main Model..............................: V1 Series Models..........................: V2, V3, V4, V5, V6, V7, V8, V9, V10 Test Standard..........................: FCC Part 15 Subpart C KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.4-2014 ANSI C63.10-2020 Date of Test .............................: 2026-02-06 to 2026-03-12 Test Result...............................: PASS Tested By ................................: (Walker Wu) Reviewed By............................: (Lorzix Luo) Authorized Signatory............: (Lahm Peng) Note : This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd.. All test data presented in this test report is only applicable to presented test sample. Report No: SSP26020097-1E FCC Test Report Page 3 of 50 CONTENTS 1. General Information ....................................................................................................................................................5 1.1 Product Information .............................................................................................................................................5 1.2 Test Setup Information..........................................................................................................................................6 1.3 Compliance Standards ...........................................................................................................................................7 1.4 Test Facilities ........................................................................................................................................................7 1.5 List of Measurement I nstruments ..........................................................................................................................8 1.6 Measurement Uncertainty .....................................................................................................................................9 2. Summary of Test Results ........................................................................................................................................... 10 3. Antenna Requirement ............................................................................................................................................... 11 3.1 Standard and Limit.............................................................................................................................................. 11 3.2 Test Result .......................................................................................................................................................... 11 4. Conducted Emissions ................................................................................................................................................ 12 4.1 Standard and Limit.............................................................................................................................................. 12 4.2 Test Procedure.................................................................................................................................................... 12 4.3 Test Data and Results .......................................................................................................................................... 13 5. Radiated Emissions ................................................................................................................................................... 16 5.1 Standard and Limit.............................................................................................................................................. 16 5.2 Test Procedure.................................................................................................................................................... 16 5.3 Test Data and Results .......................................................................................................................................... 18 6. Band-edge Emissions(Radiated) ............................................................................................................................... 22 6.1 Standard and Limit.............................................................................................................................................. 22 6.2 Test Procedure.................................................................................................................................................... 22 6.3 Test Data and Results ...........…

Text truncated - open the document above for the full version.

TEL：+860755-23073599FAX：+860755-23097189E-mail:[email protected] 深 圳 市 云 顶 通 讯 电 子有限 公 司 SHENZHEN 客户 ： 深圳市诚易盛电子有限公司 品名规格 DESCRIPTION： YD-805T-WIFI-0.81线-L120MM-IPEX1 料号 PARTNO.： 客户料号 CUSPARTNO.： 日期 DATE ： 2025-2-20 云顶呈样签章 工程 ENGINEERINGDEPARTMENT 品保 QCDEPARTMENT 业务 SALESDEPARTMENT 客户承认签章 工程 ENGINEERINGDEPARTMENT 品保 QCDEPARTMENT 采购 PURCHASINGDEPARTMENT 联系电话：075523073599 ж承认书一式三份，惠蒙贵司承认签章 жApprovalinduplicate,pleasesignedbyyourcompany. 承認書 APPROVALSHEET Shenzhen Yunding Communication Electronics Co., Ltd Address: 3015 Jinchi Center, Hanghang Road, Bao'an District, Shenzhen, China TEL：+860755-23073599FAX：+860755-23097189E-mail:[email protected] SHENZHEN 1. 测试项目与设备 测试项目设备 1.S11参数 （S-parameter） 1.回波损耗（ReturnLoss） 2.电压驻波比（VSWR） 网络分析仪:AgilentE5071B HP8753D 2.有源测试 （Active） 1.发射功率（TRP） 2.接收灵敏度（TIS） 1.暗室：ETS7x4x3m(3D)Chamber ETS5x3x3m(3D)Chamber 2.综合测试仪:Agilent8960E5515B×2 StarPointSP6011Cmw500 3.无源测试 （Passive） 1.天线增益（Gain）2.天线效 率（Efficiency） 1.暗室：ETS7x4x3m(3D)Chamber ETS5x3x3m(3D)Chamber 2.网络分析仪：AgilentE5071B HP8753D 深 圳 市 云 顶 通 讯 电 子有限 公 司 Shenzhen Yunding Communication Electronics Co., Ltd Address: 3015 Jinchi Center, Hanghang Road, Bao'an District, Shenzhen, China TEL：+860755-23073599FAX：+860755-23097189E-mail:[email protected] SHENZHEN 2. 天线性能 SWR 深 圳 市 云 顶 通 讯 电 子有限 公 司 Shenzhen Yunding Communication Electronics Co., Ltd Address: 3015 Jinchi Center, Hanghang Road, Bao'an District, Shenzhen, China TEL：+860755-23073599FAX：+860755-23097189E-mail:[email protected] SHENZHEN 3. 天线效率与增益 PassiveTestForWIFI2.4 FreqEffiGain (MHz)(%)(dBi) 240043.74-0.82 241045.64-0.65 242047.84-0.49 243049.77-0.4 244053.47-0.15 245057.260.15 246059.570.32 247058.740.17 248060.960.26 249061.930.42 250059.530.49 深 圳 市 云 顶 通 讯 电 子有限 公 司 Shenzhen Yunding Communication Electronics Co., Ltd Address: 3015 Jinchi Center, Hanghang Road, Bao'an District, Shenzhen, China TEL：+860755-23073599FAX：+860755-23097189E-mail:[email protected] SHENZHEN PassiveTestForWIFI5.8 FreqEffiGain (MHz)(%)(dBi) 515048.551.07 520042.9-0.22 525045.270.86 530046.340.47 535045.710.68 540046.650.79 545043.262.2 550042.11-0.24 555037.9-0.67 560037.29-0.2 565044.121.4 570048.792.69 575055.422.25 580050.612.12 585050.172.22 深 圳 市 云 顶 通 讯 电 子有限 公 司 Shenzhen Yunding Communication Electronics Co., Ltd Address: 3015 Jinchi Center, Hanghang Road, Bao'an District, Shenzhen, China TEL：+860755-23073599FAX：+860755-23097189E-mail:[email protected] SHENZHEN 4. 天线结构图： 深 圳 市 云 顶 通 讯 电 子有限 公 司 Shenzhen Yunding Communication Electronics Co., Ltd Address: 3015 Jinchi Center, Hanghang Road, Bao'an District, Shenzhen, China TEL：+860755-23073599FAX：+860755-23097189E-mail:[email protected] SHENZHEN 电器技术参数 电性能指标 ElectricalSpecifications 频率范围2400~2500/5150~5850MHz FrequencyRange 2400~2500/5150~5850MHz 电压驻波比≤2.5 VSWR ≤2.5 输入阻抗 50ΩInputImpedance50Ω 机械指标 MechanicalSpecifications 天线颜色黄色 AntennaColorYellow 接口形式IPEX一代 InputconnectorIPEX1 天线线长 120mmCablelength120mm 工作温度-40°C~+85°C WorkingTemperature -40°C~+85°C 工作湿度 20~80%WorkingHumidity20~80% 深 圳 市 云 顶 通 讯 电 子有限 公 司 Shenzhen Yunding Communication Electronics Co., Ltd Address: 3015 Jinchi Center, Hanghang Road, Bao'an District, Shenzhen, China TEL：+860755-23073599FAX：+860755-23097189E-mail:[email protected] SHENZHEN 环境性能测试（ Environmentperformancetest ） : 项目测试条件测试结果 储存环境 在没有指定的情况下测试温度、湿度、气压如下： 1.温度为-30°C～+80°C 2.相对湿度为45%-85% 3.气压为86kpa-106kpa 电气机械性能正常 高低温试验 在70°C与-40°C之间进行5次循环，然后在正常条件下 1-2H，检查外观质量。 尺寸应满足规定并应 满足 于机械、电气性能 耐恒定湿热 试验 相对湿度95±3%，试验温度：40°C.持续2H作用后， 试品取出后5min之内测定电气性能，试品在正常条 件下1-2H，检查外观质量 尺寸应满足规定并应 满足 于机械、电气性能 振动试验 振频范围10-55HZ，位移幅值：0.35MM，加速度幅值： 50.0M/S，扫频循环次数：30次 电气机械性能正常 跌落试验1M高空按照互相垂直的轴方向自由跌落3次电气机械性能正常 ProjectTestconditionTestresults Storage environment Testtemperature,humidity,pressurewithout statedconditionasfollwings:1.Temperature:-30°C～ +80°C;2.Relativehumidity:45%-85%;3,Pressure: 86kpa-106kpa Electricaland mechanical performancenormal Highandlow temperaturetest Having5timescyclebetween-40°Cto70°C,Thenincommon condition1-2hourstestexteriorquality. Measurement satisfiedwith electricaland mechanical performancenormal. Resistance constanthotand humidtest Relativehumidity:95±3%,Testtemperature:40°C,last2 hours,putitafter5mintesttheelectricalfunction.Test productsduringcommoncondition1-2hours,Thentest exteriorquality. Measurement satisfiedwith electricaland mechanical performancenormal. Vibrationtest VibrateFrequency:10-55HZ; Distance:0.35mm;Acceleration:50.0m/s;Sweepfrequency cycle:30times Electricaland mechanical performancenormal FalltestFrom1mheightfalldown3timesfreely(verticaldirection) Electricaland mechanical performancenormal 深 圳 市 云 顶 通 讯 电 子有限 公 司 Shenzhen Yunding Communication Electronics Co., Ltd Address: 3015 Jinchi Center, Hanghang Road, Bao'an District, Shenzhen, China

Report No: SSP26020097-1&2E FCC ID: 2BM35-V11 Annex of Test Report Annex C. Test Photos Conducted Emission Test View 1 Radiated Emission Test View Below 1GHz Report No: SSP26020097-1&2E FCC ID: 2BM35-V11 Annex of Test Report Radiated Emission Test View Above 1GHz
