2BM3M-NB55Handheld POS

User Guide 1 2 3 6 4 Machine name User name Recipient Address Mobile Serial number（SN） Buy date Service record after selling 1. ON/OFF Device 2. Contactless Card Reading 3. Setting thermal roll paper or label 4. Printer 5 5. Battery Charging 6. Charging Status Description 7. We built in a RS232 Mini USB interface for firmware upgrading. 3.Reset Hole 4.Type-C Interface 5.Contactless card reaction area 2.Recording Hole 1.Print Outlet 9.Volume + OR - 10.Camera 11.Loudspeaker 12.Battery Location 8.Power Button 7.One Key Scanning 6.Display Date Service record Service man Signature of user Attention Smart POS After opening the box, check the components, if it’s lack of any one or product description appears missing pages and other serious impact on reading, please contact the seller. Power ON: Long press the power button for 2-3 seconds to turn on it when it is off. Power OFF: Long press the power button for 2-3 seconds to select power off or Restart, Airplane Mode when it is on. Lock screen: Short press when it is on. Open your application, Put your RFID or IC cards on the RFID/NFC contactless card reading area. Connect the AC plug with Type-c cable, it will cost you 6 hours to finish charging. Please turn off the device if it is on a long standby time. Please keep charging device at least one time every 3 months. 1. Do not damage the USB cable and battery, please disuse if any breakage. 2. Please use the original matched adaptor, we are not sure the danger from the other high voltage adaptor. 3. Prohibited exposure, rain, high concentrations of the product in a dusty, high temperature, humidity environment. 4. Please keep device away from liquid, and use the alcohol to clean it. 5. Do not block any interface or hole, it is dangerous behave leads to destroying the device. 6. Do not repair it privately, please ask the help from the pos repairing center or contact seller. 7. Please do not dismantle the device privately, prohibit opening the device when it is on. 8. Do not use the device or external interface in a dangerous environment. 9. A cotton swab dipped in alcohol is the best cleaning tool. 1. The warranty period: since the date of purchase free warranty for 12 months. 2. Due to natural disasters, fires, self-modification or misuse of the situation caused by the failure, not within the free warranty range. 3. Free warranty service is limited to the original configuration of the parts. 4. No sales unit seal or the initial warranty card, will not provide warranty service. Charging: the screen will light up, it will show charging on the right top corner of the screen. Finish Charging: the screen will lock, it will stop charging. This device support to loading 58mm thermal receipt or label paper roll. Open your application and connect it with”Printer” or “Printer Service”, then You can print it through your application setting. If you can not connect the printer, please contact the seller. Packing list Quick entry User manual Instructions of appearance Notes of using lithium battery Warranty card Smart Pos1pcs 1pcs 1pcs 1pcs 1pcs Printer paper Charger Usb charging cable User Guide 1pcsBattery ItemModel/Spec / 5V/2A Type-C / Quantity 58*40(<=40mm) 1 7 8 9 4 2 3 5 6 10 11 12 1. 5-8 hours Full time charging, when you use it at the first time. 2. Pull out the rear cover to put the sim cards into it, then power on device. 3. Finish the account setting as the system guiding, you also can skip it. 4. Find the setting to connect to WIFI. 5. Find the preinstalled application “Pos Test” 6. Finish testing the device to ensure no quality problem. 7. If everything is fine, you can download your application to use it. 1 2 3 单页尺寸：68*120mm 材质：128g铜版纸 7.6V 3200mAh FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harm full interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specific Absorption Rate (SAR) information: This Device meets the government's requirements for exposure to radio waves. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons regardless of age or health. FCC RF Exposure Information and Statement the SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device types: Device has also been tested against this SAR limit. This device was tested for typical body-worn operations with the back of the device kept 0mm from the body. To maintain compliance with FCC RF exposure requirements, use accessories that maint…

Text truncated - open the document above for the full version.

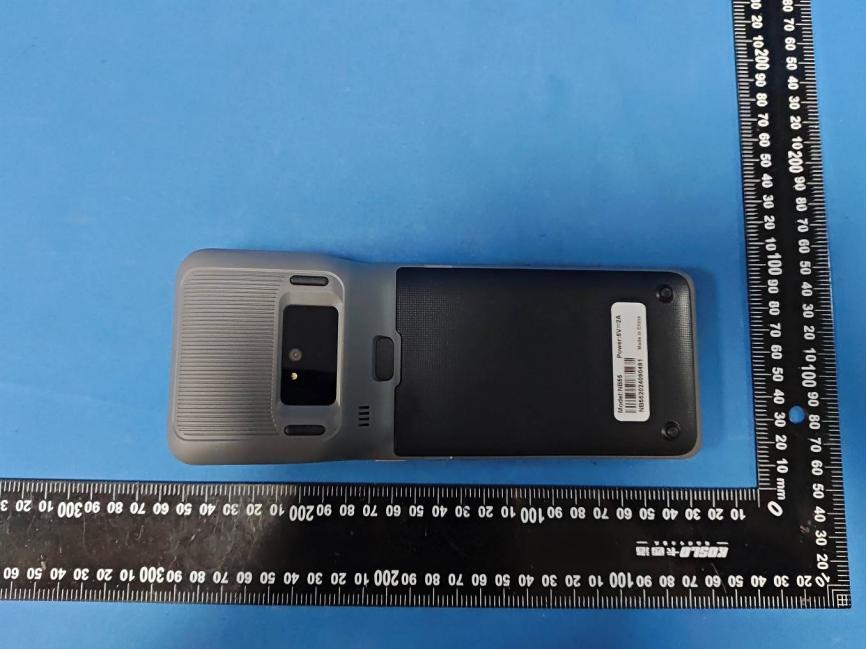

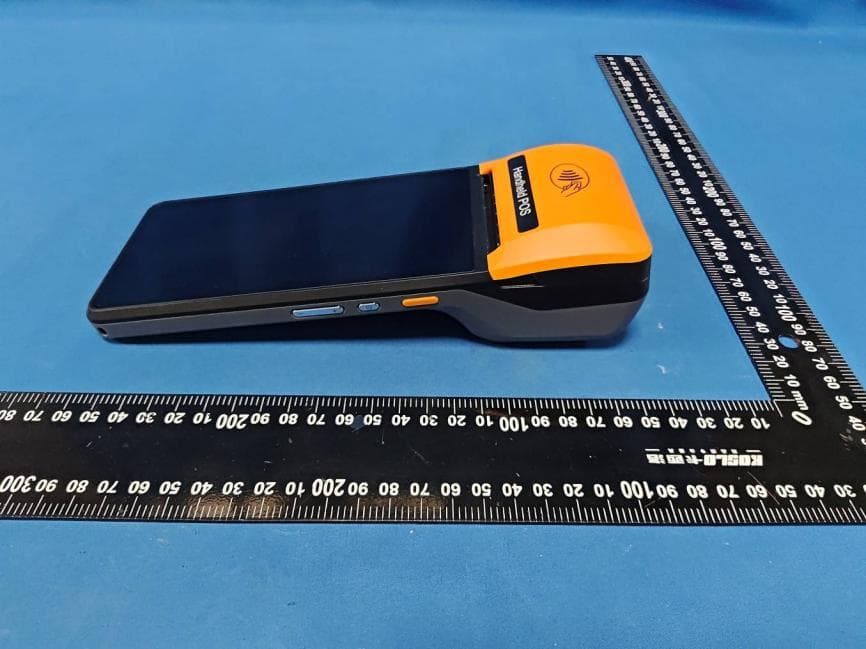

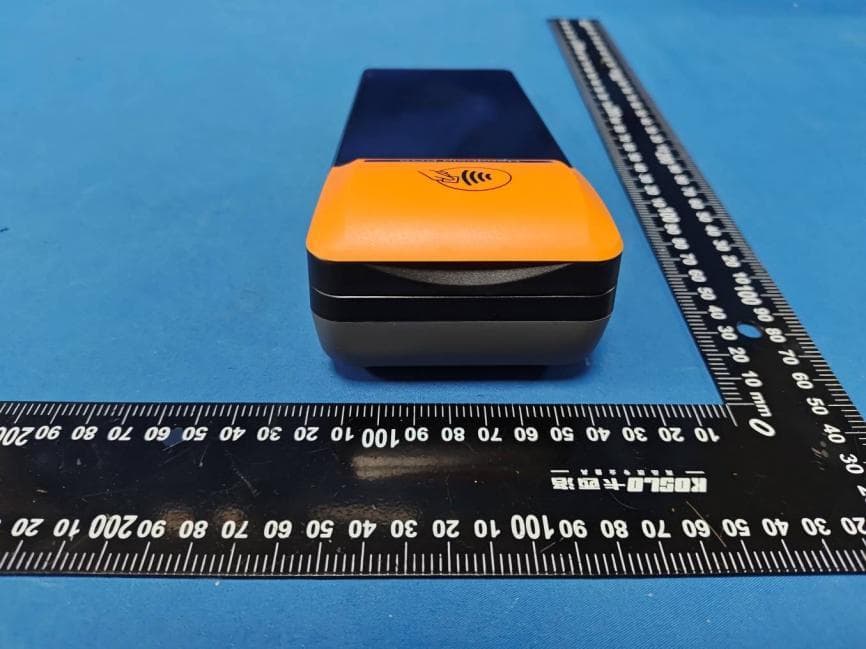

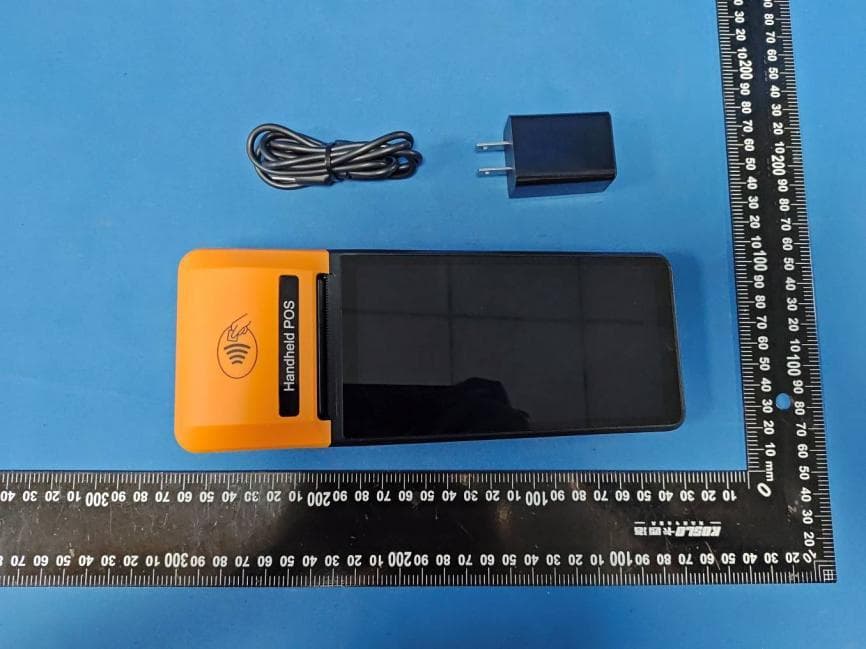

FCC ID: 2BM3M-NB55 External Photos of the EUT FCC ID: 2BM3M-NB55 FCC ID: 2BM3M-NB55

Label and Location Size: L: 3.0cm*W: 2.0cm Label and Location FCC ID : 2BM3M-NB55

FCC ID: 2BM3M-NB55 Internal Photos of the EUT BT/WIFI ANT FCC ID: 2BM3M-NB55 GSM/WCDMA /LTE MAIN ANT Diversity antenna FCC ID: 2BM3M-NB55 FCC ID: 2BM3M-NB55 NFC ANT FCC ID: 2BM3M-NB55 FCC ID: 2BM3M-NB55 FCC ID: 2BM3M-NB55

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China TEST REPORT Report Reference No. .................... : FCC ID. ......................................... : CTA24120501210 2BM3M-NB55 Compiled by ( position+printed name+signature) . : File administrators Xudong Zhang Supervised by ( position+printed name+signature) . : Project Engineer Zoey Cao Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Dec. 19, 2024 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ........................... : Shenzhen Tongliang Intelligent Technology Co.,Ltd Address ............................................ : Unit 5 C 702A B Skyworth Innovation Valley, Shiyan Street Baoan District Shenzhen, China Test specification .......................... : Standard .......................................... : FCC 47CFR §2.1093; ANSI/IEEE C95.1-2019; IEEE 1528-2013; KDB 941225 D01; KDB 941225 D05; KDB 941225 D06; KDB 248227 D01; KDB 648474 D04; KDB 447498 D01; KDB 865664 D01; KDB 865664 D02; KDB 690783 D01 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Handheld POS Trade Mark....................................... : N/A Manufacturer .................................... : Shenzhen Tongliang Intelligent Technology Co.,Ltd Model/Type reference ...................... : NB55 Listed Models ................................. : Refer to page 2 Rating .............................................. : DC 7.6V From battery and DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA24120501210 Page 2 of 105 T E S T R E P O R T Equipment under Test : Handheld POS Model /Type : NB55 Listed Models : NB60, NB55Pro, NB60Pro, NB55Plus, NB55-S, NB55-S1, NB55-S2, NB55-S3, NB55-S4, NB55-S5, NB55-S6, NB55-S7, NB55-S8, NB55-S9, NB55-S10, NB55_L, NB57, NB36, NB80, NB80Pro, NB80R, NB116, NB55Max, NB10, NB11, NB11R, K32, K33, K35, K36, K37, K38, K39, N101, N102, N103, N105, N106, N107, N108, N109 NXXXXXX(X=1～9,A～Z or a~z),KXXXXXX(X=1～9, A～Z or a~z), TXXXXXX(X=1～9, A～Z or a~z), FXXXXXX(X=1～9, A～Z or a~z), PXXXXXX(X=1～9, A～Z or a~z), BXXXXXX(X=1～9, A～Z or a~z) Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number is different for these model. Applicant : Shenzhen Tongliang Intelligent Technology Co.,Ltd Address : Unit 5 C 702A B Skyworth Innovation Valley, Shiyan Street Baoan District Shenzhen, China Manufacturer : Shenzhen Tongliang Intelligent Technology Co.,Ltd Address : Unit 5 C 702A B Skyworth Innovation Valley, Shiyan Street Baoan District Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA24120501210 Page 3 of 105 ※ ※ Revision History ※ ※ REV. ISSUED DATE DESCRIPTION Rev.1.0 Dec. 19, 2024 Initial Test Report Release Report No.: CTA24120501210 Page 4 of 105 Contents 1 Statement of Compliance ............................................................................................... 6 2 General Information ........................................................................................................ 7 General Remarks ............................................................................................................................................. 7 Description of Equipment Under Test (EUT) ..................................................................................................... 7 Device Category and SAR Limits ................................................................................................................... 10 Applied Standard ............................................................................................................................................ 10 Test Facility ...................................................................................................................................................... 11 Environment of Test Site ................................................................................................................................. 12 Test Configuration ........................................................................................................................................... 12 3 Specific Absorption Rate (SAR) ................................................................................... 13 Introduction ..................................................................................................................................................... 13 SAR Definition ................................................................................................................................................ 13 4 SAR Measurement System .......................................................................................... 14 E-Field Probe .................................................................................................................................................. 14 Data Acquisition Electronics (DAE) ..............................................................…

Text truncated - open the document above for the full version.

Report No.: CTA24120501210 Page 93 of 105 Report No.: CTA24120501210 Page 94 of 105 Report No.: CTA24120501210 Page 95 of 105 Report No.: CTA24120501210 Page 96 of 105 Report No.: CTA24120501210 Page 97 of 105 Report No.: CTA24120501210 Page 98 of 105 Report No.: CTA24120501210 Page 99 of 105 Report No.: CTA24120501210 Page 100 of 105 Report No.: CTA24120501210 Page 101 of 105 Report No.: CTA24120501210 Page 102 of 105 Report No.: CTA24120501210 Page 103 of 105 Report No.: CTA24120501210 Page 104 of 105 Report No.: CTA24120501210 Page 105 of 105 Referring to KDB 865664D01V01r03, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration) and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. D835V2, SN.484 835 Head Date of. Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) 2023-08-25 -31.2 49.8 2024-08-24 -31.25 0.16 49.6 -0.2 D1900V2, SN. 5d002 1900 Head Date of. Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) 2023-08-25 -35.7 50.6 2024-08-24 -35.64 -0.17 50.3 -0.3 D2450V2, SN. 745 2450 Head Date of. Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) 2023-08-28 -23.7 54.2 2024-08-27 -23.68 -0.08 54.1 -0.1 D2600V2, SN. 1073 2600 Head Date of. Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) 2023-02-17 -23.7 48.6 2024-02-16 -23.73 0.13 48.7 0.1 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. *****END OF REPORT*****

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID. ............................................ : CTA24120501206 2BM3M-NB55 Compiled by ( position+printed name+signature) .. : File administrators Xudong Zhang Supervised by ( position+printed name+signature) .. : Project Engineer Zoey Cao Approved by ( position+printed name+signature) .. : RF Manager Eric Wang Date of issue ..................................... : Dec. 19, 2024 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : Shenzhen Tongliang Intelligent Technology Co.,Ltd Address ............................................ : Unit 5 C 702A B Skyworth Innovation Valley, Shiyan Street Baoan District Shenzhen, China Test specification ...........................: Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description...................: Handheld POS Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Tongliang Intelligent Technology Co.,Ltd Model/Type reference....................... : NB55 Listed Models .................................. : Refer to page 2 Modulation ....................................... : GFSK Frequency .......................................... From 2402MHz to 2480MHz Ratings ............................................. : DC 7.6V From battery and DC 5.0V From external circuit Result................................................ : PASS Report No.: CTA24120501206 Page 2 of 31 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Handheld POS Model /Type : NB55 Listed Models : NB60, NB55Pro, NB60Pro, NB55Plus, NB55-S, NB55-S1, NB55-S2, NB55-S3, NB55-S4, NB55-S5, NB55-S6, NB55-S7, NB55-S8, NB55-S9, NB55-S10, NB55_L, NB57, NB36, NB80, NB80Pro, NB80R, NB116, NB55Max, NB10, NB11, NB11R, K32, K33, K35, K36, K37, K38, K39, N101, N102, N103, N105, N106, N107, N108, N109 NXXXXXX(X=1～9,A～Z or a~z),KXXXXXX(X=1～9, A～Z or a~z), TXXXXXX(X=1～9, A～Z or a~z), FXXXXXX(X=1～9, A～Z or a~z), PXXXXXX(X=1～9, A～Z or a~z), BXXXXXX(X=1～9, A～Z or a~z) Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number is different for these model. Applicant : Shenzhen Tongliang Intelligent Technology Co.,Ltd Address : Unit 5 C 702A B Skyworth Innovation Valley, Shiyan Street Baoan District Shenzhen, China Manufacturer : Shenzhen Tongliang Intelligent Technology Co.,Ltd Address : Unit 5 C 702A B Skyworth Innovation Valley, Shiyan Street Baoan District Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA24120501206 Page 3 of 31 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M ARY ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description* 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT configuration 5 2.6 EUT operation mode 6 2.7 Block Diagram of Test Setup 6 2.8 Related Submittal(s) / Grant (s) 6 2.9 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 10 4.1 AC Power Conducted Emission 10 4.2 Radiated Emissions and Band Edge 13 4.3 Maximum Peak Output Power 20 4.4 Power Spectral Density 21 4.5 6dB Bandwidth 23 4.6 Out-of-band Emissions 25 4.7 Antenna Requirement 29 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 30 6 E X T E R N A L A N D I N T E R N A L P H O T O S O F T H E E U T ...................... 31 Report No.: CTA24120501206 Page 4 of 31 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A ND A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Fre…

Text truncated - open the document above for the full version.

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID............................................. : CTA24120501208 2BM3M-NB55 Compiled by ( position+printed name+signature) . : File administrators Xudong Zhang Supervised by ( position+printed name+signature) . : Project Engineer Zoey Cao Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Dec. 19, 2024 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Shenzhen Tongliang Intelligent Technology Co.,Ltd Address ............................................ : Unit 5 C 702A B Skyworth Innovation Valley, Shiyan Street Baoan District Shenzhen, China Test specification ........................... : Standard ........................................... : FCC Part 15.247 TRF Originator .................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Handheld POS Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Tongliang Intelligent Technology Co.,Ltd Model/Type reference ...................... : NB55 Listed Models .................................. : Refer to page 2 Modulation Type ............................... : CCK/DSSS/OFDM Operation Frequency ........................ : From 2412 - 2462MHz Rating ............................................... : DC 7.6V From battery and DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA24120501208 Page 2 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Handheld POS Model /Type : NB55 Listed Models : NB60, NB55Pro, NB60Pro, NB55Plus, NB55-S, NB55-S1, NB55-S2, NB55-S3, NB55-S4, NB55-S5, NB55-S6, NB55-S7, NB55-S8, NB55-S9, NB55-S10, NB55_L, NB57, NB36, NB80, NB80Pro, NB80R, NB116, NB55Max, NB10, NB11, NB11R, K32, K33, K35, K36, K37, K38, K39, N101, N102, N103, N105, N106, N107, N108, N109 NXXXXXX(X=1～9,A～Z or a~z),KXXXXXX(X=1～9, A～Z or a~z), TXXXXXX(X=1～9, A～Z or a~z), FXXXXXX(X=1～9, A～Z or a~z), PXXXXXX(X=1～9, A～Z or a~z), BXXXXXX(X=1～9, A～Z or a~z) Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number is different for these model. Applicant : Shenzhen Tongliang Intelligent Technology Co.,Ltd Address : Unit 5 C 702A B Skyworth Innovation Valley, Shiyan Street Baoan District Shenzhen, China Manufacturer : Shenzhen Tongliang Intelligent Technology Co.,Ltd Address : Unit 5 C 702A B Skyworth Innovation Valley, Shiyan Street Baoan District Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA24120501208 Page 3 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT configuration 6 2.6 EUT operation mode 6 2.7 Block Diagram of Test Setup 6 2.8 Related Submittal(s) / Grant (s) 6 2.9 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Test Description 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 11 4.1 AC Power Conducted Emission 11 4.2 Radiated Emission 14 4.3 Maximum Peak Conducted Output Power 20 4.4 Power Spectral Density 21 4.5 6dB Bandwidth 24 4.6 Out-of-band Emissions 27 4.7 Antenna Requirement 34 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 35 6 E X T E R N A L A N D I N T E R N A L P H O T O S O F T H E E U T ...................... 36 Report No.: CTA24120501208 Page 4 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests we…

Text truncated - open the document above for the full version.

Report No.: CTA24120501208 Page 29 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11b 802.11g Reference Reference CH011 CH01 30MHz-3GHz 30MHz-3GHz 1GHz -25GHz 1GHz -25GHz Report No.: CTA24120501208 Page 30 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11g Reference Reference CH06 CH11 30MHz-3GHz 30MHz-3GHz 1GHz -25GHz 1GHz -25GHz Report No.: CTA24120501208 Page 31 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n20 Reference Reference CH01 CH06 30MHz-3GHz 30MHz-3GHz 1GHz -25GHz 1GHz -25GHz Report No.: CTA24120501208 Page 32 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n20 Reference CH11 30MHz-3GHz 1GHz -25GHz Report No.: CTA24120501208 Page 33 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Band-edge Measurements for RF Conducted Emissions: 802.11b Left bandedge Right bandedge 802.11g Left bandedge Right bandedge 802.11n(HT20) Left bandedge Right bandedge Report No.: CTA24120501208 Page 34 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 4.7 Antenna Requirement Standard Applicable For intentional device, according to FCC 47 CFR Section 15.203: An intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. The use of a permanently attached antenna or of an antenna that uses a unique coupling to the intentional radiator, the manufacturer may design the unit so that a broken antenna can be replaced by the user, but the use of a standard antenna jack or electrical connector is prohibited FCC CFR Title 47 Part 15 Subpart C Section 15.247(c) (1) (I): (i) Systems operating in the 2400-2483.5 MHz band that is used exclusively for fixed. Point-to-point operations may employ transmitting antennas with directional gain greater than 6dBi provided the maximum conducted output power of the intentional radiator is reduced by 1 dB for every 3 dB that the directional gain of the antenna exceeds 6dBi. Test Result: The maximum gain of antenna was 2.23 dBi. Remark:The antenna gain is provided by the customer , if the data provided by the customer is not accurate, Shenzhen CTA Testing Technology Co., Ltd. does not assume any responsibility. Report No.: CTA24120501208 Page 35 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 5 T e s t S e t u p P h o t o s o f t h e E U T Report No.: CTA24120501208 Page 36 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 6 E x t e r n a l a n d I n t e r n a l P h o t o s o f t h e E U T Reference t…

Text truncated - open the document above for the full version.
