2BME9-BT60Bluetooth Speaker

Dongguan Pinzhishang Electronic Technology Co., Ltd Room 402,Building 2,No. 356 Dalingshan Section, Houda Road,Dalingshan Town,Dongguan City,Guangdong Province China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-11-27 To whom it may concern: We, Dongguan Pinzhishang Electronic Technology Co., Ltd, hereby certify that the equipment for which authorization is sought (FCC ID: 2BME9-BT60) is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist) as an entity producing “covered” equipment. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Sincerely, Signature Xiansheng Jin Manager Dongguan Pinzhishang Electronic Technology Co., Ltd 62_[model] CoveredEqu_2.911(d)(5)(i) and (ii) - U, V03

Dongguan Pinzhishang Electronic Technology Co., Ltd Add: Room 402,Building 2,No. 356 Dalingshan Section, Houda Road,Dalingshan Town,Dongguan City,Guangdong Province China Date: 2024-11-27 FCC ID: 2BME9-BT60 Dear Sir/Madam, We, Dongguan Pinzhishang Electronic Technology Co., Ltd Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: Bluetooth Speaker Model no.: BT60, BT62, BT91, BT27, S62, S86, Y08 Sincerely, Name/Title： Xiansheng Jin/Manager Company: Dongguan Pinzhishang Electronic Technology Co., Ltd Address: Room 402,Building 2,No. 356 Dalingshan Section, Houda Road,Dalingshan Town,Dongguan City,Guangdong Province China Phone: 13424388340 Fax: N/A E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2024-11-27> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2BME9-BT60 BT60 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Xiansheng Jin/Manager Company: Dongguan Pinzhishang Electronic Technology Co., Ltd Address: Room 402,Building 2,No. 356 Dalingshan Section, Houda Road,Dalingshan Town,Dongguan City,Guangdong Province China Phone: 13424388340 Fax: N/A E-Mail: [email protected]

Dongguan Pinzhishang Electronic Technology Co., Ltd Room 402,Building 2,No. 356 Dalingshan Section, Houda Road,Dalingshan Town,Dongguan City,Guangdong Province China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-11-27 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2BME9-BT60 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Xiansheng Jin/Manager Company: Dongguan Pinzhishang Electronic Technology Co., Ltd Address: Room 402,Building 2,No. 356 Dalingshan Section, Houda Road,Dalingshan Town,Dongguan City,Guangdong Province China Phone: 13424388340 Fax: N/A E-Mail: [email protected]

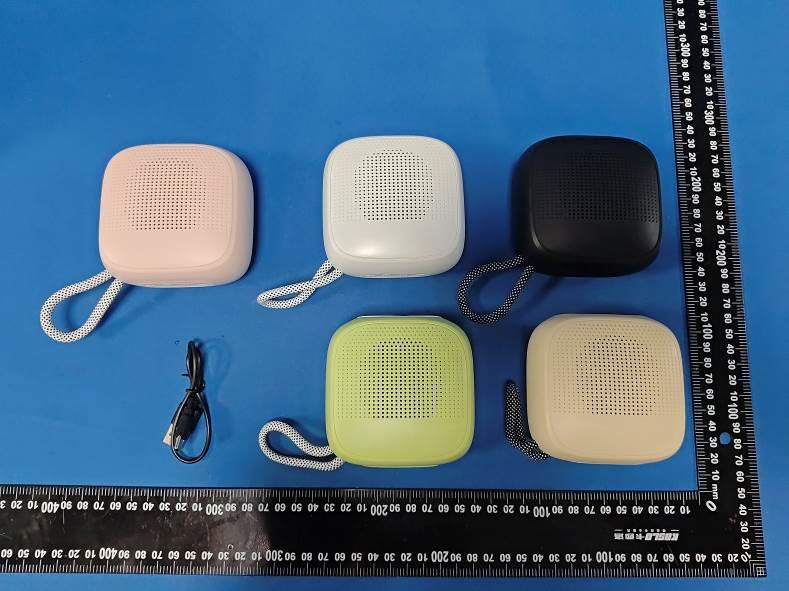

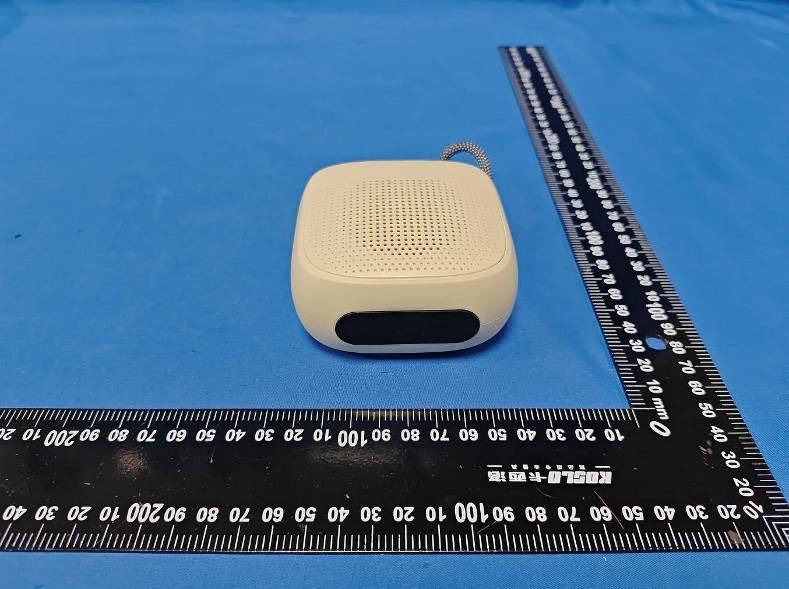

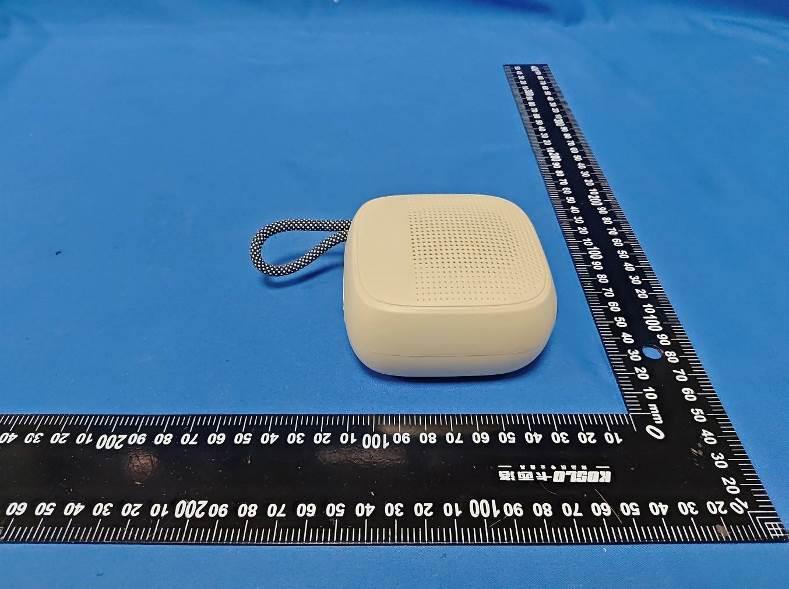

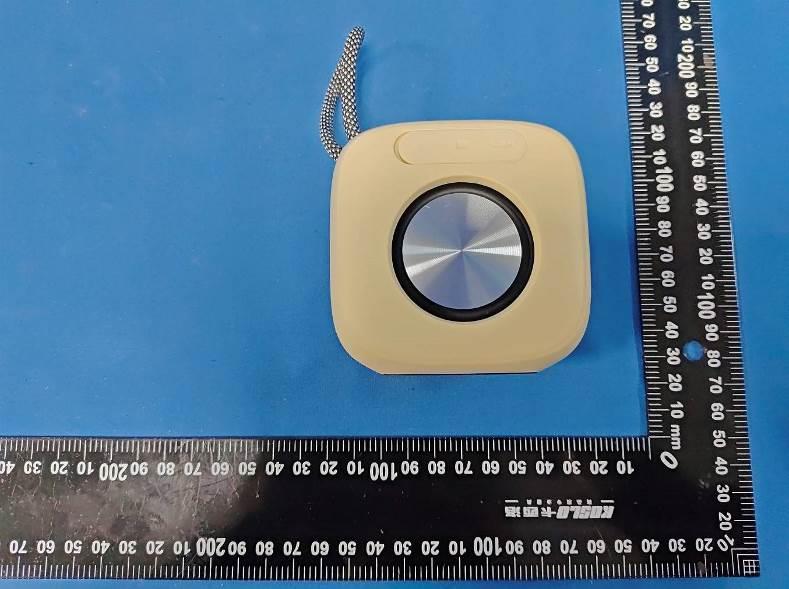

FCC ID: 2BME9-BT60 External Photos of the EUT FCC ID: 2BME9-BT60 FCC ID: 2BME9-BT60

Label and Location Size: L: 3.0cm*W: 2.0cm Label and Location FCC ID : 2BME9-BT60

FCC ID: 2BME9-BT60 Internal Photos of the EUT FCC ID: 2BME9-BT60 ANT FCC ID: 2BME9-BT60

RF Exposure evaluation FCC ID: 2BME9-BT60 1.1. Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.2. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 1.3. Manufacturing tolerance GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -2.0 -2.0 -2.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -1.0 -1.0 -1.0 Tolerance ±(dB) 1.0 1.0 1.0 Page 2 of 2 2. E v a l u a t i o n R e s u l t Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW BT 2.450 5 0.0 1.00 0.3130<3.0 Yes 3. C o n c l u s i o n The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06 .....................End of Report.........................

2.4G-2.48G频段板载PIFA天线测试报告 SPECIFICATIONS Frequency（MHz） 2400-2480 Peak Gain（dBi） 2.499 Average Gain（dBi） ＞-4 VSWR ＜3.2 Impedance（Ω） 50Ω Antenna Type Plannar Inverted F Antenna on board Polarization Linear 测试环境：中科国技暗室测试系统 Z X Y 天线实物及物理尺寸 天线无源S参数： 驻波比（VSWR）、回波损耗（Return Loss）及史密斯圆图 天线效率及增益 Frequency（MHz） Gain（dBi） Effciency（%） AverageGain（dBi） Efficiency（dB） 2400 1.433 59.329% -2.717 -2.267 2410 0.927 51.861% -3.416 -2.852 2420 0.829 52.112% -3.166 -2.831 2430 0.881 49.299% -3.258 -3.072 2440 1.192 50.672% -3.144 -2.952 2450 1.688 53.067% -2.735 -2.752 2460 2.194 59.423% -2.276 -2.260 2470 2.118 56.680% -2.438 -2.466 2480 2.499 61.727% -2.112 -2.095 Average 1.529 54.908% -2.806 -2.616 Peak 2.499 61.727% -2.112 -2.095 天线2440MHz 2D-Theta Pattern 天线2440MHz 2D-Phi Pattern 天线2440MHz 3D-Horizontal Pattern 天线2440MHz 3D-Vertical Pattern 2440MHz 3D-Total Pattern

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID............................................. : CTA24111902001 2BME9-BT60 Compiled by ( position+printed name+signature) . : File administrators Xudong Zhang Supervised by ( position+printed name+signature) . : Project Engineer Zoey Cao Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Nov. 22, 2024 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : Dongguan Pinzhishang Electronic Technology Co., Ltd Address ............................................ : Room 402, Building 2, No. 356 Dalingshan Section, Houda Road, Dalingshan Town, Dongguan City, Guangdong Province, China Test specification ........................... : Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Bluetooth Speaker Trade Mark ....................................... : N/A Manufacturer .................................... : Dongguan Pinzhishang Electronic Technology Co., Ltd Model/Type reference ...................... : BT60 Listed Models .................................. : BT62, BT91, BT27, S62, S86, Y08 Modulation ....................................... : GFSK, Π/4DQPSK Frequency ......................................... From 2402MHz to 2480MHz Rating ............................................... : DC 3.7V From battery and DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA24111902001 Page 2 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Bluetooth Speaker Model /Type : BT60 Listed Models : BT62, BT91, BT27, S62, S86, Y08 Applicant : Dongguan Pinzhishang Electronic Technology Co., Ltd Address : Room 402, Building 2, No. 356 Dalingshan Section, Houda Road, Dalingshan Town, Dongguan City, Guangdong Province, China Manufacturer : Dongguan Pinzhishang Electronic Technology Co., Ltd Address : Room 402, Building 2, No. 356 Dalingshan Section, Houda Road, Dalingshan Town, Dongguan City, Guangdong Province, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA24111902001 Page 3 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 11 4.1 AC Power Conducted Emission 11 4.2 Radiated Emission 14 4.3 Maximum Peak Output Power 20 4.4 20dB Bandwidth 21 4.5 Frequency Separation 24 4.6 Number of hopping frequency 26 4.7 Time of Occupancy (Dwell Time) 28 4.8 Out-of-band Emissions 31 4.9 Pseudorandom Frequency Hopping Sequence 37 4.10 Antenna Requirement 38 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 39 6 P H O T O S O F T H E E U T ........................................................... 40 Report No.: CTA24111902001 Page 4 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices Report No.: CTA24111902001 Page 5 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Ind…
